Pocket - wiki

An mini application with React and Redux

Frances Ng, June 2016

Installation

git clone https://github.com/franxyzxyz/mediawiki-with-react-redux.git
cd mediawiki-with-react-redux
npm install
npm start

Stacks/Tech
Structure + Dataflow
Challenges
Future Improvement

Stacks/Tech

• webpack
• webpack-dev-server
• react-hot-loader
• babel

Build-tools (development)

Libraries/Other Technologies

• React
• Redux
• lodash
• jQuery

Standards

• ES2015

• SASS
• Node.js
• Express

App Structure

.
├── app.js
├── node_modules
├── package.json
├── src
    ├── app
        ├── actions
        ├── components
        ├── containers
        ├── fonts
        ├── index.jsx
        ├── reducers
        ├── styles
        └── utilities
    └── build
        ├── assets
        ├── bundle.js
        └── index.html
└── webpack.config.js

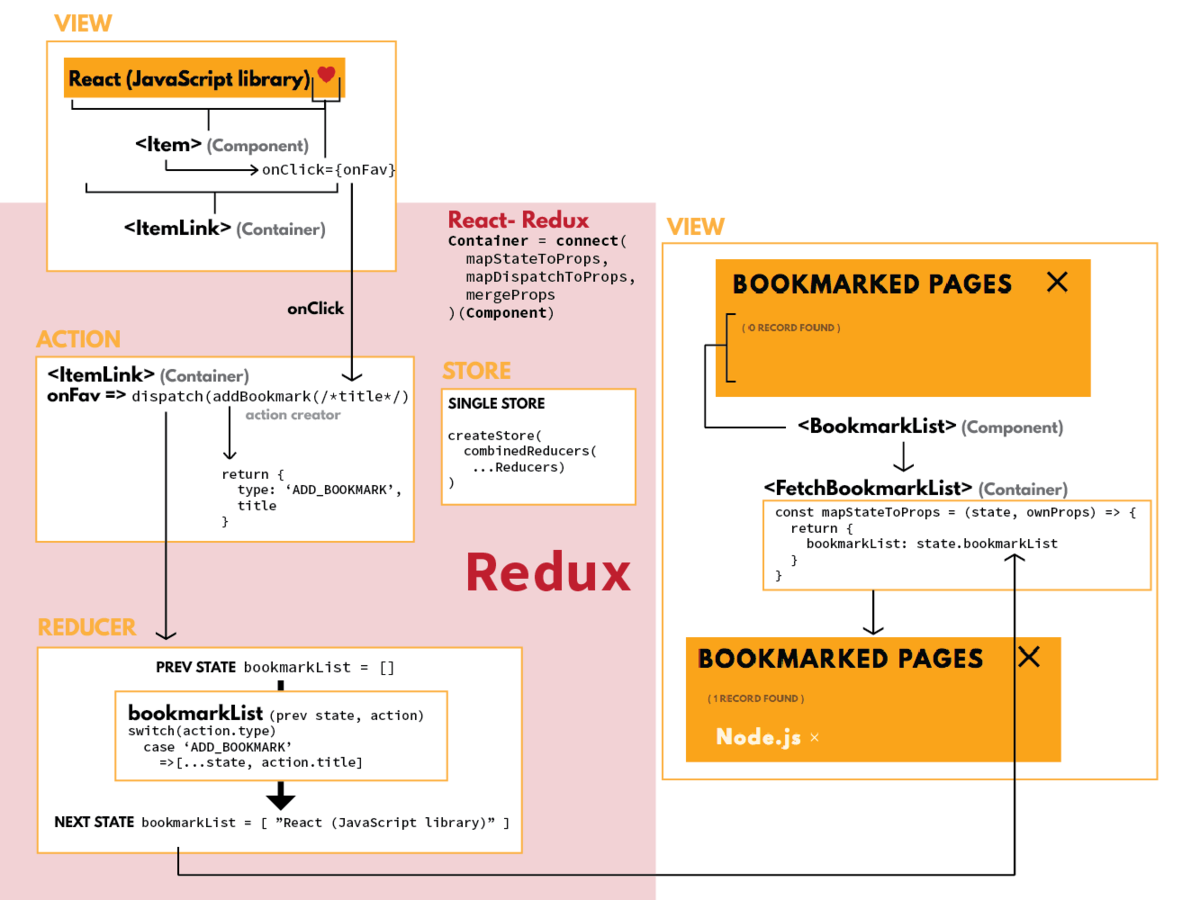

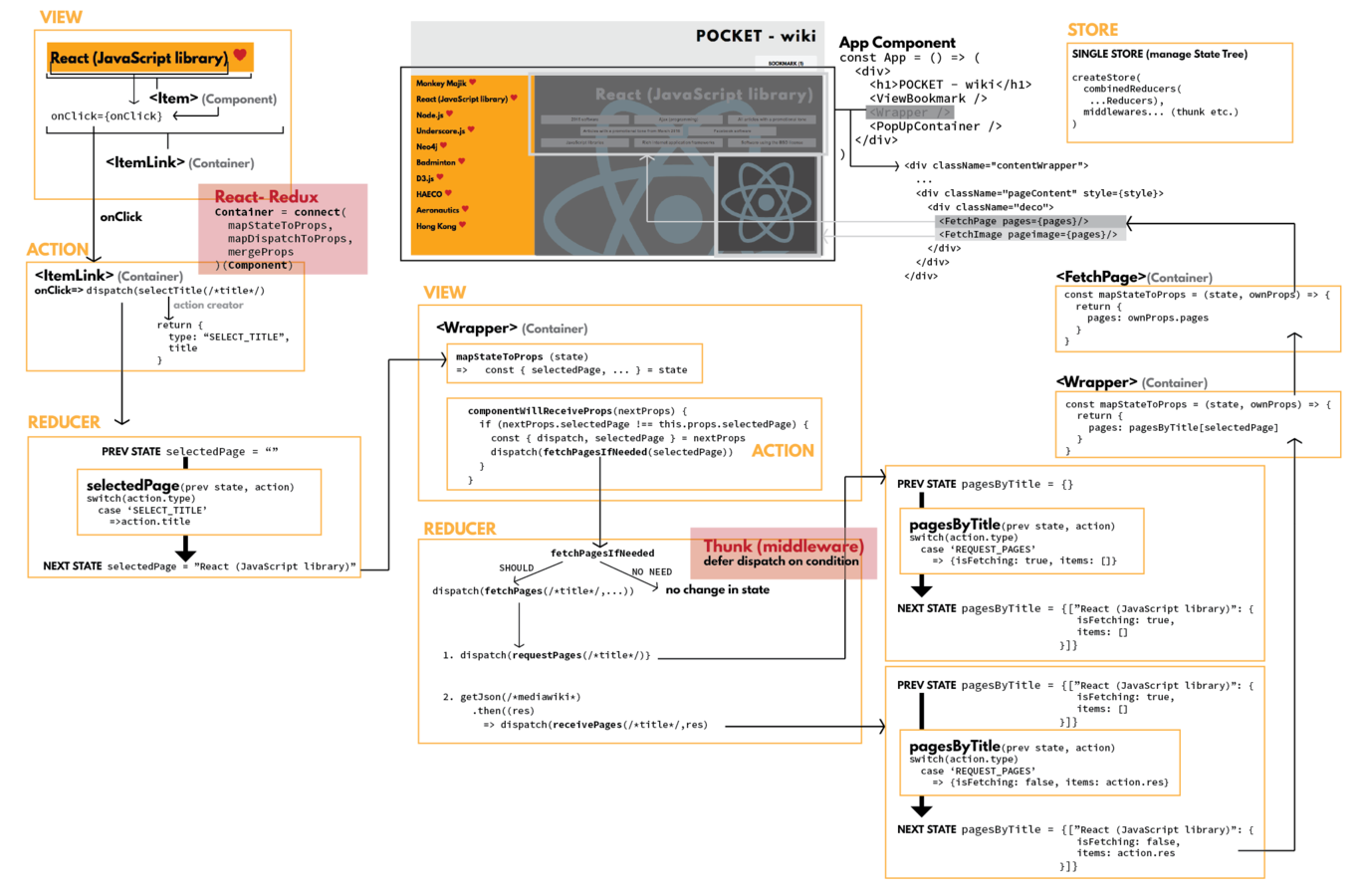

Dataflow

The application follows:

Action

Reducer

View

Container

Presentational

Action

dispatch

dispatch

[update state]

connect()

Adding new bookmark

Fetching page content

Challenges

A. React/Redux concept

Rooted from a background as an Angular 1.x Developer, the React/Redux combination was completely off $scope at first, as of one-way binding.

However, the dataflow with this combo was more obvious with the present of a giant 'state tree' in the single store. They in fact share some similarities in concepts ​despite the huge base-line differences in doing the same thing:
eg. Angular: $rootScope.$broadcast('hello') for manually
              broadcasting changes for cross-controller communication
    Redux:   dispatch(hello()) => state is changed

B. MediaWiki API

The problem with CORS persisted using 'isomorphic-fetch', and cannot be solved with allowing cross-origin header or with params { mode: 'cors'} during the fetch. It was eventually solved by a hacky way on requesting JSONP instead.

Improvement

• Look deeper in setting request headers preflight with react/redux

• Integration with A-Frame for a web-VR view as in this example

• Fetch pages on request of a search box

• Make it into a cross-platform url-fetching app so that it is not limited to mediawiki

• More user interactions via router

Summary

• Finally get my head around in the dataflow, components, state tree etc. in React/Redux!
