Introduction to Traefik on Docker Swarm

Asmir Mustafic

PHP User Group Berlin - September 2019

Reverse Proxy

Me

@goetas

Twitter: @goetas_asmir
Github: @goetas
LinkedIn: @goetas
WWW: goetas.com

Asmir Mustafic

Berlin

Community

jms/serializer (maintainer)
masterminds/html5 (maintainer)
hautelook/templated-uri-bundle (maintainer)
goetas-webservices/xsd2php (author)
goetas-webservices/xsd-reader (author)
goetas-webservices/soap-client (author)
goetas/twital (author)

PHP-FIG secretary

Reverse Proxy or Proxy

proxy

reverse proxy

users

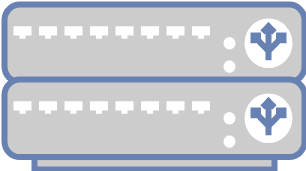

server

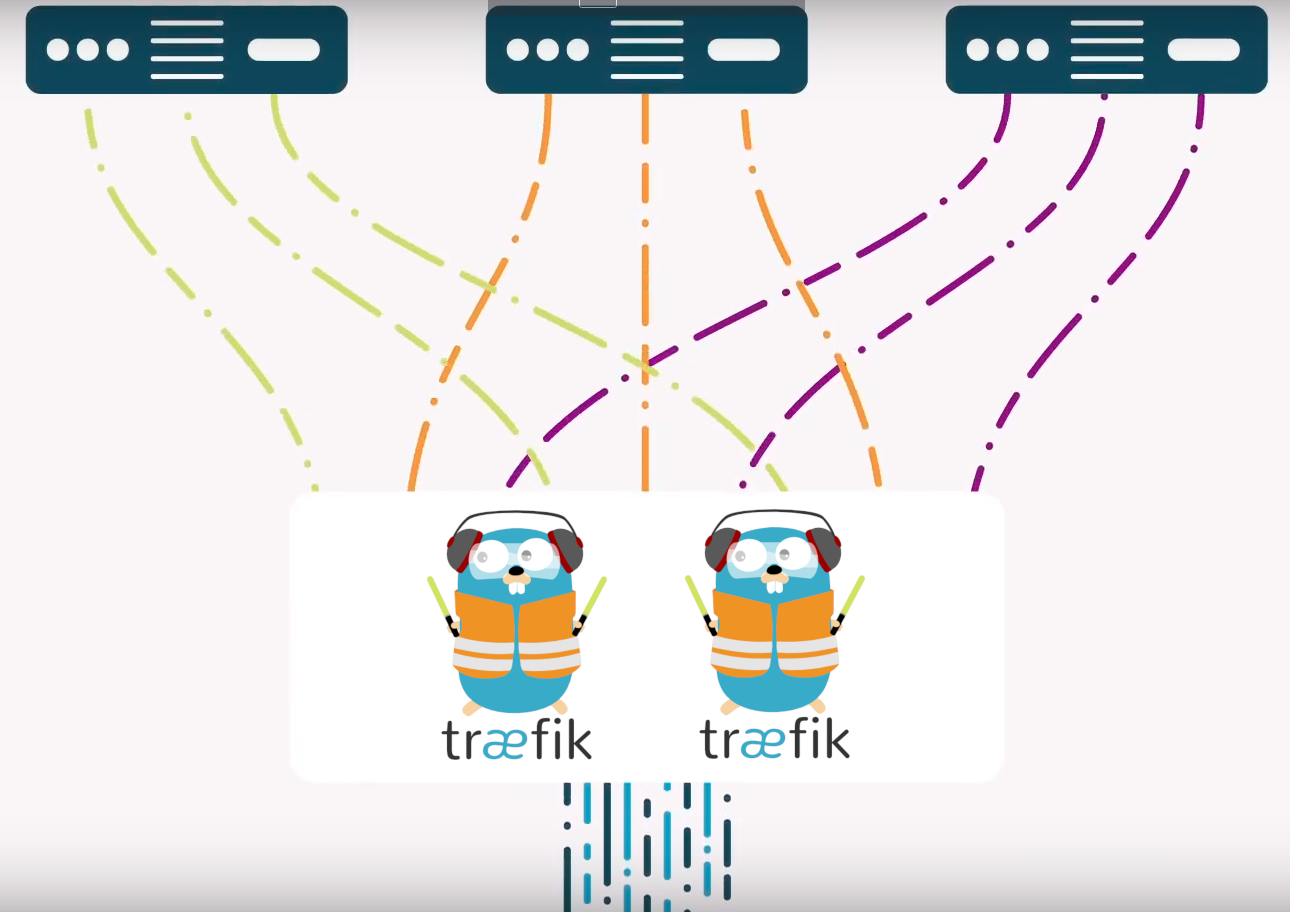

Load balancing

HTTPS

https

http

Merge URL Spaces

sport.host.com/top-10

politic.host.com/germany

host.com/politic/germany

host.com/sport/top-10

Compression

gzip

plain

Cache

cache

Serve static content

index.php


Logging

Authentication

Rate limiting

Security

Projects

HA Proxy

load balancing	✔
logging	✔
https/ssl/http2	✘
static content	✘
merge url space	✘
cache	✘
compression	✘

TCP level

FAST! FAST! FAST! FAST! FAST! FAST!

Varnish

load balancing	✔
logging	✔
https/ssl/http2	✘
static content	✘
merge url space	✔
cache	✔
compression	✔

CACHE! CACHE! CACHE! CACHE! CACHE!

HTTP level

nginx

load balancing	✔
logging	✘ ?
https/ssl/http2	✔
static content	✔
merge url space	✔
cache	✔
compression	✔

$ 670 million acquisition!

HTTP level

Static Configurations

Change configs and reload configs

Dynamic Environment

Traefik

MIT License

containo.us

Cloud Native Edge Router

HTTP(s) protocol

Traefik

DYNAMIC CONFIGURATIONS!

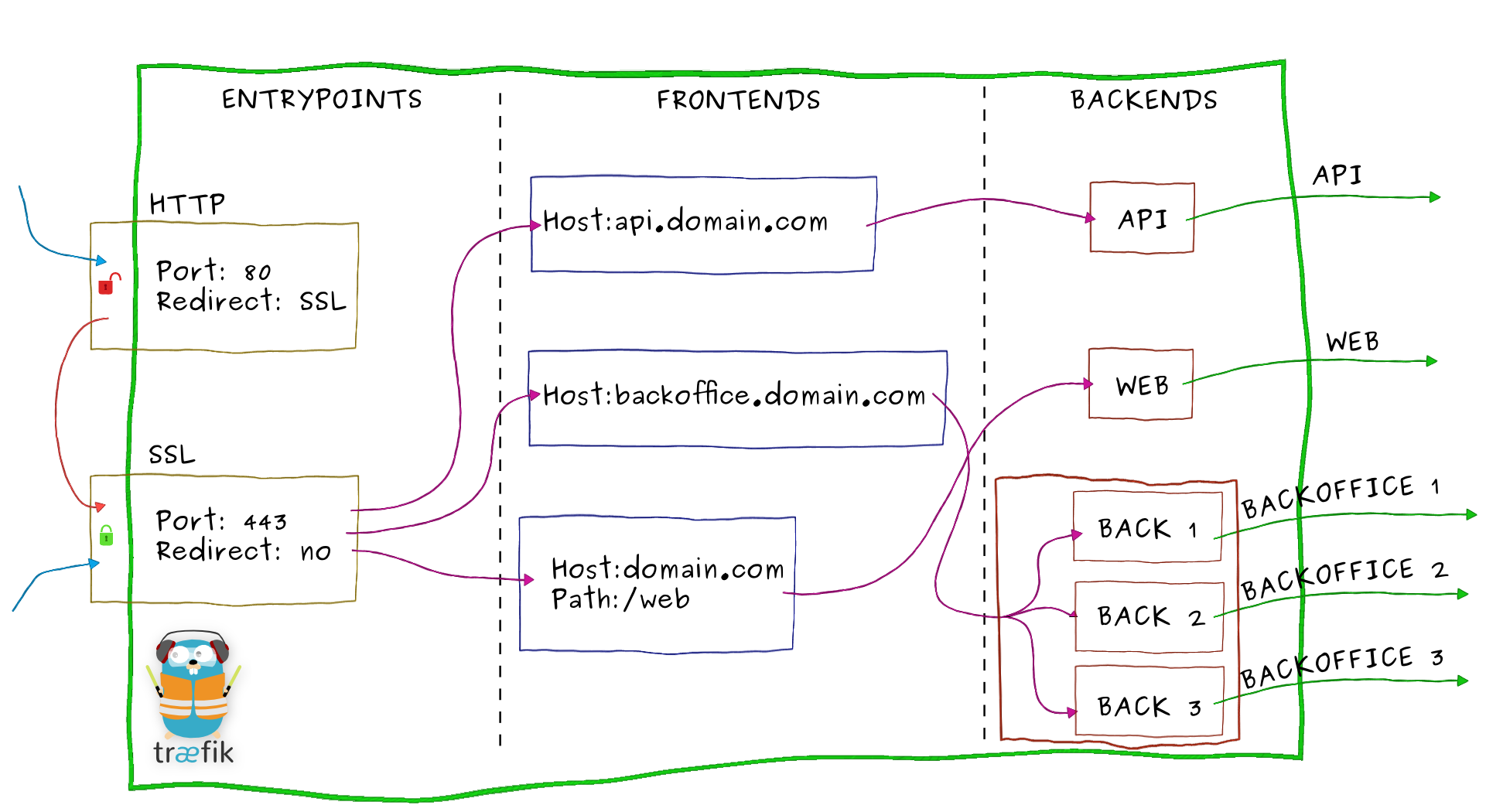

Architecture

Configuration

# Entry Points
[entryPoints]
  [entryPoints.http]
    address = ":80"


# Frontends
[frontends]

  [frontends.frontend1]
    entryPoints = ["http"]
    backend = "backend1"

# Backends
[backends]

  [backends.backend1]

    [backends.backend1.servers]
      [backends.backend1.servers.server0]
        url = "http://10.10.10.1:80"

TOML file

Traefik

version: '3.4'
services:
  reverse-proxy:
    image: traefik:1.7-alpine
    command: "-c /conf.toml"
    volumes:
      - "./conf.toml:/conf.toml"
    ports:
      - "80:80"
      - "443:443"
      # - "8080:8080"

$ docker-compose up -d

SSL/HTTPS

HTTP2

AUTH

Rate Limiting

Custom Errors

Load balance RR, WRR

Circuit breakers

Health Checks

Sticky Sessions

Custom Headers

HA Cluster

Prometheus

OpenTracing

Let's Encrypt

Configuration Discovery

Docker / Swarm mode
Kubernetes
Mesos / Marathon
Rancher (API, Metadata)
Azure Service Fabric
Consul Catalog
Eureka
Amazon ECS
Amazon DynamoDB
Rest API

Configuration

# Enable Docker Provider.
[docker]

endpoint = "tcp://1.2.3.4:2377"

watch = true

swarmMode = true

exposedByDefault = false

Discovery

Docker Swarm TOML configs

Configuration

Discovery

version: '3.4'
services:
  web:
    image: nginx
    deploy:
      labels:
        - "traefik.enable=true"
        - "traefik.frontend.rule=Host:example.com"

Docker / Docker Swarm

Configuration

Discovery

version: '3.4'
services:
  web:
    image: nginx
    deploy:
      labels:
        - "traefik.enable=true"
        - "traefik.frontend.rule=Host:example.com"

        - "traefik.port=80"
        - "traefik.backend.healthcheck.path=/health"
        - "traefik.backend.loadbalancer.method=wrr"
        - "traefik.backend.loadbalancer.stickiness=true"
        - "..."

Docker / Docker Swarm

Configuration

Discovery

---
kind: Deployment
apiVersion: extensions/v1beta1
metadata:
  name: traefik-ingress-controller
  namespace: kube-system
  labels:
    k8s-app: traefik-ingress-lb
spec:
  replicas: 1
  selector:
    matchLabels:
      k8s-app: traefik-ingress-lb
  template:
    metadata:
      labels:
        k8s-app: traefik-ingress-lb
        name: traefik-ingress-lb
    spec:
      serviceAccountName: traefik-ingress-controller
      terminationGracePeriodSeconds: 60
      containers:
      - image: traefik
        name: traefik-ingress-lb
        ports:
        - name: http
          containerPort: 80
        - name: admin
          containerPort: 8080
        args:
        - --api
        - --kubernetes
        - --logLevel=INFO
---
kind: Service
apiVersion: v1
metadata:
  name: traefik-ingress-service
  namespace: kube-system
spec:
  selector:
    k8s-app: traefik-ingress-lb
  ports:
    - protocol: TCP
      port: 80
      name: web
    - protocol: TCP
      port: 8080
      name: admin
  type: NodePort
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
  name: traefik-ingress-controller
rules:
  - apiGroups:
      - ""
    resources:
      - services
      - endpoints
      - secrets
      - watch

Kubernetes

---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: traefik-ingress-controller
  namespace: kube-system
---
kind: Deployment
apiVersion: extensions/v1beta1
metadata:
  name: traefik-ingress-controller
  namespace: kube-system
  labels:
    k8s-app: traefik-ingress-lb
spec:
  replicas: 1
  selector:
    matchLabels:
      k8s-app: traefik-ingress-lb
  template:
    metadata:
      labels:
        k8s-app: traefik-ingress-lb
        name: traefik-ingress-lb
    spec:
      serviceAccountName: traefik-ingress-controller
      terminationGracePeriodSeconds: 60
      containers:
      - image: traefik
        name: traefik-ingress-lb
        ports:
        - name: http
          containerPort: 80
        - name: admin
          containerPort: 8080
        args:
        - --api
        - --kubernetes
        - --logLevel=INFO
---
kind: Service
apiVersion: v1
metadata:
  name: traefik-ingress-service
  namespace: kube-system
spec:
  selector:
    k8s-app: traefik-ingress-lb
  ports:
    - protocol: TCP
      port: 80
      name: web
    - protocol: TCP
      port: 8080
      name: admin
  type: NodePort

---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: traefik-ingress-controller
  namespace: kube-system
---
kind: DaemonSet
apiVersion: extensions/v1beta1
metadata:
  name: traefik-ingress-controller
  namespace: kube-system
  labels:
    k8s-app: traefik-ingress-lb
spec:
  template:
    metadata:
      labels:
        k8s-app: traefik-ingress-lb
        name: traefik-ingress-lb
    spec:
      serviceAccountName: traefik-ingress-controller
      terminationGracePeriodSeconds: 60
      containers:
      - image: traefik
        name: traefik-ingress-lb
        ports:
        - name: http
          containerPort: 80
          hostPort: 80
        - name: admin
          containerPort: 8080
        securityContext:
          capabilities:
            drop:
            - ALL
            add:
            - NET_BIND_SERVICE
        args:
        - --api
        - --kubernetes
        - --logLevel=INFO
---
kind: Service
apiVersion: v1
metadata:
  name: traefik-ingress-service
  namespace: kube-system
spec:
  selector:
    k8s-app: traefik-ingress-lb
  ports:
    - protocol: TCP
      port: 80
      name: web
    - protocol: TCP
      port: 8080
      name: admin

Cluster Mode

leader / worker

Cluster Storage

K/V Stores:

Consul
etcd
ZooKeeper

boltdb

Cluster

traefik 1

traefik 2

traefik 3

consul (k/v)

internet

backend

Complete Example

Docker-Swarm based

Traefik (1/2)

version: '3.4'
services:
  traefik-init:
    image: traefik:1.7-alpine
    command:
      - "storeconfig"

      - "--consul"
      - "--consul.endpoint=3.4.5.6:8500"
      - "--consul.watch"

      - "--defaultentrypoints=http,https"
      - "--entrypoints=Name:http Address::80 Redirect.EntryPoint:https"
      - "--entrypoints=Name:https Address::443 Compress:true"

      - "--docker.endpoint=tcp://1.2.3.4:2375"
      - "--docker.swarmMode"
      - "--docker.exposedByDefault=false"

    deploy:
      restart_policy:
        condition: none

Traefik (2/2)

version: '3.4'
services:
  reverse-proxy:
    image: traefik:1.7-alpine
    command:
     - "--consul"
     - "--consul.watch"
     - "--consul.endpoint=3.4.5.6:8500"

    ports:
      - target: 80
        published: 80
        mode: host

      - target: 443
        published: 443
        mode: host

      - target: 8080 # dashboard
        published: 8080
        mode: host
    deploy:
      replicas: 3

Thank you!

Twitter: @goetas_asmir
Github: @goetas
LinkedIn: @goetas
WWW: goetas.com
