Dynamic Programming

http://www.zhitongguigu.com/

What is Dynamic Programming?

A very powerful and general tool for solving certain optimization problems

http://www.zhitongguigu.com/

Dynamic Programming

VS Recursion

Both are using sub-problems to solve the main problem
Recursion is much more general
If it can be solved by dynamic programming, DP is much faster
Usually DP requires more space
SPACE VS TIME

http://www.zhitongguigu.com/

When we use DP?

It can be resolved by recursion and not tail recursion
Recursion is making some redundant computation
It has to have optimal sub-structures:
optimal solutions to the original problem contains optimal solutions to sub-problems

http://www.zhitongguigu.com/

When we use DP?

It can be resolved by recursion and not tail recursion
Recursion is making some redundant computation

http://www.zhitongguigu.com/

It means:

1. If it cannot be solved by recursion, do not bother finding DP.

2. not all the recursion can use DP to solve. E.G. merge sort

What is Tail Recursion

The recursion call happens at last
It can always be rewritten into a loop

http://www.zhitongguigu.com/

int A() {
    ...
    ...
    A;
}

int Factorial(int n) {
    if(n == 1) return 1;
    return n * Factorial(n-1);
}

int Factorial(int n) {
    int sum = 1;
    for(int i = 1; i <= n; i ++) {
        sum = sum * i;
    }
    return sum;
}

How to use DP?

Think about the recursion solution
Find sub problems that have been computed multiple times
See if the sub problems are optimal sub-structure
Try to memorize them to avoid the redundant computing

http://www.zhitongguigu.com/

Fibonacci Numbers

int Fabonacci(int n) {
    if(n == 0 || n == 1) return 1;
    return F(n-1) + F(n-2);
}

http://www.zhitongguigu.com/

F(6)

F(5)

F(4)

F(3)

F(2)

F(1)

F(0)

F(1)

F(0)

F(1)

F(0)

F(1)

F(0)

F(2)

F(1)

F(0)

F(2)

Need some space to avoid the computation

int Fabonacci(int n) {
    if(n <= 1) return 1;
    int[] result = new int[n + 1];
    result[0] = 1;
    result[1] = 1;
    for(int i = 2; i < n + 1; i ++) {
        result[i] = result[i-1] + result[i-2];
    }
    return result[n];
}

We use an Array to store the temp result

What is the optimal sub-structure?

http://www.zhitongguigu.com/

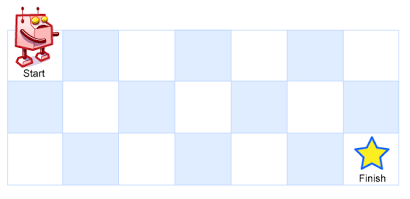

Unique Paths

http://www.zhitongguigu.com/

Unique Paths

http://www.zhitongguigu.com/

int uniquePaths(int m, int n) {
      if(m==1 || n==1) return 1;
      return uniquePaths(m-1, n) + uniquePaths(m, n-1);
}

Where is the redundancy?

What is the optimal sub-structure?

Unique Paths

http://www.zhitongguigu.com/

Optimal Sub-structure

a(i,j) = a(i-1,j) + a(i, j-1)

Unique Paths

http://www.zhitongguigu.com/

public int uniquePaths(int m, int n) {
    int[][] a = new int[m][n];
    for (int i = 0; i < m; i++) {
        a[i][0] = 1;
    }
    for (int i = 0; i < n; i++) {
        a[0][i] = 1;
    }
    for (int i = 1; i < m; i++) {
        for (int j = 1; j < n; j++) {
            a[i][j] = a[i-1][j] + a[i][j-1];
        }
    }
    return a[m-1][n-1];
}

Minimum Path Sum

http://www.zhitongguigu.com/

1	3	4	2
3	5	2	3
2	1	2	3
2	2	4	2

Best optimal sub-structure?

Minimum Path Sum

http://www.zhitongguigu.com/

1	3	4	2
3	5	2	3
2	1	2	3
2	2	4	2

PathSum(m,n) = MIN(PathSum(m,n-1),PathSum(m-1,n)) + matrix(m,n)

Minimum Path Sum

http://www.zhitongguigu.com/

public int minPathSum(int[][] grid) {
    if(grid == null || grid.length==0)
        return 0;
    int m = grid.length;
    int n = grid[0].length;
    int[][] dp = new int[m][n];
    dp[0][0] = grid[0][0];
    for(int i=1; i<n; i++){
        dp[0][i] = dp[0][i-1] + grid[0][i];
    }
    for(int j=1; j<m; j++){
        dp[j][0] = dp[j-1][0] + grid[j][0];
    }
    for(int i=1; i<m; i++){
        for(int j=1; j<n; j++){
            if(dp[i-1][j] > dp[i][j-1]){
                dp[i][j] = dp[i][j-1] + grid[i][j];
            }else{
                dp[i][j] = dp[i-1][j] + grid[i][j];
            }
        }
    }
    return dp[m-1][n-1];
}

Minimum Path Sum

http://www.zhitongguigu.com/

What is time complexity?

Can we do better?

What is space complexity?

Can we do better?

Any improvement?

Minimum Path Sum

http://www.zhitongguigu.com/

Any improvement?

We can use less space to get the same result without hurting time complexity

Minimum Path Sum II

http://www.zhitongguigu.com/

public static int minPathSum(int[][] grid) {
    if(grid == null || grid.length==0)
        return 0;
    int m = grid.length;
    int n = grid[0].length;
     int[] newline = new int[n];
     int[] oldline = new int[n];
     oldline[0] = grid[0][0];
     for(int i=1; i<n; i++){
    	 oldline[i] = oldline[i-1] + grid[0][i];
     }
     for(int i=1; i<m; i++){
    	 newline[0] = grid[i][0] + oldline[0];
         for(int j=1; j<n; j++){
             if(oldline[j] > newline[j-1]){
                 newline[j] = newline[j-1] + grid[i][j];
             }else{
                 newline[j] = oldline[j] + grid[i][j];
             }
         }
         oldline = newline;
     }
     return newline[n-1];
}

0-1 Knapsack

Given a knapsack which can hold w pounds of items, and a set of items with weight w1, w2, ... wn. Each item has its value s1,s2,...,sn. Try to select the items that could put in knapsack and contains most value.

What is the optimal sub-structure?

http://www.zhitongguigu.com/

0-1 Knapsack

http://www.zhitongguigu.com/

w[i][j]: for the previous total i items, the max value it can have for capacity j

Which two we need to use to compare?

w[i][j]: for the previous total i items, the max value it can have for capacity j

http://www.zhitongguigu.com/

When you iterate i, and j, you need to try:

If the new i could be added into j
if it could and added, could it be better

	1	2	3	4	5	6	7
0	0	0	0	0	0	0	0
1	3	3	3	3	3	3	3
2	3	3	8	11	11	11	11
3	3	3	8	11	11	11	12
4	3	3	8	11	11	11	12

w[i][j]: for the previous total i items, the max value it can have for capacity j

Example: weights{1,3,4,5} values{3,8,4,7}

http://www.zhitongguigu.com/

public int knapsack(int capacity, int[] weights, int[] values) {
	int length = weights.length;
	if (capacity == 0 || length == 0)
		return 0;
	int[][] w = new int[length + 1][capacity + 1];
	for (int i = 1; i <= length; i++) {
		int index = i - 1;
		for (int j = 1; j <= capacity; j++) {
			if (j < weights[index]) {
				w[i][j] = w[i - 1][j];
			} else if (w[i - 1][j - weights[index]] + values[index] > w[i - 1][j]) {
				w[i][j] = w[i - 1][j - weights[index]] + values[index];
			} else {
				w[i][j] = w[i - 1][j];
			}
		}
	}
	return w[length][capacity];
}

http://www.zhitongguigu.com/

Longest Increasing Subsequence

3, 1, 4, 5, 7, 6, 8, 2

1, 4, 5, 6, 8 (Or 1, 4, 5, 7, 8)

http://www.zhitongguigu.com/

Longest Increasing Subsequence

What is the optimal sub-structure?

http://www.zhitongguigu.com/

Longest Increasing Subsequence

http://www.zhitongguigu.com/

We store lis[i] for the LIS by i?

We store lis[i] for the LIS using sequence[i]

Longest Increasing Subsequence

public int longestIncreasingSubsequence(int[] nums) {
    if(nums.length == 0){
        return 0;
    }
    int[] lis = new int[nums.length];
    int max = 0;
    for (int i = 0; i < nums.length; i++){
        int localMax = 0;
        for (int j = 0; j < i; j++){
            if (lis[j] > localMax && nums[j] <= nums[i]){
                localMax = lis[j];
            }
        }
        lis[i] = localMax + 1;
        max = Math.max(max, lis[i]);
    }
    return max;
}

http://www.zhitongguigu.com/

What is the Time Complexity?

What is the Space Complexity?

Can we do better?

http://www.zhitongguigu.com/

Patient Sort

http://www.zhitongguigu.com/

1, 3, 5, 2, 8, 4, 7, 6, 0, 9, 10

1 -> 0

1,3 -> 1,2

1,3,5 -> 1,3,4

1,3,5,8 -> 1,3,5,7 -> 1,3,5,6

1,3,5,6,9

1,3,5,6,9,10

public int longestIncreasingSubsequence(int[] nums) {
    if(nums.length == 0){
        return 0;
    }
    int len = 0;
    int[] tails = new int[nums.length];
    tails[0] = nums[0];
    for(int i = 1; i < nums.length; i++){
        if(nums[i] < tails[0]){
            tails[0] = nums[i];
        } else if (nums[i] >= tails[len]){
            tails[++len] = nums[i];
        } else {
            tails[binarySearch(tails, 0, len, nums[i])] = nums[i];
        }
    }
    return len + 1;
}
private int binarySearch(int[] tails, int min, int max, int target){
    while(min < max){
        int mid = min + (max - min) / 2;
        if(tails[mid] == target){
            return mid;
        }
        else if(tails[mid] < target){
            min = mid + 1;
        }
        else max = mid;
    }
    return min;
}

http://www.zhitongguigu.com/

Longest Common Sequence

http://www.zhitongguigu.com/

Longest Common Sequence

http://www.zhitongguigu.com/

Example: abcfbc abfcab

return 4 (abcb)

Longest Common Sequence

http://www.zhitongguigu.com/

Example: abcfbc abfcab

return 4 (abcb)

Longest Common Sequence

What is the optimal sub-structure?

maxCommon(i,j): longest common string for String A(0,i) and String B(0,j)

We finally need to get maxCommon(stringA.length, stringB.length)

http://www.zhitongguigu.com/

Longest Common Sequence

http://www.zhitongguigu.com/

What is the relationship between maxCommon(i,j) and maxCommon(i-1,j-1)?

If(A[i-1] = B[j-1]) ?

If(A[i-1] != B[j-1])?

Longest Common Sequence

http://www.zhitongguigu.com/

What is the relationship between maxCommon(i,j) and maxCommon(i-1,j-1)?

If(A[i-1] = B[j-1]) ?

If(A[i-1] != B[j-1])?

maxCommon(i,j) = maxCommon(i-1,j-1) + 1

maxCommon(i,j) = max(maxCommon(i-1,j), maxCommon(i,j-1))

Longest Common Sequence

http://www.zhitongguigu.com/

public static int longestCommonString(String a, String b) {
	int m = a.length();
	int n = b.length();
	int[][] maxCommon = new int[m+1][n+1];
	for(int i = 0; i <= m; i ++) {
		maxCommon[i][0] = 0;
	}
	for(int j = 0; j <= n; j ++) {
		maxCommon[0][j] = 0;
	}
	for(int i = 1; i <= m; i ++) {
		for(int j = 1; j <= n; j ++) {
		  if(a.charAt(i-1) == b.charAt(j-1)) {
		    maxCommon[i][j] = maxCommon[i-1][j-1] + 1;
		  }
		  else {
		    maxCommon[i][j] = Math.max(maxCommon[i][j-1], maxCommon[i-1][j]);
		  }
		}
	}
	return maxCommon[m][n];
}

Matrix Multiplication

http://www.zhitongguigu.com/

Matrix A m*n

Matrix B n*p

C = A * B will need m*n*p times multiplication

A 100 * 10, B 10 * 100, C 100 * 5

D = A * B * C

If we do (AB)C, need 100*10*100 + 100*100*5 = 150000 times

If we do A(BC), need 100*10*5 + 10*100*5 = 10000 times

Matrix Multiplication

http://www.zhitongguigu.com/

Give A0,A1,.....,An-1 n different matrixs

Find minimum of multiplication it needs to get the result

input: An array P with n+1 numbers

A0 = p0*p1, An-1 = Pn-1*Pn

Matrix Multiplication

http://www.zhitongguigu.com/

What is the optimal sub-structure?

For the result A1*...*An, if we split from Ak

It becomes (A1*...Ak)(Ak+1*...An)

T(1,n) = T(1,k) + T(k+1,n) + p0*pk*pn

So if T(1,n) is the best, T(1,k) and T(k+1,n) must be the best

Matrix Multiplication

http://www.zhitongguigu.com/

So how do we get the T(1,k)?

We need to start from the chain with length 1 to finally get to length n

public static int MatrixChain(int[] p)
{
    int n = p.length;
    n --;
    int[][] m = new int[n][n];
    for(int i = 0; i < n; i++)
        m[i][i] = 0;
    for(int r = 2; r <= n; r++)
    {
        for(int i = 0; i < n - r + 1; i ++)
        {
            int j = i + r - 1;
            m[i][j] = m[i + 1][j]  + p[i] * p[i+1] * p[j + 1];
            for(int k = i + 1; k < j; k++)
            {
                int t = m[i][k] + m[k + 1][j] + p[i] * p[k+1] * p[j+1];
                if( t < m[i][j])
                    m[i][j] = t;
            }
        }
    }
    return m[0][n-1];
}

http://www.zhitongguigu.com/

Edit Distance

http://www.zhitongguigu.com/

Replace: abc -> abd

Remove: abc -> ab

Add: abc -> abcd

How many steps you need from String A to B?

e.g. abca -> eeba 3 steps

abcdf -> eecf 3 steps

Edit Distance

http://www.zhitongguigu.com/

What is the optimal sub-structure?

what is the connection between EDIT[i,j]

and EDIT[i-1,j], EDIT[i,j-1] and EDIT[i-1,j-1]?

Edit Distance

http://www.zhitongguigu.com/

what is the connection between EDIT[i,j]

and EDIT[i-1,j], EDIT[i,j-1] and EDIT[i-1,j-1]?

if(A[i-1]!=B[j-1])?

if(A[i-1]=B[j-1])?

http://www.zhitongguigu.com/

public static int editDistance(String a, String b) {
    int m = a.length() + 1;
    int n = b.length() + 1;
    int[][] f = new int[m][n];
    for(int i = 0; i < m; i ++) {
        f[i][0] = i;
    }
    for(int j = 0; j < n; j ++) {
        f[0][j] = j;
    }

    for(int i = 1; i < m; i ++) {
        for(int j = 1; j < n; j ++) {
            if(a.charAt(i-1) == b.charAt(j-1)) {
                f[i][j] = f[i-1][j-1];
            }
            else {
                f[i][j] = f[i-1][j-1] + 1;
            }
            f[i][j] = Math.min(f[i][j], Math.min(f[i-1][j]+1, f[i][j-1]+1));
        }
    }
    return f[m-1][n-1];
}

http://www.zhitongguigu.com/

Homework

Unique Path II

Climbing Stairs

Maximum Subarray

http://www.zhitongguigu.com/

Homework (Optional)

Longest Valid Parentheses

Triangle

Best Time to Buy and Sell Stock

Distinct Subsequences

[GoValley-201612] Dynamic Programming

By govalley201612

[GoValley-201612] Dynamic Programming

Dynamic Programming

What is Dynamic Programming?

A very powerful and general tool for solving certain optimization problems

Dynamic Programming

VS Recursion

When we use DP?

When we use DP?

What is Tail Recursion

How to use DP?

Fibonacci Numbers

Need some space to avoid the computation

Unique Paths

Unique Paths

Unique Paths

Unique Paths

Minimum Path Sum

Minimum Path Sum

Minimum Path Sum

Minimum Path Sum

Minimum Path Sum

Minimum Path Sum II

0-1 Knapsack

0-1 Knapsack

Longest Increasing Subsequence

Longest Increasing Subsequence

Longest Increasing Subsequence

Longest Increasing Subsequence

What is the Time Complexity?

What is the Space Complexity?

Can we do better?

Patient Sort

Longest Common Sequence

Longest Common Sequence

Longest Common Sequence

Longest Common Sequence

Longest Common Sequence

Longest Common Sequence

Longest Common Sequence

Matrix Multiplication

Matrix Multiplication

Matrix Multiplication

Matrix Multiplication

Edit Distance

Edit Distance

Edit Distance

Homework

Homework (Optional)

[GoValley-201612] Dynamic Programming

More from govalley201612
