HashMap

http://www.zhitongguigu.com/

Map and Set are most important data structures we use in development

http://www.zhitongguigu.com/

There are multiple different maps and sets that are in Java

HashMap

Java: Map<A,B>

Map<String, Integer> hm = new HashMap<>();

http://www.zhitongguigu.com/

Basic Operations

http://www.zhitongguigu.com/

Return Type	Method
Value 🤔	put(key, value)
Value	get(key)
Value	remove(key)
boolean	containsKey(key)
boolean	containsValue(value)
Set<Map.Entry<Key, Value>>	entrySet()
Set<Key>	keySet()
Collection<Value>	values()
...	size(); isEmpty(); putAll(Map<>);

Key: Object; Value: Object

Basic operations

http://www.zhitongguigu.com/

hashmap : [<"apple", 1>, <"pear", 1>]

hashmap.put("banana", 3);

hashmap.remove("apple");

hashmap.get("pear");

hashmap.containsKey("kiwi");

hashmap.containsValue(3);

not a good one to use

Time complexity for HashMap

http://www.zhitongguigu.com/

add
remove
get
containsKey
containsValue

O(1)
O(1)
O(1)
O(1)
O(n)

Traverse a HashMap

http://www.zhitongguigu.com/

// Map -> Set -> Iterator -> Map.Entry -> troublesome, not recommend!
Iterator<Entry<String,String>> iterator = map.entrySet().iterator();
while (iterator.hasNext()) {
	Map.Entry<String,String> entry = (Map.Entry<String,String>) iterator.next();
	System.out.println("Key: " + entry.getKey() + " Value:" + entry.getValue());
}

// more elegant way, this should be the standard way, recommend!
for (Map.Entry<String, String> entry : map.entrySet()) {
	System.out.println("Key: " + entry.getKey() + " Value: " + entry.getValue());
}

// weired, but works anyway, not recommend!
for (Object key : map.keySet()) {
	System.out.println("Key: " + key.toString() + " Value: " + map.get(key));
}

So always use the second way!

🤔

Hashing

http://www.zhitongguigu.com/

collision

Hash Function

http://www.zhitongguigu.com/

a function that can take a key and compute an integer (or an index in a table) for it

What really matters: How could we find a hash function that could fast compute the index without collisions

Hash Function

http://www.zhitongguigu.com/

Division:

X - Number of slots

A - Key as int

A mod X to get index

Example:

35%17 = 1; 8%17 = 8

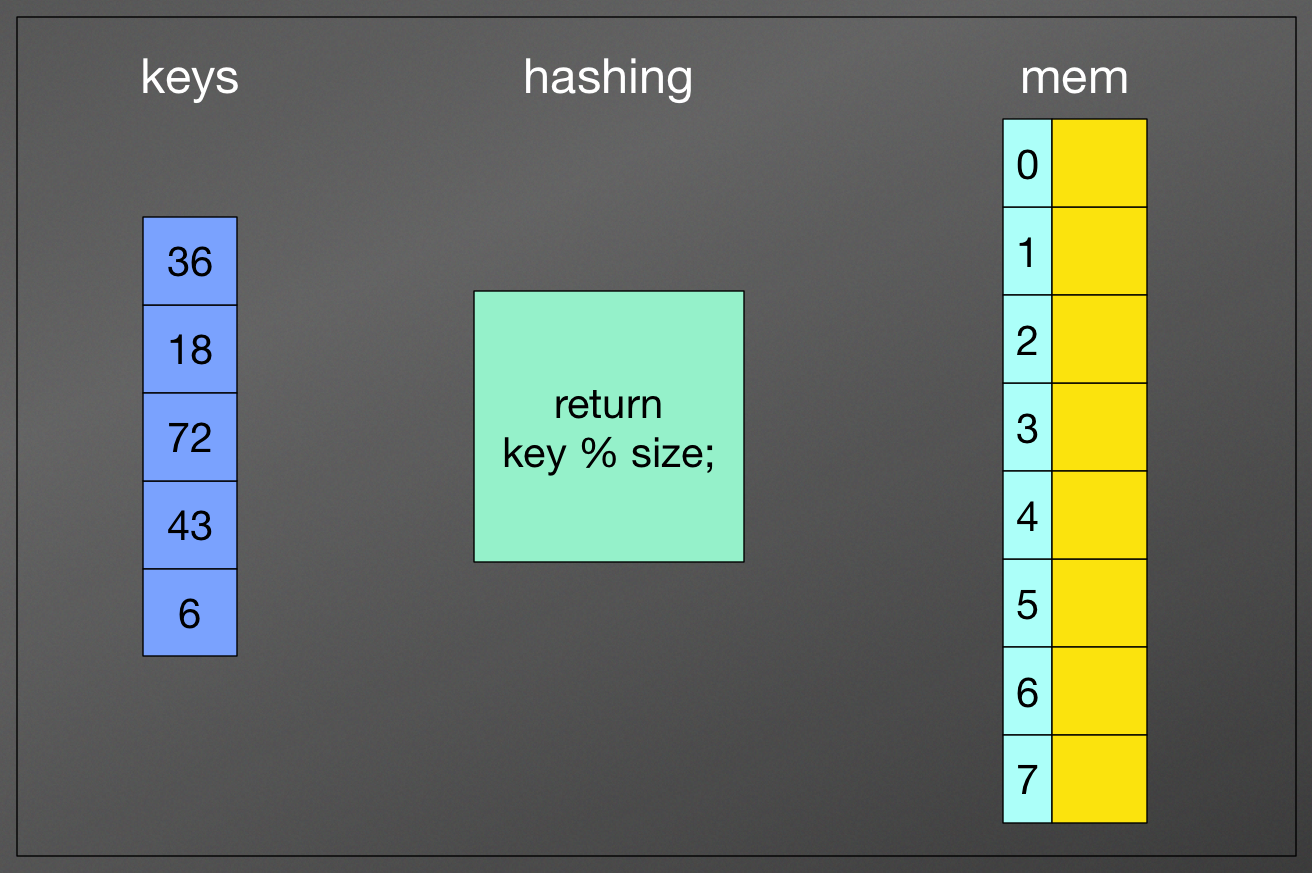

Hash Function Division

http://www.zhitongguigu.com/

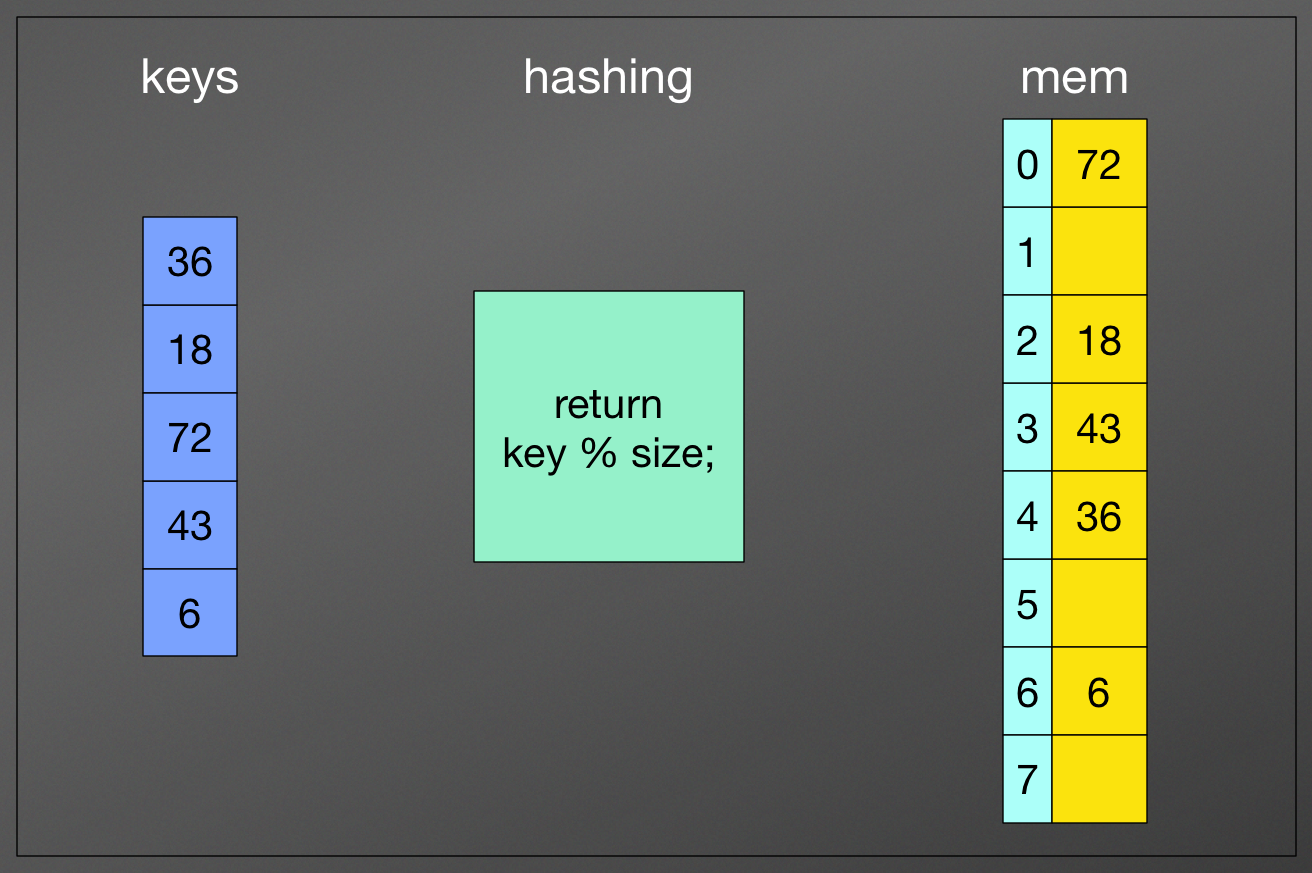

Hash Function Division

http://www.zhitongguigu.com/

Hash Function Java String

http://www.zhitongguigu.com/

// hash default 0

public int More hashCode() {
    int h = hash;
    if (h == 0) {
        int off = offset;
        char val[] = value;
        int len = count;

        for (int i = 0; i < len; i++) {
            h = 31*h + val[off++];
        }
        hash = h;
    }
    return h;
}

Hash Function Joshua Bloch

http://www.zhitongguigu.com/

1. Create a int result and assign a non-zero value.

2. For every field f tested in the equals() method, calculate a hash code c by:
- If the field f is a boolean: calculate (f ? 0 : 1);
- If the field f is a byte, char, short or int: calculate (int)f;
- If the field f is a long: calculate (int)(f ^ (f >>> 32));
- If the field f is a float: calculate Float.floatToIntBits(f);
- If the field f is a double: calculate Double.doubleToLongBits(f)
  and handle the return value like every long value;
- If the field f is an object: Use the result of the hashCode()
  method or 0 if f == null;
- If the field f is an array: see every field as separate element
  and calculate the hash value in a recursive fashion and combine
  the values as described next.

3. Combine the hash value c with result:
    result = 37 * result + c;

4. Return result

// This should result in a proper distribution of hash values for most use situations.

http://www.zhitongguigu.com/

public int hashCode() {
    // Start with a non-zero constant. Prime is preferred
    int result = 17;
    // Include a hash for each field.
    // Primatives
    result = 31 * result + (booleanField ? 1 : 0);                   // 1 bit   » 32-bit
    result = 31 * result + byteField;                                // 8 bits  » 32-bit
    result = 31 * result + charField;                                // 16 bits » 32-bit
    result = 31 * result + shortField;                               // 16 bits » 32-bit
    result = 31 * result + intField;                                 // 32 bits » 32-bit
    result = 31 * result + (int)(longField ^ (longField >>> 32));    // 64 bits » 32-bit
    result = 31 * result + Float.floatToIntBits(floatField);         // 32 bits » 32-bit
    long doubleFieldBits = Double.doubleToLongBits(doubleField);     // 64 bits (double) » 64-bit (long) » 32-bit (int)
    result = 31 * result + (int)(doubleFieldBits ^ (doubleFieldBits >>> 32));
    // Objects
    result = 31 * result + Arrays.hashCode(arrayField);              // var bits » 32-bit
    result = 31 * result + referenceField.hashCode();                // var bits » 32-bit (non-nullable)
    result = 31 * result +                                           // var bits » 32-bit (nullable)
        (nullableReferenceField == null
            ? 0
            : nullableReferenceField.hashCode());
    return result;
}

Hash Function Joshua Bloch

Collision

http://www.zhitongguigu.com/

Collision

http://www.zhitongguigu.com/

No matter which function, you are using, you have to deal with collision

reason that there is collision:

hash function is not perfect
some keys just happen to map to the same index
keys > slots

Collision

http://www.zhitongguigu.com/

How to solve them:

We cannot, just try to find a better algo
Open hashing
Closed hashing
Expand the space (Load Factor)

Load factor: size/capacity

Normally if (LF > 0.75), we double the space.

Collision

http://www.zhitongguigu.com/

Open hashing:

for each collision, we use a linked list to store them

Closed hashing:

we store them in somewhere else in the table

Open hashing

http://www.zhitongguigu.com/

🤔get(16);

🤔remove(24);

Closed hashing

http://www.zhitongguigu.com/

🤔get(16);

🤔remove(24);

Hash Function Key Points

http://www.zhitongguigu.com/

Hash function is not random, given the same key, you can always find the corresponding hashing value.
Easy and quick to compute.
Distribution as even as possible

Hashcode & Equals

http://www.zhitongguigu.com/

These two functions are very important in Java

We can override them and it will affect our HashMap collision and basic operations

Can we have Map<int, Object>?🤔

Hashcode & Equals example

http://www.zhitongguigu.com/

public class Test{
    private int num;
    private String data;

    public boolean equals(Object obj){
        if(this == obj) {
            return true;
        }
        if((obj == null) || (obj.getClass() != this.getClass())) {
            return false;
        }
        // object must be Test at this point
        Test test = (Test)obj;
        return num == test.num &&
        (data == test.data || (data != null && data.equals(test.data)));
    }

    public int hashCode(){
        int hash = 7;
        hash = 31 * hash + num;
        hash = 31 * hash + (null == data ? 0 : data.hashCode());
        return hash;
    }

    // other methods...
}

🤔

Override & Overload

http://www.zhitongguigu.com/

public boolean equals(Test test){
    if(this == test) {
        return true;
    }
    if((test == null)) {
        return false;
    }
    return num == test.num &&
    (data == test.data || (data != null && data.equals(test.data)));
}

@Override
public boolean equals(Object obj){
    if(this == obj) {
        return true;
    }
    if((obj == null) || (obj.getClass() != this.getClass())) {
        return false;
    }
    // object must be Test at this point
    Test test = (Test)obj;
    return num == test.num &&
    (data == test.data || (data != null && data.equals(test.data)));
}

class Dog{
    public void bark(){
        System.out.println("woof ");
    }

    //overloading method
    public void bark(int num){
    	for(int i=0; i<num; i++)
            System.out.println("woof ");
    }
}

Hashcode & Equals

http://www.zhitongguigu.com/

🤔equals <-> hashcode

equals --> hashcode

~~hashcode --> equals~~

Hashcode & Equals

http://www.zhitongguigu.com/

Primitive Type Wrapper class:

Integer, Short, Long, Byte,Char, Float, Double, Boolean

For these class, equals is same as ==

🤔

Hashcode & Equals

http://www.zhitongguigu.com/

class D {
    public static void main(String args[]) {
        Integer b2=128;
        Integer b3=128;
        System.out.println(b2==b3);
    }
}
// Output: false
class D {
    public static void main(String args[]) {
        Integer b2=127;
        Integer b3=127;
        System.out.println(b2==b3);
    }
}
// Output: true

// This Integer caching works only on autoboxing
Integer b2 =Integer.valueOf(127)

public static Integer valueOf(int i) {
    if(i >= -128 && i <= IntegerCache.high)
        return IntegerCache.cache[i + 128];
    else
        return new Integer(i);
}

http://javapapers.com/java/java-integer-cache/

Hashcode & Equals

http://www.zhitongguigu.com/

Primitive Type Wrapper class:

Short, Long, Byte, Char, Float, Double, Boolean

For these class, equals is same as ==

Unless compare primitive type. Don't use ==

Don't rely on two references being identical.

Always use .equals()

Should always override .equals() for data objects.

If no override, find its parent class till Object (==)

Hashcode & Equals

http://www.zhitongguigu.com/

During implementation

If obj1.equals(obj2) return true

then must have

obj1.hashcode() == obj2.hashcode()

// Object equals will be same as ==
public boolean equals(Object obj) {
    return (this == obj);
}

Java Map & Set

http://www.zhitongguigu.com/

	Hash	Tree	LinkedHash
Map	HashMap	TreeMap	LinkedHashMap
Set	HashSet	TreeSet	LinkedHashSet

http://javaconceptoftheday.com/hashset-vs-linkedhashset-vs-treeset-in-java/

http://www.zhitongguigu.com/

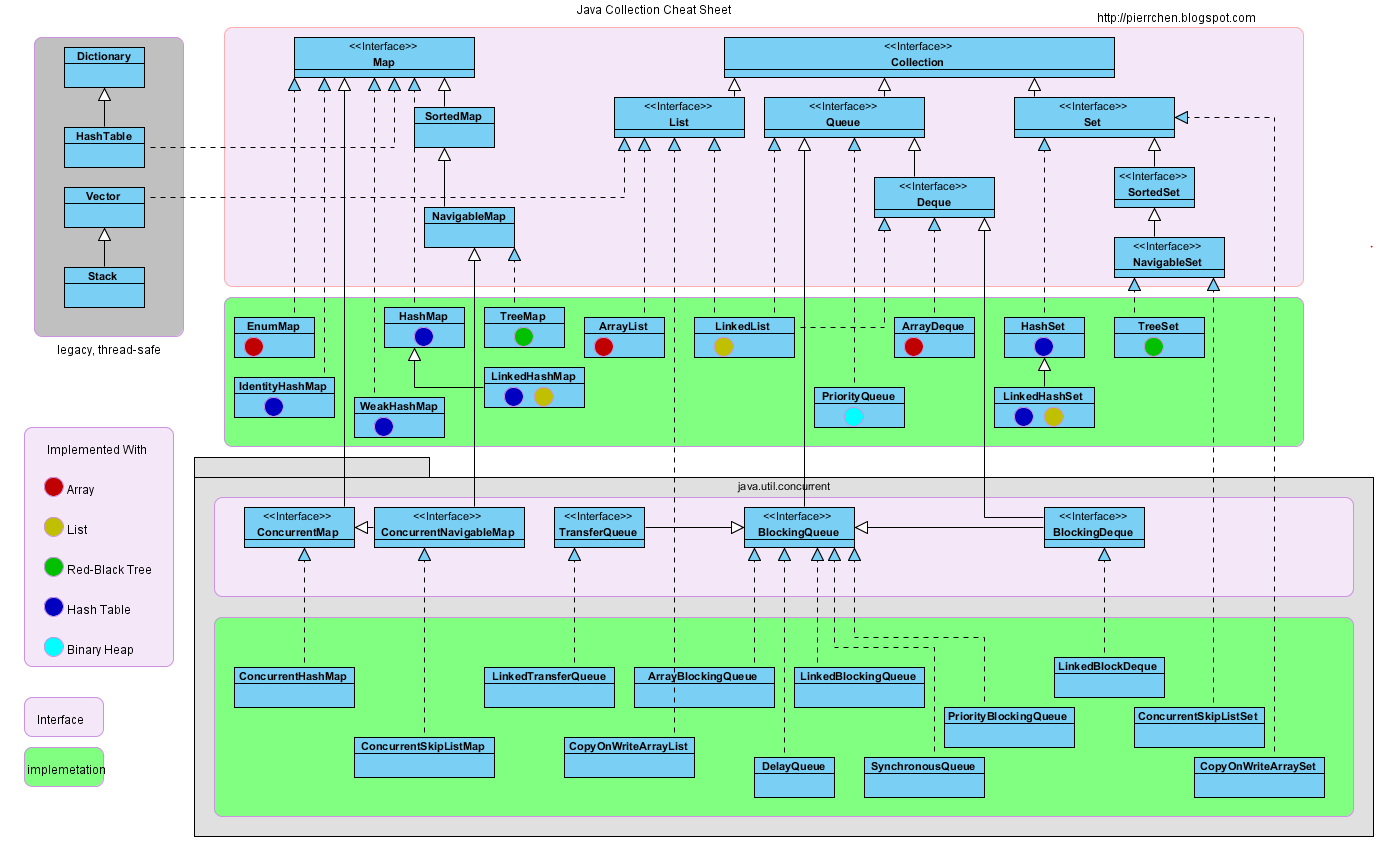

Different Maps and Sets

Two Sum

http://www.zhitongguigu.com/

Given an array of integers (no duplicate),
find two numbers such that they add up to a specific target number.
The function twoSum should return the two numbers such that
they add up to the target, where number1 must be less than number2.
You may assume that each input would have exactly one solution.

Example:
Input: numbers={2, 7, 11, 15}, target=9
Output: {2, 7}
public int[] twoSum(int[] nums, int target) {
    // TODO: implement this function.
}

Two Sum [Return Value]

Two Sum [Return Index]

http://www.zhitongguigu.com/

Difference?

What's the previous question?

What's the previous solution?

Will it work?

Given an array of integers, return indices of the two numbers
such that they add up to a specific target.

You may assume that each input would have exactly one solution.

Example:
Given nums = [2, 7, 11, 15], target = 9,

Because nums[0] + nums[1] = 2 + 7 = 9,
return [0, 1]

🤔

Two Sum [Return Index]

http://www.zhitongguigu.com/

Given an array of integers, return indices of the two numbers
such that they add up to a specific target.

You may assume that each input would have exactly one solution.

Example:
Given nums = [2, 7, 11, 15], target = 9,

Because nums[0] + nums[1] = 2 + 7 = 9,
return [0, 1]

	Two Sum Return Value	Two Sum Return Index
Map	current hw	current example
Sort	previous hw	[harder]optional hw

🤔

http://www.zhitongguigu.com/

public int[] twoSum(int[] nums, int target) {
    Map<Integer, Integer> map = new HashMap<>();
    for (int i = 0; i < nums.length; i++) {
        map.put(nums[i], i);
    }
    for (int i = 0; i < nums.length; i++) {
        int complement = target - nums[i];
        if (map.containsKey(complement) && map.get(complement) != i) {
            return new int[] { i, map.get(complement) };
        }
    }
    throw new IllegalArgumentException("No two sum solution");
}

Two Sum [Return Index]

🤔

duplicates? [4, 2, 4] t=8

http://www.zhitongguigu.com/

public int[] twoSum(int[] nums, int target) {
    Map<Integer, Integer> map = new HashMap<>();
    for (int i = 0; i < nums.length; i++) {
        int complement = target - nums[i];
        if (map.containsKey(complement)) {
            return new int[] {map.get(complement), i};
        }
        map.put(nums[i], i);
    }
    return null;
}

Two Sum [Return Index]

	Time	Space
Sort
HashMap

O(nlogn)

O(1)

O(n)

Word Pattern

http://www.zhitongguigu.com/

Given a pattern and a string str, find if str follows the same pattern.

pattern = "abba", str = "dog cat cat dog" should return true.
pattern = "abba", str = "dog cat cat fish" should return false.
pattern = "aaaa", str = "dog cat cat dog" should return false.
pattern = "abba", str = "dog dog dog dog" should return false.

Notes:

You may assume pattern contains only lowercase letters,
str contains lowercase letters separated by a single space.

Word Pattern

http://www.zhitongguigu.com/

public class Solution {
    public boolean wordPattern(String pattern, String str) {
        Map<Character, String> hm = new HashMap<>();
        Map<String, Character> hm_r = new HashMap<>();
        String[] words = str.split(" ");
        if (pattern.length() != words.length) {
            return false;
        }
        for (int i = 0; i < pattern.length(); i++) {
            char a = pattern.charAt(i);
            String b = words[i];
            if (!hm.containsKey(a)) {
                hm.put(a, b);
            } else if (!hm.get(a).equals(b)){
                return false;
            }
            if (!hm_r.containsKey(b)) {
                hm_r.put(b, a);
            } else if (hm_r.get(b) != a) {
                return false;
            }
        }
        return true;
    }
}

🤔

word

char

Word Pattern

http://www.zhitongguigu.com/

public boolean wordPattern(String pattern, String str) {
    Map<Character, Integer> hm = new HashMap<>();
    Map<String, Integer> hm_r = new HashMap<>();
    String[] words = str.split(" ");
    if (pattern.length() != words.length) {
        return false;
    }
    for (int i = 0; i < pattern.length(); i++) {
        if (!Objects.equals(hm.put(pattern.charAt(i), i), hm_r.put(words[i], i))) {
            return false;
        }
    }
    return true;
}

Use the return value of put method
Character - index - String

Word Pattern

http://www.zhitongguigu.com/

public boolean wordPattern(String pattern, String str) {
    Map<Object, Object> hm = new HashMap<>();
    String[] words = str.split(" ");
    if (words.length != pattern.length())
        return false;
    for (int i=0; i<words.length; i++)
        if (!Objects.equals(hm.put(pattern.charAt(i), i), hm.put(words[i], i)))
            return false;
    return true;
}

public boolean wordPattern(String pattern, String str) {
    Map hm = new HashMap();
    String[] words = str.split(" ");
    if (words.length != pattern.length())
        return false;
    for (int i=0; i<words.length; i++)
        if (!Objects.equals(hm.put(pattern.charAt(i), i), hm.put(words[i], i)))
            return false;
    return true;
}

Group Anagrams

http://www.zhitongguigu.com/

Given an array of strings, group anagrams together.

For example, given: ["eat", "tea", "tan", "ate", "nat", "bat"]

Note

For the return value, each inner list's elements must follow the lexicographic order.
All inputs will be in lower-case.

[
  ["ate","eat","tea"],
  ["nat","tan"],
  ["bat"]
]

Group Anagrams

http://www.zhitongguigu.com/

How to know two words are anagrams?

"ate" and "eat" ->

when we sort them, ate and eat both become "aet"

So we need a hashmap to tell if we already have the list or not.

Group Anagrams

http://www.zhitongguigu.com/

public List<List<String>> groupAnagrams(String[] strs) {
    HashMap<String, List<String>> stringmap = new HashMap();
    List<List<String>> result = new ArrayList();
    for(String str: strs) {
        char[] chars = str.toCharArray();
        Arrays.sort(chars);
        String sorted = new String(chars);
        if(stringmap.containsKey(sorted)) {
            stringmap.get(sorted).add(str);
        } else {
            ArrayList<String> stringList = new ArrayList();
            stringList.add(str);
            stringmap.put(sorted, stringList);
        }
    }
    for(Map.Entry<String, List<String>> entry: stringmap.entrySet()) {
        List stringresult = entry.getValue();
        Collections.sort(stringresult);
        result.add(stringresult);
    }
    return result;
}

🤔

Group Anagrams

http://www.zhitongguigu.com/

public List<List<String>> groupAnagrams(String[] strs) {
    HashMap<String, List<String>> hm = new HashMap();
    List<List<String>> result = new ArrayList();
    for(String s: strs) {
        char[] chars = s.toCharArray();
        Arrays.sort(chars);
        String sorted = new String(chars);
        if(!hm.containsKey(sorted)) {
            hm.put(sorted, new ArrayList());
        }
        hm.get(sorted).add(s);
    }
    // keySet -> list and sort will make outer list lexicographic
    for (List<String> list : hm.values()) {
        Collections.sort(list);
        result.add(list);
    }
    // for (String key : hm.keySet()) {
    //     Collections.sort(hm.get(key));
    //     result.add(hm.get(key));
    // }
    return result;
}

Group Anagrams

http://www.zhitongguigu.com/

Given an array of strings, group anagrams together.

For example, given: ["eat", "tea", "tan", "ate", "nat", "bat"]

Note

For the return value, each inner list's elements must follow the lexicographic order.
All inputs will be in lower-case.

[
  ["ate","eat","tea"],
  ["nat","tan"],
  ["bat"]
]

What about no sorting?

🤔

http://www.zhitongguigu.com/

Given a string, find the length of the longest substring without repeating characters.

Examples:

Given "abcabcbb", the answer is "abc", which the length is 3.

Given "bbbbb", the answer is "b", with the length of 1.

Given "pwwkew", the answer is "wke", with the length of 3.

Note that the answer must be a substring, "pwke" is a subsequence and not a substring.

Longest Substring Without Repeating Characters

http://www.zhitongguigu.com/

Given a string, find the length of the longest substring without repeating characters.

Examples:

Given "abbcdefdgh", the answer is "bcdef", which the length is 5.

0 1 2 3 4 5 6 7 8 9
a b b c d e f d g h
_ _ i _ _ _ _ j _ _

// Sliding Window
// Two Pointers

Longest Substring Without Repeating Characters

http://www.zhitongguigu.com/

public int lengthOfLongestSubstring(String s) {
    int result = 0;
    if (s == null || s.length() == 0) {
        return 0;
    }
    char[] arr = s.toCharArray();
    Map<Character, Integer> hm = new HashMap<>();
    for (int i = 0, j = 0; i < arr.length; i++) {
        char c = arr[i];
        if (hm.containsKey(c)) {
            j = Math.max(j, hm.get(c) + 1);
        }
        hm.put(c,i);
        result = Math.max(result, i - j + 1);
    }
    return result;
}

🤔You may not use Map

Longest Substring Without Repeating Characters

http://www.zhitongguigu.com/

public int lengthOfLongestSubstring(String s) {
    int result = 0;
    int[] cache = new int[256];
    for (int i = 0, j = 0; i < s.length(); i++) {
        char c = s.charAt(i);
        if (cache[c] > 0) {
            j = Math.max(j, cache[c]);
        }
        cache[c] = i + 1;
        result = Math.max(result, i - j + 1);
    }
    return result;
}

The idea of Hashing

🤔Is cache[c] > 0 necessary?

Longest Substring Without Repeating Characters

http://www.zhitongguigu.com/

public int lengthOfLongestSubstring(String s) {
    int result = 0;
    int[] cache = new int[256];
    for (int i = 0, j = 0; i < s.length(); i++) {
        j = Math.max(j, cache[s.charAt(i)]);
        cache[s.charAt(i)] = i + 1;
        result = Math.max(result, i - j + 1);
    }
    return result;
}

🤔You may not use 256 space

Longest Substring Without Repeating Characters

http://www.zhitongguigu.com/

public int lengthOfLongestSubstring(String s) {
    int result = 0;
    int[] cache = new int[128];
    for (int i = 0, j = 0; i < s.length(); i++) {
        j = Math.max(j, cache[s.charAt(i)]);
        cache[s.charAt(i)] = i + 1;
        result = Math.max(result, i - j + 1);
    }
    return result;
}

// If only low case is used
public int lengthOfLongestSubstring(String s) {
    int result = 0;
    int[] cache = new int[26];
    for (int i = 0, j = 0; i < s.length(); i++) {
        j = Math.max(j, cache[s.charAt(i) - 'a']);
        cache[s.charAt(i) - 'a'] = i + 1;
        result = Math.max(result, i - j + 1);
    }
    return result;
}

HashSet

HashMap	HashSet
put(key, value)	add(element)
get(key)
remove(key)	remove(object)
containsKey(key)	contains(object)
containsValue(value)
entrySet()
keySet()
values()
size(); isEmpty(); putAll(Map<>);	size(); isEmpty(); addAll(Collection);

why no get()?

Java Map & Set

http://www.zhitongguigu.com/

╔══════════════╦═════════════════════╦═══════════════════╦══════════════════════╗
║   Property   ║       HashMap       ║      TreeMap      ║     LinkedHashMap    ║
╠══════════════╬═════════════════════╬═══════════════════╬══════════════════════╣
║              ║  no guarantee order ║ sorted according  ║                      ║
║   Order      ║ will remain constant║ to the natural    ║    insertion-order   ║
║              ║      over time      ║    ordering       ║                      ║
╠══════════════╬═════════════════════╬═══════════════════╬══════════════════════╣
║  Get/put     ║                     ║                   ║                      ║
║   remove     ║         O(1)        ║      O(log(n))    ║         O(1)         ║
║ containsKey  ║                     ║                   ║                      ║
╠══════════════╬═════════════════════╬═══════════════════╬══════════════════════╣
║              ║                     ║   NavigableMap    ║                      ║
║  Interfaces  ║         Map         ║       Map         ║         Map          ║
║              ║                     ║    SortedMap      ║                      ║
╠══════════════╬═════════════════════╬═══════════════════╬══════════════════════╣
║              ║                     ║                   ║                      ║
║     Null     ║       allowed       ║    only values    ║       allowed        ║
║ values/keys  ║                     ║                   ║                      ║
╠══════════════╬═════════════════════╩═══════════════════╩══════════════════════╣
║              ║   Fail-fast behavior of an iterator cannot be guaranteed       ║
║   Fail-fast  ║ impossible to make any hard guarantees in the presence of      ║
║   behavior   ║           unsynchronized concurrent modification               ║
╠══════════════╬═════════════════════╦═══════════════════╦══════════════════════╣
║              ║                     ║                   ║                      ║
║Implementation║      buckets        ║   Red-Black Tree  ║    double-linked     ║
║              ║                     ║                   ║       buckets        ║
╠══════════════╬═════════════════════╩═══════════════════╩══════════════════════╣
║      Is      ║                                                                ║
║ synchronized ║              implementation is not synchronized                ║
╚══════════════╩════════════════════════════════════════════════════════════════╝

http://www.zhitongguigu.com/

Java Collections Framework (JCF) Cheat Sheet

Homework 7:

http://www.zhitongguigu.com/

Required

Two Sum [Return Value] use HM
Happy Number
Isomorphic Strings
Minimum Window Substring [hard]
Substring with Concatenation of All Words [hard]

Optional

[GoValley-201612] HashMap

By govalley201612

[GoValley-201612] HashMap

20161230 HashMap

8 years ago
1,004

HashMap

Map and Set are most important data structures we use in development

HashMap

Java: Map<A,B>

Basic Operations

Basic operations

Time complexity for HashMap

Traverse a HashMap

Hashing

Hash Function

Hash Function

Hash Function Division

Hash Function Division

Hash Function Java String

Hash Function Joshua Bloch

Hash Function Joshua Bloch

Collision

Collision

Collision

Collision

Open hashing

Closed hashing

Hash Function Key Points

Hashcode & Equals

Hashcode & Equals example

Override & Overload

Hashcode & Equals

Hashcode & Equals

Hashcode & Equals

Hashcode & Equals

Hashcode & Equals

Java Map & Set

Different Maps and Sets

Two Sum

Two Sum [Return Index]

Two Sum [Return Index]

Two Sum [Return Index]

Two Sum [Return Index]

Word Pattern

Word Pattern

Word Pattern

Group Anagrams

Group Anagrams

Group Anagrams

Group Anagrams

HashSet

Java Map & Set

Homework 7:

[GoValley-201612] HashMap

More from govalley201612
