Saving Nostalgia

Modding an old Z80 Computer

Graham Sutherland

Penetration Tester, Cisco/Portcullis

THIS TALK

• Background
• Reverse Engineering
• Approaches
• Design
• Fabrication
• Result
• Future

BACKGROUND

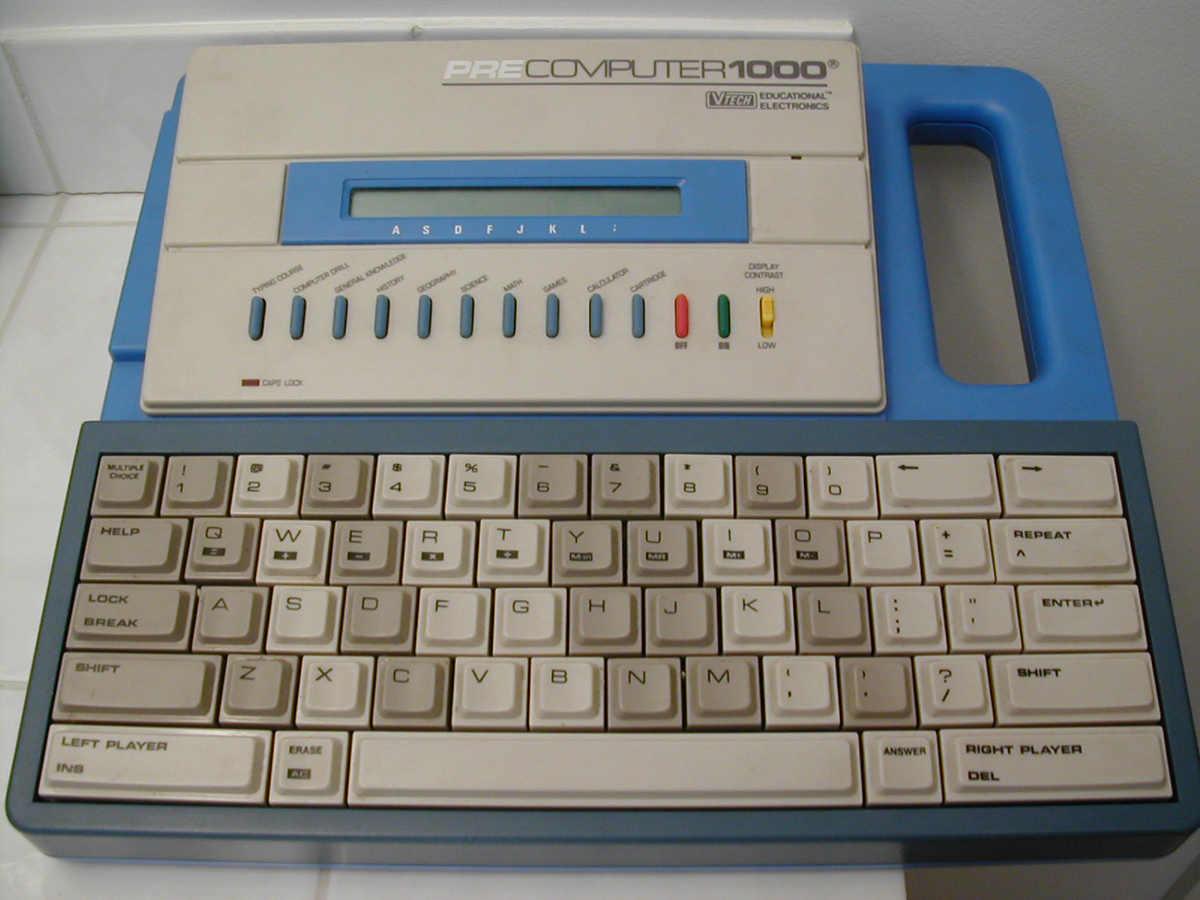

THE SUBJECT

VIDEO TIME

HISTORY [1/3]

• 1988
  • ​I was born.
  • VTech released the PreComputer range.
• 1994
  • ​My parents bought me a PreComputer 1000.
  • I pressed buttons at random (as kids do) and got stuck in "Computer Drill" mode (???)
  • Read the manual.
  • Learned BASIC!
• 1995 - 2013
  • ​Education, etc.
  • Taught myself programming & security stuff.
  • Taught myself electronics (with help from my dad)
  • My PreComputer 1000 was sold at some point :(

HISTORY [2/3]

• 2013
  • ​Joined Portcullis Computer Security.
  • First pentesting job, w00t!
  • Getting into the demoscene.
• 2015
  • ​​​Portcullis acquired by Cisco.
  • I guess I work for Cisco now?
• May 2016
  • Random thought: "Remember that old thing?"
  • Thought it'd be cool to write a demo on it.
  • Got one on eBay for £20.
  • Nostalgia!
  • Oh yeah, no save function :(
  • Kinda hard to write demos without storage...

HISTORY [3/3]

• June - August 2016
  • Learned about Z80 system architecture.
  • Started designing a save mod.
  • Multiple design iterations.
  • Finalised board design, got them made.
  • ... life stuff happened.
• September 2016
  • ​Oh s*#t I forgot 44CON is soon!
  • Ordered the parts.
  • Soldered it all together.
  • ????????????
• Today
  • ​44CON talk!

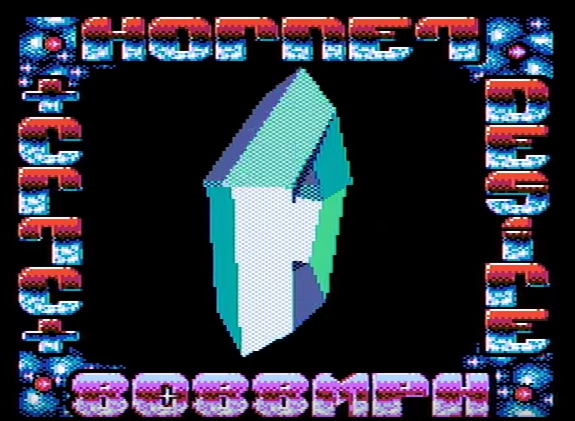

SIDE NOTE: DEMOSCENE

SIDE NOTE: DEMOSCENE

REVERSE ENGINEERING

THE PROCESS

• Take it apart
• Identify ICs & parts
• Find common circuitry
• Photographic overlays
• Follow traces, get circuit

THE TOOLS

• A camera
• Google
• Logical thinking
• Multimeter
• Oscilloscope

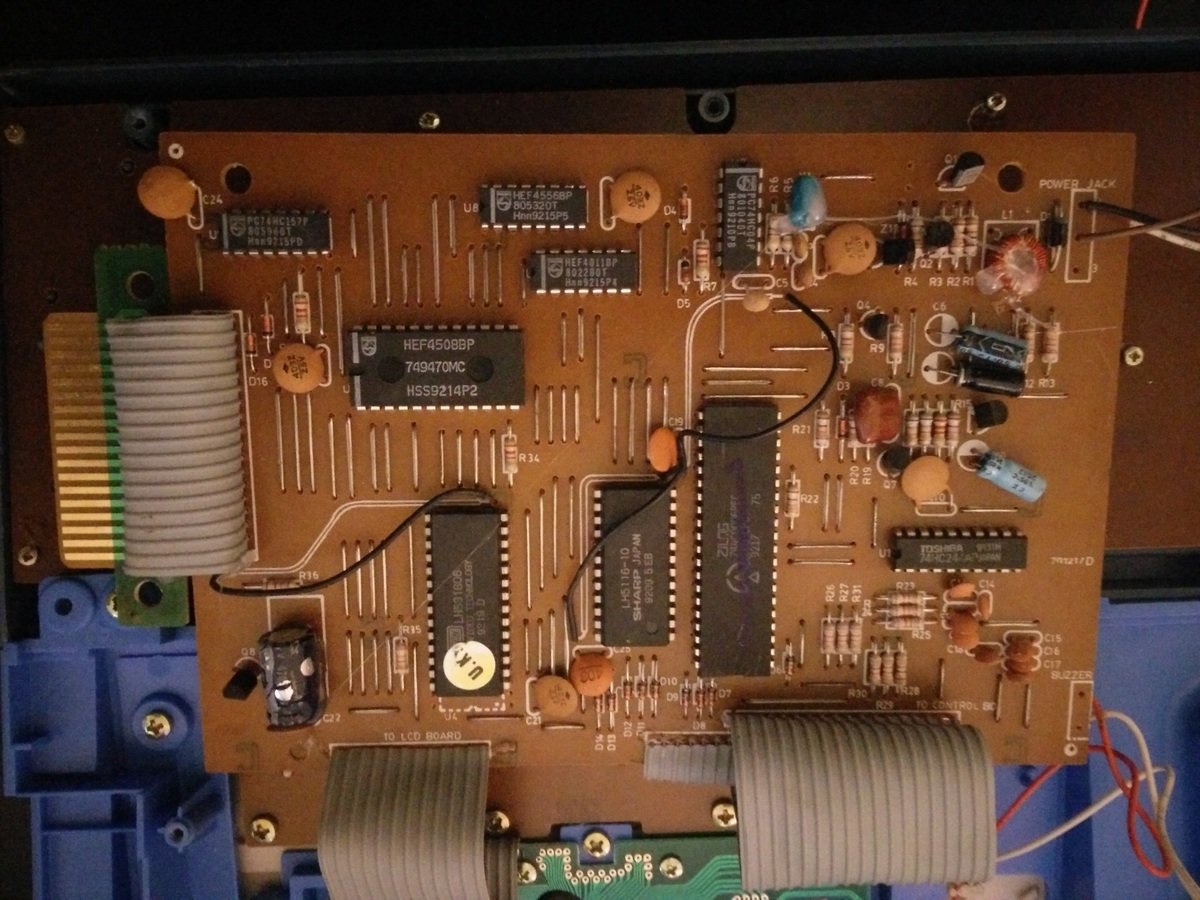

THE BOARD

IC #1

IC #2

IC #3

IC #4

TAKING STOCK

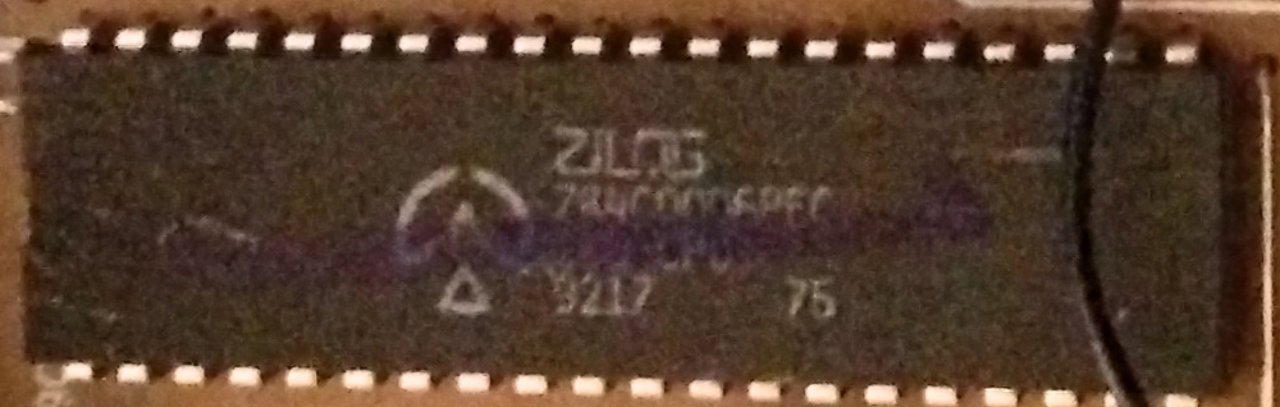

• Zilog Z84C00
  • Z80 CPU
• Sharp LH5516
  • RAM?

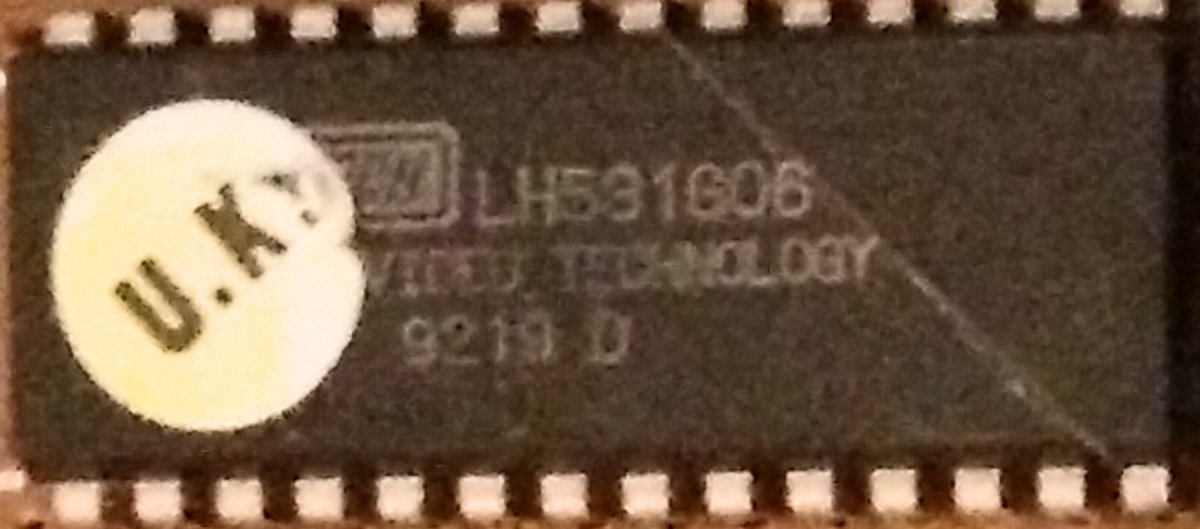

• "VTech" LH531606
  • Probably Sharp (LH- prefix)
  • ROM?
• Unknown brand, HEF4508BP

DATASHEETS

• Zilog Z80 (Z84C00)
  • ​We know this one already.

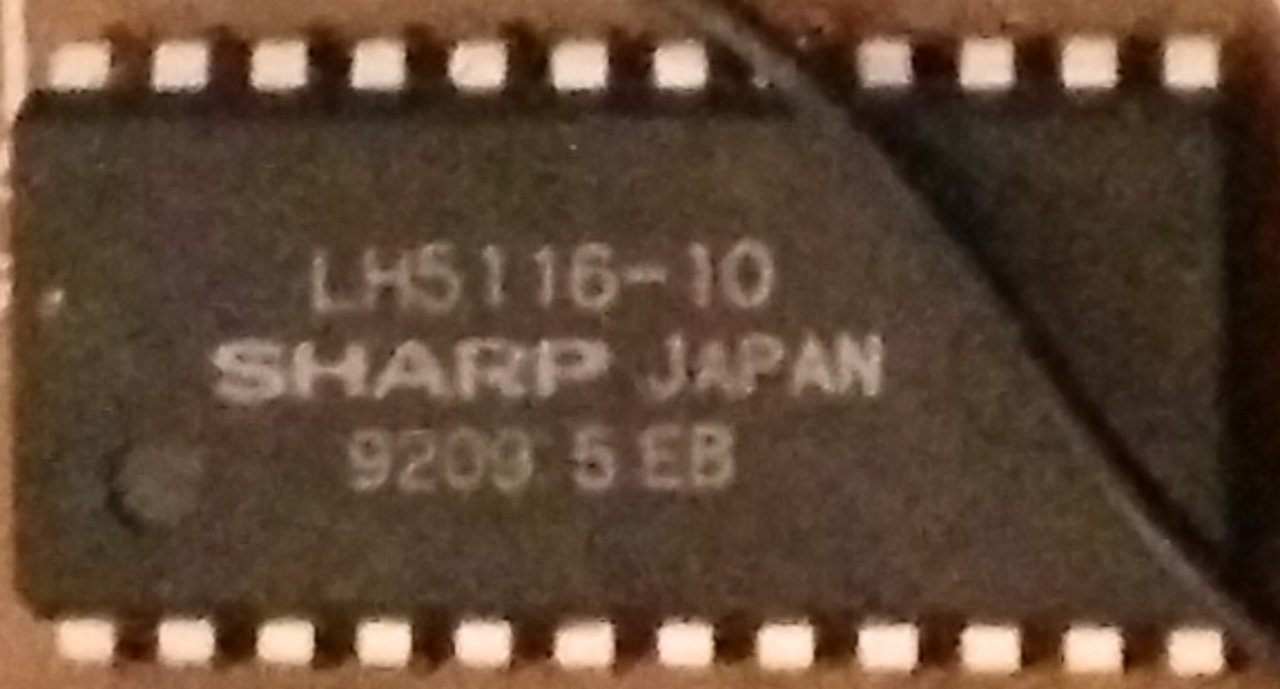

• Sharp LH5116
  • CMOS 16K (2K x 8-bit) Static RAM
• (Sharp?) LH531606
  • No hits :(
• Sharp LH5316
  • LH5316P00B (not quite right)
  • CMOS 16M (2M x 8) Mask ROM
  • Still lets us know it's a mask ROM.
• HEF4508BP
  • Philips, Dual 4-bit latch

COMMON CIRCUITRY

RING OSCILLATOR

Image credit: Wikimedia, user Inductiveload

RING OSCILLATOR

Image credit: Wikimedia, user Inductiveload

5ns

5ns

5ns

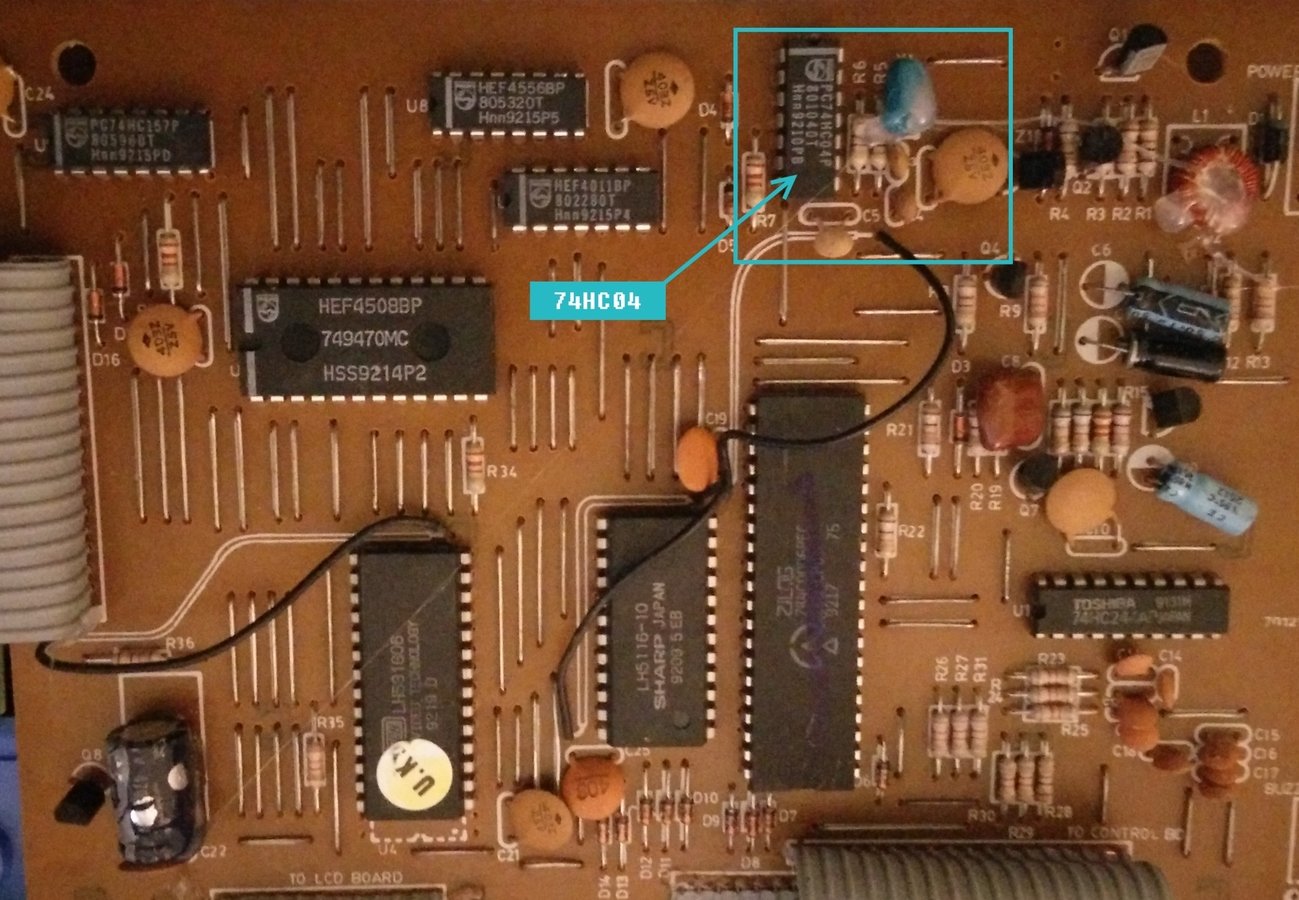

OUr OSCILLATOR

• Ring Oscillator
• 7404 Hex Inverter IC
• Resistors & capacitors
• Increased delay
• Measured @ 2.0MHz
• Provides clock signal

EXTRACTING A DIAGRAM

• Photograph top side
• Photograph bottom side
• Normalise
• Overlay
• Enumerate pins
• Trace & map

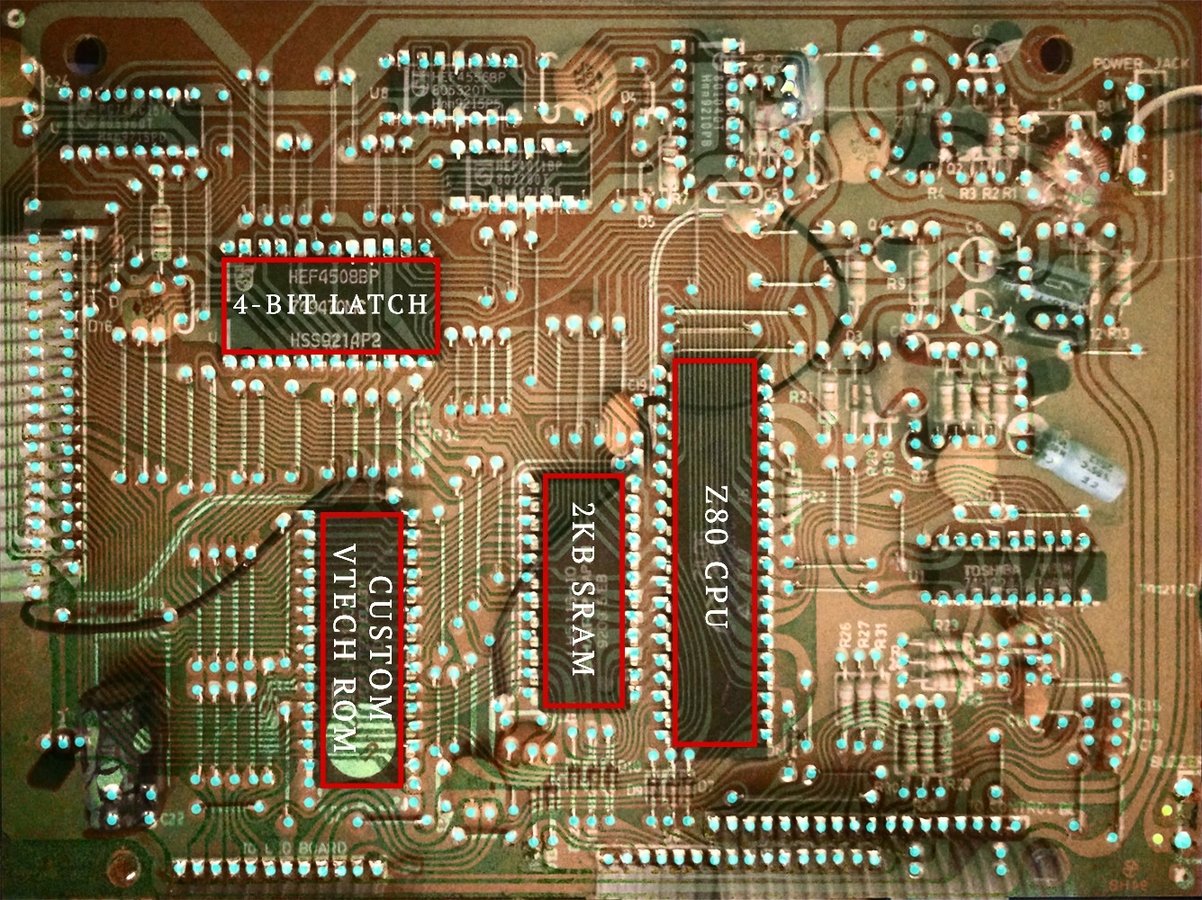

BOARD OVERVIEW

GENERAL METHODOLOGY

• Take a known pin
• Map to other locations
• Use that information to identify other pins
• Trace those
• Confirm with measurements
• Repeat

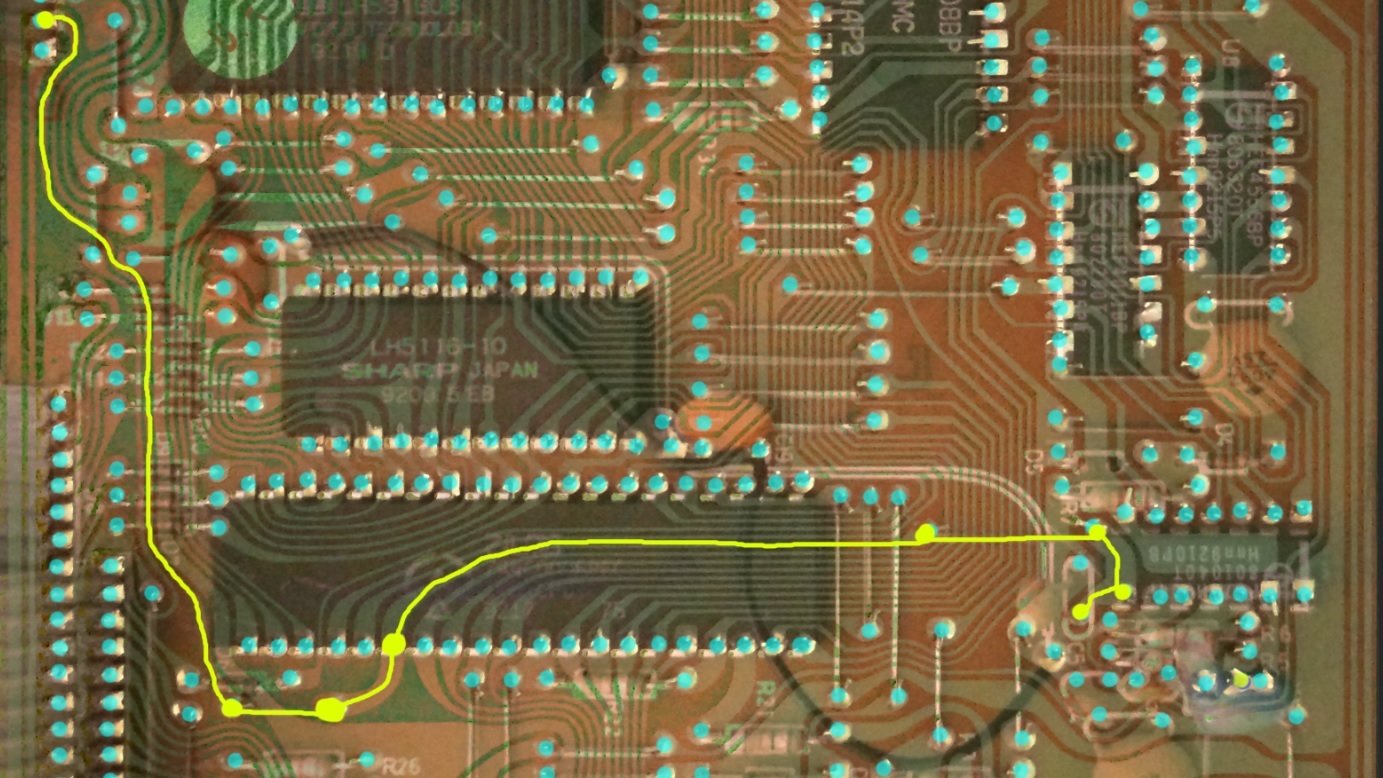

CLOCK PIN TRACE

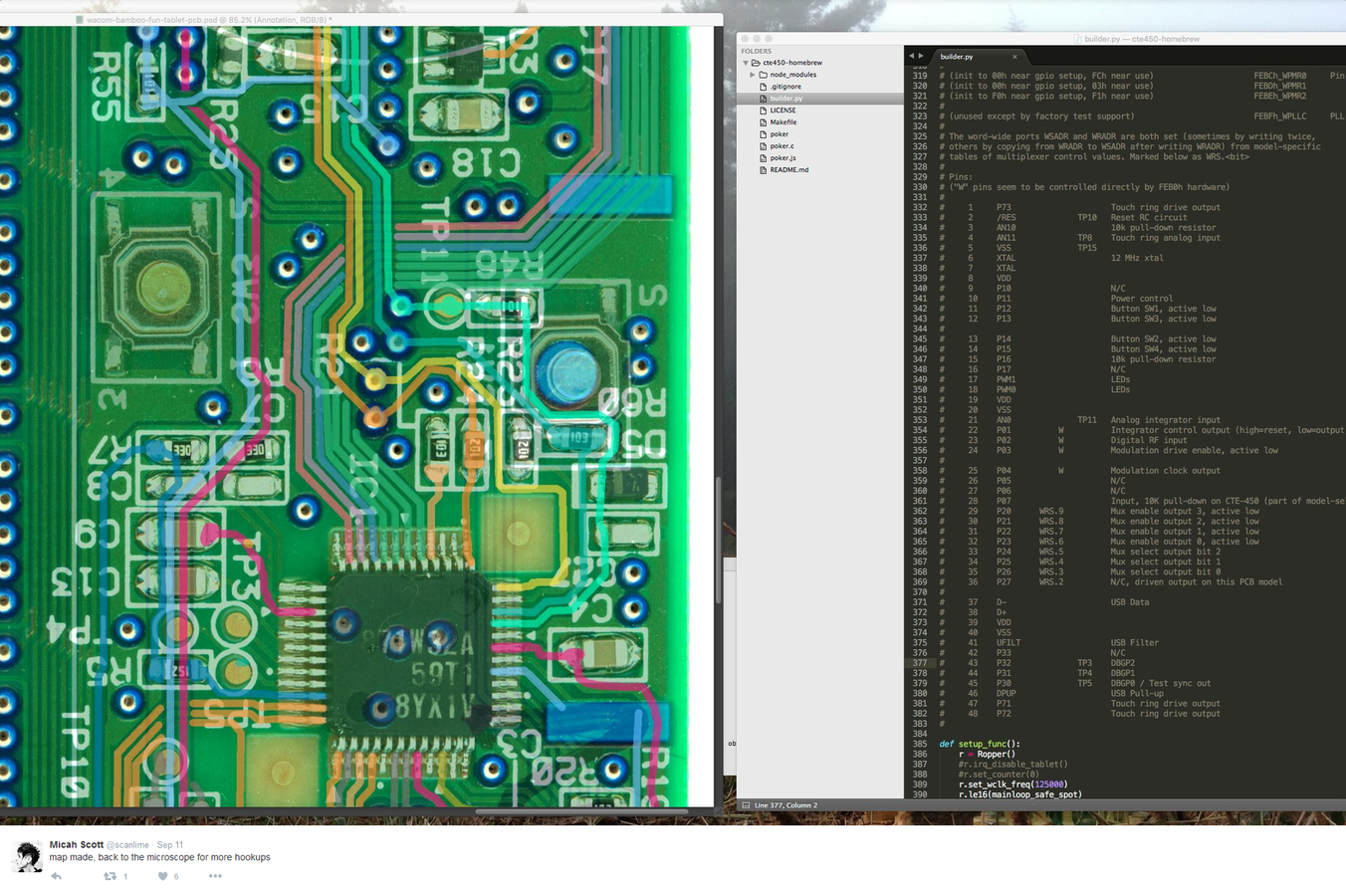

SIDE NOTE: DOING IT RIGHT

APPROACHES

SAVE APPROACHES

• Build replacement ROM
  • Microcontroller-based ROM chip
  • Modify existing code
  • Save to EEPROM via "ROM"
• Man-in-the-middle the RAM
  • Disconnect RAM from processor
  • Connect RAM to microcontroller
  • Dump or restore RAM

ROM

• Simple circuitry.
• Need to learn Z80 assembly.
• Need to discover how the ROM IC works.
• But potentially more seamless...

RAM

• More complicated circuitry.
• No need to learn Z80 assembly.
• RAM IC is known part.
• Z80 is synchronous, so we can just stop the clock and disconnect the RAM.
• Z80 also has shared memory bus support.

DESIGN

MAIN CHALLENGES

• Design
  • Simplicity
  • Debugging
• Part selection
  • Cost
  • Complexity
  • Size
  • Voltage
  • Speed
• Board design
  • Size
  • EMI
  • Decoupling
  • Mechanical

ROUGH IDEA

• Mux/demux ICs for switching.
• Atmel uC for control.
• Clock provided by us.
• Monitor Z80's IO control lines
  OR use WAIT/BUSRQ/BUSACK.

BOARD GOALS

• Place mux/demux under the RAM.
• Should be 50x50mm at most.
• 2-layer, standard thickness.
• 8 mil traces (6 mil at minimum)
• Routing same signals together.
• Using ground pours.
• Good decoupling cap placement.
• Power & switch indicators.

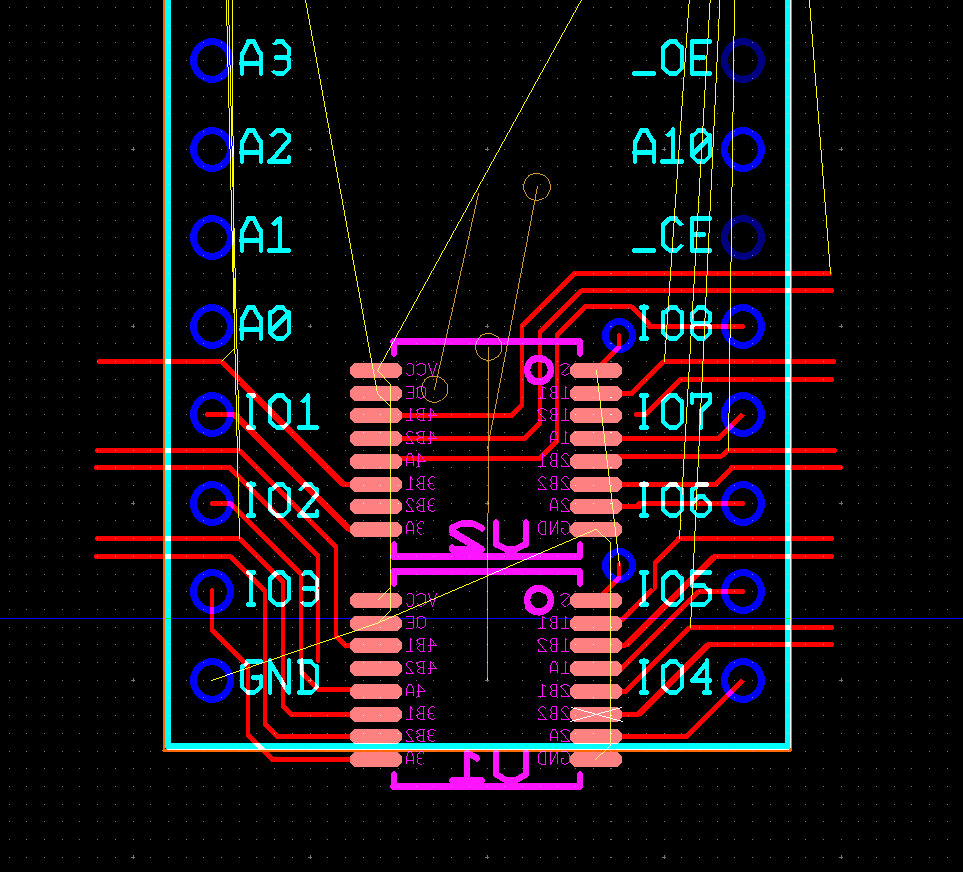

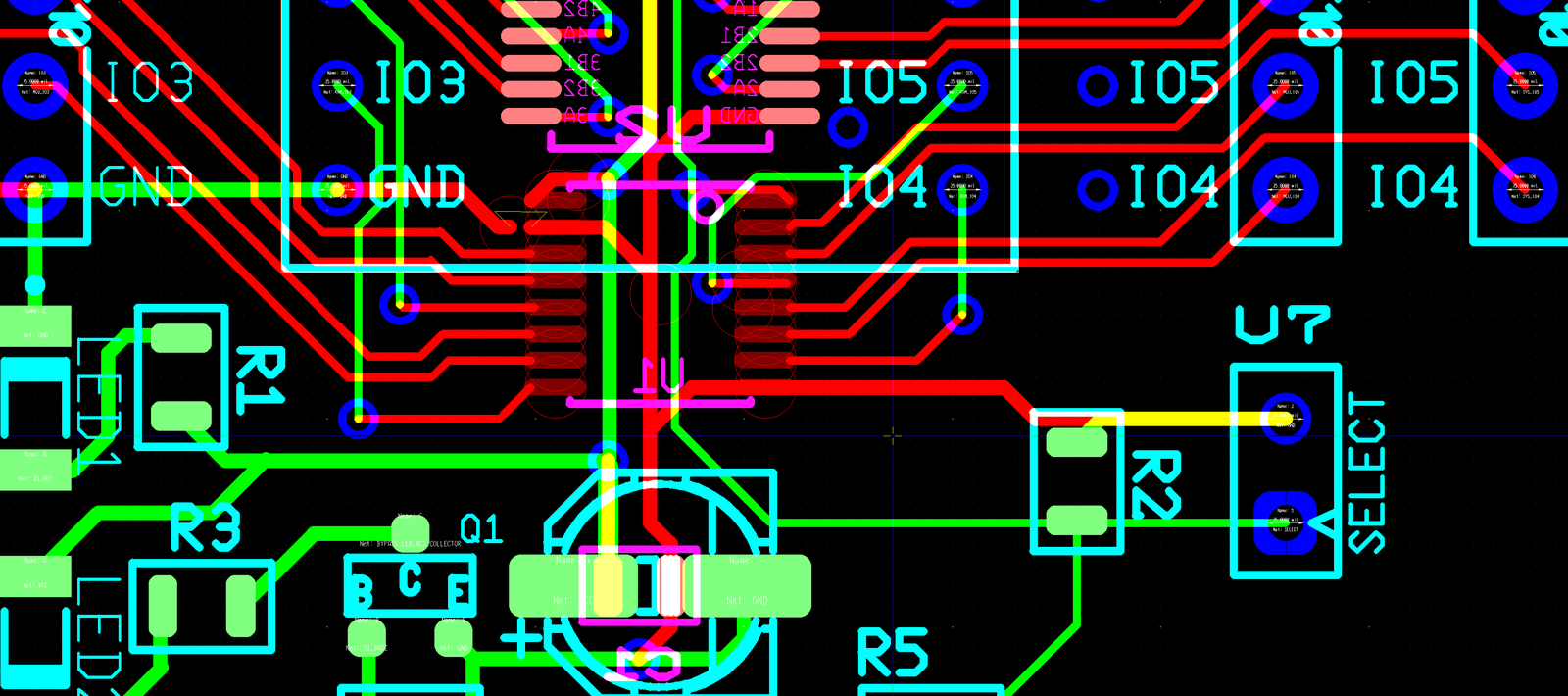

EARLY DESIGN

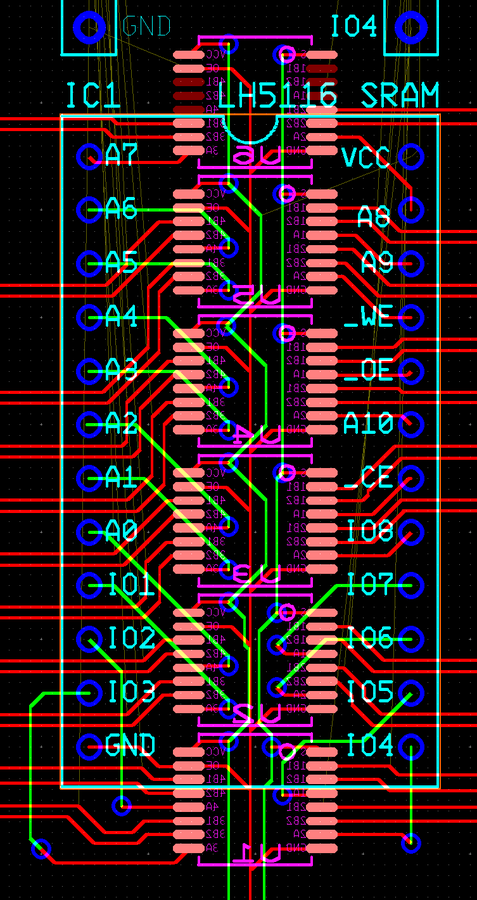

SECOND DESIGN

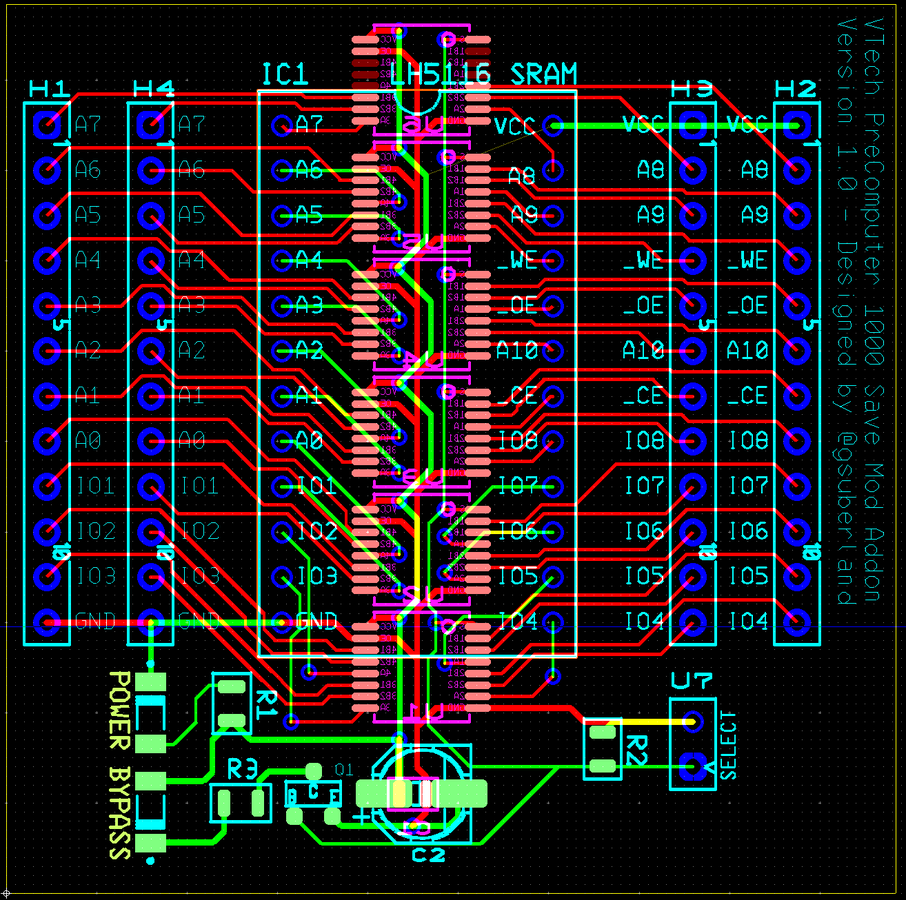

FInALISED SECOND DESIGN

S/SSOP/NSOIC/

(this was a pain)

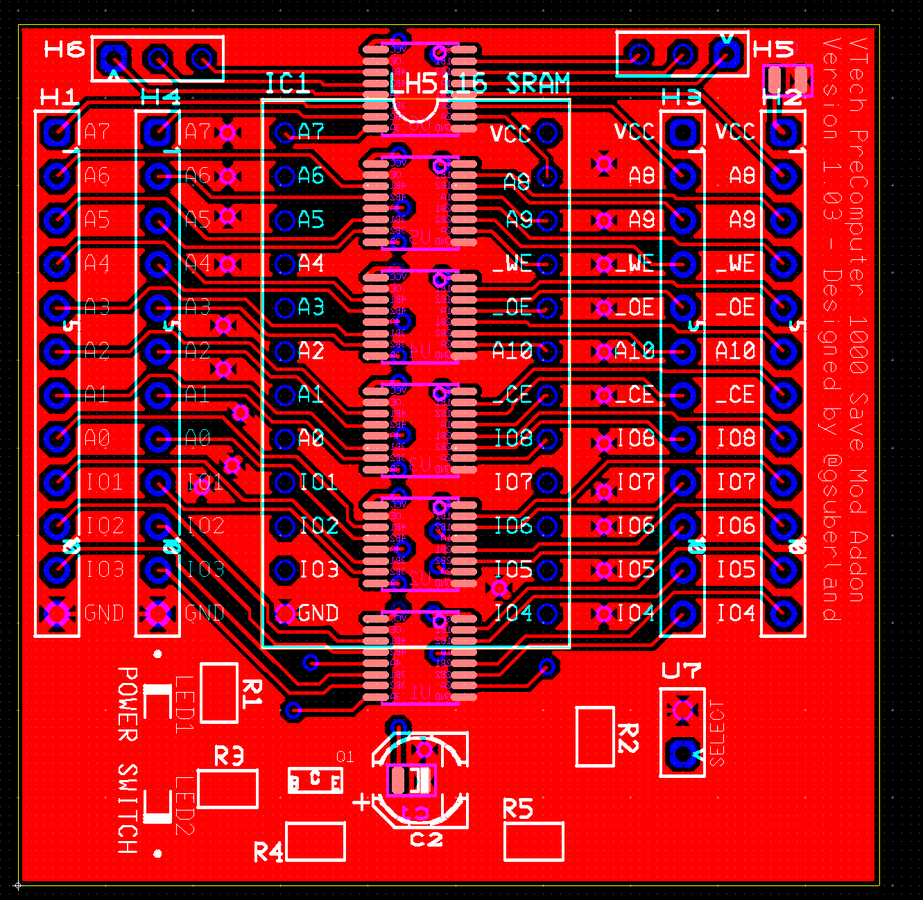

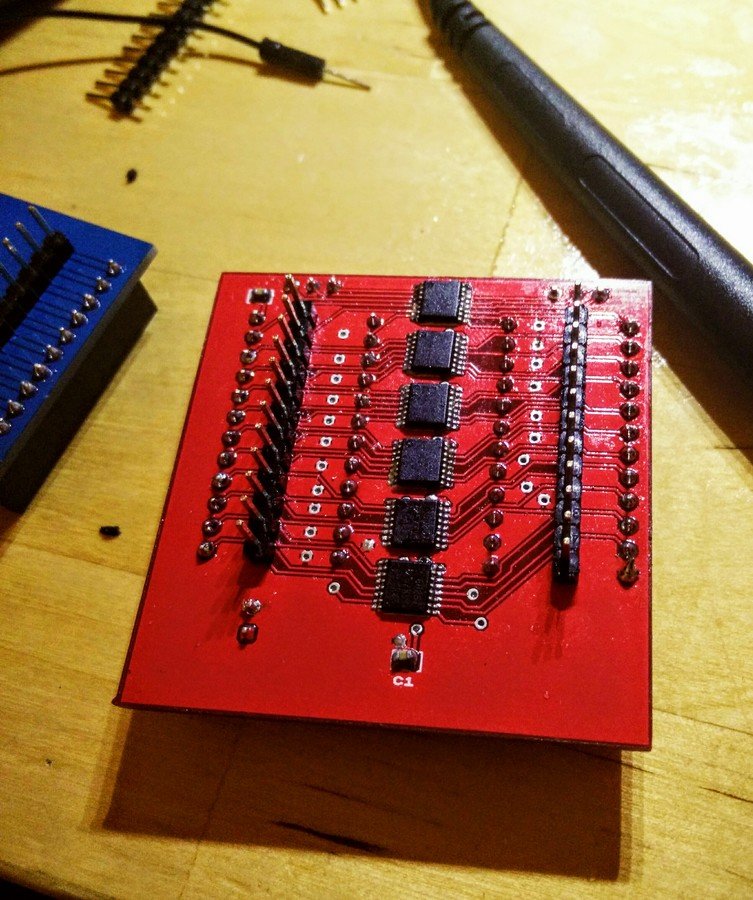

VERSION 3 - TOP

VERSION 3 - BOTTOM

FABRICATION

PCB FABRICATION

• Elecrow (China)
• 2-layer, 1.6mm, 1oz/35um.
• 50x50mm max size.
  • Costs more for bigger boards.
• 4-7 day lead time.
• Cost: $9.90 (!!!)
  • 48h rush: +$16
  • 24h rush: +$25
• Plus shipping costs.

PARTS

• Farnell UK.
• Huge part selection.
• Search system rocks.
• Datasheets!
• Very good prices.
• Free & fast shipping.

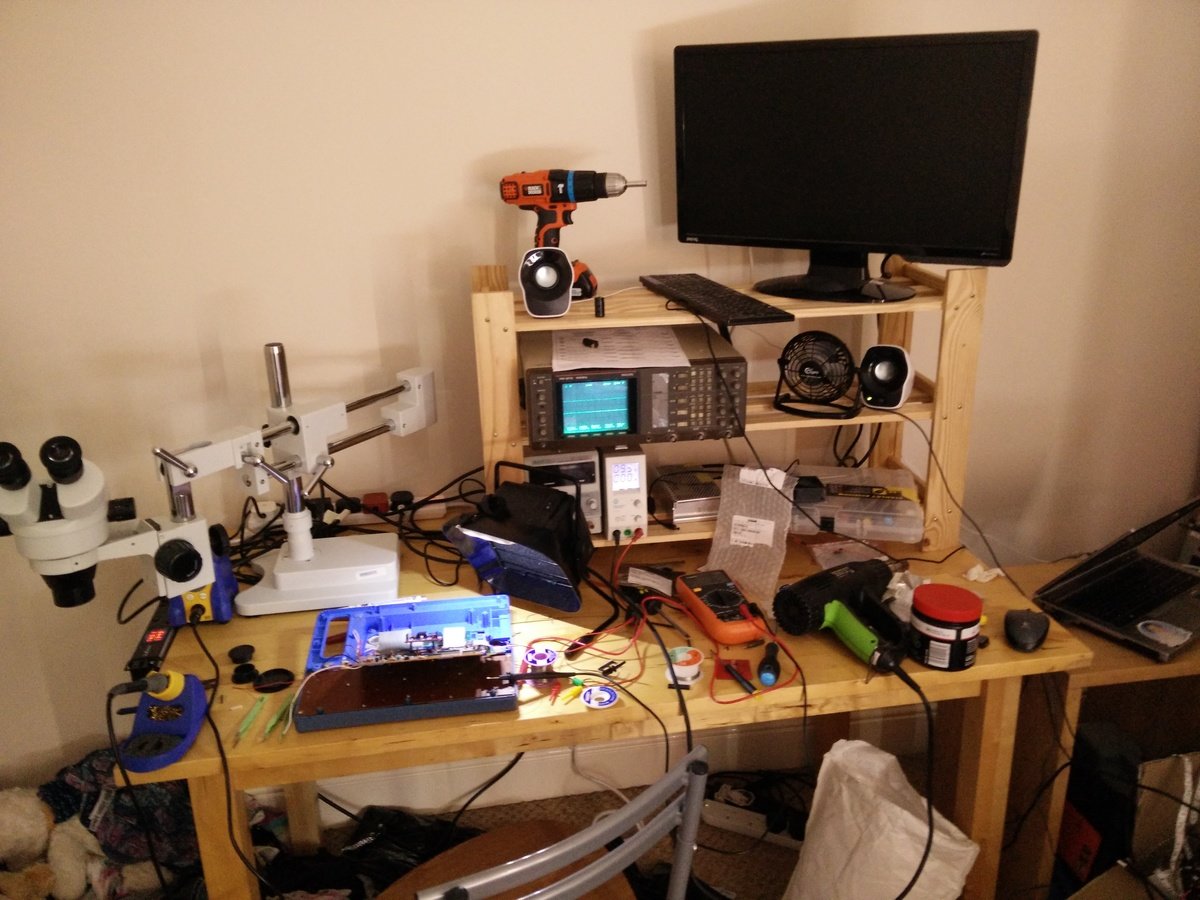

ASSEMBLY

• Manually soldered.
  • Lots of flux.
  • 60/40 SnPb solder.
    • RoHS can suck it!
  • Good soldering iron.
    • Temperature controlled.
    • Bevel tip.
• Small parts first.
• Flux holds parts in place.

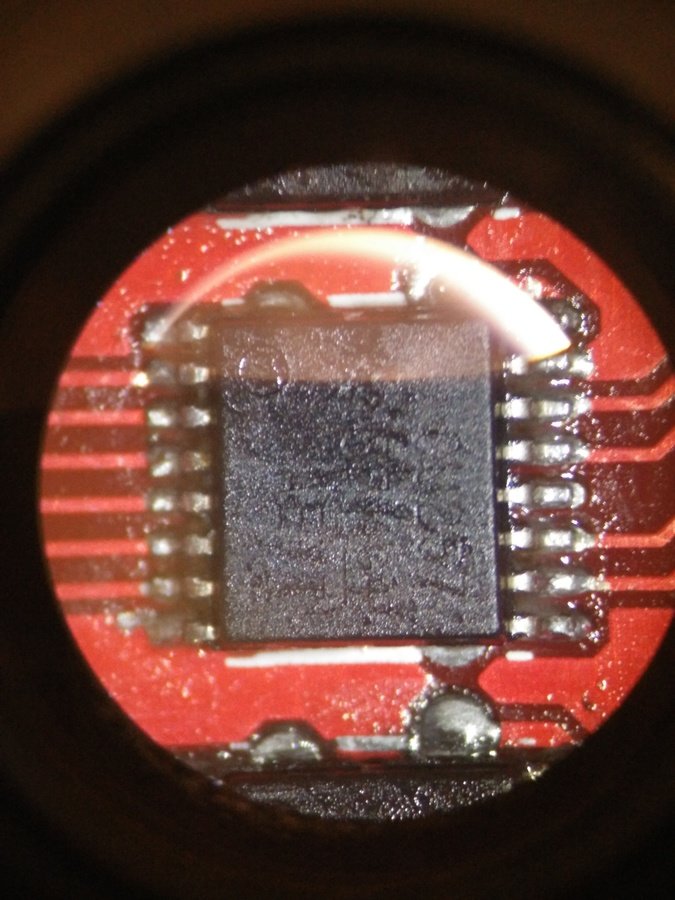

• NSOIC is a pain!
• Fixing bridges with solder wick.
• Microscope is a life saver.

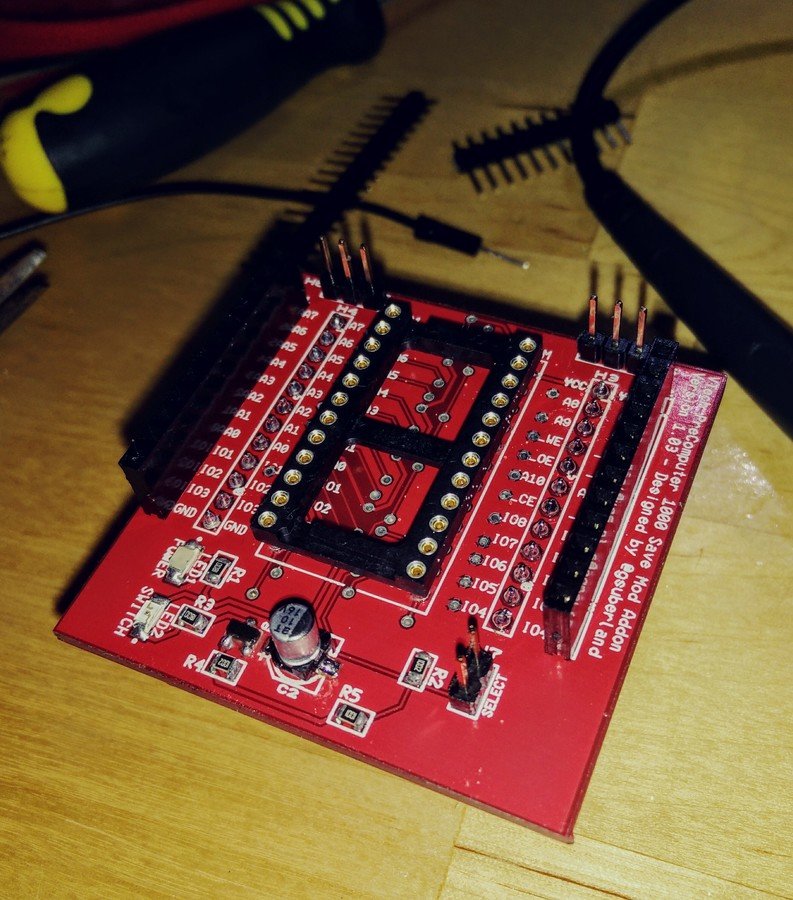

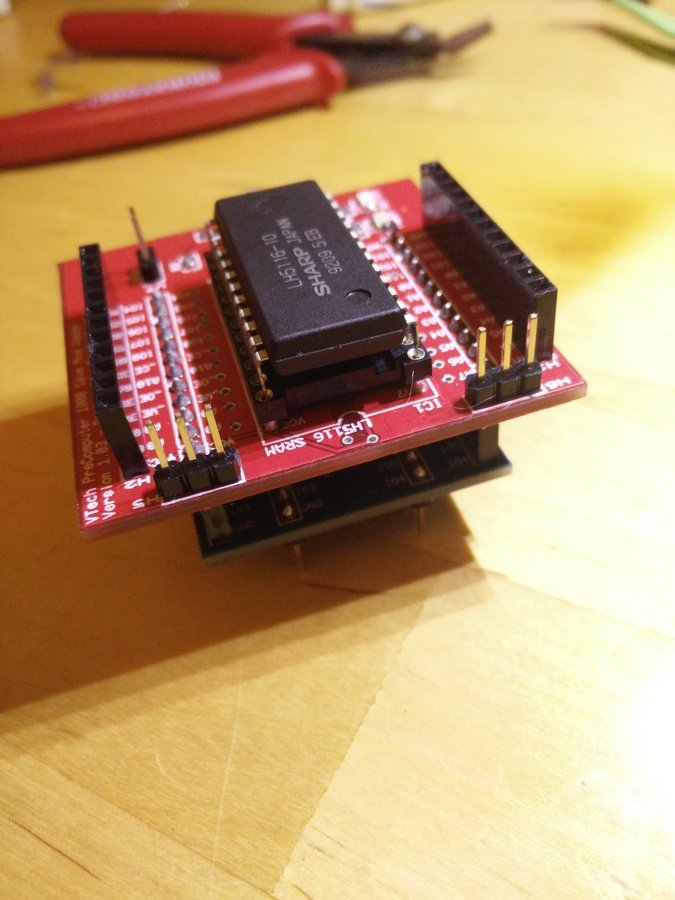

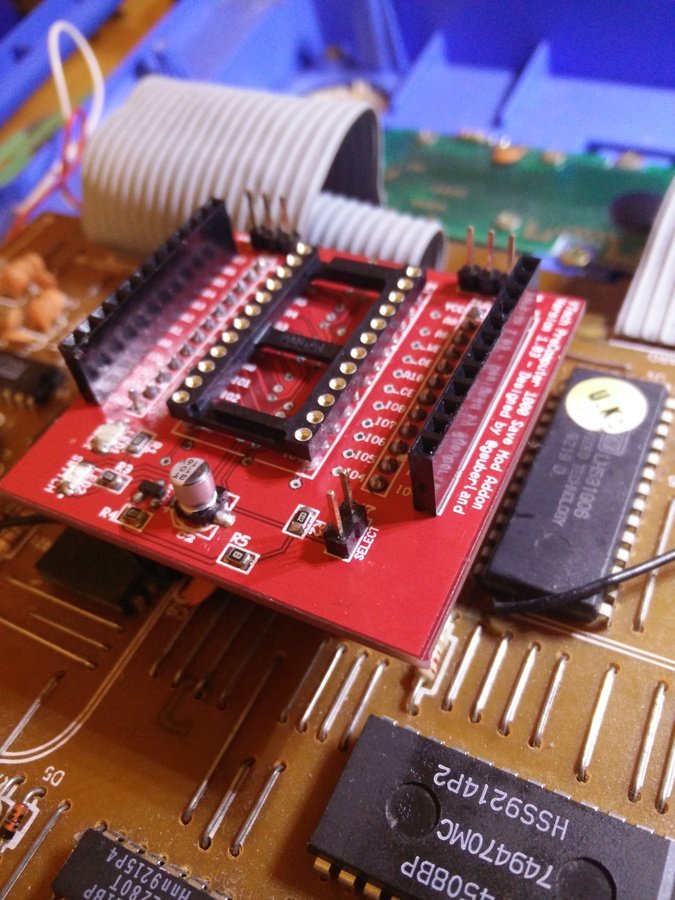

THE RESULT

THE RESULT

THE RESULT

THE RESULT

THE RESULT

DOES IT WORK?

:(

WHY?

• Transition time too long?
• Dead mux/demux ICs?
• Missing pullups/downs?
• Something else...
• I ran out of time :(

CURRENT STATE

FUTURE

LESSONS LEARNED

• Don't blindly trust the datasheets.
• Measure twice... thrice... uh, frice?
• Triple or quadruple your time estimate.
  • Board re-spins take time.
  • Rush jobs are expensive!
• Debugging is super important.
• Factor time into cost savings.

WHAT I'D DO DIFFERENTLY

• Make debugging easier!
  • Debug headers.
  • Test points.
  • Dedicated test rig.
• More detailed part review.
• Better time estimates.
• Spend more, work less.

WATCH THIS SPACE

@gsuberland

QUESTIONS?
