Web Performance Testing

Estela Franco

Estela Franco

@guaca

@guaca

Agenda

1. Web Perf what?

2. Git, GitHub & GitHub Actions

3. LHCI Server

4. Key Takeaways

@guaca

1. Web Perf what?

Once upon a time...

@guaca

Once upon a time...

@guaca

But the following day...

@guaca

But the following day...

@guaca

What the heck?

@guaca

Didn't anyone tell you the new feature is in production?

@guaca

DEFINITION

Let's modify our homepage images!

We've implemented a new feature

@guaca

DEFINITION

IMPLEMENT

Web devs receive the images from the marketing or design team.

And implement the changes.

We've implemented a new feature

@guaca

DEFINITION

IMPLEMENT

TEST

We've implemented a new feature

Automated testing before merging (component testing, integration testing, E2E...).

@guaca

DEFINITION

IMPLEMENT

DEPLOY

TEST

We've implemented a new feature

It can be deployed on production or other previous environments (staging, test...).

@guaca

DEFINITION

IMPLEMENT

DEPLOY

WEB

PERF.

CHECK

TEST

We've implemented a new feature

Once the code is live somewhere, web performance may be tested.

@guaca

Who is checking the web performance?

DEV?

BUSINESS?

SEO?

USERS?

SEARCH

CONSOLE?

NOBODY??

@guaca

And now what?

@guaca

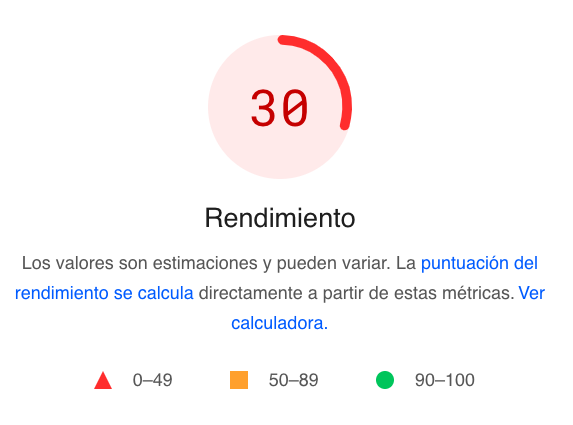

Let's analyze it!

Problem

  • Our new cover hero image's weight is 7.2MB 🤦🏻‍♀️
  • We've added a loading="lazy" attribute to our cover hero image tag 🤦🏻‍♀️
  • Upload the optimized image, which weighs only 110kB.
  • Remove the loading="lazy" attribute (or modify its value by eager).

Solution

@guaca

DEFINITION

IMPLEMENT

DEPLOY

PERF.

CHECK

TEST

And now what?

Depending on the degradation or the solution complexity...

Spending more time === Spending more money

(and generates a bad UX & DX)

BACKLOG

@guaca

We can execute manual Lighthouse tests during the development process in local environments but...

@guaca

Manual tests in local environments

Pros

Cons

  • Helps to detect some web performance issues before shipping code.

  • Improves the web performance culture.
  • Manual work: how many runs per URL? How many tested URLs?

  • Local environment === non standard environment

En mi máquina funciona alert!!!

@guaca

Here's where Web Performance Testing comes into action!

@guaca

Web Performance Testing

Pros

Cons

  • Test config === unified tests criteria.

  • Test automation === better DX.

  • Cloud environment === standard environment.

  • Online results === shareable & available for the rest of the team.

null

@guaca

Why isn't everybody already doing it?

@guaca

Why isn't everybody already doing it?

Lack of knowledge

Lack of web performance culture

@guaca

Lack of knowledge

2. Git, GitHub
& GitHub Actions

But first...

@guaca

SEO

IT

What is Git?

@guaca

Git is a free and open source distributed version control system designed to handle everything from small to very large projects with speed and efficiency.

What is GitHub?

@guaca

GitHub is a Git repository hosting service. It offers the distributed version control and source code management functionality of Git, plus its own features such as bug tracking, feature requests, task management, continuous integration, and wikis for every project.

Run a workflow
on any GitHub event

continuous integration

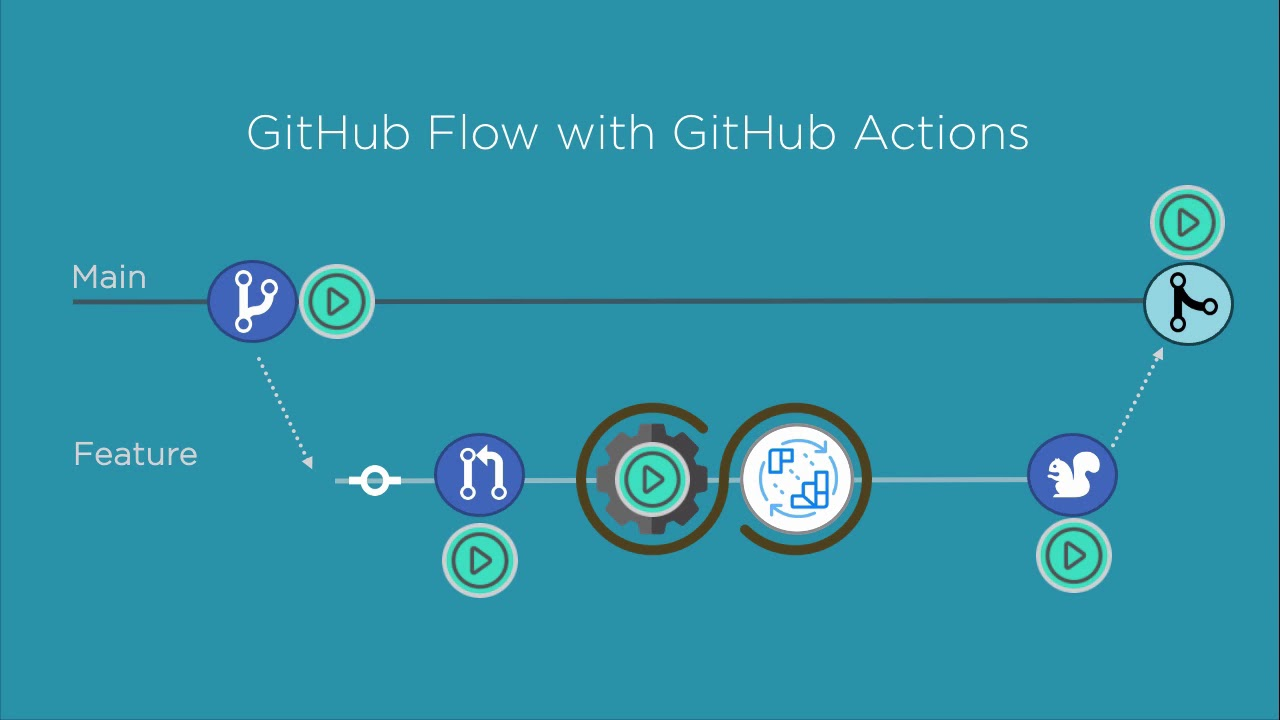

What is GitHub Actions?

@guaca

With GitHub Actions you can automate, customize, and execute your software development workflows right in your repository.

What is GitHub Actions?

@guaca

3. LHCI Server

Lighthouse CI

Automate running Lighthouse for every commit, viewing the changes, and preventing regressions

@guaca

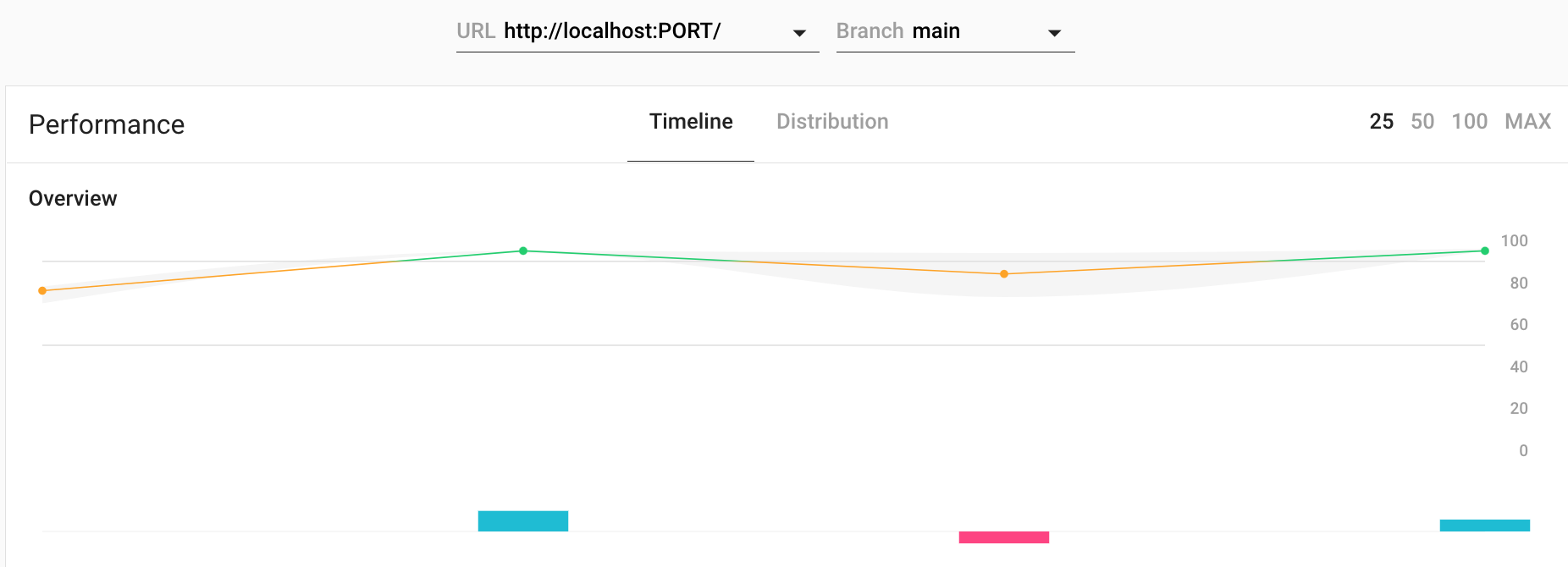

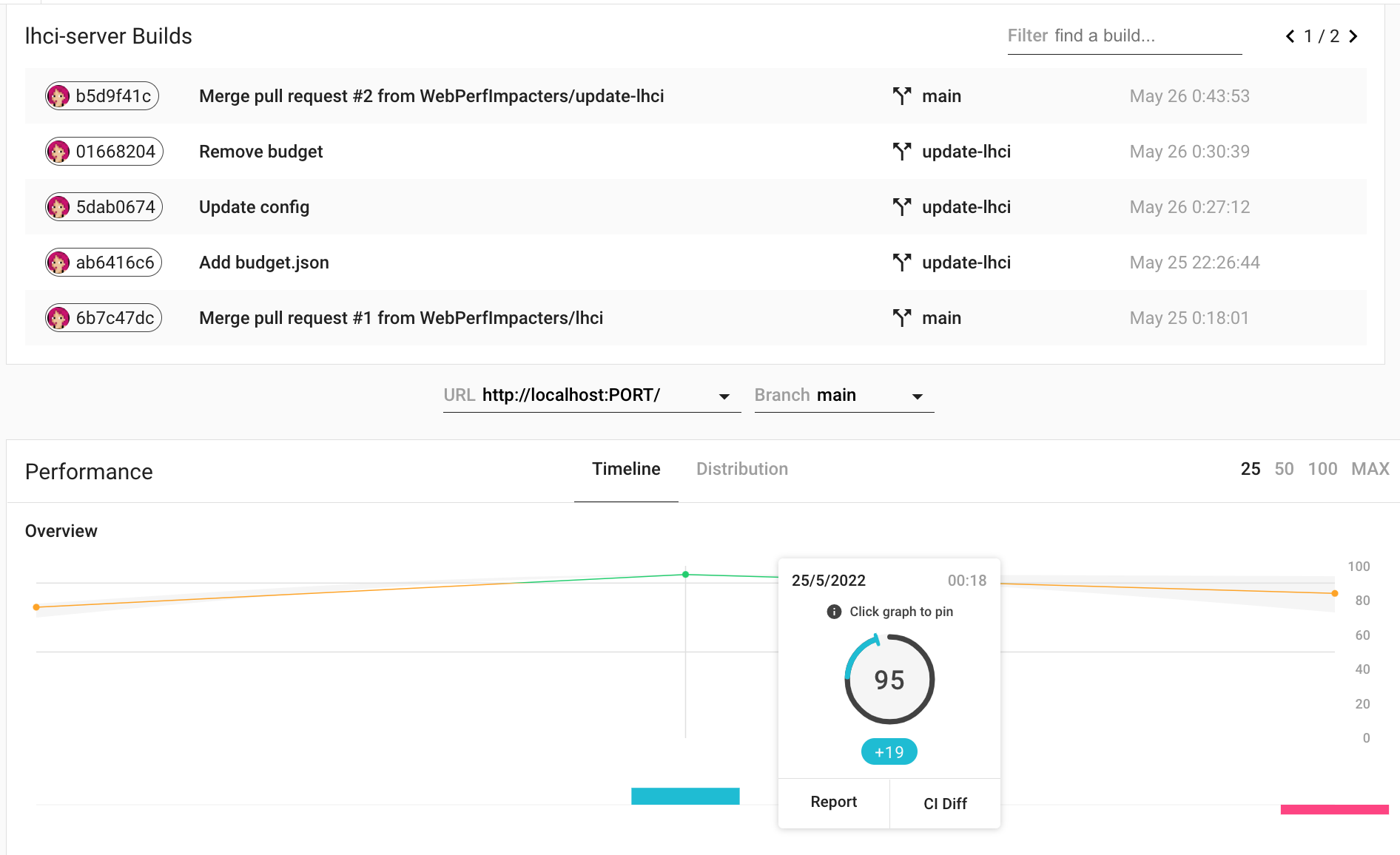

LHCI Server

  • Saves historical Lighthouse data

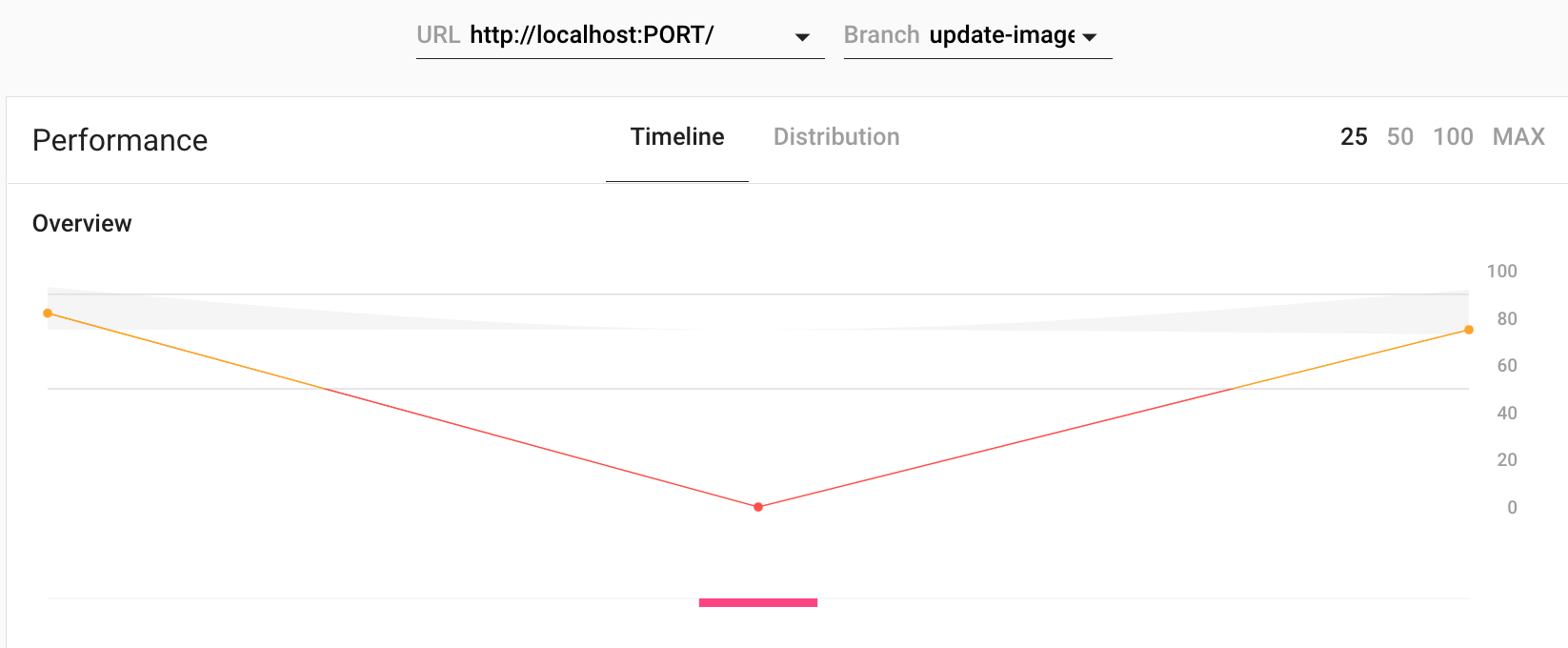

  • Displays trends in a dashboard

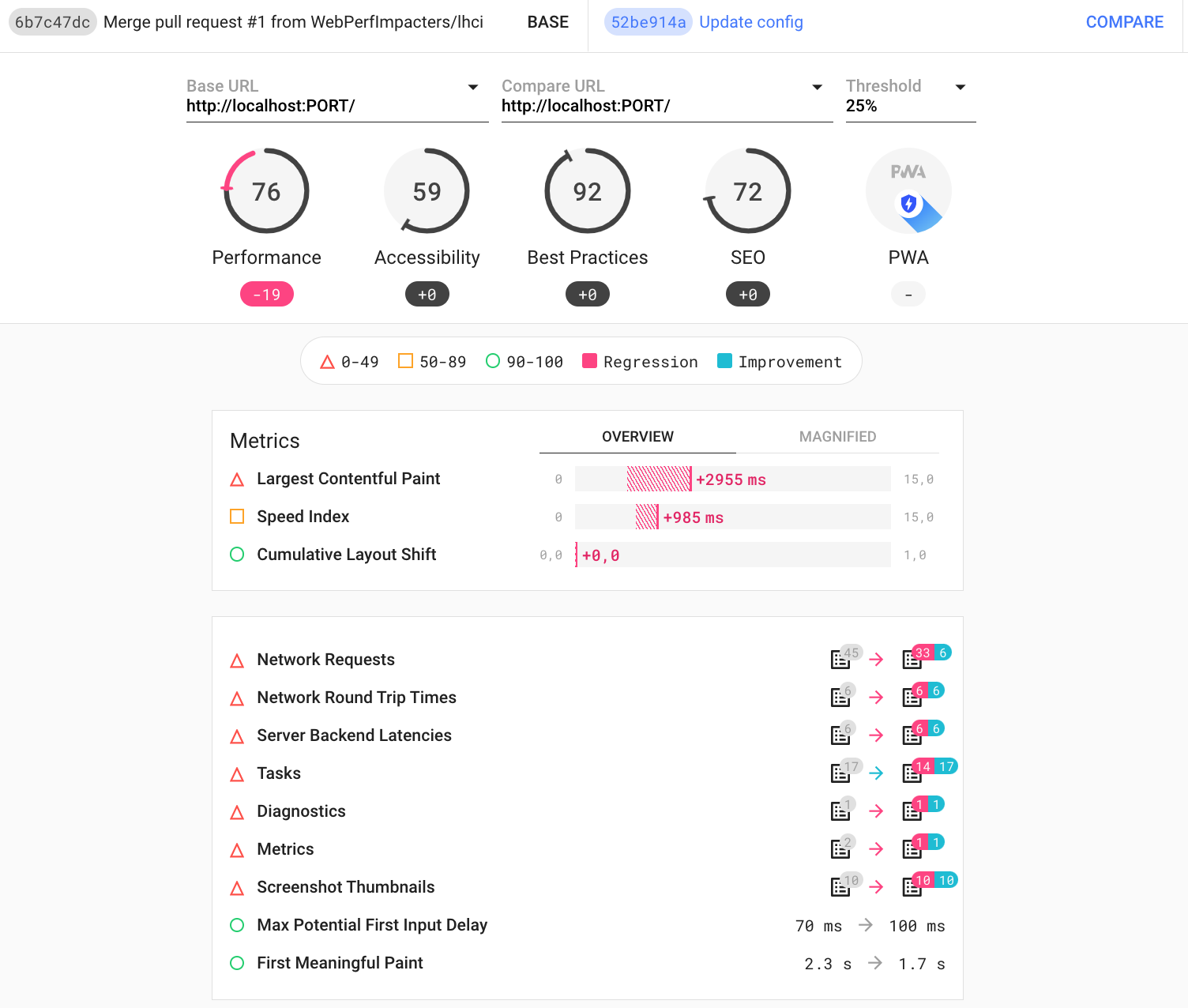

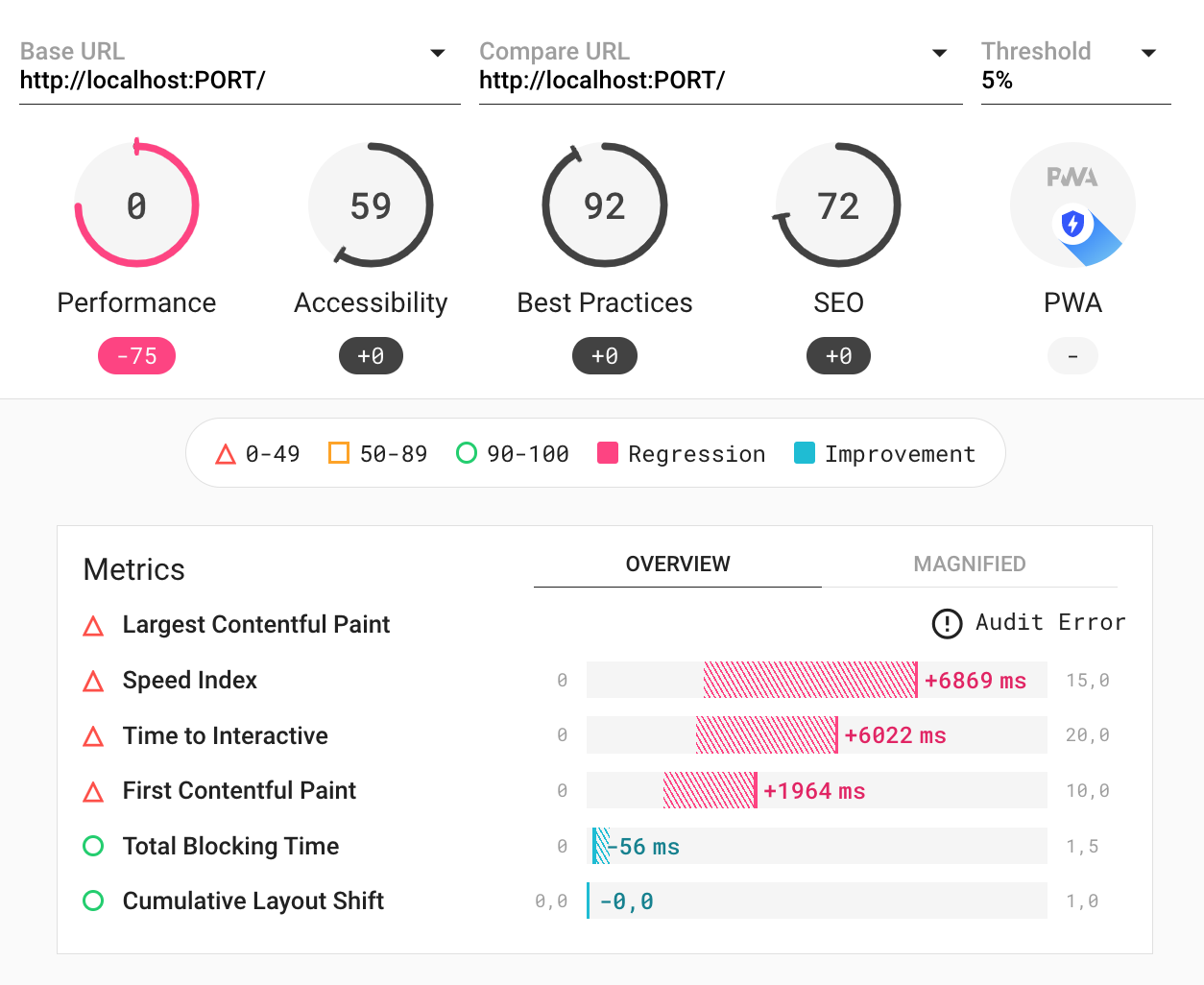

  • Offers an in-depth build comparison UI to uncover differences between builds.

@guaca

LHCI Server

@guaca

LHCI Server

Requirements:


  • Node v12 LTS

  • Database Storage
    (sqlite, mysql, or postgresql)

@guaca

Heroku

Heroku is a platform as a service (PaaS) that enables developers to build, run, and operate applications entirely in the cloud.

@guaca

This is an 8 count dance 💃🏻

@guaca

Requirements

1. Install Git & Node

@guaca

Heroku

2. Create a Heroku account

@guaca

Heroku

3. Install Heroku CLI

$ brew tap heroku/brew && brew install heroku
$ npm install -g heroku

@guaca

Heroku

4. Set up your lhci-heroku repo

# Create a directory and repo for your heroku project
mkdir lhci-heroku && cd lhci-heroku && git init

# Setup the LHCI files
curl https://raw.githubusercontent.com/GoogleChrome/lighthouse-ci/main/docs/recipes/heroku-server/package.json > package.json
curl https://raw.githubusercontent.com/GoogleChrome/lighthouse-ci/main/docs/recipes/heroku-server/server.js > server.js

# Create the project's first commit
git add package.json server.js && git commit -m 'Initial commit'

@guaca

Heroku

4. Set up your lhci-heroku repo

# Create a new project on heroku
heroku create

# Add a free database to your project
heroku addons:create heroku-postgresql:hobby-dev

# Deploy your code to heroku
git push heroku main

# Ensure heroku is running your app and open the URL
heroku ps:scale web=1
heroku open

@guaca

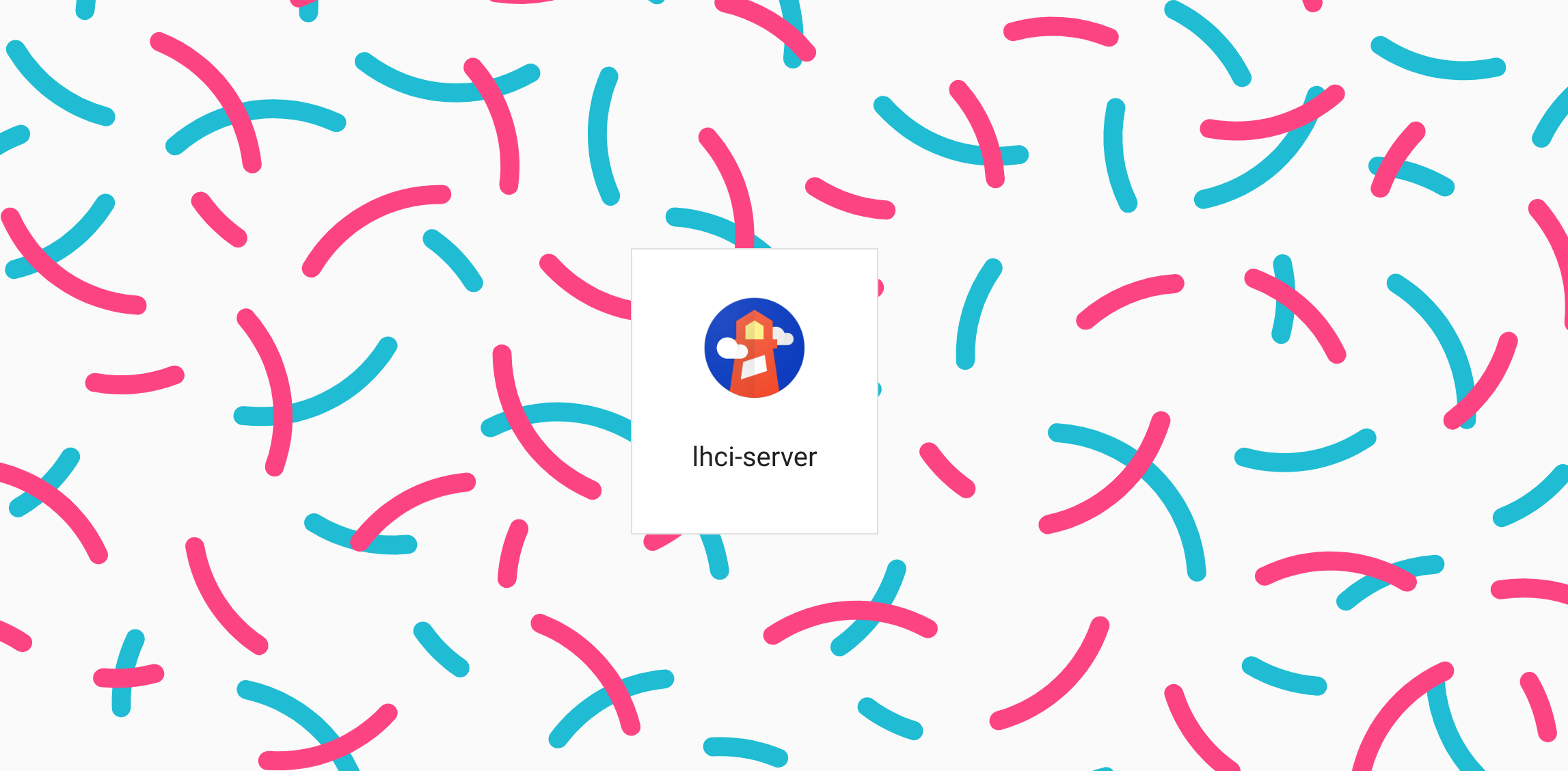

Heroku

@guaca

LHCI Server

5. Install LHCI CLI & launch lhci wizard

# Install the Lighthouse CI CLI.
npm install -g @lhci/cli

@guaca

LHCI Server

5. Install LHCI CLI & launch lhci wizard

$ lhci wizard
? Which wizard do you want to run? new-project
? What is the URL of your LHCI server? https://your-lhci-server.herokuapp.com/
? What would you like to name the project? My Project
? Where is the project's code hosted? https://github.com/myaccount/miproject
? What branch is considered the repo's trunk or main branch? main

Created project My Project (XXXXXXXX-XXXX-XXXX-XXXX-XXXXXXXXXXXX)!
Use build token XXXXXXXX-XXXX-XXXX-XXXX-XXXXXXXXXXXX to add data.
Use admin token XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX to manage the project. KEEP THIS SECRET!

@guaca

LHCI Server

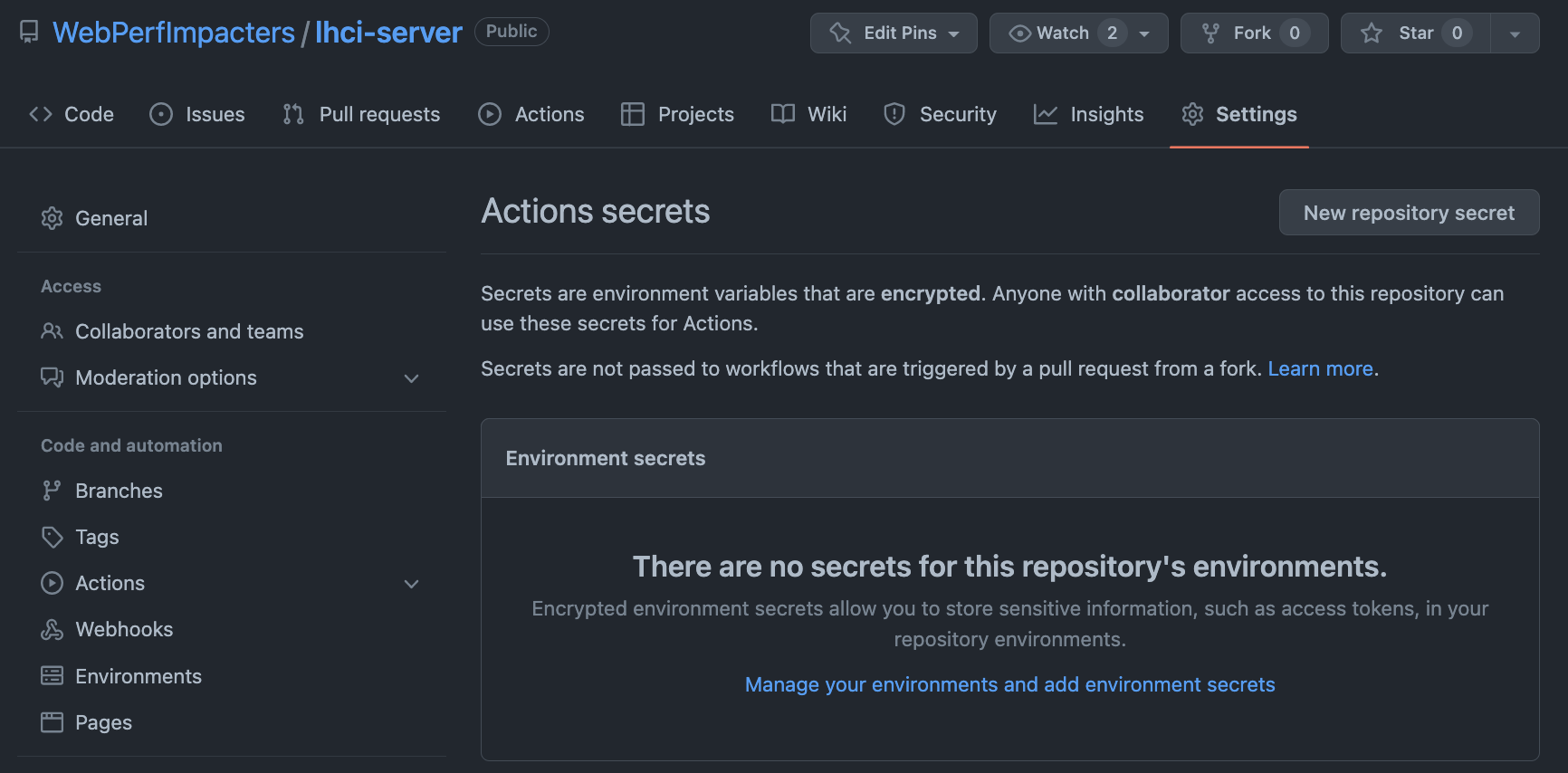

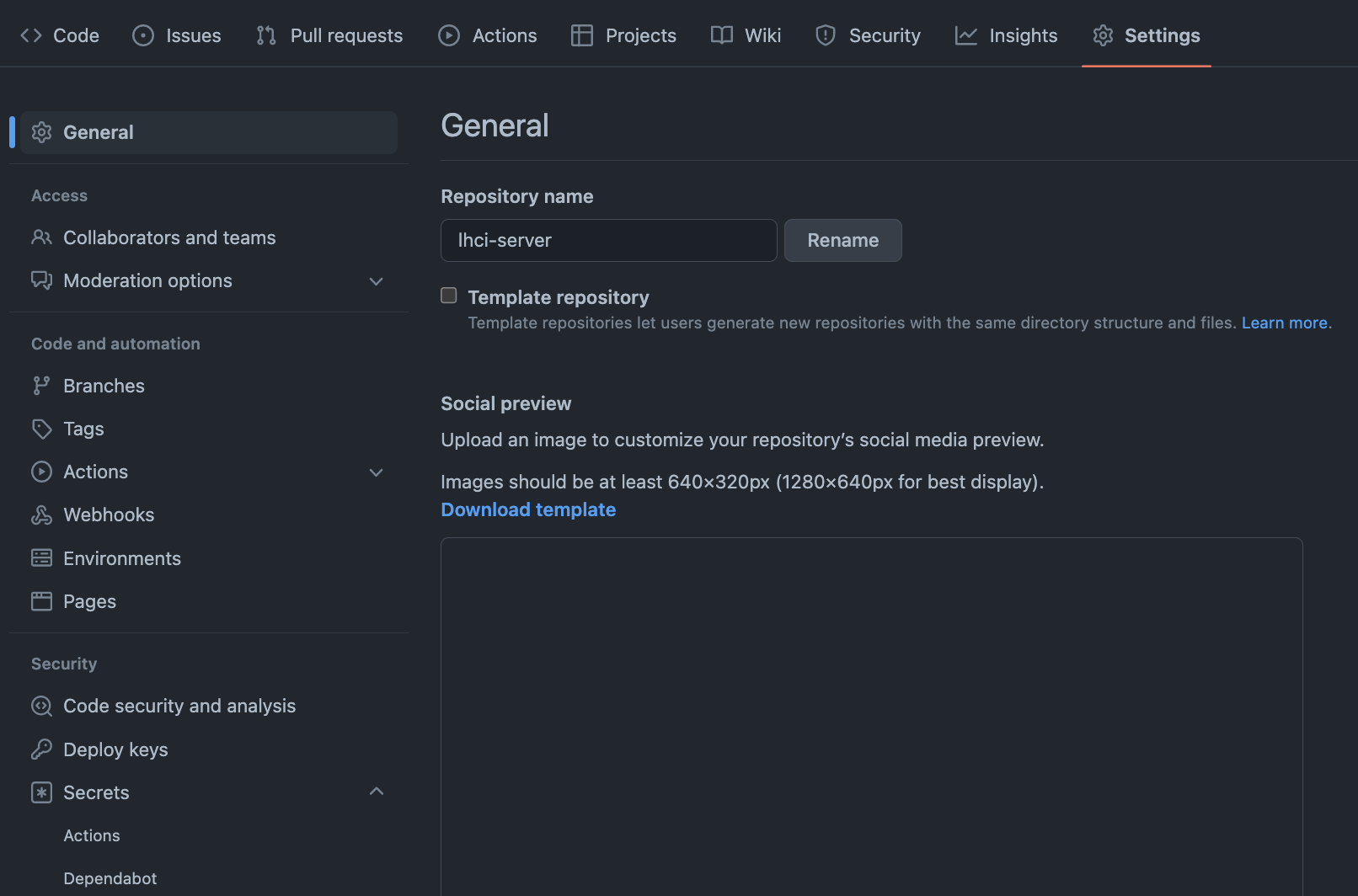

6. Create secrets on your GitHub repo

@guaca

LHCI Server

6. Create secrets on your GitHub repo

@guaca

LHCI Server

6. Create secrets on your GitHub repo

@guaca

LHCI Server

6. Create secrets on your GitHub repo

@guaca

Server URL from Heroku

LHCI Server

6. Create secrets on your GitHub repo

@guaca

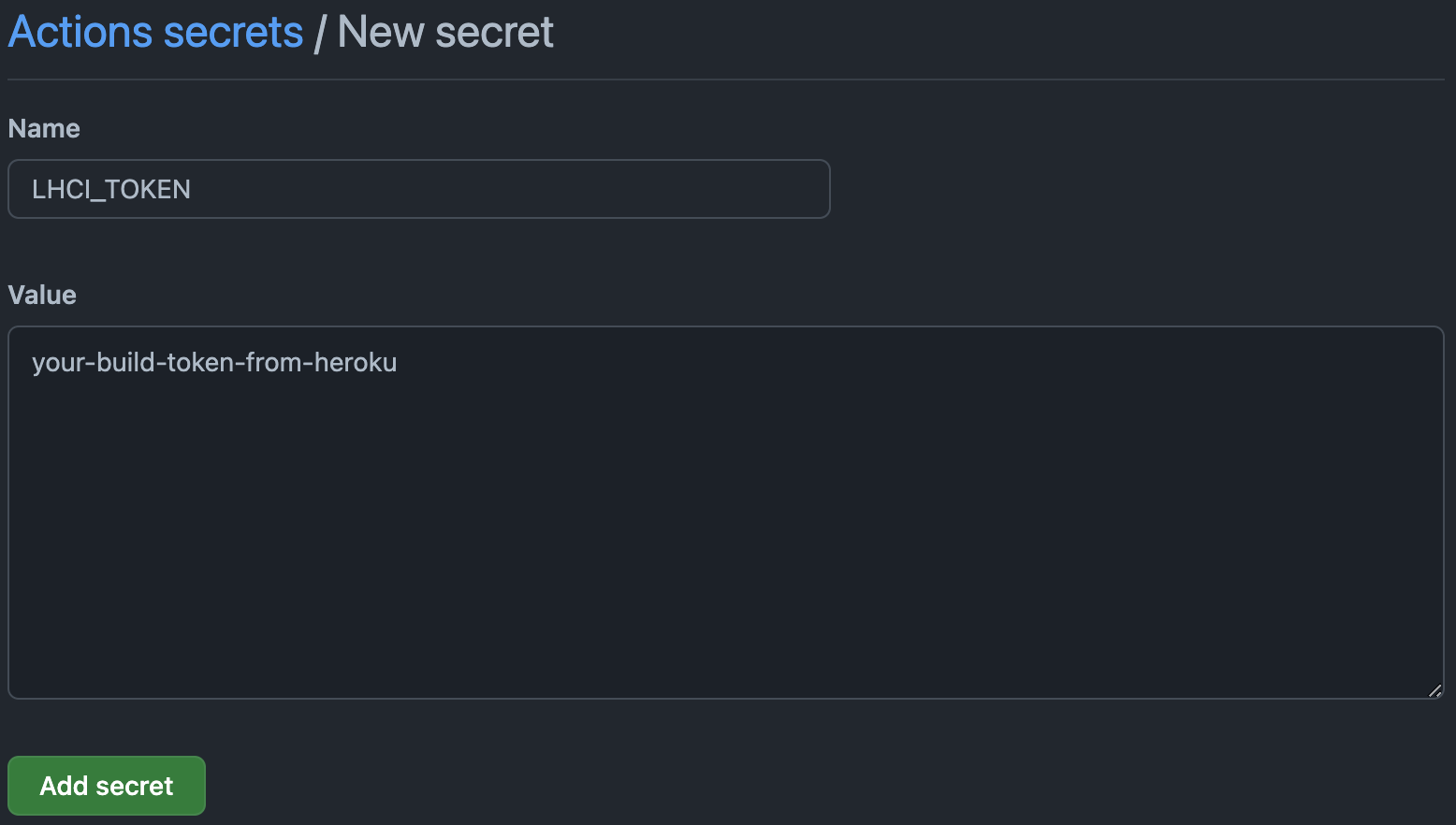

Server build token from Heroku

LHCI Server

6. Create secrets on your GitHub repo

@guaca

LHCI Server

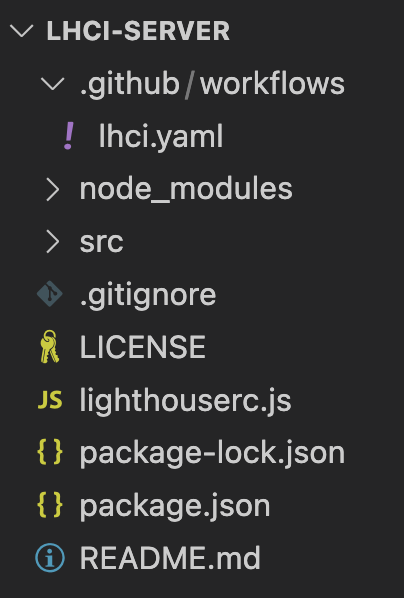

7. Create a new workflow on your project
  lhci.yaml

@guaca

LHCI Server

7. Create a new workflow
  lhci.yaml

name: Lighthouse CI Server Production
on: push
jobs:
  lhci:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v3
      - uses: actions/setup-node@v3
        with:
          node-version: 16.x
        run: npm install
      - name: Run Lighthouse CI
        uses: treosh/lighthouse-ci-action@v9
        with:
          runs: 3
          urls: |
            http://localhost:3000/
            http://localhost:3000/about/
            http://localhost:3000/blog/
         configPath: './lighthouserc.js'
          serverBaseUrl: ${{ secrets.LHCI_SERVER_URL }}
          serverToken: ${{ secrets.LHCI_TOKEN }}

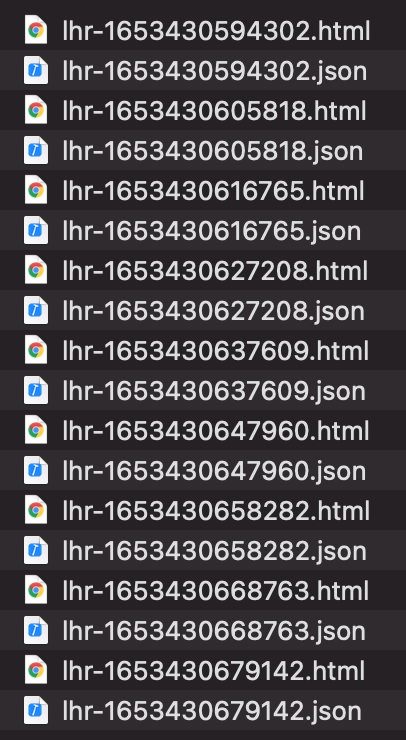

          uploadArtifacts: true

@guaca

LHCI Server

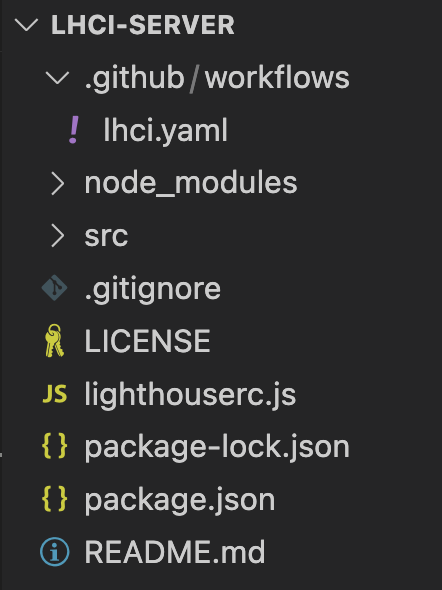

8. Create a new config file
  lighthouserc.js

@guaca

LHCI Server

8. Create a new config file
  lighthouserc.js

@guaca

module.exports = {
	ci: {
		collect: {
			// collect options here
		},
		assert: {
			// assert options here
		},
		upload: {
			// upload options here
		},
		server: {
			// server options here
		},
		wizard: {
			// wizard options here
		},
	},
};

LHCI Server

8. Create a new config file
  lighthouserc.js

@guaca

module.exports = {
	ci: {
		collect: {
			startServerCommand: "npm start",
		},
		assert: {
			assertions: {
				"categories:performance": ["warn", { minScore: 0.8 }],
				"categories:seo": ["error", { minScore: 0.8 }],
				"categories:pwa": "off",
				"first-contentful-paint": ["warn", {"maxNumericValue": 2000}],
				"dom-size": ["error", {"maxNumericValue": 3000}],
				"resource-summary:script:size": ["warn", {"maxNumericValue": 300}],
				"resource-summary:third-party:count": ["warn", {"maxNumericValue": 5}],
			},
		}
	},
};

@guaca

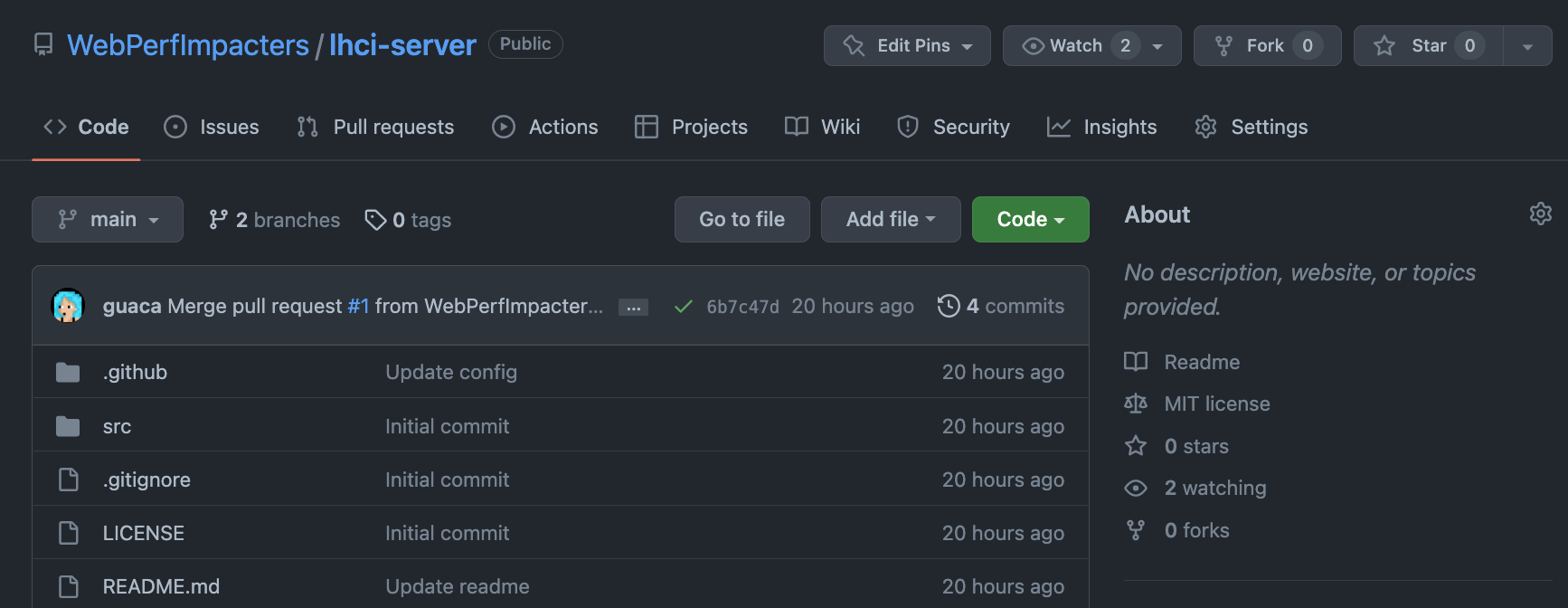

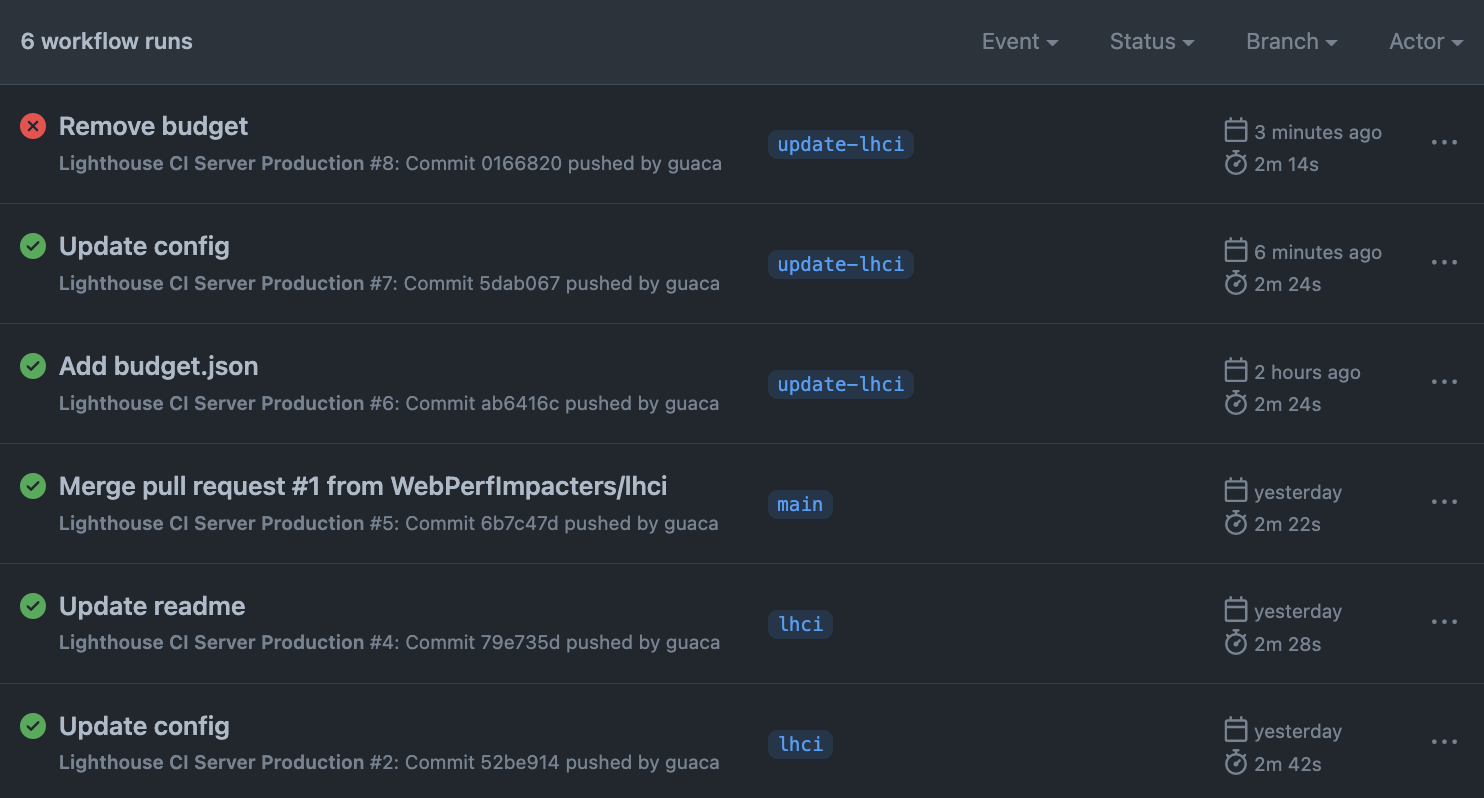

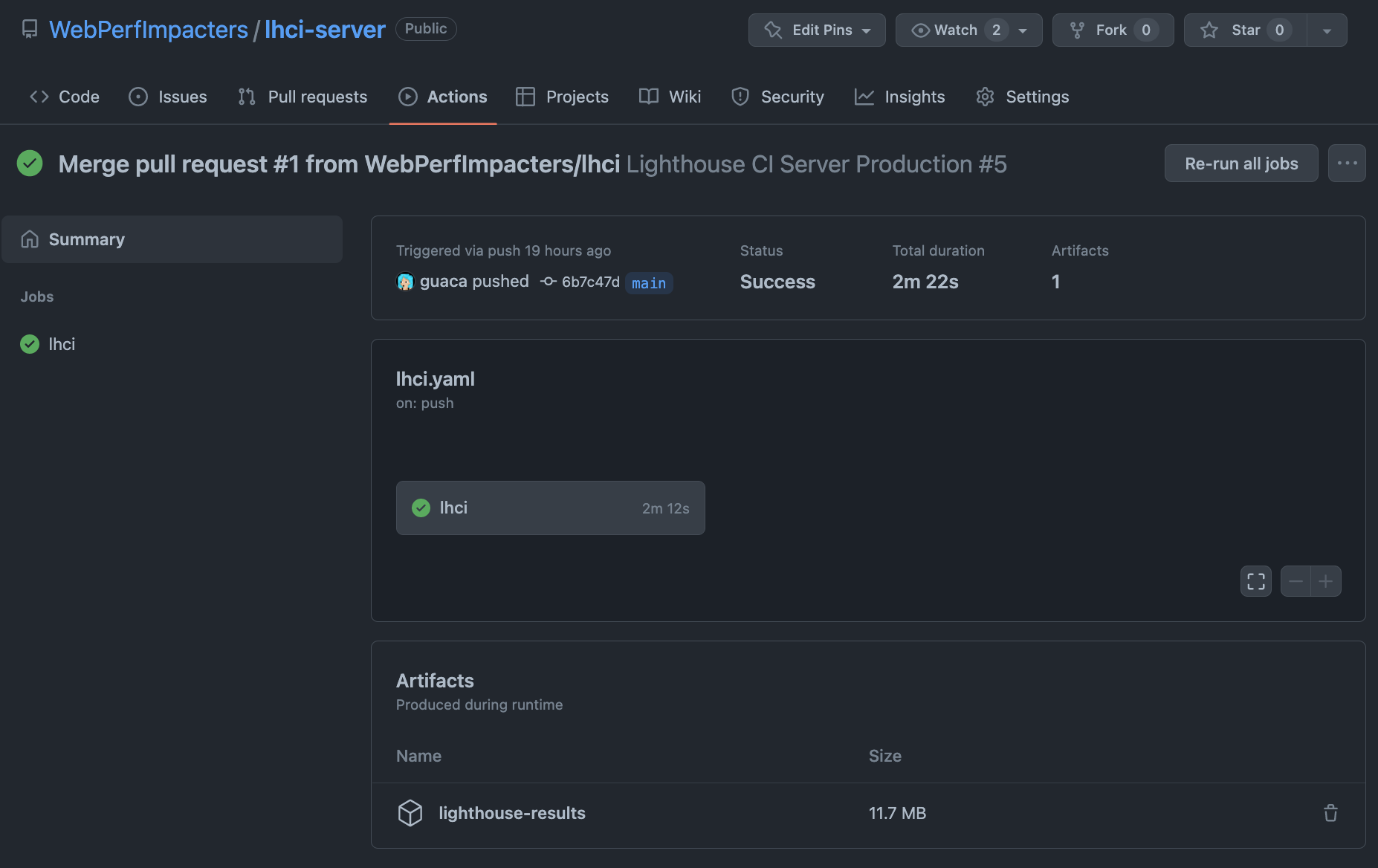

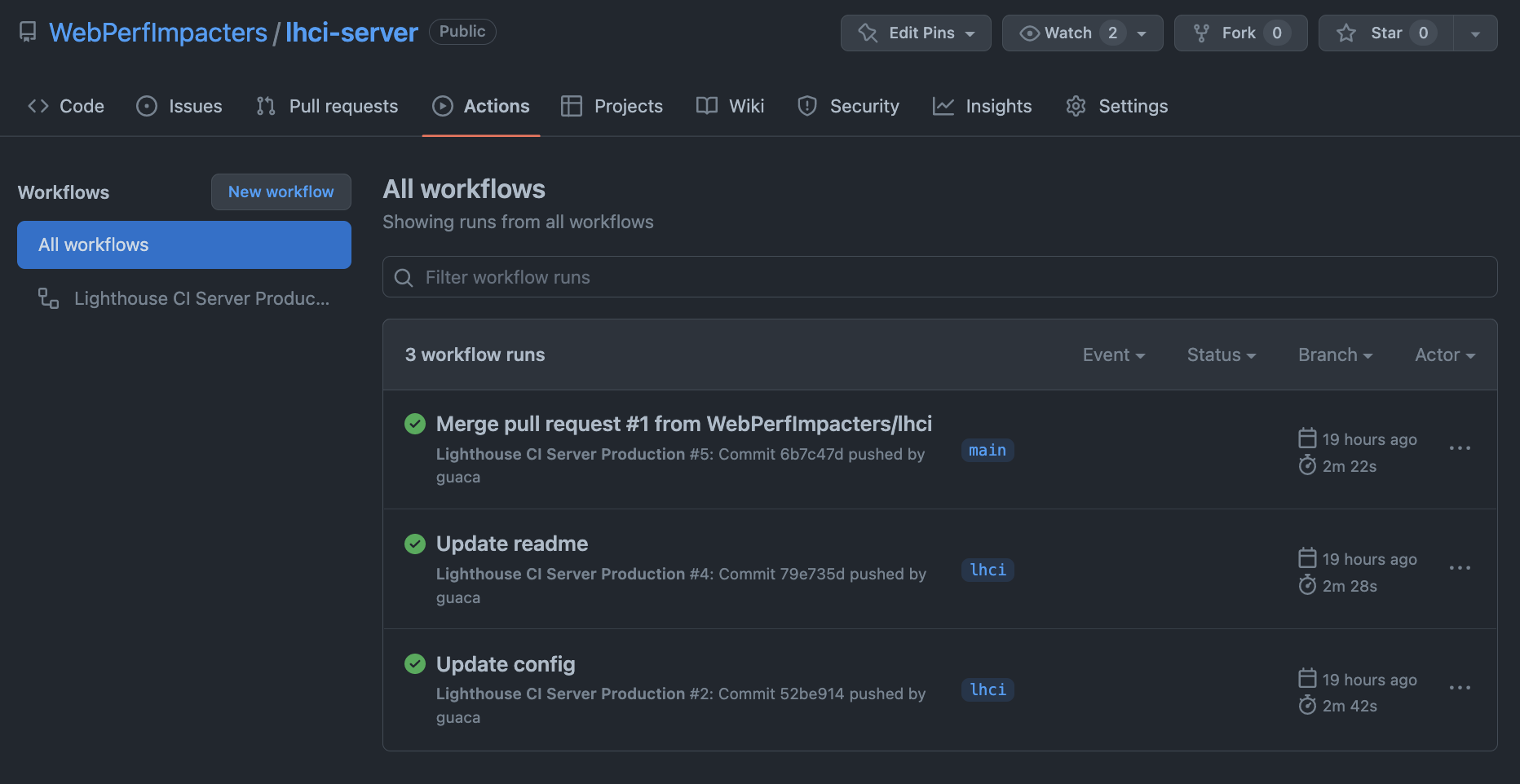

Once we push code to GitHub...

@guaca

Once we push code to GitHub...

@guaca

Once we push code to GitHub...

😱

@guaca

Once we push code to GitHub...

@guaca

Once we push code to GitHub...

@guaca

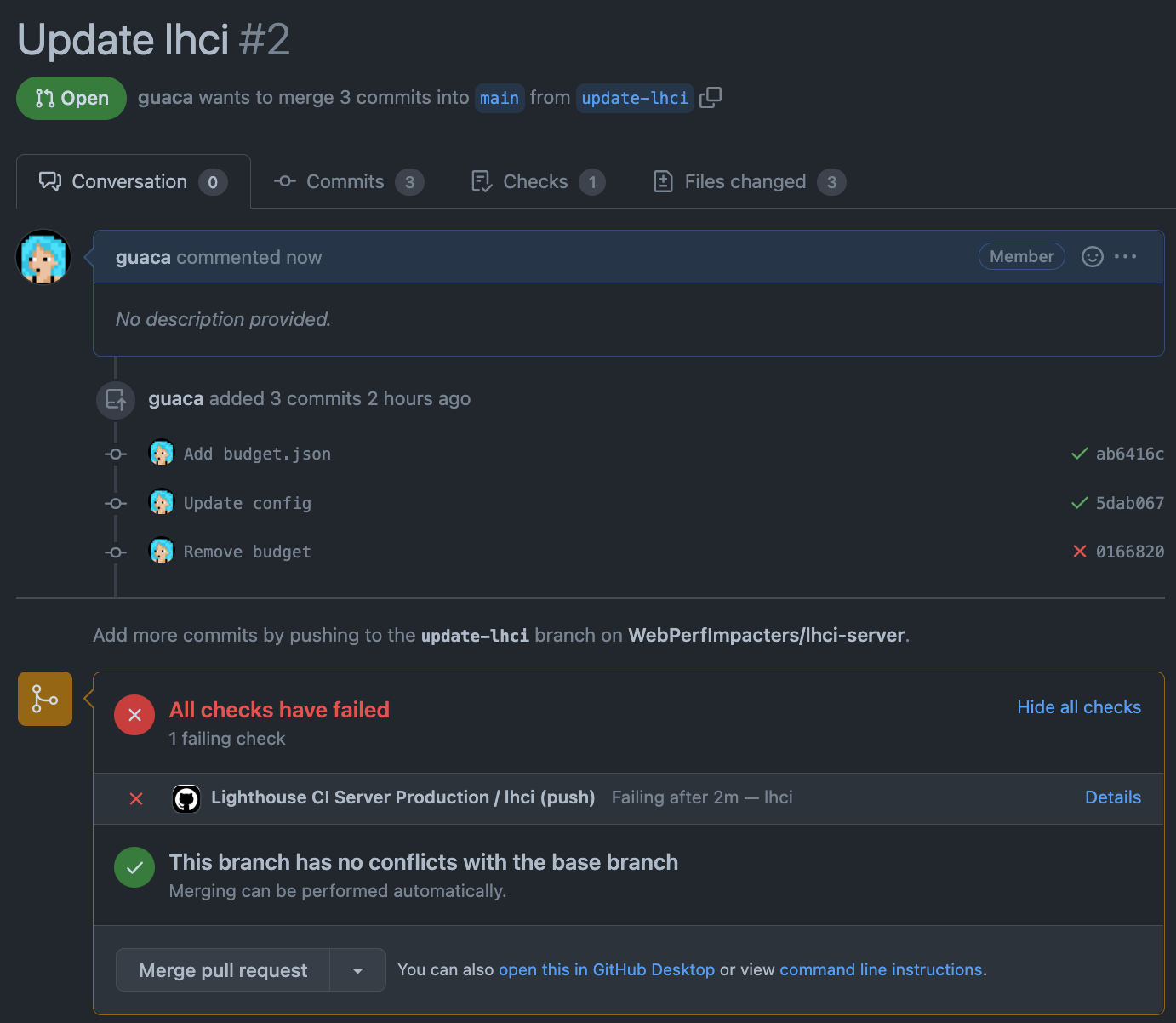

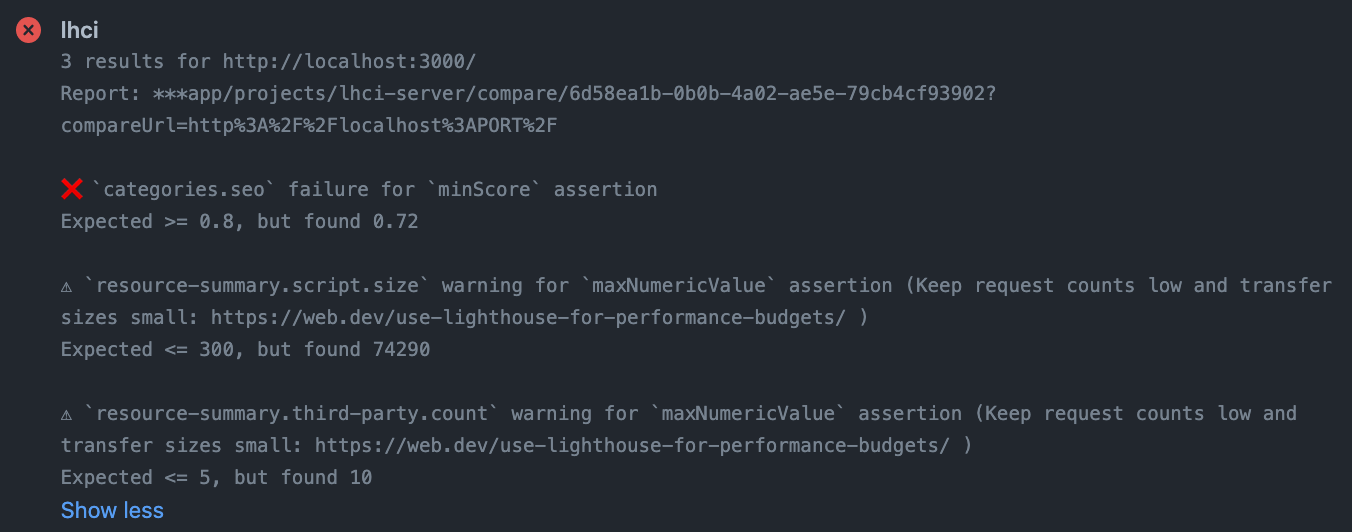

And when opening a pull request...

😱

@guaca

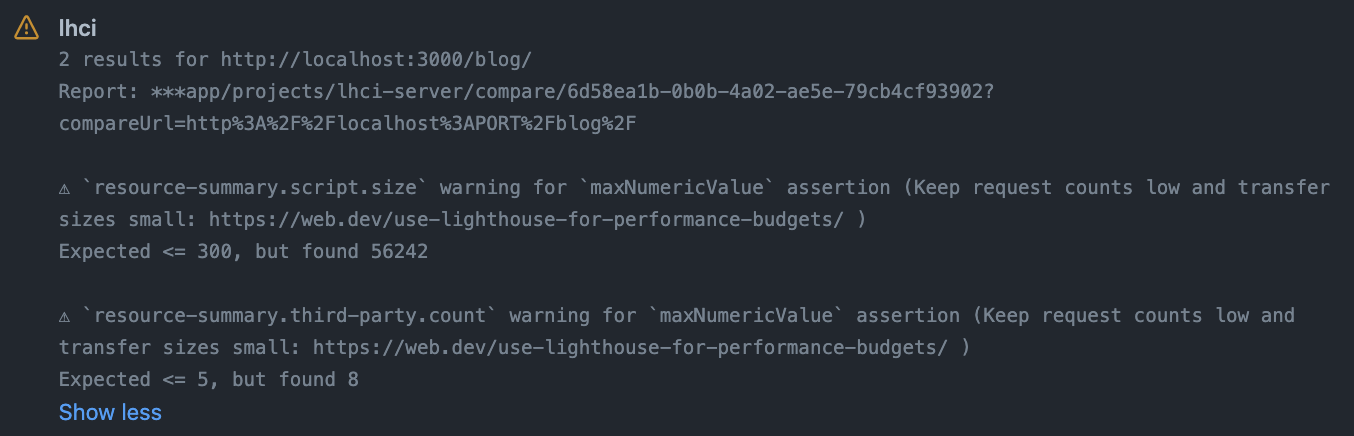

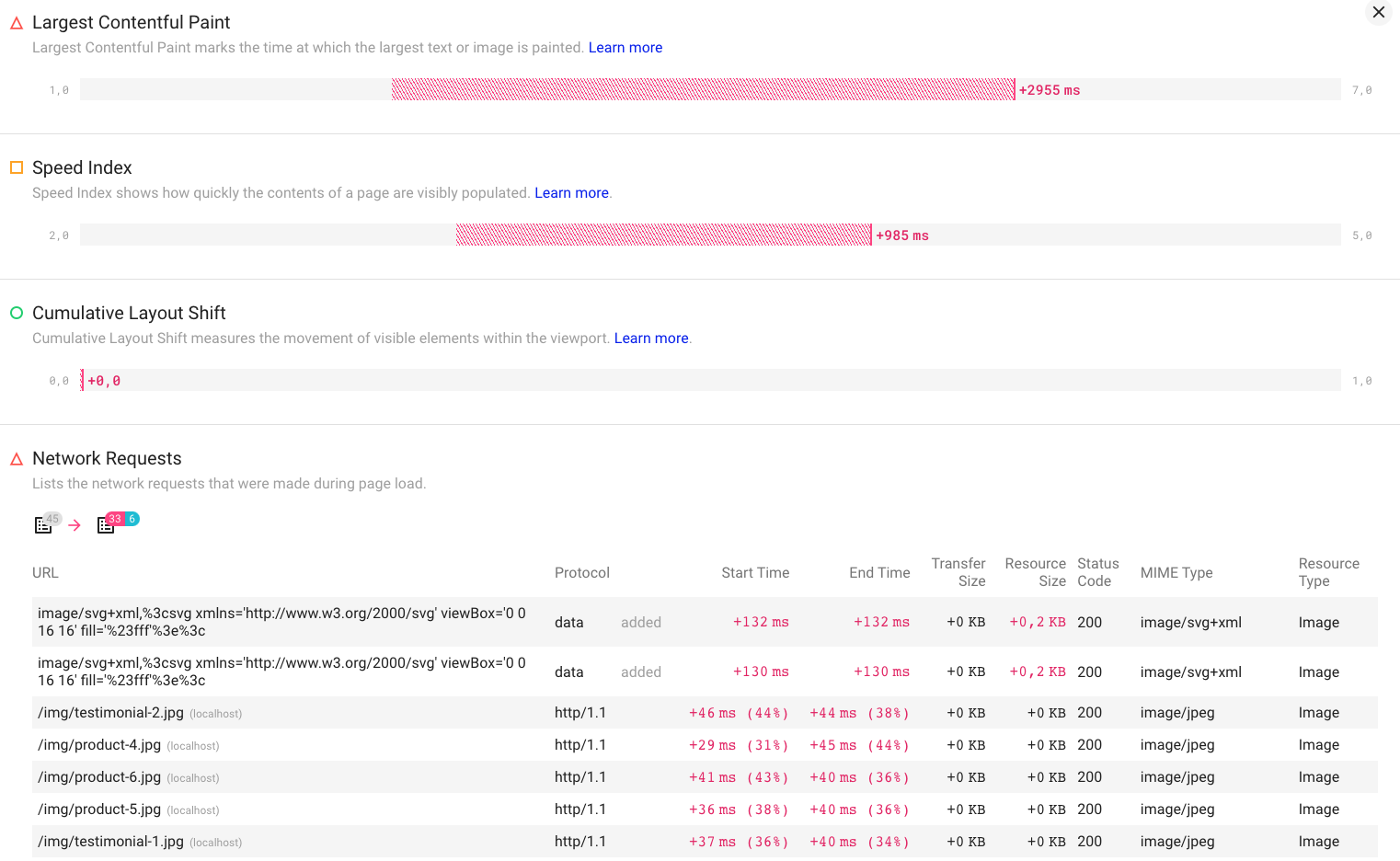

And... ✨ the magic begins! ✨

@guaca

And... ✨ the magic begins! ✨

@guaca

And... ✨ the magic begins! ✨

@guaca

And... ✨ the magic begins! ✨

@guaca

And... ✨ the magic begins! ✨

@guaca

And... ✨ the magic begins! ✨

@guaca

You got it! 💃🏻

@guaca

We won't destroy our WebPerf anymore

@guaca

We won't destroy our WebPerf anymore

@guaca

We won't destroy our WebPerf anymore

@guaca

We won't destroy our WebPerf anymore

Demo or
it didn't happen

@guaca

4. Key Takeaways

Key Takeaways

  • Web Performance Testing is a must to ensure we are not degrading our performance.

  • LHCI & GitHub actions allow us

    • To execute Lighthouse automatic audits when we push code to GitHub

    • To set thresholds on metrics or resources.

    • To block shipping code to production, if needed.

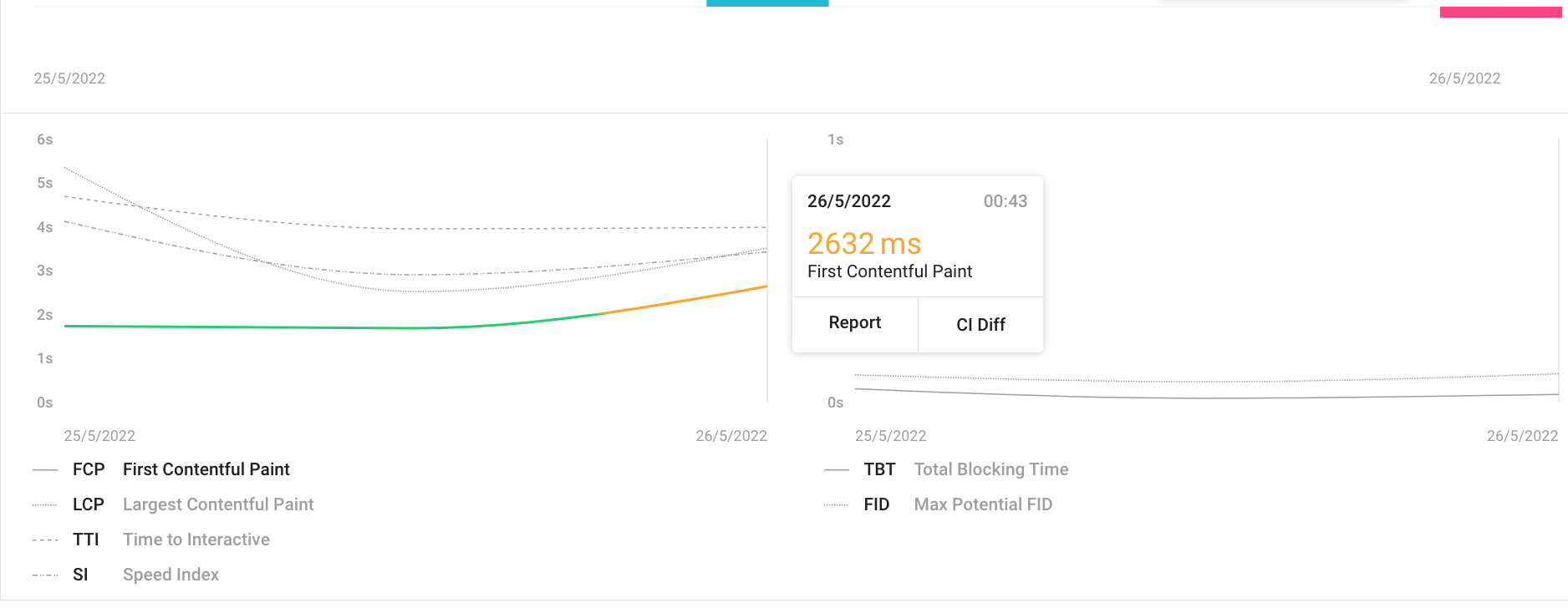

  • LHCI Server allows us to track the web performance evolution for each new implementation.

@guaca

Key Takeaways

Lack of knowledge

Lack of web performance culture

@guaca

Thank you!

Questions?

Resources

@guaca

Web Performance Testing

By Estela Franco

Web Performance Testing

Que la Web Performance impacta a laUX, al posicionamiento SEO y, por tanto, a las visitas y métricas de negocio, es una realidad. Conocer las métricas de Web Performance más relevantes y testearlas en cada pase que hacemos a producción nos ahorrará muchos problemas. En esta charla aprenderás cómo configurar e implementar un sistema automatizado para testear la Web Performance con Lighthouse CI, y conseguir así no degradar la UX de nuestro producto.
