Transformations
Translate
Rotate
Scale
cos(T) -sin(T) 0 0
sin(T) cos(T) 0 0
0 0 1 0
0 0 0 1
rotation around Z
cos(T/2)
sin(T/2) * 0
sin(T/2) * 0
sin(T/2) * 1
Matrix
Quaternion
w
x
y
z
with angle T
Rigid Body Transformation
Quaternion
Translation Vector
w
x
y
z
x
y
z
0
Scaling
x, y, z
Euler Angles
Gimbal Lock
Quaternions fixes this!
Arcball
Trackball

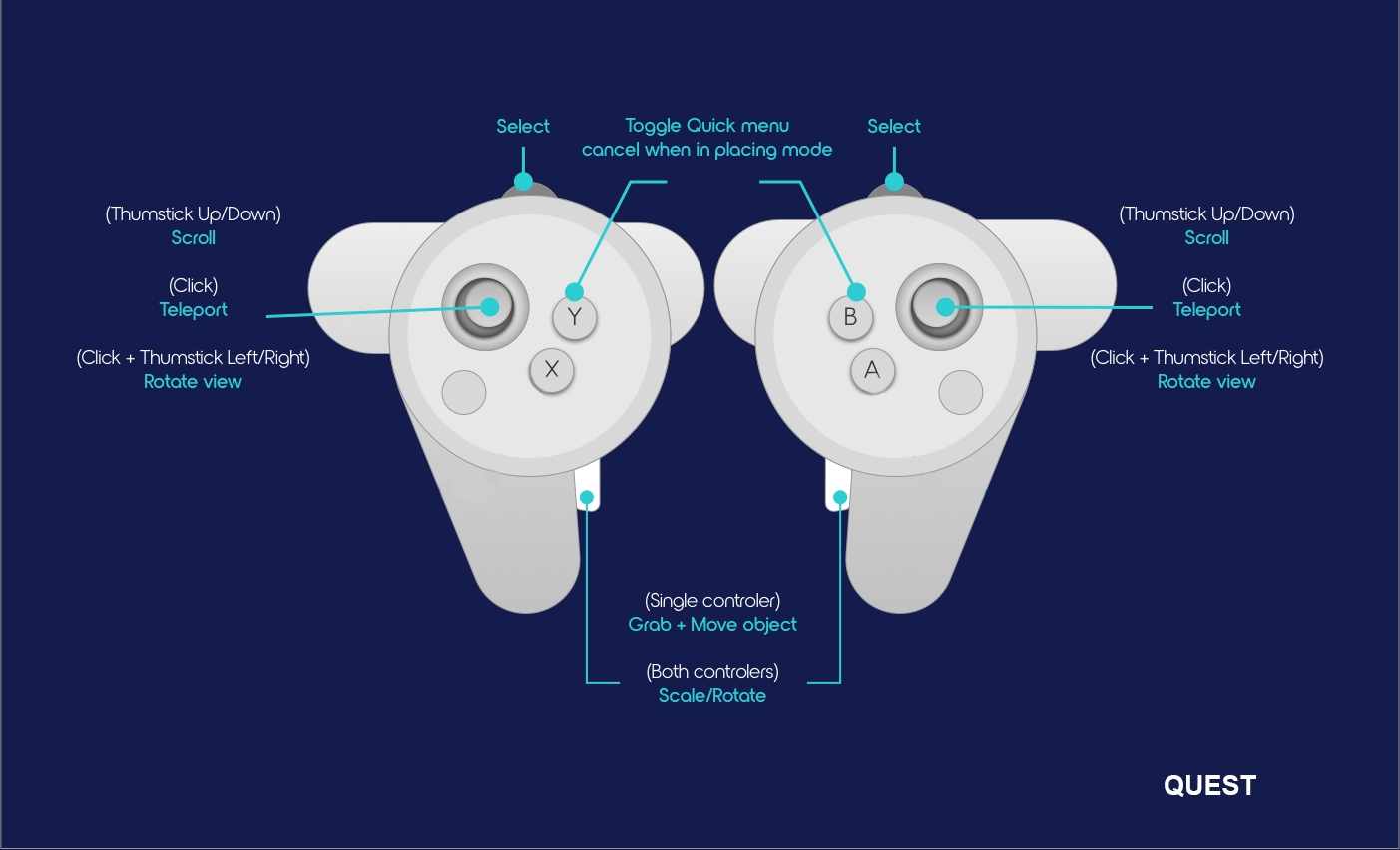

Controls
Natural Feeling
Spins twice as fast
Completely path independent
Both:
Map 2D to 3D Sphere
esay to implement with Quaternions
Picking
or unprojecting from 2D to 3D
Framebuffer (hidden)
1
2
3
4
( 1, 0, 0, 1 )
( 0, 1, 0, 1 )
( 1, 1, 0, 1 )
( 0, 0, 1, 1 )
( 0, 0, 0, 1 )
gl.readPixels
(r, g, b, a)
map to object ID
( 0, 1, 0, 1 )
2
Object Picking
Object Picking
Raycasting
More complex
Quick'n'Dirty
Very precise (Face picking)
Object precision
Occlusion not a problem
Objects can be hidden
raycaster = THREE.Raycaster();
raycaster.setFromCamera(vp_coords_near, camera);
intersects = raycaster.intersectObject( scene.children );$ subl .$ cd 05/inkman$ git pull
Sync your fork!
$ python -m http.server
How are the colors chosen?
What are these .jpg images?
How are the colors chosen?
What are these .jpg images?

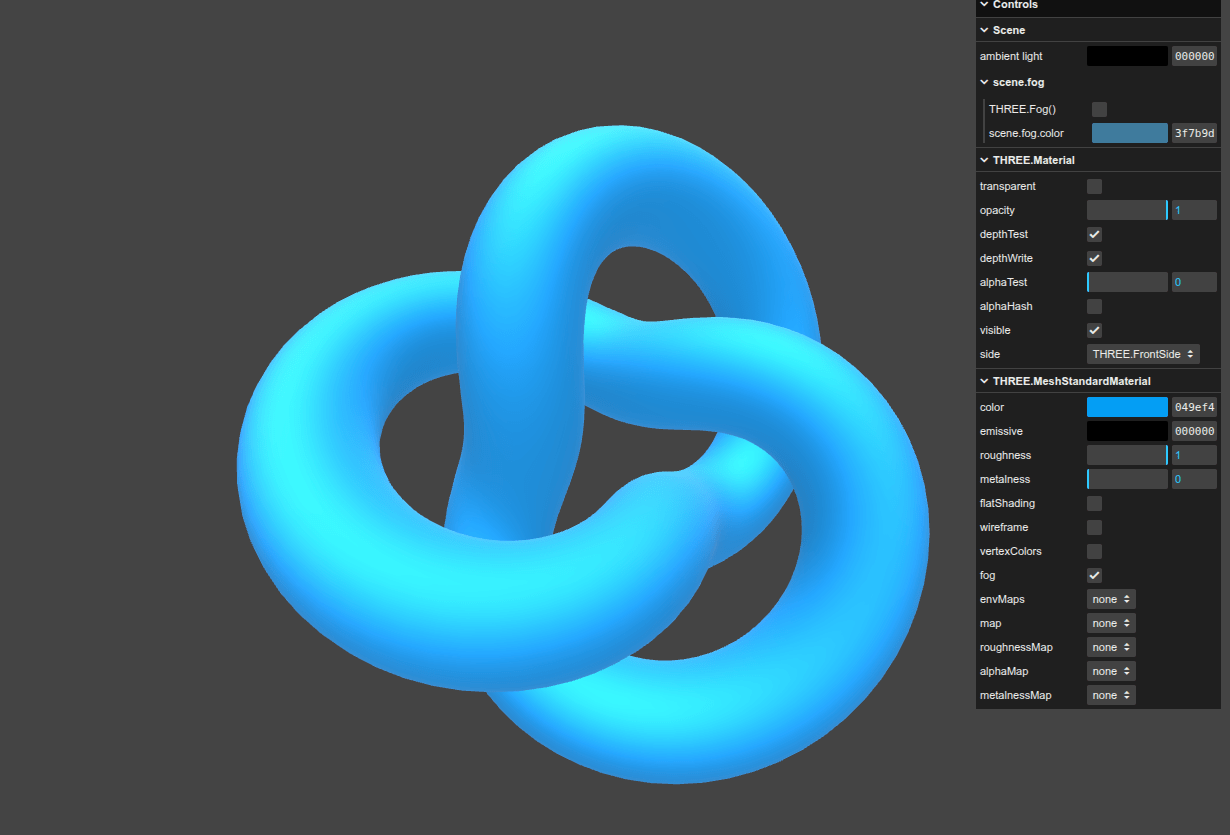

material.color.setHex( Math.random() * 0xffffff );

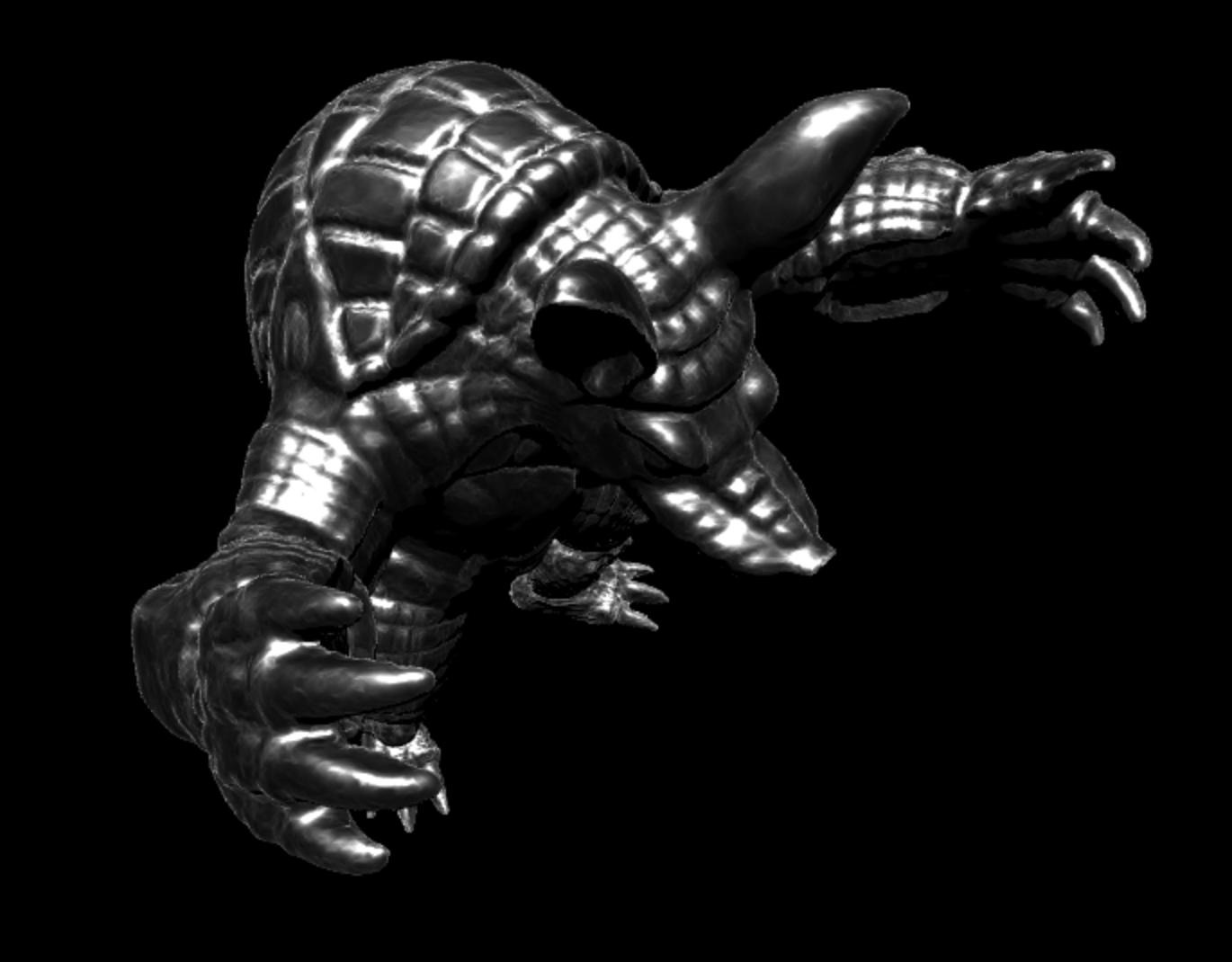

texture
specular

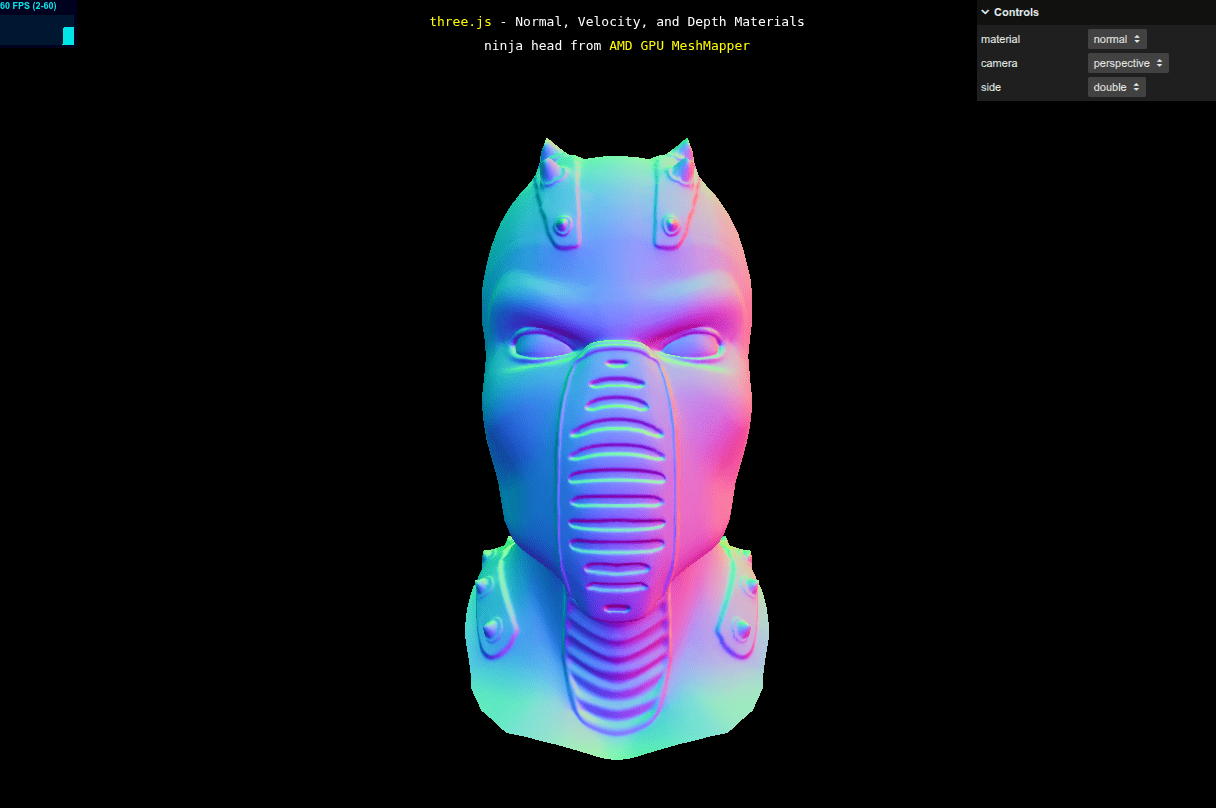

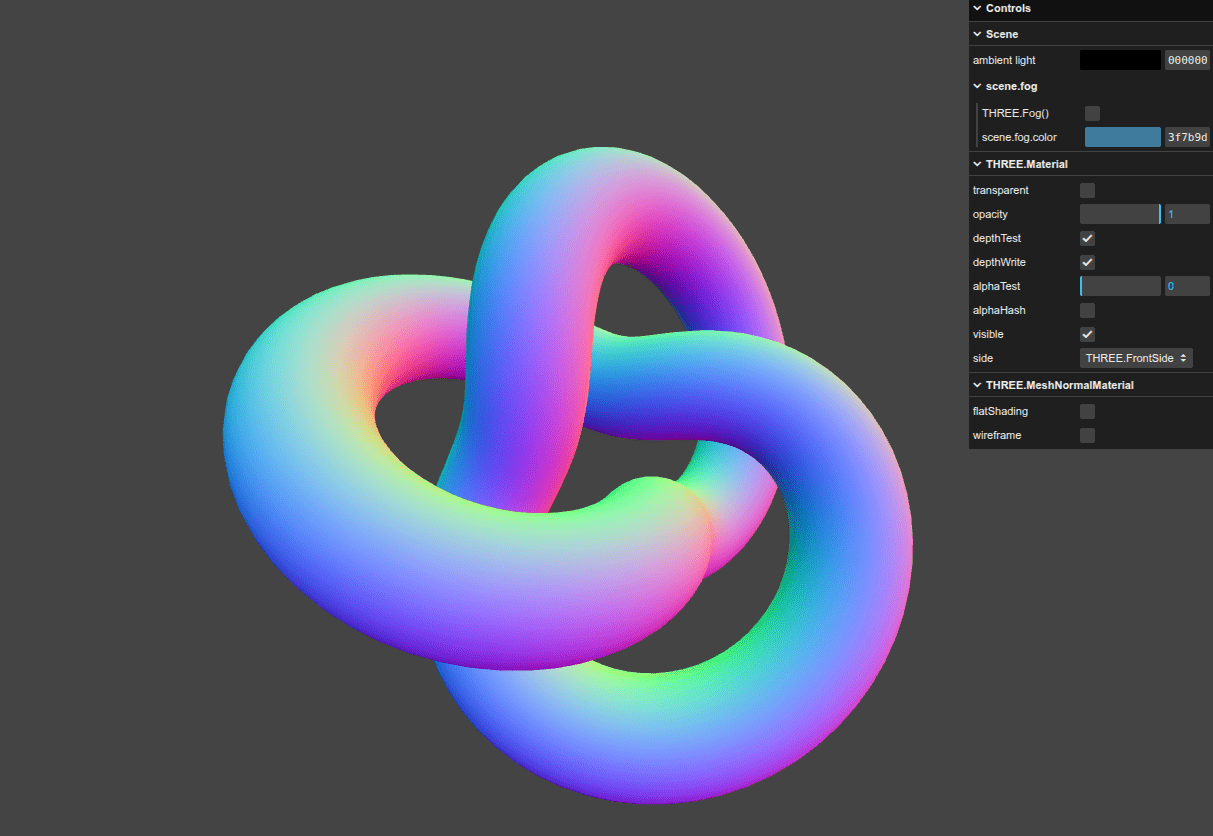

normals
r g b a
alpha
0: fully transparent
....
255: fully opaque
0: minimum
....
255: maximum
red
green
blue
All image formats (PNG, JPEG, BMP...)
4 channels
r g b
0: minimum
....
255: maximum
red
green
blue
All image formats (PNG, JPEG, BMP...)
3 channels
g
0: minimum
....
255: maximum
grayscale
All image formats (PNG, JPEG, BMP...)
1 channel

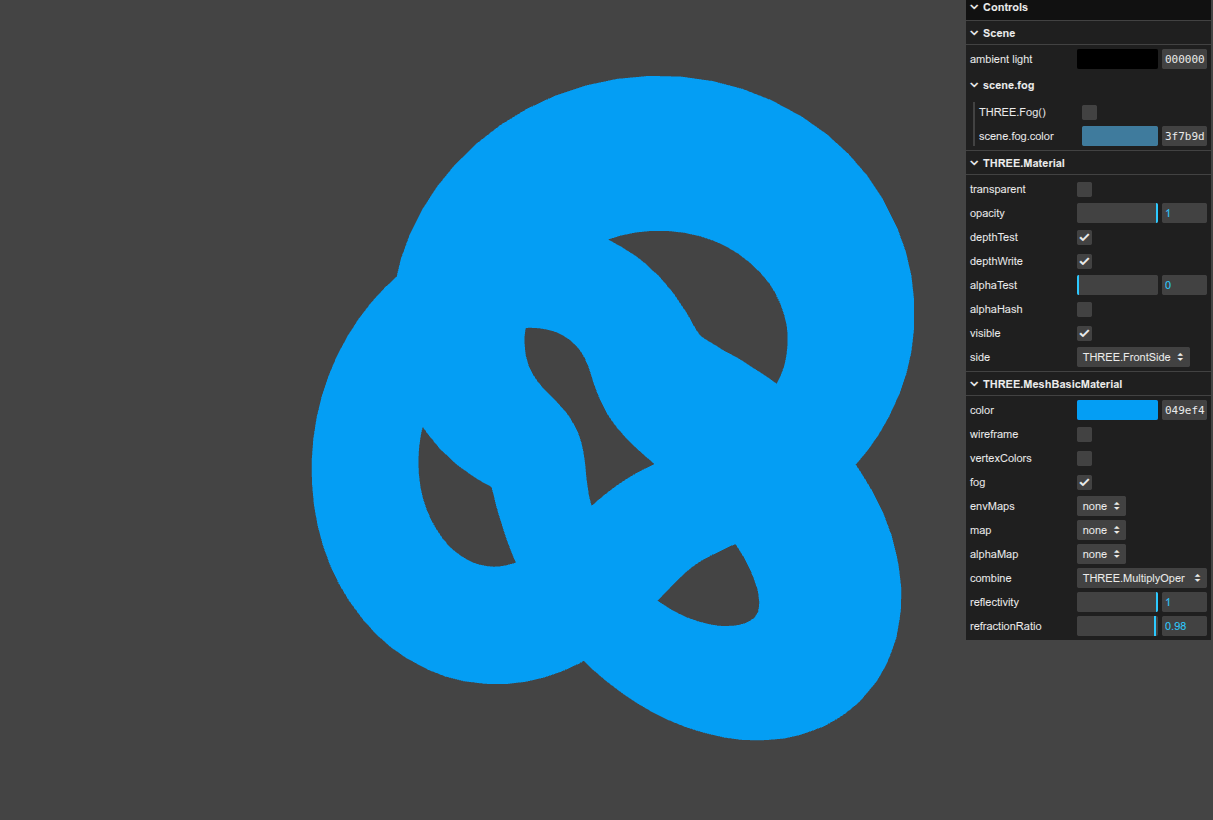

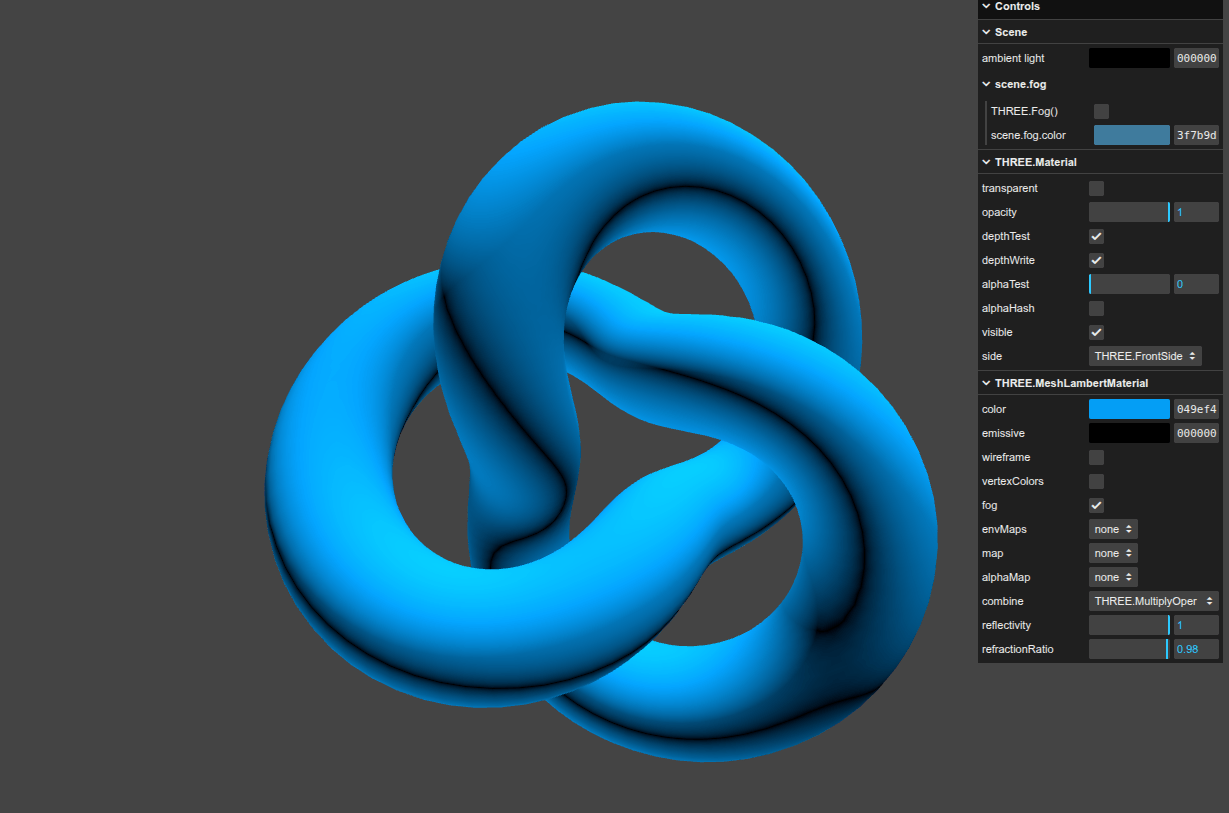

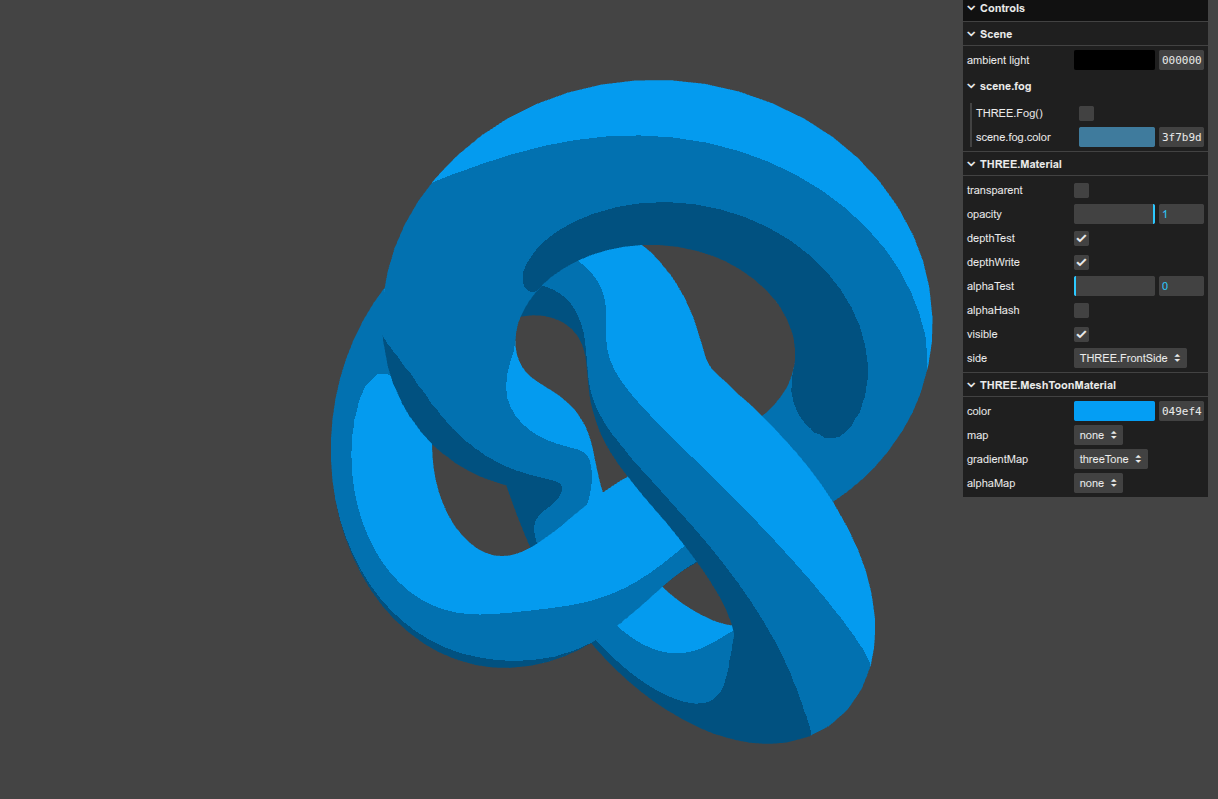

lil-gui
connect XTK or Three.js with Tweakpane!
<script type="module">
// ...
import { AnaglyphEffect } from 'three/addons/effects/AnaglyphEffect.js';
let effect;
// ...
effect = new AnaglyphEffect( renderer );
effect.setSize( window.innerWidth, window.innerHeight );
// ...
function animate() {
// ...
effect.render( scene, camera ); // replace renderer. with effect.
// ...
}
</script>
submit your music
Quiz coming soon!
Lecture 18
By Daniel Haehn
Lecture 18
Slides for CS460 Computer Graphics at UMass Boston. See https://cs460.org!
