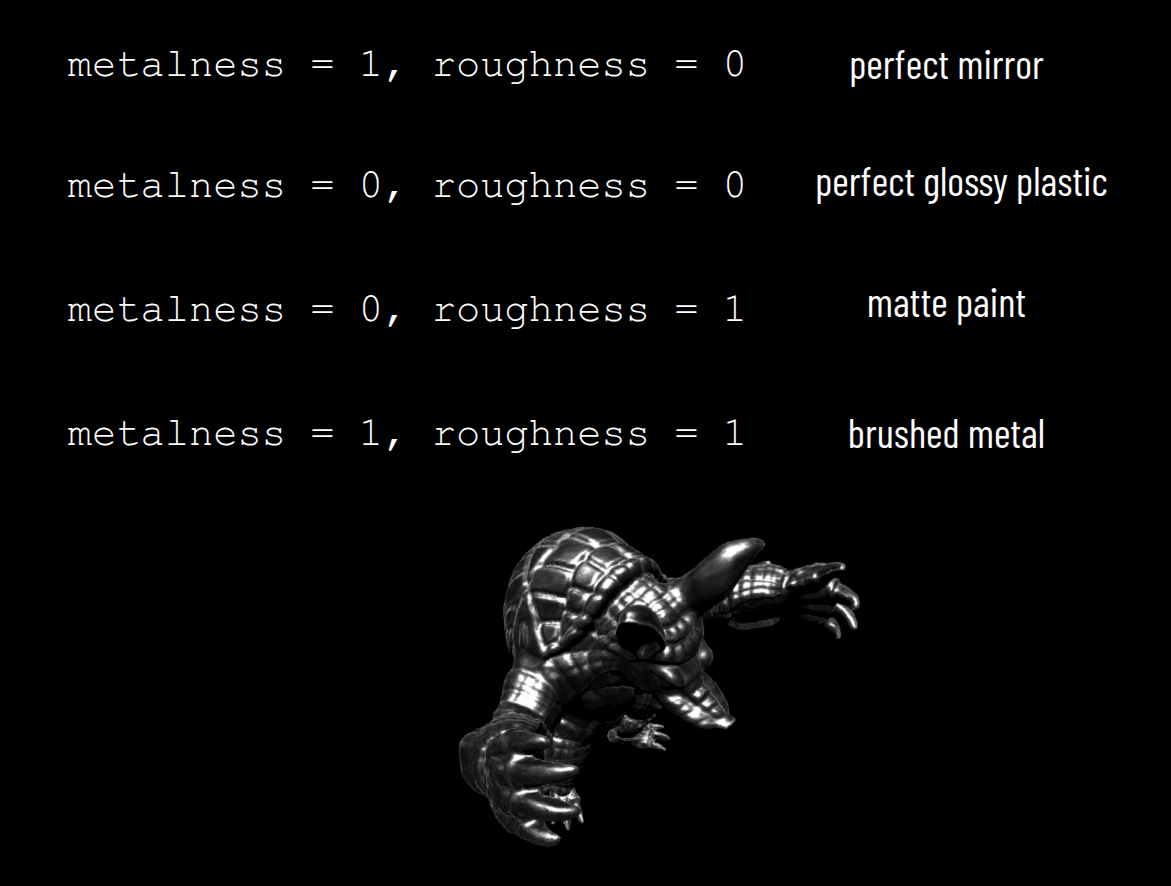

11/6 Materials

11/13 Lights + Textures

11/18 Medical Visualization / Volume Rendering

11/20 NeRFs + glTF

12/2 Outside Lecture + Skybox

11/25 Fast Forwards!

11/27 No Class

12/4 Recap Lecture

12/9 Presentations!

12/11 Presentations II!

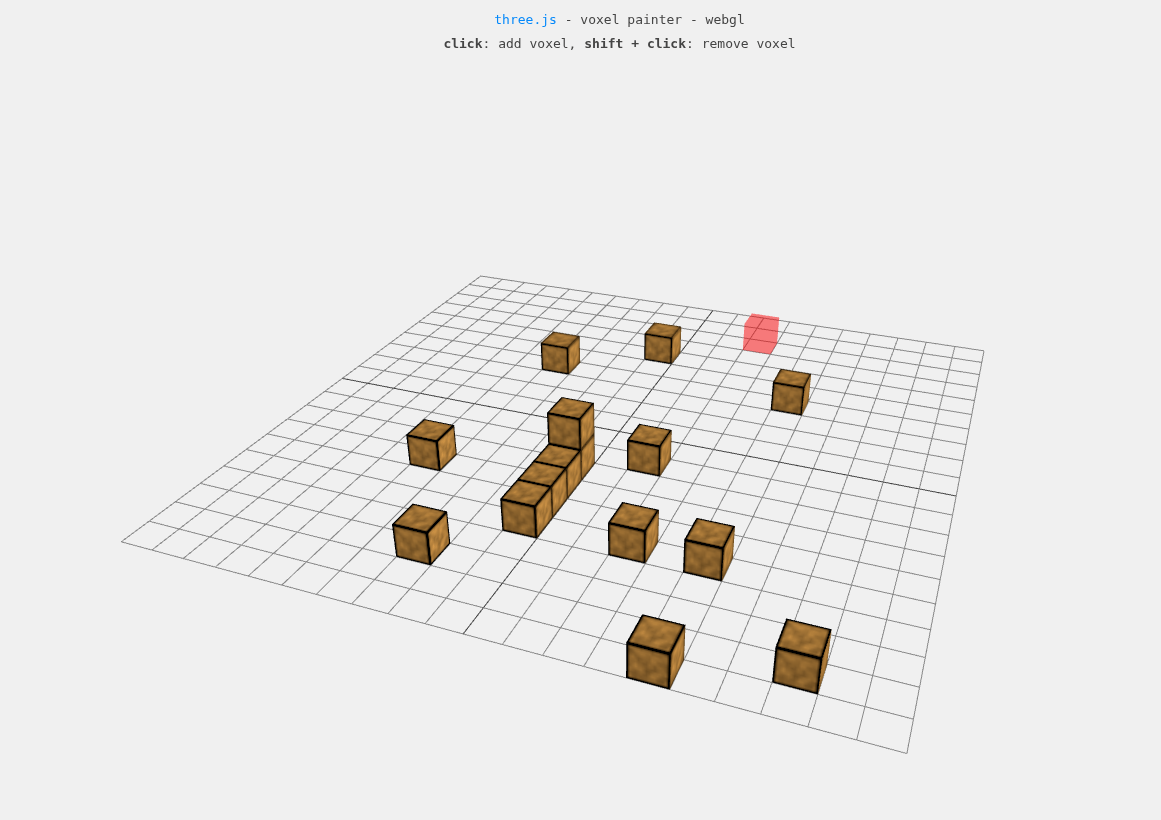

3D model

Assignment 5

https://cs460.org/assignments/05/

Due 11/25!

Due tonight!!

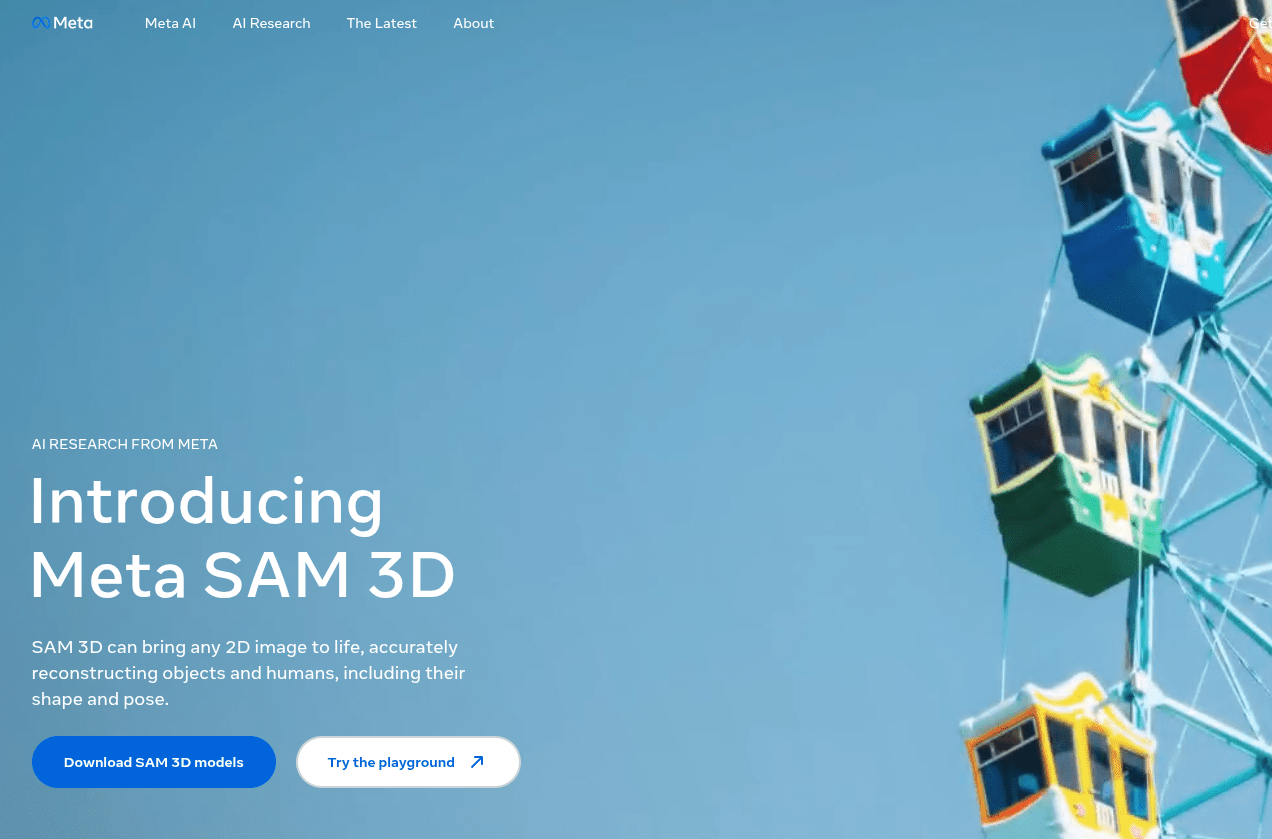

https://ai.meta.com/sam3d/

Final Project!

counts as 40% of your grade!

#finalproject

Final Project Presentation

Final Submission

Tu 12/9

Th 12/18

Th 12/11

http://cs460.org/assignments/presentations/

Lecture 1

GPU Access!

http://madebyevan.com/webgl-water/

https://paveldogreat.github.io/WebGL-Fluid-Simulation/

https://skilled.co/html-canvas/

var c = document.createElement("canvas");

document.body.appendChild(c);

*.html

*.js

https://goXTK.com

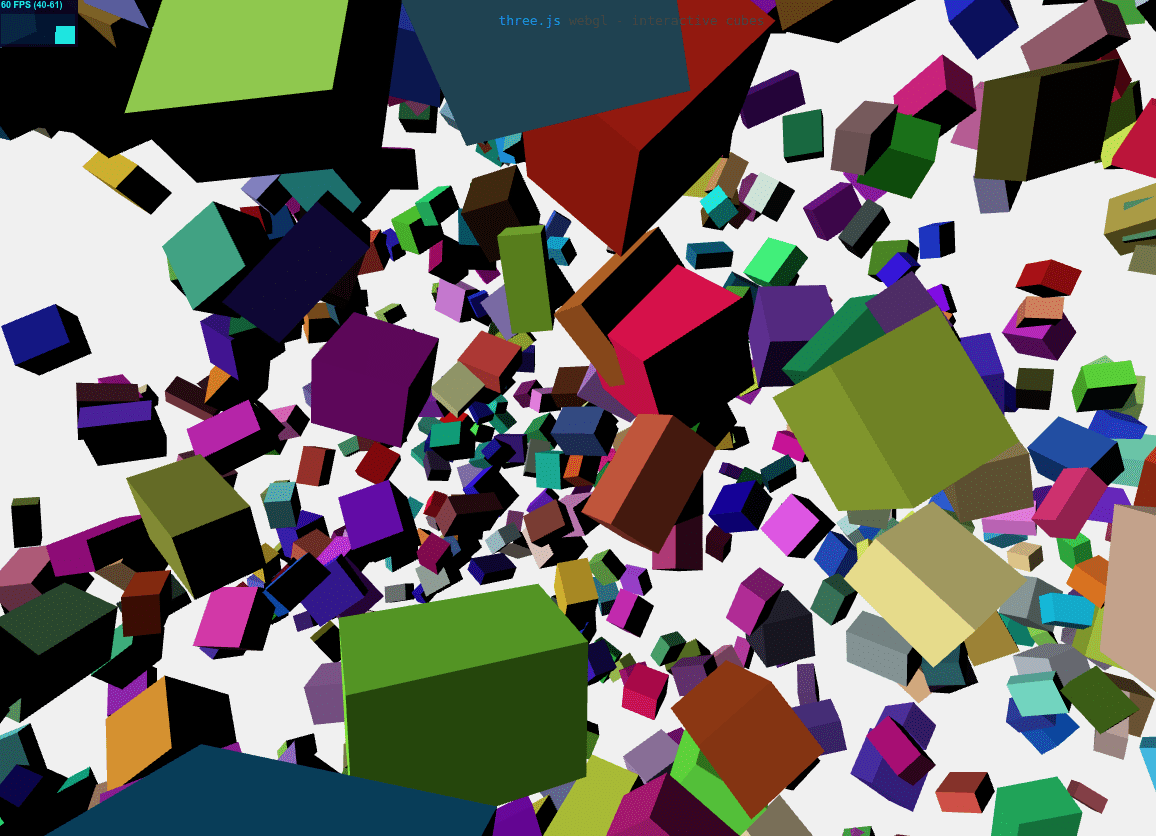

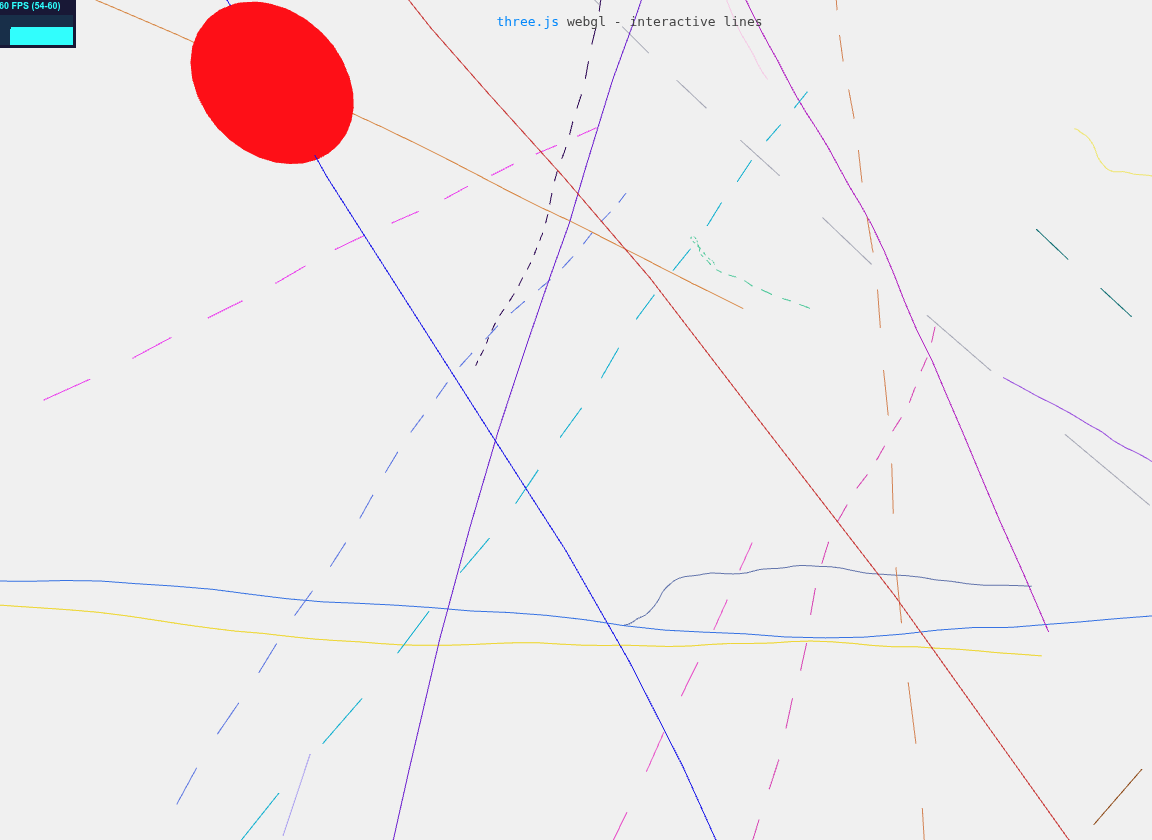

https://threejs.org

https://cs460.org/assignments/01/

Lecture 2

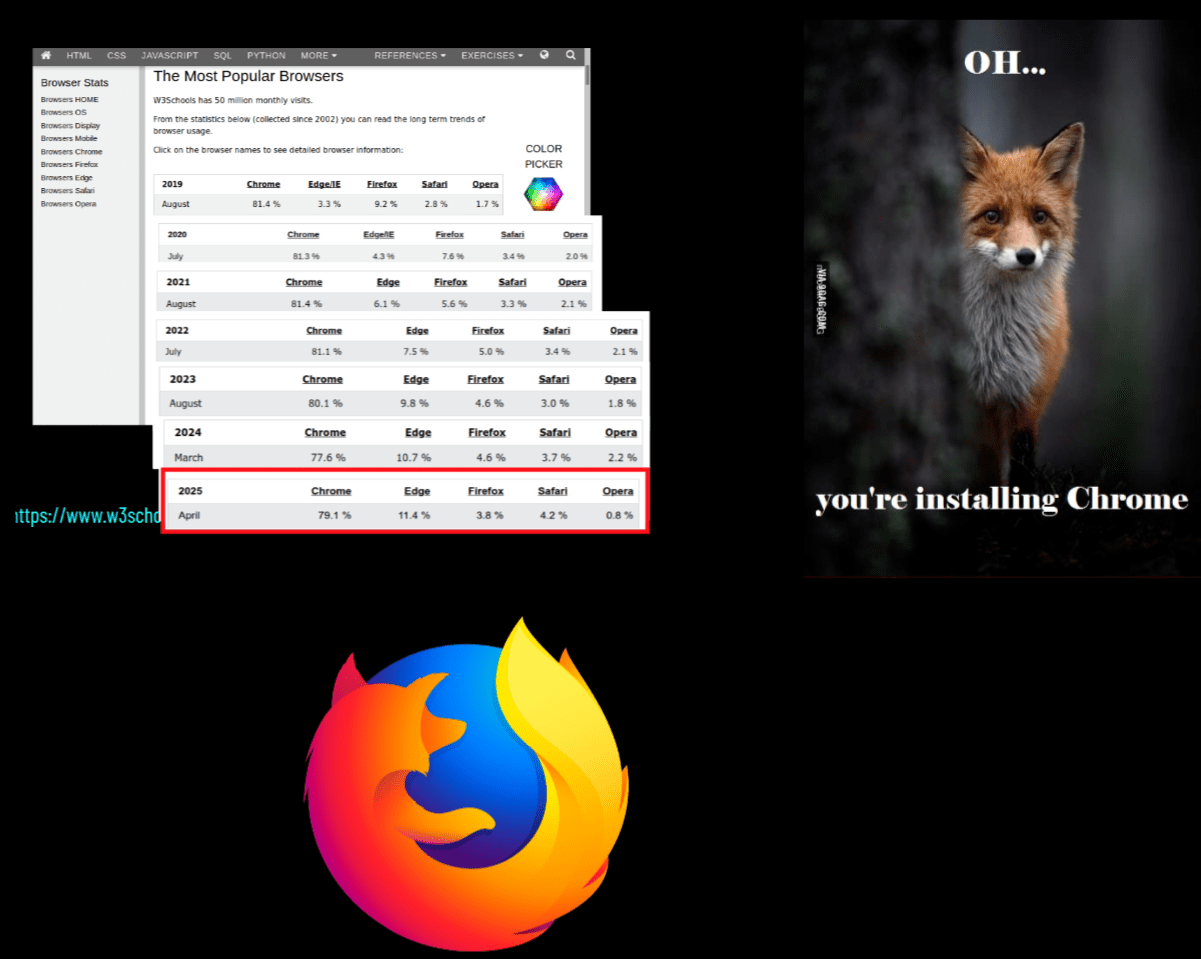

https://en.wikipedia.org/wiki/Comparison_of_browser_engines

Lecture 3

https://education.github.com/pack

Lecture 4

Z-Fighting

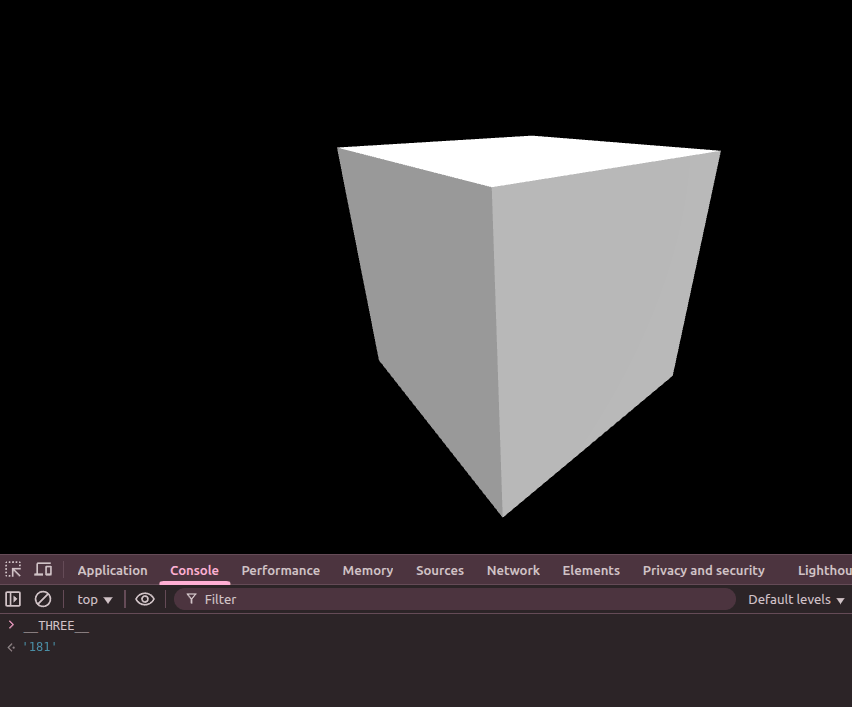

Which framework?

https://www.apple.com/iphone-17-pro/

Lecture 5

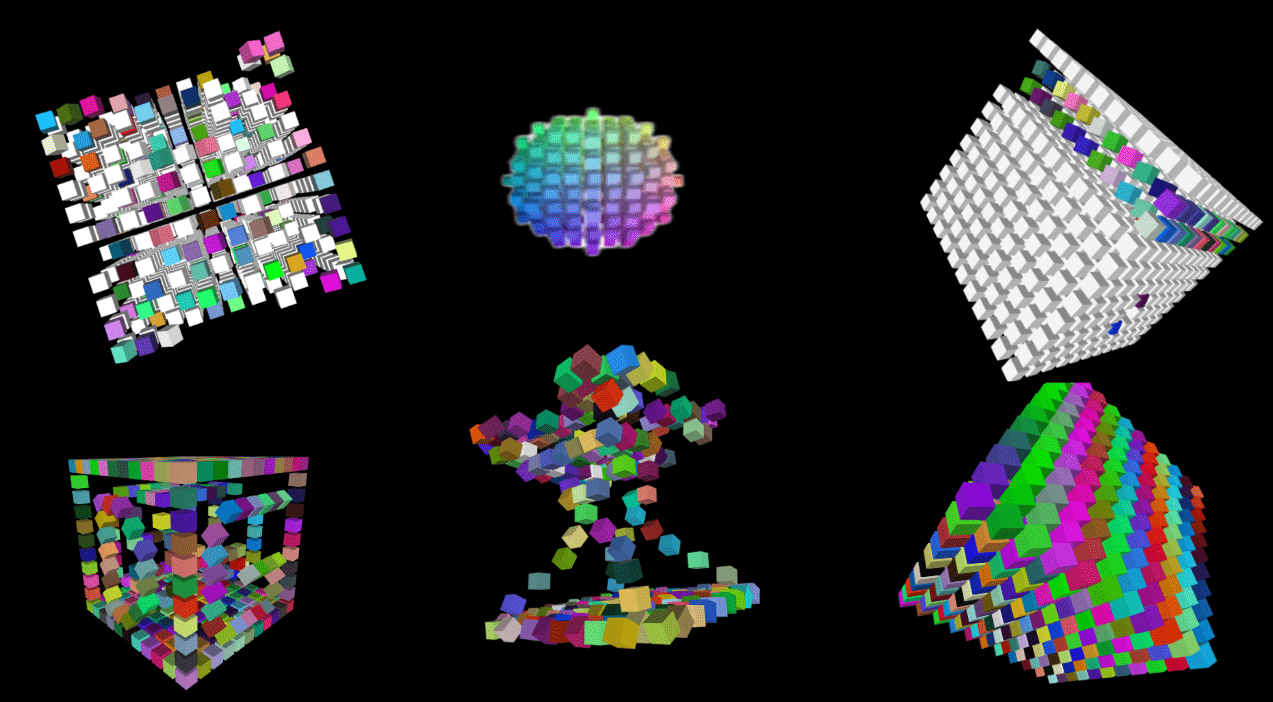

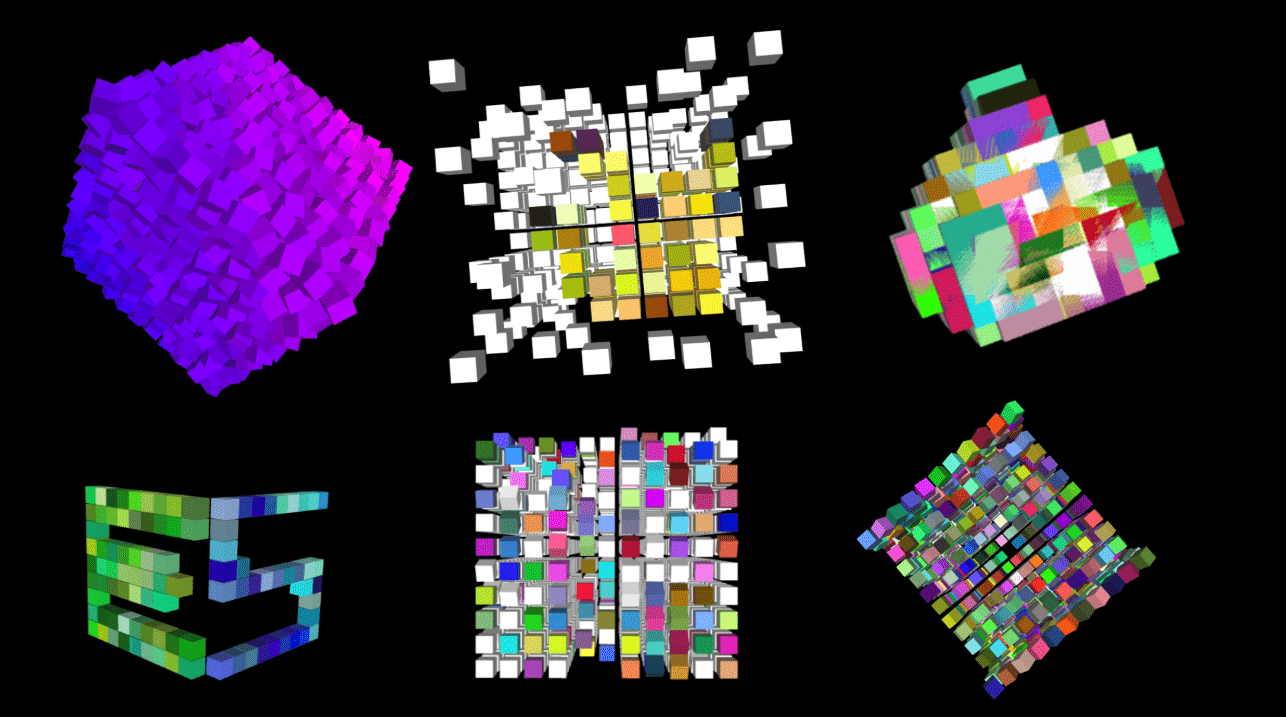

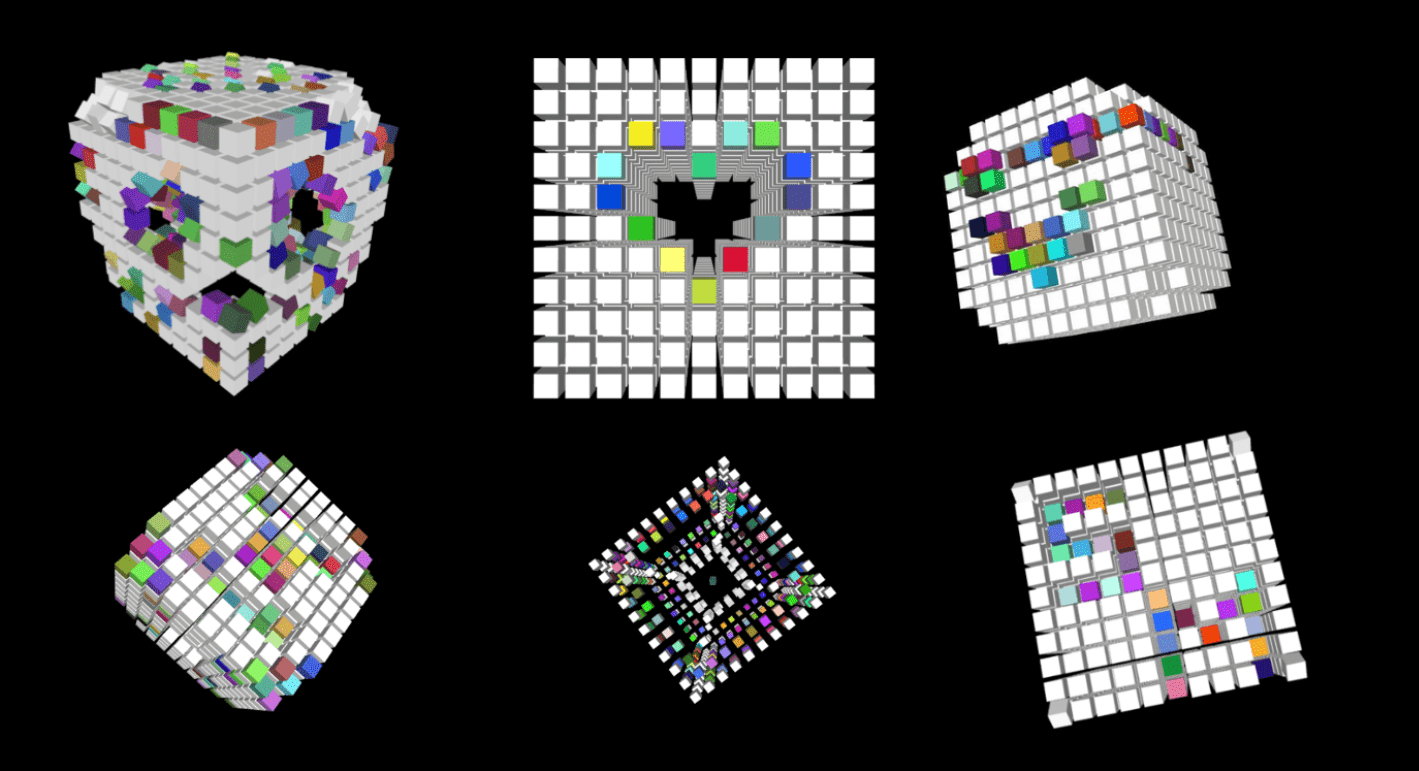

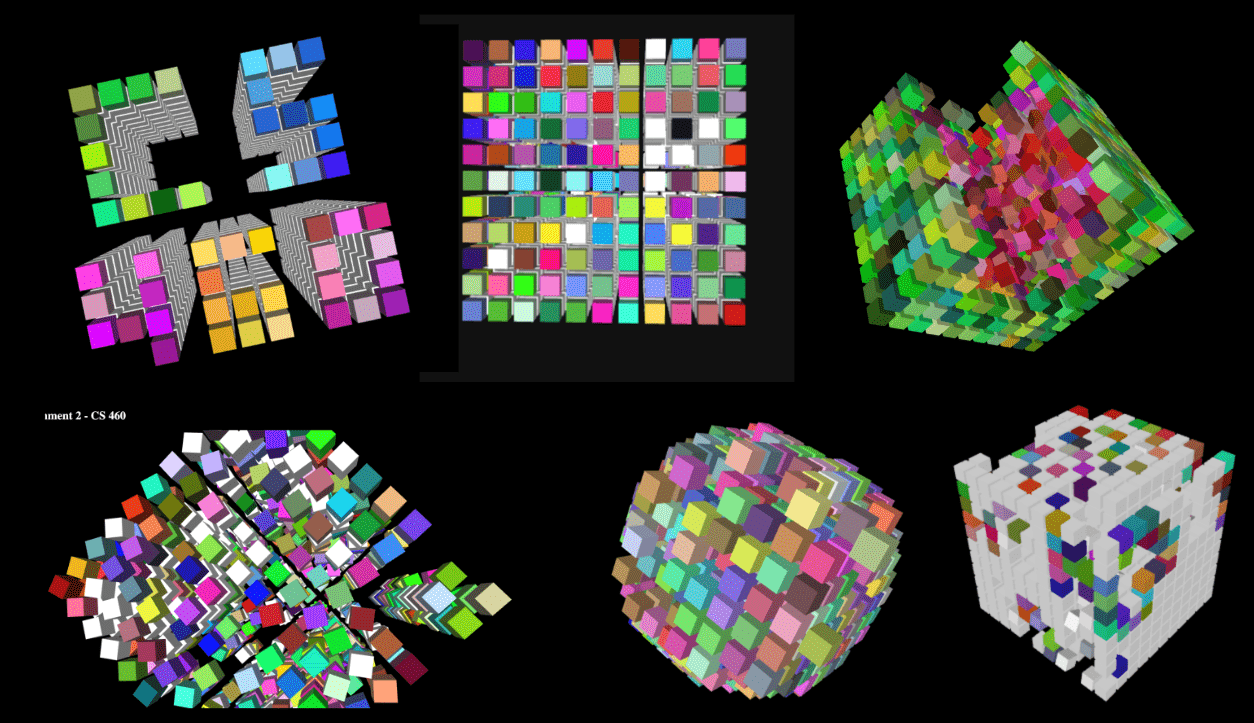

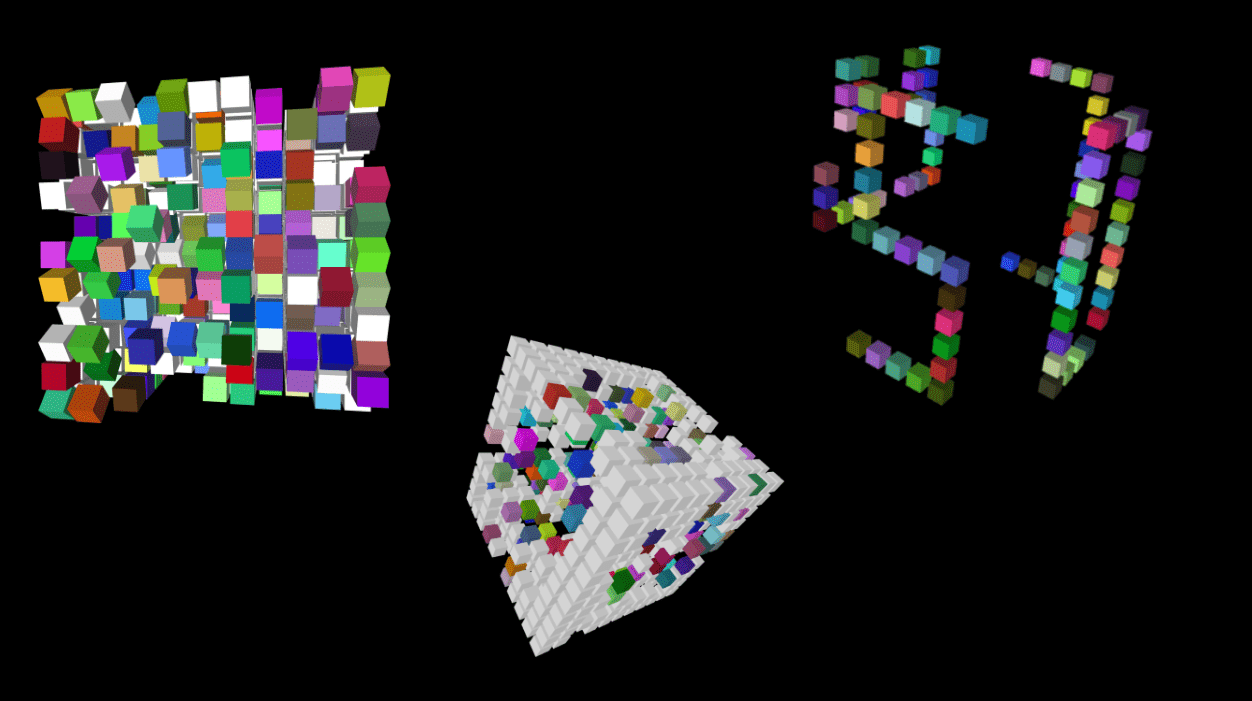

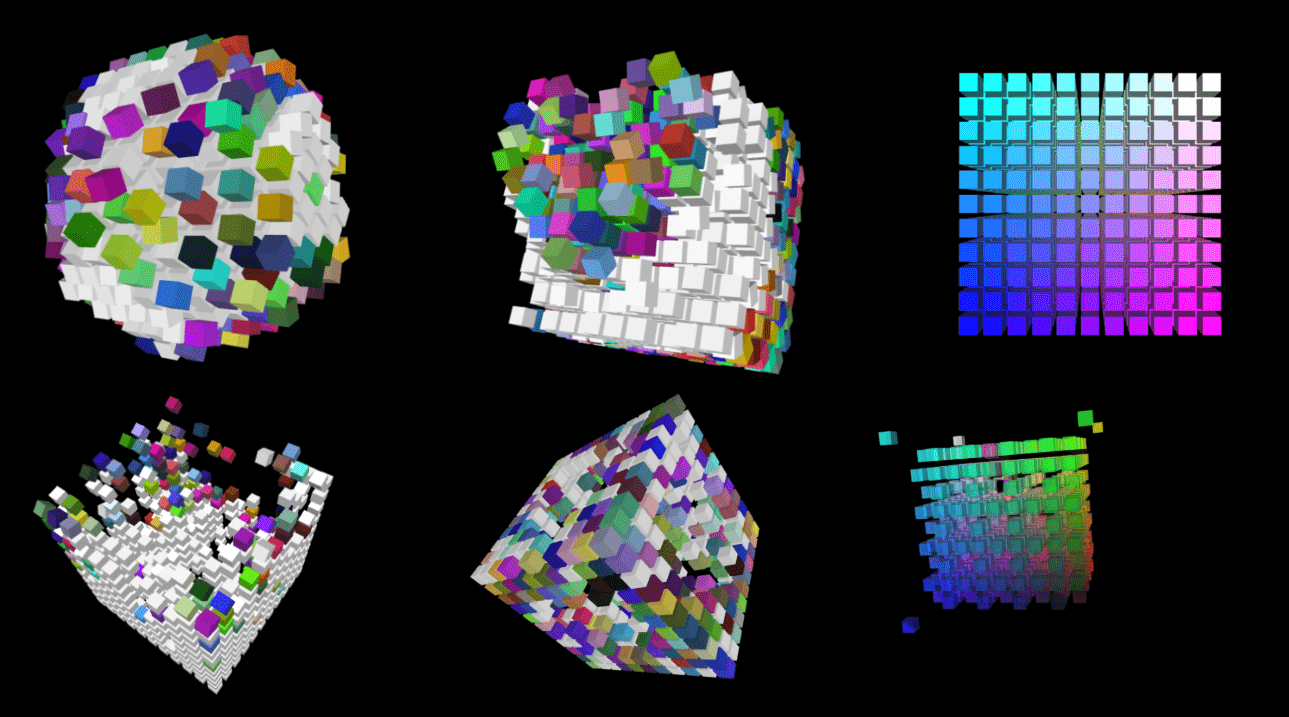

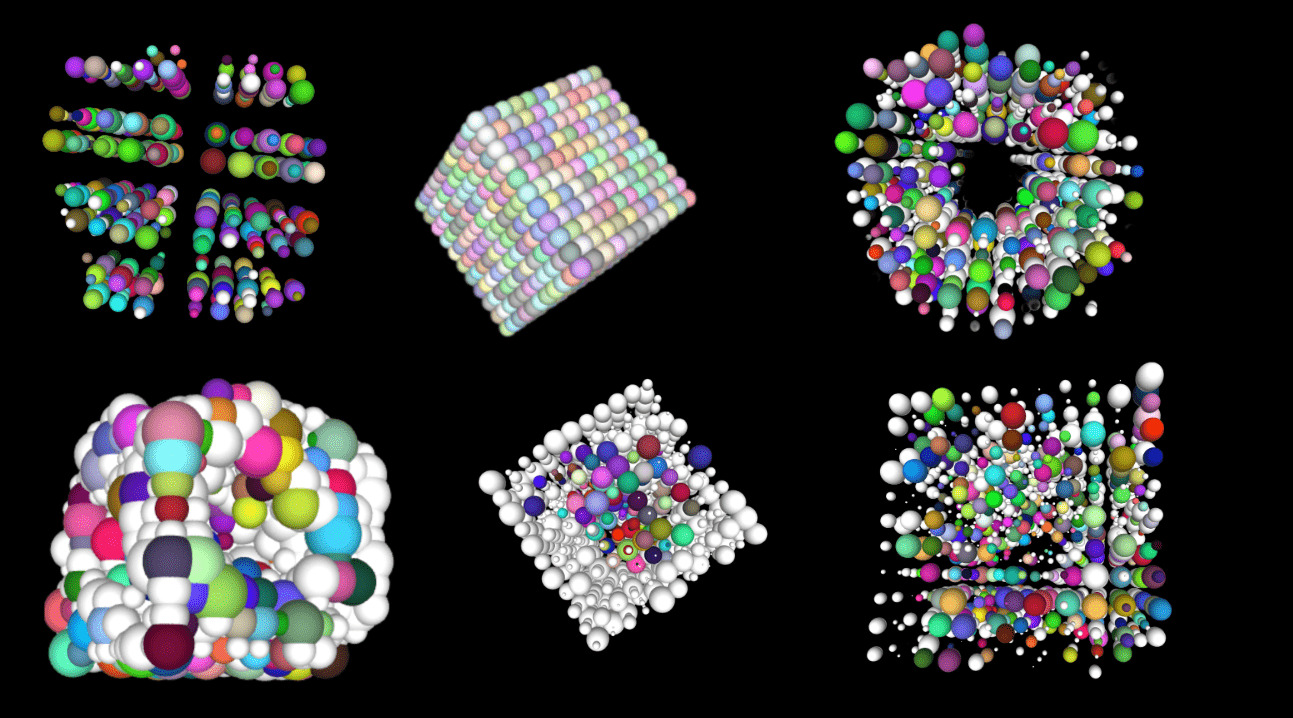

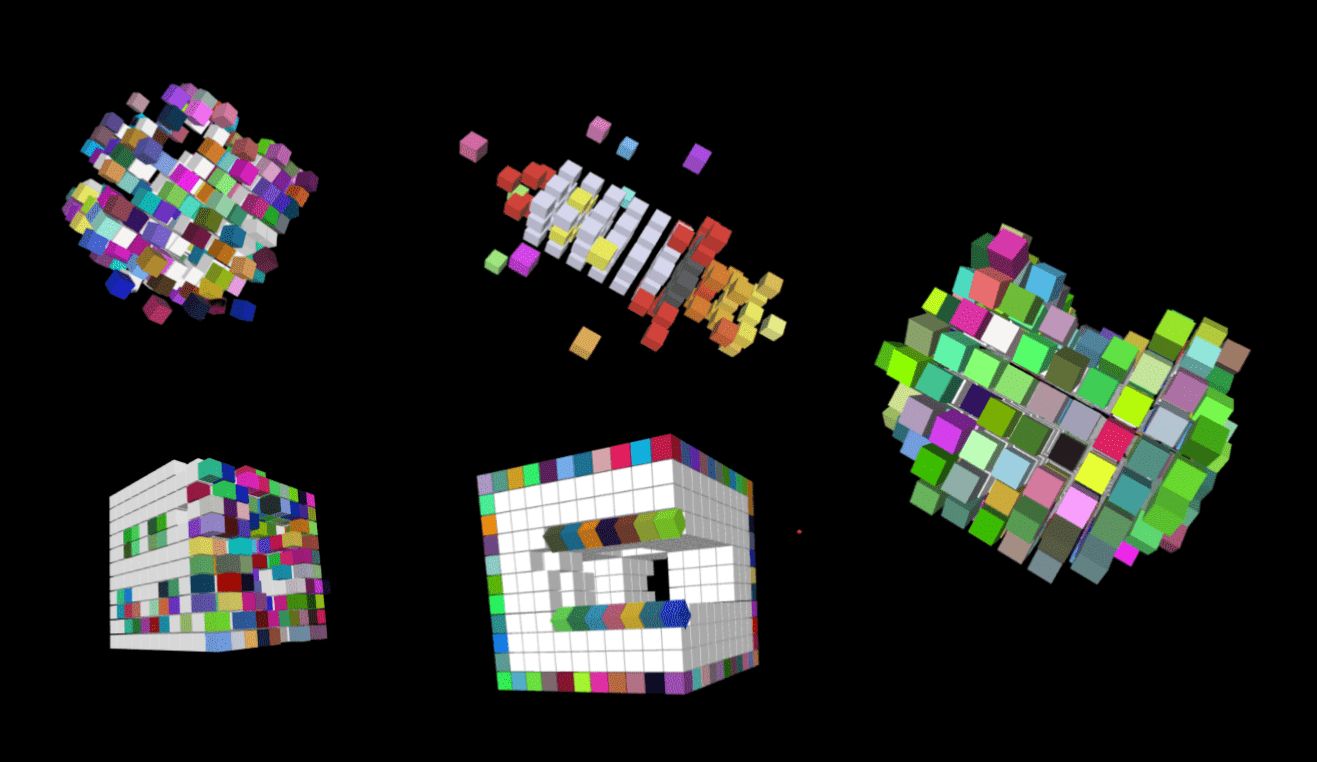

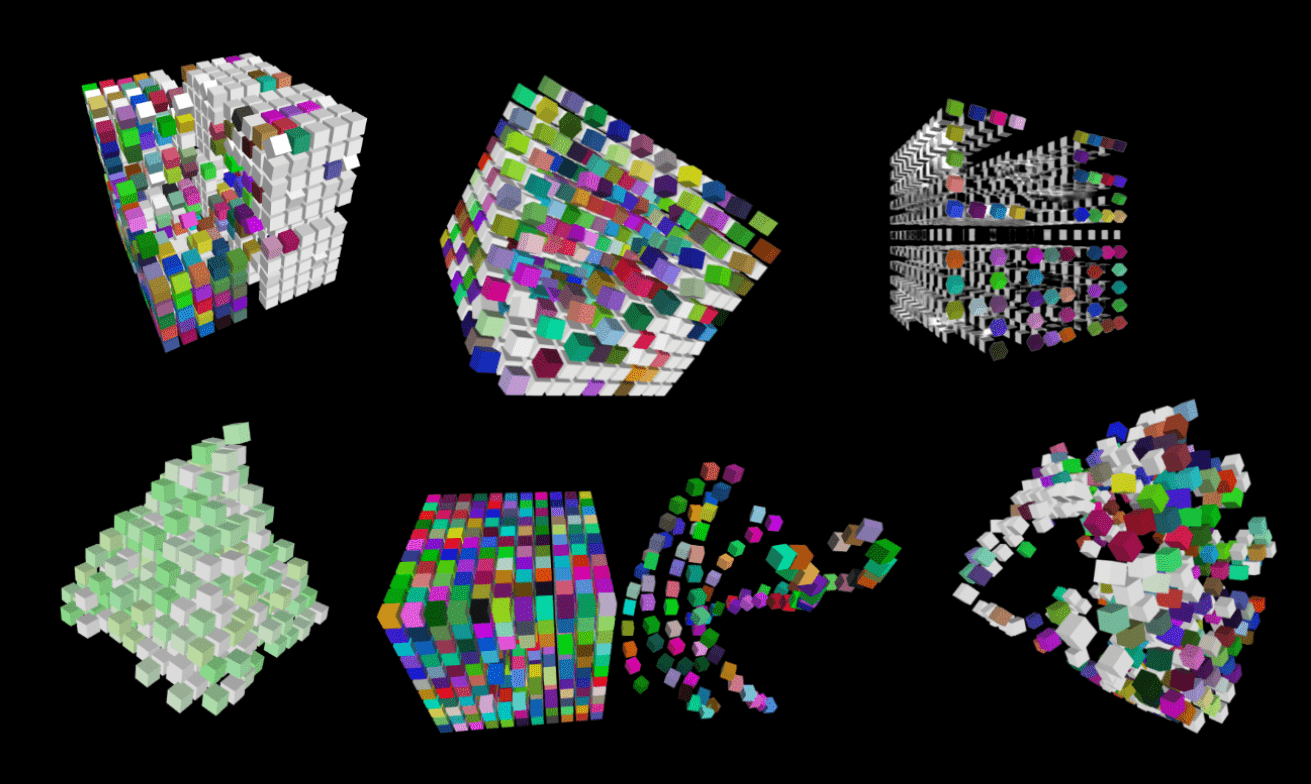

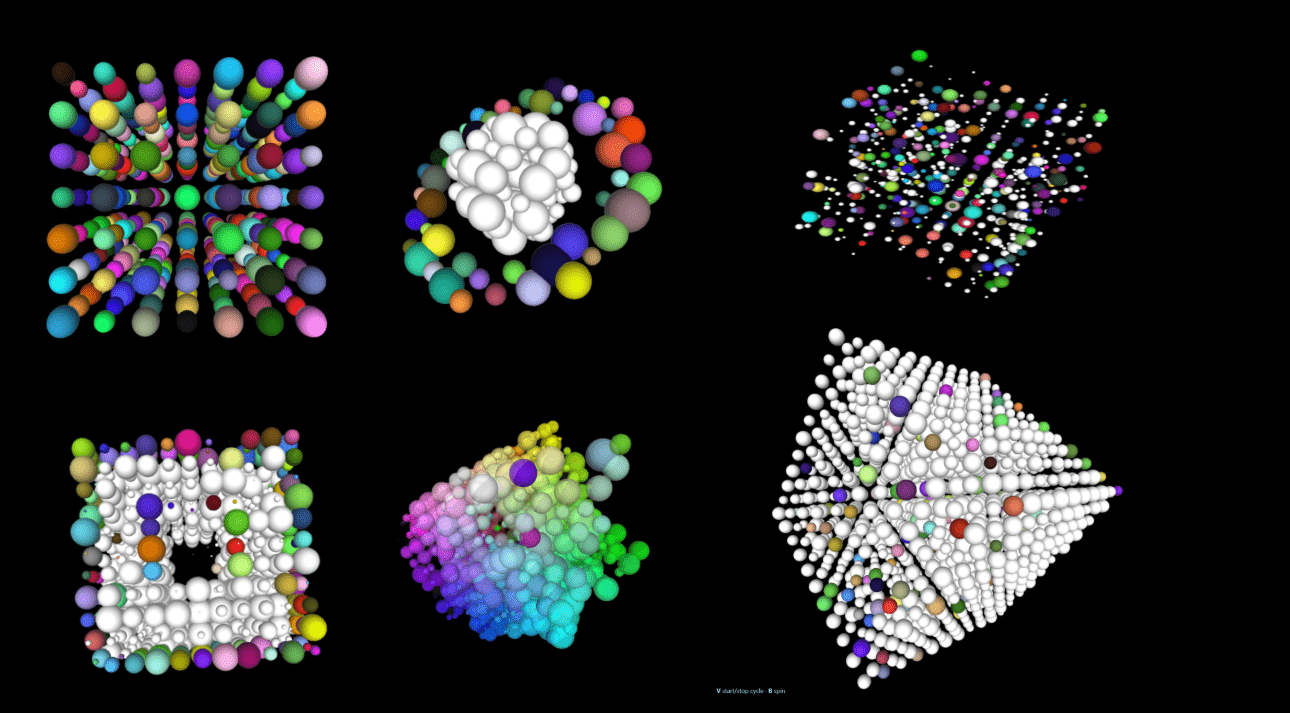

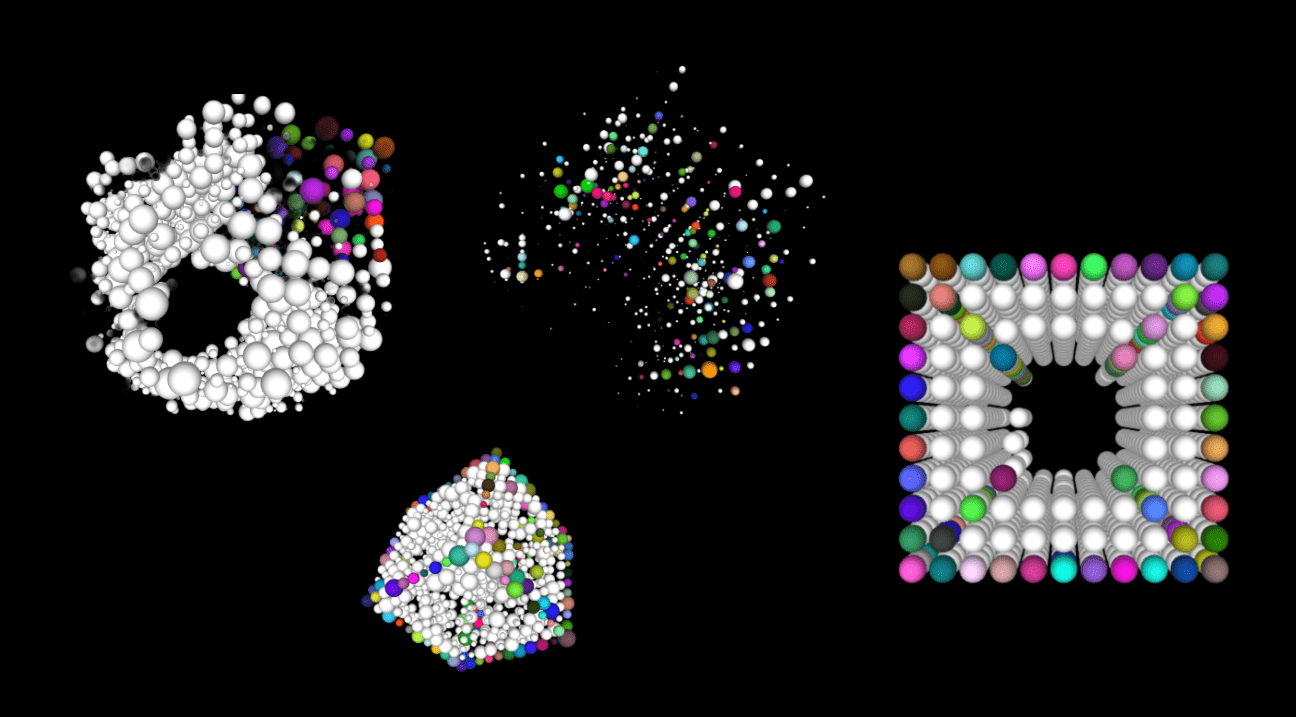

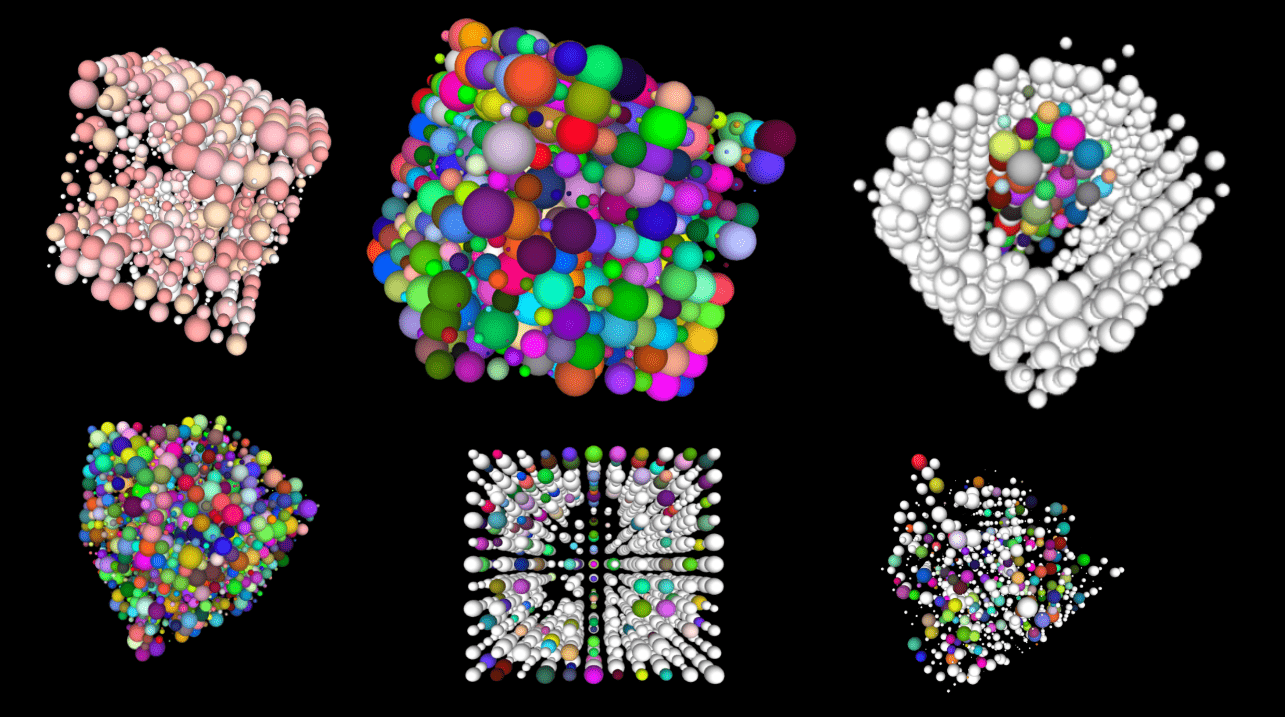

Assignment 2

XTK

How can we know this?

we can try it out!

Lecture 6

Wireframe

12 Triangles

Lecture 7

Lecture 8

var geometry = new THREE.Geometry();
geometry.vertices.push(
	new THREE.Vector3(-10, 10, 0),
	new THREE.Vector3(-10, -10, 0),
	new THREE.Vector3(10, -10, 0)
);
geometry.faces.push( new THREE.Face3(0, 1, 2));

GPU

Vertex Shader

Fragment Shader

Viewport

From 3D..

..to 2D

vertex coordinates X Y Z

screenspace coordinates X Y

Vertices

Face

Rasterization

The Rendering Pipeline

Lecture 9

Field Trips

Manning College of Nursing

10/9

10/14

Thursday

Tuesday

RSVP: https://cs460.org/fieldtrip/

by Tuesday 9/30!

XTK

X.renderer3D

X.cube

Three.js

THREE.WebGLRenderer

THREE.Scene

THREE.TrackballControls

THREE.PerspectiveCamera

THREE.AmbientLight

THREE.DirectionalLight

WebGL

gl.viewport

gl.createShader

gl.shaderSource

gl.compileShader

gl.getShaderInfoLog

gl.createProgram

gl.attachShader

gl.linkProgram

gl.useProgram

gl.createBuffer

gl.bindBuffer

gl.BufferData

gl.getAttribLocation

gl.vertexAttribPointer

gl.enableVertexAttribArray

gl.clearColor

gl.clear

gl.drawArrays

THREE.Geometry

THREE.Material

THREE.Mesh

1. Initialize WebGL

2. Shaders

3. Create Geometry

4. Connect Shader with Geometry

5. Draw!

setup Canvas

setup GL Context

compile vertex shader

compile fragment shader

attach and link shaders

create vertices

create and bind buffer

put data in

unbind buffer

bind buffer

find vertex attribute in shader source

configure vertex attribute

enable vertex attribute array

clear viewport

clear color buffer

draw vertex arrays

Rendering Primitives

      vertices = new Float32Array( [
                                     -0.5,  0.5, 0.0, // V0      // 0
                                     -0.5, -0.5, 0.0, // V1, V4  // 1
                                      0.5,  0.5, 0.0, // V2, V3  // 2
                                      0.5, -0.5, 0.0  // V5      // 3
                                    ] );

var indices = new Uint8Array( [ 0, 1, 2,     // Triangle 1
                                2, 1, 3 ] ); // Triangle 2

Indexed Geometry

Before: 6 x 32 bits, Now: 4 x 32 bits

6 x 8 bits == 48 bits

We still save 16 bits.

We save 2 x 32 bits.

gl.ARRAY_BUFFER

gl.ELEMENT_ARRAY_BUFFER

Lecture 10

Avanith Kanamarlapudi

Important for the Bonus of Assignment 4!

Lecture 11

Uniforms

createRectangle()

Rendering Loop

And, they move!

1. Initialize WebGL

2. Shaders

3. Create Geometry

4. Connect Shader with Geometry

5. Draw!

1 Frame

multiple Frames

animate()

1 Rectangle

multiple Rectangles

createRectangle()

change Offsets!

Fragment Shader

Vertex Shader

attribute vec3 position;

different data for each vertex

uniform vec3 offset;

different data for each gl.drawArray or gl.drawElements call

uniform vec4 color;

Shaderprogram

createRectangle()

return [ v_buffer, i_buffer, color, offset ];

a =

objects = [];

objects.push( a );
objects.push( b );

createRectangle()

b =

return [ v_buffer, i_buffer, color, offset ];

[ a, b ]

5-minute Bonus Opportunity!

createFish ( color, offset )

https://cs460.org/shortcuts/14/

0,0

-.1, 0

.2, 0

0, .1

0, -.1

?, ?

Fieldtrips!

Manning College of Nursing

"Straight-A" Shortcut

(1) your WNDR-inspired final project is displayed on campus

(2) your final project involves content for the Manning College of Nursing 3D Caves

https://mpsych.org/papers/burkhardt2022ntools.pdf

https://mpsych.org/papers/meyer2024webgl.pdf

(3) Final project is submit-able to the research conference

Lecture 12

[ [ v_buffer, i_buffer, color, offset ], [ v_buffer, i_buffer, color, offset ] ]

objects =

function animate() {

  for(var o = 0; o < objects.length; o++) {

    var current_object = objects[o];

    var current_v_buffer = current_object[0];
    var current_i_buffer = current_object[1];
    var current_color = current_object[2];
    var current_offset = current_object[3];

    // pass data to shader

    gl.drawElements( gl.TRIANGLES ... )

  }

  requestAnimationFrame( animate );

}

Transformation

5-minute Bonus Opportunity!

createFish ( color, offset )

https://cs460.org/shortcuts/14/

0,0

-.1, 0

.2, 0

0, .1

0, -.1

.3, -.05

.3, .05

Transformation!

https://cs460.org/assignments/04/

Due 10/23!

Lecture 13

Patrick Cozzi and Liz Dailey

Lecture 14

ReRank

DeepSee

90°

2,2,2

-2,2,2

-2,-2,2

180°

270°

2,-2,2

1 0 0 0

0 1 0 0

0 0 1 0

0 0 0 1

Identity

Matrix

Quaternion

-1

Quaternion

Lecture 15

theta = Math.PI / 4;

current_transform = new Float32Array([
  Math.cos(theta), -Math.sin(theta), 0, 0,
  Math.sin(theta), Math.cos(theta), 0, 0,
  0, 0, 1, 0,
  current_offset[0], current_offset[1], 0., 1.
]);

gl.uniformMatrix4fv(u_transform, false, current_transform);

<script id="vertexshader" type="glsl">
    attribute vec3 a_position;

    uniform mat4 u_transform;


    void main(void) {

      vec4 final_position = u_transform * vec4( a_position, 1. );

      gl_Position = final_position;

    }
</script>

~0.7

Quaternion

~0.7

- 0

- ~0.7

Inverse

page 64, Gortler: 3D Computer Graphics

implement this in python and show that 0,-2,2,2 is the output!


      function animate() {

        requestAnimationFrame( animate );

        for (var t in window.ALL_TORUSES) {


          t = ALL_TORUSES[t];

          var T = Math.PI / 2; // 180 degrees

          // around the y axis
          var x = Math.sin( T / 2 ) * 0; // = 0
          var y = Math.sin( T / 2 ) * 1;
          var z = Math.sin( T / 2 ) * 0; // = 0
          var w = Math.cos( T / 2 );

          var q = new THREE.Quaternion( x, y, z, w);

          t.quaternion.slerp( q, 0.01 );

        }


        // and here..
        controls.update();
        renderer.render( scene, camera );

      };
