April 10, 2015



Lightning Talk

Predict Weather with

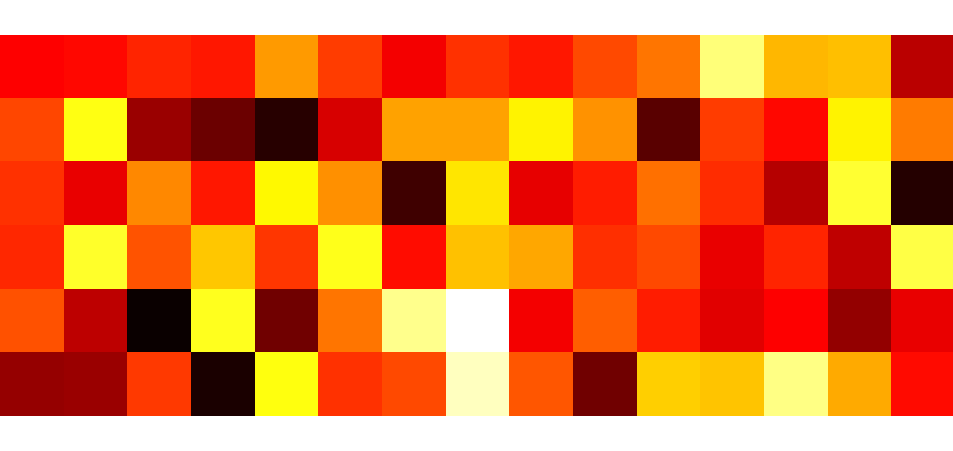

Hidden Layer Weights

ColorMaps(trainer)

Output

Input

Hidden

$ pip install pug-ann
>>> df = pug.ann.data.weather.daily('PDX')

Batteries (data) included!

pug scrapes wunderground.com URLs like...

Daily weather for any US location:

into a pandas.DataFrame

pybrain.Network pug.ann.util.build_neural_net():

def build_neural_net(N_inp=7, N_hid=2):
    nn = pb.structure.FeedForwardNetwork()

    # layers
    inlay = pb.structure.LinearLayer(N_inp, name='input')
    nn.addInputModule(inlay)
    outlay = pb.structure.LinearLayer(1, name='output')
    nn.addOutputModule(outlay)

    # connections
    if N_hid:
        hidlay = pb.structure.LinearLayer(N_hid, name='hidden')
        nn.addModule(hidlay)
        in_to_hid = pb.structure.FullConnection(inlay, hidlay)
        hid_to_out = pb.structure.FullConnection(hidlay, outlay)
        nn.addConnection(in_to_hid)
        nn.addConnection(hid_to_out)
    else:
        in_to_out = pb.structure.FullConnection(inlay, outlay)
        nn.addConnection(in_to_out)

    nn.sortModules()
    return nn
def pybrain_dataset_from_dataframe(df,
        inputs=['Max Humidity', ' Mean Humidity', ' Min Humidity'],
        outputs=['Max TemperatureF']):
    N_inp = len(inputs)
    N_out = len(outputs)

    ds = pb.datasets.SupervisedDataSet(N_inp, N_out)
    for sample in df[inputs + outputs].values:
        ds.addSample(sample[:N_inp], sample[N_inp:])
    return ds

pybrain.Dataset pug.ann.util.pybrain_dataset_from_dataframe():

from pug.ann.example import train_weather_predictor
trainer, dataframe = train_weather_predictor(
        location='PDX',
        delays=(1, 2, 3),
        epochs=1000,
        use_cache=True,
        )

All together now:

pip install pug-ann
epoch    995  total error       5.2621   avg weight         1.008
epoch    996  total error       5.2555   avg weight         1.008
epoch    997  total error       5.2483   avg weight         1.008
epoch    998  total error         5.24   avg weight         1.008
epoch    999  total error        5.231   avg weight         1.008

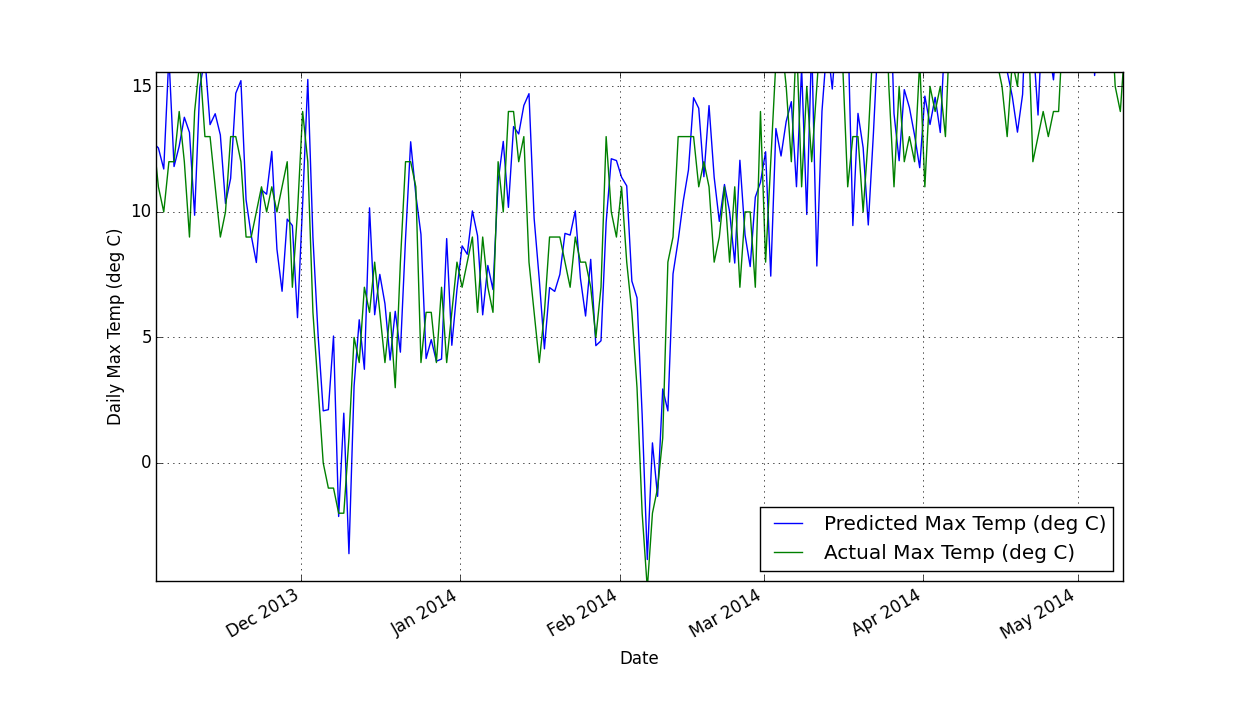

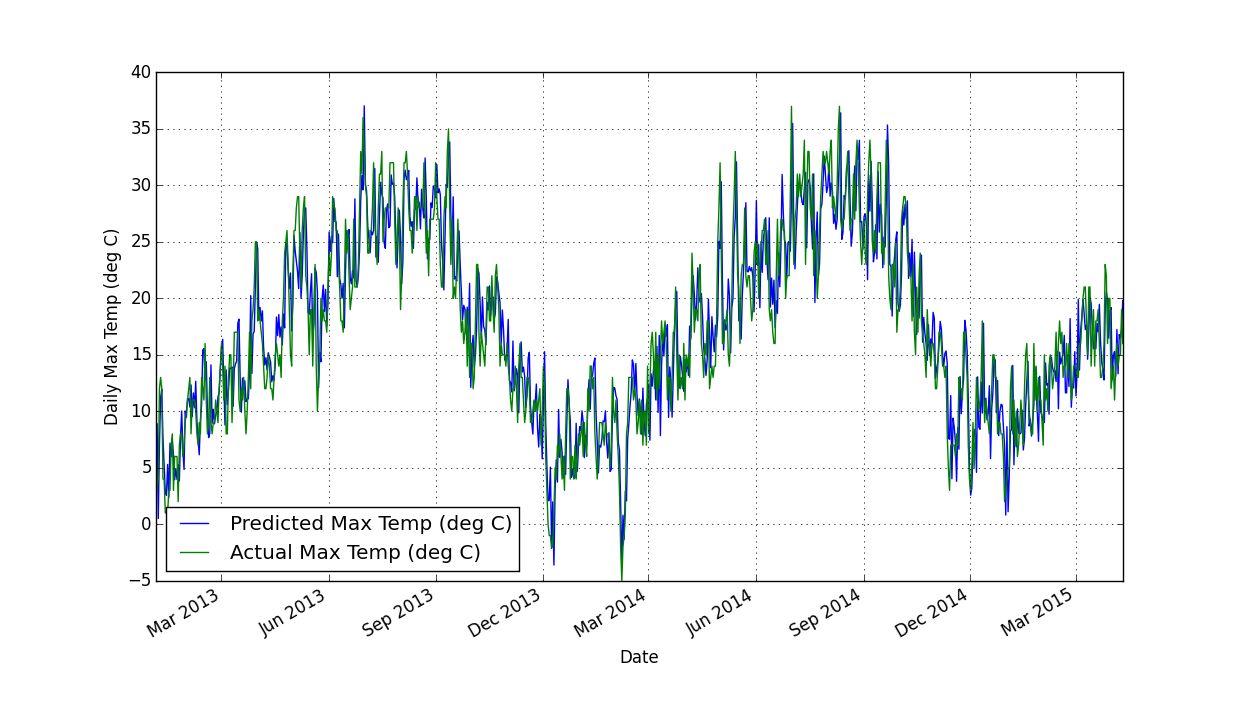

5 minutes later...

RMSE = 5.2 deg C

Looks OK!

Not So Fast

Momentum "Trading"?

Predictor just extrpolates trend

Extroplate in space as well as time...

Add "nearby" Locations:

  • Seattle?

  • Vancouver?

  • Hawaii?

  • Boise?

  • Sacramento?

Automatic Feature Selection

  • Mutual information
  • Entropy
  • Autocorrelation
  • Delayed cross-correlation

Auto-Restructuring

  • Prune

    • Near-zero weights

    • Low entropy

  • Meta learning

    • Reinforcement

    • Genetic

  • Convolution Structure

    • By name

    • By units

    • By stats

Neural Nets to Predict Weather with pybrain

By Hobson Lane

Neural Nets to Predict Weather with pybrain

PyCon 2015 Lightning Talk (5 min) to demonstrate how to use the pybrain package to solve two machine learning problems: 1) regression (time series forecasting) -- predict weather 2) reinforcement learning (optimal control) -- navigate a maze
