React Design Patterns

Styled Components

What are styled components?

They are JSX elements that have styling (CSS) baked in!

Why styled components?

  1. We want everything to be components in React!
  2. We've done HTML in the JavaScript already with JSX, so why not add CSS as well!?

They come from the NPM package styled-components

A Basic Example

Let's make a circle

The syntax is weird...

It's a string, it's a function, it's a component.

IT'S ALL THREE!

import styled from 'styled-components';

const Circle = styled.div`
  border-radius: 50%;
  height: 200px;
  width: 200px;
  background-color: chartreuse;
  margin: 50px auto;
`;

export default Circle;

A Useful Example

Let's make a card

import React from 'react';
import styled from 'styled-components';

const StyledDiv = styled.div`
  align-items: flex-start;
  background-color: white;
  border-radius: 10px;
  filter: drop-shadow(0 0 0.25rem black);
  flex-direction: column;
  justify-content: flex-start;
  padding: 10px;
  width: 300px;
`;

const Card = props => {
  return <StyledDiv>{props.children}</StyledDiv>;
};

export default Card;

You can pass props to styled components

import React from 'react';
import styled from 'styled-components';

const StyledDiv = styled.div`
  align-items: flex-start;
  background-color: white;
  border-radius: 10px;
  filter: drop-shadow(0 0 0.25rem black);
  flex-direction: column;
  justify-content: flex-start;
  padding: 10px;
  width: ${(props) => props.width || '300px'};
`;

const Card = props => {
  return <StyledDiv>{props.children}</StyledDiv>;
};

export default Card;

Let's make the width a prop on the card.

template literal interpolation syntax

default operator

Atomic Design

What is atomic design?

Grouping components into a special hierarchy

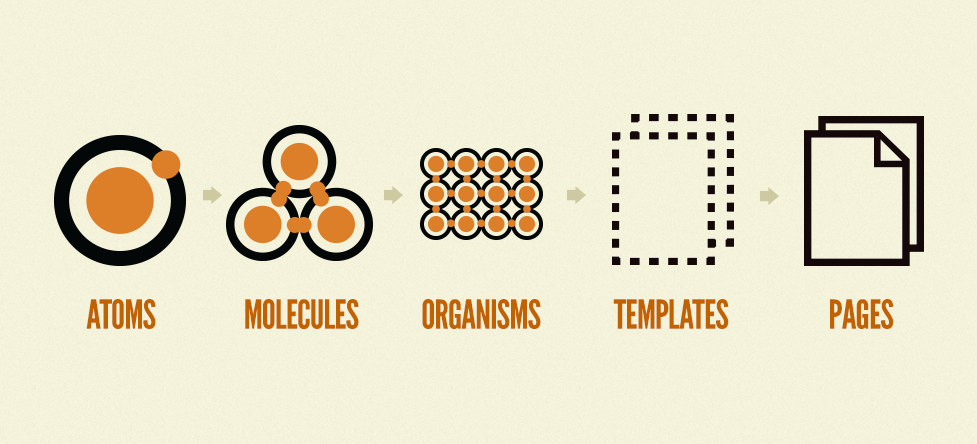

What is the atomic design hierachy?

1. atoms - tiniest UI elements on a page, e.g. a button or an input.

2. molecules - basic functionality of a few atoms combined together, e.g. a nav bar consists of several buttons.

3. organisms - a functioning module of molecules and atoms, e.g. a full header would have navigation and a search bar.

4. templates - a way of laying out organisms, molecules, and atoms on a page, e.g. a blog website might have a "base" template and a "blog" template.

5. page - an specific instance of a template, e.g. the home page is an implemented base template.

Why?

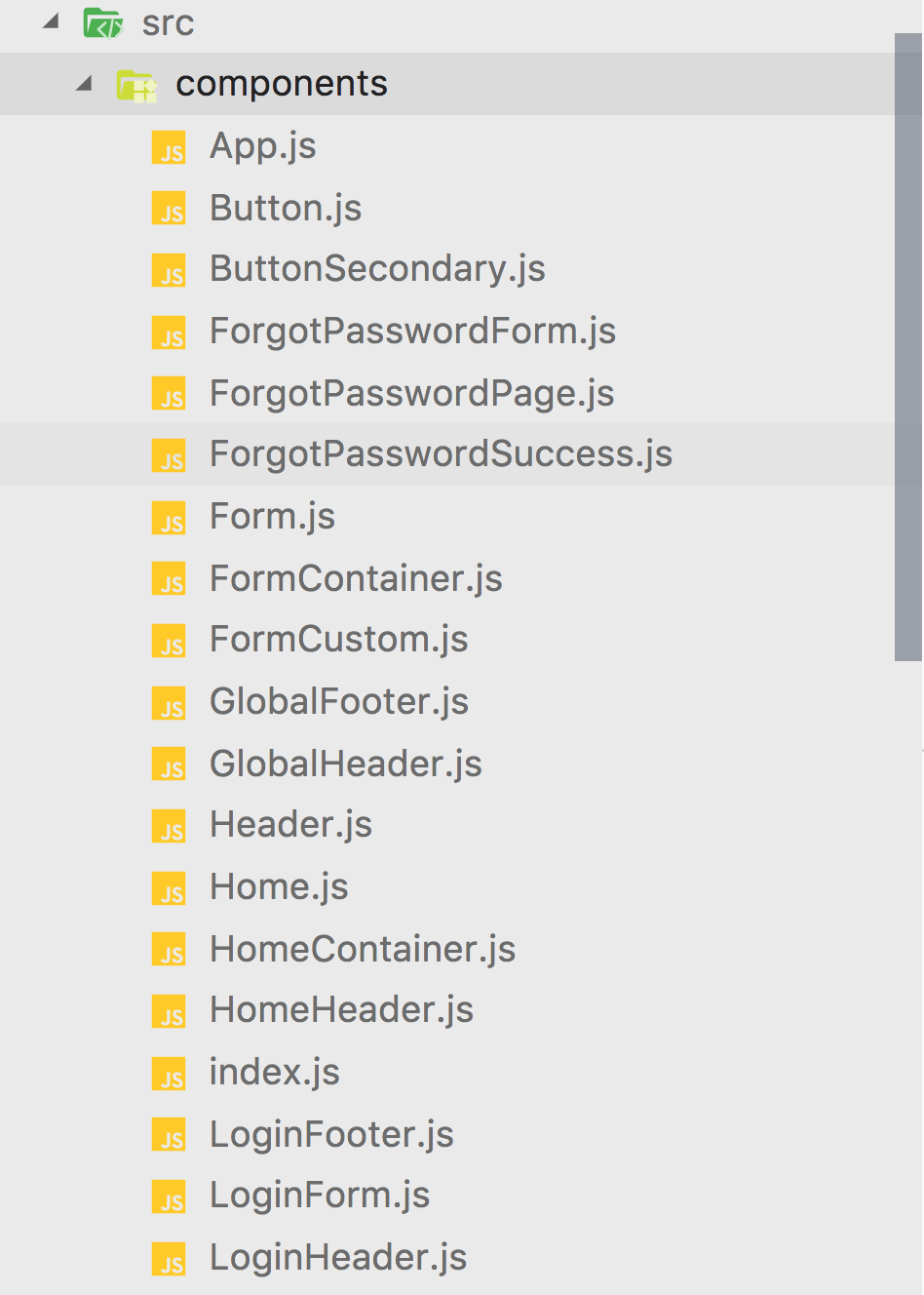

React projects are prone to getting super disorganized!

If every component's file is in the same folder, there is no information about the actual component tree hierarchy.

Without some organization, we'll spend lots of time looking for files, and our mental models will suffer.

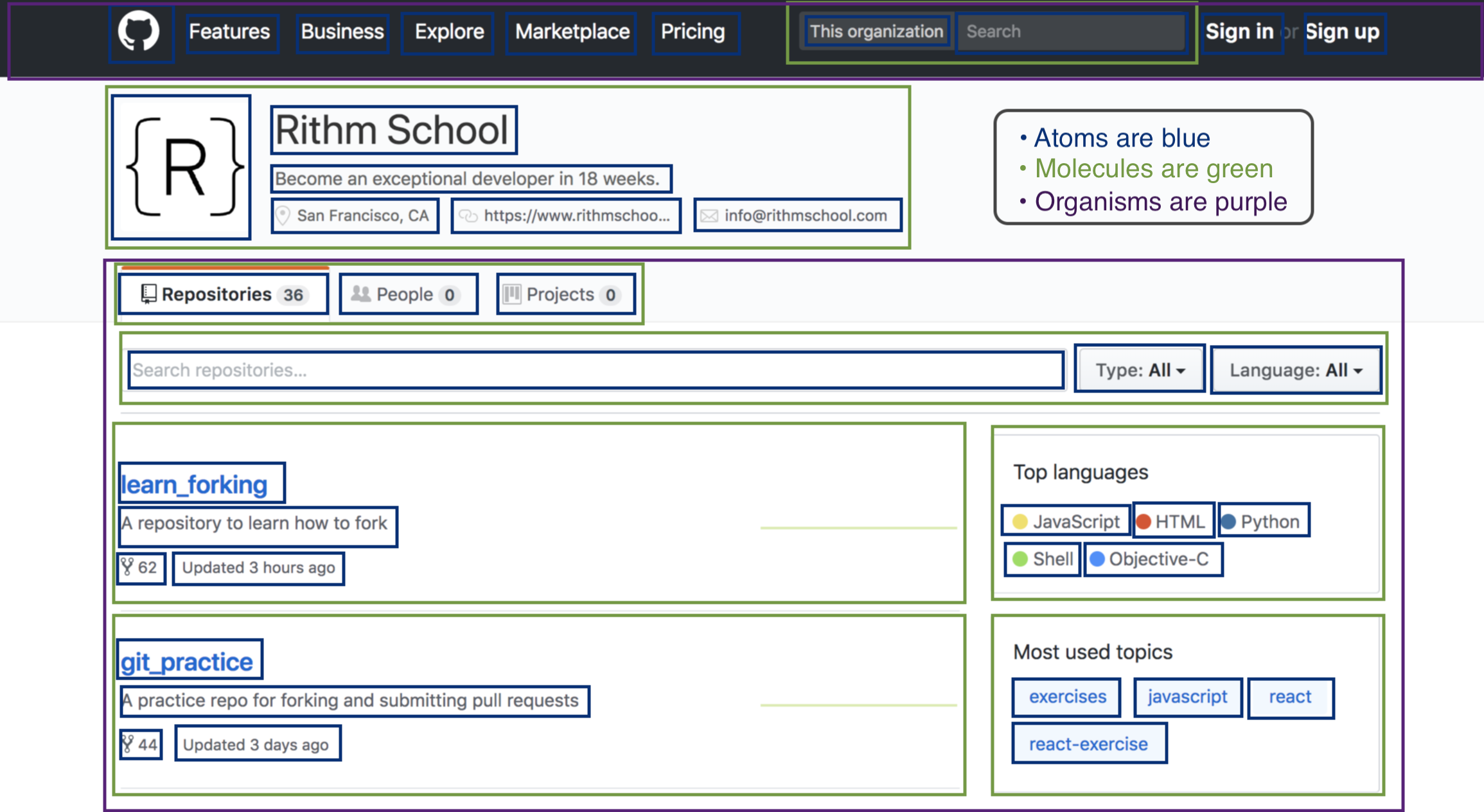

Applied to React

1. atoms - styled components or simple wrappers around JSX elements. These should be "dumb components", i.e. purely visual with props and no state. Examples: a styled button, a styled input box, a card (styled div),etc.



2. molecules - components that import several atoms to create slightly more complicated, but still "dumb" components. Examples: a navbar, a user card, etc.



3. organisms - components that import atoms or molecules. This is generally where we can start to think of "smart" components, or components with state. It's easy to remember because organisms have brains! Examples: a form component, a filterable list, etc.

ARc

I highly recommend checking out ARc (Atomic React), particularly the example source files, for inspiration on how to model your React apps in practice. There is also a branch for Redux.

Additional Resources on the Rithm Curriculum
