ChillDKG: Distributed Key Generation for FROST

 Tim Ruffing & Jonas Nick

2024-11-22

• "I'm not sure"
• "but isn't it dangerous right now"
• "it's really hard to convince yourself that it works"
• "Couldn't it be a problem that there's no randomness?"
• "risks inventing complicated machinery that turns out to be broken"
• "Sorry, I entirely forgot what we're trying to do"
• "Sorry, I'm doing a lot of handwaving"
• "This can be mitigated by another communication round"

Chelsea Komlo and Ian Goldberg. FROST: Flexible round-optimized Schnorr
threshold signatures.

What is distributed key generation in FROST?

• Interactive protocol between \( n \) signers that takes \(t\) as input
• Outputs for each signer \(i\):

  • the threshold public key

  • the secret share signer \(i\) will use for signing

• Properties:
  • \(t\) out of \(n\) signers can use their share to sign
  • No less than \(t\) signers can produce a signature
    • In particular, this excludes "trusted dealer" that generates and distributes the shares

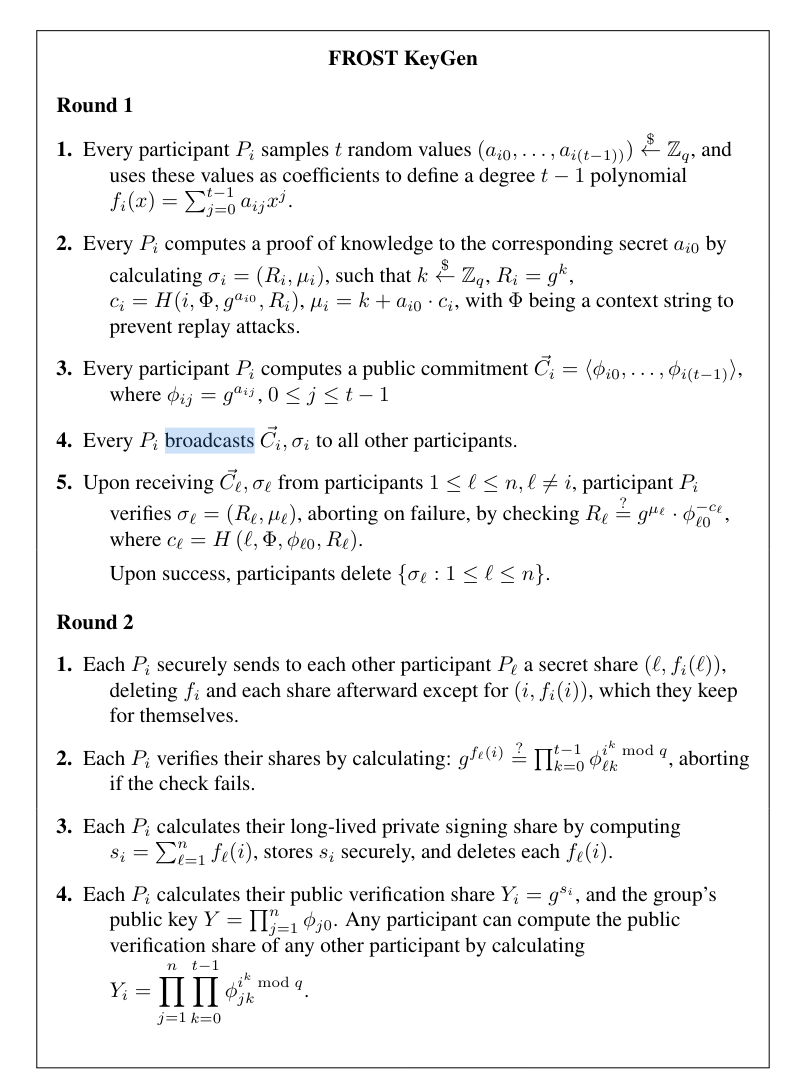

The FROST RFC famously does not specify a DKG. It relies on a trusted dealer.

We should write a detailed

specification of the key

generation protocol...

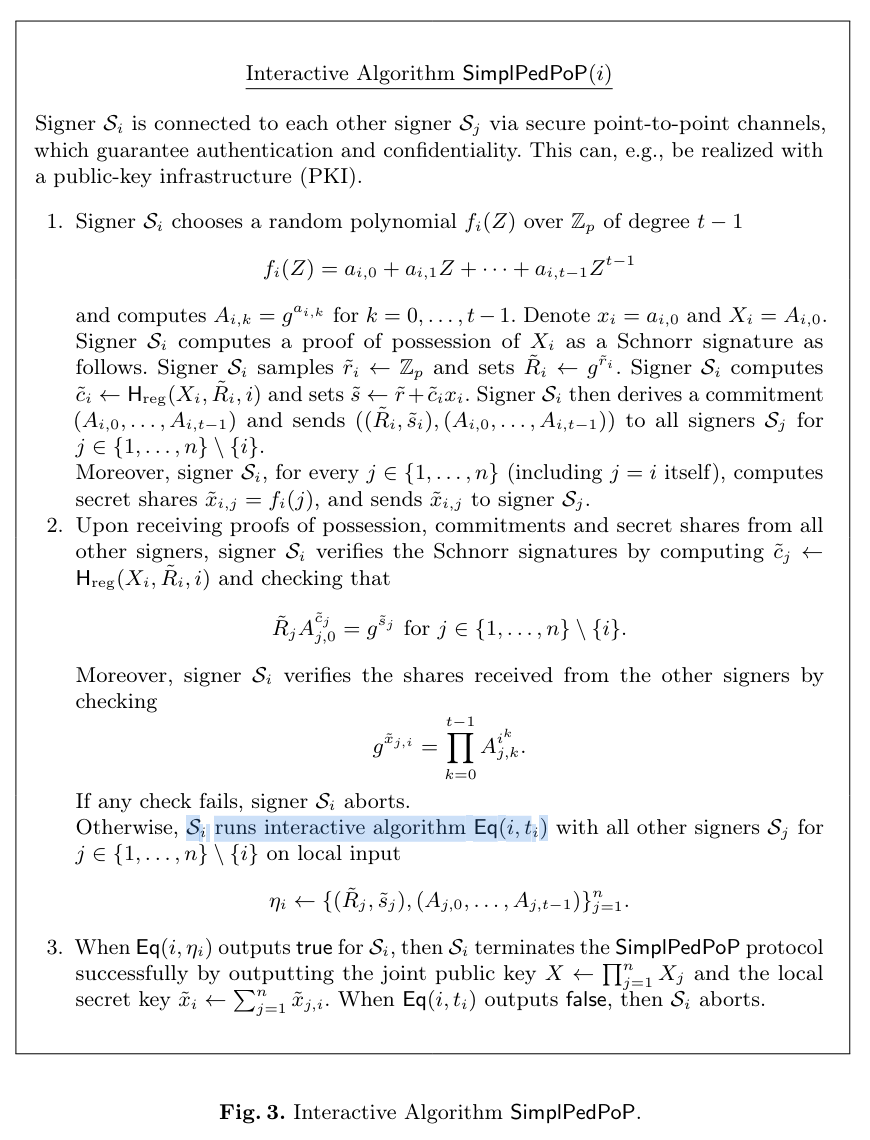

Hien Chu, Paul Gerhart, Tim Ruffing, and Dominique Schröder. Practical Schnorr Threshold Signatures Without the Algebraic Group Model.

• Replaces broadcast abstraction with \( \mathsf{Eq} \) protocol
• ... and other minor changes

1. Every signer generates \(n\) shares and computes a VSS commitment to the shares. (VSS: verifiable secret sharing)
2. Every signer sends the \(i\)-th generated share and the VSS commitment to the \(i\)-th signer.
3. Every signer computes the threshold public key from the received VSS commitments.

SimplPedPop  (simplified!)

• Hence, signers need to ensure that no malicious signer sent a different commitment to signer \( i \) than to signer \(j \ne i\).
• That's what the equality (the broadcast) protocol is for.

Interactive Protocol \(\mathsf{Eq}(input)\) outputs \(\{\mathsf{true}, \mathsf{false}\}\)

A Simple \(\mathsf{Eq}\)

2-of-3 Example

👿

Just 1 signer left, but we need 2!
Money gone!

👿

Interactive Protocol \(\mathsf{Eq}(input)\) outputs \(\{\mathsf{true}, \mathsf{false}\}\)

Integrity: If some honest signer outputs true, all \(\mathsf{input}\) of honest signers are equal.

Conditional Agreement: If some honest signer outputs true, then eventually all honest signers will output true.

In SimplPedPop: \(input\) contains the VSS commitments

Agreement is often an overlooked requirement in the FROST world.

Interim Summary

• We want to specify the SimplPedPop DKG
• SimplPedPop requires some \(\mathsf{Eq}\) protocol and secure channels, we want to spec those as well

SimplPedPop

Design

ChillDKG

• Every signer has long-term "host" key pair, derived from a seed
• \( \mathsf{Eq}\) is instantiated with concrete protocol "CertEq":
  1. Everyone sends a signature of their \(\mathsf{Eq\;input}\) to everyone else.
  2. Signers terminate successfully when they receive valid signatures from all \( n \) participants ("success certificate")
• Integrity: ✅
• Agreement: ✅ (can convince signer with success cert)

ChillDKG

ChillDKG Backups

• In contrast to Schnorr sigs or MuSig, secret keys cannot be derived from the seed.
• Naive approach: backup new secret data per DKG session
• ChillDKG: backup seed once, and backup "recovery data" per DKG session. Recovery data is...
  • ...self-authenticating and contains secret data in encrypted form
    • can be stored with an untrusted third-party
  • ...the same for all participants
    • can be requested from other participants

BIP ChillDKG

• Specification in the form of a Bitcoin Improvement Proposal (BIP)
• Standalone (fully specified), no external secure channels or consensus mechanism.
• Specification/reference implementation in Python
• Provides (conditional) agreement
• Simpler backups: recover from static seed and public recovery data
• Supports any threshold \( t \le n\)

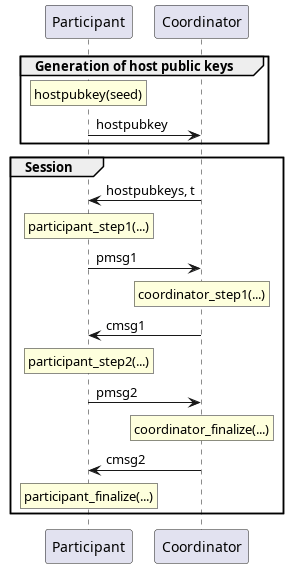

• Untrusted coordinator reduces communication overhead by aggregating some of the messages



In Progress: Identifiable Aborts

• ChillDKG is not robust: A single signer can cause ChillDKG to fail (e.g., by sending nothing, inconsistent VSS commitments, ...)

• In the setting we're considering, the signers are not able to agree on which signer is misbehaving

  • E.g., requires majority of signers to be honest or synchronous network

• However, ChillDKG can be modified such that in case of failure, each honest signer can determine that either a certain participant or the coordinator are misbehaving.

https://github.com/BlockstreamResearch/bip-frost-dkg

EncPedPop

• Every signer has long-term ECDH key pair \[ (\mathsf{staticpub}, \mathsf{staticpriv}) \]
• Assumption: everyone has a correct copy of every other signer's \(\mathsf{staticpub}\).
• Encryption uses a one-time pad created through ephemeral-static ECDH key exchange between sender \(i\) and receiver \(j\).\[ \mathsf{share}_{i,j} + \mathsf{ECDH}(\mathsf{ephemeral}_i, \mathsf{static}_j) \]
• All signers' claimed \(\mathsf{staticpub}, \mathsf{ephemeralpub} \) are added to \(\mathsf{Eq}\)'s input
