Webix Way of Data Loading

and Presenting

Lets create a playground!

The answer is Multiview!

How to effectively display a lot of views in one application?

MultiView: Cells

var main = {
  cells:[
    { cols:[ data, form ]},
    { template:"Users view"},
    { template:"Products view"}
  ]
};

var main = {
    cols:[data, form]
};

    webix.ui({
      rows:[
        topbar,
        { cols:[  side, { view:"resizer" }, main ]},
        bottombar
      ]
    });

MultiView

Layout

All rows/cols

are visible

at a moment

Only one cell

is visible

at a moment

https://snippet.webix.com/c61dl1i6

MultiView: Show Cells

https://snippet.webix.com/dxl41rsx

1. Some view to control cell visibility:

tabbar
segmented button
selectable list

2. Define ids for cells

3. Call .show() method when users clicks the 'switch'

{ view:"list", select:true }

    cells:[
        { id:"Dashboard", cols:[data,form] },
        { id:"Users", template:"Users View" }
    ]

    $$("mylist").attachEvent("onAfterSelect", function(id){
        $$(id).show(); //id is "Dashboard", "Users"
    });

Data Components

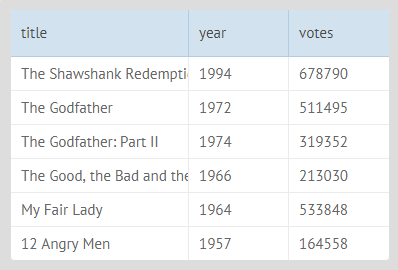

Datatable

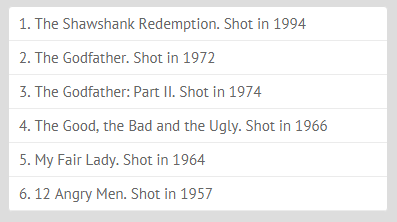

List

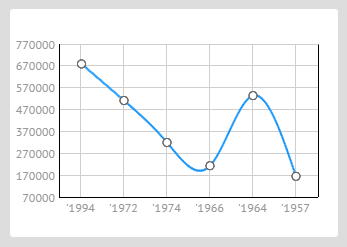

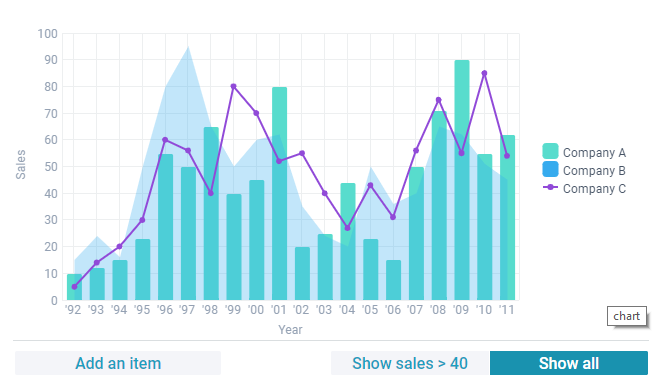

Chart

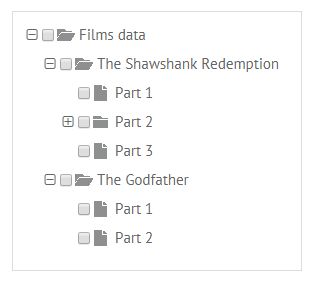

Tree

TreeTable

Dataview

Why such groups?

Data Types

Linear and Hierarchical

Data types: JSON, XML, CSV, JSArray

 data: [
    { id:1, value:"My Fair Lady" },
    { id:2, value:"The Godfather" },
    { id:3, value:"My Fair Lady" },
    { id:4, value:"The Shawshank Redemption" }
 ]

 data: [
   { id:"1", value:"My Fair Lady", data:[
        { id:"1.1", value:"Part 1" },
        { id:"1.2", value:"Part 2" },
    ]},
    { id:"2", value:"The Godfather", data:[
        { id:"2.1", value:"Part 1" },
        { id:"2.2", value:"Part 2" }
    ]}
 ]

http://docs.webix.com/samples/15_datatable/01_loading/01_inline_data.html

JSON and XML - both linear and hierarchical
CSV and JSArray - only linear

Data Origin and Loading

Client side (available in browser)

Server side (in external file or on server)

	Client side	Server side
in config	{ view:"list" data:data }	{ view:"list", url:"data.js" }
by method	$$("mylist").parse(data);	$$("mylist").load("data.js");

{
    view:"list",
    id:"mylist",
    data:data
}

$$("l1").load("data.js");

$$("l2").load("data.php");

cols:[
  { view:"list", id:"l1", url:"data.js"},
  { view:"list", id:"l2", url:"data.php"}
]

$$("mylist").parse(data);

* When parsing the same client-side data, it's good to wrap it into webix.copy()

Loaded! How to see it?

    {
        view:"list",
        data:[ "Dashboard", "Users", "Products"]
    }

    {
        view:"list",
        data:[
            { id:"Dashboard", value:"Dashboard"},
            { id:"Users", value:"Users"},
            { id:"Products", value:"Products"}
        ]
    }

    {
        view:"list",
        template:"#value#",
        data:[
            { id:"Dashboard", value:"Dashboard"},
            { id:"Users", value:"Users"},
            { id:"Products", value:"Products"}
        ]
    }

Simple:

Detailed:

Template:

Data Templates

    {
        view:"list",
        template:"#title#",
        data:[
            { id:"Dashboard", title:"Dashboard"},
            { id:"Users", title:"Users"}
        ]
    }

    {
        view:"list",
        template:function(obj){
            return obj.title;
        },
        data:[
            { id:"Dashboard", title:"Dashboard"},
            { id:"Users", title:"Users"}
        ]
    }

String template:

Function template:

Simple
Custom HTML

Complex HTML
Conditions

https://docs.webix.com/samples/05_list/01_list.html

DataTable Templates

    {
        view:"datatable",
        columns:[
            { id:"id",	header:"", width:50},
            { id:"title",	header:"Film title", width:200},
            { id:"year",    header:"Year"}
        ],
        data: [
    	    { id:1, title:"The Shawshank Redemption", year:1994},
    	    { id:2, title:"The Godfather", year:1972}
        ]
    }

    columns:[
        { id:"title", header:"Title", template:"Film name is #title#" }
    ]

Column ids:

Templates for columns:

https://docs.webix.com/samples/15_datatable/20_templates/01_string.html

Active Elements in Items

https://snippet.webix.com/irsn3ry6

    {
          view:"list",
          select:true,
          template:"#votes# <span class='removeBtn'>Remove</span>"
    }

    {
          view:"list",
          select:true,
          template:"#votes# <span class='removeBtn'>Remove</span>",
          onClick:{
              removeBtn:function(e, id){
                   this.remove(id);
                   return false;
              }
          }
    }

CSS-specific clicks
return false to cancel further processing

Active Elements in Items

    view:"datatable", columns:[
        { id:"edit", template:"{common.editIcon()}" },
        { id:"del", template:"{common.trashIcon()}" }
    ],
    onClick:{
  	"wxi-trash":function(e, id){
             this.remove(id);
             return false;
        }
    }

{common.icon()}
{common.folder()}
{common.radio()}
{common.checkbox()}
{common.treetable()}

Own functionality

Custom functionality

https://snippet.webix.com/u1nlr5lu

https://snippet.webix.com/ctj6v6hx

Data Item CSS

    {
        view:"list",
        template:"#title#",
        data:styled_data
    }

$css

    {
        view:"datatable",
        autoConfig:true,
        data: styled_data
    }

    var styled_data = [
    	{ id:1, title:"The Shawshank Redemption" },
    	{ id:2, title:"The Godfather", $css:"green" }
    ];



    <div class="webix_list_item green"></div>



    <div class="webix_cell green"></div>
    <div class="webix_cell green"></div>

https://snippet.webix.com/89m2nhlb

DataTable Item CSS

$cellCSS

   { view:"datatable", data: [
      { id:1, title:"My Fair Lady" },
      { id:2, title:"The Godfather",
          $cellCSS:{
              title: "green",
              year:"red"
          }
       }
   ]}




    <div class="webix_cell green"></div>
    <div class="webix_cell red"></div>

Column CSS

https://snippet.webix.com/miao4ubh

  { view:"datatable", columns:[
      { id:"rank", header:"", css:"rank" },
      { id:"title", header:"Film title" }
  ]}

Hover CSS

    <div class="webix_column green">
        <div class="webix_cell"></div>
        <div class="webix_cell"></div>
    </div>

  { view:"datatable", hover:"myhover" }

    <div class="webix_cell myhover"></div>
    <div class="webix_cell myhover"></div>

Data Storage

    webix.ui({
        view:"list",
        template:"#id#.#title#",
        data: [
            { id:1, title:"The Shawshank Redemption", year:1994},
            { id:2, title:"The Godfather", year:1972 }
        ]
    });

    //Datastore accessor
    $$("mylist").data;

    //all records as hash
    $$("mylist").data.pull;

    {
        1:{ id:1, title:"The Shawshank Redemption", year:1994},
        2:{ id:2, title:"The Godfather", year:1972}
    }

    //current order in component as plain array
    $$("mylist").data.order;

    [ 1, 2 ]

DataStore - inner module for storing data

Why id should

be unique?

Data Item id and index

    webix.ui({
        view:"list",
        template:"#id#.#title#",
        data: [
            { title:"The Shawshank Redemption", year:1994},
            { title:"The Godfather", year:1972 }
        ]
    });

    //all records as hash
    $$("mylist").data.pull;

    {
        1510240943485:{ id:1510240943485, title:"The Shawshank Redemption"},
        1510240943486:{ id:1510240943486, title:"The Godfather"}
    }

    //current order in component as array
    $$("mylist").data.order;

    [ 1510240943485, 1510240943486]  // indices 0, 1, etc.

What happens to Webix component without id?
What can happen to data item without id?

Data Operations

$$("mylist").count();

$$("mylist").data.each(function(obj){
    console.log(obj);
});

$$("mylist").clearAll();

Count items?
Iterate items?
Clear the component?

4. Filter data

5. Sort data

$$('mylist').filter("#year#", "1994");

$$('mylist').sort("#year#","desc");

CRUD Operations

Read:

Create:

Update:

Delete:

$$("mylist").add({id:100, title:"New film", year:2000});

var item = $$("mylist").getItem(100);
//{id:100, title:"New film", year:2000}

$$("mylist").updateItem(100, {title:"Old film", year:1950});

$$("mylist").remove(100);

Useful Links

Webix topics:

Practice: click here

Follow-up text: click here
