Webix Apps:Structure

Layouts

Sizes

Dynamics

Fit in App

  • Full page
  • Part of whole
  • Intergated with a third-party

* We recommend Webix Jet, of course

* part of your basic layout on pure HTML or another framework

* Vue, Angular, Backbone, React, JQuery, Meteor, Firebase

Fit in HTML

HTML Container

Full page (document.body is a container)

  • top layout is not responsize
  • page scroll in controlled by browser
  • layout is fully responsive
  • page scroll is controlled by Webix app
body.webix_full_screen {
    margin: 0;
    padding: 0;
    overflow: hidden;
}

* webix.ui.fullScreen() is for touch devices

Single Page Layouts

Layout and its offsprings

  • rows
  • cols

Form and Toolbar

  • elements
  • rows
  • cols

Form and Toolbar

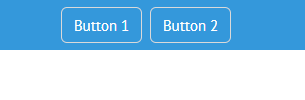

Toolbar elements

webix.ui({
    view:"toolbar",
    elements:[
        { view:"button", value:"Button 1"},
        { view:"button", value:"Button 2"}
    ]
});
webix.ui({
    view:"form",
    elements:[
        { view:"text", value:"Alice"},
        { view:"text", value:"Bennet"}
    ]
});

Form elements

  • row, cols are valid
  • elements - value holders - have "name"

Layout Types


{ rows:[...], type:"line" }, //default
{ rows:[...], type:"space" },
{ rows:[...], type:"wide" },
{ rows:[...], type:"clean" }
{ view:"form", rows:[...]/*, type:"form"*/ },
{ view:"toolbar", cols: [...]/*, type:"toolbar"*/ }
webix.ui({
    type:"space", rows:[
        { cols:[...]},
        { type:"wide", cols:[...]}
    ]
});

Type is not inherited!

  • Margin
  • Borders
  • Padding
  • Background

Type sets:

Layout Margins

webix.ui({
    margin:20,
    paddingX:5, paddingY: 10, //or padding
    rows:[...]
});

How to reset:

1.

2.

webix.skin.$active.layoutPadding.line = 10;
webix.skin.$active.layoutMargin.space = 10;

For one specific layout

Globally:

  • webix.skin.$active stores settings for the skin in use
  • avoid changing the above parameters in CSS

Sizing in Apps

  • Size to content (not for all)

View rules

  • No size
  • Fixed size
    { view:"list"},
    { view:"calendar", height:0, width:0}
    { view:"list", height:300, width:200 },
    { view:"button", value:"Click me" } //set by default
  • Min/max size
{ view:"list", minHeight:200, maxWidth:800 }
{ view:"datatable",  autoheight:true,  autowidth:true }

Sizing in Apps

  • Mixed​

Layout rules

  • Evenly 1:1
  • ​Proportionally x1:x2
    rows:[
        { view:"list" },
        { view:"datatable" }
    ]
    //1:2
    rows:[
        { view:"list" },
        { view:"datatable", gravity:2 }
    ]
    rows:[
        { view:"calendar" }, //fixed sized
        { view:"datatable", gravity:2 },
        { view:"list" }
    ]

Scroll in Views

Scroll modes - for those who support

ScrollView - to wrap anything

  • x, xy,  y      Datatable, Dataview, Template, Tree, ScrollView
  • y                 Lists, Form
    view:"scrollview",
    scroll:"xy",
    body:{
        rows:[ ... ]
    }
    { view:"tree", scroll:"xy" },
    { view:"form", scroll:"y" } //scroll:true

Scroll in Apps

HTML container or not

Custom Scrollbars

  • HTML container: browser priority
  • document body: Webix app priority
    if (!webix.env.touch)
      webix.CustomScroll.init();

    view:"scrollview",
    body:{ .. }, //view with custom scrolls
    scroll:"native-y" //native scrollbar

Leave native scrollbars for particular views:

Multiple Page Layouts

Multiview

Tabview (alias for Tabbar + Multiview)

  • cells
  • cells with header and body

Accordion

  • rows or cols with header and body

Carousel

  • rows or cols defining swipe direction

Multiview and Tabview

{
   { view:"tabbar", multiview:true, options:[
       { id:"tab1", value:"Tab 1"}
   ]},
   { cells:[
       { id:"tab1", template:"Content 1"}
   ]}
}

{ view:"tabview", cells:[
     { header:"Tab 1", body:{ template:"Content 1"}}
]}

console.log($$("$tabview1").getTabbar().config.options);
// {value: "Tab 1", id: "view1519045588595"}

{ view:"tabview", cells:[
     { header:"Tab 1", body:{ id:"tab1", template:"Content 1"}}
]}

console.log($$("$tabview1").getTabbar().config.options);
// {value: "Tab 1", id: "tab1"}

cell id = tab id

cell id = tab id = auto id

cell id = tab id = custom id

Multiview and Tabview

    <!-- default -->
    <div class="webix_view webix_multiview" view_id="$multiview1">
        <div class="webix_view" view_id="view1519156647870">...</div>
    </div>

    <!-- with keepViews:true -->
    <div class="webix_view webix_multiview" view_id="$multiview1">
        <div class="webix_view" view_id="view1519156647870">...</div>
        <div class="webix_view" view_id="view1519156647871">...</div>
    </div>
    webix.ui({
      view:"tabview",
      multiview:{
      	//keepViews:true
      },
      cells:[
        { header:"Tab 1", body:{ template: "Content 1"}},
        { header:"Tab 2", body:{ template: "Content 2"}}
      ]
    });

JS:

HTML:

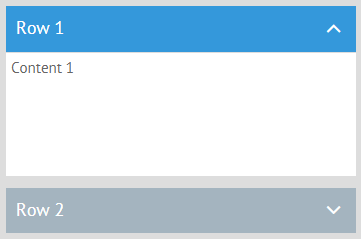

Accordion

<div class="webix_view webix_accordionitem vertical" view_id="$accordionitem1">
    <div webix_ai_id="$accordionitem1" class="webix_accordionitem_header">...</div>
    <div class="webix_accordionitem_body"> ... </div>
</div>

<div class="webix_view webix_accordionitem vertical collapsed" view_id="$accordionitem2">
    <div webix_ai_id="$accordionitem2" class="webix_accordionitem_header collapsed"> ... </div>
    <div class="webix_accordionitem_body" style="display: none;"> ... </div>
</div>
webix.ui({
  multi:true,
  rows:[
    { header:"Row 1", body:"Content 1"},
    { header:"Row 2", body:"Content 2"}
  ]
});

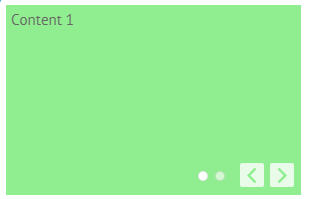

Carousel

<div class="webix_view webix_layout_clean" view_id="$layout1" touch_scroll="x"
    style="width:1000px; transform: translate3d(-500px, 0px, 0px);>
    <div class="webix_view tpl1" view_id="$template1" style="width:500px; display: inline-block;">
        ...
    </div>
    <div class="webix_view tpl2" view_id="$template2" style="width:500px; display: inline-block;">
        ...
    </div>
</div>
webix.ui({
  view:"carousel",
  width:500, height:400,
  cols:[
    { template: "Content 1", css:"tpl1"},
    { template: "Content 2", css:"tpl2"}
  ]
});

Navigation in Multi Layouts

Side

Top / bottom

By Api

  • list
  • sidebar
  • menu (y)
  • tabbar
  • segmented
  • menu (x)
  • multiview.setValue("cellId");
  • carousel.setActive("cellId");
  • cell.show();

Accordion

Multiview / Carousel

  • cell.expand();
  • cell.collapse();

 By user

Peculiar Layouts

  • FlexLayout
  • AbsLayout
  • GridLayout / Dashboard

* flex boxes, IE11+

* absolute positioning of elements

* cell positioning relative to abstract  grid

{ view:"flexlayout", cols:[ ... ] }

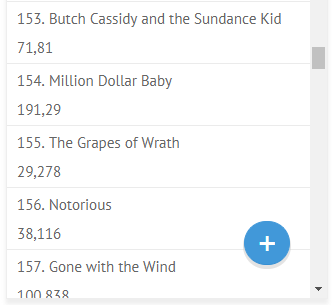

{ view:"abslayout", cells:[
    { view:"list", relative:true},
    { view:"button", bottom: 20, right:35 }
]}

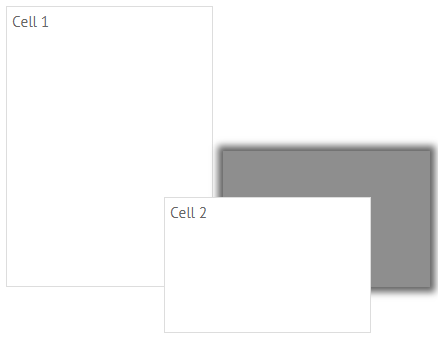

{ view:"dashboard", cells:[
    { view:"panel", x:0, y:0, dx:1, dy:2, body:{...}},
    { view:"panel", x: 1, y:2, dx:2, dx:y, body:{...}}
]}

Browsing Nested Layouts

var views = webix.ui.views;
/*{
    top:{ ..view object ..},
    addBtn:{ ..view object ..},
    delBtn:{ ..view object ..}
}*/
  webix.ui({
    id:"top", cols:[
        { view:"button", id:"addBtn", value:"Add" },
        { view:"button", id:"delBtn", value:"Delete" }
    ]
  });
$$("top").queryView("button");
$$("top").queryView({ view:"button"}, "all"); //"parent", "self"
$$("top").queryView(function(config){
    return config.view == "button";
});
$$("top").getChildViews(); // [ { ..view object..}, { ..view object..} ]
$$("addBtn").getParentView(); // view object
$$("addBtn").getFormView(); // form view object

1.

2.

3.

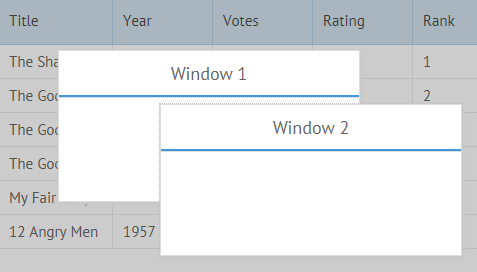

Windows and Popups

<div class="webix_view webix_layout_line" view_id="$layout1"
    style="width: 523px; height: 962px;"> <!--layout HTML-->
</div>
<div class="webix_view webix_window" tabindex="0" view_id="$window1"
    style="top: 358px; left: 112px; z-index: 100;"><!--window 1 HTML-->
</div>

<div class="webix_view webix_window" tabindex="0" view_id="$window2"
    style="top: 200px; left: 200px; z-index: 101;"><!--window 2 HTML-->
</div>
    webix.ui({
        view:"window"
    }).show();
  • lie above layout
  • need to be shown explicitely



webix.ui.zIndexBase = 100;



webix.ui.zIndex();

Modifying Windows

.close()

Note:

win.hide();
win.show();

is better than

win.close();
webix.ui({..same win..});

.hide()

var win = webix.ui({
    view:"window"
});
win.show();
win.hide()

win.show();
win.close()

win.show();
//error

Changing views dynamically

  • define (prop, value)
  • view.config.prop =  value
calendar.define("width", 200);
//or
calendar.define({
    width: 200,
    height:300
});

calendar.config.width = 200;
//or
webix.extend(calendar.config, {
    width: 200,
    height:300
}, true);

Setters!

Apply changed properties

  • define and resize
  • define and repaint
calendar.define("width", 400);
calendar.config.height = 400;
calendar.resize();
calendar.config.date = new Date(2017, 01, 01);
calendar.refresh();
  • define and rebuild
layout.define("rows", [ ... ]);
layout.reconstruct();

datatable.define("columns", [ ... ]);
datatable.refreshColumns();

Change and apply properties


calendar.showCalendar(new Date(2017, 01, 01));

text.setValue("New value");

calendar.config.date = new Date(2017, 01, 01);
calendar.refresh();

text.config.value = "New value";
text.refresh();

.showCalendar()

.setValue()

Dynamic Modifications

webix.ui

    //familiar webix ui
    webix.ui({ ..new config..});

    //replaces datatable
    webix.ui({ ..new config..}, $$("mydatatable"));

    //replaces datatable in the given layout
    webix.ui({ ..new config..}, $$("mylayout"), $$("mydatatable"));
  • destroys base view
  • same ID for the new view

Replacing Views

webix.ui with collection:

    webix.ui({
        view:"form", id:"myform", rows:[ {}, {} ]
    });

    //replaces all form rows
    webix.ui([ ..array of new configs..], $$("myform"));

.reconstruct() for collections

    $$("myform").define("rows", [
        { }, { }
    ]);
    $$("myform").reconstruct();
  • child elements are destroyed
  • same IDs can be used

Adding/Removing Views

.addView()

.remove View()


$$("myform").addView({ view:"button" });

$$("myform").addView({
    cols:[{ view:"button" },{ view:"button" }]
});

$$("myform").removeView("addBtn");

$$("myform").destructor();

Note:

is better than

$$("myform").removeView("addBtn");
$$("addBtn").destructor();

Adaptive Apps

  • At least 1 view in Layout is non-sized
  • or Spacer is used in as Layout row/column

App views change size depending on viewport, if:

    cols:[
        { view:"list", width:200 },
        { view:"datatable" }, //fillspace for at least 1 column
        { view:"form", width:300 }
    ]
    view:"form", rows:[
        { view:"text" },
        { view:"text" },
        {}, //spacer
        { view:"button" }
    ]

Responsive Apps

  • FlexLayout is used (IE11+)
  • Responsive behaviour is maintained
    view:"flexlayout", cols:[
        { view:"list", minWidth:200 },
        { view:"datatable", minWidth:400, minHeight:300 },
        { view:"form", width:300, minHeight:300 }
    ]
    id:"top", rows:[
        {
            responsive:"top", //child view will move to "top" layout
            responsive:true,  //child views will be hidden
            cols:[
                { view:"list", width:200 },
                { view:"template", width:200 },
                { view:"datatable", minWidth:300 }
            ]
        }
    ]

App views change position depending on viewport, if:

2-2. Webix Intermediate. App Structure.

By ihelga

Made with Slides.com

2-2. Webix Intermediate. App Structure.

Layouts and dynamic modifications within them. Adaptive techniques.
