Data in Webix Widgets

DataDriver

Templating

Parsing

Mouse Actions

Data Widgets

Single-value widgets

Multiple-value widgets

  • Template
  • Form
  • Property sheet
  • Lists
  • Dataview
  • Datatable
  • Tree /Treetable
  • Chart
  • ...

{ name:"Alex", age:31}

[
    { name:"Alex", age:31},
    { name:"Christin", age:28},
    { name:"Brian", age:19}
]

Data Widgets

Linear data

Hierarchical widgets

  • Tree
  • Treetable
  • Grouplist
  • Organogram
  • Lists
  • Dataview
  • Datatable
  • Chart

[
    { name:"Alex", age:31},
    { name:"Christin", age:28},
    { name:"Brian", age:19}
]
[
    { name:"Devs", data:[
        { name:"Alex", age:31},
        { name:"Christin", age:28}
    ]},
    { name:"QA", data:[
        { name:"Brian", age:19}
    ]}
]

JSON, XML, JSArray, CSV

JSON, XML

Data Origin and Loading

  • Client side (available in browser)
  • Server side (in external file or on server)
Client side Server side
in config {
    view:"list"
    data:data
}
by method $$("mylist").parse(data); $$("mylist").load("data.js");

{
    view:"list",
    id:"mylist",
    data:data
}
$$("list1").load("data.js");

$$("list1").load("data.php");
cols:[
    { view:"list", id:"list1", url:"data.js"},
    { view:"list", id:"list2", url:"data.php"}
]
$$("mylist").parse(data);

Form, Template & Property

webix.ui({
    view:"form", rows:[
        {view:"text", name:"name", label:"Name"},
        {view:"counter", name:"age", label:"Age"}
    ]
});

$$("$form1").parse(data);
//equal to
$$("$form1").setValues(data);
  • view.setValues(): JSON only
  • view.parse() or view.load(): JSON or XML

Data Drivers

  • JSON
  • XML
  • CSV
  • JSArray

all ends up with JSON

  • webix.DataDriver.JSON
  • webix.DataDriver.XML
  • webix.DataDriver.CSV
  • webix.DataDriver.JSArray

    { view:"datatable", data:grid_data, datatype:"json" }

Data Drivers

  • JSON
  • XML
  • CSV
  • JSArray

all ends up with JSON

  • webix.DataDriver.JSON
  • webix.DataDriver.XML
  • webix.DataDriver.CSV
  • webix.DataDriver.JSArray

    { view:"datatable", data:grid_data, datatype:"json" }
webix.DataDriver.JSON = {
    toObject:function(data){...},
    getRecords:function(data){...},
    getDetails:function(data){...},
    getInfo:function(data){...},
    ...
    child:"data"
}
  • Parses incoming data
  • Gets an array of records
  • Parses each record
  • Gets loading markers
  • Child item pointer

Data Drivers

[
    { id:1, value:"One"},
    { id:2, value:"Two"},
    "Three"
]


'[{"id":1,"value":"One"},{"id":2,"value":"Two"},"Three"]'

Raw JSON string

After .toObject() and .getRecords()

After .getDetails()

[
    { id:1, value:"One"},
    { id:2, value:"Two"},
    { id:"Three", value:"Three"}
]

Data Drivers

{
    data:[
    	{ "id":1, "value":"One"},
    	{ "id":2, "value":"Two"}
    ],
    pos:0,
    total_count:100
}
'{"data":[{"id":1,"value":"One"},{"id":2,"value":"Two"}],"pos":0,"total_count":100}'

Raw JSON string

After .toObject()

.getInfo()

{
    from:0,
    size:100
}
[
    { "id":1, "value":"One"},
    { "id":2, "value":"Two"}
]

After .getRecords()

[
    { "id":1, "value":"One"},
    { "id":2, "value":"Two"}
]

After .getDetails()

Customizing JSON Driver

webix.DataDriver.myJSON = webix.extend({
    getRecords:function(data){
    	return data.records;
    }
}, webix.DataDriver.json);
webix.DataDriver.myTreeJSON = webix.extend({
    child:"people"
}, webix.DataDriver.json);

webix.extend({ ..new functionality.. }, base driver);

{
    records:[
        { name:"Alex", age:31},
        { name:"Christin", age:28},
        { name:"Brian", age:19}
    ]
}
[
    { name:"Devs", people:[
        { name:"Alex", age:31},
        { name:"Christin", age:28}
    ]},
    { name:"QA", people:[
        { name:"Brian", age:19}
    ]}
]

Inner Data Parsing

Widgets can modify data

var tree_data = [
    { id:1, name:"Devs", data:[
        { id:2, name:"Alex", age:31},
        { id:3, name:"Christin", age:28}
    ]}
]
[
    {"id":1,"name":"Devs","$count":2,"$parent":0,"$level":1},
    {"id":2,"name":"Alex","age":31,"$count":0,"$parent":1,"$level":2},
    {"id":3,"name":"Christin","age":28,"$count":0,"$parent":1,"$level":2}
]
webix.ui({
    cols:[
        { view:"tree", data:tree_data },
        { view:"tree", data:tree_data }
    ]
});

Inner Data Parsing

Widgets can modify data

var tree_data = [
    { id:1, name:"Devs", data:[
        { id:2, name:"Alex", age:31},
        { id:3, name:"Christin", age:28}
    ]}
]
[
    {"id":1,"name":"Devs","$count":2,"$parent":0,"$level":1},
    {"id":2,"name":"Alex","age":31,"$count":0,"$parent":1,"$level":2},
    {"id":3,"name":"Christin","age":28,"$count":0,"$parent":1,"$level":2}
]
webix.ui({
    cols:[
        { view:"tree", data:webix.copy(tree_data) },
        { view:"tree", data:webix.copy(tree_data) }
    ]
});

webix.copy()

Data Pre Processing

Scheme functions

  • $init
  • $group
  • $sort
  • $change
  • $update
  • $save
  • $serialize
{
    view:"datatable",
    scheme:{
        $init:function(obj){
            obj.date = new Date(2018, 23, obj.id);
        },
        $sort:{
            by:"title",
            dir:"asc"
        }
    }
}

Data Post Processing

Events:

{
    view:"datatable",
    ready:function(){
        console.log(this.count());
    }
}

Lifetime handlers:

  • onAfterLoad
  • "data->onParse"
  • ready
{
    view:"datatable",
    on:{
        onAfterLoad:function(){
            console.log(this.count());
        },
        "data->onParse":function(){
            console.log(this.count());
        }
    }
}

Limitations for synced views: only DataStore events (onStoreLoad, onStoreUpdated)

Visualizing Data

Simple rendering

Lazy rendering

Canvas and SVG

  • tree
  • list
  • template
  • Dataview
  • Datatable
  • Treetable
  • Chart
  • Organogram
  • Gage, GeoChart

all items in DOM

visible items  in DOM

Data Templates

{
    view:"list",
    template:"#title#",
    data:[
        { id:"Dashboard", title:"Dashboard"},
        { id:"Users", title:"Users"}
    ]
}
{
    view:"list",
    template:function(obj){
        return obj.title;
    },
    data:[
        { id:"Dashboard", title:"Dashboard"},
        { id:"Users", title:"Users"}
    ]
}

String template:

Function template:

  • Simple
  • Custom HTML
  • Complex HTML
  • Conditions

DataTable Templates

{
    view:"datatable",
    columns:[
        { id:"id",	header:"", width:50},
        { id:"title",	header:"Film title", width:200},
        { id:"year",    header:"Year"}
    ],
    data: [
	{ id:1, title:"The Shawshank Redemption", year:1994},
	{ id:2, title:"The Godfather", year:1972}
    ]
}

columns:[
    { id:"title", header:"Title", template:"Film name is #title#" }
]

Column ids:

Templates for columns:

DropDown Templates

{ view:"combo", options:[
    "One",
    "Two"
]}

{ view:"combo", options:{
    template:"#name#",
    data:[
        { id:1, name:"One"},
        { id:2, name:"Two"}
    ]
}}

 id, value

Templates for dropdown list:

{ view:"combo", options:[
    { id:1, value:"One"},
    { id:2, value:"Two"}
]}

or

{ view:"combo", options:{
    template:"#name#",
    body:{
        template:"#name#",
        data:[
            { id:1, name:"One"},
            { id:2, name:"Two"}
        ]
    }
}}

DropDown Templates

{ view:"combo", options:[
     "One",
     "Two"
]}

 id, value

Filters for dropdown list:

{ view:"combo", options:[
    { id:1, value:"One"},
    { id:2, value:"Two"}
]}

or

{ view:"combo", options:{
    template:"#name#",
    filter:function(item, value){
         return (item.name.toString().toLowerCase().indexOf(value.toLowerCase())===0)
    },
    body:{
        template:"#name#",
        data:[
            { id:1, name:"One"},
            { id:2, name:"Two"}
        ]
    }
}}

Date Templates

webix.i18n.{method}

webix.Date.dateToStr(format)

    // use as widget / datatable column template
    { header:"Date", id:"start", template:function(obj){
        return webix.i18n.dateFormatStr(obj.start);
    }}
    // set as datatable column format
    { header:"Date", id:"start", format:webix.i18n.dateFormatStr}
    // use as widget / datatable column template
    { id:"start", template:function(obj){
       return webix.Date.dateToStr("%Y-%m-%d")(obj.start);
    }}
    // set as datatable column format
    { id:"start", format:webix.Date.dateToStr("%Y-%m-%d")}

* Datatable: template has higher priority!

Number Templates

webix.i18n.numberFormat

webix.Number.numToStr(format)

    // use as widget / datatable column template
    { id:"votes", template:function(obj){
      return webix.i18n.numberFormat(obj.votes);
    }}
    //set as datatable column format
    { id:"votes",  format:webix.i18n.numberFormat }

    var format = webix.Number.numToStr({
       groupDelimiter:" ", groupSize:3,
       decimalDelimiter:",", decimalSize:2
     });

    // use as widget / datatable column template
    { id:"votes", header:"Custom", template:function(obj){
      return format(obj.votes);
    }}
    //set as datatable column format
    { id:"votes",  format:format }

Item Configuration

webix.ui({
    view:"list",
    template:"#name#. #age#",
    type:{ //or item
        height:60,
        css:"some"
    }
});
  • width: number or "auto"
  • height: number or "auto"
  • css
  • template

Item Settings    Tree, List, Dataview

Item controls   Tree, Treetable, Datatable

webix.ui({
    view:"tree",
    template:"{common.icon()} {common.folder()} #name#"
    //or
    template:function(obj, common){
        return common.icon(obj, common)+
               common.folder(obj, common)+
               obj.name;
    }
});
  • icon
  • folder
  • checkbox
  • radio
  • editIcon
  • trashIcon

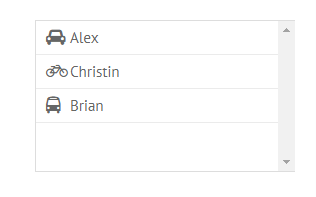

Active Zones in Items

webix.ui({
    view:"list",
    template:"{common.vehicle()} #name#",
    type:{
        vehicle:function(obj, common){
            return "<span class='webix_icon mdi mdi-"+obj.vehicle+"'></span>";
        }
    },
    data:[
        { id:1, name:"Alex", vehicle:"car"},
        { id:2, name:"Christin", vehicle:"bicycle"}
    ]
});

Adding controls to type and /or show them in a template

onClick:{
    webix_icon:function(e, id){
        var item = this.getItem(id);
        webix.message(
            item.name+" goes to work by "+item.vehicle
        );
    }
}

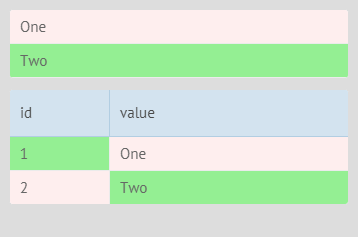

Item CSS

In data: item.$css, item.$cellCss

data:[
    { id:1, value:"One", $css:"red"},
    { id:2, value:"Two", $css:"green"}
]
data:[
    { id:1, value:"One", $cellCss:{
        value:"red", id:"green"
    }}
]

By method:

  • list.addCss(id, class) / .removeCss(..)
  • dtable.addRowCss(id, class) / .removeRowCss(..)
  • dtable.addCellCss(row, col, class) / .removeCellCss(..)

Item Selection

CSS: .webix_selected

Navigation: moved by arrow keys or

List, DataView, Tree

Datatable, Treetable

API:

    view.select(id / [ids], preserve);
    view.getSelectedIds(asArray);

    on: {
        onBefore/AferSelect:handler1,
        onBefore/AfterUnSelect:handler2,
        onSelectChange:handler3
    }
    select:true,
    multiselect:true // "touch"
select: "row", //true, "cell", "column"
multiselect:true, //"touch"
blockselect:tru,
areaselect:true
    view.moveSelection("bottom");
