The Problem

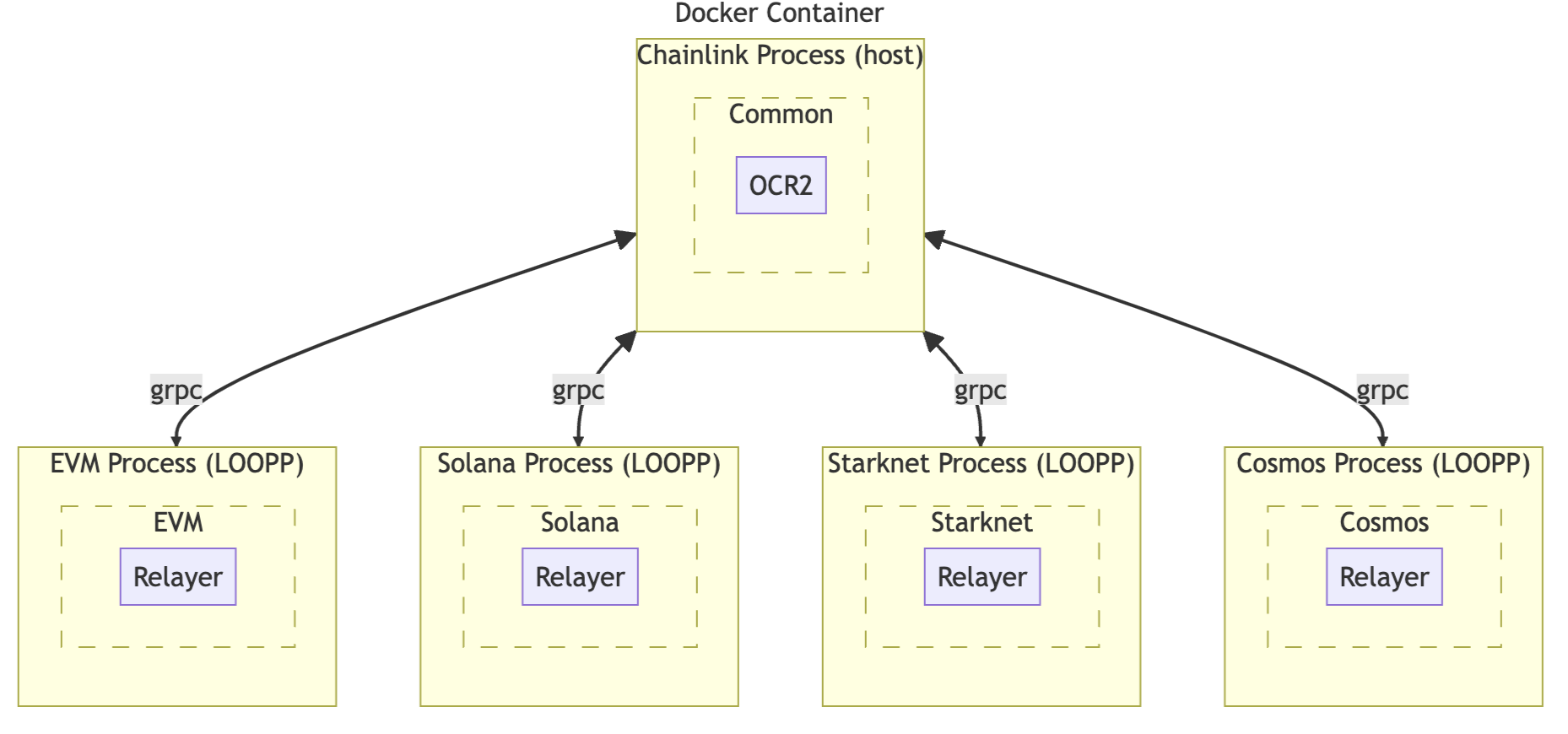

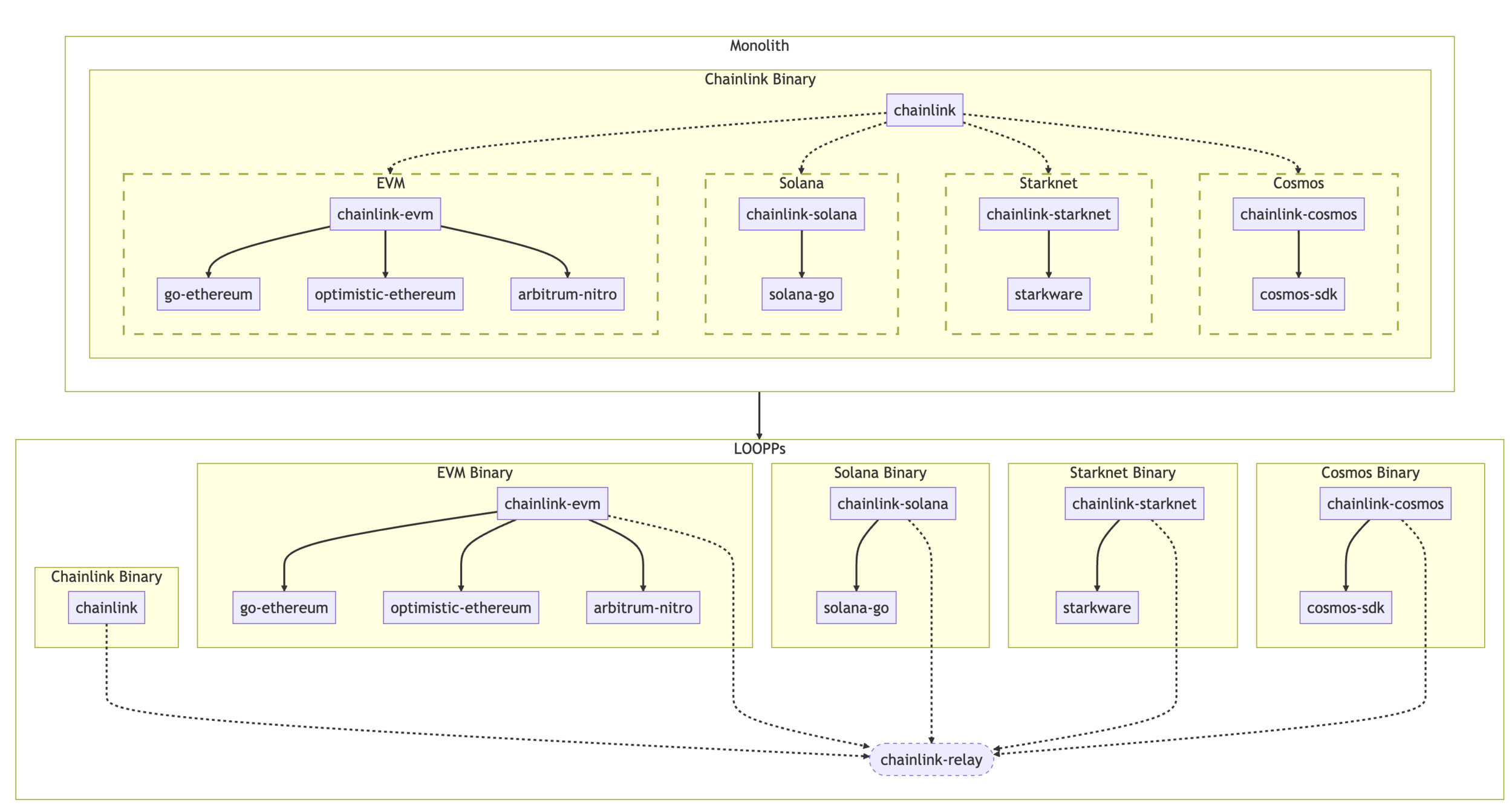

Local Out-Of-Process Plugin (LOOPP) will make our setup look a lot more like microservices system

What is gRPC

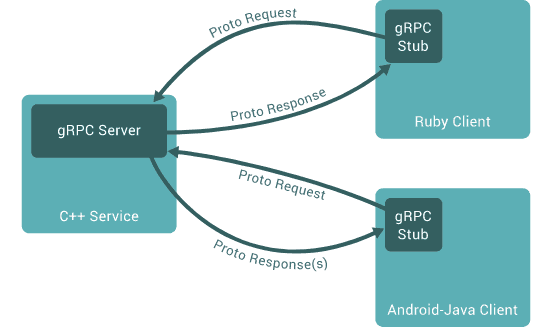

RPC - function calls that execute on a different machine

gRPC - is a free and open-source fw developed by Google

Language independent
Efficient Data Compaction
Efficient serialization and deserialization (uses HTTP2)
Simple to use

gRPC - is a free and open-source fw developed by Google

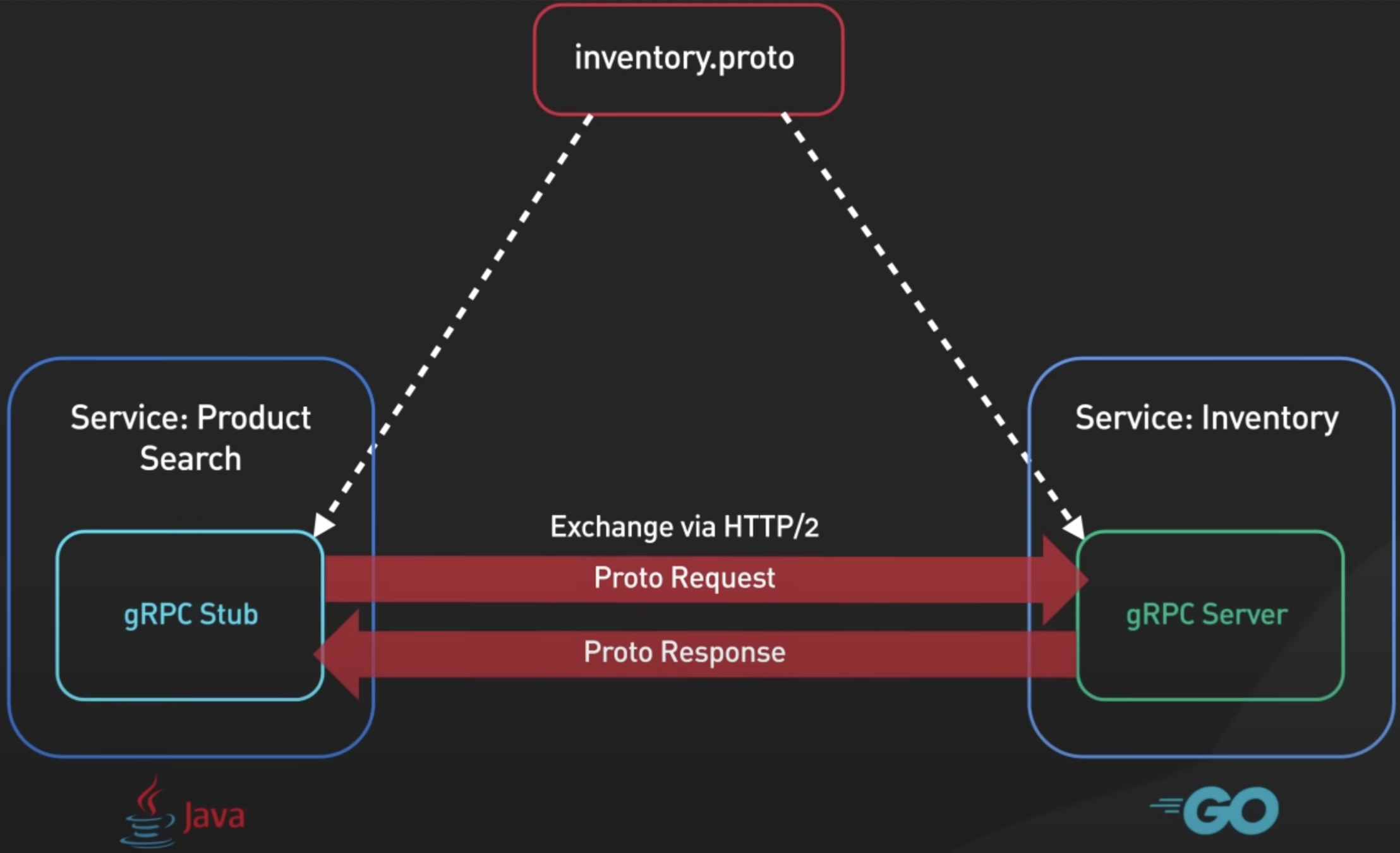

Protocol Buffers

Google’s language-neutral, platform-neutral, extensible mechanism for serializing structured data
support generated code in Java, Python, Objective-C, and C++, Kotlin, Dart, Go, Ruby, PHP, and C#

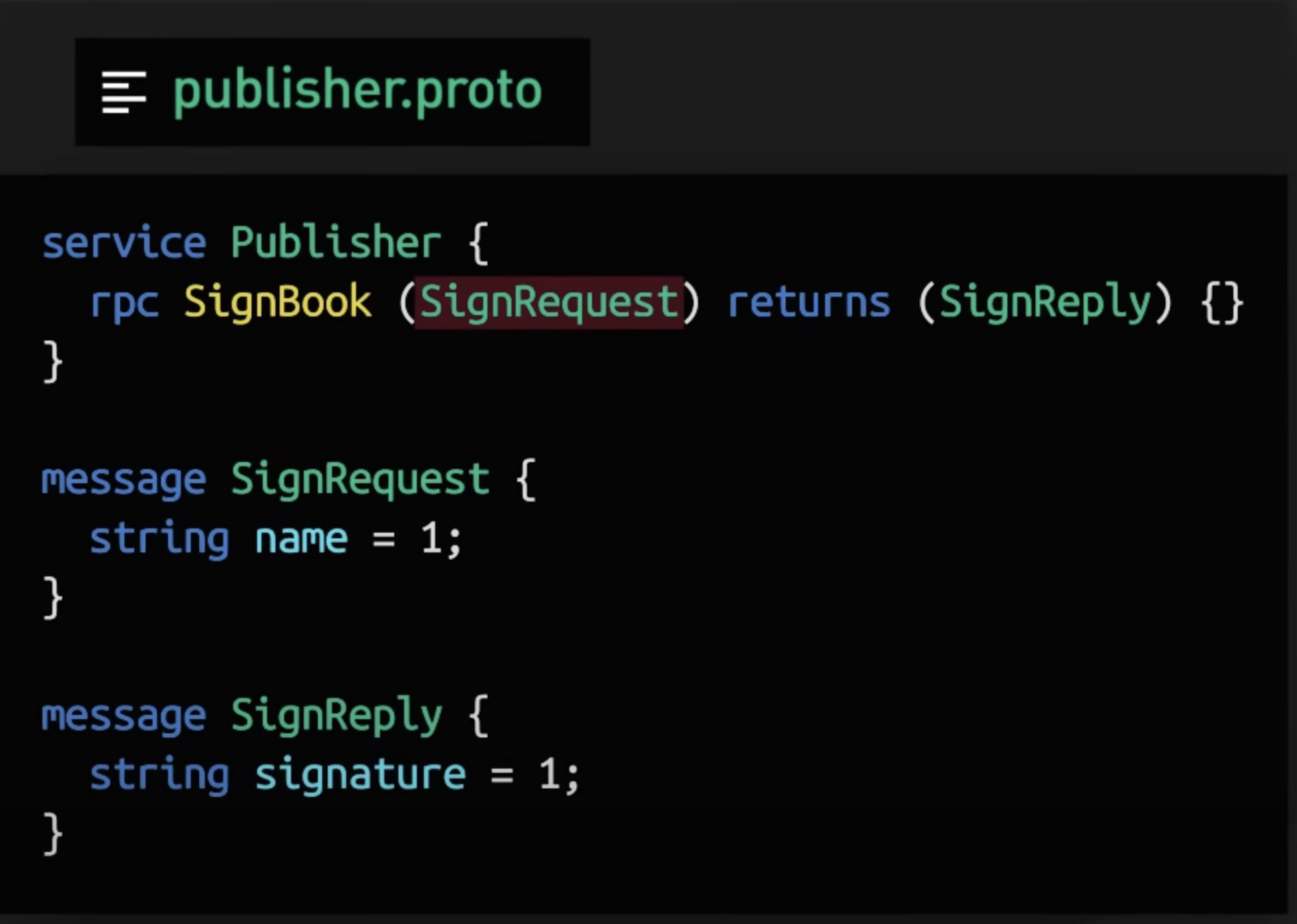

Defined in .proto file

But how to ensure contract will be respected between plugins/services and across different plugin/service versions?

Contract Testing To The Rescue

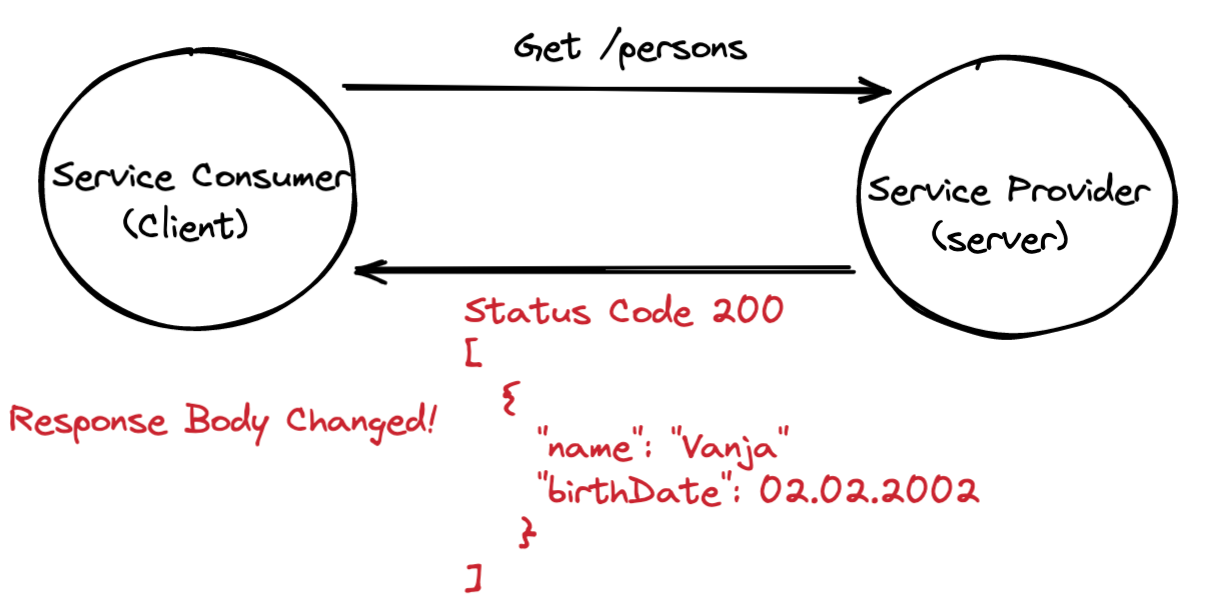

Contract Changed!

How to Identify that Contract has changed?

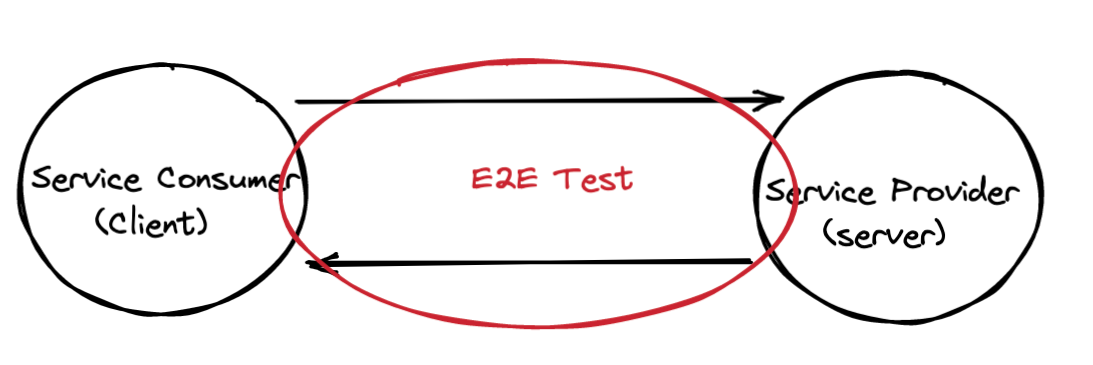

1. E2E Test

Problem - tests not isolated, results are not easy to interpret, execution time is bigger, less stability, harder to maintain

How to Identify that Contract has changed?

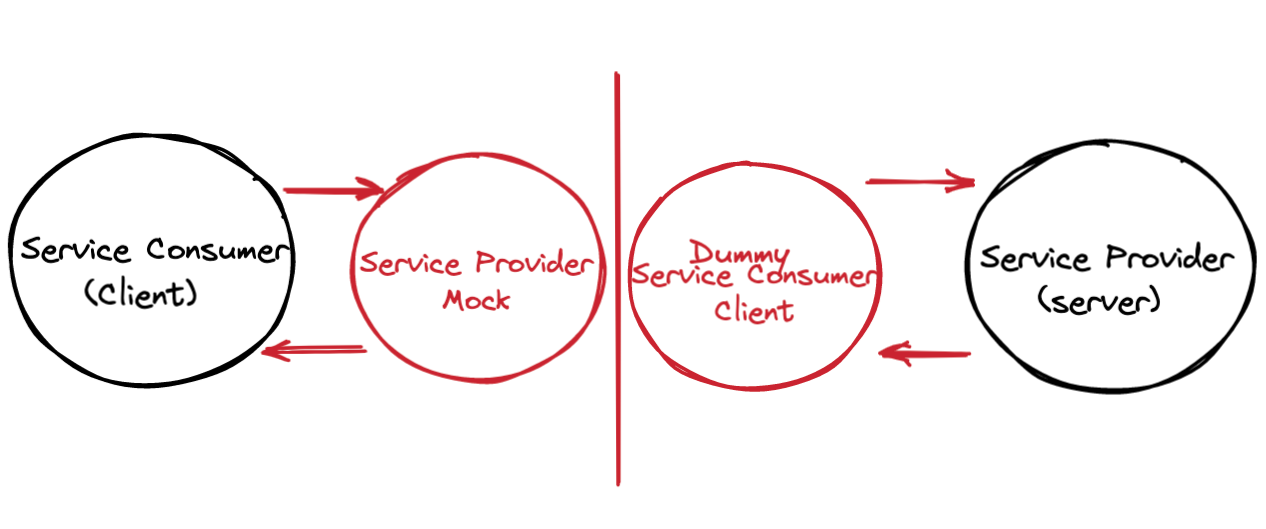

2. Mocking

Problem - the implementor of the service creates stubs thus they might have nothing to do with the reality; you can go to production with passing tests and failing production

How to Identify that Contract has changed?

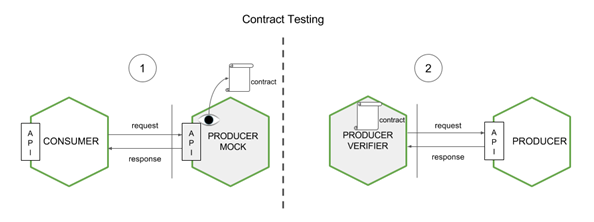

3. Contract Testing

The main idea is to give you very fast feedback, without the need to set up the whole world of microservices. If you work on stubs, then the only applications you need are those that your application directly uses

Types Of Contract Testing

Consumer-Driven Contract Testing
Provider-Driven Contract Testing

Why Contract Testing is needed in gRPC

When using gRPC (and Protobuf) we can rely on the parser and code generation to maintain backward/forward compatibility between different versions of the same API

With Protobuf v3 all fields are optional, introducing a new field on the provider, outdated clients and server can still communicate but the common understanding or business logic may be definitely broken

Contract Testing is not only about API compatibility and detecting breaking changes, it is also about independent but coordinated integration testing for both consumers and provider.

Why Contract Testing is needed in gRPC

Protocol-level breaking changes
Handling changes to message semantics
Coordinating changes (forward-compatibility) and dependency management
Providing transport layer safety (less of an issue when Protobuf is paired with gRPC)
Ensuring narrow type safety (strict encodings)
Loss of visibility into real-world client usage
Optionals and defaults: a race to incomprehensible APIs
Great resource

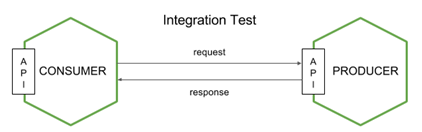

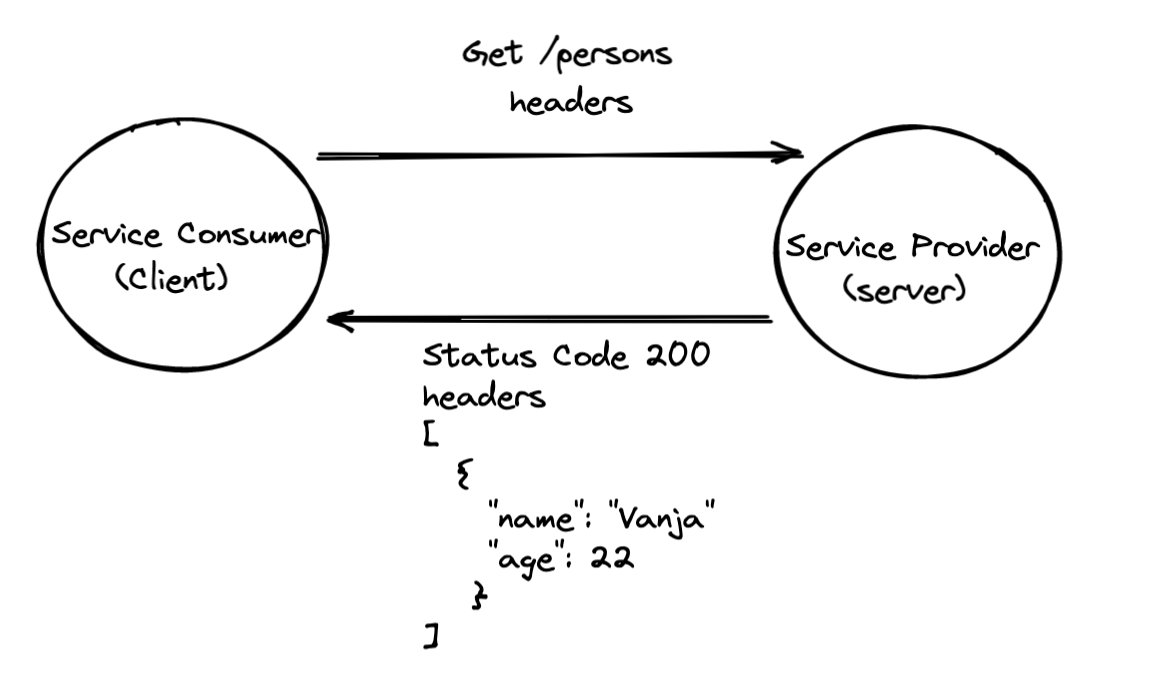

An integration test is a test between an API provider and an API consumer that asserts that the provider returns expected responses for a set of pre-defined requests by the consumer. The set of pre-defined requests and expected responses is called a contract."

Thus, with an integration test, we want to assert that consumer and provider are speaking the same language and that they understand each other syntactically by checking that they both follow the rules of a mutual contract.

Strategies for Integration Testing

E2E - real servers or containers are set up so that provider and consumer are available in a production-like runtime environment
Mocking - consumer and provider each test against a mock that is fed with requests and responses from a common API contract

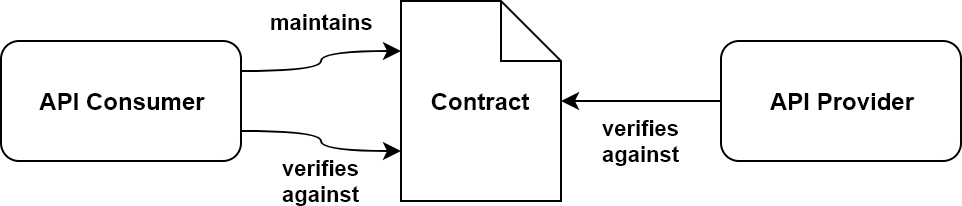

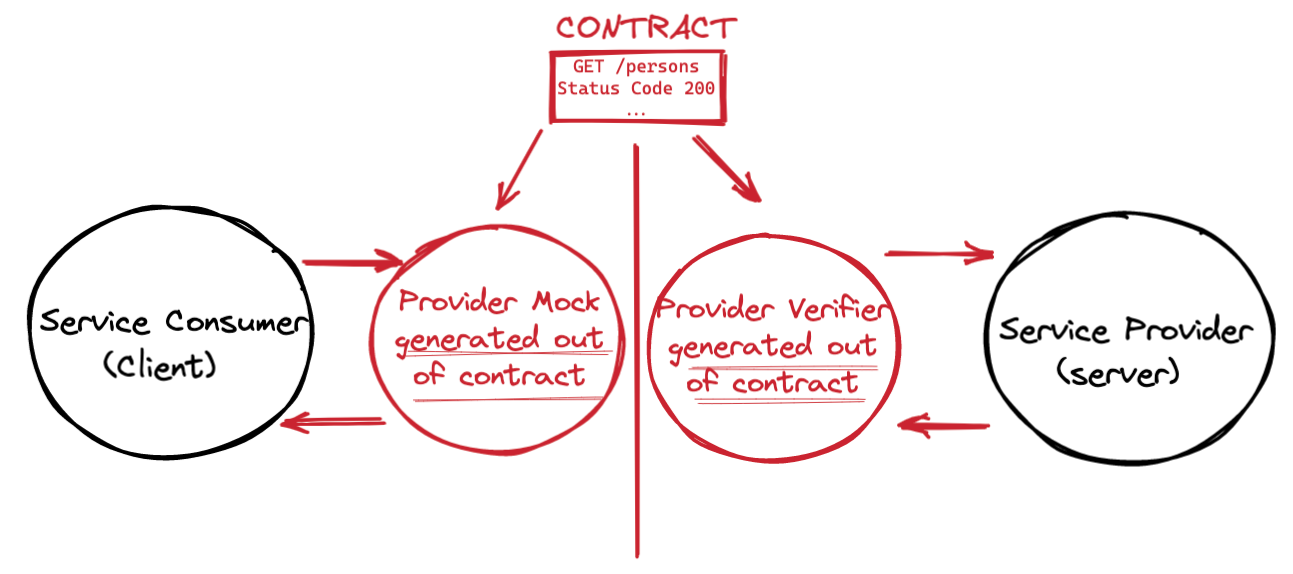

Consumer-Driven Contract tests - work just like mock tests with the specialty that the interface contract is driven by the consumer and not, as one would expect naturally, by the provider.

The Problem

E2E
- tests not isolated, results are not easy to interpret, execution time is bigger, less stability, harder to maintain
Mocking
- the implementor of the service creates stubs thus they might have nothing to do with the reality
- you can go to production with passing tests and failing production

Consumer-Driven Contracts

To ensure that HTTP and Messaging stubs (used when developing the client) do exactly what the actual server-side implementation does.
To promote the ATDD (acceptance test-driven developement) method and the microservices architectural style.
TDD for services
To provide a way to publish changes in contracts that are immediately visible on both sides.
To generate boilerplate test code to be used on the server side

Purposes

Tools for CDC

Pact
Spring Cloud Contract
Postman
...

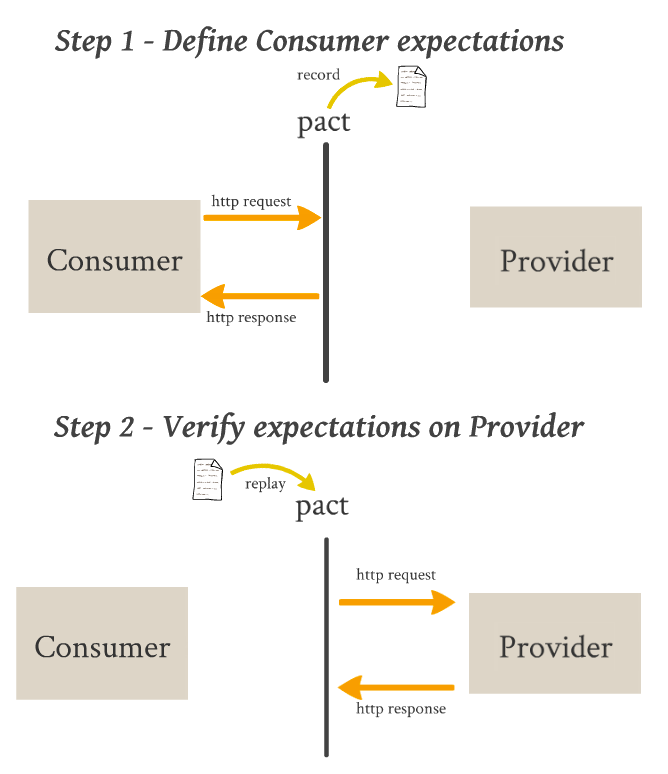

CDC in Pact

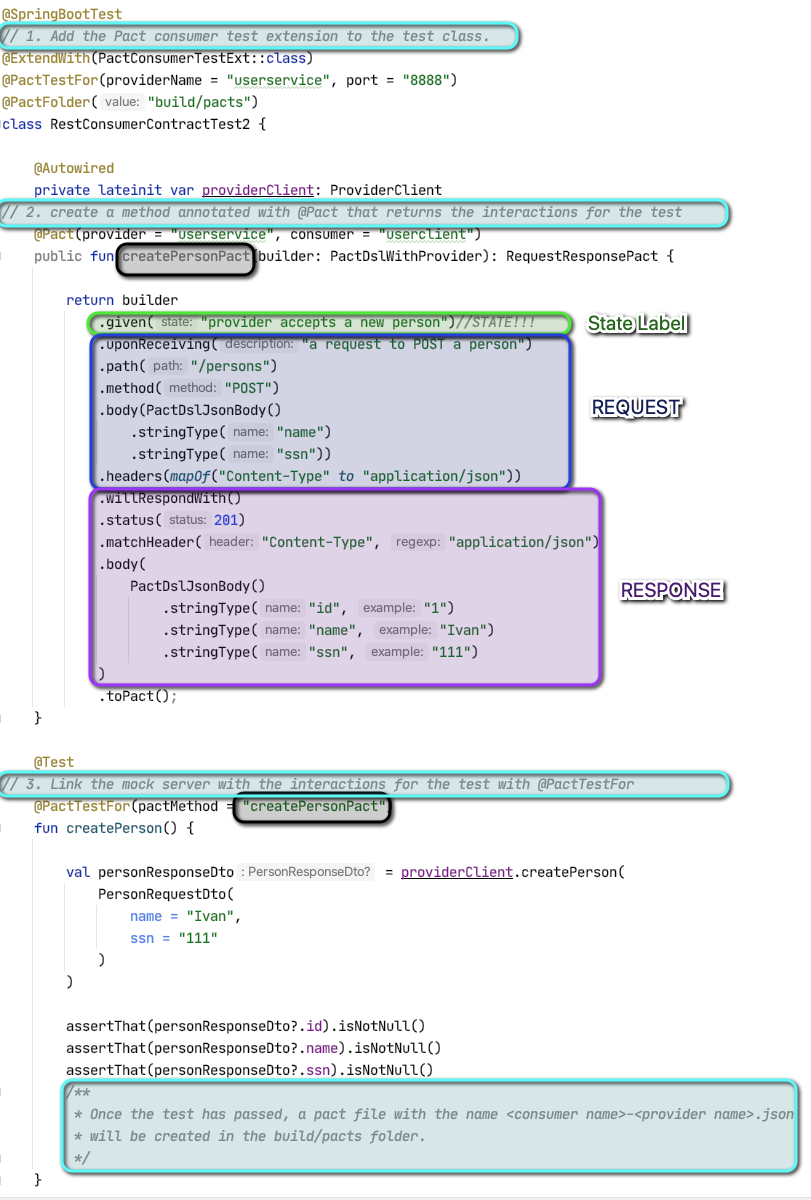

Consumer creates contract with Pact DSL in Consumer codebase
Consumer creates a client corresponding to the contract
Consumer verifies the client against contract within integration test. Pact automatically generates Provider Mock from the contract
Consumer publishes contract to Pact Broker
Provider verifies the client against contract within integration test. Pact automatically
- downloads the contract
- generates Consumer client from the contract

Takeways from CDC

Consumer can create contract test even if there is no Provider implementation
Even if the API client had been been graciously provided for us by our Provider Team, it doesn't mean that we shouldn't write contract tests -
1. because the version of the client we have may not always be in sync with the deployed API
2. because we will write tests on the output appropriate to our specific needs.

Pact Broker

Helps managing, distributing and versioning contracts
Great tool to visualize contracts and system relatioships (dependency graph)

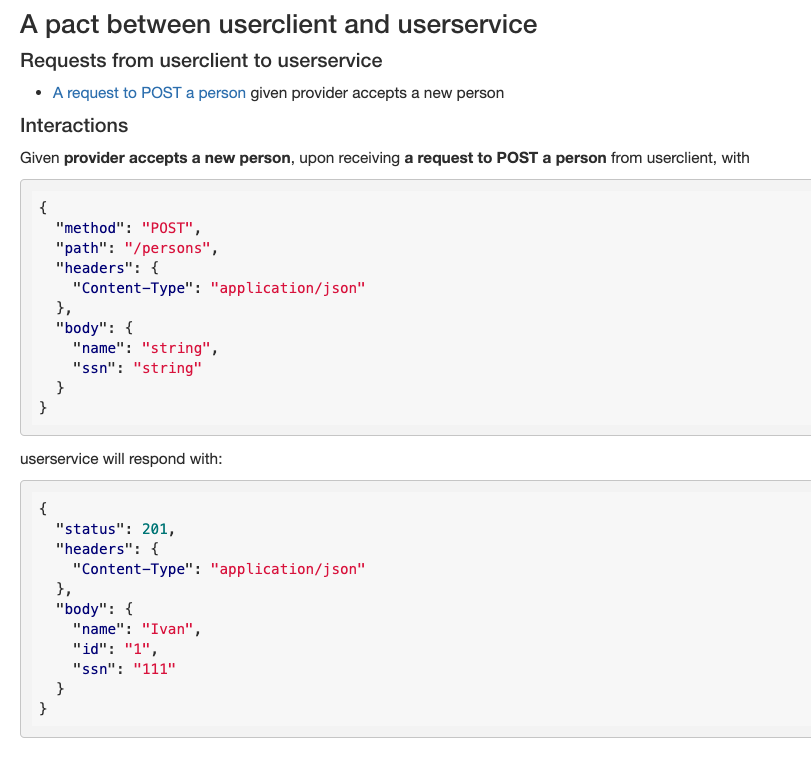

Contracts as a form of Live Documentation

Pact Broker

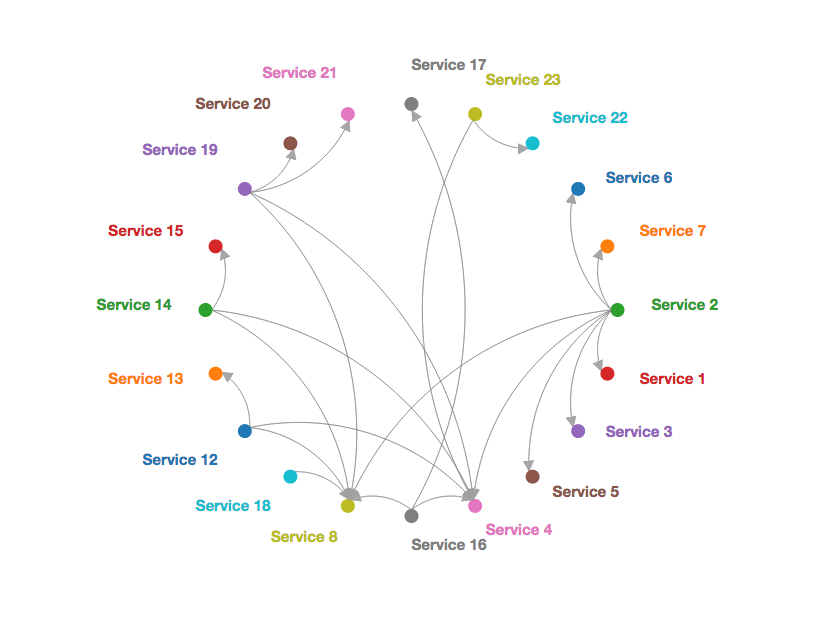

Network Diagram

DEMO

Pact Test Setup

On Consumer Side

./gradlew clean test
./gradlew pactPublish

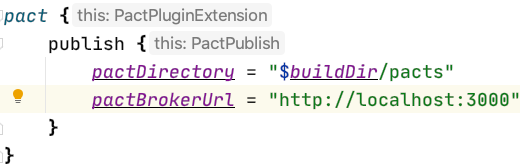

Gradle

Pact Test Setup

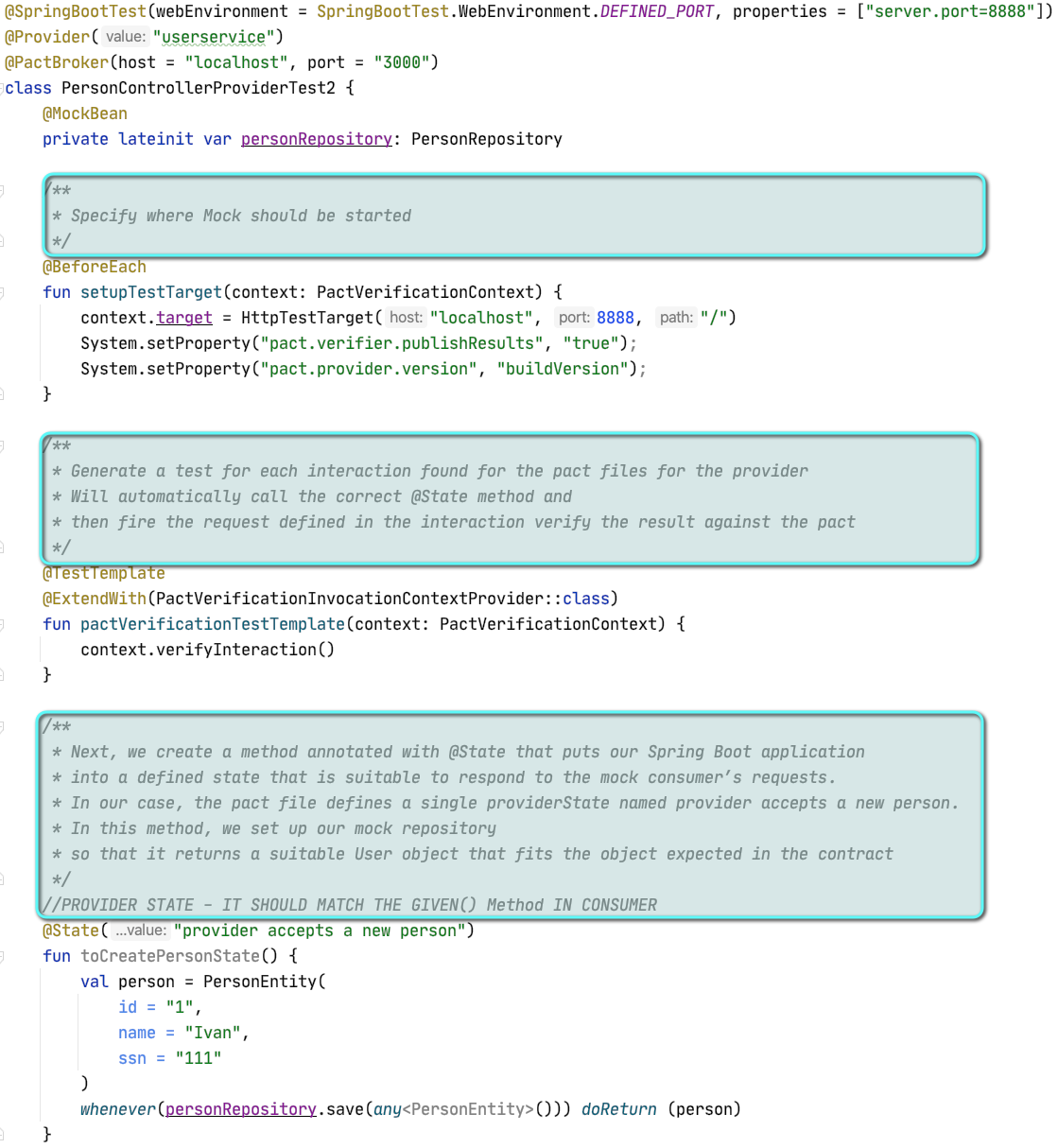

On Provider Side

After Test execution Pact will automatically send test results to Pact Broker

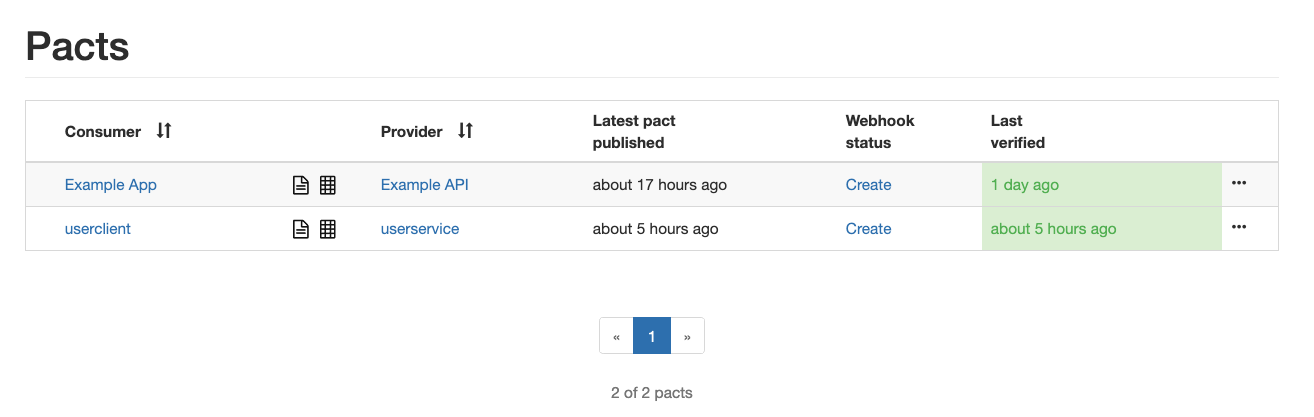

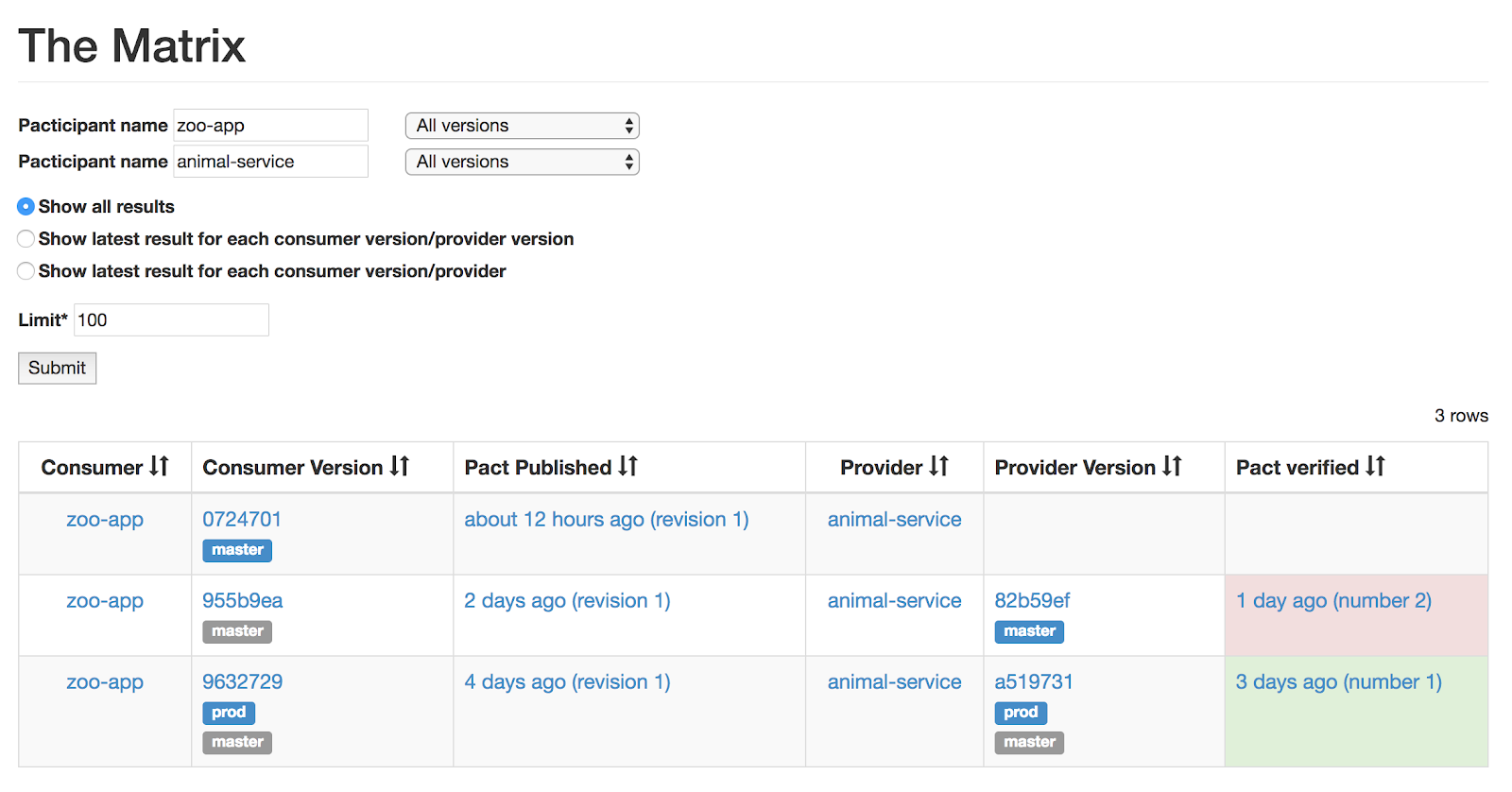

Pact Broker

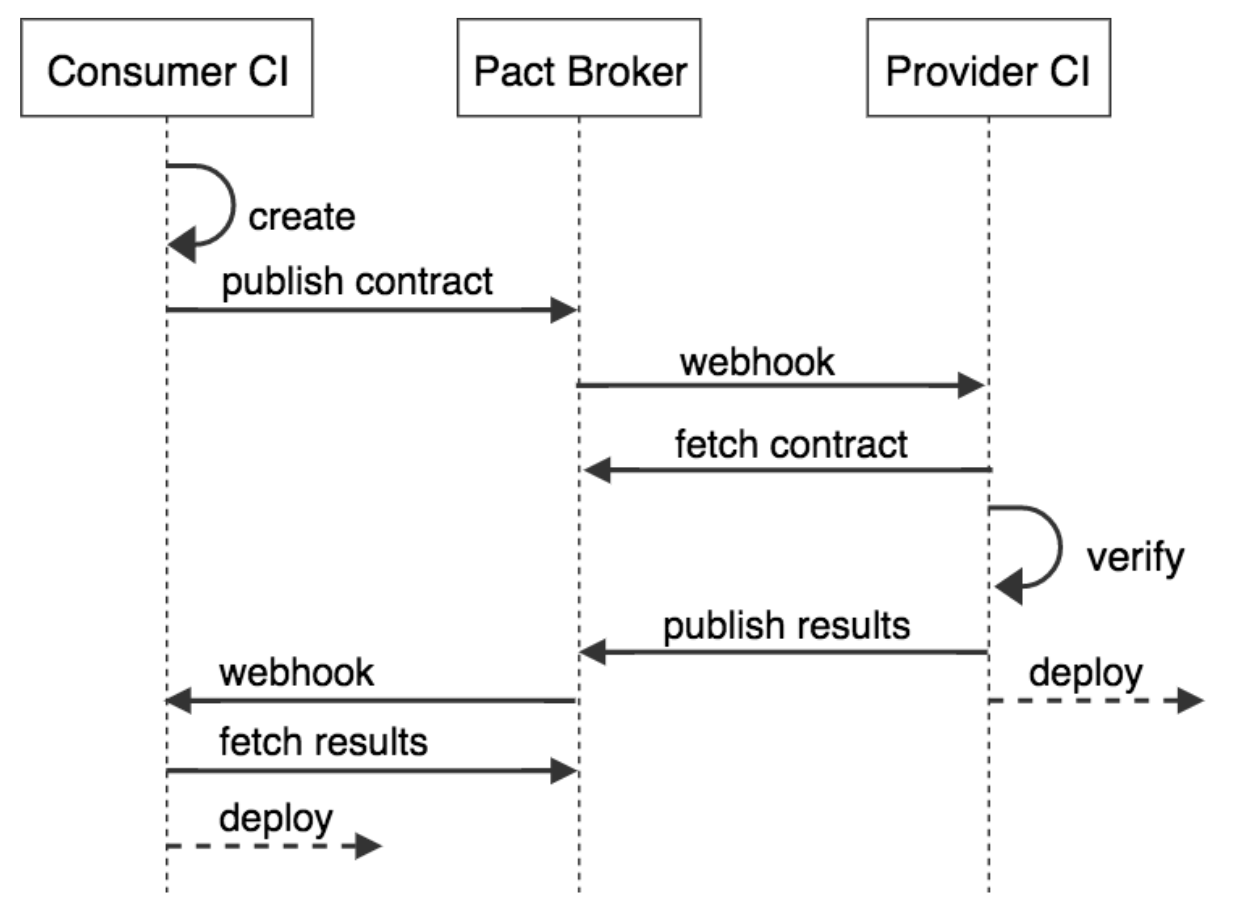

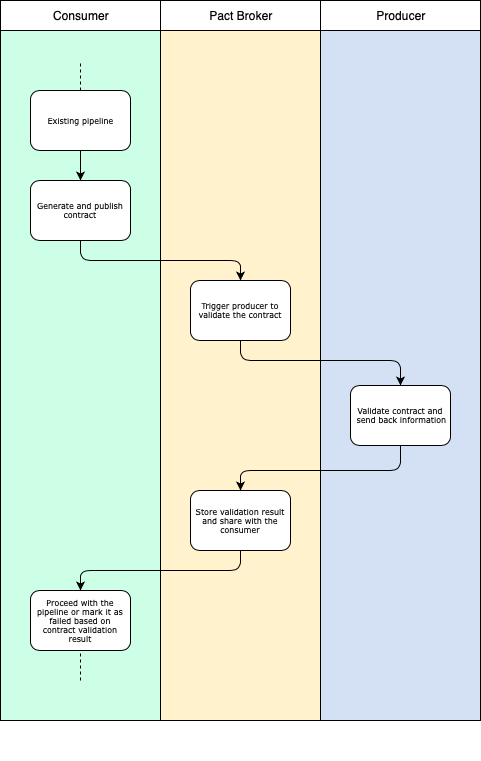

Pact In CI/CD

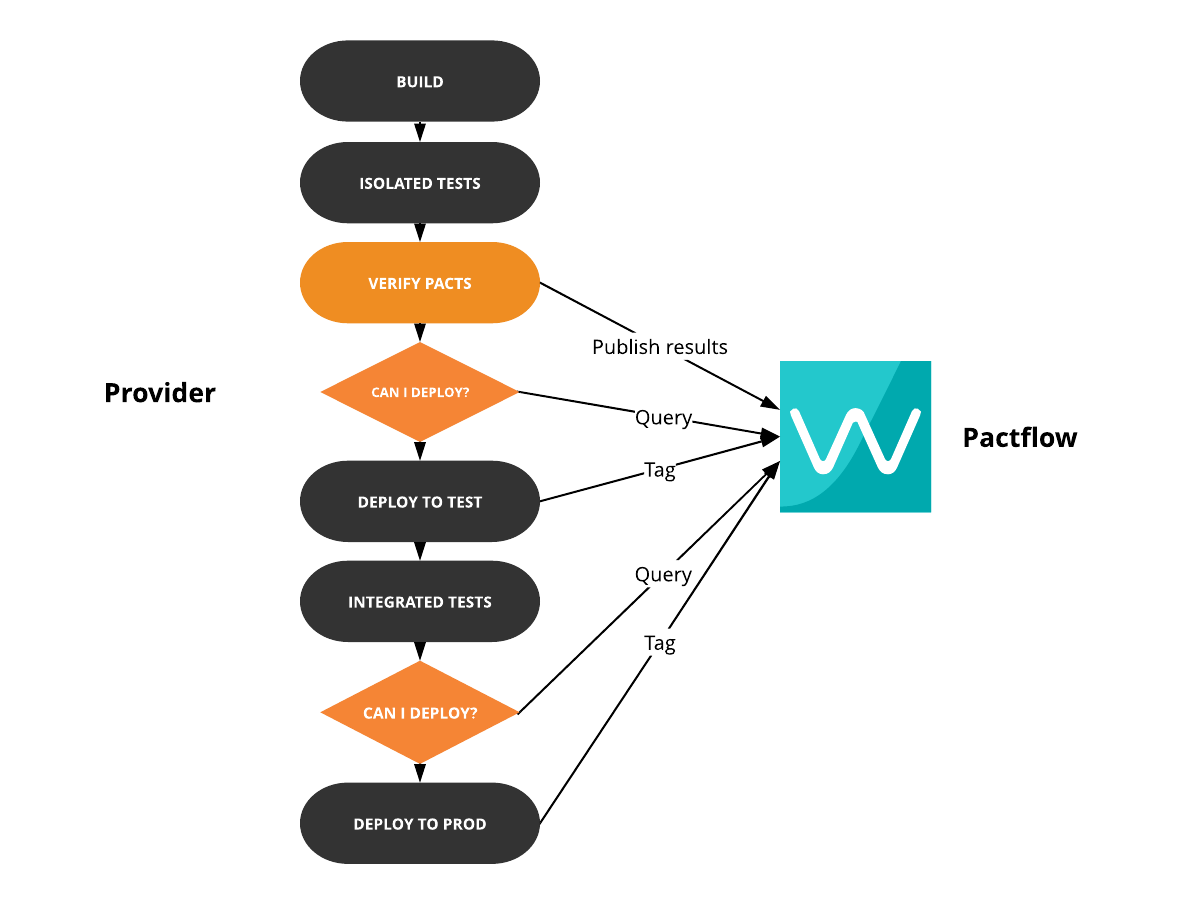

Consumer Pipeline

Pact In CI/CD

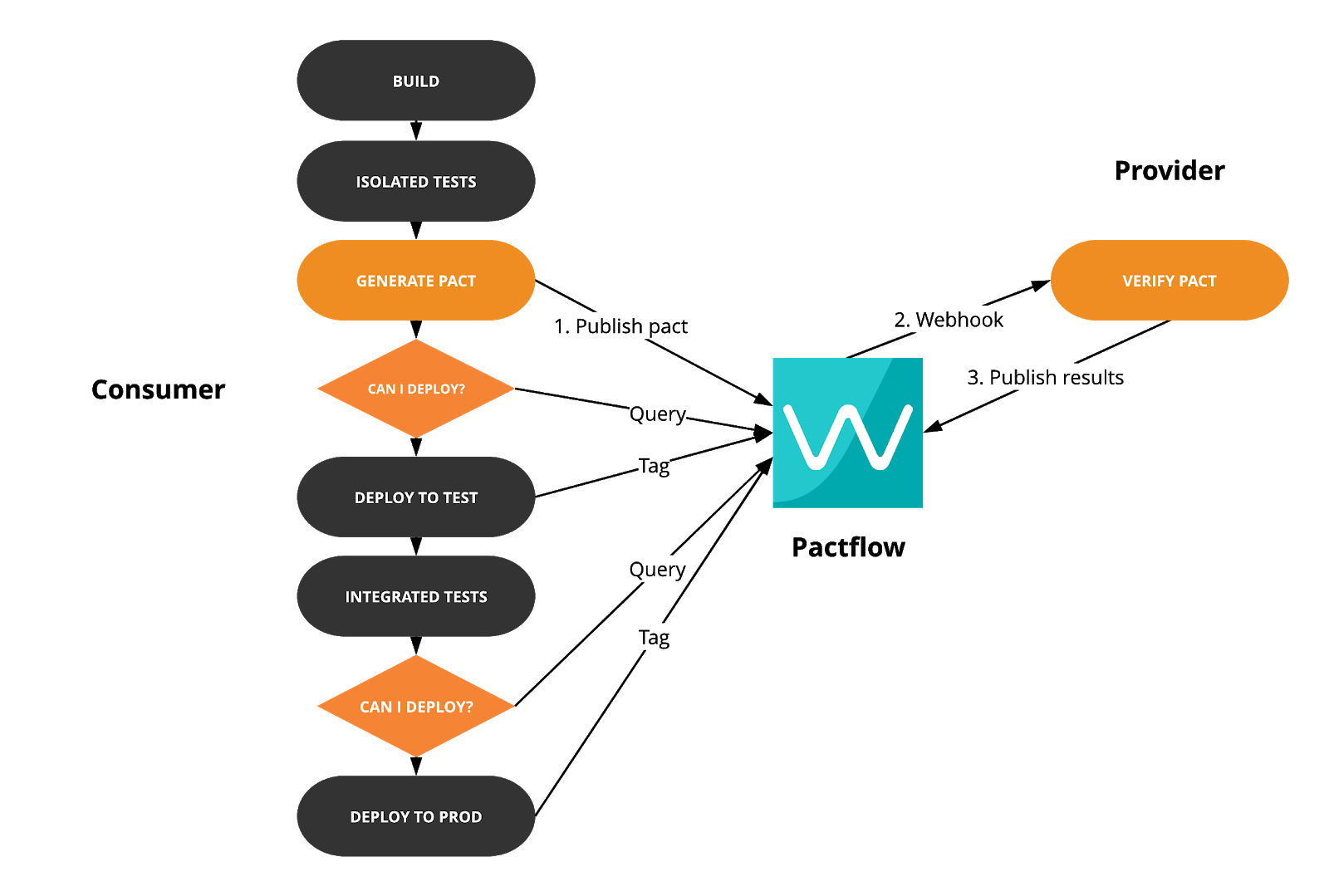

Provider Pipeline

Pact Pros

support for multiple languages - JVM, Go, JS, Python, PHP, etc
Pact Broker

Pact Cons

Hard to debug - verifying generated stubs
Steep learning curve and not so intuitive
Not everything is documented, or documentation is not well structured

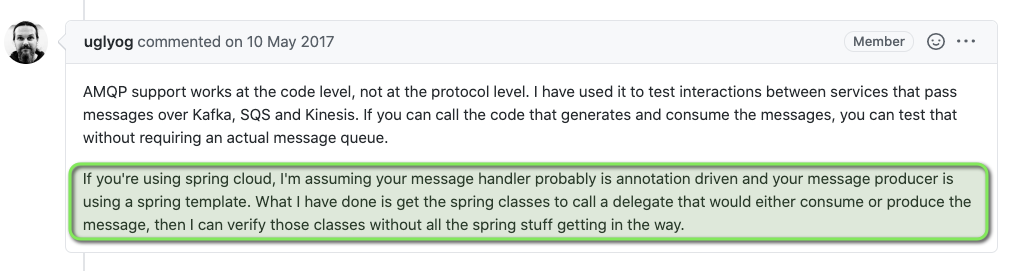

No support for Spring AMPQ out of the box
(https://github.com/DiUS/pact-jvm/issues/422)

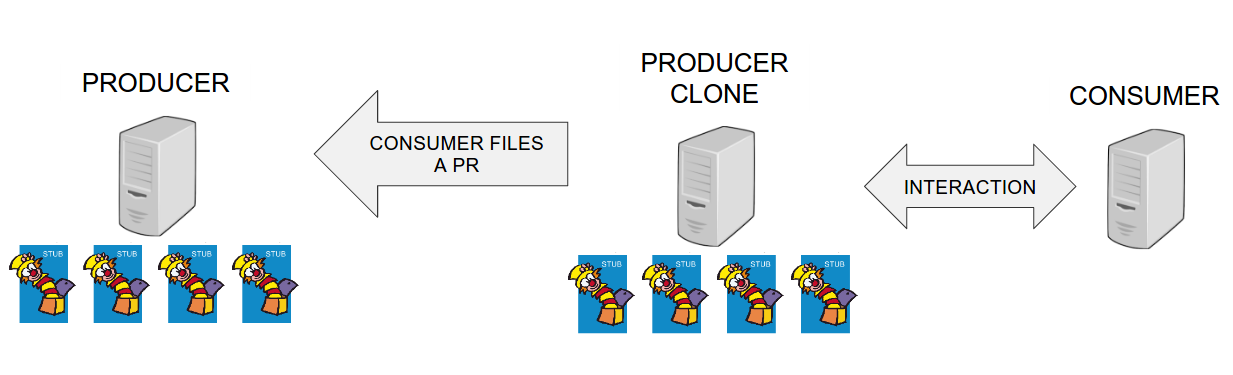

CDC in Spring Cloud Contract

1. CONSUMER
SIDE

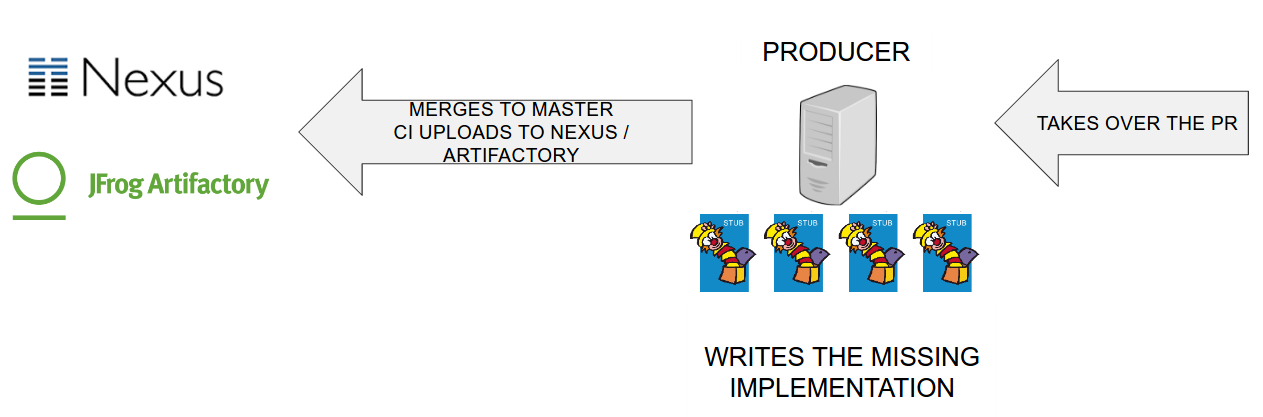

2. PRODUCER
SIDE

CDC in Spring Cloud Contract

3. CONSUMER SIDE

Spring Cloud Contract

On Provider side:
- Consumer creates a contract and make PR to Provider repo
- SCC automatically creates the mock (Wiremock) according to the contract, the mock (Stub Runner) is then generated as a Maven artefact and can be distributed to Consumer
On your (Consumer) side:
- setup Provider URL and Port and run the test
- - verify that client code works exactly as the contract specifies, verify response, check that DTO is successfully deserialized
- SCC will automatically download the Stub Runner artifact at test runtime

Process

CDC in Spring Cloud Contract

Contracts can be defined using Groovy, YAML, Java and Kotlin notation.

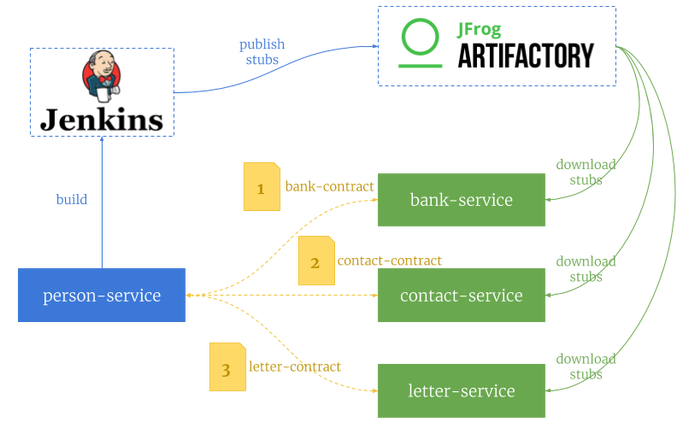

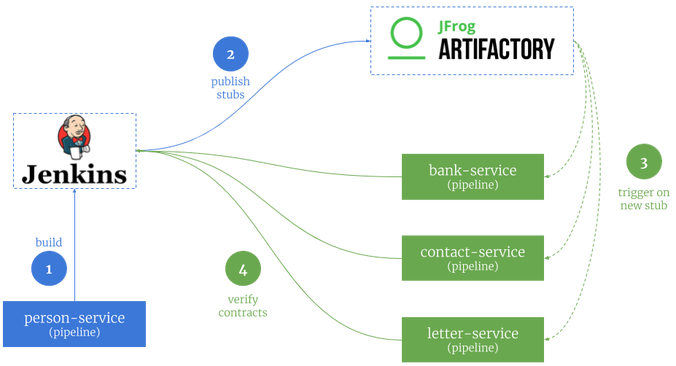

After building on the producer side Spring Cloud Contract generates a special JAR file with stubs suffix, that contains all defined contracts and JSON mappings.
Such a JAR file can be built on Jenkins and then published on Artifactory.
Contract consumers also use the same Artifactory server, so they can use the latest version of stubs file.
Because every application expects different response from person-service, we have to define three different contracts between person-service and a target consumer

Spring Cloud Contract

As a Provider and following CDC approach, you need to

Consumer creates a contract in Groovy/YML/Kotlin/Java file and provides it to Provider
Add SCC dependencies to your provider codebase
Add Base Test class for the test setup of Contract Test
Add Gradle config and build project
Stub Runner (Provider Mock) will be created for Consumer as a separate artefact
Publish Stub Runner to Maven Repo

Routine on Producer Side

Spring Cloud Contract

add Gradle plugin id("org.springframework.cloud.contract") - creates a Stub Runner
add Gradle dependency testImplementation("org.springframework.cloud:spring-cloud-starter-contract-verifier:<version>")

Routine on Producer Side

Spring Cloud Contract

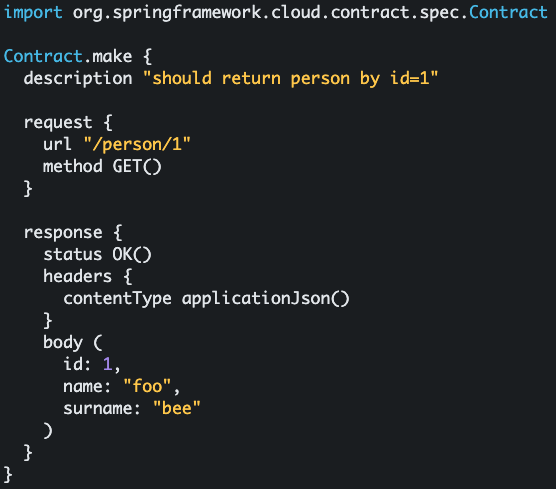

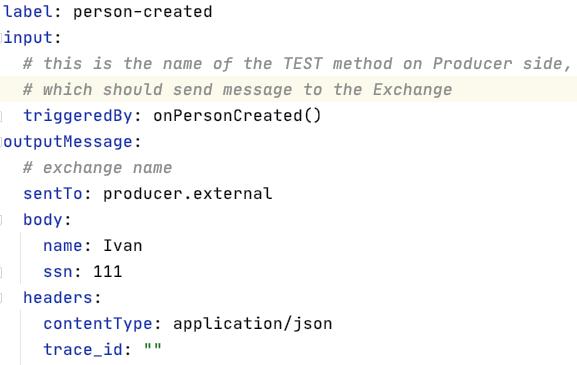

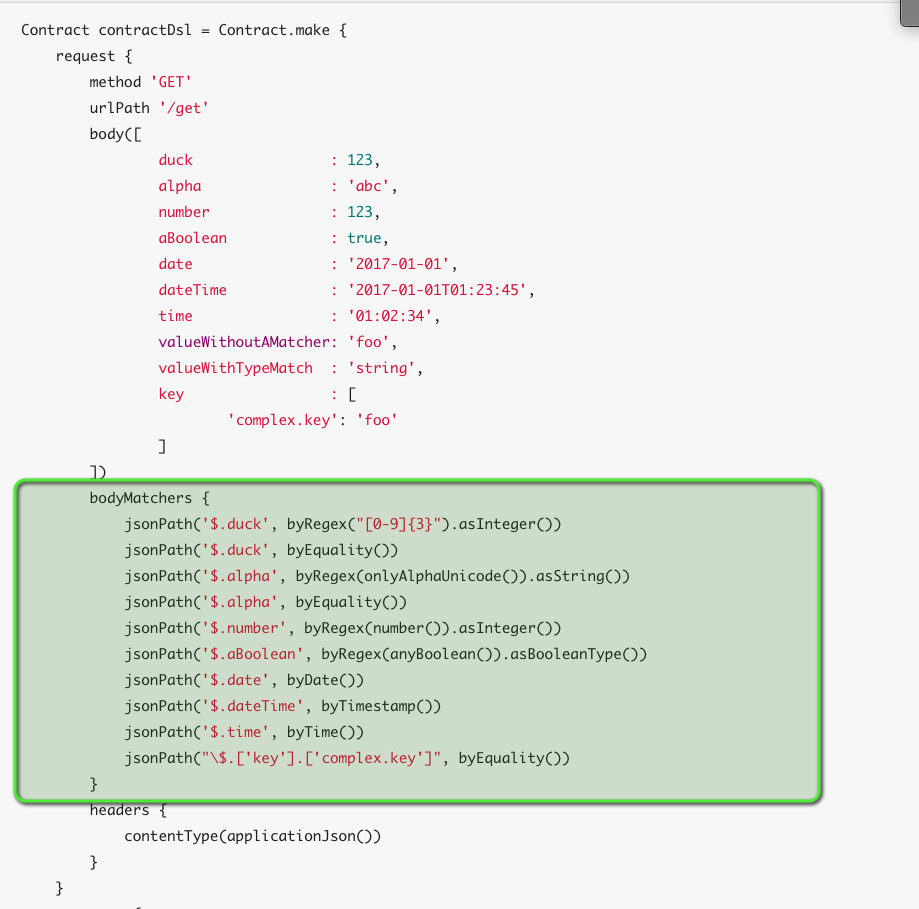

Get a contract from Consumer in Groovy/YML/Java/Kotlin
Each contract defines a single request / response pair
Contract file is expected to be filed under contractsDslDir property. By default, it is $rootDir/src/test/resources/contracts

Routine on Producer Side

Spring Cloud Contract

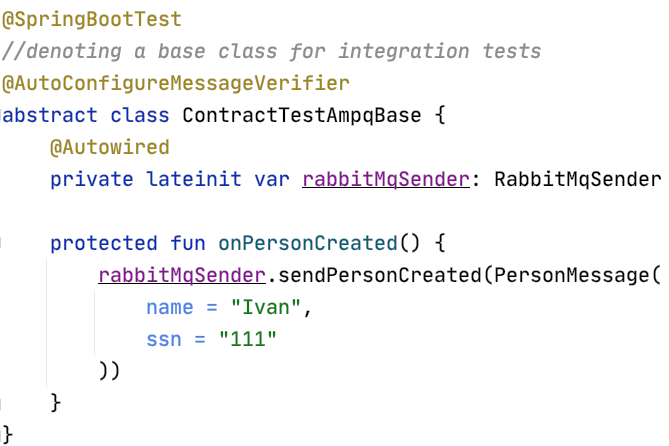

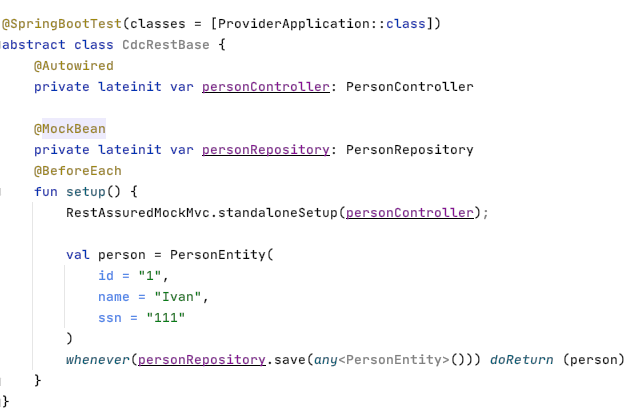

Add Base Test Class

Routine on Producer Side

Spring Cloud Contract

Routine on Producer Side

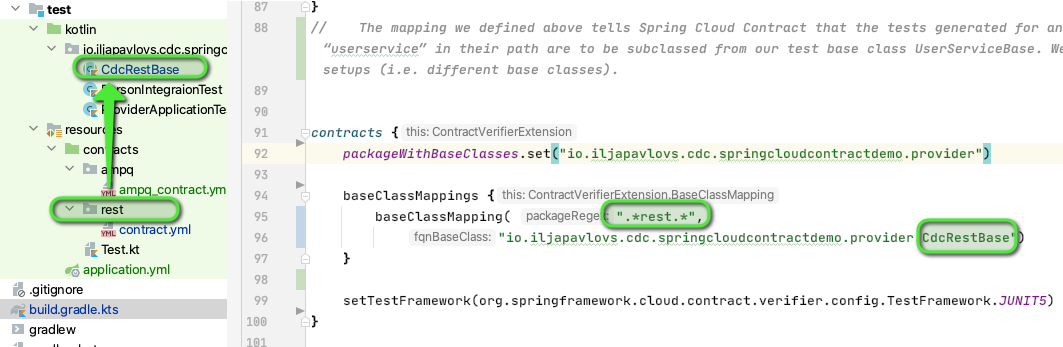

Adjust Gradle config in order to map contracts to Base test classes

Spring Cloud Contract

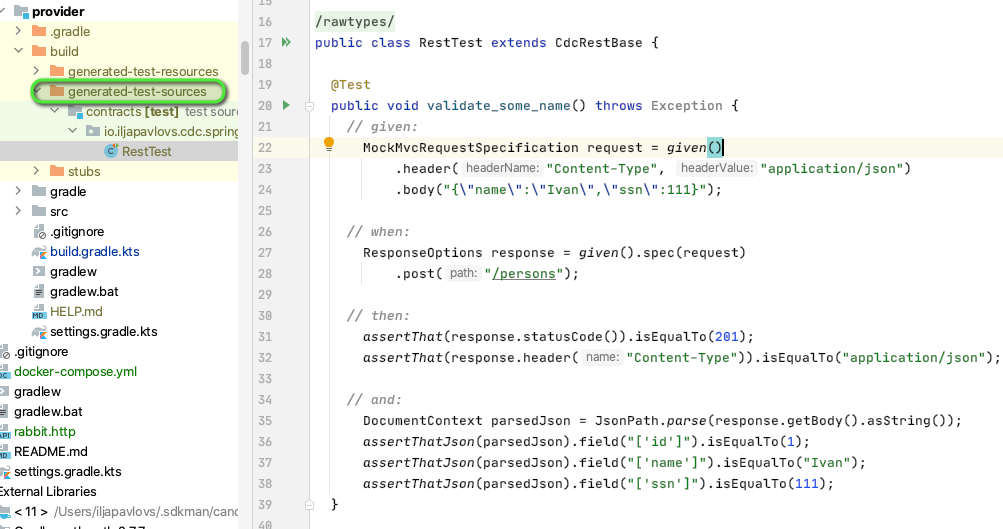

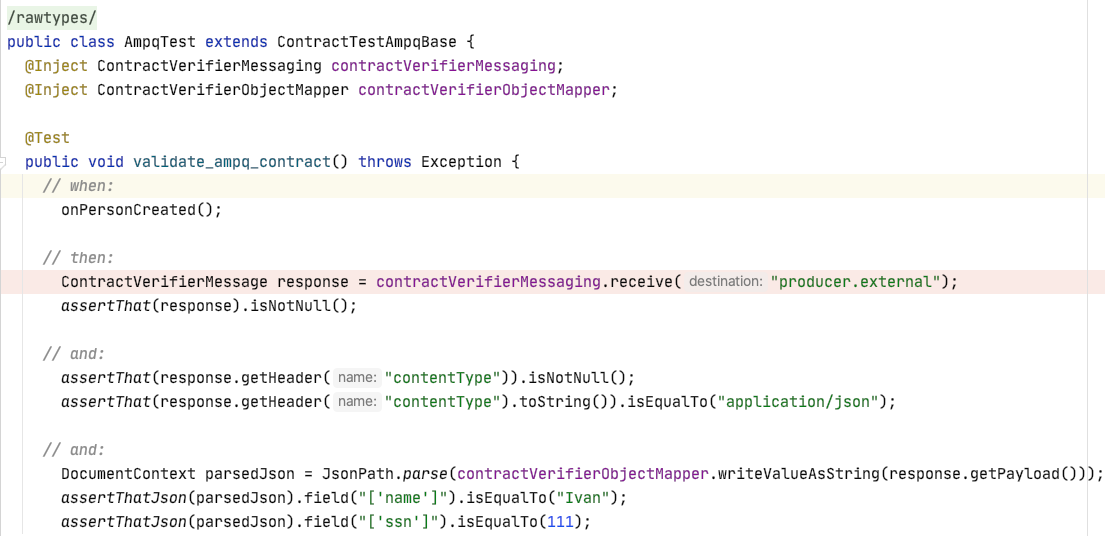

Generate and Run the tests

./gradlew generateContractTests - will only generate tests in build/generated-test-sources folder
./gradlew clean build - generate, run tests and create a Stub Runner based on a contract

Routine on Producer Side

Spring Cloud Contract

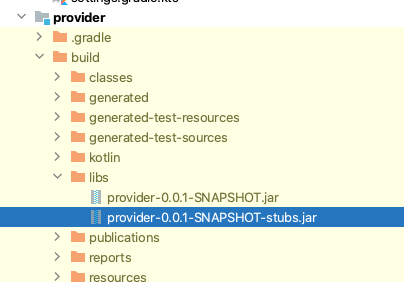

After build is executed, Spring Cloud Contract Verifier Gradle plugin creates a Stub Runner based on a contract (a Mock copy of Provider)

Routine on Producer Side

Publish Contracts

Add maven-publish plugin to Provider side in order to publish the stub into a Maven repository. Hence, making it available for Consumer

Spring Cloud Contract

As a Consumer and following CDC approach, you need to

On Provider side:
- Create a contract and make PR to Provider repo
- When Contract is written, SCC creates the mock (Wiremock) according to the contract, the mock (Stub Runner) is then generated as a Maven artefact and can be distributed to Consumer
On your (Consumer) side:
- Add SCC dependencies to your consumer codebase
- Add a Junit test where Provider side is invoked and setup Provider URL and Port and run the test
  - verify that client code works exactly as the contract specifies, verify response, check that DTO is successfully deserialized
- SCC will automatically download the Stub Runner artifact at test runtime
- You can verify Stub Runner downloaded from local or remote Maven repo

Routine on Consumer Side

Spring Cloud Contract

Add SCC dependencies to your consumer codebase

testImplementation("org.springframework.cloud:spring-cloud-starter-contract-stub-runner:<version>") - downloads Stub runner and configures it

Routine on Consumer Side

Spring Cloud Contract

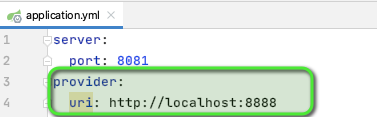

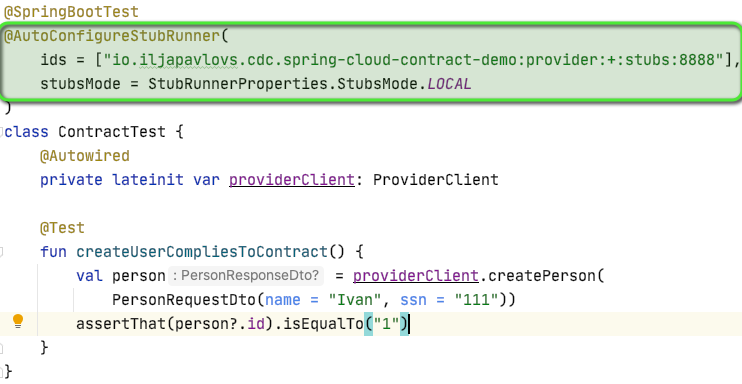

Add a Junit test where Provider side is invoked and setup Provider URL and Port and run the test

Routine on Consumer Side

Spring Cloud Contract

Routine on Consumer Side

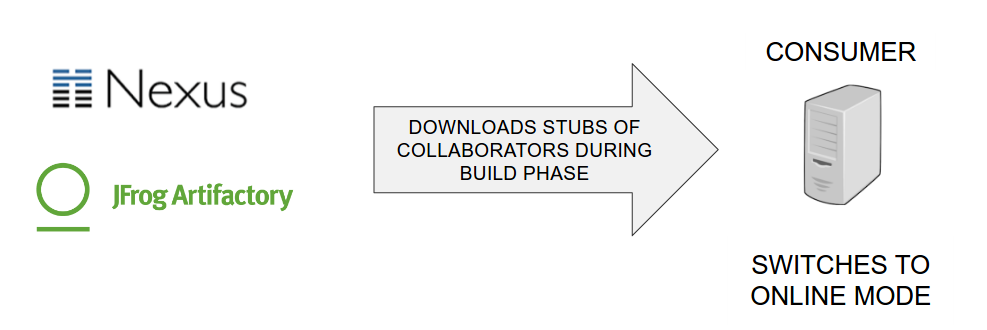

Download Provider Stub (Provider Mock) from

Local Maven Repo
- set stubsMode = StubRunnerProperties.StubsMode.LOCAL
Remote Maven Repo
- specify stubrunner.repositoryRoot as from where to download the artefact
- stubsMode = StubRunnerProperties.StubsMode.REMOTE
Pick the stubs from classpath.
stubsMode = CLASSPATH

Spring Cloud Contract

Routine on Consumer Side

Ways to generate a Stub

Download already generated Stub from Maven repo (Producer side publishes the stub to the repo)
Generate Stub at runtime from found contract folder
- set generateStubs = true (contracts should be on the classpath)
- Or If you do not want to use Stub Runner, you need to copy the contracts stored in src/test/resources/contracts and generate WireMock JSON stubs by using the following command:
  ./gradlew generateClientStubs

Spring Cloud Contract

Complimentary Info

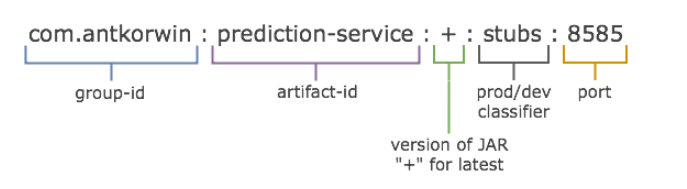

ids -
The ids of the stubs to run in "ivy" notation([groupId]:artifactId[:version][:classifier][:port]). version, classifier (default is "stubs") and port can be optional

stubsPerConsumer -

On the producer side the consumers can have a folder that contains contracts related only to them. By setting the flag to true we no longer register all stubs but only those that correspond to the consumer application's name. In other words we'll scan the path of every stub and if it contains the name of the consumer in the path only then will it get registered

Spring Cloud Contract

Integrations

Apache Camel

Spring Integration

Spring Cloud Stream

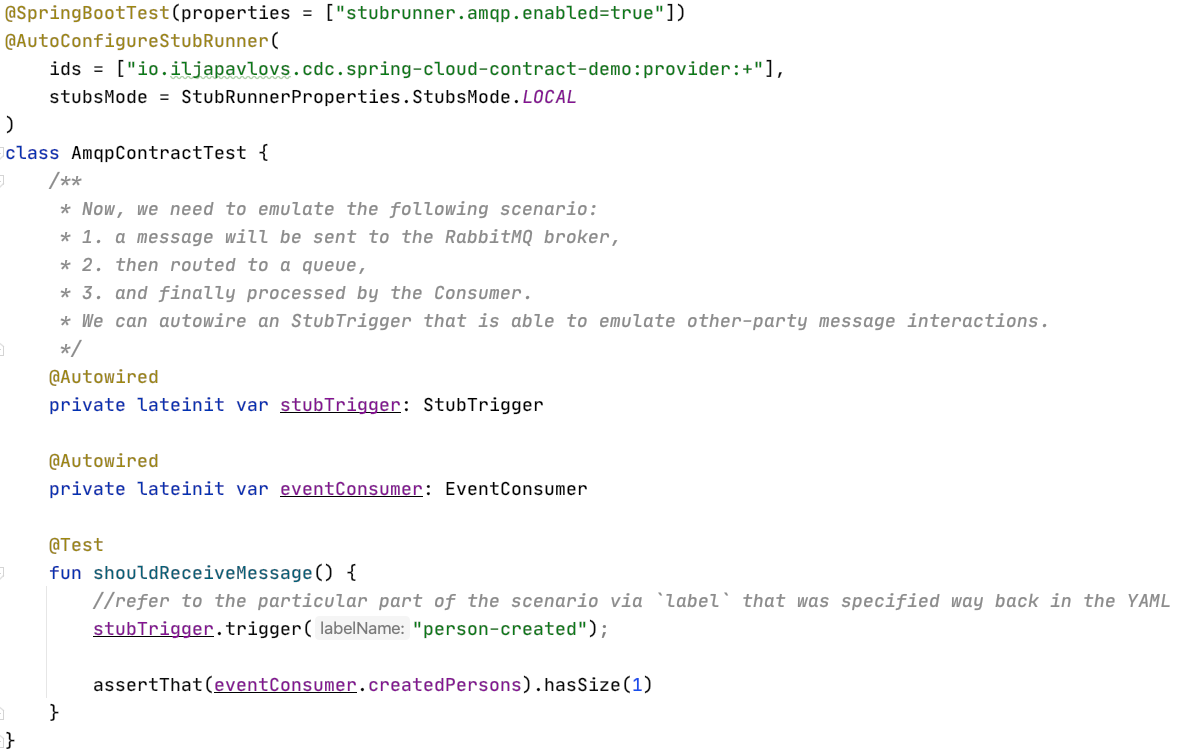

Spring AMQP
