PITFALLS INJECTING CERVICAL DYSTONIA AND FACIAL SPASM

Professor Con Yiannikas

Cervical Dystonia

Cervical Dystonia

Injection Pitfalls

Anatomical Pitfalls

Cervical Dystonia

  • Posterior Triangle
  • Nerves
    • Brachial plexus
    • Accessory nerve

Injection Pitfalls

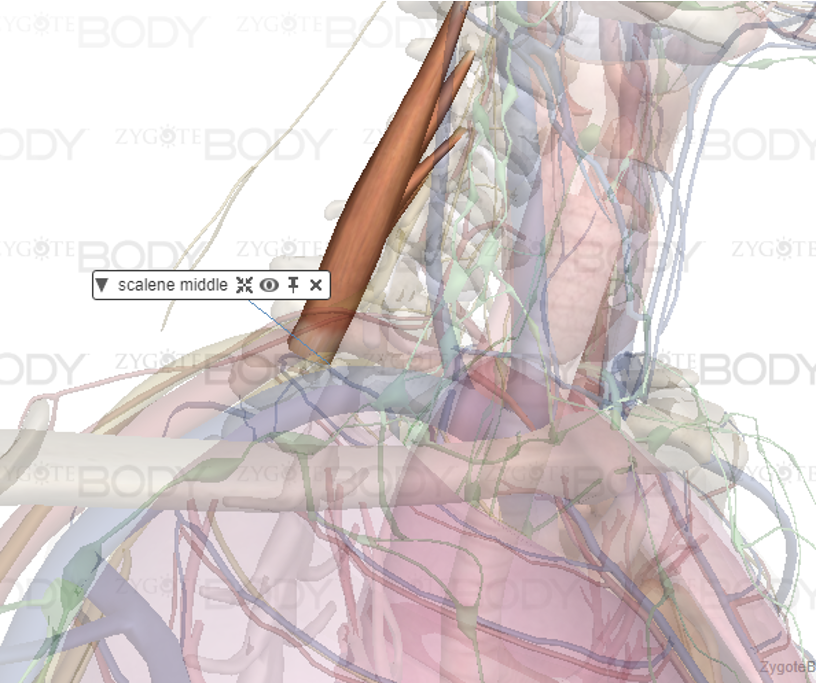

Brachial Plexus

Cervical Dystonia

The BP lies inferior to a line from the posterior margin of the sternomastoid at the level of the cricoid cartilage to the midpoint of the clavicle

Injection Pitfalls

Accessory Nerve

Cervical Dystonia

  • Accessory nerve

    • Lies on LS, enters 1cm cranial to EP posterior border of SCM and runs on line to between middle and lower third of trapezius.

  • ​Should inject splenius and levator over 1cm above EP

Injection Pitfalls

Arteries

Cervical Dystonia

  • Carotid artery

    • Midpoint anterior border of SCM

  • Occipital artery

    • Avoid apex of posterior triangle

Injection Pitfalls

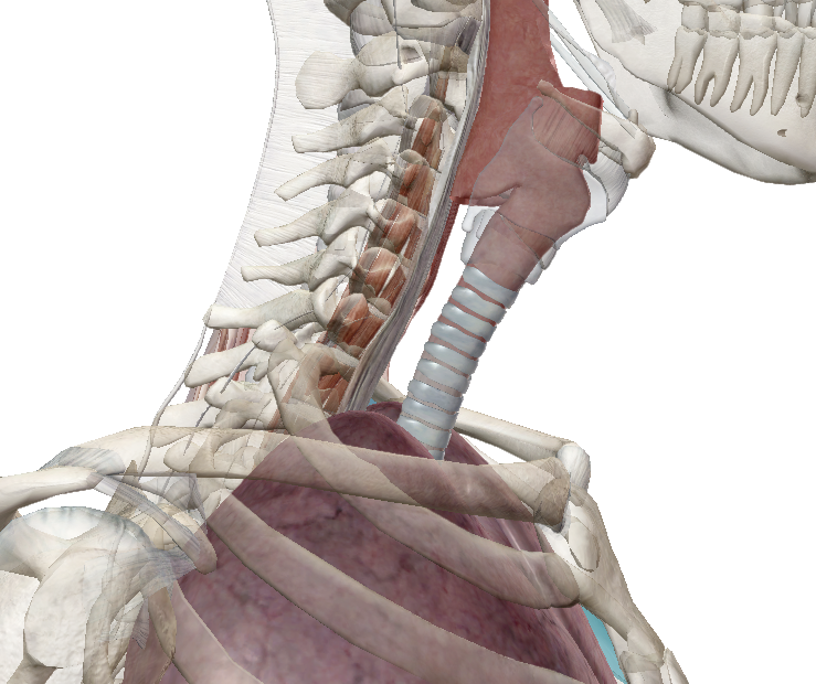

Apex of the Lung

Cervical Dystonia

  • Extends 2-3 cms above the clavicle

Injection Pitfalls

Sternocleidomastoid

Cervical Dystonia

  • Stay above the midpoint of the SCM

Injection Pitfalls

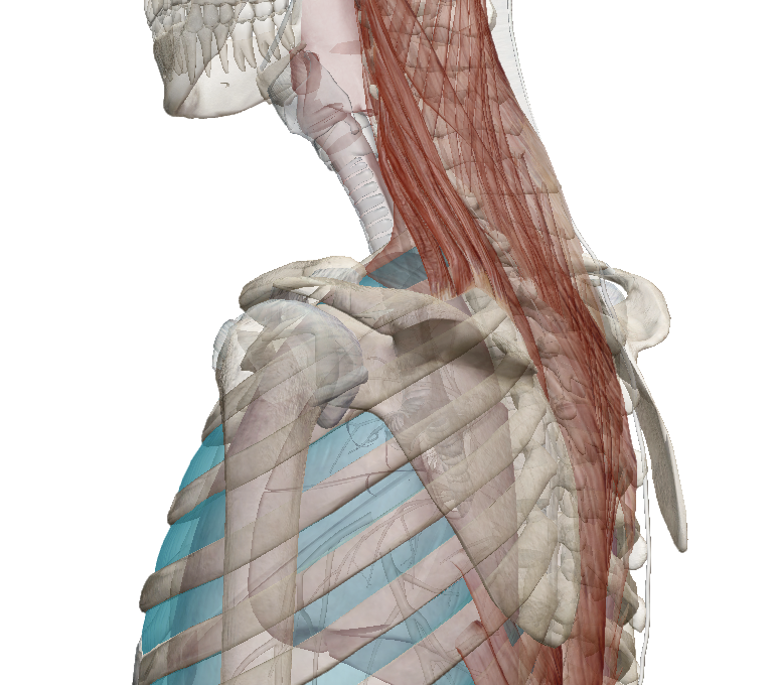

Pitfalls Posterior Neck Injections

Cervical Dystonia

  • Injection of lower levator scapulae

  • Apex of lung if too deep

Injection Pitfalls

Pitfalls Posterior Neck Injections

Cervical Dystonia

Injection Pitfalls

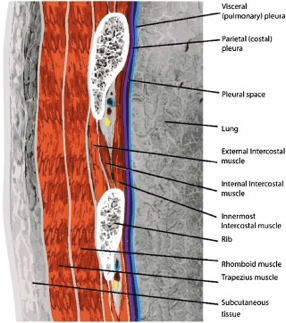

Cervical Dystonia

  • Layer – approximately 3cm
    • SCM

    • Trapezius

    • Levator Scapulae

    • Intercostal

    • Lung

Pitfalls Posterior Neck Injections

Injection Pitfalls

Levator Scapulae

Cervical Dystonia

Posterior Surface Anatomy

  1. Line from acromium  to midline and inferior
  2. Feel the edge of the spine
  3. Above and below is infra and supraspinatus fossae
  4. Follow spine to midline (T3 level)
  5. Above that along the medial border

6. Line obliquely from there to transverse process of        C1-4 (below and anterior to splenius capitus)

Injection Pitfalls

Cervical Dystonia

Pitfalls Posterior Neck Injections

Arteries

  • Vertebral Artery landmarks

Injection Pitfalls

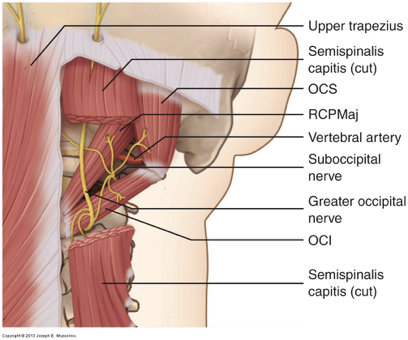

Sub-Occipital Triangle

Cervical Dystonia

Triangle between C1 transverse process (below and behind mastoid), C2 and occiput.

Splenius Capitis

Semispinalis

Rectus Minor Major

Obliquus Superior

Obliquus Inferior

Pass through Trapezius, Splenius capitus (more lateral) and semispinalis capitus (more medial) to reach it.

Injection Pitfalls

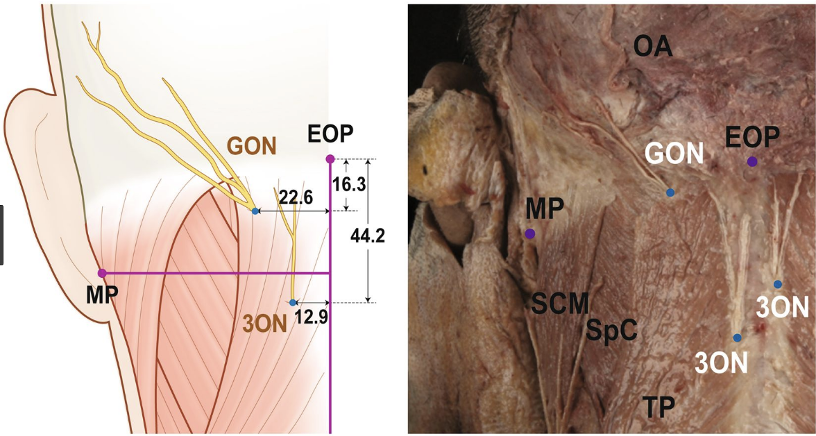

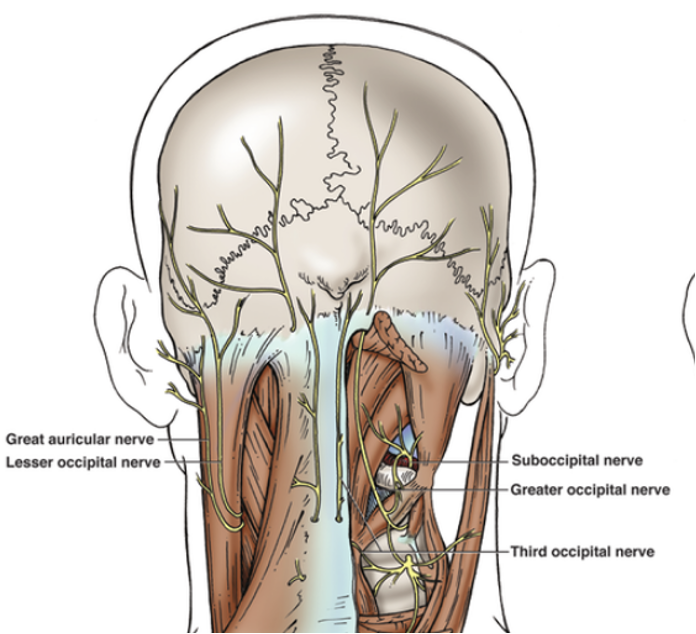

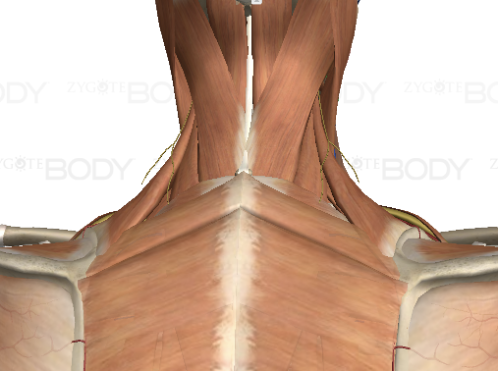

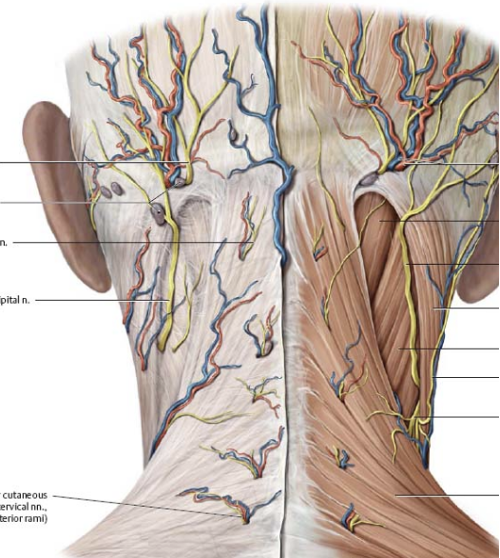

Posterior Injections

Cervical Dystonia

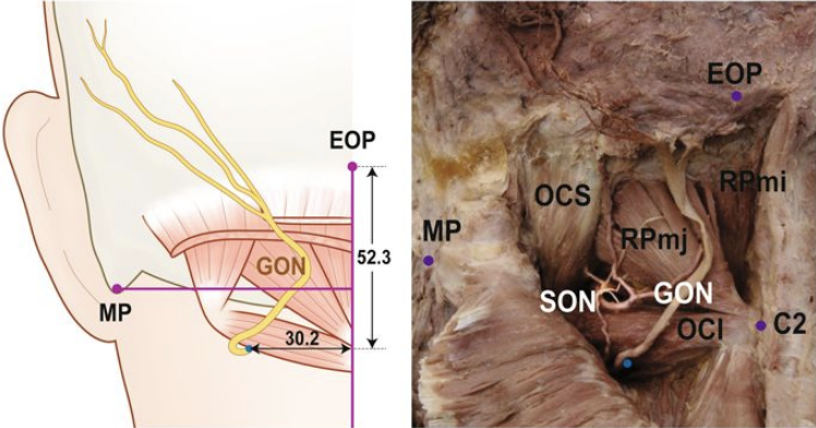

  • Greater Occipital Nerve

    • Avoid nuchal ridge near trapezius

    • Risk near OCI injections

Nerves

Injection Pitfalls

Posterior Injections

Cervical Dystonia

  • Lesser Occipital Nerve

    • Arises near midpoint of SCM and runs along border

    • Avoided if stay in midline of posterior triangle

Nerves

Injection Pitfalls

Torticollis

Cervical Dystonia

  • Attaching to skull
  • Unilateral contraction

Anterolateral muscles contralateral rotation

  • Trapezius

  • SCM

Posterolateral muscles ipsilateral rotation

  • Splenius capitus

  • Longissimus capitus

  • Splenius cervicus

  • Levator Scapulae

  • Obliques Capitus inferior

Posteromedial contralateral rotation

  • Semispinalis capitis

  • Spinalis capitis

Muscles to Inject

Injection Pitfalls

Torticaput

Cervical Dystonia

Muscles attaching to skull

  • Ipsilateral rotation

    • Splenius capitis

    • Splenius cervicis

    • Longissimus capitis

    • Obliquis capitis inferior

    • Levator Scapulae

  • Contralateral rotation

    • Trapezius

    • Sternomastoid

    • Semispinalis capitis

    • Spinalis capitis

Midline

Lateral

Injection Pitfalls

Torticollis

Cervical Dystonia

Muscles attached to spine

  • Ipsilateral rotation

    • Longissimus cervicis

  • Contralateral rotation

    • Semispinalis cervicis

    • Scalenus anterior

Injection Pitfalls

Torticollis

Cervical Dystonia

Muscles attached to spine

  • The relevance of the SCM in some patients questionable.

  • Other muscles such as the levator scapulae and the obliquus capitis inferior muscles have attained key status.

  • Guided by size of muscle and EMG involvement in movement

  • Generally does not require high dose (note risk of dysphagia)

  • NB: Endplate position, fibre type and spindle numbers (more Type 2 – lower dose needed)

Injection Pitfalls

Dressler 2000

Cervical Dystonia

  • 10 patients clinical and EMG recordings

  • 6 patients had discrepancies between EMG and clinical assessment

  • All were for SCM

Injection Pitfalls

Sternomastoid

Cervical Dystonia

Extends the head and flexes neck when longus colli relaxed

Flexes head and cervical spine if deep flexors [longus colli] are contracted

Unique Action

Injection Pitfalls

Levator Scapulae & Neck Motion

Cervical Dystonia

Left Lateral Flexion

Left U Trapezius, SCapitus and Levator Scapulae

Left U Trapezius,
Right SCapitus , Levator Scapulae

Bilateral U Trapezius
Scapitus, Levator Scapulae

Right Rotation

Extension

Injection Pitfalls

Cervical Dystonia

Relationship between SCM,Trapezius, Splenius and Levator Scapulae in Torticollis

Torticollis

  • Synergy between contralateral sternocleidomastoid and contralateral trapezius, and between ipsilateral levator scapulae and ipsilateral splenius for rotation.

    • Shoulder elevation on the side of rotation therefore suggests dystonic levator scapulae

    • Shoulder elevation on the opposite side of rotation suggests dystonic trapezius

Injection Pitfalls

Hemifacial Spasm

Injection Pitfalls

Hemifacial Spasm

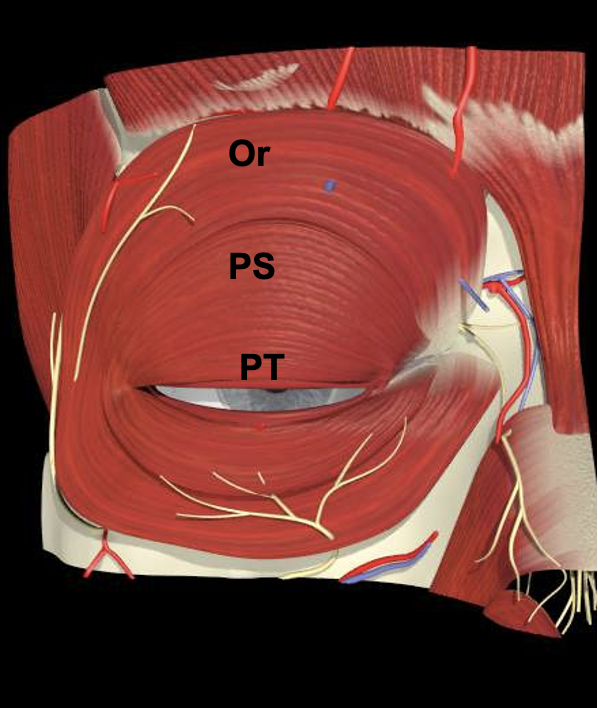

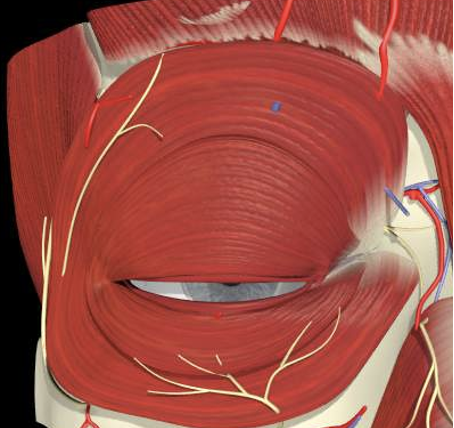

Orbicularis Oculi Function

Role of Pretarsal Injections

  • Orbital portion closes the lids, drawing the skin of the forehead, temple and cheek medially.

  • The palpebral portion of orbicularis closes the lids grossly, but incompletely, for long periods of time.

  • Located next to the lid margin the pretarsal and Riolan’s muscle, provides closure for brief periods of time, as in reflex or involuntary blinking.

  • Horner’s tensor tarsi encircles canaliculi to facilitate tear drainage

Injection Pitfalls

Hemifacial Spasm

Functional Anatomy

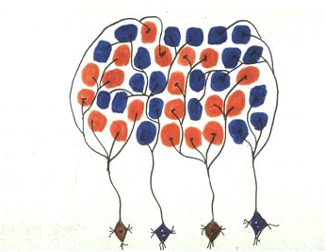

  • Differences in fibre cross-sectional areas and in fibre type.

    • At increasing distances from the eyelid margin there is a gradual increase in fiber cross-sectional area and in the proportion of type I fibres (slow-twitch).

  •

    • The pretarsal region including Riolans muscle is almost 100% type 2 fibers (fast twitch).

  •

    • Fibres in the preseptal region contain between 8% and 15% type I fibers

Injection Pitfalls

Hemifacial Spasm

Functional Anatomy

  • The differences may reflect the activity and function of the orbicularis oculi during eye blink and forceful eyelid contraction i.e fast twitch and slow twitch.

  • Experimental work on rat calf muscles showed that the recovery of type I muscle fibres from botulinum toxin is much faster than that of type II fibres (Hassan SM et al Muscle and Nerve 1994)

Injection Pitfalls

Hemifacial Spasm

Injection Technique

Role of Pretarsal Injections

  • Cakmur etal 2002 J Neurol

    • 53 patients (25 blepharospasm, 28 hemifacial spasm).

    • PT higher response rate and longer duration of action.

    • PT less ptosis more blurred vision.

  • Other comparative studies Albenese etal 1996, Aramideh et al 1995, Jankovic 1996, Kowal 1997 have found similar results.

Pre Septal

Pre Tarsal

Injection Pitfalls

Hemifacial Spasm

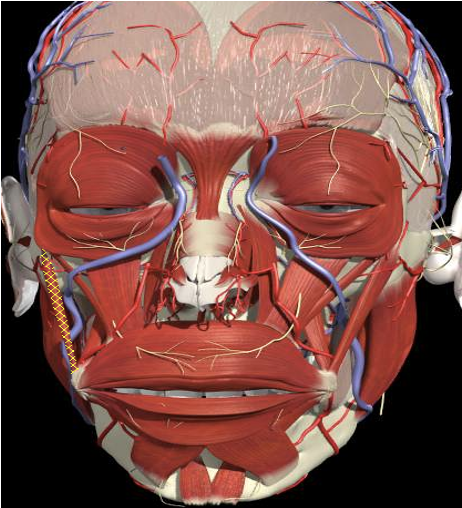

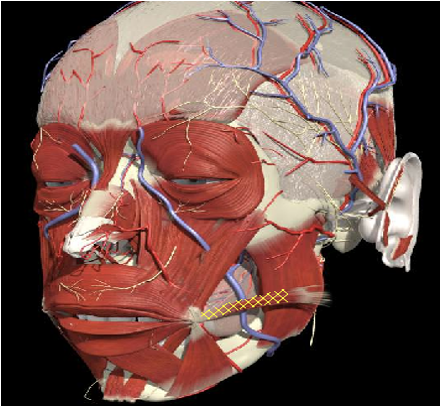

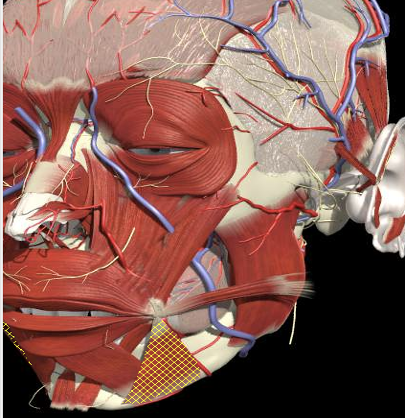

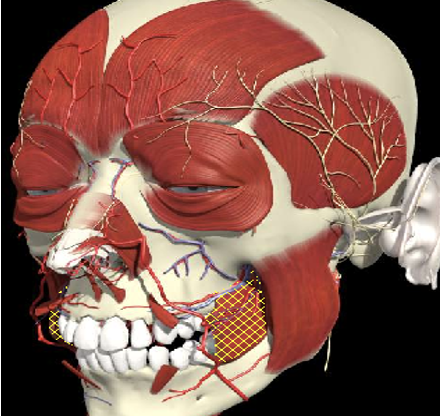

Lower Face Muscle Overlap

DLI

DAO

BUC

RIS

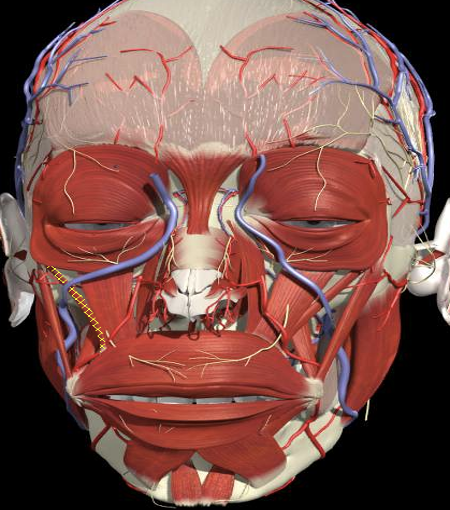

Injection Pitfalls

Hemifacial Spasm

Lower Face Muscle Overlap

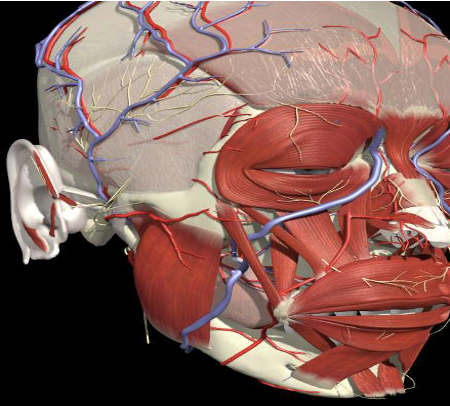

Injection Pitfalls

Hemifacial Spasm

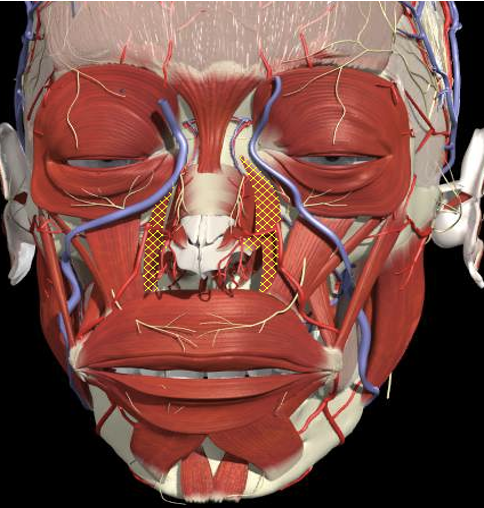

Upper Face Muscle Overlap

Levator Labii Superioris
Alequa Nasi

Levator Anguli Oris

Zygomaticus Major

Zygomaticus Minor

Levator Labii Superioris

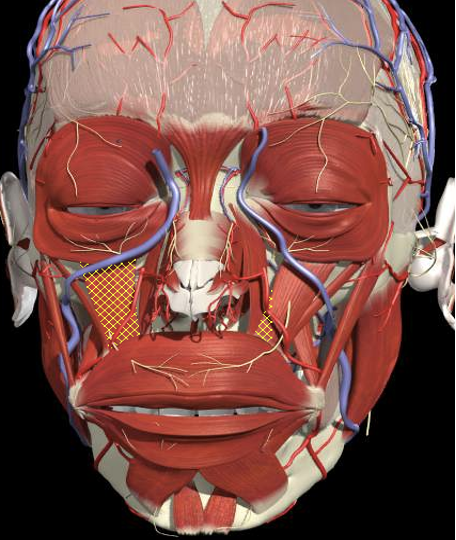

Injection Pitfalls

Hemifacial Spasm

Upper Face Muscle Overlap

Injection Pitfalls

Hemifacial Spasm

Injection Technique

Muscle Overlap

  • Pitfalls with O Oculi injections

    • Dropping angle of mouth
      (lower lateral injection)

    • Nasolabial fold

    • Inability to elevate upper lip
      (lower medial injection)

Injection Pitfalls

Hemifacial Spasm

Injection Technique

Muscle Overlap

  • Pitfalls with O Oculi injections

    • Dropping angle of mouth
      (lower lateral injection)

    • Nasolabial fold

    • Inability to elevate upper lip
      (lower medial injection)

Injection Pitfalls

Hemifacial Spasm

Injection Technique

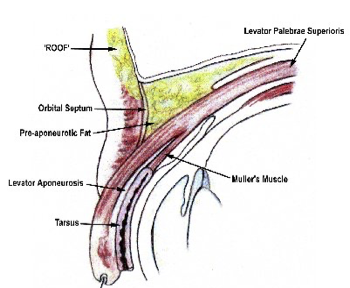

Facial Spasm - Pitfalls Ptosis

  • Ptosis

    • Levator palpebrae becomes aponeurotic already at the level of the superior transverse ligament 14 to 20 mm above the tarsus. Preseptal injections closer

Injection Pitfalls

Hemifacial Spasm

Physiological Principles

Spindles

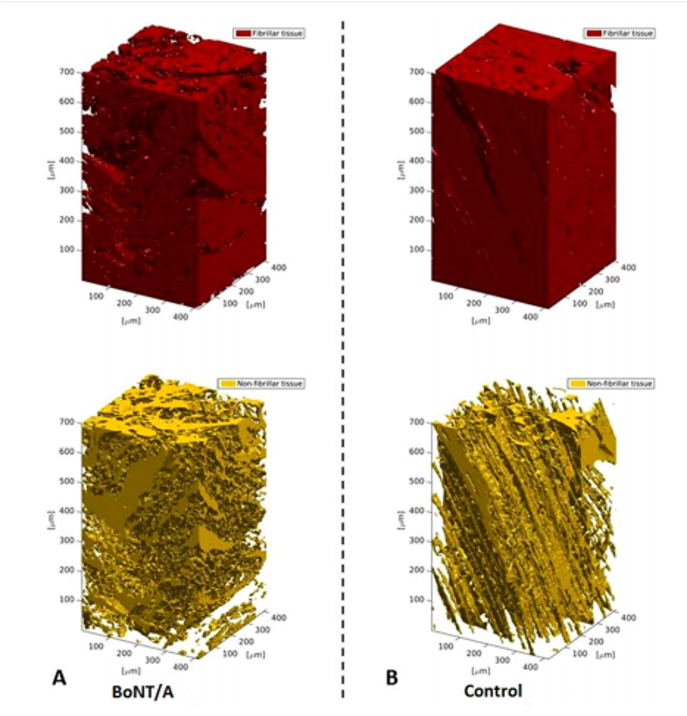

  • Muscle spindle block can lead to increased atrophy and changes in function- location and number differs between muscles

  • Important in terms of pain and maintenance of tone and control of posture and fine movements

  • Neck has greater number than shoulders

  • Proximal greater than distal in UL

  • Masseter and deep neck muscles (part OCI) have much higher spindle concentration than lateral muscles such as splenius

Injection Pitfalls

Hemifacial Spasm

Physiological Principles

Capacity to Sprout

  • Muscle spindle block can lead to increased atrophy and changes in function - location and number differs between muscles

  • SC cells affected by age

  • Capacity to regenerate after botulinum toxin injections will be affected by these factors

  • Motor axon length - Proximal greater capacity than distal

Injection Pitfalls

Hemifacial Spasm

Physiological Principles

Fibre Type

  • Type I fibers tend to develop early, multiple sprouting, compared to type IIb fibers after BoTx

  • Toxin dose and frequency of injections could be adjusted when injecting muscles that have predominantly type IIb fibers in order to lessen atrophy in susceptible patients

  • Muscles such as vastus lateralis and sternocleidomastoid (SCM) have a lower proportion of type I fibers and a higher proportion of type IIb fibers compared to splenius capitis, trapezius, and scalenus medius.

Injection Pitfalls

Hemifacial Spasm

Physiological Principles

Endplate Location

  • The importance of targeting the motor endplate has been emphasized in animal models.

    • Using rat anterior tibialis muscle, Shaari and Sanders demonstrated that toxin injection into the motor endplate region produces the greatest paralysis. Injections only 0.5 cm away from the region resulted in a 50% decrease in paralysis.

    • In a canine model, placement of BTX at the motor endplate potentiated the toxic effect and decreased muscle force generation.

Injection Pitfalls

Hemifacial Spasm

Endplate Injections

Rat Anterior Tibialis

Normal

1 cm

MEP

0.5 cm

Injection Pitfalls

Hemifacial Spasm

Diffusion and End Plates

  • BTX diffuses outside of target muscles.

  • Spread is estimated to be 2.5–4.5 cm, with the size of the diffusion field being proportional to the amount of toxin delivered.

  • Can occur across fascial planes. Weaken non dystonic muscles

  • Series of patients with upper limb dystonia, weakness of uninjected muscles adjacent to those injected was found in 63% of patients.

  • The closer you are to endplate the less diffusion to inappropriate muscles occurs.

Injection Pitfalls

Hemifacial Spasm

Distribution of End Plates

Tibialis Anterior

Biceps

Injection Pitfalls

Hemifacial Spasm

The studies in humans have shown that the spindle density is in general highest in hand, foot and neck muscles, lowest in the shoulder and thigh muscles and intermediate in the more distal muscles of the arm and the leg (Voss, 1971). The spindle density can be regarded as an indicator of functional differences between muscles. In general, high spindle density characterizes muscles initiating fine movements (e.g. lumbrical muscles) or maintaining posture (e.g. neck muscles) whereas low spindle density is characteristic of muscles initiating gross movements (e.g. biceps brachii).

The deep neck muscles have an unusually high muscle spindle density which is nearly five times higher than that of the large splenius capitis and three times that of the semispinalis capitis muscle (Cooper and Daniel, 1963; Kulkarni et al., 2001; Peck et al., 1984; Voss, 1971). In adults, the spindle density is about 30.0 in both the rectus capitis posterior major and the obliquus capitis inferior; 36.0 in the rectus capitis posterior minor and 40~43 in the obliquus capitis superior (Peck et al., 1984; Voss, 1971). The convergence of sensory afferents from deep neck muscles with vestibular and ocular inputs at various levels of the neuroaxis is well recognized (Cooper and Daniel, 1963; Kulkarni et al., 2001; Richmond and Abrahams, 1975, 1979a). The complex integrative mechanisms involved in head positioning in relation to vestibular and visual control probably demand finely tuned proprioceptive inputs from the deep neck muscles, therefore requiring such a high spindle density.

Injection Pitfalls

Hemifacial Spasm
