The case of the super performant and maybe unstable Daphne ASGI server

The not so exciting world of Wsgi

  1. All syncronous operations should block
    1. time.sleep
    2. database query
    3. web request
  2. Simple Process Based Model
  3. And reasonable advice is:-
    1. Do not write code with excessive > 200 ms io waiting, move it to background tasks

What happens when a WSGI Server gets an Async Request?

  1. It gets wrapped up in asgiref.AsyncToSync
  2. We dont have this case but its logical to assume that it would involve some sort of wait thereby making it a blocking operation
  3. This is also not the purpose of this presentation

The exciting not so exciting world of Asgi

  1. It gets wrapped up in asgiref.SyncToAsync which takes a callable and an optional argument called threadsensitive that django does not provide, but in asgiref (is defaulted to true)
  2. This ensures that non thread safe code like the ORM runs in the main asgi thread

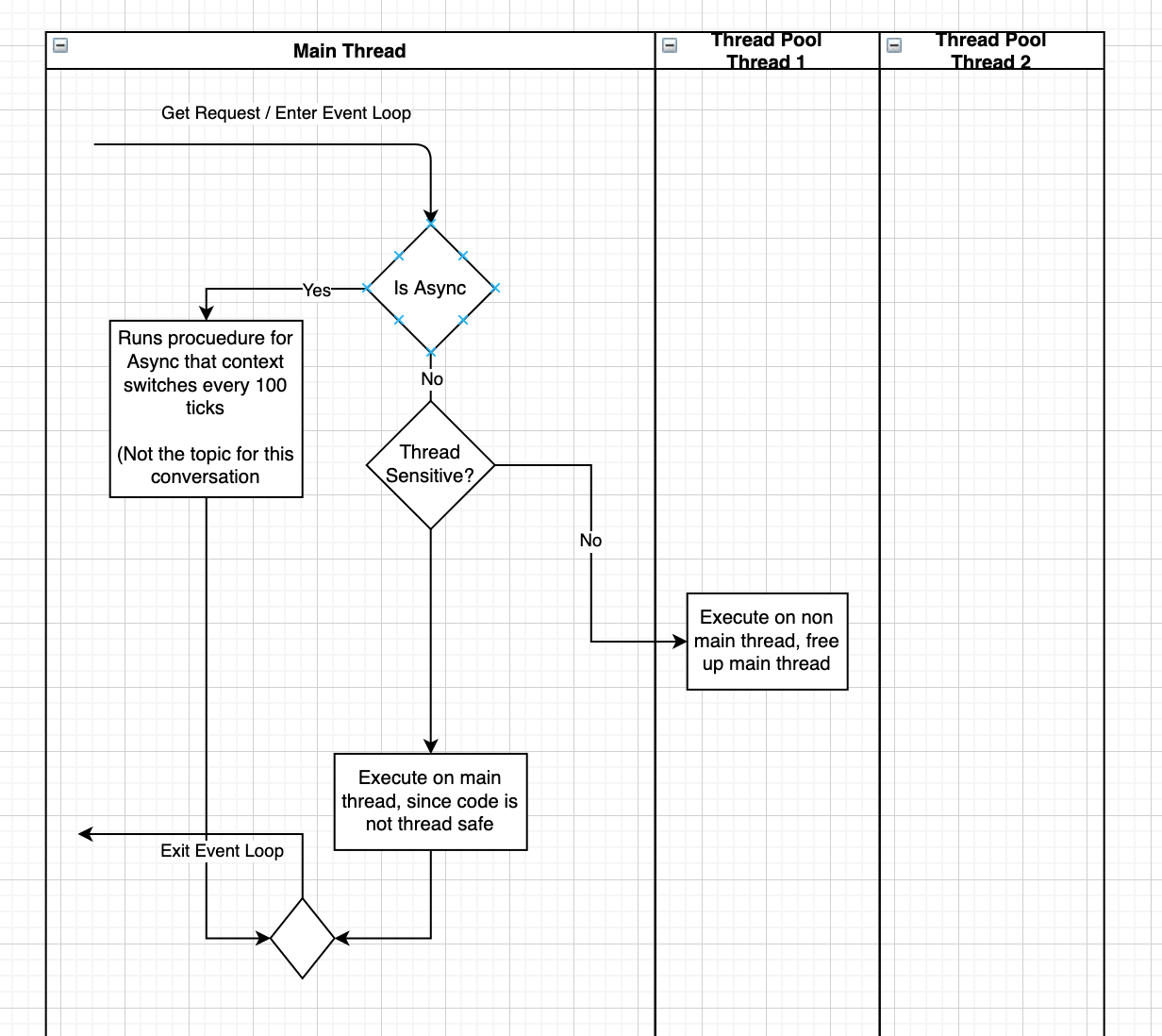

What happens when a ASGI Server gets an Sync Request?

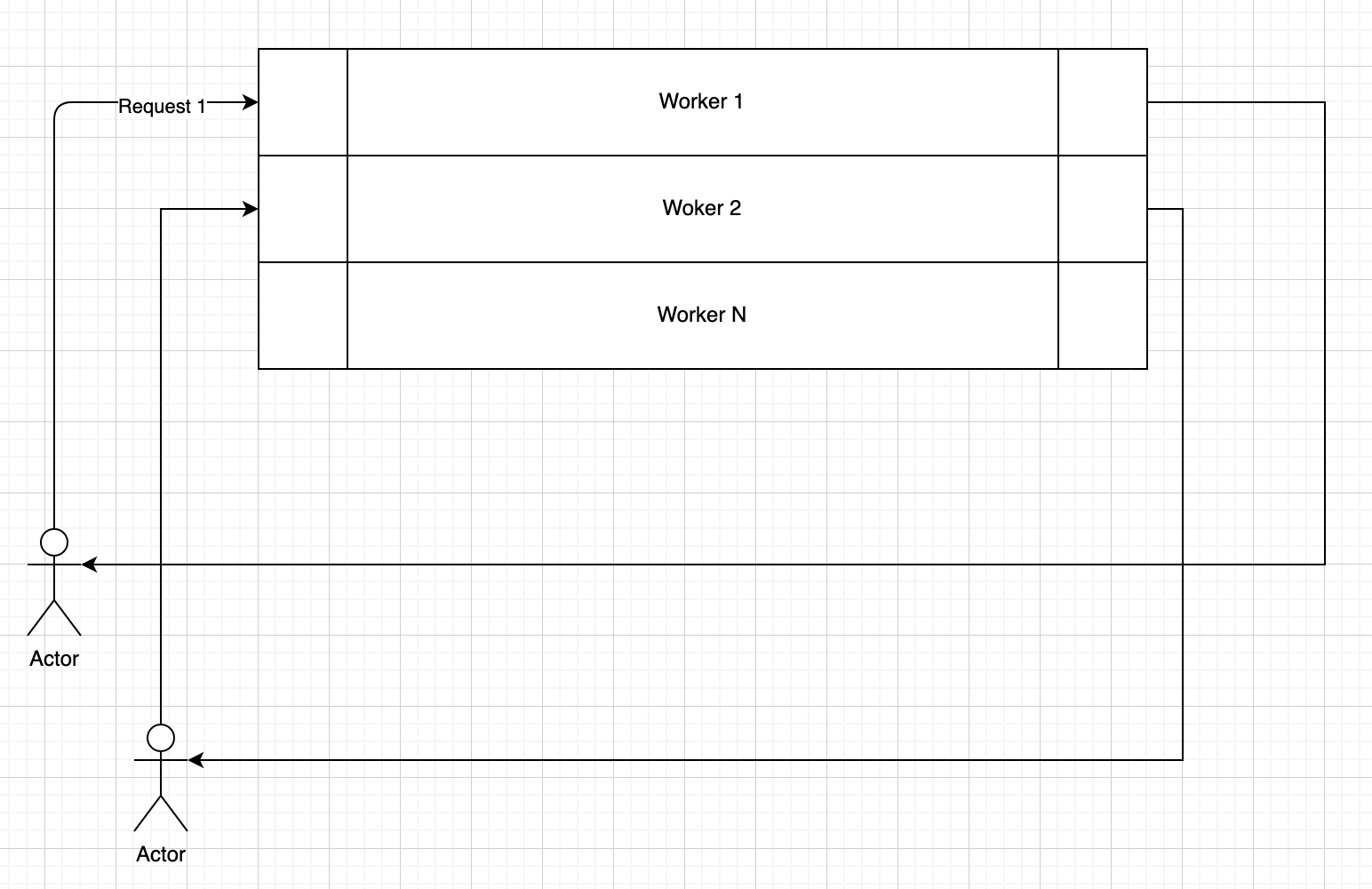

ASGI model

Joe Armstrong - Humble engineer / Creator of Erlang

But Iqbal?

This means

Iqbal 1 > One ASGI worker can only serve one synchronous request (we have no async views in our codebase)
Iqbal 2 > Correct

Iqbal 1 > I dont beleive you

Iqbal 2 > I'm full of shit sometimes

Iqbal 1 > Lets validate this

Initiate Shitty benchmarks

Time.sleep()

# In request body

thread_id = random.random()
print("tick {}".format(thread_id))
time.sleep(0.5)
print("tock {}".format(thread_id))
time.sleep(0.5)
print("tack {}".format(thread_id))

bank = Bank.objects.select_for_update().first()
<<time.sleep() only snippet>>
return Response("abc")

DB.get() + time.sleep()

Atomic Transaction
Lock row

bank = Bank.objects.select_for_update().first()
<<time.sleep() only snippet>>

position = int(random.random() * 100) + 1
banks = Bank.objects.filter(id=position).select_for_update()
bank = banks[0]

Atomic Transaction
Lock random row

Sleep in DB

from django.db import connection
thread_id = random.random()
print("tick {}".format(thread_id))
cursor = connection.cursor()
cursor.execute("""SELECT pg_sleep(0.5)""")
print("tock {}".format(thread_id))
cursor.execute("""SELECT pg_sleep(0.5)""")
print("tack {}".format(thread_id))

Initiate Shitty benchmarks

Check

Check

WTF

WTF

WTF

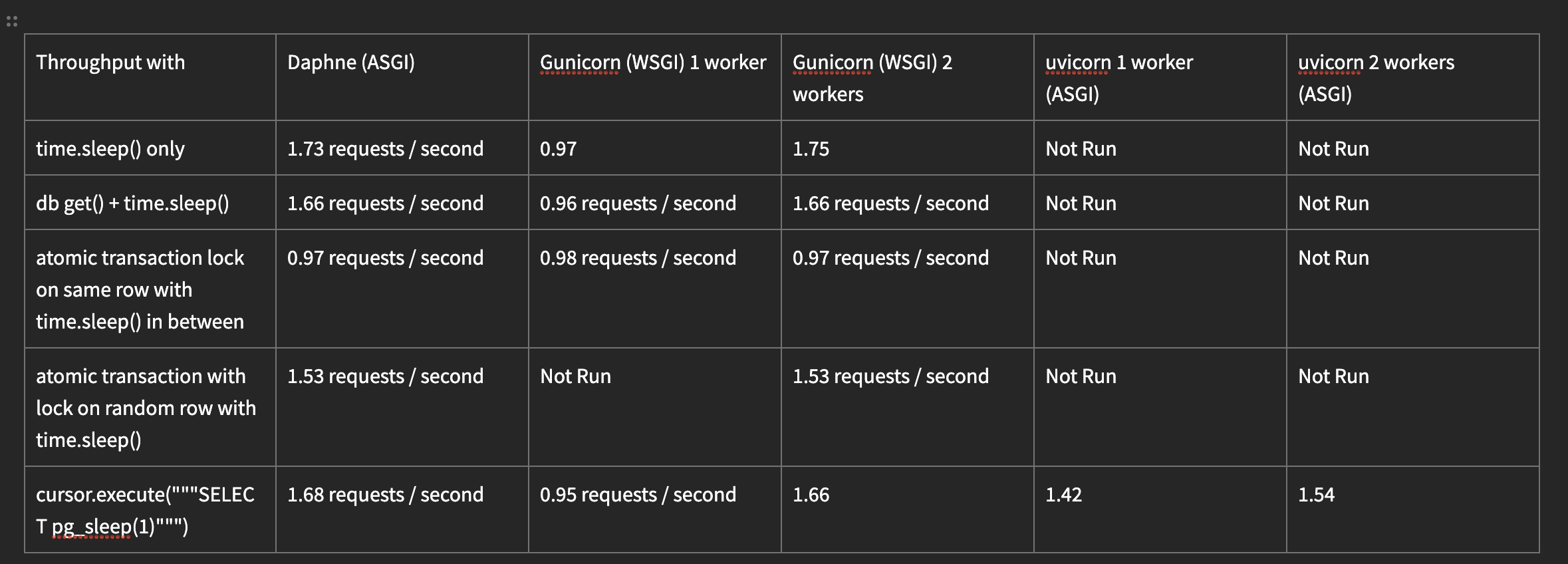

Testing done via apache ab. Two concurrent requests

But Iqbal?

Iqbal 1 > I told you, full of shit
Iqbal 2 > I am sometimes but ...

Iqbal 1 > Resign .. Retire .. Resign. let the younger fol

Iqbal 1 > Stop Taking jobs that belong to young people

Iqbal 3 > The Django Community is your friend

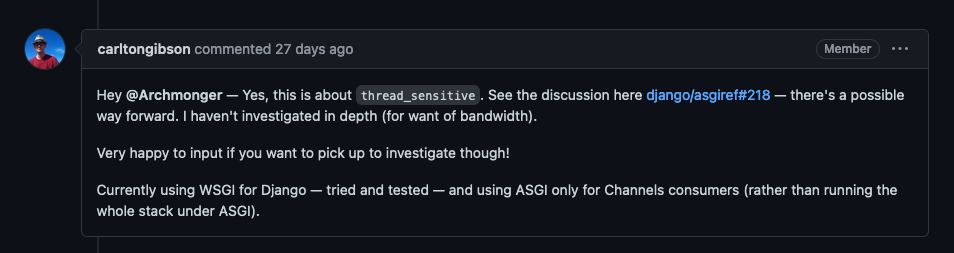

Carlton Gibson - Humble engineer / Django Cast, Django Crispy Forms, maintainer of awesome django & previous DRF Fellow

The frustration. Why doesnt this perform shit

Multiple threads bad for ORM

Multiple threads bad for ORM

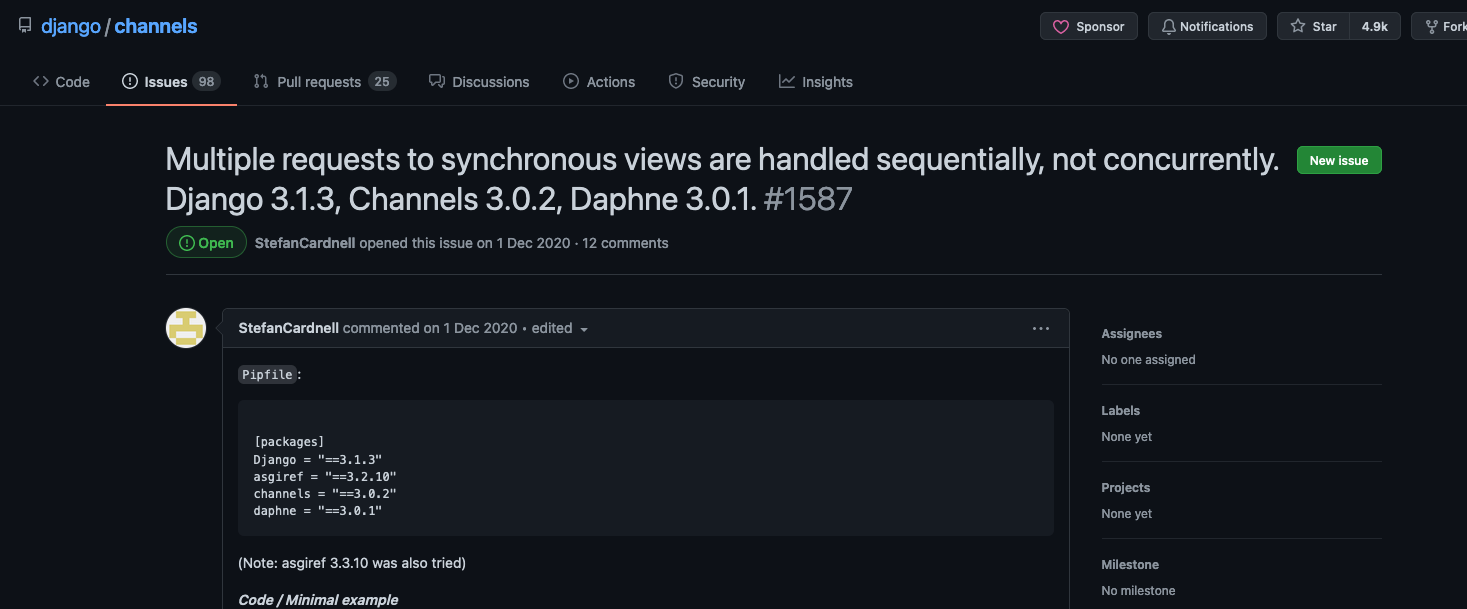

A sign

This is an ongoing discussion on the django internals forum: https://forum.djangoproject.com/t/asynchronous-orm/5925/24

Hmmmm

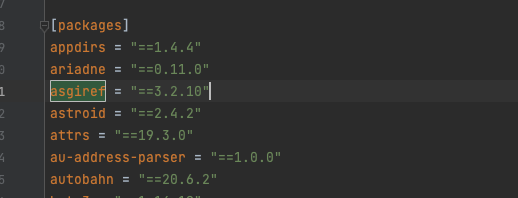

Yep verified asgiref.sync.SyncToAsync.__init__

has boolean set to False whereas in newer ones its true

  • Concurrency 5 - Random Row Lock 5 workers:

    • With old asgiref

      • Daphne 1 worker 3.92

      • Gunicorn 5 workers 3.75

      • Uvicorn 1 workers 3.12

      • Uvicorn 5 workers 3.92

    • With the latest asgiref (All order has returned to the world. I'll explain why):-

      • Daphne 1 woker (with latest asgiref > 3.3.0) 0.95

      • Uvicorn 1 woker (with latest asgiref > 3.3.0) 0.96

      • Uvicorn 5 woker (with latest asgiref > 3.3.0) 2.55

Moar Benchmarks

Testing done via apache ab. 5 concurrent requests

Sweet
Stability > Performance

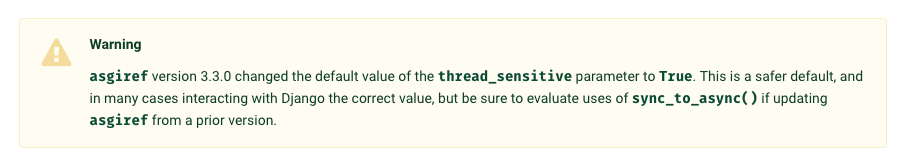

  • Upgrading to the latest version reduced the throughput and in an expected manner. This is documented on djangoproject:-

    • asgiref version 3.3.0 changed the default value of the thread_sensitive parameter to True. This is a safer default, and in many cases interacting with Django the correct value, but be sure to evaluate uses of sync_to_async() if updating asgiref from a prior version.

Recommended Actions:-

  • We should upgrade asgiref

  • And either

    • Use uvicorn with multiple workers, configure daphne with multiple workers (it can be done) or shift to wsgi from asgi. Asgi by default wraps all django sync code into an sync_to_async function

    • -- OR --

    • Use gunicorn or any other wsgi server for now since we dont use async views

  • Daphne is not bad. It works as expected

  • Gold standard: having two request routers one for ASGI and one for WSGI

This is an emergency



Random scary pictures to make a point
