Коммуникация клиента и сервера

Занятие 12

13 May 2017

skill-branch.ru/backend-middle

Профессия
Node.js & React.js developer
продвинутый курс

1

Коммуникация и проблемы связанные с ней
Решения для коммуникация
GraphQL
Пару слов

План

1

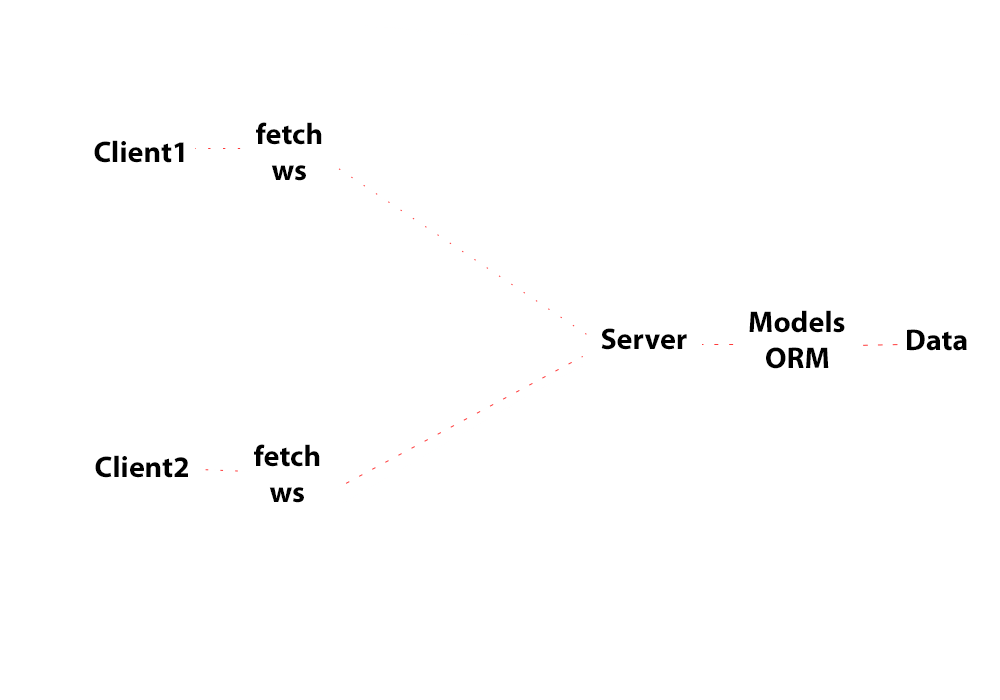

Комуникация

и проблемы связанные с ней

2

Решения

для хорошей коммуникации

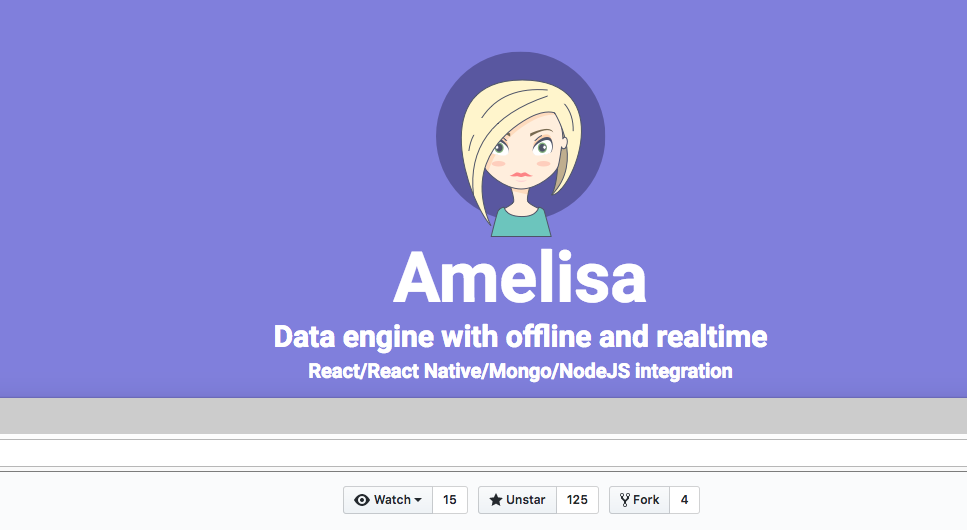

Amelisa

amelisajs.com

Amelisa

amelisajs.com

let app = express()

app.use(store.modelMiddleware())

app.use((req, res, next) => {
  let model = req.getModel()
})

//////

let model = store.createModel()

let $user = model.doc('user', '1')
let $items = model.query('items', {})

await model.subscribe($user, 'users.2', ['users', '3'], $items, 'todos', ['products', {}])

let user1 = model.get('users.1')
let user2 = model.get('users.2')
let todos = model.query('todos', {}).get()

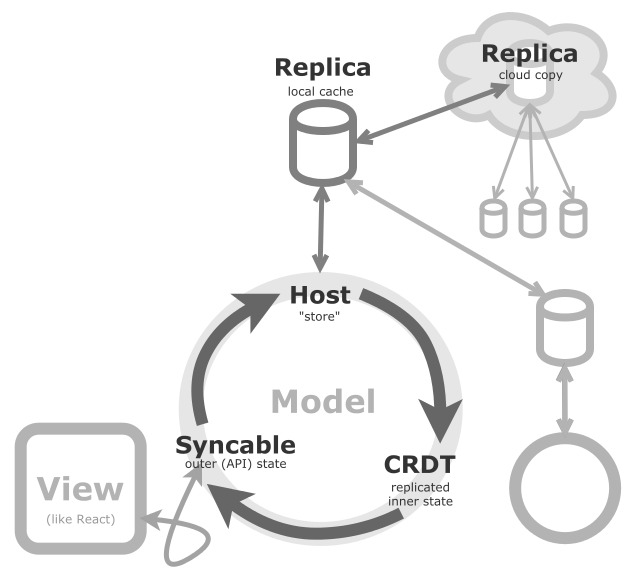

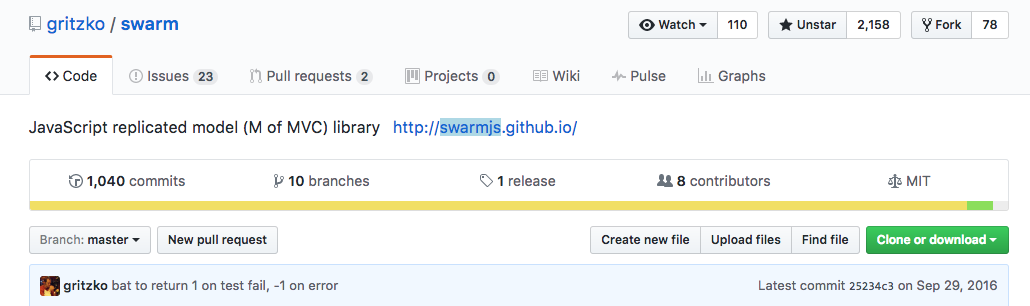

Swarm.js

github.com/gritzko/swarm

Swarm.js

github.com/gritzko/swarm

Swarm.js

github.com/gritzko/swarm

var sync = require('swarm-syncable');
var Model = sync.Model;
var Host = sync.Host;

// var replica = new Replica({upstream: 'ws://localhost:8000'});
// a replica manages logs and synchronizes to the upstream replica
// in this example, we'll create a replica implicitly through Host

// manages objects
new Host({
    replica: true,
    upstream: 'ws://localhost:8000'
});
var mouse = new swarm.Model({x:1, y:2});
mouse.on('change', function() {
    console.log('mouse x:', mouse.x, 'y:', mouse.y);
});
mouse.set({x:3, y:4});

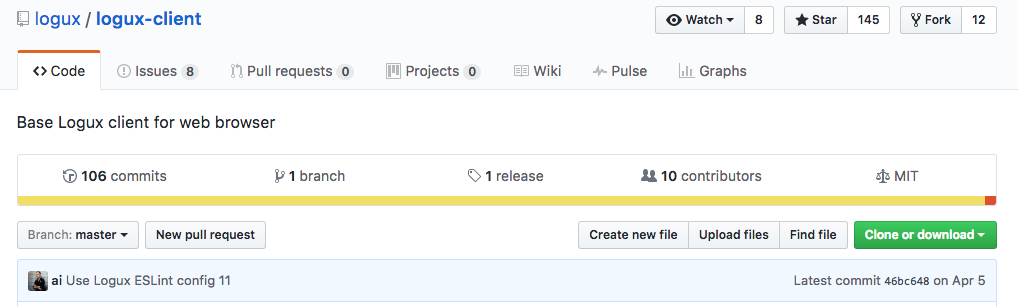

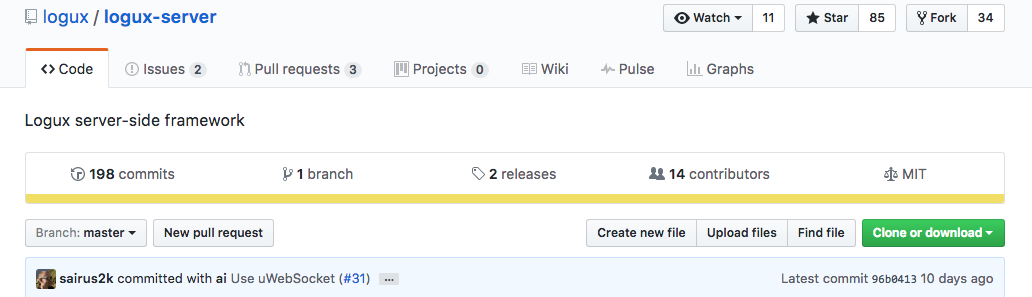

Logux

Replace AJAX-REST by Redux actions synchronization between client and server

github.com/logux

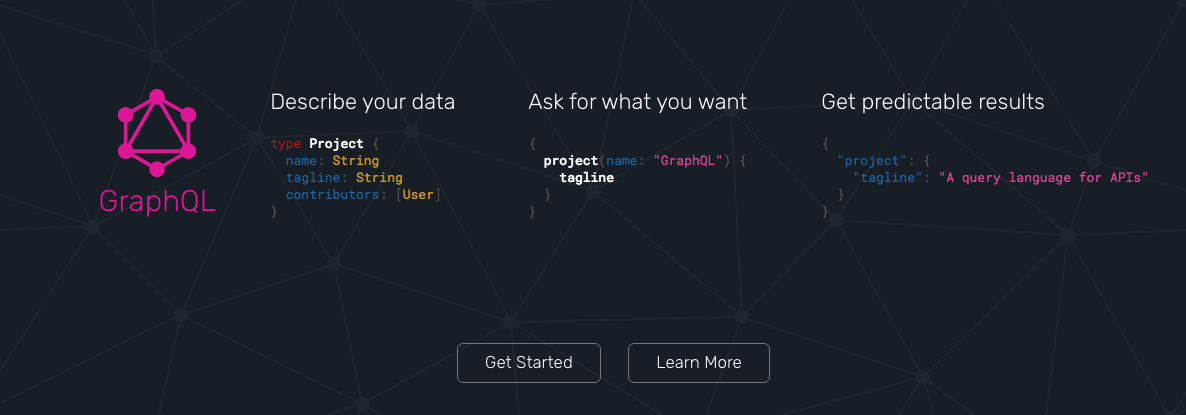

GraphQL

graphql.org

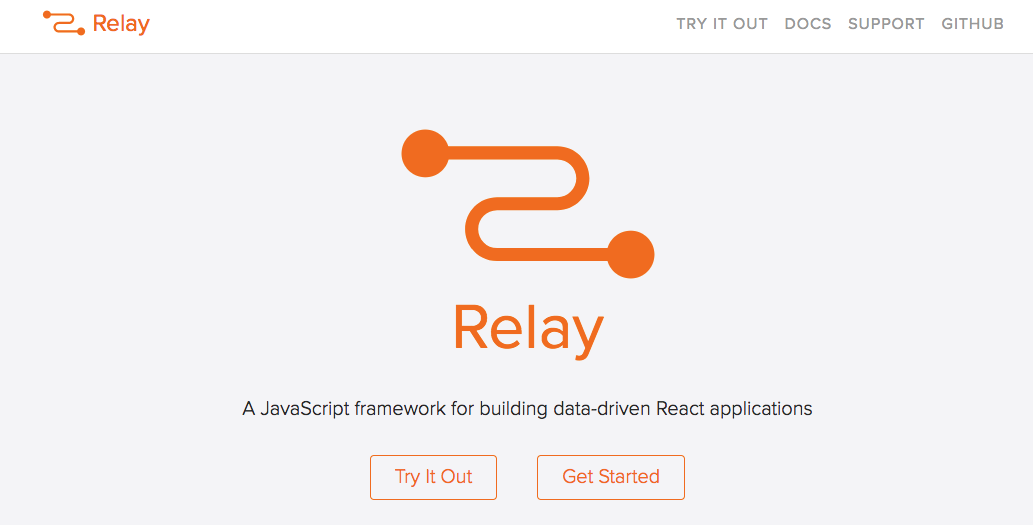

Relay

facebook.github.io/relay

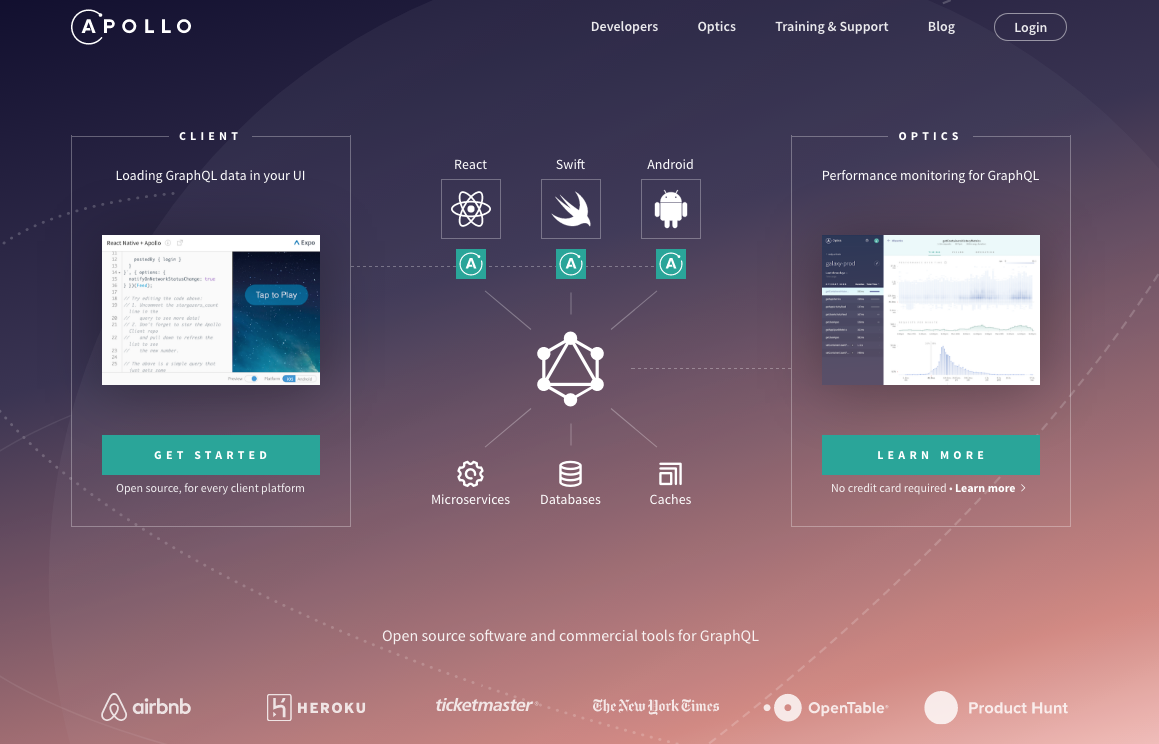

Apollo

apollodata.com

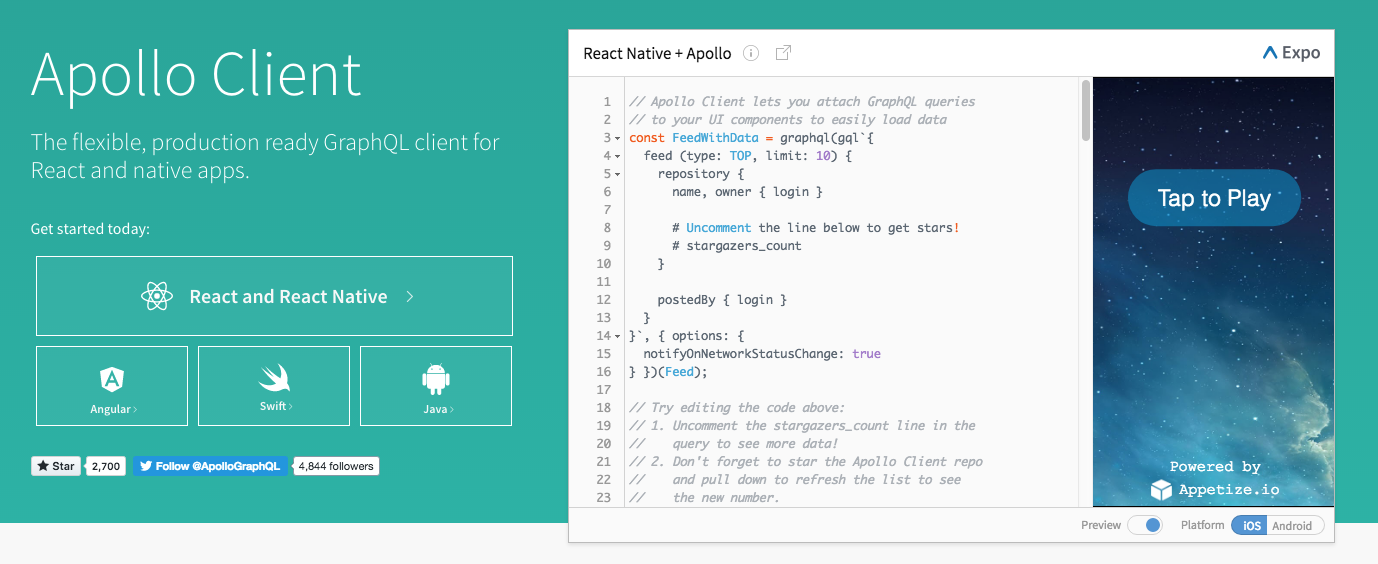

Apollo Client

dev.apollodata.com

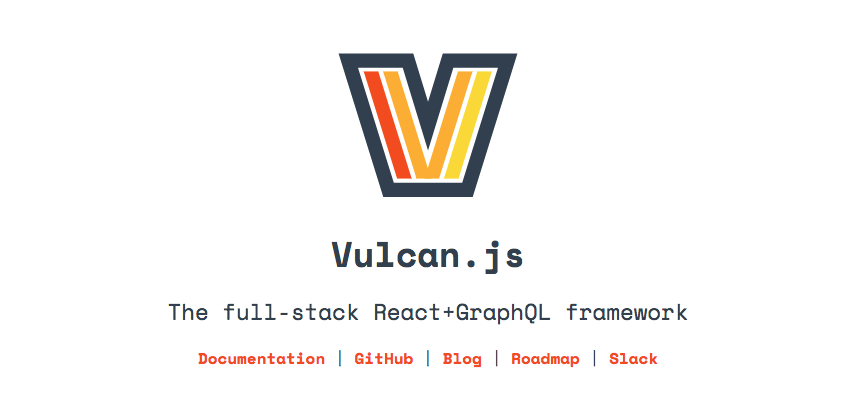

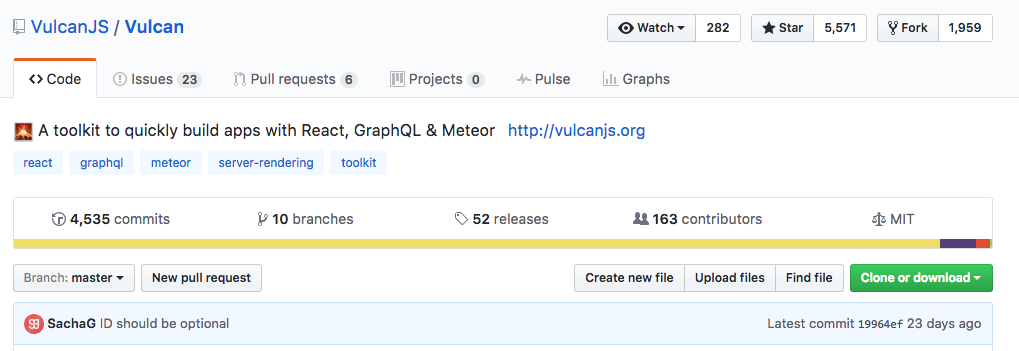

Vulcan.js

vulcanjs.org

3

GraphQL

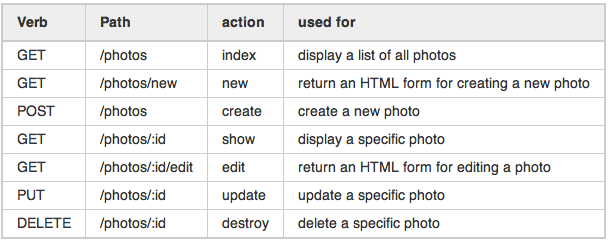

Restful

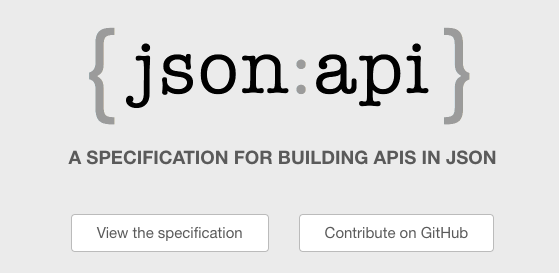

JSON API

jsonapi.org

{
  "links": {
    "self": "http://example.com/articles",
    "next": "http://example.com/articles?page[offset]=2",
    "last": "http://example.com/articles?page[offset]=10"
  },
  "data": [{
    "type": "articles",
    "id": "1",
    "attributes": {
      "title": "JSON API paints my bikeshed!"
    },
    "relationships": {
      "author": {
        "links": {
          "self": "http://example.com/articles/1/relationships/author",
          "related": "http://example.com/articles/1/author"
        },
        "data": { "type": "people", "id": "9" }
      },
      "comments": {
        "links": {
          "self": "http://example.com/articles/1/relationships/comments",
          "related": "http://example.com/articles/1/comments"
        },
        "data": [
          { "type": "comments", "id": "5" },
          { "type": "comments", "id": "12" }
        ]
      }
    },
    "links": {
      "self": "http://example.com/articles/1"
    }
  }],
  "included": [{
    "type": "people",
    "id": "9",
    "attributes": {
      "first-name": "Dan",
      "last-name": "Gebhardt",
      "twitter": "dgeb"
    },
    "links": {
      "self": "http://example.com/people/9"
    }
  }, {
    "type": "comments",
    "id": "5",
    "attributes": {
      "body": "First!"
    },
    "relationships": {
      "author": {
        "data": { "type": "people", "id": "2" }
      }
    },
    "links": {
      "self": "http://example.com/comments/5"
    }
  }, {
    "type": "comments",
    "id": "12",
    "attributes": {
      "body": "I like XML better"
    },
    "relationships": {
      "author": {
        "data": { "type": "people", "id": "9" }
      }
    },
    "links": {
      "self": "http://example.com/comments/12"
    }
  }]
}

GraphQL

graphql.org

Основные части

GraphQL - спецификация
GraphQL server - для обработки запросов к API
GraphQL client - то что будет подключаться к endpoint.
Tools

GraphQL

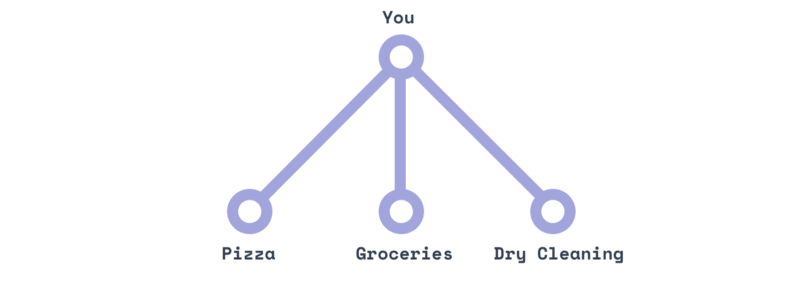

Запросы

query {
  stuff
}

query {
  stuff {
    eggs
    shirt
    pizza
  }
}

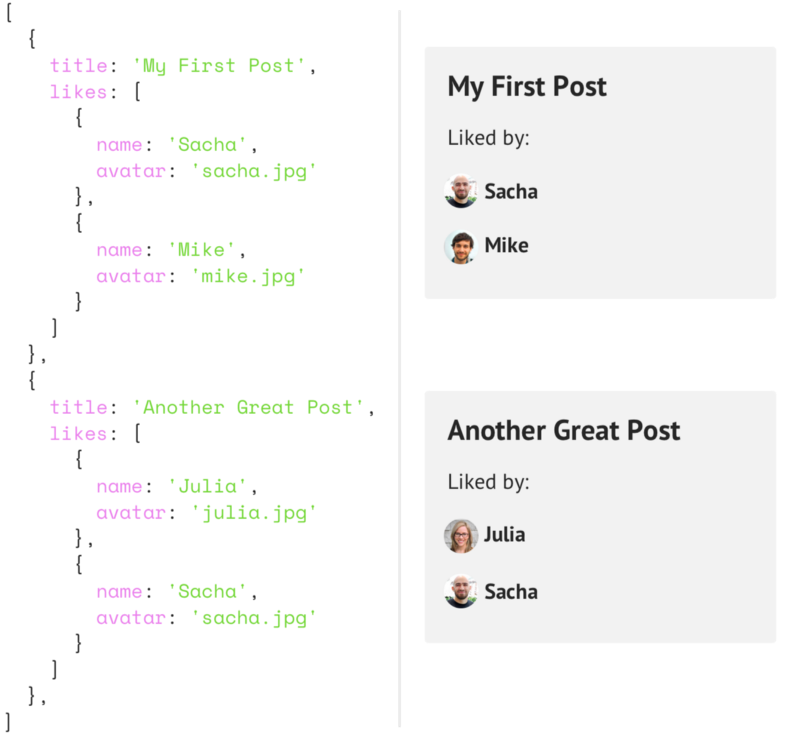

query {
  posts { # это массив
    title
    body
    author { # мы может пойти глубже
      name
      avatarUrl
      profileUrl
    }
  }
}

query {
  post(id: "123foo"){
    title
    body
    author{
      name
      avatarUrl
      profileUrl
    }
  }
}

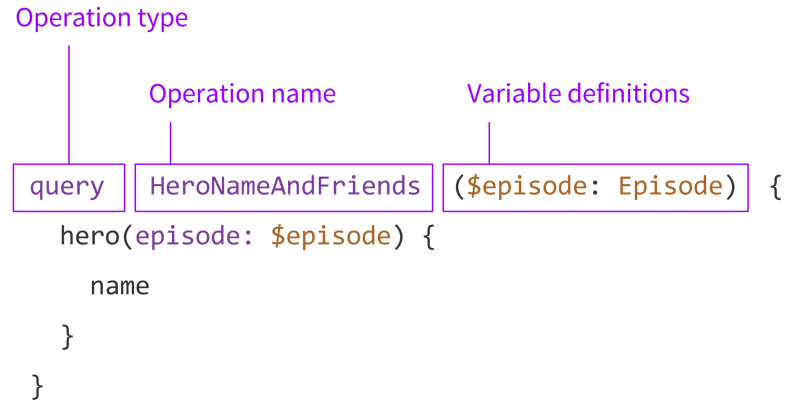

query getMyPost($id: String) {
  post(id: $id){
    title
    body
    author{
      name
      avatarUrl
      profileUrl
    }
  }
}

query getMyPost($id: String) {
  post(id: $id){
    title
    body
    author{
      name
      avatarUrl
      profileUrl
    }
  }
}

GraphQL

Запросы

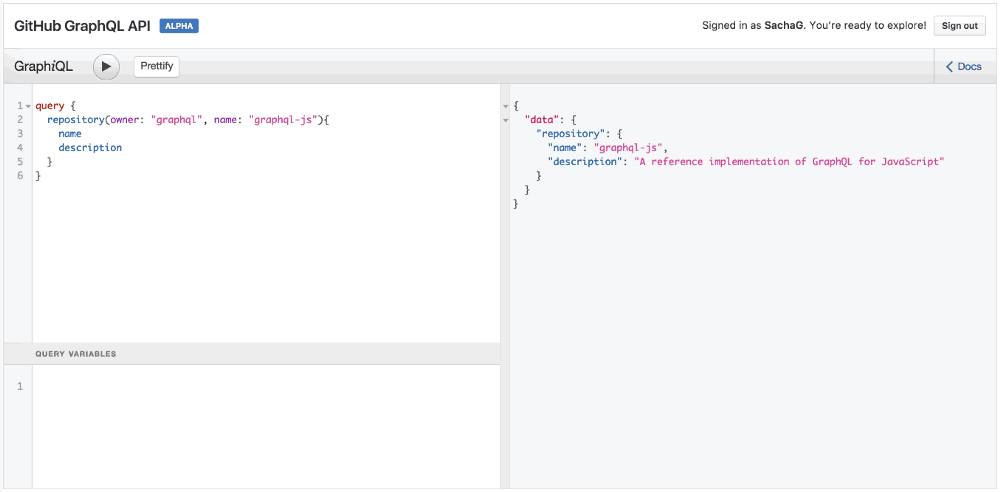

GitHub GraphQL API

developer.github.com/early-access/graphql/explorer/

GraphQL

Схемы

type Author {
  id: ID! # the ! means that every author object _must_ have an id
  firstName: String
  lastName: String
  posts: [Post] # the list of Posts by this author
}

type Post {
  id: ID!
  title: String
  author: Author
  votes: Int
}

# the schema allows the following query:
type Query {
  posts: [Post]
}

# we need to tell the server which types represent the root query
# and root mutation types. We call them RootQuery and RootMutation by convention.
schema {
  query: Query
}

GraphQL

Схемы, arguments

type Starship {
  id: ID!
  name: String!
  length(unit: LengthUnit = METER): Float
}

GraphQL

scalar types

Int: A signed 32‐bit integer.
Float: A signed double-precision floating-point value.
String: A UTF‐8 character sequence.
Boolean: true or false.
ID: The ID scalar type represents a unique identifier
Date *??

enum Episode {
  NEWHOPE
  EMPIRE
  JEDI
}

#Lists and Non-Null

type Character {
  name: String!
  appearsIn: [Episode]!
  myField: [String!]
}

GraphQL

interfaces

interface Character {
  id: ID!
  name: String!
  friends: [Character]
  appearsIn: [Episode]!
}

type Human implements Character {
  id: ID!
  name: String!
  friends: [Character]
  appearsIn: [Episode]!
  starships: [Starship]
  totalCredits: Int
}

type Droid implements Character {
  id: ID!
  name: String!
  friends: [Character]
  appearsIn: [Episode]!
  primaryFunction: String
}

union SearchResult = Human | Droid | Starship

GraphQL

review types

GraphQL

Resolvers (распознаватели)

Query: {
  post(root, args) {
    return Posts.find({ id: args.id });
  }
},
Post: {
  author(post) {
    return Users.find({ id: post.authorId})
  },
  commentsCount(post) {
    return Comments.find({ postId: post.id}).count()
  }
}

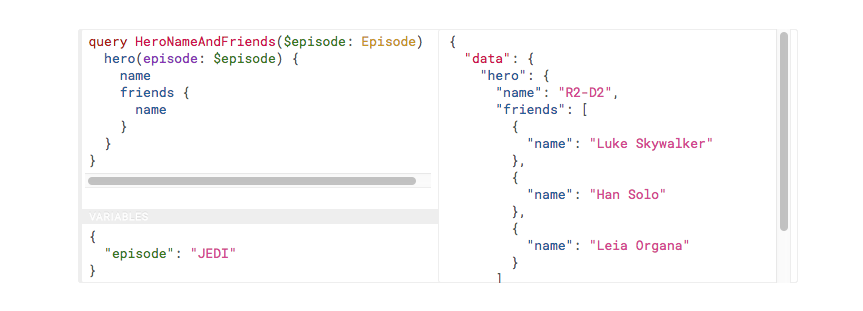

GraphQL

variables

GraphQL

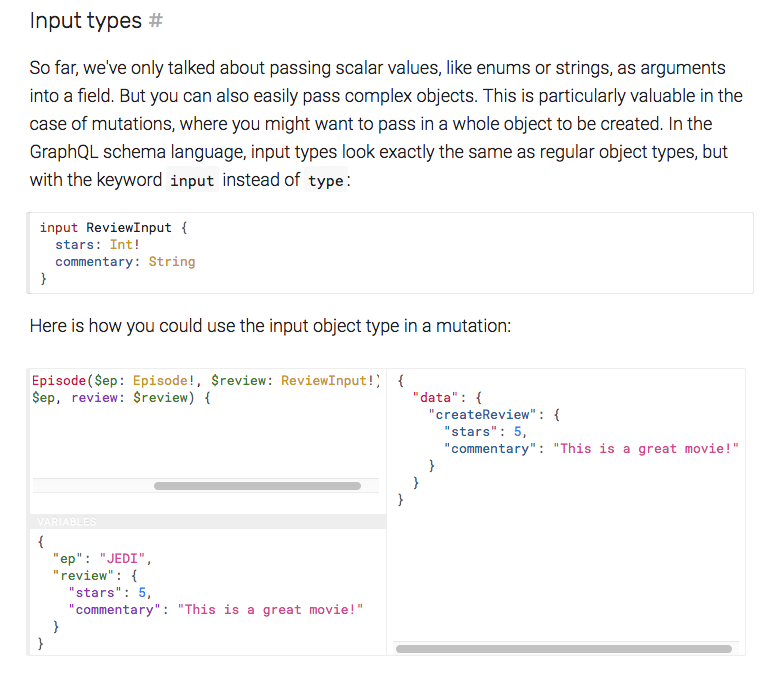

Mutations (изменения)

mutation CreateReviewForEpisode($ep: Episode!, $review: ReviewInput!) {
  createReview(episode: $ep, review: $review) {
    stars
    commentary
  }
}

{
  "ep": "JEDI",
  "review": {
    "stars": 5,
    "commentary": "This is a great movie!"
  }
}

GraphQL

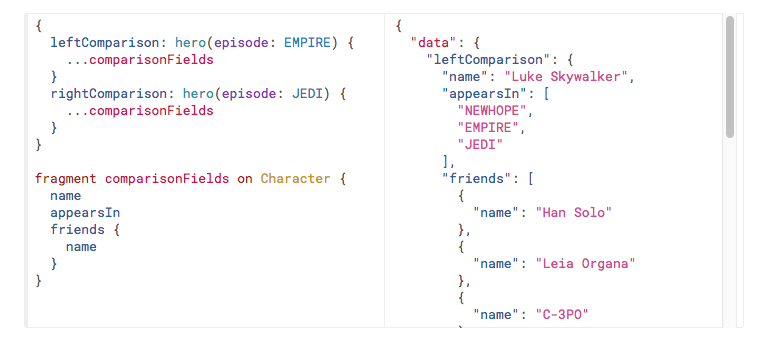

fragments

GraphQL server

Парсер запросов QL
GraphQL
Адаптер для БД
1. PostgreSQL
2. MongoDB
3. ...
Реализации под:
1. Node.js
2. PHP
3. Python
4. ... Java, C, C++, Go, .Net

GraphQL client

Relay
Apollo
1. Apollo Client
2. Apollo Client Dev Tools
3. Коннектор: React-Apollo, Angular-Apollo
4. По умолчанию Apollo-client сохраняет данных используя Redux
Lokka

Apollo - Andoid
Apollo - iOS
.Net

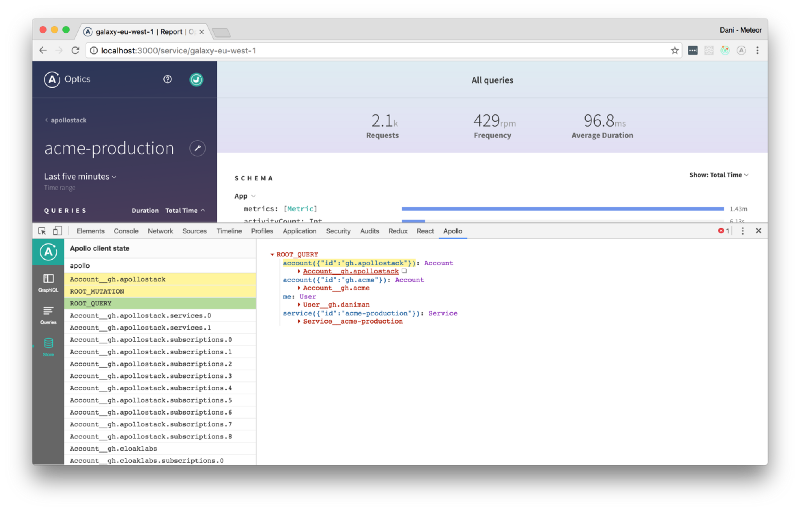

Apollo Client - Dev Tools

github.com/apollographql/apollo-client-devtools

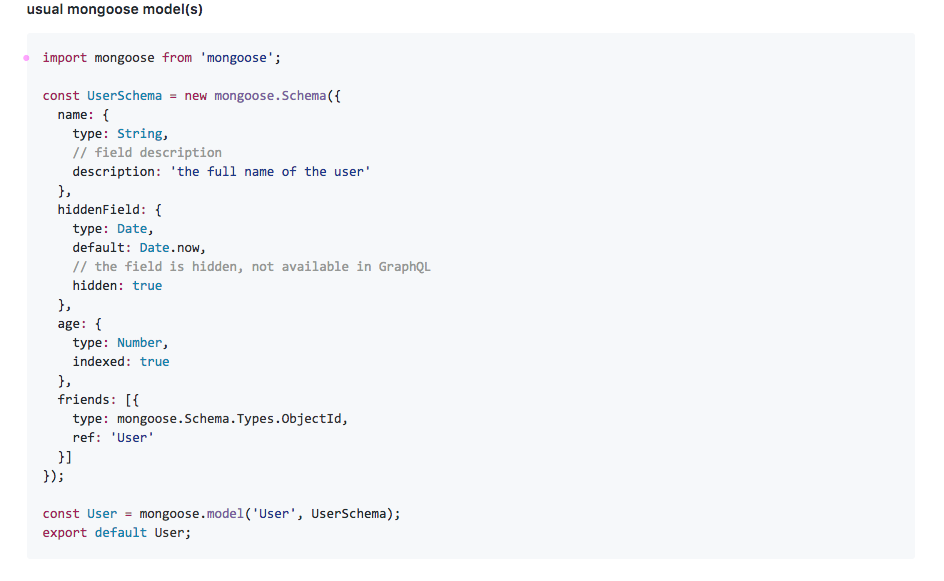

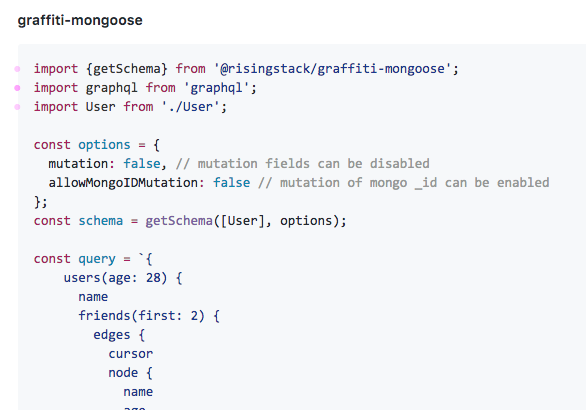

Graffiti

github.com/RisingStack/graffiti-mongoose

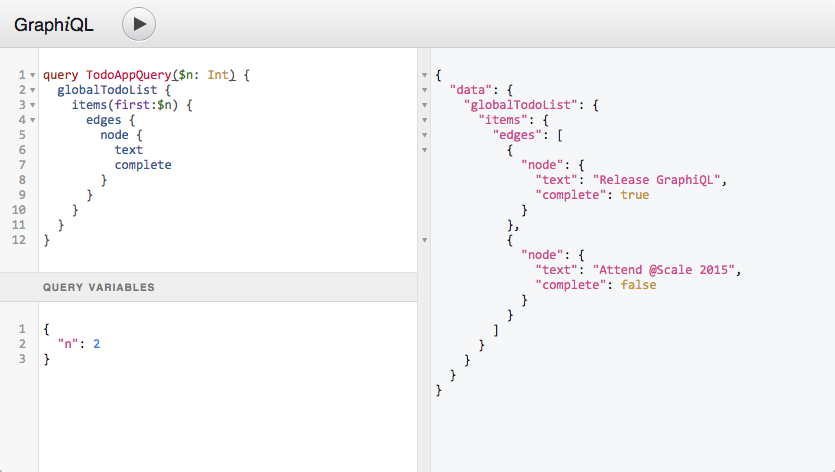

GraphiQL

github.com/graphql/graphiql

4

Пару слов

Что почитать

Игорь Суворов

→ telegram.me/isuvorov

→ vk.com/igor.suvorov

→ github.com/isuvorov

Thanks!

any questions?
