INTEROPERABILITY
who I am speaking to?
status
students / professionals
users
autodesk / bentley / other
I used to be 100% Revit evangelist
one software
does NOT
to rule them all
few words about
experience based
on
20 years of design
and
12 years of BIM implementation
and
40 years of with local market
in UAE since Jan 2017
architectural design
BIM expertise

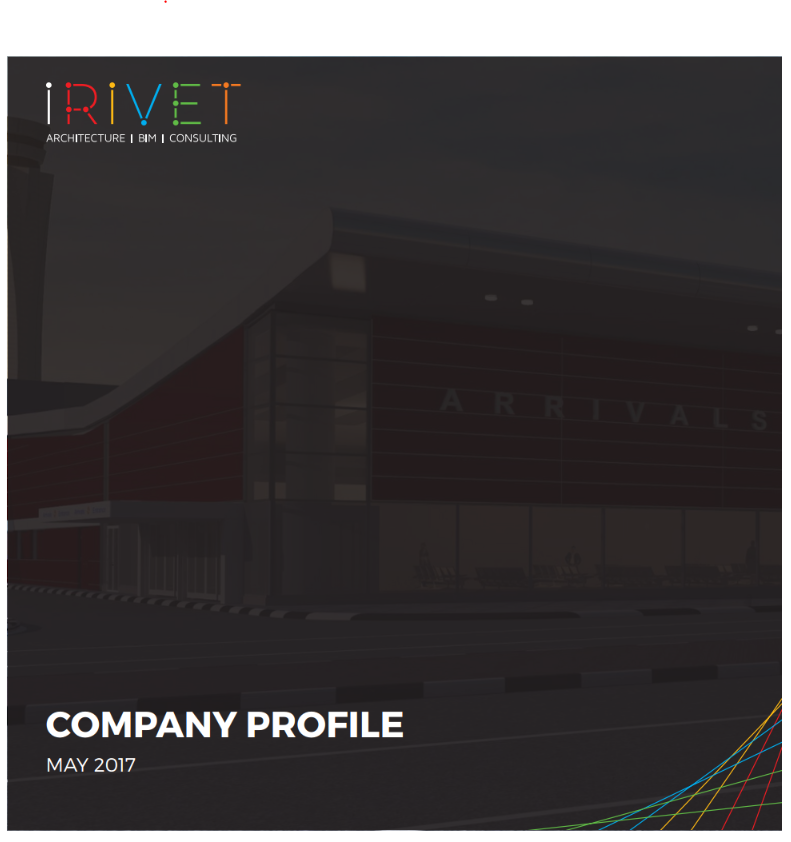

COMPANY PROFILE
(click on the picture)
current projects
in UAE
Al Maktoum Airport (DWC)
luxury lounge, duty-free package
detailed BIM specs, proper BIM management
Autodesk / Aconex / OneDrive
Midfield Terminal Building
signages, water feature, pavilions, arcades packages
enormous and long-term project
-> BIM specs old, BIM management complex
Bentley / ProjectWise
Royal Atlantis
drywalls and blockwork package
no BIM specs, no BIM management
Revit / Aconex
gained experience
1 - modeling
1.1 - model size
crashing software, no export
imported DWG, materials, lines, patterns ...
680->360
1.1 - model size
scale ;)
1.2 - model health

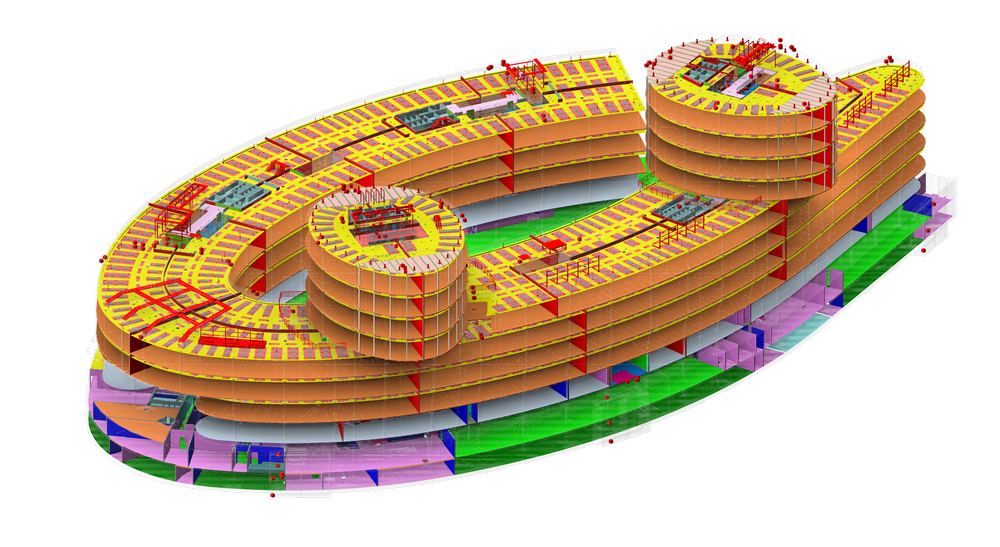

1.3 - coordination system
origin / base point / survey point

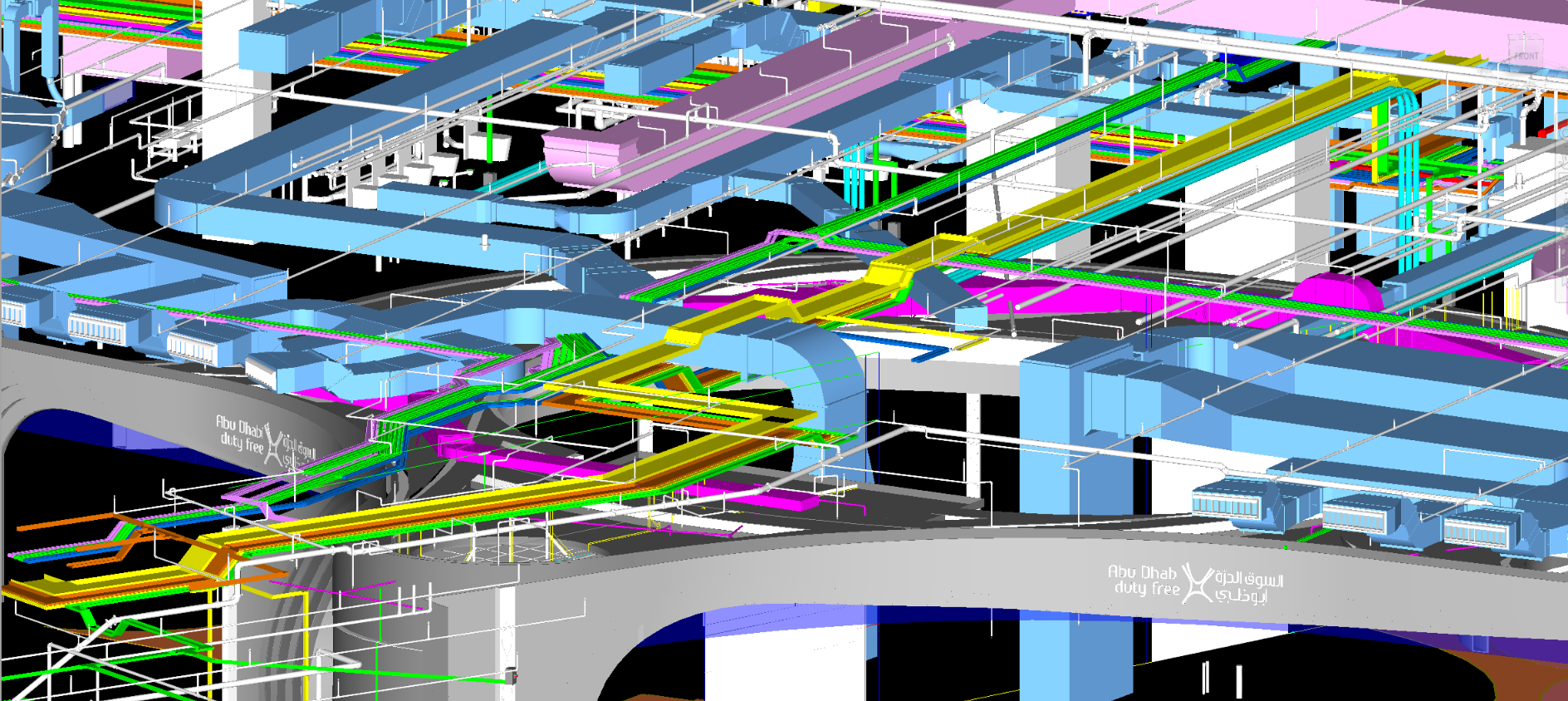

MTB specs
1.4 - modeling issues
mesh, surfaces, polysurfaces, NURBs
1.5 - import / export
3dm, DWG, rvt, skp, IFC, dgn...
gained experience

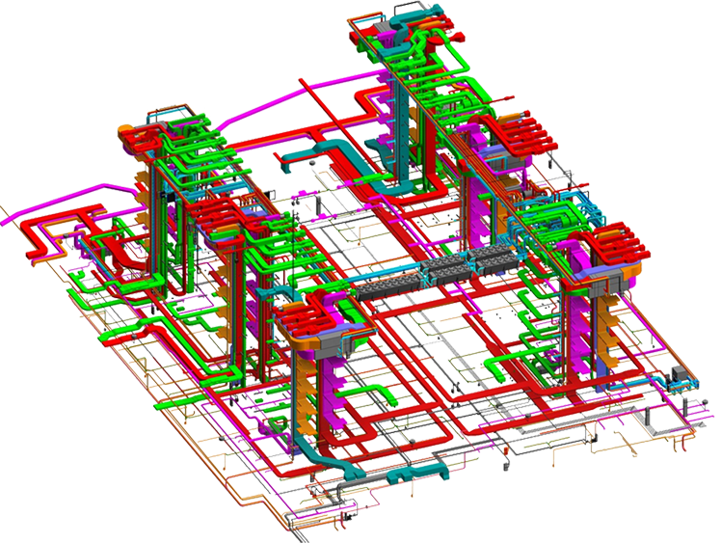

2 - coordinating
2.1 - stability
2.2 - computer's performance
i7, 32 GB, SSD
2.3 - slow and bureaucratic
gained experience
3 - data management
3.1 - system
3.2 - naming
3.3 - parameters
3.4 - information
3.5 - automation
gained experience
4 - agreements
project BIM specs?
PAS 1192-2:2013?
clarify LOD!
BEP!
documents
conclusions?
modeling, coordinations, data management, standards, people
...
BIM is expensive
tips
model health
one platform is not solution
without people you are nothing
be careful what you sign
free modeling
working with data
coordination
our experience
thank you
