“It is a trite but true observation, that examples work more forcibly on the mind than precepts”

Henry Fielding, The History of the adventures of
Joseph Andrews and his friend Mr Abraham Adams, 1742

Some of the problems

• Examples are repeated in multiple places
• Examples give little context of how they work in real TEI files

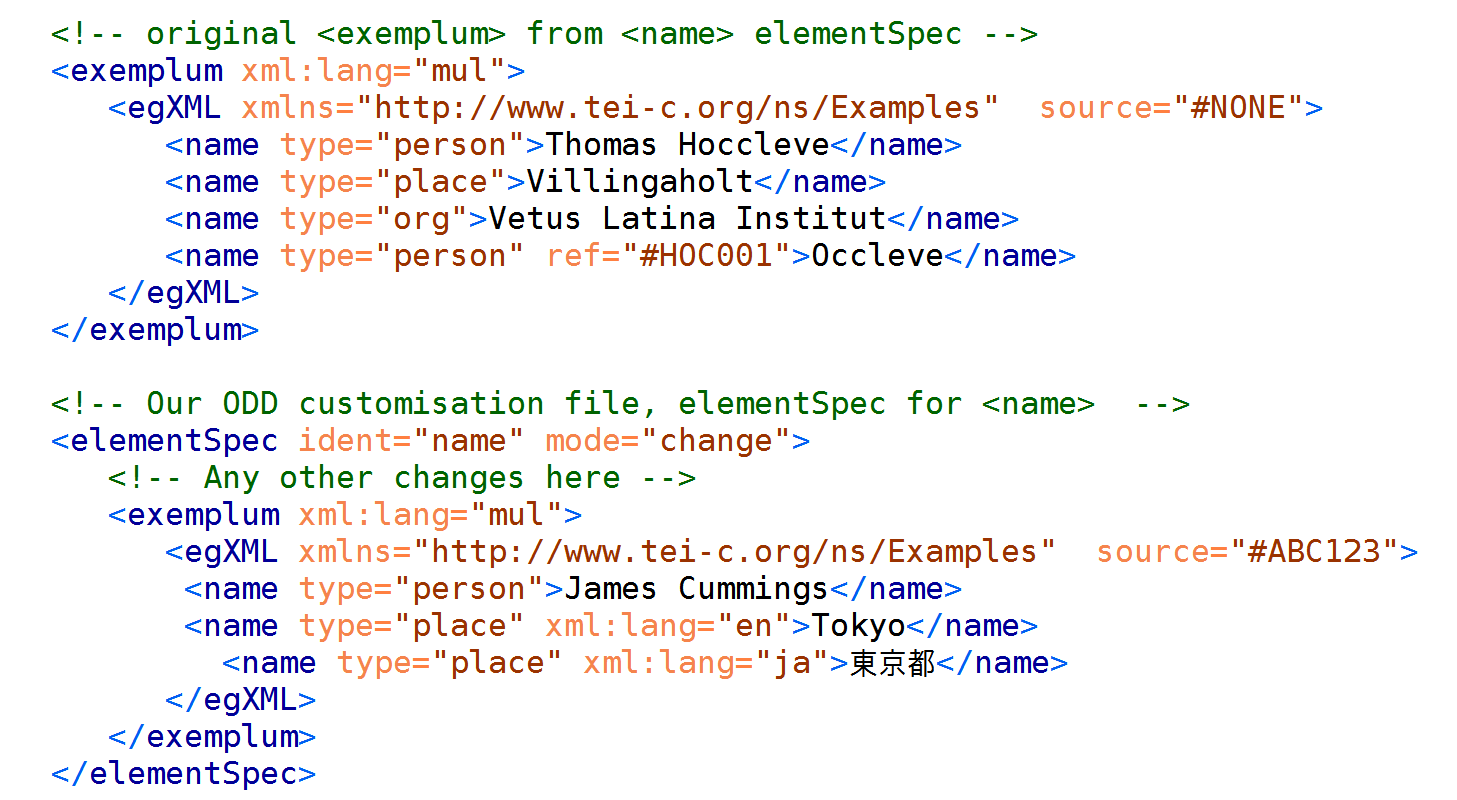

• Not enough examples in non-English languages
• Examples (especially on reference pages) do not reflect all multiple methods that TEI allows but simple methods easily conveyed in short example

My TEI2018 suggestion:

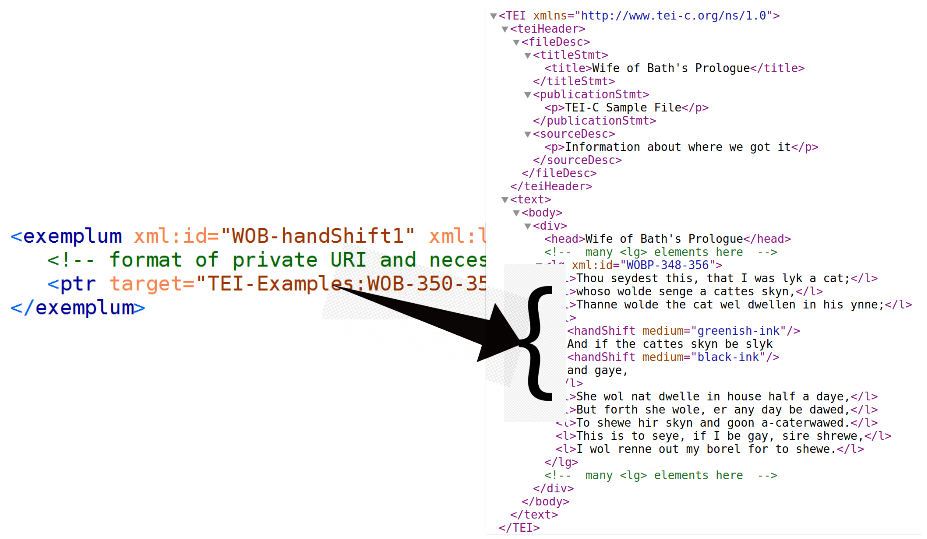

• external corpus of examples
• examples included by pointers

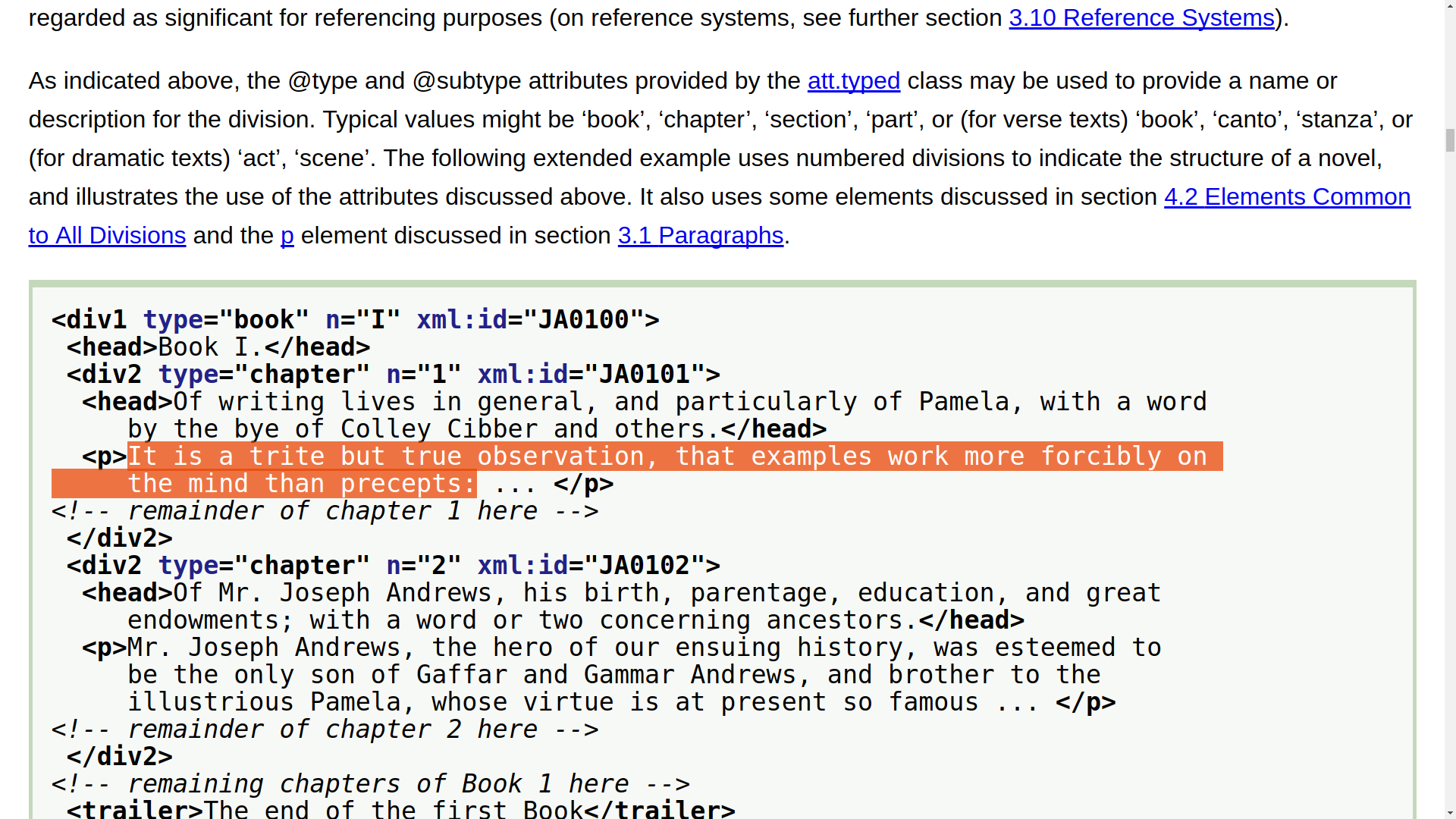

Highlighting -- The Problem

Highlighting XML Examples

• Whenever we encode examples of XML in a TEI document we should be using <egXML> (in the TEI Examples Namespace)
• There are existing print textbooks and manuals which have examples that are well-formed XML fragments
• These documents occasionally highlight parts of the XML example (for example print as bold a particular element under discussion, or highlight different bits in successive examples)
• Also those creating new training materials in a digital context want the ability to highlight various parts for pedagogical reasons

Pedagogical uses

• Worked examples: providing multiple instances of a single example where highlighting draws attention to particular aspects discussed in accompanying prose

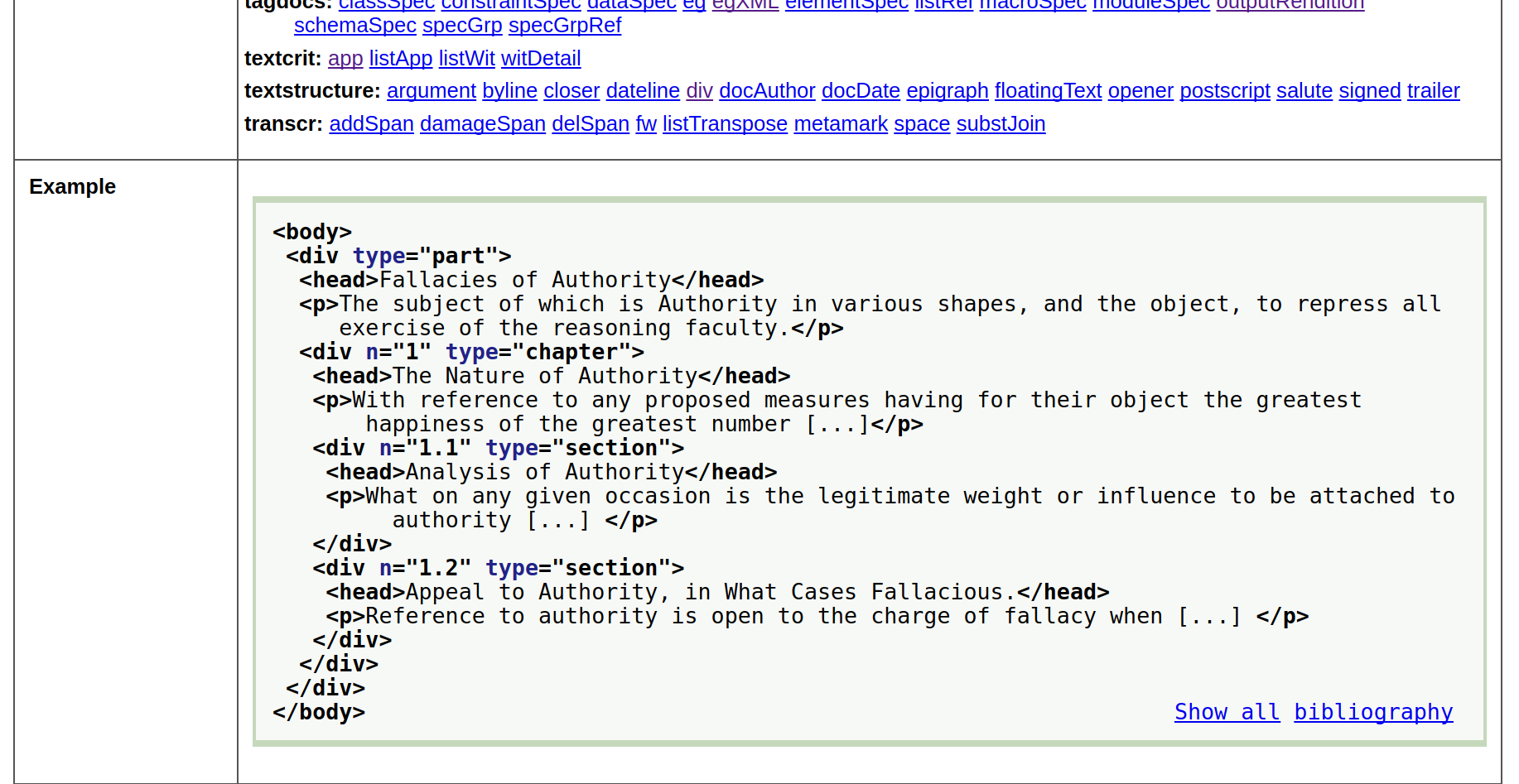

• Examples with context: this is what we do in the TEI Guidelines on the 'Show All' page from any element reference page's example -- we can give greater context that an element might appear within and highlight that specific element

Different Levels of Highlighting

If we accept that highlighting parts of existing or new XML examples is reasonable there are different potential levels:

• Highlight any arbitrary string range in the example
• Highlight one (or more) whole lines of an example
• Highlight a whole element (including attributes and content)
• Highlight any arbitrary XML part of the example (attributes, values, element name, just content, etc.)

Highlighting -- The Solutions?

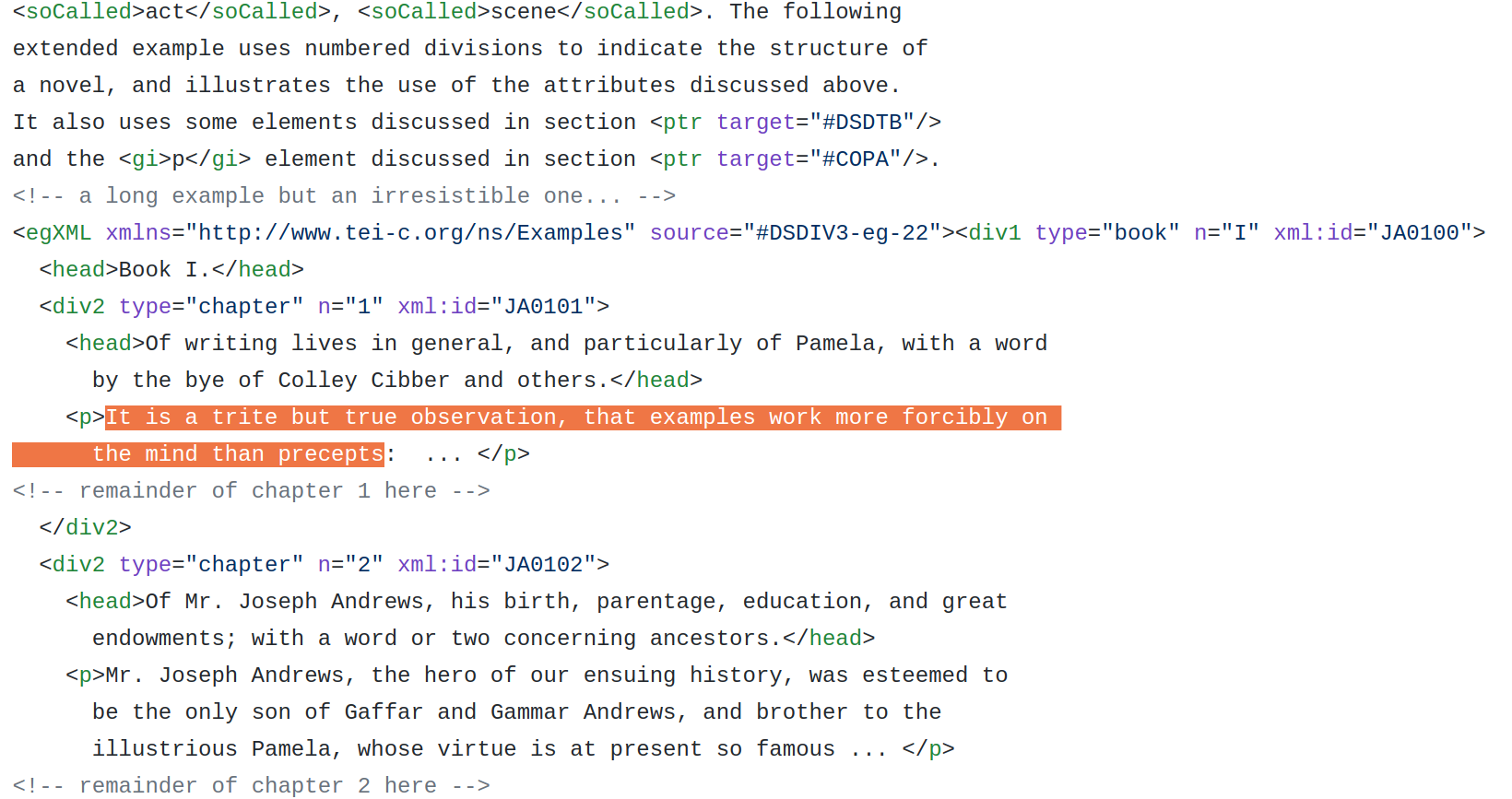

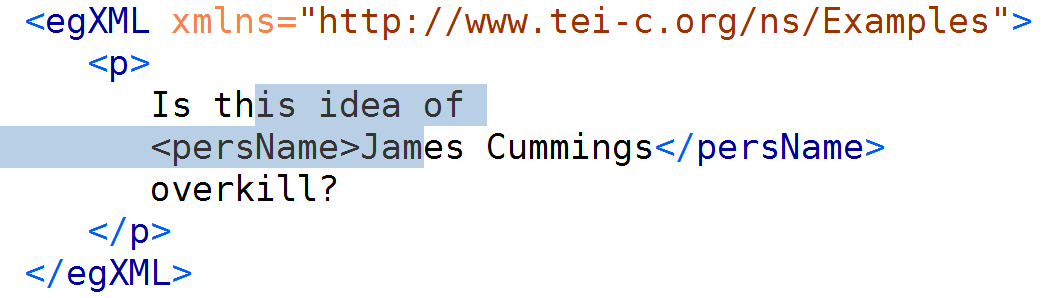

Highlight arbitrary string range

• This relies on byte offset coding, saying how many characters along the highlighting should start, and then end.
• An approach used by many projects (because other solutions don't exist)
• Also similar to the way docbook example callouts work in allowing line1 col1 line2 col2
• One could specify a string-range() to give positions
• Easy method, but:
  • fragile: string-ranges might change in different contexts, whitespace might be added/deleted
  • opaque: hard for encoders to know what character 300 to 356 contain, this makes it error prone

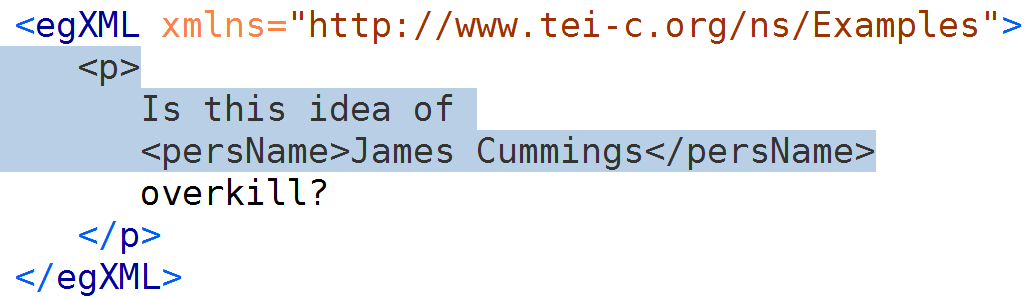

Highlight one (or more) lines

• This is what many online tools do in adding additional highlighting to syntax highlighting (e.g. slides.com)
• One could specify either a string-range() or line number, but basically the same as arbitrary strings, but:
  • still fragile in case of format changes
  • _slightly_ less opaque (to say 'line:30')

Highlight an element

• Common use case, it is often an entire element that people want to highlight
• Downside would be limitation if you just want to reference an attribute's value
• If implementing, it is likely as easy to enable any part of XML tree

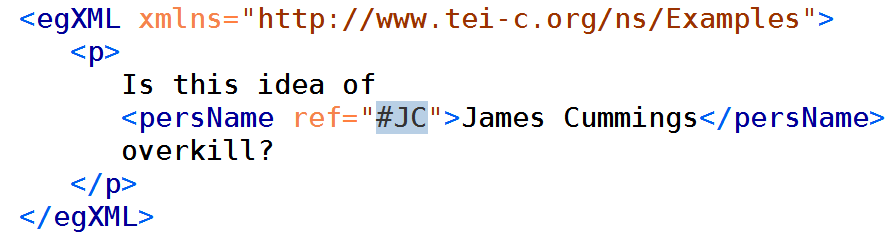

Highlight arbitrary part of XML tree

• This is probably suitable for most cases where there are examples of XML
• Parts of an XML tree that need to be addressable:
  • element(s) as a whole
  • element names
  • element content
  • Attributes as a whole
  • Attribute names
  • Attribute values
• If implementing, using XPath as the language to specify the highlighting address seems reasonable
• What is difficult in such as system is highlighting the characters that make up the XML language like <, =, ", etc.

Ideas on how to encode?

• Regardless of the solution, we need a way to say what form of formatting/highlighting is being applied
• The <rendition> element is a good possibility, a hypothetical string-range or a XPath methods are below:

Embedding elements

• Another approach would be to embed special namespaced elements and then use @rendition to point to a <rendition>
• However, this has a major limitation of not being able to highlight parts of the XML (unless you escape the XML entirely, which ruins the reasons for using an <egXML>)

Implementation worries

• Implementing the processing of such systems raises a number of issues
• I think a stand-off approach (either string-ranges or XPaths) is better than trying to embed any form of notation inside <egXML>. Embedding would probably require:
  • escaping the XML
  • thus losing the addressability of the XML (so again why use <egXML> then? ... because it is XML!)
• String-ranges would have to refer to the egXML as encoded, not any pretty-printed output -- this adds a level of difficulty when processing for display
• Evaluating XPath has challenges and limitations
  • e.g. you can't highlight from middle of an element name to middle of an attribute value... (but I'm really not sure why you'd want to)

Thinking generally about examples

• I think we need a way to highlight particular portions of XML examples
• If not, then TEI <egXML> is not suitable for XML examples of printed or digital works that already do this
• How we feel about this issue further expounds the theory of (digital) text we create as the TEI community
• However, there will always be cost vs benefit:
  • Is it worth doing this since implementation is difficult?
  • Is  it worth updating examples in the TEI Guidelines to 'work better on the mind'?
• It would give us a much more pedagogically flexible mechanism, but at a cost of implementation ... because of this I want to ensure I'm not overlooking a different approach before even considering implementation
