Directive definition object

app.directive('hugRank', function() {
  return {
      restrict: 'AE',
      replace: false,
      scope: {
          hugrankValue: '=hugrankValue'
      },
      controller: function(){
        $scope.hugrankPercentage = $scope.hugrankValue + '%';
      },
      link: function(scope, elem, attrs){
      },
      template: '<div class="hugrank-container">{{hugrankPercentage}}</div>'
  };
});


//Usage

<hug-rank hugrank-value="75"></hug-rank>

The directive definition object can contain, restrict, replace, scope, controller function, compile function, link function, template or templateUrl

restrict

app.directive('hugRank', function() {
  return {
      restrict: 'E' // element
  };
});

<hug-rank hugrank-value="75"></hug-rank>

app.directive('hugRank', function() {
  return {
      restrict: 'C' // class
  };
});

<div class="hug-rank" hugrank-value="75"></div>

app.directive('hugRank', function() {
  return {
      restrict: 'A' // attribute
  };
});

<div hugrank-value="75" hug-rank></div>

This defines how a directive should be used in HTML

It provides instructions to the compiler which directive type should be rendered


​Best practice is 'A' or 'E'

You can also combine types in your definition e.g.

restrict: 'AE'

scope types

scope: {}
// return a new isolated scope

scope: true
// use a child scope that inherits from parent

scope: {
    hugrankValue: '@hugrankValue'
}
// isolated scope - string or angular expression

scope: {
    hugrankValue: '=hugrankValue'
}
// isolated scope - bi-direction binding
// to an object

scope: {
    hugrankValue: '&hugrankValue'
}

Defaults to no definition - scope is inherited from parent.

If set to true, then a new child scope will be created for this directive. The directive doesn't automatically inherit scope from its parent resulting in more re-usable components and easier to test.

For us isolated scope is usually the best approach.

scope: {
    hugrankValue: '@hugrankValue'
}

<hug-rank hugrank-value="'75'">

// isolated scope - string or angular expression




scope: {
    hugrankValue: '&hugrankValue'
}

<hug-rank hugrank-value="updateHugrank(value);">

// isolated scope - binding to an expression







scope: {
    hugrankValue: '=hugrankValue'
}

<hug-rank hugrank-value="hugrank">
// isolated scope - bi-direction binding
// to an object

'@' or '@hugrankValue': Pass in string or angular expression from parent. One way communication between parent and child.

'&' or '&hugrankValue': Allows the directive's isolate scope to pass values into the parent scope for evaluation in an expression. In our example 'value' can be set in directive and passed to parent controller method.

'=' or '=hugrankValue' : Pass in data model from parent. Set up bi-directional binding between local scope property and the parent scope property. Changes in parent reflected in child and vice-versa.

controller vs link

scope: {
    hugrankValue: '='
},
controller: function($scope, $element, $attr){

    $scope.hugrank = $scope.hugrankValue;
    $scope.hugrankPercentage = $scope.hugrankValue + '%';

    $scope.alertHugrank = function(hugrank){
        console.log(hugrank);
    }

},
link: function(scope, element, attr){

    element.find('progress-bar').css('width', scope.hugrankPercentage)

},
template: '<div class="hugrank-container" title="hugrank" ng-click="alertHugrank(hugrank);">' +
          '<div class="progress-bar">{{hugrank}}</div>'+
          '</div>'

<hug-rank hugrank-value="hugrank"></hug-rank>

Contoller for business logic, link for DOM maniplation. Controller runs before compilation, link runs after.

controller vs link

Contollers are injectable, so you can call a method in a parent directive controller from the child directive. This is useful for nested directives.

Child directives link function compiles before its parent.

​In a lot of instances controller methods can be adapted to work in link function, as the link function has access to scope but link function is clearly in the realm of DOM manipulation and event listeners

link: function(scope, element, attr){
    var alertHugrank = function(){
        alert(scope.hugrankValue)
    }
    element.bind('click', alertHugrank);
}

controller: function($scope, $element, $attr){
    $scope.alertHugrank = function(hugrank){
        alert(hugrank);
    }
}

link: function(scope, element, attr){
    element.on('click', function(){
        scope.alertHugrank(scope.hugrank)
    });
},
controller: function($scope, $element, $attr){
    $scope.alertHugrank = function(hugrank){
        alert(hugrank);
    }
}

compile

The compile function is used to perform any DOM transformation before the link function runs. It accepts the following arguments:

tElement – The element on which the directive is applied.

attrs – The list of attributes declared on the element.

The compile function doesn't have access to scope, it can make DOM transformations on the template, it can also only return a link function.

app.directive('hugRank', function() {
  return {
    compile: function(tElem,attrs) {
      return function(scope,elem,attrs) {
        //linking function here
      };
    }
  };
});

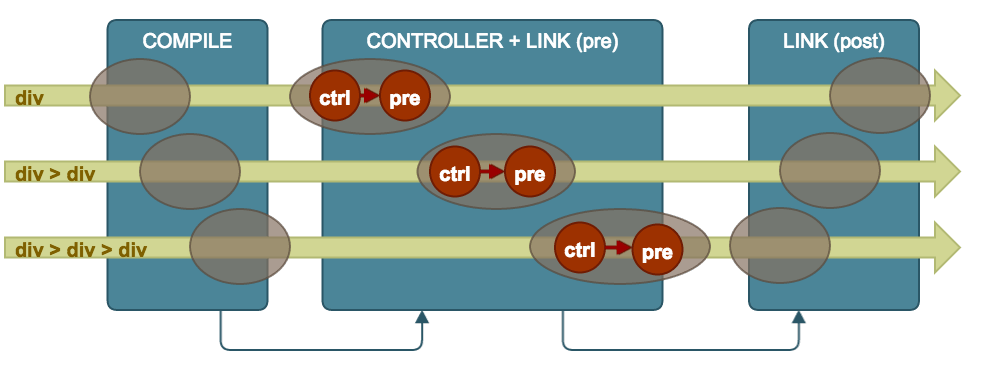

compile vs link

When the application bootstraps, Angular starts parsing the DOM using the $compile service.

Template loads with all the angular directives

Angular script loads, it looks for ng-app to find application boundaries

Compile phase - angular traverses the DOM to find registered directives and transform them - this only happens once when the directive is being registered.

Link phase  - this runs a link function which creates event listeners or carries out DOM manipulation - this happens for every instance of a directive

Why is this important?

If a directive needs to be cloned multiple times (e.g. ng-repeat), we get a performance benefit as the compile function runs once for the cloned template, but the link function runs for each cloned instance.

After the compile phase is over the linking phase starts. This is where the templates produced by the directives are evaluated against correct scope and are turned into DOM elements usually with events attached.

Other definitions

template

templateUrl

replace

transclude

Full code example

app.directive('hugRank', function() {
  return {
      restrict: 'E',
      replace: false,
      scope: {
          hugrankValue: '=hugrankValue'
      },
      controller: function($scope, $element, $attr){

        $scope.hugrank = $scope.hugrankValue;
        $scope.hugrankPercentage = $scope.hugrankValue + '%';

        $scope.alertHugrank = function(hugrank){
            console.log(hugrank);
        }

      },
      link: function(scope, element, attr){

        element.find('.progress-bar').css('width', scope.hugrankPercentage)

      },
      template: '<div class="hugrank-container" title="hugrank" ng-click="alertHugrank(hugrank);">' +
                '<div class="progress-bar">{{hugrank}}</div>'+
                '</div>'
    }

  }
});

<hug-rank hugrank-value="hugrank"></hug-rank>
