Houdini

CSS

2023

CSS

.CSS { }

.CSS { }

CSS Houdini

.CSS-Houdini { }

The objective of the CSS-TAG Houdini Task Force (CSS Houdini) is to jointly develop features that explain the “magic” of Styling and Layout on the web. - CSS Houdini

.CSS-Houdini { }

.CSS-Houdini { }

Hight-level APIs

Low-level APIs

Extends CSS

Worklets

    .Extends-CSS { }

Worklet connects to the browser engine

Is a Javascript Module

Without control over execution

It has no impact on performance

    .Extends-CSS { }

    .Extends-CSS { }

if ('paintWorklet' in CSS) {
    CSS.paintWorklet.addModule('PlaceholderBoxPainter.js');
}
class PlaceholderBoxPainter {
    paint(ctx, size) {
        // Magic 🎩
    }
}

registerPaint('placeholder-box', PlaceholderBoxPainter);

worklet

js

    .Extends-CSS { }

Paint API

    .Extends-CSS { }

if ('paintWorklet' in CSS) {
    CSS.paintWorklet.addModule('PlaceholderBoxPainter.js');
}
@supports (background: paint(slanted-bg)) {
  .el span {
    background: paint(slanted-bg);
  }
}

css

js

    .Extends-CSS { }

class SlantedBg {
  constructor () {
    this.hue = 110;
  }
  paint (ctx, geom, props, args) {
    // draw random colors
    ctx.fillStyle = 'hsl(' + this.hue + ', 100%, 50%)';
    this.hue += 10;

    ...
  }
}

registerPaint('slanted-bg', SlantedBg)

worklet

    .Extends-CSS { }

Canvas

Houdini

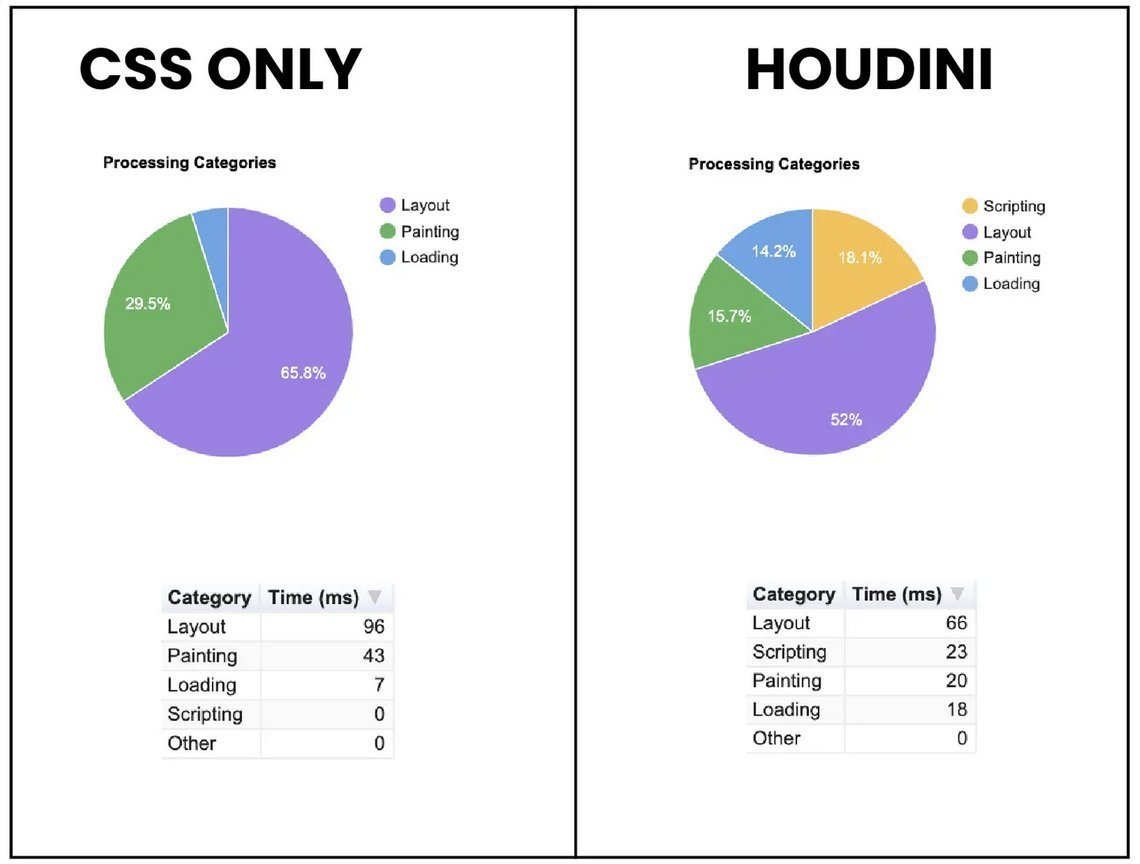

    .CssPerf { }

Properties & Values API

    .Extends-CSS { }

    .Extends-CSS .Properties-Values-API { }

CSS.registerProperty({
  name: '--color-stop',
  syntax: '<color>',
  inherits: false,
  initialValue: 'transparent'
})

js

@property --color-stop {
  syntax: '<color>';
  inherits: false;
  initial-value: transparent;
}

css

    .Extends-CSS .Properties-Values-API { }

.element {
  --color-stop: deeppink;
  background: linear-gradient(white, var(--color-stop))
  transition: --color-stop 1s;
}

.element:hover {
  --color-stop: deepskyblue;
}

css

@property --theme {
  syntax: '<color>+';
  initial-value: #fff;
  inherits: true;
}
if ("registerProperty" in CSS) {
  CSS.registerProperty({
    name: "--theme",
    syntax: "<color>+",
    initialValue: "#fff",
    inherits: true
  });
}

input

output

    .Extends-CSS .Properties-Values-API { }

Typed OM API

    .Extends-CSS { }

el.style.opacity = 0.5;
window.getComputedStyle(el).opacity === "0.5" // Strings!

CSSOM

el.attributeStyleMap.set('opacity', 0.5);

el.computedStyleMap().get('opacity')// CSSUnitValue {value: 0.5, unit: "number"}
el.computedStyleMap().get('opacity').value // 0.5

Typed OM

    .Extends-CSS .Typed-OM-API { }

calc(1px - 2 * 3em)


new CSSMathSum(
  CSS.px(1),
  new CSSMathNegate(
    new CSSMathProduct(2, CSS.em(3))
  )
);

Nested expressions

    .Extends-CSS .Typed-OM-API { }

Animation Worklet

    .Extends-CSS { }

    .Extends-CSS Animation-Worlet { }

Layout API

    .Extends-CSS { }

Image by @Una

    .Extends-CSS Layout API { }

    .Extends-CSS Layout API { }

    .Using-Houdini { }

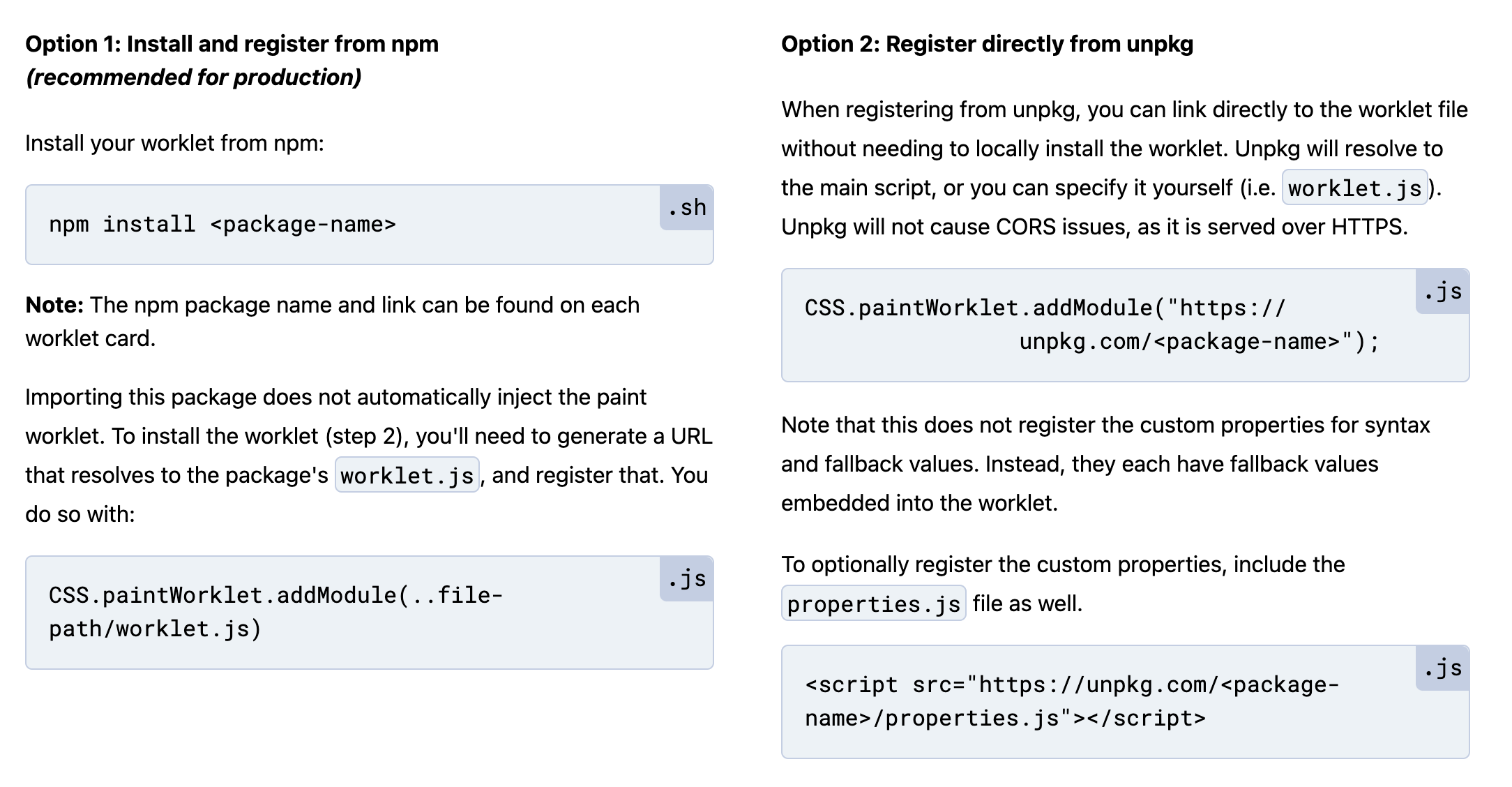

1. INSTALL AND 2. ADD

    .Using-Houdini { }

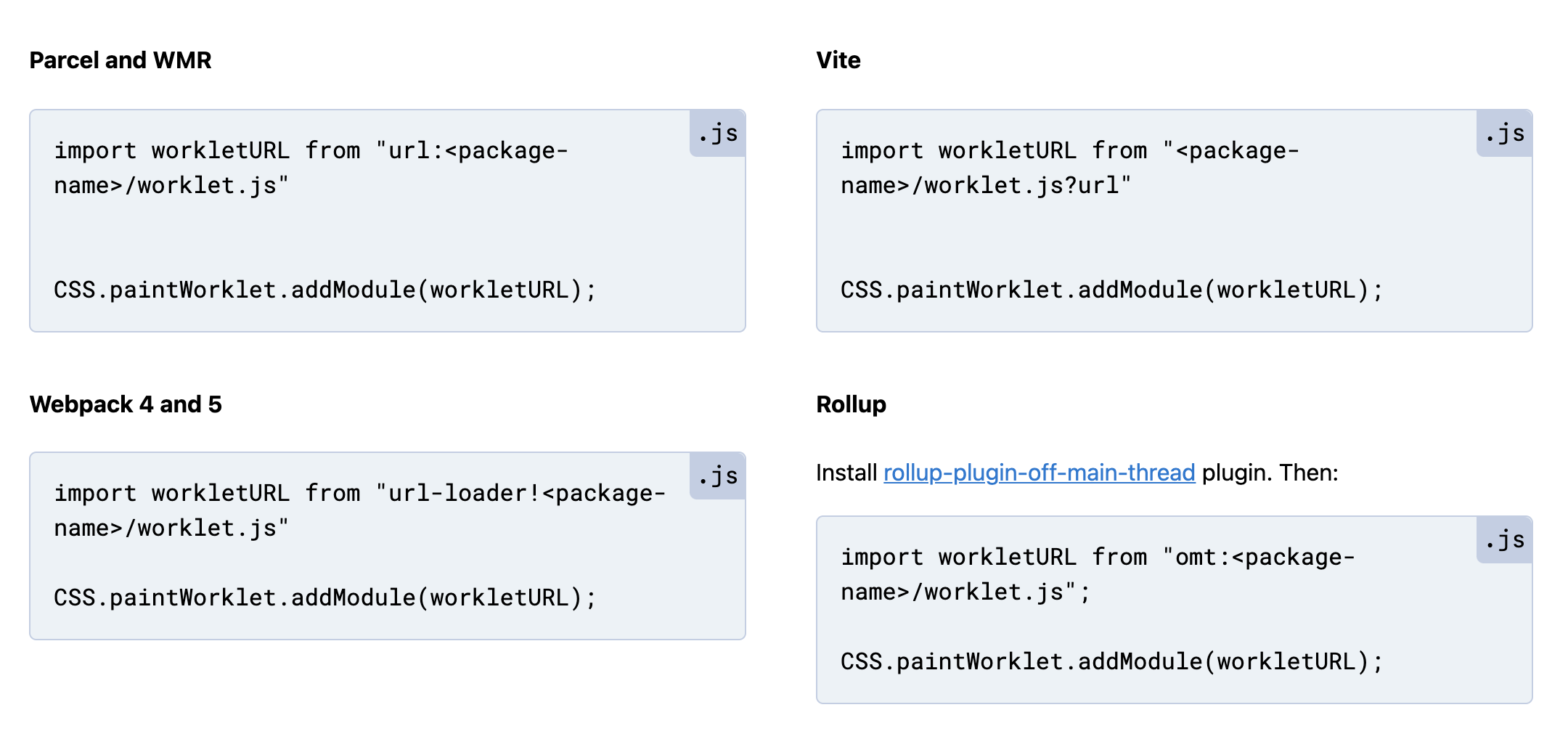

Installation in Bundlers

    .Using-Houdini { }

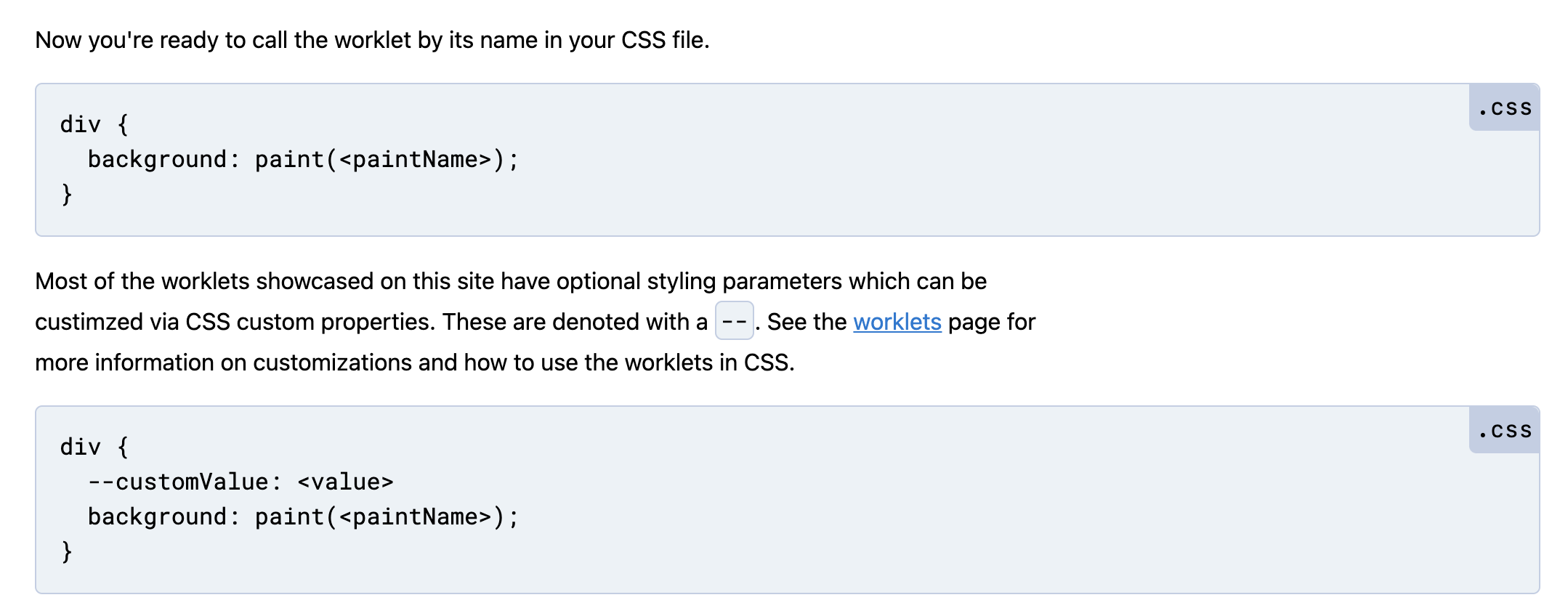

3. USE IN CSS

    .Using-Houdini { }

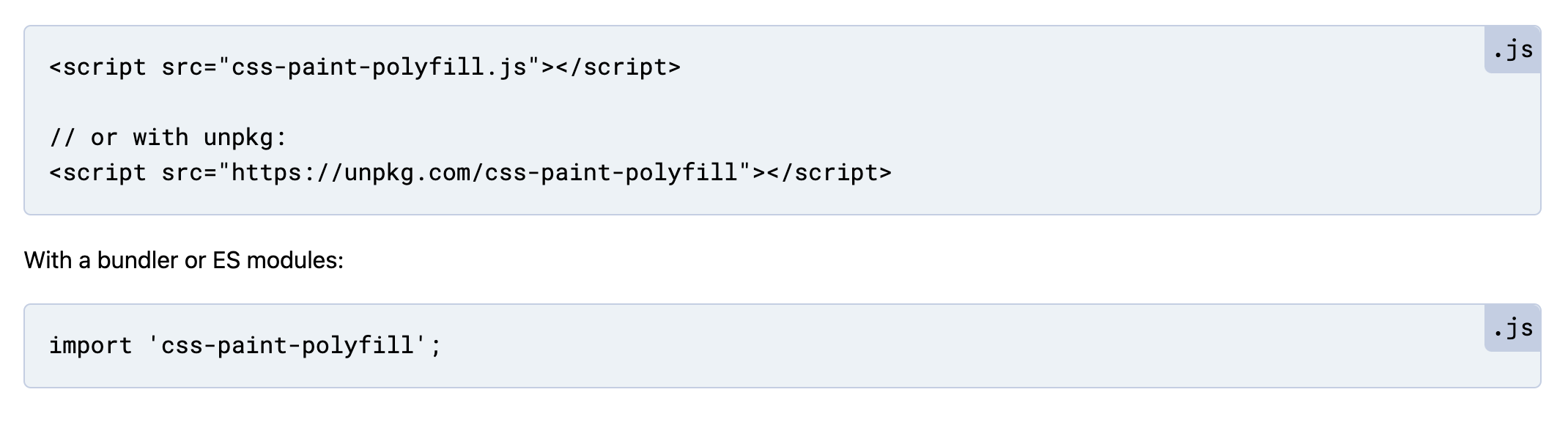

4. POLYFILL YOUR SITE

Demo or it didn't happen

    .Extends-CSS { }

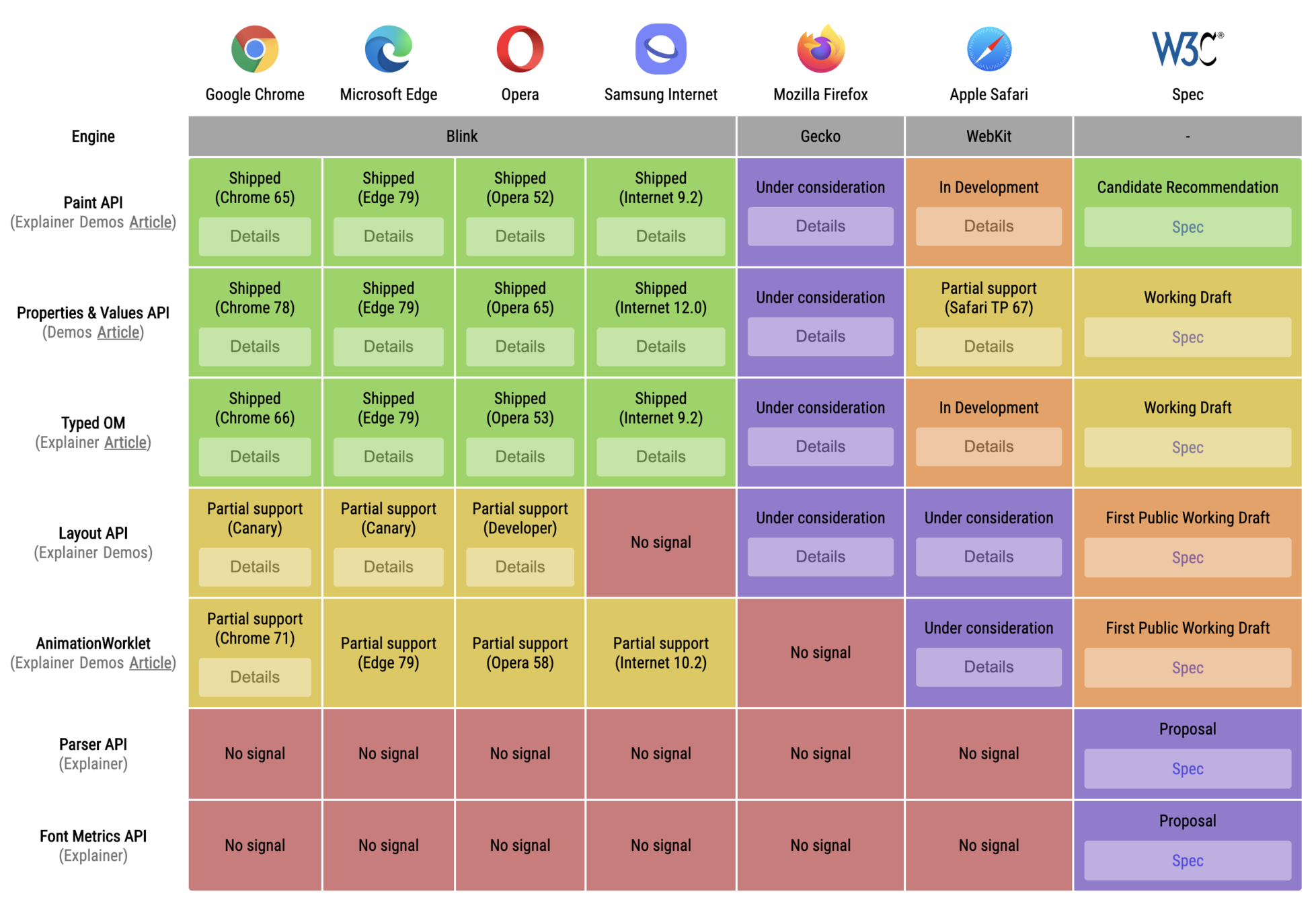

Support

Conclusions

    .Conclusions { }

Polyfills

This is not for me

Houdini is NOT like a Babel for CSS

Free will

    .Conclusions { }

Custom styling of complex UI components

Custom Animation and motion design

Custom themes and brand

Custom layout and grid system

Use Cases for CSS Houdini

Resources

    .Resources { }

⭐️ are welcome 😊

¿?

CSS Houdini Training 2023

By Joan León

CSS Houdini Training 2023
