Johannes Köster

https://koesterlab.github.io

The road to reproducibility

-

Snakemake in 2017

dataset

results

Data analysis

"Let me do that by hand..."

dataset

results

dataset

dataset

dataset

dataset

dataset

"Let me do that by hand..."

Data analysis

dataset

results

dataset

dataset

dataset

dataset

dataset

From raw data to final figures:

• document parameters, tools, versions
• execute without manual intervention

Reproducible data analysis

dataset

results

dataset

dataset

dataset

dataset

dataset

scalability

Handle parallelization:

• execute for tens to thousands of datasets
• efficiently use any computing platform

Reproducible data analysis

dataset

results

dataset

dataset

dataset

dataset

dataset

Handle deployment:

be able to easily execute analyses on a different machine

scalability

Reproducible data analysis

dataset

results

dataset

dataset

dataset

dataset

dataset

scalability

dataset

results

dataset

dataset

dataset

dataset

dataset

Define workflows

in terms of rules

Define workflows

in terms of rules

rule mytask:
    input:
        "path/to/{dataset}.txt"
    output:
        "result/{dataset}.txt"
    script:
        "scripts/myscript.R"


rule myfiltration:
     input:
        "result/{dataset}.txt"
     output:
        "result/{dataset}.filtered.txt"
     shell:
        "mycommand {input} > {output}"


rule aggregate:
    input:
        "results/dataset1.filtered.txt",
        "results/dataset2.filtered.txt"
    output:
        "plots/myplot.pdf"
    script:
        "scripts/myplot.R"

Define workflows

in terms of rules

rule mytask:
    input:
        "path/to/{dataset}.txt"
    output:
        "result/{dataset}.txt"
    script:
        "scripts/myscript.R"


rule myfiltration:
     input:
        "result/{dataset}.txt"
     output:
        "result/{dataset}.filtered.txt"
     shell:
        "mycommand {input} > {output}"


rule aggregate:
    input:
        "results/dataset1.filtered.txt",
        "results/dataset2.filtered.txt"
    output:
        "plots/myplot.pdf"
    script:
        "scripts/myplot.R"

Define workflows

in terms of rules

Define workflows

in terms of rules

rule mytask:
    input:
        "data/{sample}.txt"
    output:
        "result/{sample}.txt"
    shell:
        "some-tool {input} > {output}"

rule name

how to create output from input

The script directive

rule mytask:
    input:
        "data/{sample}.txt"
    output:
        "result/{sample}.txt"
    script:
        "scripts/myscript.py"

import pandas as pd

# read table
table = pd.read_table(snakemake.input[0])
# sort values
table.sort_values("somecol", inplace=True)

# write output
table.to_csv(snakemake.output.somename, sep="\t")

how to create output from input

# read table
table <- read.table(snakemake@input[[1]])

# sort values
table <- table[order(table$somecol), ]

# write table
write.table(table, file = snakemake@output[["somename"]])

how to create output from input

rule mytask:
    input:
        "data/{sample}.txt"
    output:
        "result/{sample}.txt"
    script:
        "scripts/myscript.R"

The script directive

from snakemake.remote import S3


s3 = S3.RemoteProvider()


rule mytask:
    input:
        s3.remote("data/{sample}.txt")
    output:
        "result/{sample}.txt"
    script:
        "scripts/myscript.R"

Remote files

Remote files

• Amazon S3
• google storage
• (S)FTP
• HTTP(S)
• Dropbox
• WebDav
• XRootD
• GridFTP
• GFAL
• NCBI

Mirror entire I/O to remote

snakemake --default-remote-provider GS --default-remote-prefix mybucket

dataset

results

dataset

dataset

dataset

dataset

dataset

scalability

Scheduling

Paradigm:

Workflow definition shall be independent of computing platform and available resources

Rules:

define resource usage (threads, memory, ...)

Scheduler:

• solves multidimensional knapsack problem
• schedules independent jobs in parallel
• passes resource requirements to any backend

Scalable to any platform

workstation

compute server

cluster

grid computing

cloud computing

Command-line interface

# execute workflow locally with 16 CPU cores
snakemake --cores 16


# execute on cluster
snakemake --cluster qsub --jobs 100


# execute in the cloud
snakemake --kubernetes --jobs 1000 --default-remote-provider GS --default-remote-prefix mybucket

Configuration profiles

snakemake --profile slurm --jobs 1000

$HOME/.config/snakemake/slurm
├── config.yaml
├── slurm-jobscript.sh
├── slurm-status.py
└── slurm-submit.py

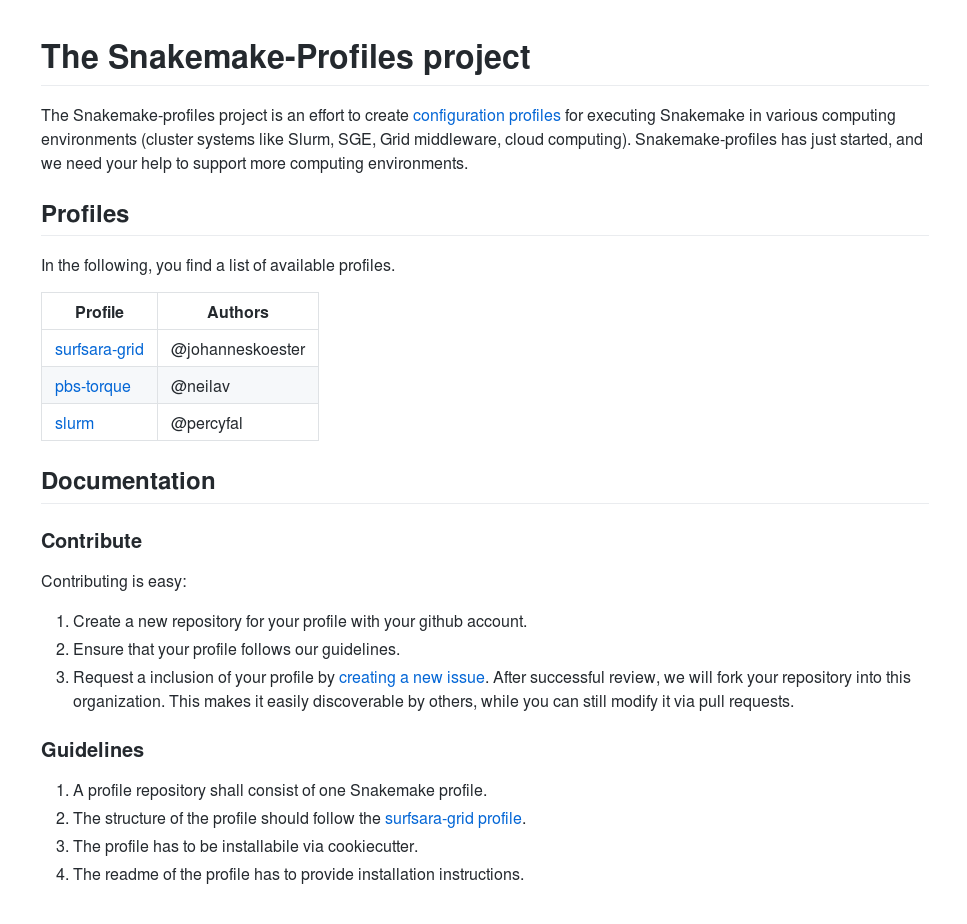

Configuration profiles

https://github.com/snakemake-profiles/doc

dataset

results

dataset

dataset

dataset

dataset

dataset

Full reproducibility:

install required software and all dependencies in exact versions

scalability

Software installation is a pain

source("https://bioconductor.org/biocLite.R")
biocLite("DESeq2")

easy_install snakemake

./configure --prefix=/usr/local
make
make install

cp lib/amd64/jli/*.so lib
cp lib/amd64/*.so lib
cp * $PREFIX

cpan -i bioperl

cmake ../../my_project \
    -DCMAKE_MODULE_PATH=~/devel/seqan/util/cmake \
    -DSEQAN_INCLUDE_PATH=~/devel/seqan/include
make
make install

apt-get install bwa

yum install python-h5py

install.packages("matrixpls")

Package management with

package:
  name: seqtk
  version: 1.2

source:
  fn: v1.2.tar.gz
  url: https://github.com/lh3/seqtk/archive/v1.2.tar.gz

requirements:
  build:
    - gcc
    - zlib
  run:
    - zlib

about:
  home: https://github.com/lh3/seqtk
  license: MIT License
  summary: Seqtk is a fast and lightweight tool for processing sequences

test:
  commands:
    - seqtk seq

Idea:

Normalization installation via recipes

#!/bin/bash

export C_INCLUDE_PATH=${PREFIX}/include
export LIBRARY_PATH=${PREFIX}/lib

make all
mkdir -p $PREFIX/bin
cp seqtk $PREFIX/bin

• source or binary
• recipe and build script

• package

Easy installation and management:

no admin rights needed

conda install pandas

conda update pandas

conda remove pandas

conda env create -f myenv.yaml -n myenv

Isolated environments:

channels:
  - conda-forge
  - defaults
dependencies:
  - pandas ==0.20.3
  - statsmodels ==0.8.0
  - r-dplyr ==0.7.0
  - r-base ==3.4.1
  - python ==3.6.0

Package management with

rule mytask:
    input:
        "path/to/{dataset}.txt"
    output:
        "result/{dataset}.txt"
    conda:
        "envs/mycommand.yaml"
    shell:
        "mycommand {input} > {output}"

Integration with Snakemake

channels:
  - conda-forge
  - defaults
dependencies:
  - mycommand ==2.3.1

Over 3000 bioinformatics related packages

Over 200 contributors

Singularity

rule mytask:
    input:
        "path/to/{dataset}.txt"
    output:
        "result/{dataset}.txt"
    singularity:
        "docker://biocontainers/mycommand"
    shell:
        "mycommand {input} > {output}"

Coming soon:

Singularity + Conda

rule mytask:
    input:
        "path/to/{dataset}.txt"
    output:
        "result/{dataset}.txt"
    singularity:
        "docker://ubuntu:16.04"
    conda:
        "envs/mycommand.yaml"
    shell:
        "mycommand {input} > {output}"

Snakemake Wrappers

rule star:
    input:
        sample=["reads/{sample}.1.fastq", "reads/{sample}.2.fastq"]
    output:
        "star/{sample}/Aligned.out.bam"
    log:
        "logs/star/{sample}.log"
    params:
        # path to STAR reference genome index
        index="index",
        # optional parameters
        extra=""
    threads: 8
    wrapper:
        "0.19.3/bio/star/align"

• deploy software via Conda
• obtain script from git repository

Snakemake Wrappers

import os
from snakemake.shell import shell

extra = snakemake.params.get("extra", "")
log = snakemake.log_fmt_shell(stdout=True, stderr=True)

n = len(snakemake.input.sample)
assert n == 1 or n == 2, "input->sample must have 1 (single-end) or 2 (paired-end) elements."

if snakemake.input.sample[0].endswith(".gz"):
    readcmd = "--readFilesCommand zcat"
else:
    readcmd = ""


outprefix = os.path.dirname(snakemake.output[0]) + "/"


shell(
    "STAR "
    "{snakemake.params.extra} "
    "--runThreadN {snakemake.threads} "
    "--genomeDir {snakemake.params.index} "
    "--readFilesIn {snakemake.input.sample} "
    "{readcmd} "
    "--outSAMtype BAM Unsorted "
    "--outFileNamePrefix {outprefix} "
    "--outStd Log "
    "{log}")

Snakemake Wrappers

https://snakemake-wrappers.readthedocs.io

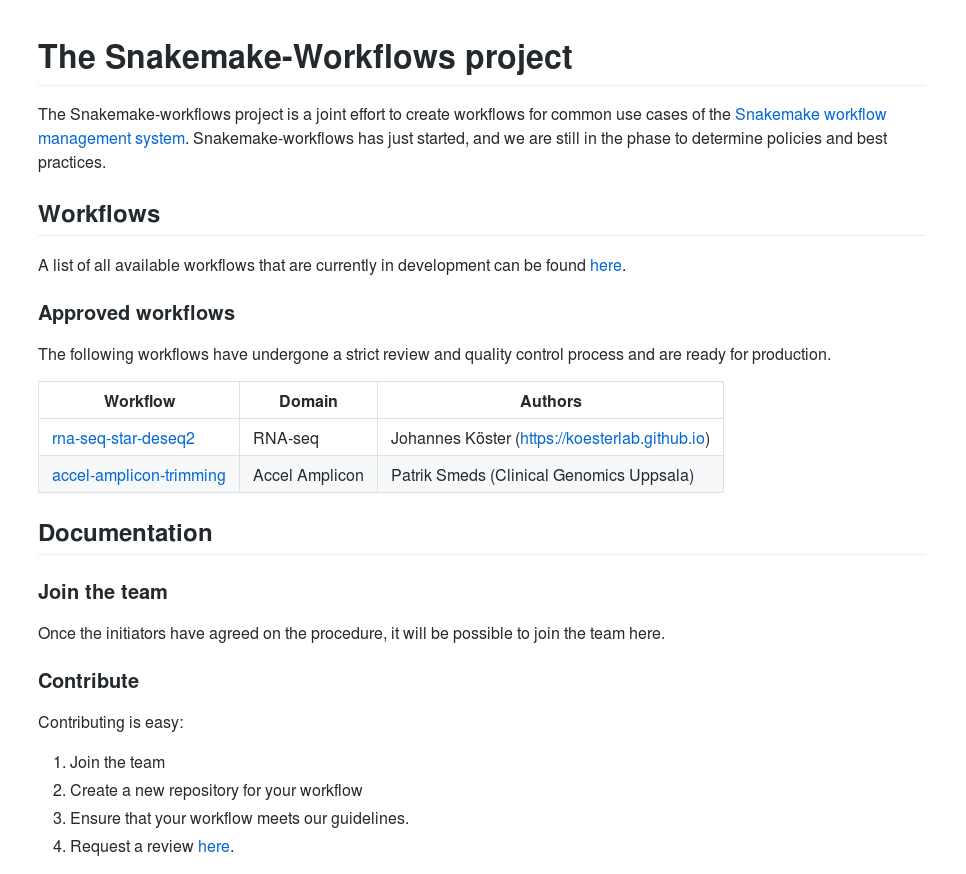

Snakemake Workflows

https://github.com/snakemake-workflows/docs

Sustainable publishing

Goal:

• persistently store reproducible data analysis
• ensure it is always accessible

Minimize dependencies:

• third-party resources
• proprietary formats

Solution:

• store everything (including packages) in an archive
• upload to persistent storage like https://zenodo.org
• obtain document object identifier (DOI)

Sustainable publishing

# archive workflow (including Conda packages)
snakemake --archive myworkflow.tar.gz

Author:

1.
2. Upload to Zenodo and acquire DOI.
3. Cite DOI in paper.

Reader:

1. Download and unpack workflow archive from DOI.
2.

# execute workflow (Conda packages are deployed automatically)
snakemake --use-conda --cores 16

Conclusion

• Fully reproducible data analyses have to consider three dimensions.
• In the last months, Snakemake has seen improvements in all three dimensions of reproducibility.
• The result is an almost complete and future-proof solution to one of the major scientific challenges of today.

scalability
