Taller de mapeo en OpenStreetMap

Haciendo el mapa de todos

¿Qué es OpenStreetMap?

  • Es un proyecto colaborativo destinado la la creación de una base de datos geográficos libre.
  • Es un mapa? Es un juego? una aplicación? No exactamente.

¿Cómo y cuándo se funda?​

  • En julio de 2004 el inglés Steve Coast funda OpenStreetMap, en respuesta a los altos precios que cobraba la agencia cartográfica de Inglaterra por su información geográfica.

Impulsado por la comunidad

  • La comunidad de OpenStreetMap es diversa, apasionada y crece día a día.
  • SotM LatAm Buenos Aires 2018
  • SotM Milán 2018
  • Mapatones & Fiestas de mapeo

Eventos y reuniones

Comparación con los principales
mapas comerciales

Comparación con los principales
mapas comerciales

Comparación con los principales
mapas comerciales

Casos de uso exitoso

Comenzar a Mapear

Aprende a mapear
http://learnosm.org/es/

Crea un usuario
https://osm.org/user/new

Lee las reglas mundiales y argentinas
https://wiki.openstreetmap.org/wiki/WikiProject_Argentina

Editores PC

iD2

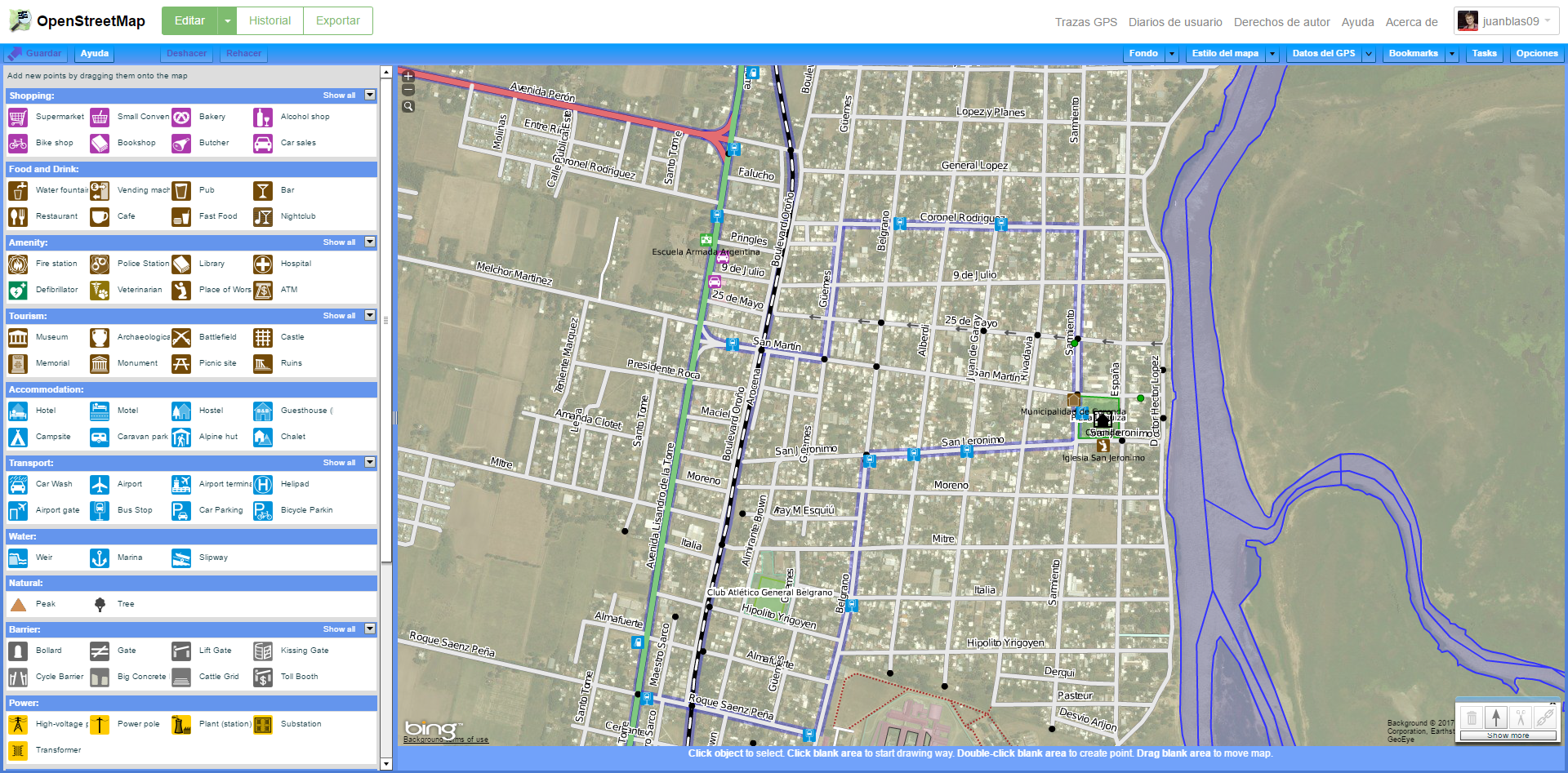

Potlach 2

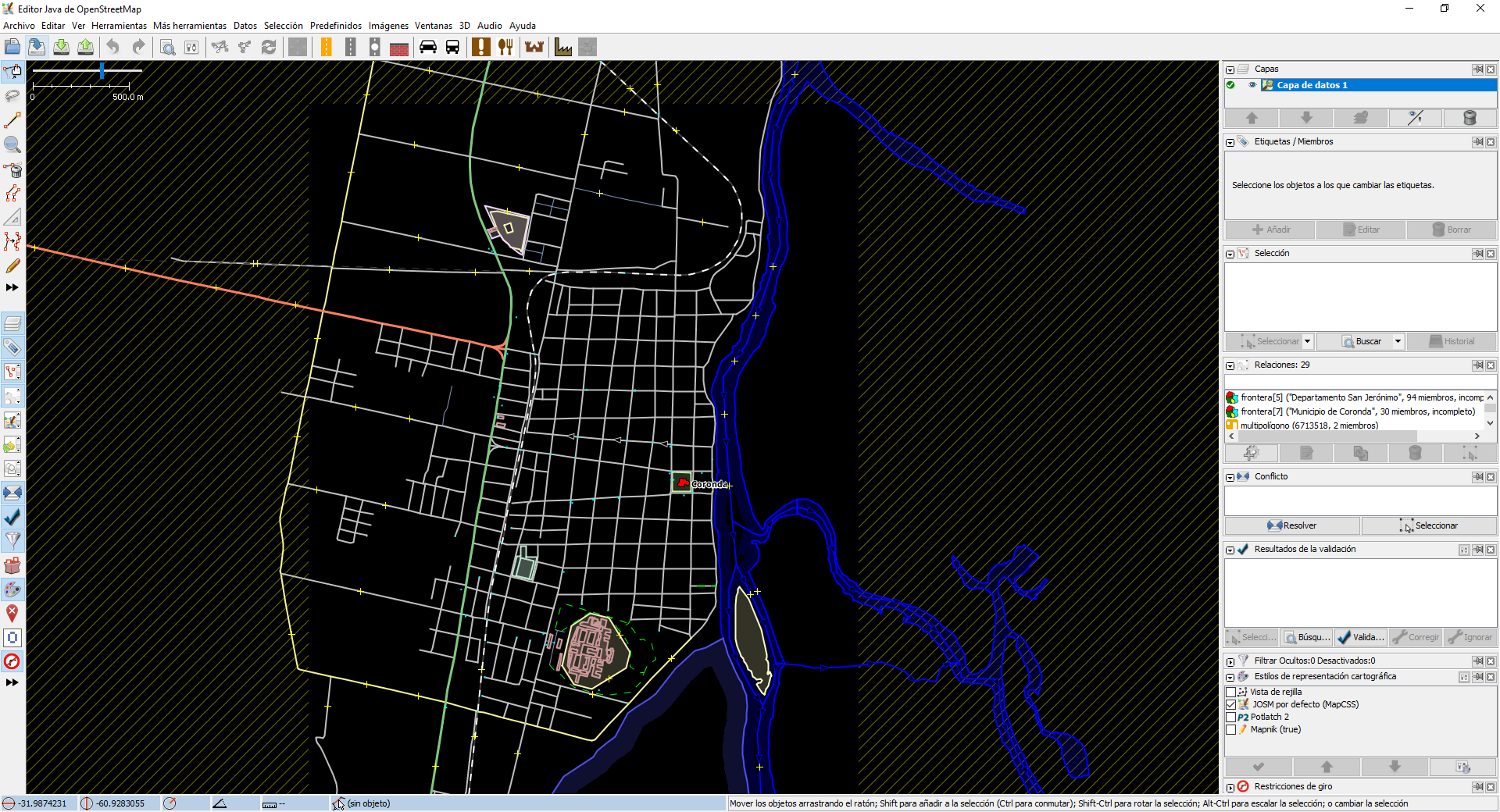

JOSM

Editores Android

Vespucci

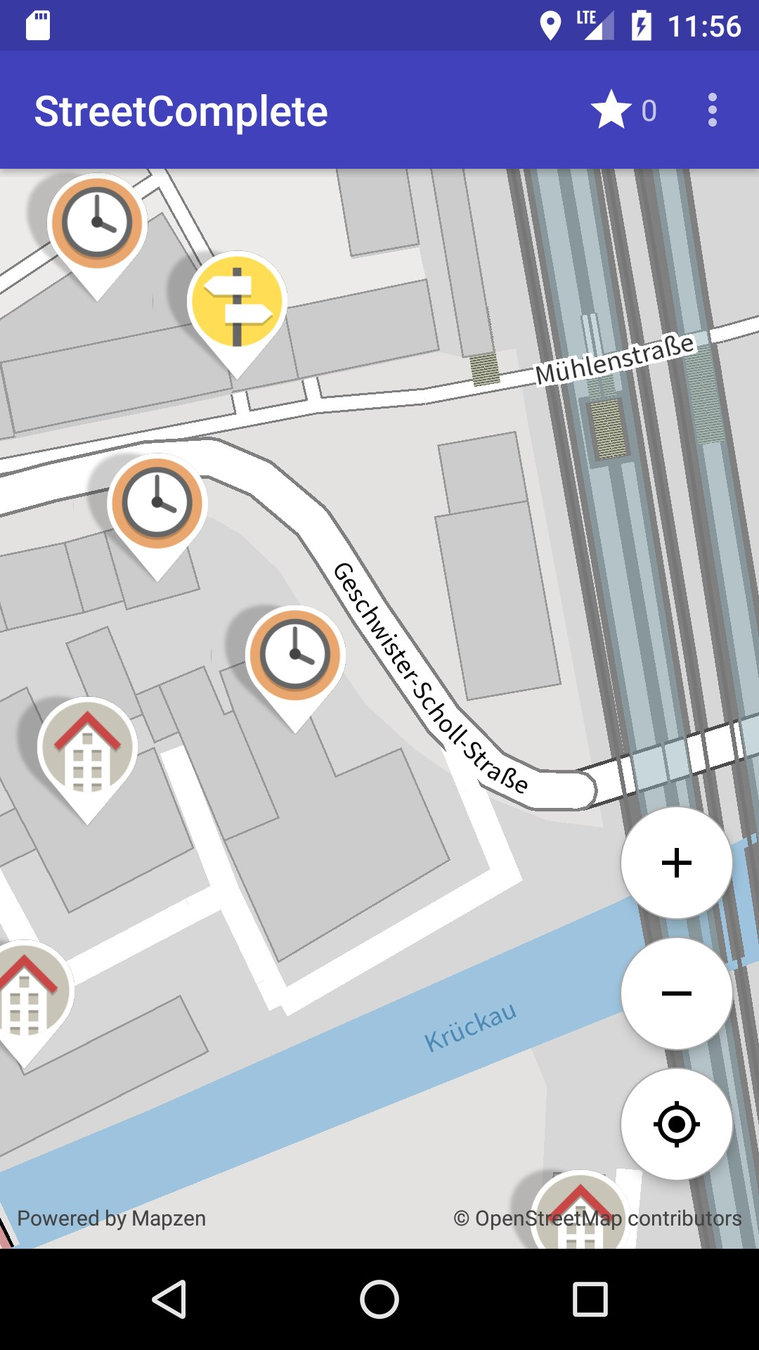

StreetComplete

OSM Contributor

Otras Apps

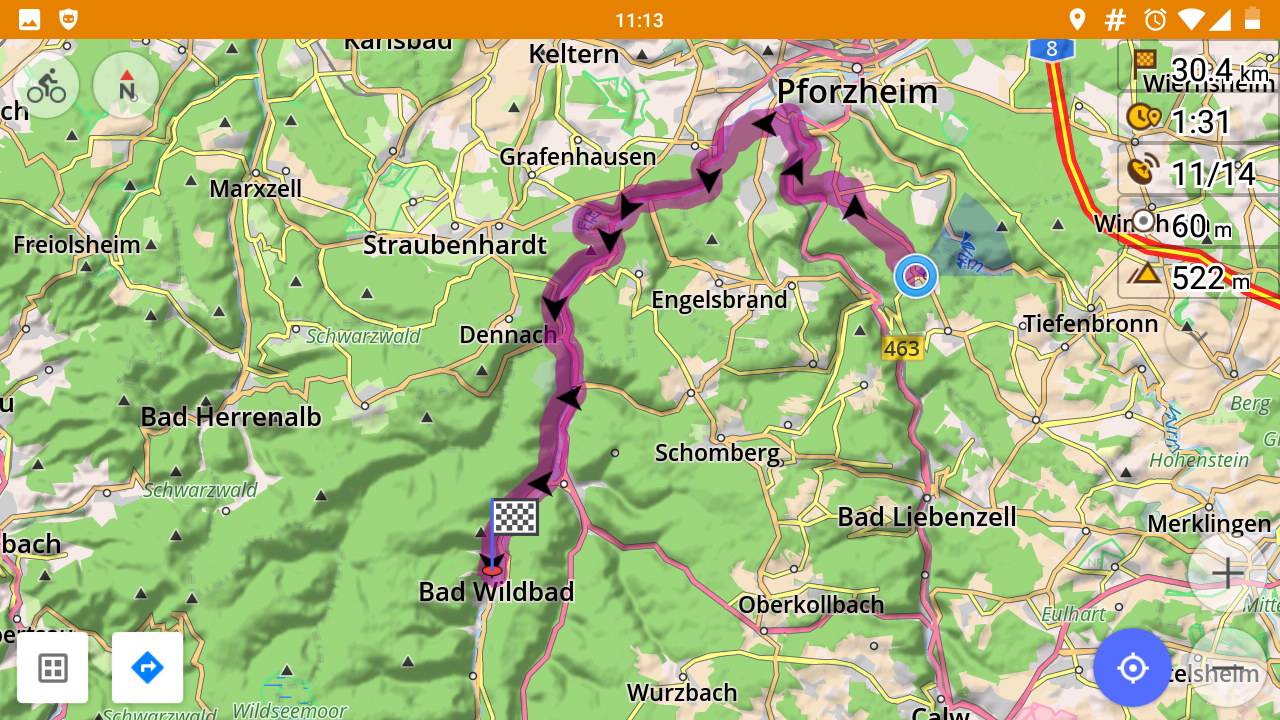

OsmAnd

Maps.me

MapFactor

OSM Tracker

Otras herramientas

Para la visualización, exportación, validado y filtrado de datos

uMap

Sitio que nos permite confeccionar mapas personalizados (públicos o privados) usando OpenStreetMap como base, es decir, no modificamos la base de datos de OSM

Overpass Turbo

Sitio para extraer información de la base de datos filtrándola segun elemento, tipo de elemento y lugar geográfico para visualizarla y/o exportarla a distintos formatos

f4map

Web que utiliza información de OSM para crear un mapa en 3D (al igual que OSM Buildings)

Field Papers

Sitio que nos permite crear un "atlas" imprimible el cual podremos dibujar para luego usar como base para editar

Mapillary

Fotos a nivel de calle que nos ayudan donde la imagen satelital no es buena o está cubierta por los árboles. Se puede usar en múltiples editores (alternativa: OpenStreetCam)

OSMArgentina

Portal web con mapas vectoriales personalizados de la comunidad Argentina

Organizaciones

para coordinar actividades y mejorar la calidad del mapa y la comunidad

Humanitarian OpenStreetMap Team

  • La comunidad OpenStreetMap responde inmediatamente en casos de desastre y brinda mapas actualizados a los rescatistas.
  • En agosto de 2010, HOT se constituyó en Estados Unidos como una organización sin ánimo de lucro y obtuvo un registro como organización benéfica en 2013.

GeoChicas

Se establece en Noviembre de 2016, para realizar proyectos conjuntos, colaborativos y participativos con el objetivo de cerrar la brecha de género en la comunidad de OpenStreetMap, donde se estima que las mujeres representan un 3% de las personas que colaboran globalmente.

Estructura de datos

Elementos

Nodos

n=1234

Elementos

Nodos

<osm version="0.6" generator="CGImap 0.6.1 (2006 thorn-03.openstreetmap.org)" copyright="OpenStreetMap and contributors" attribution="http://www.openstreetmap.org/copyright" license="http://opendatacommons.org/licenses/odbl/1-0/">
    <node id="2329935062" visible="true" version="5" changeset="50897222" timestamp="2017-08-06T22:06:24Z" user="mweper" uid="1311281" lat="-31.6170929" lon="-60.6750243">
        <tag k="addr:housenumber" v="610"/>
        <tag k="addr:street" v="Lavaisse"/>
        <tag k="amenity" v="atm"/>
        <tag k="network" v="Link"/>
        <tag k="operator" v="CABAL COOP. LTDA."/>
    </node>
</osm>

Elementos

Vías

n=1111

n=1112

n=1113

n=1114

n=1115

n=1116

n=1117

w=102

w=103

Elementos

Vías

<osm version="0.6" generator="CGImap 0.6.1 (1981 thorn-01.openstreetmap.org)" copyright="OpenStreetMap and contributors" attribution="http://www.openstreetmap.org/copyright" license="http://opendatacommons.org/licenses/odbl/1-0/">
    <way id="323857153" visible="true" version="5" changeset="55867994" timestamp="2018-01-29T18:10:08Z" user="Hwy_Companion" uid="7367586">
        <nd ref="3306264984"/>
        <nd ref="3306264985"/>
        <nd ref="2329935062"/>
        <nd ref="3617957646"/>
        <nd ref="3306264986"/>
        <nd ref="3306264987"/>
        <nd ref="3306264988"/>
        <nd ref="3306264989"/>
        <nd ref="3306264990"/>
        <nd ref="5370788752"/>
        <nd ref="5370788753"/>
        <nd ref="5370788754"/>
        <nd ref="5370788755"/>
        <nd ref="3306264992"/>
        <nd ref="3306262302"/>
        <nd ref="3306262303"/>
        <nd ref="3306264984"/>
        <tag k="addr:street" v="A. Godoy"/>
        <tag k="building" v="university"/>
        <tag k="name" v="Universitdad Tecnológica Nacional Facultad Regional Santa Fe"/>
    </way>
</osm>

Elementos

Relaciones

<osm version="0.6" generator="CGImap 0.6.1 (1975 thorn-01.openstreetmap.org)" copyright="OpenStreetMap and contributors" attribution="http://www.openstreetmap.org/copyright" license="http://opendatacommons.org/licenses/odbl/1-0/">
    <relation id="1983351" visible="true" version="68" changeset="61756141" timestamp="2018-08-17T19:51:35Z" user="mweper" uid="1311281">
        <member type="way" ref="510026974" role=""/>
        <member type="way" ref="510026971" role=""/>
        <member type="way" ref="510026970" role=""/>
        <member type="way" ref="294711820" role=""/>
        <member type="way" ref="617688648" role=""/>
        <member type="way" ref="617688650" role=""/>
        <member type="way" ref="85619420" role=""/>
        <member type="way" ref="617688649" role=""/>
        <member type="way" ref="617688653" role=""/>
        <member type="way" ref="86123836" role=""/>
        <member type="way" ref="249491022" role=""/>
        <member type="way" ref="348033570" role=""/>
        <member type="way" ref="348033567" role=""/>
        <member type="way" ref="348033566" role=""/>
        <member type="way" ref="348033569" role=""/>
        <member type="way" ref="348033565" role=""/>
        <member type="way" ref="348033568" role=""/>
        <member type="way" ref="367628596" role=""/>
        <member type="way" ref="85629835" role=""/>
        <member type="way" ref="85629836" role=""/>
        <member type="way" ref="349676026" role=""/>
        <member type="way" ref="349676027" role=""/>
        <member type="way" ref="349676024" role=""/>
        <member type="way" ref="349676021" role=""/>
        <member type="way" ref="492693938" role=""/>
        <member type="way" ref="492693937" role=""/>
        <member type="way" ref="269104493" role=""/>
        <member type="way" ref="86637952" role=""/>
        <member type="way" ref="269104492" role=""/>
        <member type="way" ref="86637925" role=""/>
        <member type="way" ref="320549901" role=""/>
        <member type="way" ref="488080805" role=""/>
        <member type="way" ref="256321036" role=""/>
        <member type="way" ref="488080804" role=""/>
        <member type="way" ref="255402439" role=""/>
        <member type="way" ref="255402441" role=""/>
        <member type="way" ref="320549902" role=""/>
        <member type="way" ref="86127467" role=""/>
        <member type="way" ref="86127466" role=""/>
        <member type="way" ref="43564708" role=""/>
        <member type="way" ref="305917038" role=""/>
        <member type="way" ref="305917041" role=""/>
        <member type="way" ref="471579778" role=""/>
        <member type="way" ref="344142084" role=""/>
        <member type="way" ref="344142080" role=""/>
        <member type="way" ref="344142073" role=""/>
        <member type="way" ref="332763465" role=""/>
        <member type="way" ref="485563830" role="link"/>
        <member type="way" ref="410103673" role="link"/>
        <member type="way" ref="485563829" role="link"/>
        <member type="way" ref="485563831" role="link"/>
        <member type="way" ref="271365567" role=""/>
        <member type="way" ref="376388066" role=""/>
        <member type="way" ref="445604527" role=""/>
        <member type="way" ref="376388067" role=""/>
        <member type="way" ref="445604528" role=""/>
        <member type="way" ref="352347403" role=""/>
        <member type="way" ref="352347408" role=""/>
        <member type="way" ref="391116777" role=""/>
        <member type="way" ref="306473819" role=""/>
        <member type="way" ref="391116779" role=""/>
        <member type="way" ref="556815220" role=""/>
        <member type="way" ref="556815219" role=""/>
        <member type="way" ref="556815221" role=""/>
        <member type="way" ref="414280255" role=""/>
        <member type="way" ref="391116778" role=""/>
        <member type="way" ref="394950405" role=""/>
        <member type="way" ref="551975800" role=""/>
        <member type="way" ref="394950407" role=""/>
        <member type="way" ref="394950399" role=""/>
        <member type="way" ref="394950397" role="link"/>
        <member type="way" ref="394950396" role="link"/>
        <member type="way" ref="394950402" role=""/>
        <member type="way" ref="394950408" role=""/>
        <member type="way" ref="394950398" role=""/>
        <member type="way" ref="394950395" role="link"/>
        <member type="way" ref="394950394" role="link"/>
        <member type="way" ref="394950400" role=""/>
        <member type="way" ref="394950403" role=""/>
        <member type="way" ref="440235931" role="link"/>
        <member type="way" ref="440235930" role="link"/>
        <member type="way" ref="440235913" role=""/>
        <member type="way" ref="440235911" role=""/>
        <member type="way" ref="440235914" role=""/>
        <member type="way" ref="443843740" role=""/>
        <member type="way" ref="440235918" role=""/>
        <member type="way" ref="439617330" role=""/>
        <member type="way" ref="443843742" role=""/>
        <member type="way" ref="440235922" role=""/>
        <member type="way" ref="439617329" role=""/>
        <member type="way" ref="306473818" role=""/>
        <member type="way" ref="391116776" role=""/>
        <member type="way" ref="394950404" role=""/>
        <member type="way" ref="551975801" role=""/>
        <member type="way" ref="440235932" role="link"/>
        <member type="way" ref="440235933" role="link"/>
        <member type="way" ref="440235919" role=""/>
        <member type="way" ref="440235917" role=""/>
        <member type="way" ref="443824662" role=""/>
        <member type="way" ref="314355889" role=""/>
        <member type="way" ref="443843741" role=""/>
        <member type="way" ref="440235915" role=""/>
        <member type="way" ref="176867707" role=""/>
        <member type="way" ref="410103671" role=""/>
        <member type="way" ref="396748128" role=""/>
        <member type="way" ref="396748127" role=""/>
        <member type="way" ref="308900450" role=""/>
        <member type="way" ref="510026982" role=""/>
        <member type="way" ref="429347057" role=""/>
        <member type="way" ref="510026972" role=""/>
        <member type="way" ref="510026975" role=""/>
        <member type="way" ref="510026968" role=""/>
        <member type="way" ref="510026976" role=""/>
        <member type="way" ref="510026977" role=""/>
        <member type="way" ref="510026967" role=""/>
        <member type="way" ref="308978190" role=""/>
        <member type="way" ref="308900451" role=""/>
        <member type="way" ref="308978191" role=""/>
        <member type="way" ref="308978187" role=""/>
        <member type="way" ref="308978186" role=""/>
        <member type="way" ref="308978189" role=""/>
        <member type="way" ref="308978188" role=""/>
        <member type="way" ref="366051369" role=""/>
        <member type="way" ref="185022445" role=""/>
        <member type="way" ref="366193693" role=""/>
        <member type="way" ref="366193688" role=""/>
        <member type="way" ref="366193653" role=""/>
        <member type="way" ref="366193677" role=""/>
        <member type="way" ref="366193690" role=""/>
        <member type="way" ref="366193649" role=""/>
        <member type="way" ref="366193639" role=""/>
        <member type="way" ref="366193657" role=""/>
        <member type="way" ref="264402847" role=""/>
        <member type="way" ref="174505321" role=""/>
        <member type="way" ref="264402849" role=""/>
        <member type="way" ref="396996468" role=""/>
        <member type="way" ref="396394678" role=""/>
        <member type="way" ref="396394679" role=""/>
        <member type="way" ref="366193663" role=""/>
        <member type="way" ref="366193660" role=""/>
        <member type="way" ref="396996467" role=""/>
        <member type="way" ref="422645427" role=""/>
        <member type="way" ref="422645426" role=""/>
        <member type="way" ref="271365568" role=""/>
        <member type="way" ref="271365566" role=""/>
        <member type="way" ref="271365565" role=""/>
        <member type="way" ref="271365564" role=""/>
        <member type="way" ref="394950401" role=""/>
        <member type="way" ref="394950406" role=""/>
        <member type="way" ref="440235921" role=""/>
        <member type="way" ref="443843743" role=""/>
        <member type="way" ref="439617331" role=""/>
        <member type="way" ref="443824663" role=""/>
        <member type="way" ref="440235920" role=""/>
        <member type="way" ref="434817802" role=""/>
        <member type="way" ref="314355890" role=""/>
        <member type="way" ref="366333736" role=""/>
        <member type="way" ref="427326118" role=""/>
        <member type="way" ref="430126268" role=""/>
        <member type="way" ref="455140072" role=""/>
        <member type="way" ref="455140073" role=""/>
        <member type="way" ref="455140074" role=""/>
        <member type="way" ref="117001979" role=""/>
        <member type="way" ref="445131666" role=""/>
        <member type="way" ref="136074404" role=""/>
        <member type="way" ref="427326145" role=""/>
        <member type="way" ref="500788899" role=""/>
        <member type="way" ref="427326144" role=""/>
        <member type="way" ref="314355891" role=""/>
        <member type="way" ref="314355887" role=""/>
        <member type="way" ref="314355888" role=""/>
        <member type="way" ref="314355886" role=""/>
        <member type="way" ref="332749275" role=""/>
        <member type="way" ref="510590366" role=""/>
        <member type="way" ref="510590367" role=""/>
        <member type="way" ref="332749276" role=""/>
        <member type="way" ref="332755617" role=""/>
        <member type="way" ref="332755618" role=""/>
        <member type="way" ref="143955404" role=""/>
        <member type="way" ref="143955403" role=""/>
        <member type="way" ref="343738041" role=""/>
        <member type="way" ref="343738025" role=""/>
        <member type="way" ref="343738029" role=""/>
        <member type="way" ref="343738031" role=""/>
        <member type="way" ref="343738032" role=""/>
        <member type="way" ref="343738044" role=""/>
        <member type="way" ref="343738043" role=""/>
        <member type="way" ref="305917040" role=""/>
        <member type="way" ref="305917039" role=""/>
        <member type="way" ref="43564712" role=""/>
        <member type="way" ref="85629852" role=""/>
        <member type="way" ref="85629851" role=""/>
        <tag k="name" v="Ruta Provincial 10"/>
        <tag k="network" v="AR:provincial"/>
        <tag k="ref" v="RP10"/>
        <tag k="route" v="road"/>
        <tag k="source" v="http://www.idesf.santafe.gov.ar"/>
        <tag k="type" v="route"/>
    </relation>
</osm>

Gracias!

@jbtschopp

@juanblas09

@jbtschopp

@juanblas09

@osm_ar

@OpenStreetMapArgentina

@OpenStreetMapAR

osm.org

OSM - UTN

By Juan Blas Tschopp

Loading comments...

More from Juan Blas Tschopp
