Binary Search
Motivation

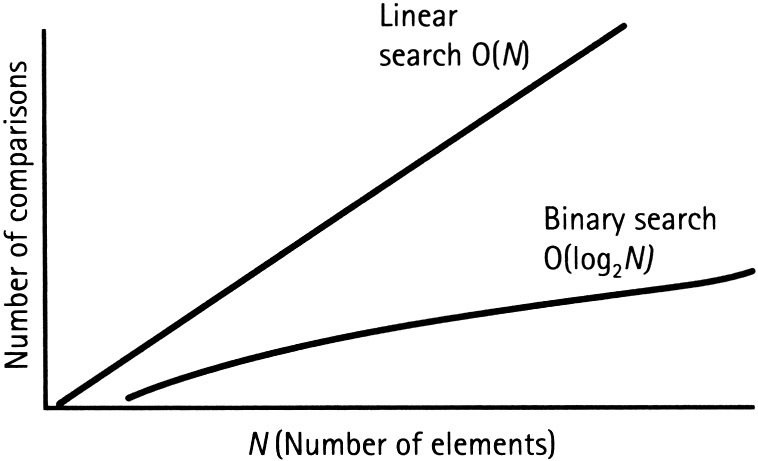

Linear search
Binary search
VS
O( n )
O( log n )
Features
Linear search
 Linear search can be super expensive!
 Need to be allow to random data structure access (e.g. array)
 Data needs to be sorted
 Linear and not linear data structure access allowed (e.g. linked lists)
 Data doesn't need to be sorted
Binary search
 As fast as the wind!
O( n )
O( log n )

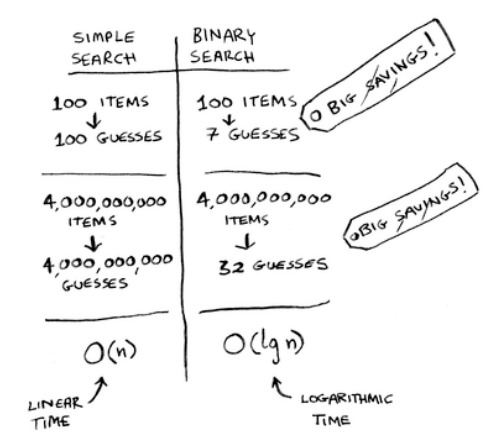

Guess my number
Binary Search
Divide and conquer algorithm
Data needs to be sorted
1  2  3  4  6  7  9

1  2  3  4  6  7  9

1  2  3  4  6  7  9

1  2  3  4  6  7  9

MID
MID
Find: 6
Implementation
Iterative
function binarySearch(data, target) {
var low = 0,
high = data.length  1,
mid;
while (low <= high) {
mid = Math.floor((low + high) / 2);
if (data[mid] < target) {
low = mid + 1;
} else if (data[mid] > target) {
high = mid  1;
} else {
return mid;
}
}
return 1;
}
(JavaScript)
Implementation
Recursive
function binarySearchRecursive(data, target, low, high) {
if (low > high) return 1;
var mid = Math.floor((low + high) / 2);
if (data[mid] < target) {
return binarySearchRecursive(data, target, mid + 1, high);
} else if (data[mid] > target) {
return binarySearchRecursive(data, target, low, mid  1);
} else {
return mid;
}
}
(JavaScript)
Options that we have

Sort the collection if it is not

Make sure that the collection is sorted as we add elements to it
Binary Search Tree
The collection of items is always sorted
Instead the need of sorting every time we add an element to the collection
Binary Search Tree
Properties
 The left subtree of a node only contains values that are less than or equal to the node's value
 The right subtree of a node only contains values that are greater than or equal to the node's value
 Both subtrees are binary trees
Warning: Don't assume that a binary tree is a Binary Search Tree
Binary Search Tree
4

3

2

1

6

7

9

Binary Search Tree
Operations Complexity
Access  Search  Insertion  Deletion  Access  Search  Insertion  Deletion

O(log(n))  O(log(n))  O(log(n))  O(log(n))  O(n)  O(n)  O(n)  O(n)
4

3

2

1

6

7

9

Worst case
Binary tree from a sorted collection
Average
Exercises
Given a sorted array of n integers that has been rotated an unknown number of times, give an O(log n) algorithm that finds an element in the array. You may assume that the array was originally sorted in increasing order.
EXAMPLE:
**Input**: find 5 in array (15 16 19 20 25 1 3 4 5 7 10 14)
**Output**: 8 (the index of 5 in the array)
Exercises
Given a sorted array of strings which is interspersed with empty strings, write a method to find the location of a given string.
find “ball” in [“at”, “”, “”, “”, “ball”, “”, “”, “car”, “”, “”, “dad”, “”, “”] will return 4
find “ballcar” in [“at”, “”, “”, “”, “”, “ball”, “car”, “”, “”, “dad”, “”, “”] will return 1
Exercises
Given a sorted (increasing order) array, write an algorithm to create a binary tree with minimal height.
THANKS
References

Grokking algorithms

Algorithmsinanutshellinanutshell

Cracking the coding interview

http://bigocheatsheet.com/

CS50 youtube channel
