Misaligned disks induced by infall
Michael Küffmeier
C. P. Dullemond, F. Goicovic, S. Reißl
HL Tau
6 years ago:
dust rings thrill the world
Credit: ALMA (ESO/NAOJ/NRAO)

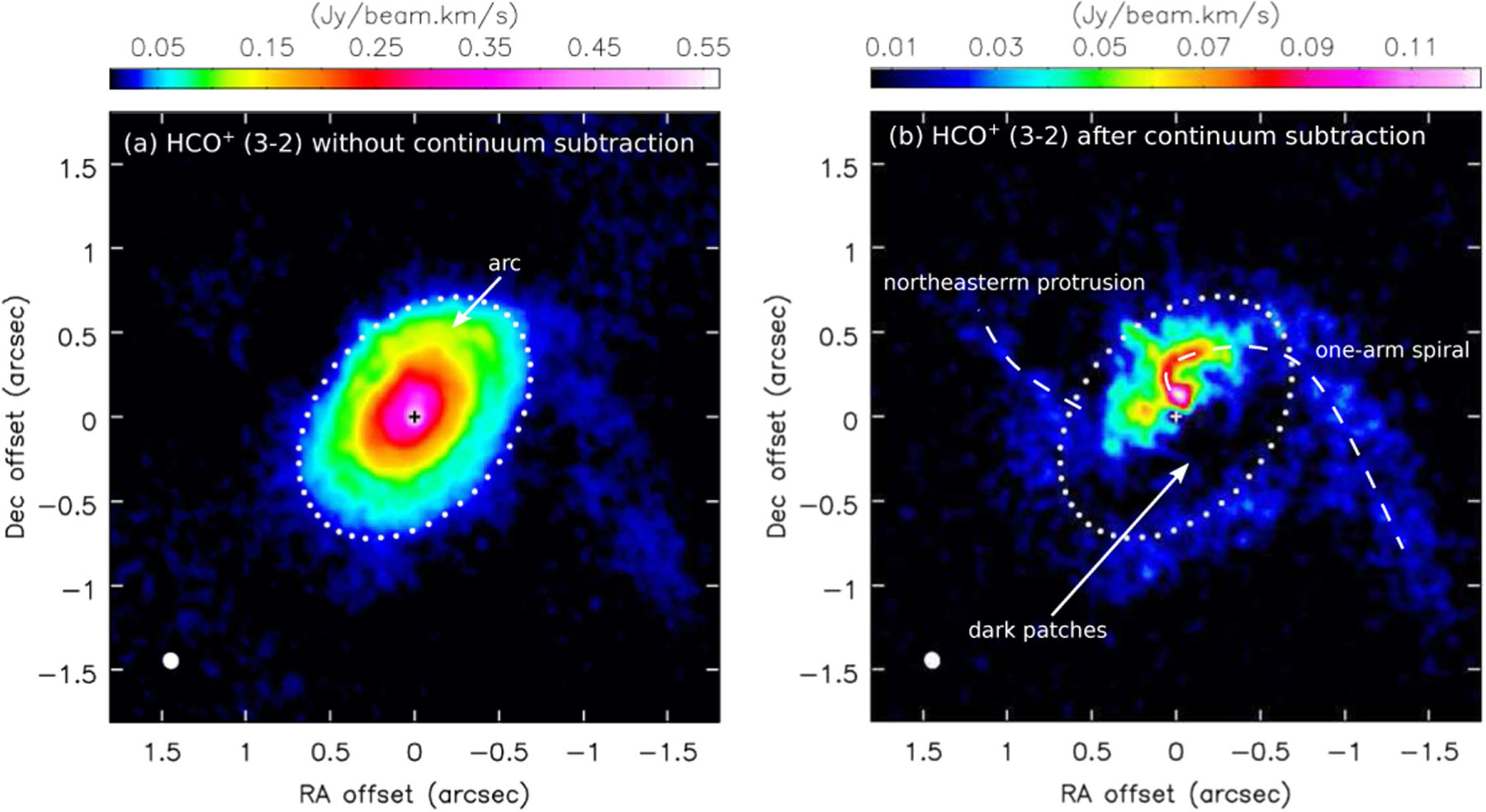

Credit: Yen et al. 2019
6 years from now:
gaseous streamers mark the crucial link
Stars are born and embedded in large assemblies of gas
Star-disk systems form and are located in different environments provided by Giant Molecular Clouds (Size: 10 - 100 pc)
Credit: ALMA (ESO/NAOJ/NRAO)

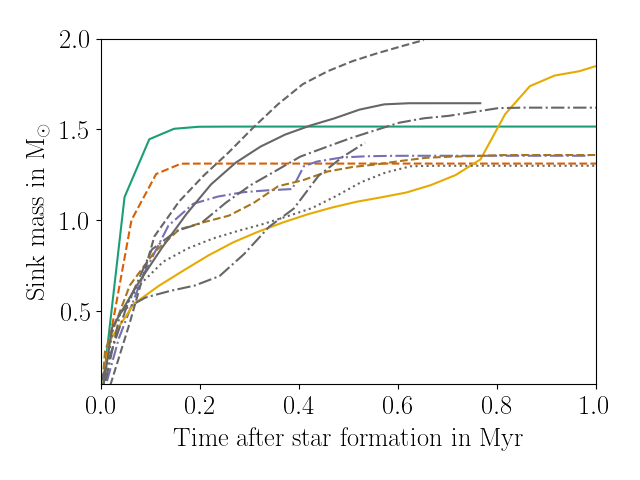

Heterogeneous accretion implies late infall
Küffmeier et al.
2017
Observational indication: luminosity bursts
Late infall
AB Aurigae
HD 100546
Credit: Grady+ 1999, Fukagawa+ 2004
Can (late) infall cause misalignment of inner and outer disk?
Credit: Ardila+ 2007
200 au
HD 142527
Credit: Avenhaus+ 2014

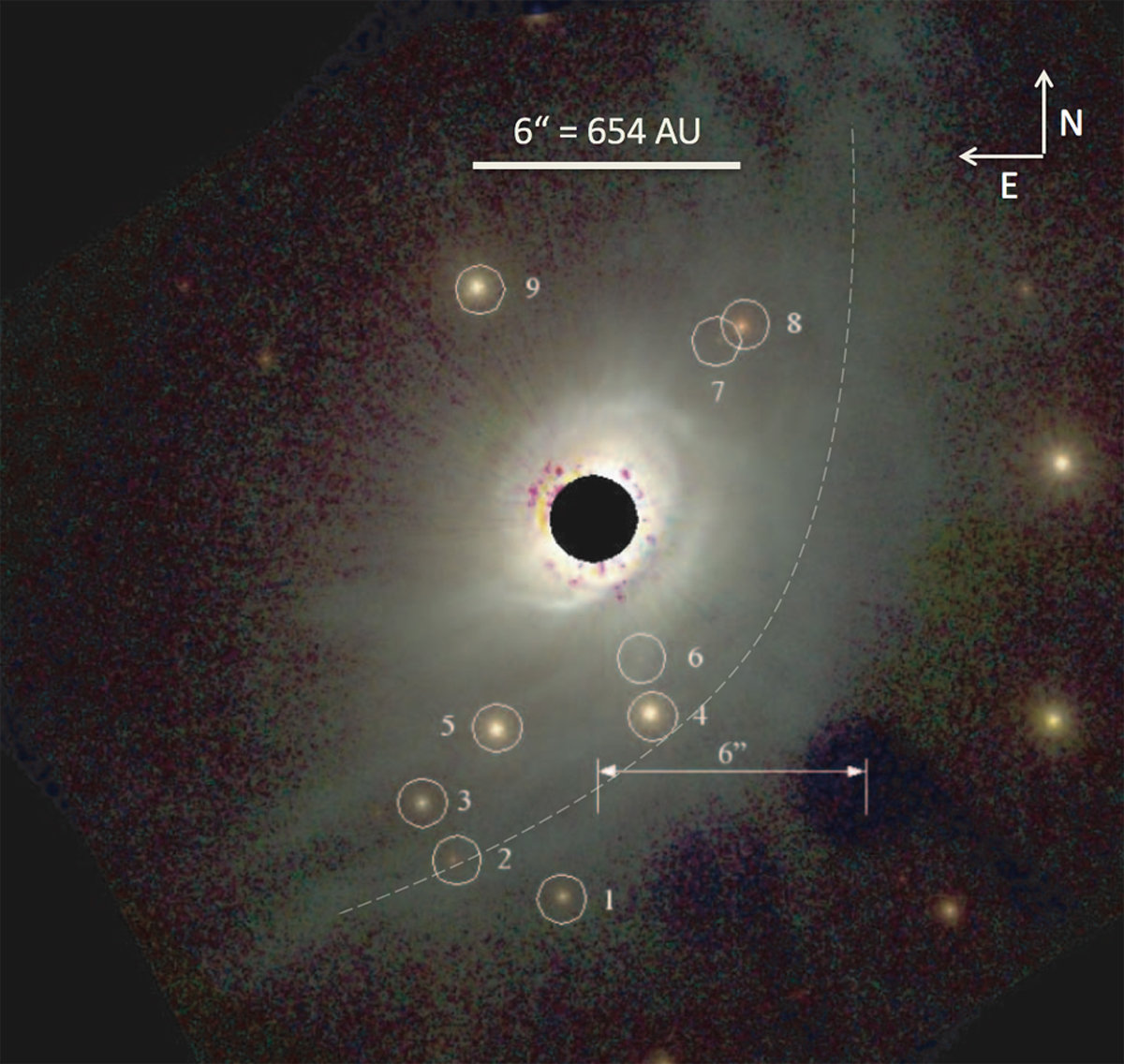

Extended arc-like structures can be induced by late infall
(Dullemond, Küffmeier, Goicovic+ 2019, Küffmeier, Goicovic & Dullemond 2020)
Possibility of "second-generation" disk
Shadows due to misaligned inner and outer disk
Credit: Marino+ 2015

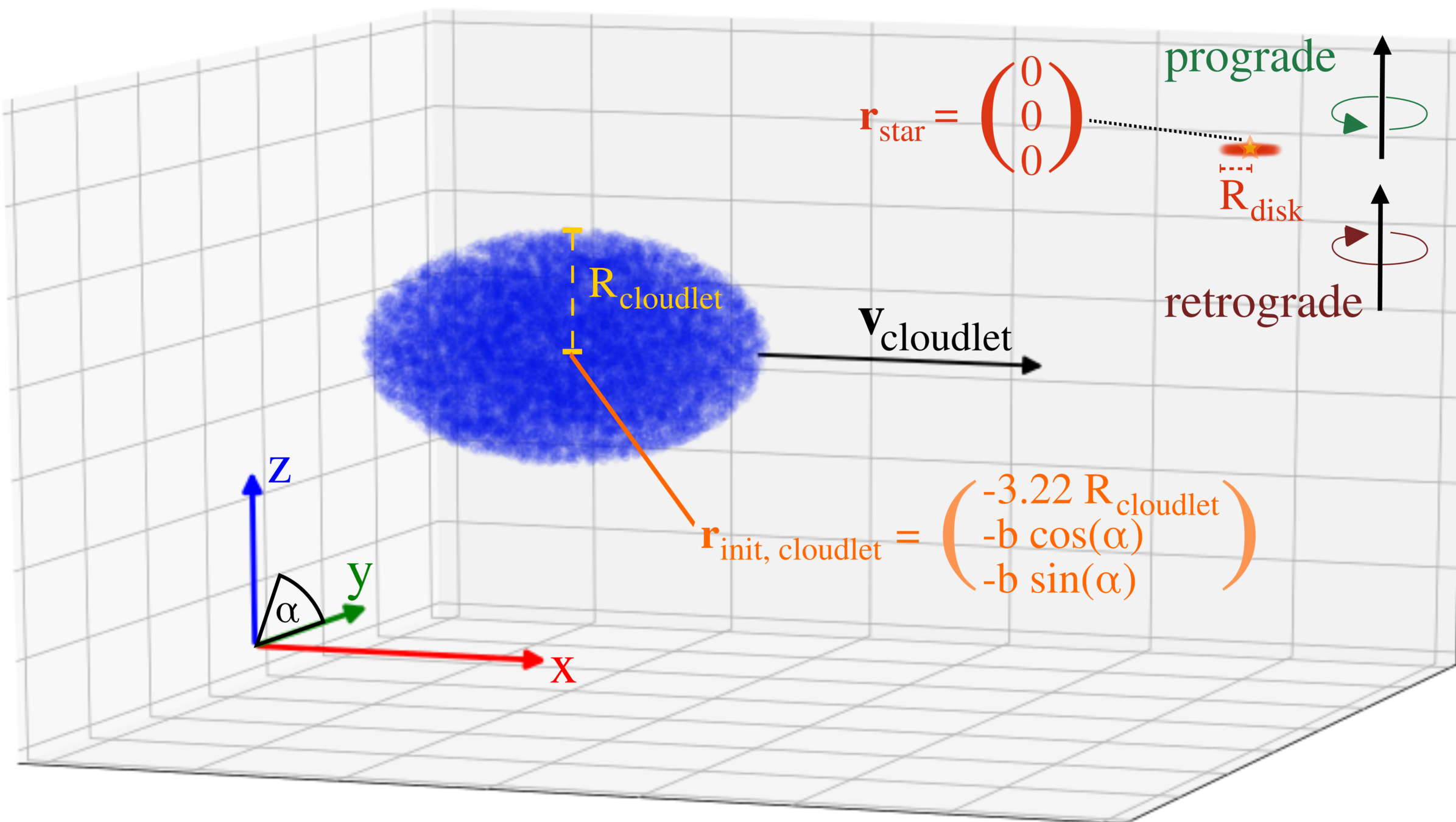

Simulate cloudlet infall onto disk
AREPO, pure hydro
R_{\rm i,d}=50\, \rm au
\Sigma(r) = 170 \left(\frac{\rm g}{\rm cm^{2}}\right) \left( \frac{r}{1 \rm au} \right)^{-3/2}
M_{\rm cloudlet}(R_{\rm cloudlet}) = 0.01 {\rm M}_{\odot} \left( \frac{R_{\rm cloudlet}}{5000 \rm au}\right)^{2.3}
R_{\rm cloudlet} = 887\, \rm au
isothermal gas
vary infalling angle
\alpha = 0^{\circ} (35^{\circ}, 60^{\circ}, 90^{\circ})
b = 1774\, \rm au
vary rotation (prograde, retrograde)
Küffmeier, Dullemond, Reißl, Goicovic submitted
M_{*}=2.5\, \mathrm{M}_{\odot}

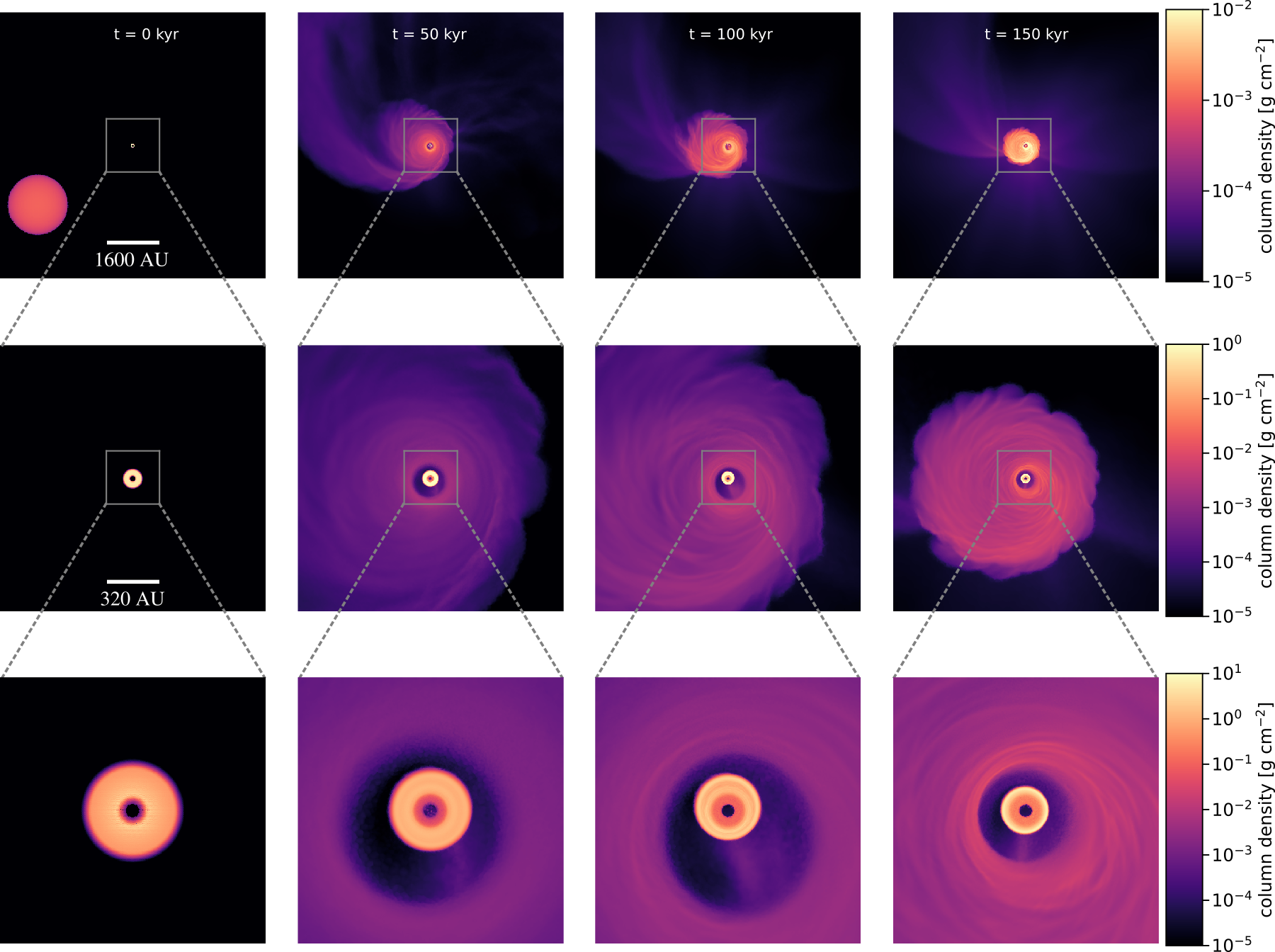

Outer disk forms around inner disk
Küffmeier+ subm
consistent with star formation simulations by Bate '18
Prograde vs. retrograde infall
Retrograde infall causes:
- counter-rotating inner and outer disk
- shrinking of inner disk

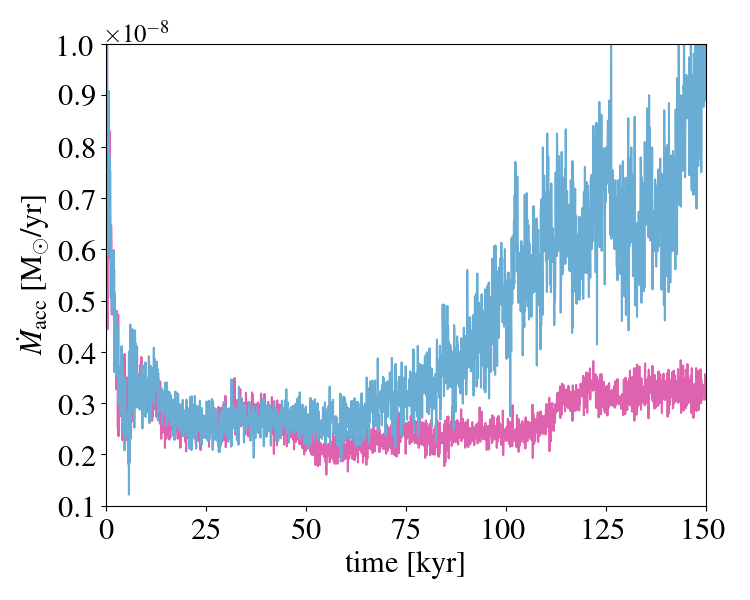

- enhanced accretion
- larger and deeper gap between disks
see also Vorobyov+ 2016
Effect of infall angle on disk
Formation of misaligned configuration
Observable as shadows in outer disk
Ginski et al. 2021

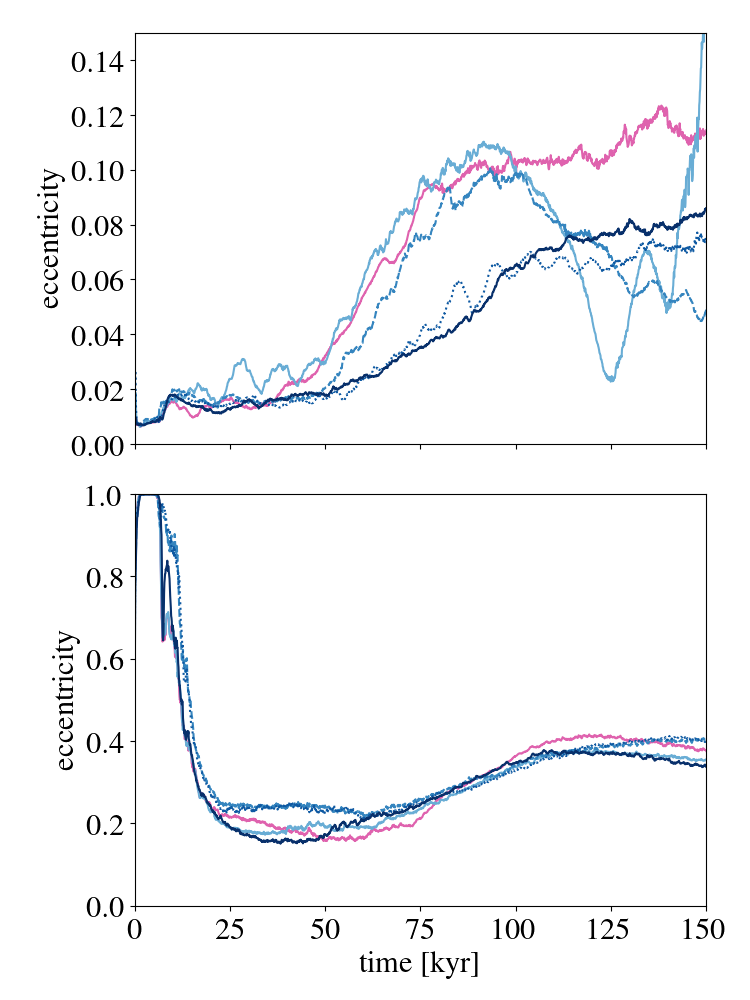

Disk evolution: eccentricity
prograde, 0°
Light to dark: retrograde infall with increasing inclination
- mild eccentricity in inner disk (up to ~0.1)
inner
outer
- larger eccentricities in outer disk (0.2 to 0.4)
Infall triggers:
=> probably measurable with CO channel maps:
a test of infall scenario

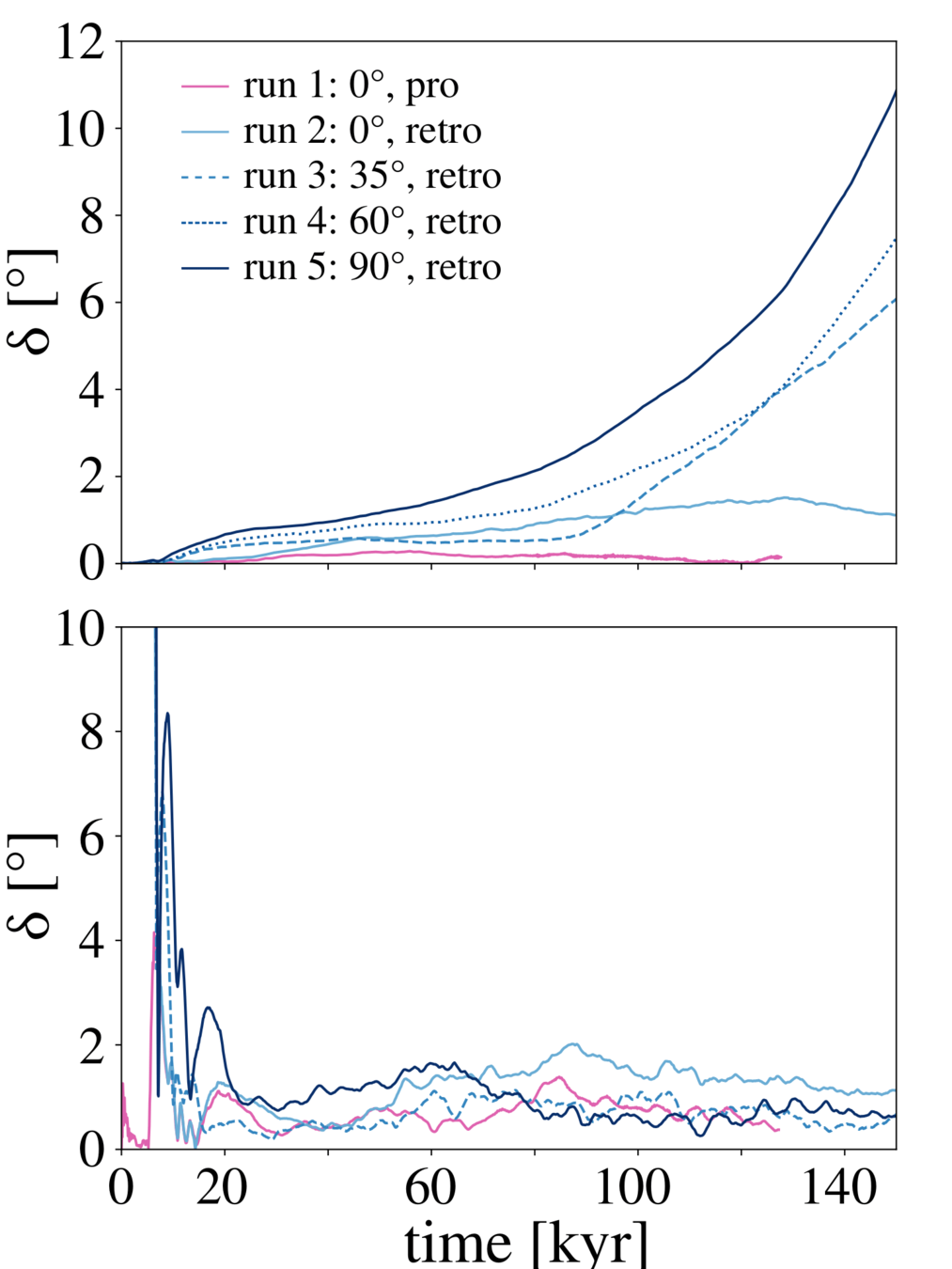

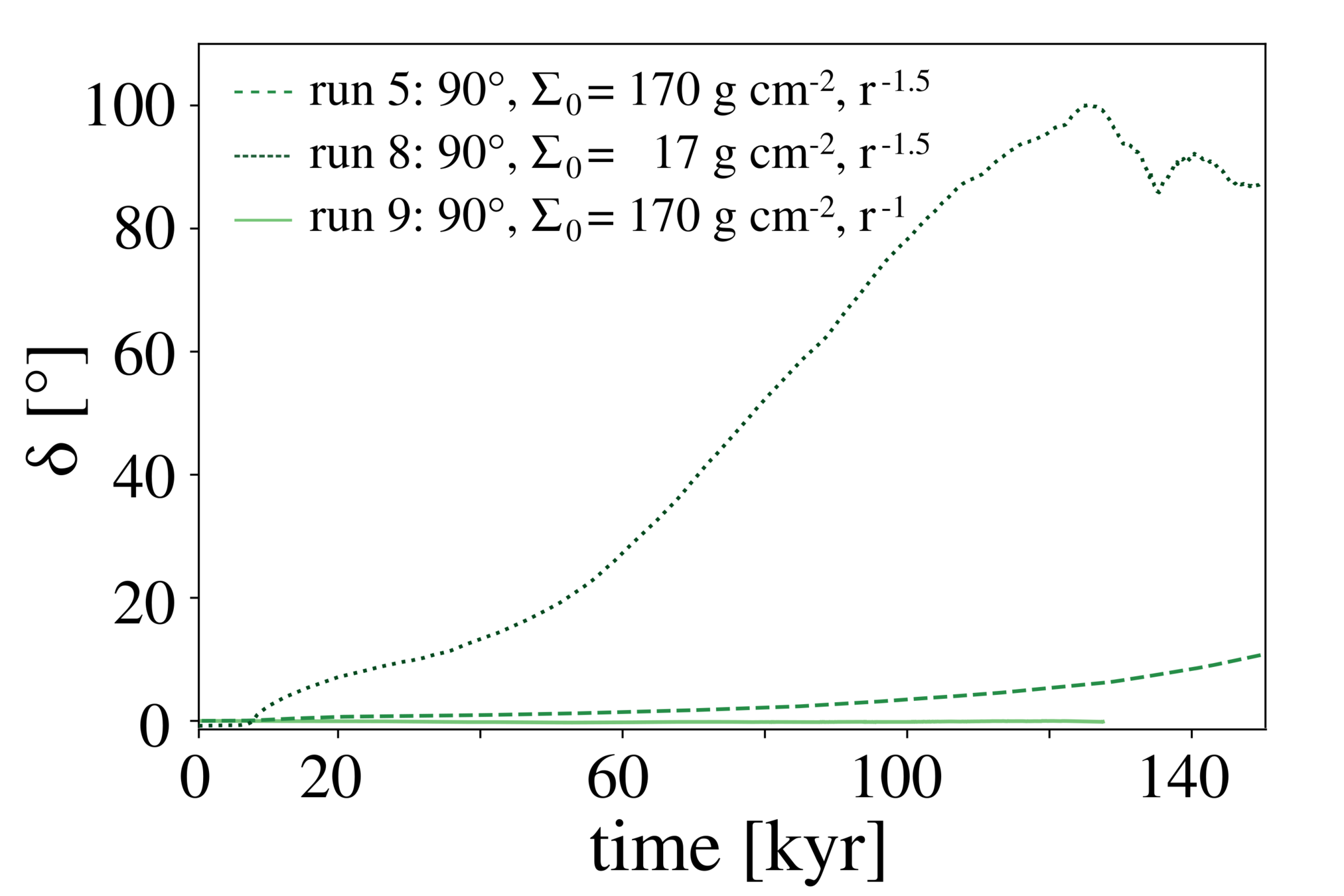

Inner disk orientation
M_{\rm i, disk}=4 \ M_{\rm cloudlet}
M_{\rm cloudlet} = 1.87 \times 10^{-4} \ \mathrm{M}_{\odot}
M_{\rm i,disk} = 24 M_{\rm cloudlet}
M_{\rm i,disk}=4 \ M_{\rm cloudlet}
M_{\rm i,disk} = 0.4 \ M_{\rm
cloudlet}
Disclaimer:
We are not saying that all shadows are due to misaligned infall!
In some cases shadows have already been well explained by external companions and/or inner planets (e.g.: HD 100453 Gonzalez+ '20/Nealon+ '20 or work by Zhu '19 on planet-induced misalignment)
Infall mechanism in perspective
But we need to think out of the disk:
significant fraction of final mass might accrete later through inflow
(Pelkonen et al. 2020)
Pineda et al. 2020; see also [BHB2007] 1 (Alves et al. 2020)
Küffmeier et al. 2019
Zoom-in on embedded stars
Küffmeier et al.
2019
Küffmeier et al. 2018
Küffmeier, Reißl et al. 2020

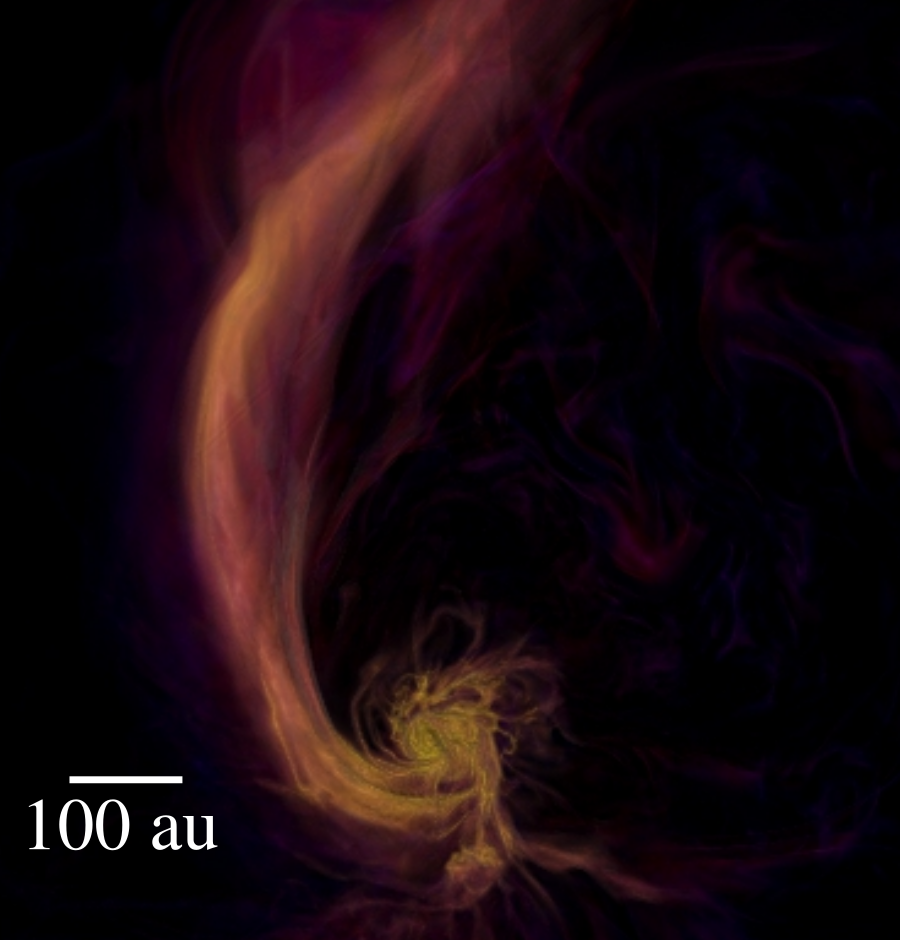

bridge structure similar to IRAS 16293--2422 (e.g. Sadavoy+ 2018, van der Wiel+ 2019, Maureira+ 2020)
~1500 AU
realistic initial conditions!
Take-away points
In infall-induced misaligned systems, the outer disk is expected to have higher eccentricity than the inner disk.
Retrograde infall can cause counter-rotating disks, shrinking of inner disk, formation of gaps (>10 AU) and enhanced accretion.
TBC: zoom-in simulations to consistently account for replenishment of disks through streamers
WIP: study synthetic observations of infall-induced shadows

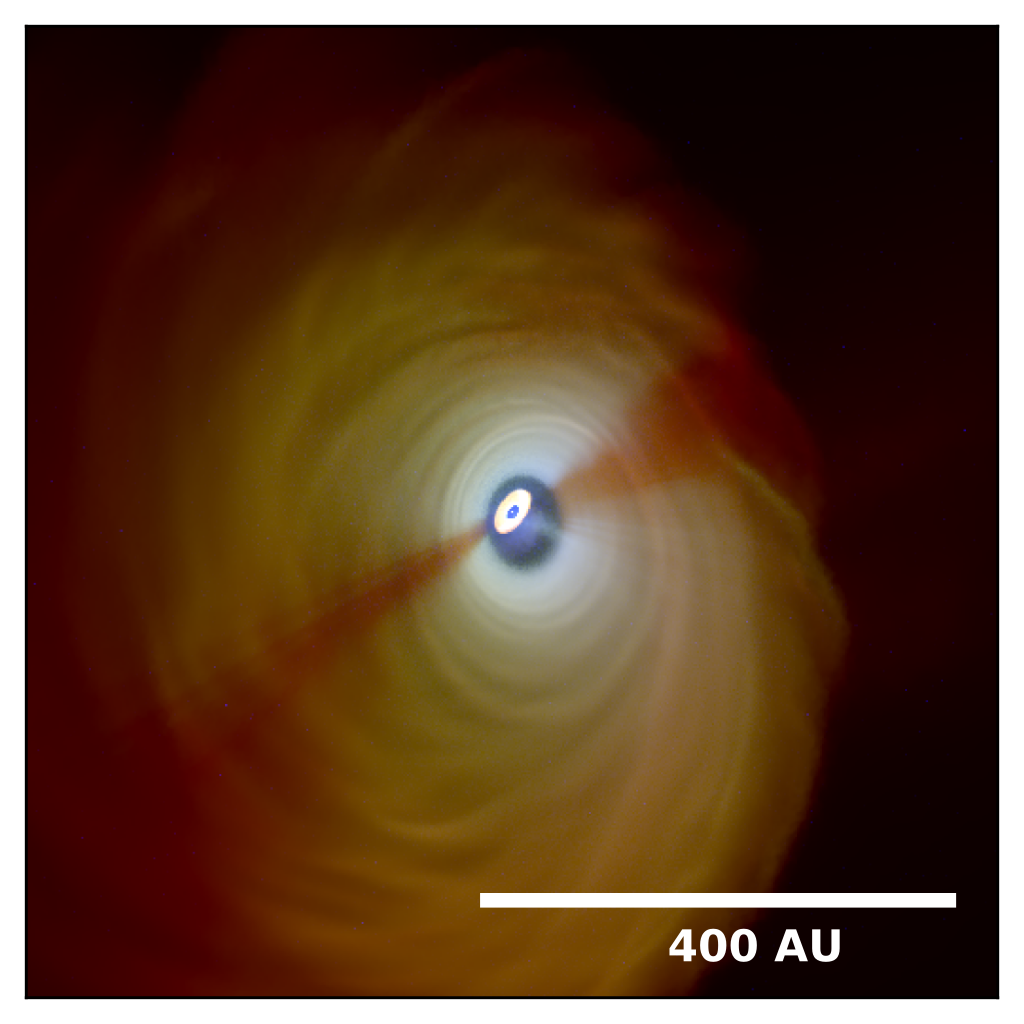

RGB image of misaligned system forming from infall with 60°
blue (1.66 micron), green (53 micron), red (870 micron); Credit: S. Reißl
