Introduction to Service Mesh

Lee Calcote

with Meshery

Lee Calcote

linkedin.com/in/leecalcote

@lcalcote

cloud native and its management

calcotestudios.com/talks

github.com/leecalcote

Ashish Tiwari

@revolyssup96

Nikhil Ladha

@NikhilLadha3

Find them on layer5.io/community/members

Connect

Collaborate

Contribute

Join the Community

layer5.io/community

More labs and training

layer5.io/learn/learning-paths

Confirm Prerequisites

Start Docker Desktop, Minikube or other.
(either single-node or multi-node clusters will work)
Verify that you have a functional Docker environment by running :

$ docker run hello-world
Unable to find image 'hello-world:latest' locally
latest: Pulling from library/hello-world
1b930d010525: Pull complete
Digest: sha256:0e11c388b664df8a27a901dce21eb89f11d8292f7fca1b3e3c4321bf7897bffe
Status: Downloaded newer image for hello-world:latest

Hello from Docker!

Docker and Kubernetes

Prereq

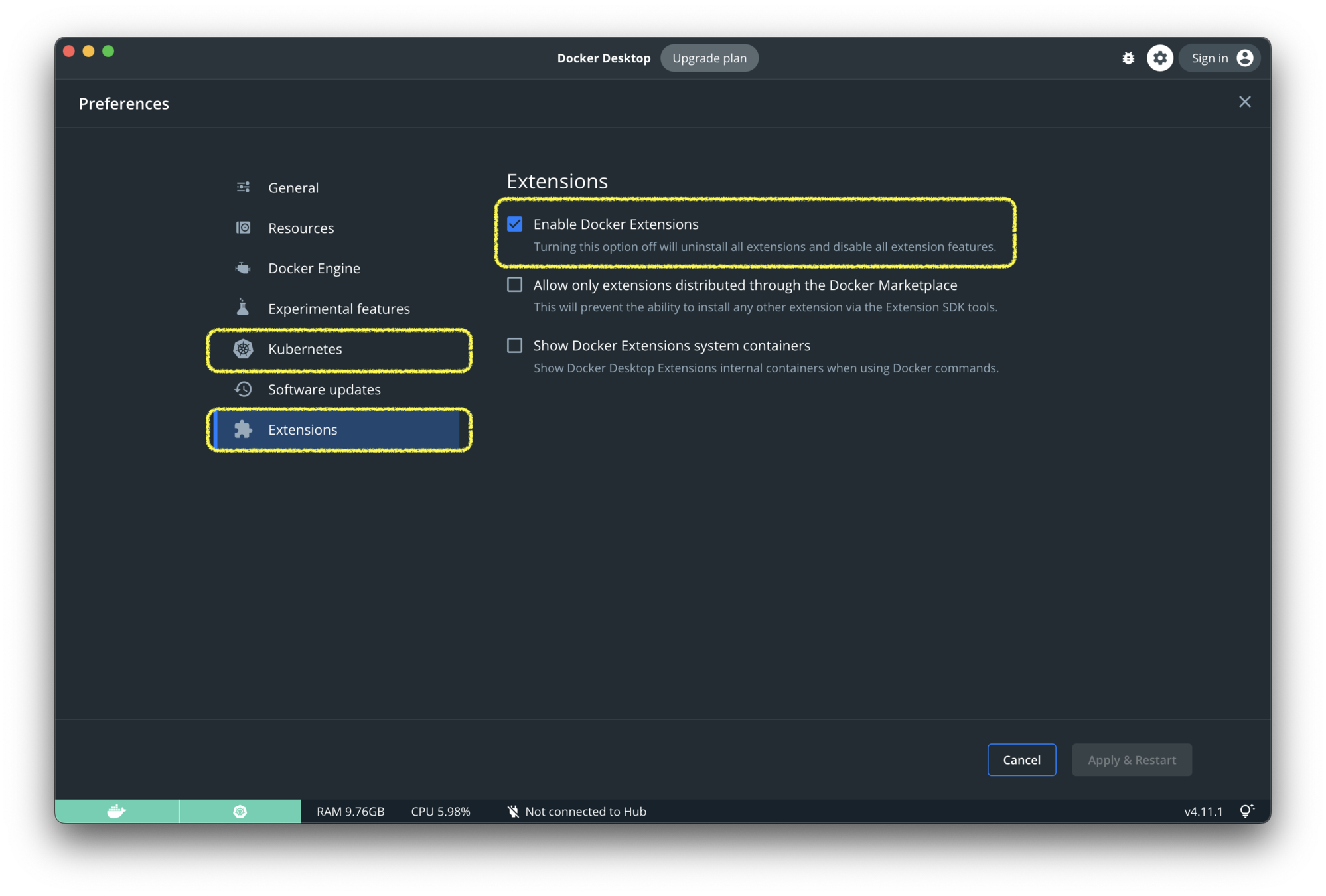

Docker Extension for Meshery

Ensure your Docker Desktop VM has 4GB of memory assigned.

Ensure Kubernetes is enabled.

Prereq

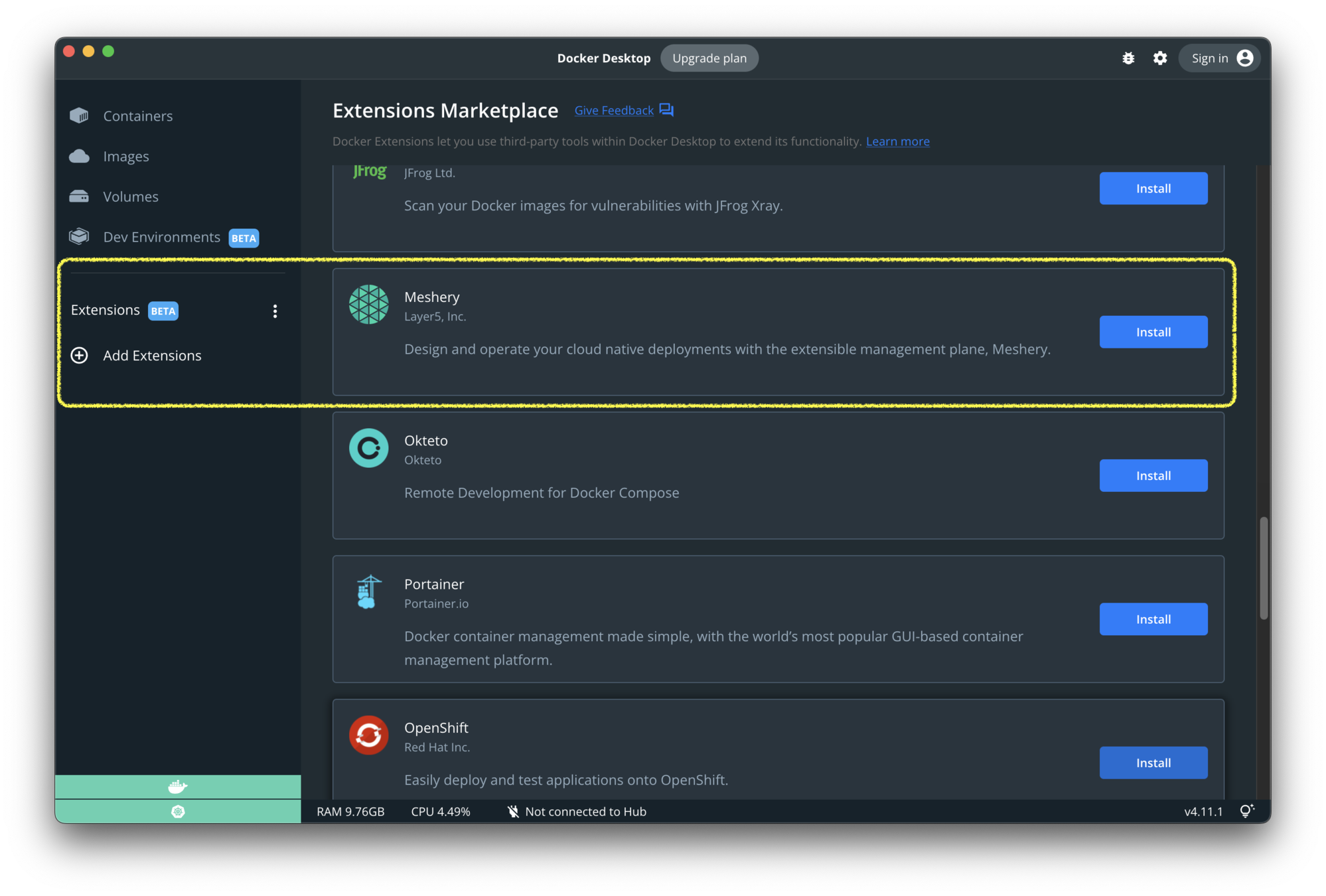

Install Meshery Docker Extension.

Deploy Kubernetes

Confirm access to your Kubernetes cluster.

$ kubectl version --short
Client Version: v1.24.2
Server Version: v1.24.8

$ kubectl get nodes
NAME             STATUS   ROLES    AGE   VERSION
docker-desktop   Ready    master   10m   v1.24.8

Prereq

v1.9 or higher

What is a Service Mesh?

a services-first network

layer5.io/books/the-enterprise-path-to-service-mesh-architectures

Traffic Control

control over chaos

Resilency

content-based traffic steering

Observability

what gets people hooked on service metrics

Security

identity and policy

Service Mesh Functionality

Expect more from your infrastructure

Business Logic

in-network application logic

What is Istio?

an open platform to connect, manage, and secure microservices

Observability
Resiliency
Traffic Control
Security
Policy Enforcement

istio.io

github.com/istio

@IstioMesh

Observability

what gets people hooked on service metrics

Goals

Metrics without instrumenting apps
Consistent metrics across fleet
Trace flow of requests across services
Portable across metric back-end providers

You get a metric! You get a metric! Everyone gets a metric!

Traffic Control

control over chaos

Traffic splitting
- L7 tag based routing?
Traffic steering
- Look at the contents of a request and route it to a specific set of instances.
Ingress and egress routing

Resilency

Systematic fault injection
Timeouts and Retries with timeout budget
Control connection pool size and request load
Circuit breakers and Health checks

content-based traffic steering

Missing: application lifecycle management, but not by much

Missing: distributed debugging; provide nascent visibility (topology)

DEVELOPER

OPERATOR

Decoupling at Layer 5

where Dev, Ops, Product meet

Empowered and independent teams can iterate faster

PRODUCT OWNER

DEVELOPER

OPERATOR

Decoupling at Layer 5

where Dev, Ops, Product meet

Empowered and independent teams can iterate faster

PRODUCT OWNER

Relating to

Service Meshes

Which is why...

I have a container orchestrator.

Core

Capabilities

Cluster Management
- Host Discovery
- Host Health Monitoring
Scheduling
Orchestrator Updates and Host Maintenance
Service Discovery
Networking and Load Balancing
Stateful Services
Multi-Tenant, Multi-Region

Additional

Key Capabilities

Application Health and Performance Monitoring
Application Deployments
Application Secrets

minimal capabilities required to qualify as a container orchestrator

Service meshes generally rely on these underlying layers.

Which is why...

I have an API gateway.

Microservices API Gateways

Ambassador uses Envoy
Kong uses Nginx
OpenResty uses Nginx
Traefik

north-south vs. east-west

Which is why...

I have client-side libraries.

Enforcing consistency is challenging.

Foo Container

Flow Control

Foo Pod

Go Library
A v1

Network Stack

Service Discovery

Circuit Breaking

Application / Business Logic

Bar Container

Flow Control

Bar Pod

Go Library
A v2

Network Stack

Service Discovery

Circuit Breaking

Application / Business Logic

Baz Container

Flow Control

Baz Pod

Java Library
B v1

Network Stack

Service Discovery

Circuit Breaking

Application / Business Logic

Retry Budgets

Rate Limiting

Help with Modernization

Can modernize your IT inventory without:
- Rewriting your applications
- Adopting microservices, regular services are fine
- Adopting new frameworks
- Moving to the cloud

address the long-tail of IT services

Get there for free

Why use a Service Mesh?

Bloated service (application) code
Duplicating work to make services production-ready
- Load balancing, auto scaling, rate limiting, traffic routing...
Inconsistency across services
- Retry, tls, failover, deadlines, cancellation, etc., for each language, framework
- Siloed implementations lead to fragmented, non-uniform policy application and difficult debugging
Diffusing responsibility of service management

to avoid...

Service Mesh Architectures

Data Plane

Touches every packet/request in the system.
Responsible for service discovery, health checking, routing, load balancing, authentication, authorization, and observability.

Ingress Gateway

Egress Gateway

Service Mesh Architecture

No control plane? Not a service mesh.

Control Plane

Provides policy, configuration, and platform integration.
Takes a set of isolated stateless sidecar proxies and turns them into a service mesh.
Does not touch any packets/requests in the data path.

Data Plane

Touches every packet/request in the system.
Responsible for service discovery, health checking, routing, load balancing, authentication, authorization, and observability.

Ingress Gateway

Egress Gateway

Service Mesh Architecture

Control Plane

Data Plane

Touches every packet/request in the system.
Responsible for service discovery, health checking, routing, load balancing, authentication, authorization, and observability.

Provides policy, configuration, and platform integration.
Takes a set of isolated stateless sidecar proxies and turns them into a service mesh.
Does not touch any packets/requests in the data path.

You need a management plane.

Ingress Gateway

Management
Plane

Provides backend system integration, expanded policy and governance, continuous delivery integration, workflow, chaos engineering, configuration and performance management and multi-mesh federation.

Egress Gateway

Service Mesh Architecture

Pilot

Citadel

Mixer

Control Plane

Data Plane

istio-system namespace

policy check

Foo Pod

Proxy Sidecar

Service Foo

tls certs

discovery & config

Foo Container

Bar Pod

Proxy Sidecar

Service Bar

Bar Container

Out-of-band telemetry propagation

telemetry

reports

Control flow

application traffic

Application traffic

application namespace

telemetry reports

Istio Architecture

Galley

Ingress Gateway

Egress Gateway

WASM

Filter

Control Plane

Data Plane

octa-system namespace

policy check

Foo Pod

Proxy
Sidecar

Service Foo

discovery & config

Foo Container

Bar Pod

Service Bar

Bar Container

Out-of-band telemetry propagation

telemetry

reports

Control flow

application traffic

Application traffic

application namespace

telemetry reports

Policy
Engine

Security Engine

Visibility
Engine

+

Proxy
Sidecar

+

Octarine Architecture

Control Plane

Data Plane

linkerd namespace

Foo Pod

Proxy Sidecar

Service Foo

Foo Container

Bar Pod

Proxy Sidecar

Service Bar

Bar Container

Out-of-band telemetry propagation

telemetry

scarping

Control flow during request processing

application traffic

Application traffic

application namespace

telemetry scraping

Architecture

Prometheus

Grafana

web

CLI

public-api

Linkerd

linkerd-controller

sp-validator

Control Plane

destination

tap

web

CLI

proxy-injector

identity

Leader

Agent

Control Plane

Data Plane

intentions

Foo Pod

Proxy Sidecar

Service Foo

discovery, config,

tls certs

Foo Container

Bar Pod

Proxy Sidecar

Service Bar

Bar Container

Control flow

application traffic

Application traffic

application namespace

Follower

Consul Client

Consul Servers

Follower

policy

check

Consul Architecture

layer5.io/resources

WASM Filter

node

Our service mesh of study: Istio

What are Galley and Pilot?

provides service discovery to sidecars

manages sidecar configuration

Pilot

Citadel

the head of the ship

Ingress

istio-system namespace

system of record for service mesh

}

provides abstraction from underlying platforms

Galley

Control Plane

What's Mixer for?

Point of integration with infrastructure back ends
- Intermediates between Istio and back ends, under operator control
- Enables platform and environment mobility
Responsible for policy evaluation and telemetry reporting
- Provides granular control over operational policies and telemetry
Has a rich configuration model
- Intent-based config abstracts most infrastructure concerns

an attribute-processing and routing machine

operator-focused

Precondition checking
Quota management
Telemetry reporting

Pilot

Citadel

Telemetry Filter

istio-system namespace

Galley

Control Plane

Ingress

Data Plane

Mixer-less

Control Plane

Data Plane

istio-system namespace

Foo Pod

Proxy sidecar

Service Foo

Foo Container

Out-of-band telemetry propagation

Control flow during request processing

application traffic

application namespace

telemetry reports

an attribute processing engine

What's Citadel for?

Verifiable identity
- Issues certs
- Certs distributed to service proxies
- Mounted as a Kubernetes secret
Secure naming / addressing
Traffic encryption

security at scale

security by default

Orchestrate Key & Certificate:

Generation
Deployment
Rotation
Revocation

Pilot

Citadel

Mixer

istio-system namespace

Galley

Control Plane

layer5.io/landscape

It's meshy out there.

Strengths of Service Mesh Implementations

Different tools for different use cases

a sample

Service mesh abstractions

Meshery is interoperable with these abstractions.

Service Mesh Interface
(SMI)

Multi-Vendor Service Mesh Interoperation (Hamlet)

Service Mesh Performance (SMP)

A standard interface for service meshes on Kubernetes.

A set of API standards for enabling service mesh federation.

A format for describing and capturing service mesh performance.

to the rescue

Service Mesh Interface (SMI) Conformance

✔︎ Learn Layer5 sample application used for validating test assertions.

✔︎ Defines compliant behavior.

✔︎ Produces compatibility matrix.

✔︎ Ensures provenance of results.

✔︎ Runs a set of conformance tests.

✔︎ Built into participating service mesh’s release pipeline.

meshery.io/smi

Service Mesh Patterns by the Book

List of service mesh patterns

Service Mesh Patterns

Service Communication	Low inter-service communication.	High inter-service communication.
Observability	Edge focus—metrics and usage are for response time to clients and request failure rates.	Uniform and ubiquitious—observability is key for understanding service behavior.
Client Focus	Strong separation of external and internal users. Focused on external API experience.	Equal and undifferentiated experience for internal and external users.
World-view of APIs	Primary client-facing interaction is through APIs are for clients only (separation of client-facing or service-to-service communication)	APIs are treated as a product; APIs are how your application exposes its capabilities.
Security Model	Security at perimeter	Encryption between all services
Security Model...	Subnet zoning (firewalling)	Zero-trust mindset
Security Model...	Trusted internal networks (gooey center)	authN and authZ between all services
Size of Org	Smaller organizations	Larger organizations
# of Services	1 to 5 services	5 or more services
Service Relability	Either don't need, are willlilng to handcode, or bring in other infrastructure to provide resiliency guarantees.	Need strong controls over the resiliency properties of your services and to granularly control ingress, between, and egress service request traffic.
Diversity of Application Stack	Single language	One or more languages

Lightly consider a service mesh

Strongly consider a service mesh

Consideration

(external client focus)

(internal/external client focus)

Service Mesh Interface (SMI)

Service Mesh Performance (SMP)

meshery.io

Deploy Management Plane

Management
Plane

Provides expanded governance, backend system integration, multi-mesh, federation, expanded policy, and dynamic application and mesh configuration.

Control Plane

Data Plane

brew install mesheryctl
mesheryctl system start

Prereq

Using brew

Using bash

curl -L https://meshery.io/install

mesheryctl system config minikube --token auth.json

Using minikube:

Deploy Istio

Install Istio using Meshery
Find control plane namespace
Inspect control plane services
Inspect control plane components

open http://localhost:9081

kubectl get namespaces

kubectl get svc -n istio-system

kubectl get pod -n istio-system

Lab 1

github.com/layer5io/istio-service-mesh-workshop

Deploy Sample App

Multi-language, multi-service application
Automatic vs manual sidecar injection
Verify install

Use Meshery or install manually

Lab 2

Reviews v1

Reviews Pod

Reviews v2

Reviews v3

Product Pod

Details Container

Details Pod

Ratings Container

Ratings Pod

Product Container

Reviews Service

Ratings Service

Details Service

Product Service

BookInfo Sample App

BookInfo Sample App on Service Mesh

Reviews v1

Reviews Pod

Reviews v2

Reviews v3

Product Pod

Details Container

Details Pod

Ratings Container

Ratings Pod

Product Container

Envoy sidecar

Reviews Service

Enovy sidecar

Envoy ingress

Product Service

Ratings Service

Details Service

Sidecar Injection

Automatic sidecar injection leverages Kubernetes' Mutating Webhook Admission Controller.

Verify whether your Kubernetes deployment supports these APIs by executing:
Inspect the istio-sidecar-injector webhook:

If your environment does NOT this API, then you may manually inject the istio sidecar.

Lab 2

github.com/layer5io/istio-service-mesh-workshop

kubectl get mutatingwebhookconfigurations
kubectl get mutatingwebhookconfigurations istio-sidecar-injector -o yaml

kubectl api-versions | grep admissionregistration

Sidecars proxy can be either manually or automatically injected into your pods.

Deploy Sample App with Automatic Sidecar Injection

@lcalcote

Verify presence of the sidecar injector

Envoy ingress

kubectl -n istio-system get deployment -l istio=sidecar-injector

Lab 2

github.com/layer5io/istio-service-mesh-workshop

2. Confirm namespace label

kubectl get ns -L istio-injection

Expose BookInfo via Istio Ingress Gateway

Inspecting the Istio Ingress Gateway
Configure Istio Ingress Gateway for Bookinfo
Inspect the Istio proxy of the productpage pod

Istio ingress gateway

application traffic

Lab 3

github.com/layer5io/istio-service-mesh-workshop

Telemetry

benchmarking of service mesh performance
exchange of performance information from system-to-system / mesh-to-mesh
apples-to-apples performance comparisons of service mesh deployments.
MeshMark - a universal performance index to gauge a service mesh’s efficiency against deployments in other organizations’ environments

Service Mesh Performance

https://smp-spec.io

Directly provides:

Indirectly facilitates:

a vendor neutral specification for capturing details of infrastructure capacity, service mesh configuration, and workload metadata.

Configuration

Security

Telemetry

Control Plane

Data
Plane

service mesh ns

Foo Pod

Proxy Sidecar

Service Foo

Foo Container

Bar Pod

Proxy Sidecar

Service Bar

Bar Container

Out-of-band telemetry propagation

Control flow

application

traffic

Application traffic

application namespace

Meshery Architecture

Ingress Gateway

Egress Gateway

Management
Plane

meshery

adapters

gRPC

kube-api

kube-system

generated load

http / gRPC traffic

fortio

wrk2

nighthawk

UI

API

workloads

Meshery WASM Filter

CLI

perf analysis

patterns

@mesheryio

Metrics Dashboard

Lab 4

Expose services with NodePort:
Find port assigned to Grafana:

kubectl -n istio-system edit svc grafana

kubectl -n istio-system get svc grafana

Grafana

Lab 4

Distributed Tracing

Jaeger

github.com/layer5io/advanced-istio-service-mesh-workshop

Distributed Tracing

Jaeger

The istio-proxy collects and propagates the following headers from the incoming request to any outgoing requests:

x-request-id
x-b3-traceid
x-b3-spanid
x-b3-parentspanid
x-b3-sampled
x-b3-flags
x-ot-span-context

Lab 4

kubectl -n istio-system edit svc tracing

github.com/layer5io/advanced-istio-service-mesh-workshop

Load Generation

Lab 4

@smp_spec

smp-spec.io

1. Use Meshery to generate load on sample application

2. View in monitoring tools

Lab 4 Tasks

Istio Traffic Management Building Blocks

Virtual services
Destination rules
Gateways
Service and Workload entries
Sidecars

Lab 5

Request Routing and Canary Testing

Configure the default route for all services to V1
Content based routing
Canary Testing - Traffic Shifting

layer5.io/workshops

Lab 5

Fault Injection and Latency

Inject a route rule to create a fault using HTTP delay
Inject a route rule to create a fault using HTTP abort
Verify fault injection

Lab 5

Circuit Breaking

Deploy a client for the app
1. With manual sidecar injection:
Initial test calls from client to server
Time to trip the circuit

Lab 5

Timeouts & Retries

Web

Service Foo

Timeout = 600ms
Retries = 3

Timeout = 300ms
Retries = 3

Timeout = 900ms
Retries = 3

Service Bar

Database

Timeout = 500ms
Retries = 3

Timeout = 300ms
Retries = 3

Timeout = 900ms
Retries = 3

Deadlines

Web

Service Foo

Deadline = 600ms

Deadline = 496ms

Service Bar

Database

Deadline = 428ms

Deadline=180ms

Elapsed=104ms

Elapsed=68ms

Elapsed=248ms

layer5.io/workshops

What is WebAssembly?

for the web, malware and beyond

A small, fast binary format that promises near-native performance for web applications.
Most modern browsers support it.
Safe and sandboxed execution environment.
Over 40 languages that support WASM as a compilation target.
Originally used to speed up large web-applications.

webassembly.org

Workhorses

WASM VMs in Envoy run the filters in sandboxes.
- Envoy is using the V8 runtime.
Attempts to allow execution of WASM on machines natively.
Portable and dynamically loadable.
Uses WebAssembly System Interface (WASI)
- Envoy exposes an Application Binary Interface (ABI)

Data Plane

Pod

Proxy sidecar

App Container

+

WASM modules as Envoy filters

WASM is becoming a WORA runtime

An optimization game

Latency, throughput, and the proxies’ CPU and memory consumption affected by these factors

Data Plane

Proxy sidecar

App Container

Pod

Number of client connections
Target request rate
Request size and Response size
Number of proxy worker threads
Protocol
CPU cores
Number and types of proxy filters

with many variables

Data plane performance depends on many factors, for example:

Context-based routing

Understanding the trade-off between power and speed

Data Plane

Proxy sidecar

App Container

Pod

Speed

Data Plane

Proxy sidecar

App Container

Pod

Round robin load balancing

Data Plane

Proxy sidecar

App Container

Pod

Path-based routing

Comparing types of functions

Power

Speed

Comparing types of Data Plane filtering

Data Plane

Pod

Proxy sidecar

App Container

Comparing approaches to data plane filtering

Data Plane

App Container

Pod

Client Library

Proxy sidecar

Rate limiting with Go client library

100 RPS
- p50: 3.19ms
500 RPS
- p50: 2.44ms
Unlimited RPS - 4417
- p50: 0.66ms

Rate limiting with WASM module (Rust filter)

100 RPS
- p50: 2.1ms
500 RPS
- p50: 2.22ms
Unlimited RPS - 5781
- p50: 0.62ms

Power

Speed

Data Plane

Proxy sidecar

App Container

Pod

Image Hub

github.com/layer5io/image-hub

Functionality	In the app	In the filter
User / Token
Subscription Plans
Plan Enforcement

a sample app

Two

application containers

Lab 7

Hub UI Pod

Image Storage Container

Image Storage Pod

Hub UI
Container

Image Storage Service

Hub UI Service

github.com/layer5io/image-hub

Image Hub on Docker Desktop

Hub UI Pod

Image Access Container

Image Access Pod

Hub UI
Container

Image Access Service

Hub UI Service

Image Hub on a Service Mesh

Envoy sidecar

github.com/layer5io/image-hub

with Consul

Leader

Follower

Consul Servers

Follower

agent

Consul Client

node

Image Access Container

Image Access Pod

Image Access Service

Image Hub on Consul

Envoy sidecar

github.com/layer5io/image-hub

WASM Filter

with a Rust-based WASM filter

apiVersion: apps/v1
kind: Deployment
spec:
  template:
    metadata:
      labels:
        app: api-v1
      annotations:
        "consul.hashicorp.com/connect-inject": "true"
        "consul.hashicorp.com/service-meta-version": "1"
        "consul.hashicorp.com/service-tags": "v1"
        "consul.hashicorp.com/connect-service-protocol": "http"
        "consul.hashicorp.com/connect-wasm-filter-add_header": "/filters/optimized.wasm"
    spec:
      containers:
      - name: api
        image: layer5/image-hub-api:latest

Leader

Follower

Consul Servers

Follower

agent

node

Introduction to Service Mesh

Lee Calcote

Connect

Collaborate

Contribute

Confirm Prerequisites

Prereq

Docker Extension for Meshery

Prereq

Deploy Kubernetes

Prereq

What is a Service Mesh?

a services-first network

Traffic Control

Resilency

Observability

Security

Service Mesh Functionality

Business Logic

What is Istio?

Observability

Goals

Traffic Control

Resilency

DEVELOPER

OPERATOR

Decoupling at Layer 5

PRODUCT OWNER

DEVELOPER

OPERATOR

Decoupling at Layer 5

PRODUCT OWNER

Relating to

Service Meshes

Which is why...

I have a container orchestrator.

Core

Capabilities

Additional

Key Capabilities

Which is why...

I have an API gateway.

Microservices API Gateways

Which is why...

I have client-side libraries.

Help with Modernization

Why use a Service Mesh?

Q&A

Service Mesh Architectures

Service Mesh Architectures

Service Mesh Architecture

Service Mesh Architecture

Service Mesh Architecture

Istio Architecture

Octarine Architecture

Architecture

Linkerd

Consul Architecture

Our service mesh of study: Istio

What are Galley and Pilot?

What's Mixer for?

Mixer-less

What's Citadel for?

Strengths of Service Mesh Implementations

Service mesh abstractions

Service Mesh Interface (SMI) Conformance

Service Mesh Patterns by the Book

List of service mesh patterns

Deploy Management Plane

Prereq

Deploy Istio

Lab 1

Q&A

Break

Deploy Sample App

Lab 2

BookInfo Sample App

BookInfo Sample App on Service Mesh

Sidecar Injection

Lab 2
