Exploring new methods of code structure analysis to support understanding and evolution of complex IT systems

mgr inż. Krzysztof Borowski

dr hab. Bartosz Baliś

dr Tomasz Orzechowski

Presentation plan

Modern software development
The current state of the art in code understanding space
Semantic Code Graph as a semantic aware code structure representation
Semantic Code Graph applications

Current state of the software development

January 2020 - GitHub reports over 190 million repositories, 40 million active users (In 2010 - 1 million repositories)

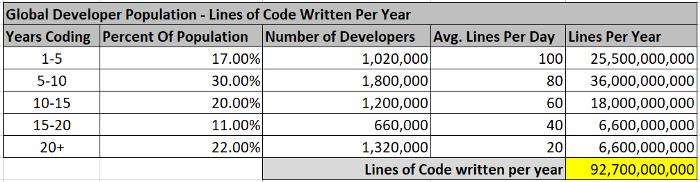

Estimated billions lines of new code produced yearly

https://medium.com/modern-stack/how-much-computer-code-has-been-written-c8c03100f459

A big ball of mud is a software system that lacks a perceivable architecture. Although undesirable from a software engineering point of view, such systems are common in practice due to business pressures, developer turnover and code entropy. They are a type of design anti-pattern.

https://en.wikipedia.org/wiki/Big_ball_of_mud

Properly maintained software enables rapid software evolution to address changing requirements.

In 2021, IT spending on enterprise software is expected to amount to around 601 billion U.S. dollars worldwide, a growth of 13.6 percent from the previous year.

https://statista.com/statistics/203428/total-enterprise-software-revenue-forecast/

Current software development tools

Understanding the source code

IDE advanced features
- syntax highlights
- integrated compilers

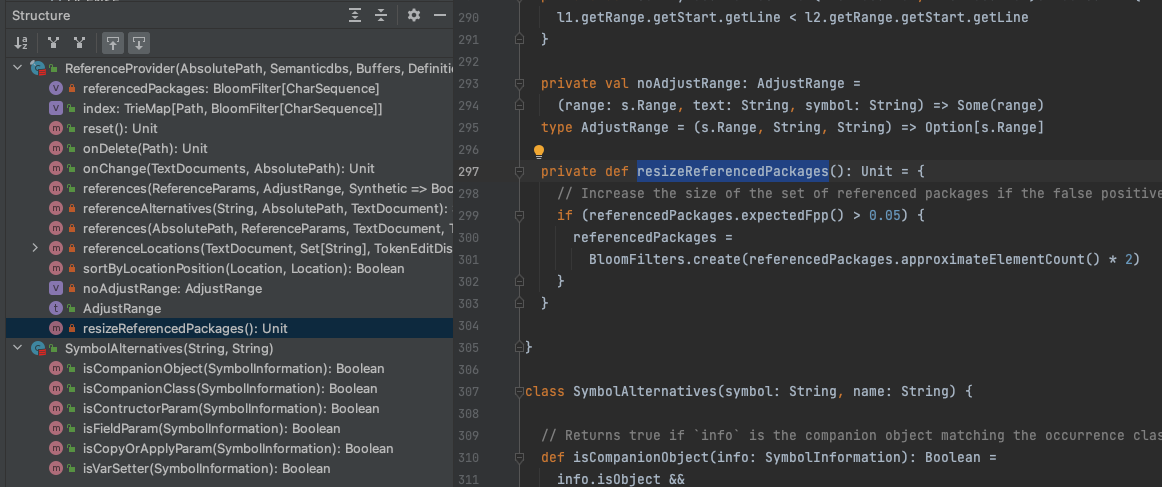

- semantically browsing the source code
- debugging
IDE integrations
- version control systems integrations
- others (ticketing systems, database plugins, containers plugins)
Visualizations (mostly UML diagrams)

Guarding the code quality [3]

Linters
- guarding against common pitfalls
- enforcing programming style
- usually integrated with the compiler (i.e. scalastyle, scapegoat)
IDE suggestions and guidance (often based on integrated linters)
Tests (unite tests, integration tests) - more about code correctness than quality
Static code analysis in External Server (SonarQube)
- gathering metrics from different tools
- static code analysis
- code coverage

Understanding and visualization

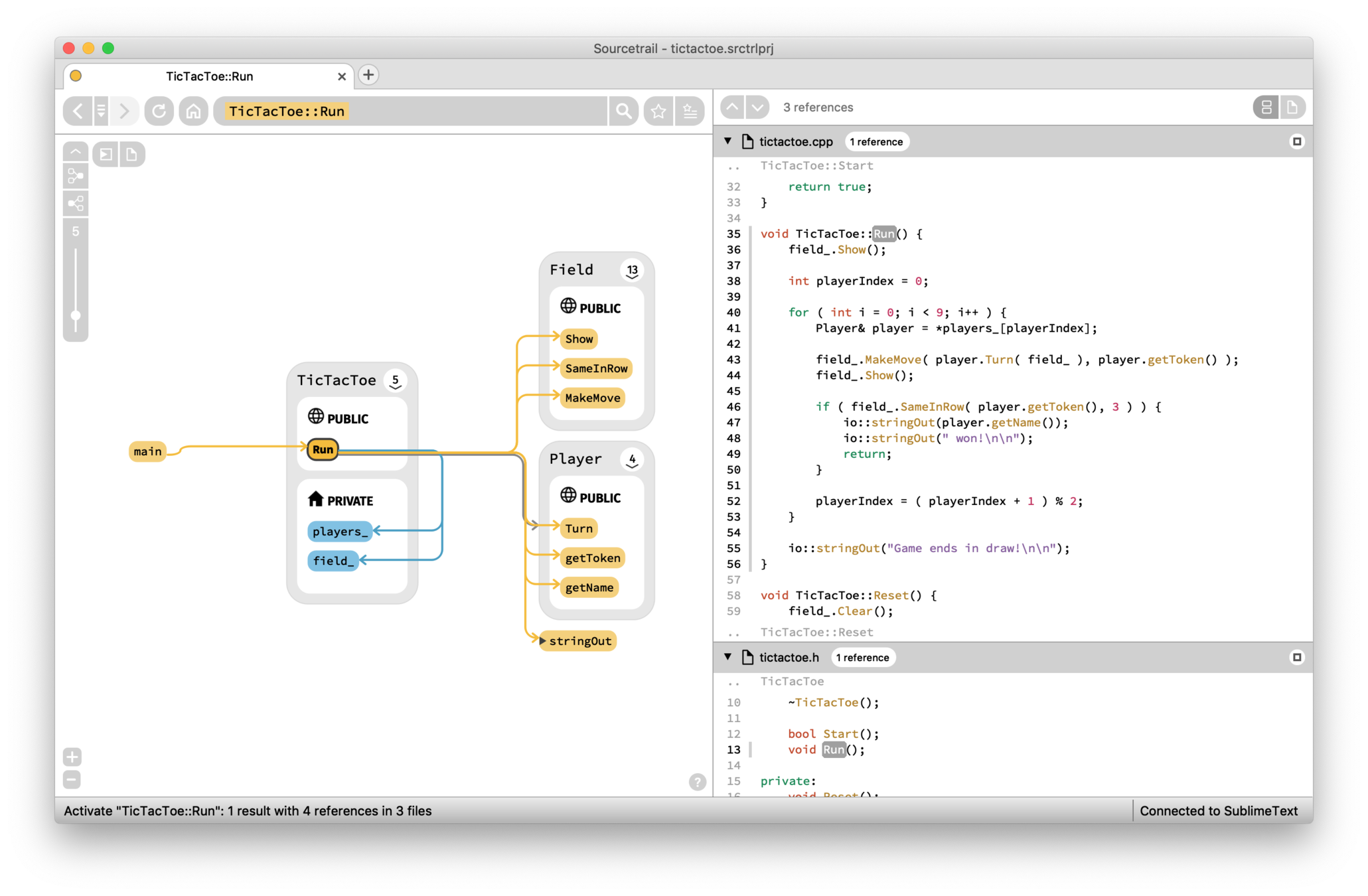

Source Trail https://www.sourcetrail.com/documentation/ (C++, Java) (free)

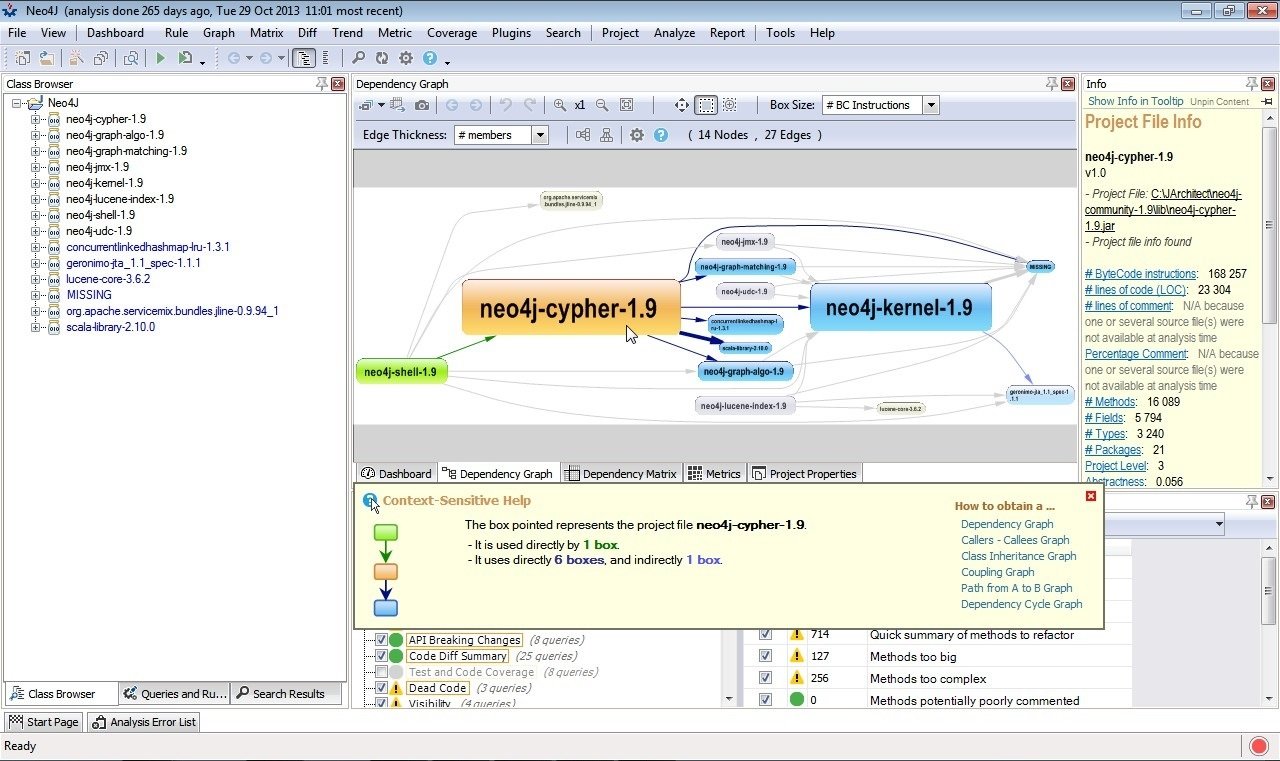

NDepend - https://www.ndepend.com (C#) (paid)
JArchitect - https://www.jarchitect.com (paid)

Guarding project structure

ArchUnit - https://www.archunit.org
- Java-specific (bytecode and reflection)
- Should be applied from the very beginnig
- Helps with maintenance not with understanding the current state

ArchRule myRule = classes()
    .that().resideInAPackage("..service..")
    .should().onlyBeAccessed().byAnyPackage("..controller..", "..service..")

Can the tools be better?

Understanding project semantic structure
- folders and files
- browsing flatly structured files
- invisible coupling
Maintaining the project semantic structure
- keeping the code modular
- advising on project structure
- guarding against accidental complexity (cyclic dependencies, highly coupled modules and classes)
- guarding against code structure degradation over time

Can we represent the source code differently?

Abstract code representations [2]

Abstract Syntax Tree (AST)

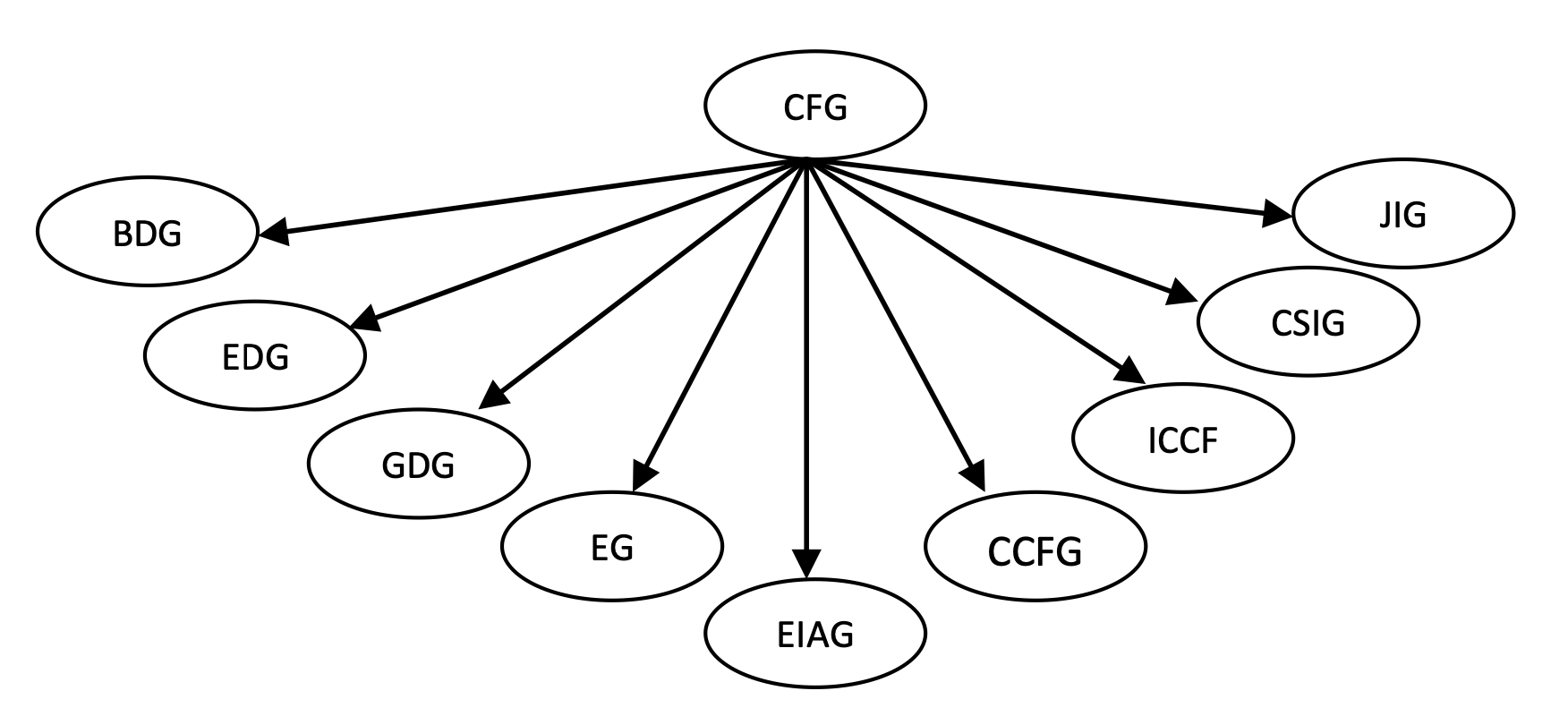

Control Flow Graph
Data Flow Graph
Program Dependence Graph
Code Property Graph

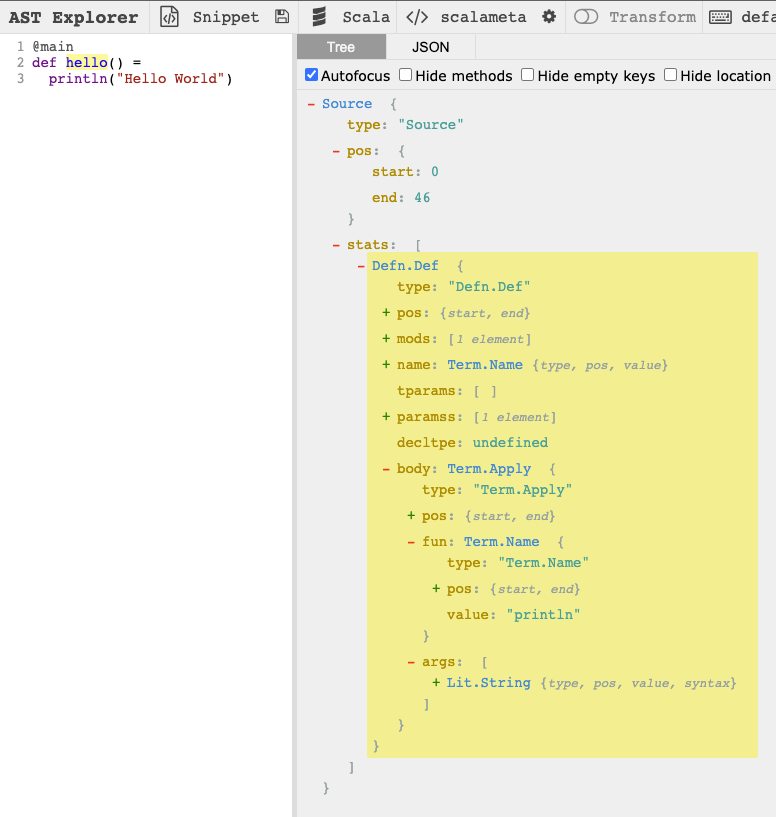

Abstract Syntax Tree

Control Flow Graph

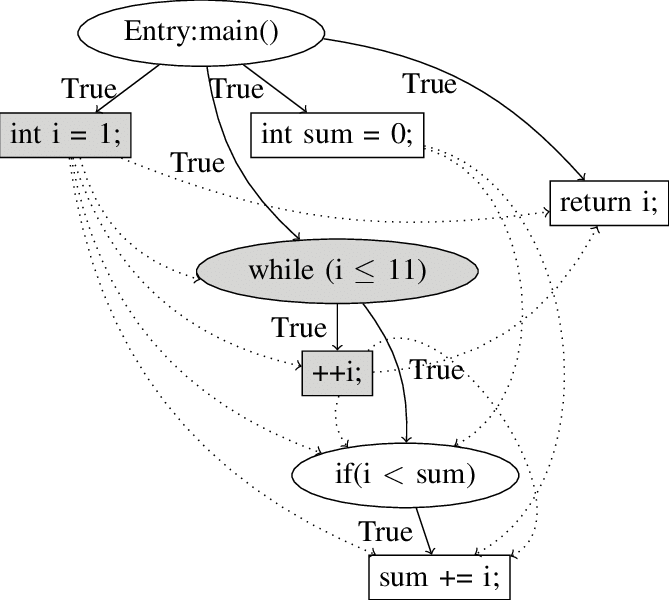

Program Dependency Graph

CFG + DFG

Code Property Graph [4]

CFG + PDG + AST

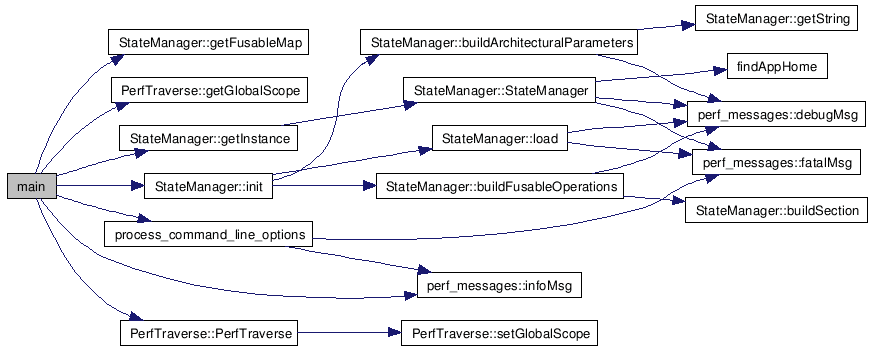

Call Graph

Semantic code structure representation

Representing code syntax structure
Representing code semantic structure

class A()

object AFactory {
  def createA() = {
    new A()
  }
}

Semantic Code Graph (Scala)

class A()
object AFactory {
  def createA() = {
    new A()
  }
}

Semantic Code Graph - Code Structure

class A() {
  def runA(): Unit = ...
  def run(): Unit = ...
}
object AFactory {
  def createA() = {
    new A()
  }
}

def main() = {
  AFactory.createA().runA()
}

hypothesis:

the code structure and dependencies of any program can be represented as a directed graph, precise enough to be valuable in various analyses and visualizations

Semantic Code Graph extraction

Semantic Graphs Scalac Compiler Plugin - published
proto files generated during compilation process available for later static analysis
Java Semantic Graphs Extractor in progress

Common format

syntax = "proto3";

message Location {
    string uri = 1;
    int32 startLine = 2;
    int32 startCharacter = 3;
    int32 endLine = 4;
    int32 endCharacter = 5;
}

message Edge {
    string to = 1;
    string type = 2;
    Location location = 3;
    map<string, string> properties = 4;
}

message GraphNode {
    string id = 1;
    string kind = 2;
    Location location = 3;
    map<string, string> properties = 4;
    string displayName = 5;
    repeated Edge edges = 6;
}

message SemanticGraphFile {
    string uri = 1;
    repeated GraphNode nodes = 2;
}

Various Semantic Code Graph applications

Framework for working with the code

Learning about the software (big picture)
Browsing interactively the source code graph
Monitoring code evolution

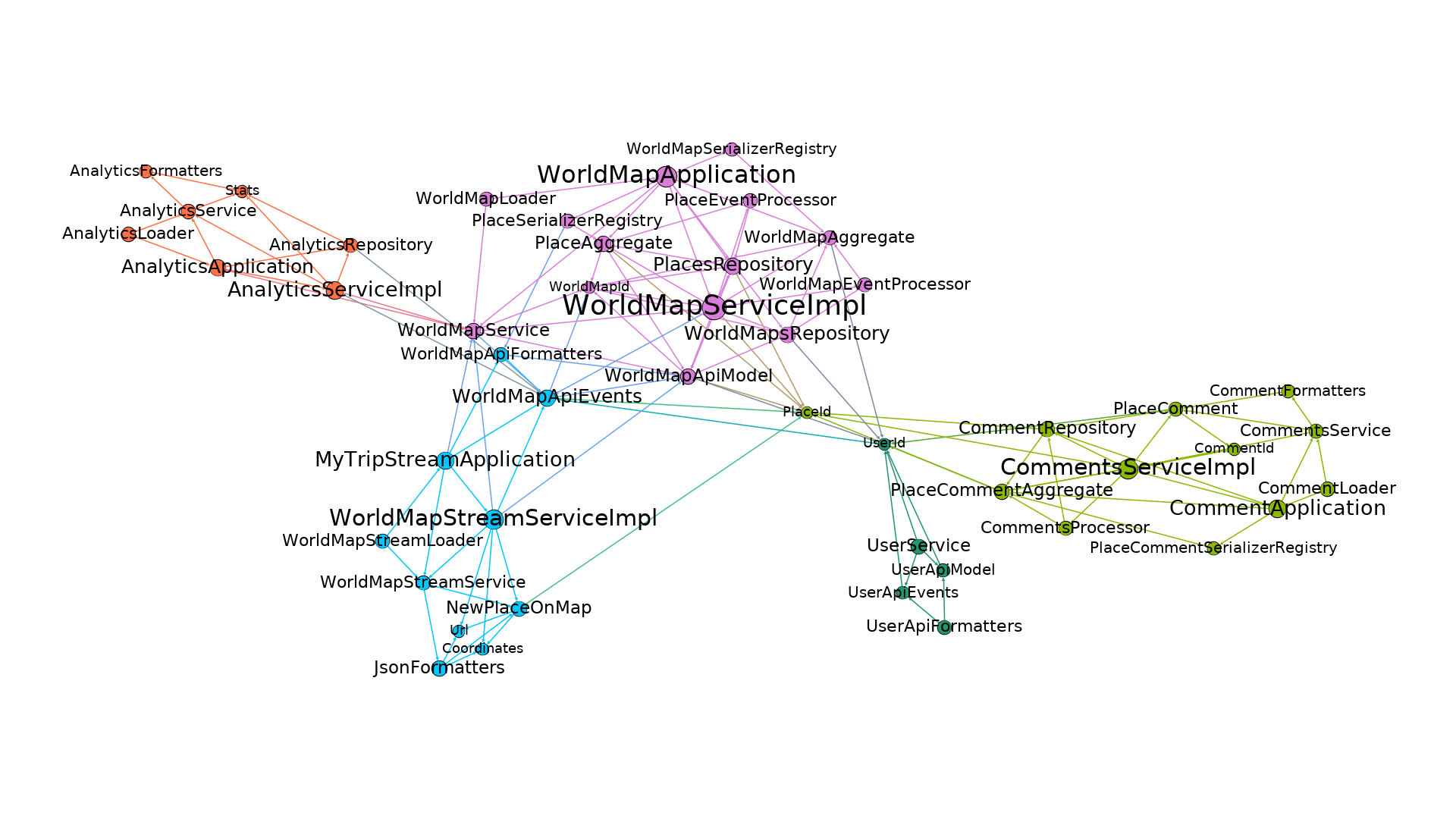

Learning about the software

(big picture)

Visual help - metals library

Visual help - betweenness

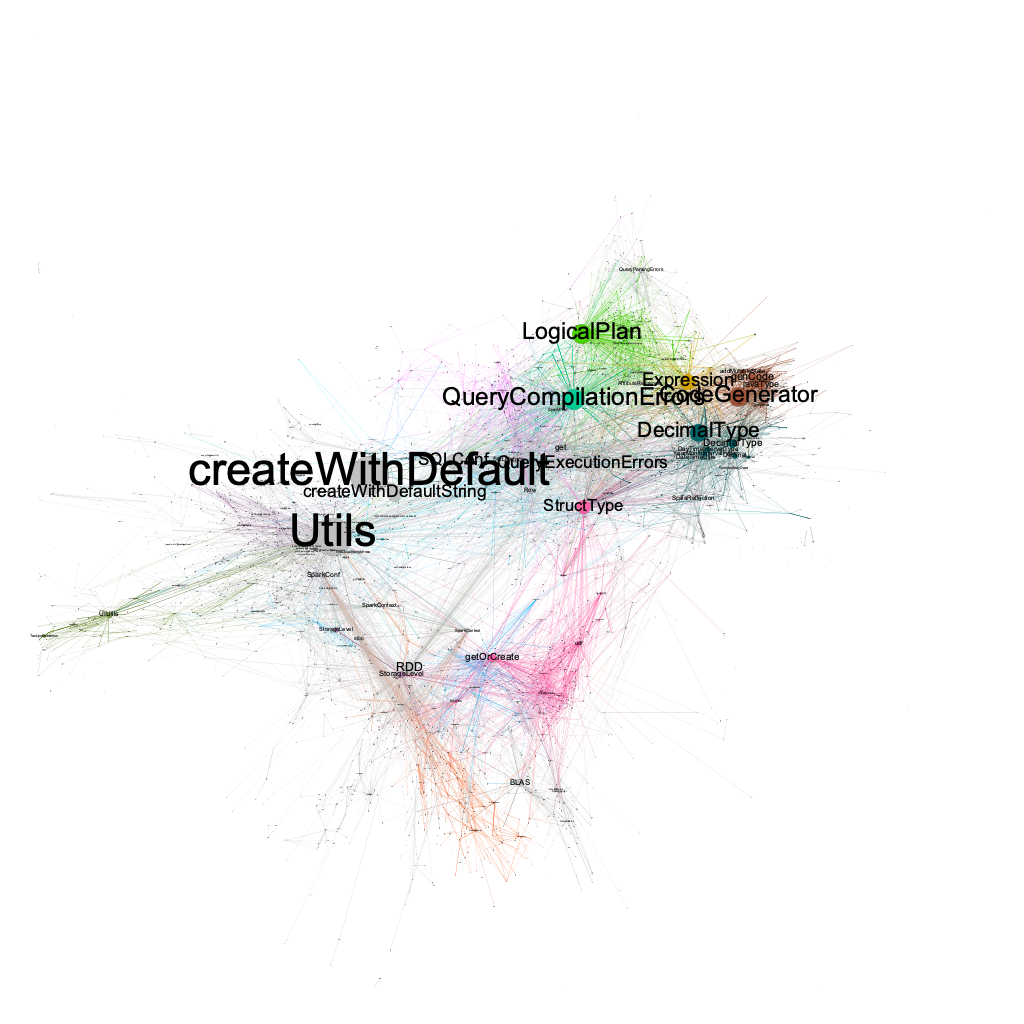

Visual help - Eigenvector

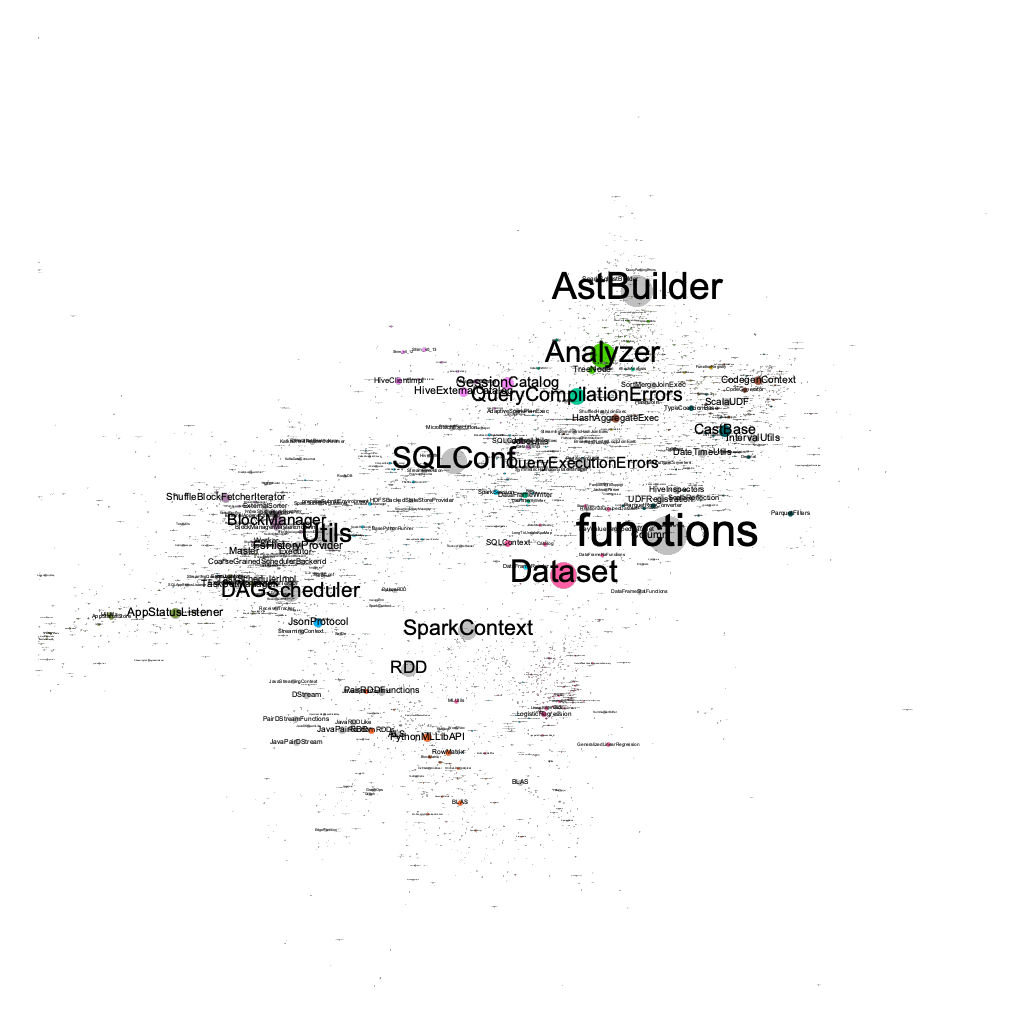

Visual help - LOC

Semantic Graphs Analytic

Analyzing and combining centralities:

Degree Centrality
Closeness Centrality
Betweenness Centrality*
Eigenvector Centrality
+ LOC metric

Finding noticable endpoints via Eccentricity

Betweenness centrality

where \(\sigma_{st}\) is the total number of shortest paths from node \(s\) to node \(t\) and \(\sigma_{st}(v)\) is the number of those paths that pass through .

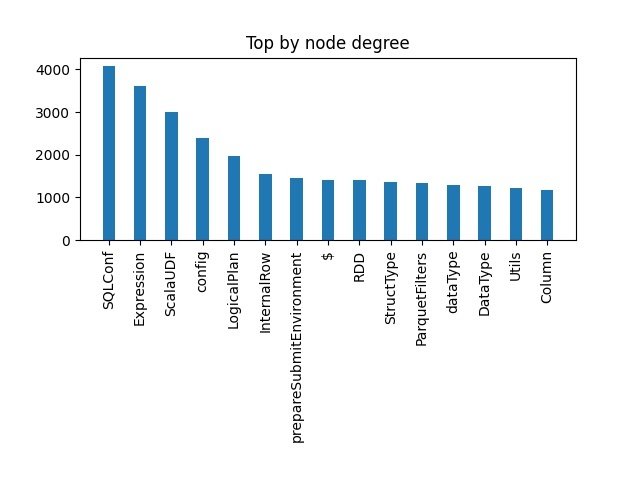

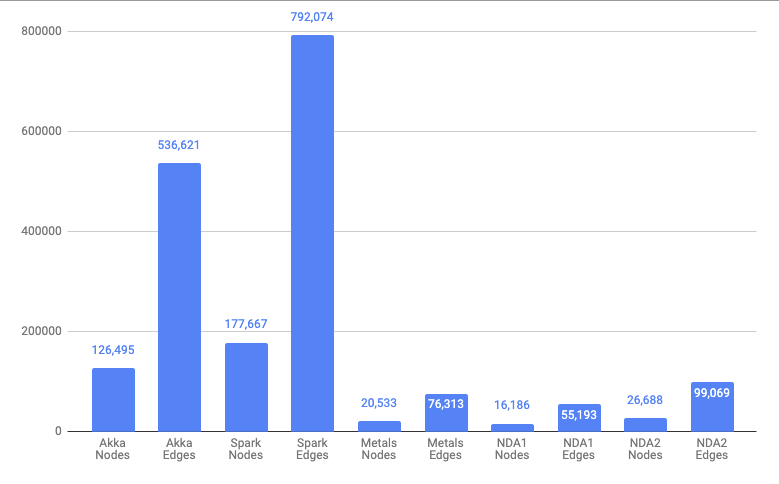

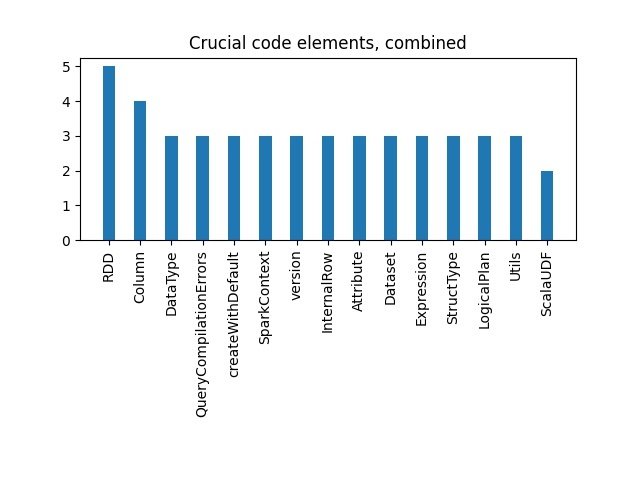

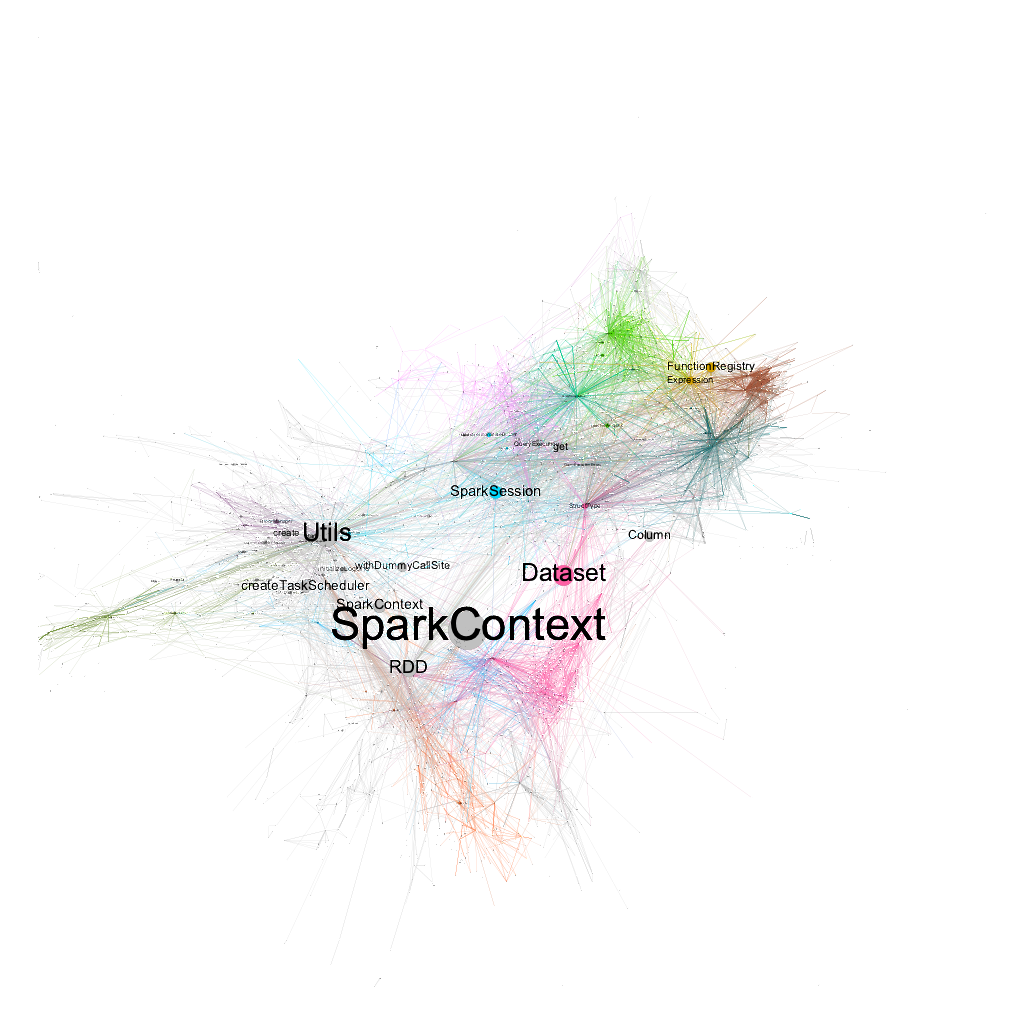

Project insights - spark

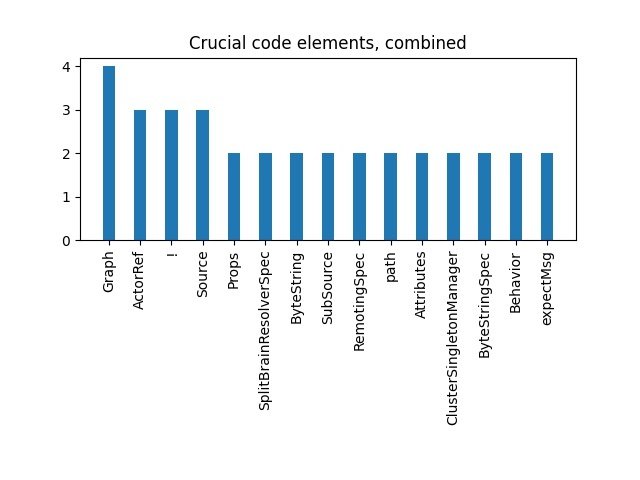

Project insights - akka

Browsing interactively the source code graph

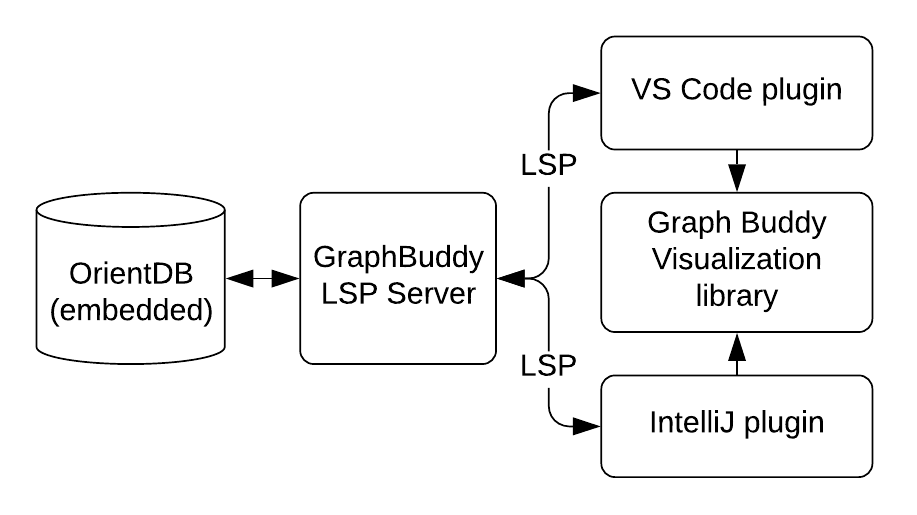

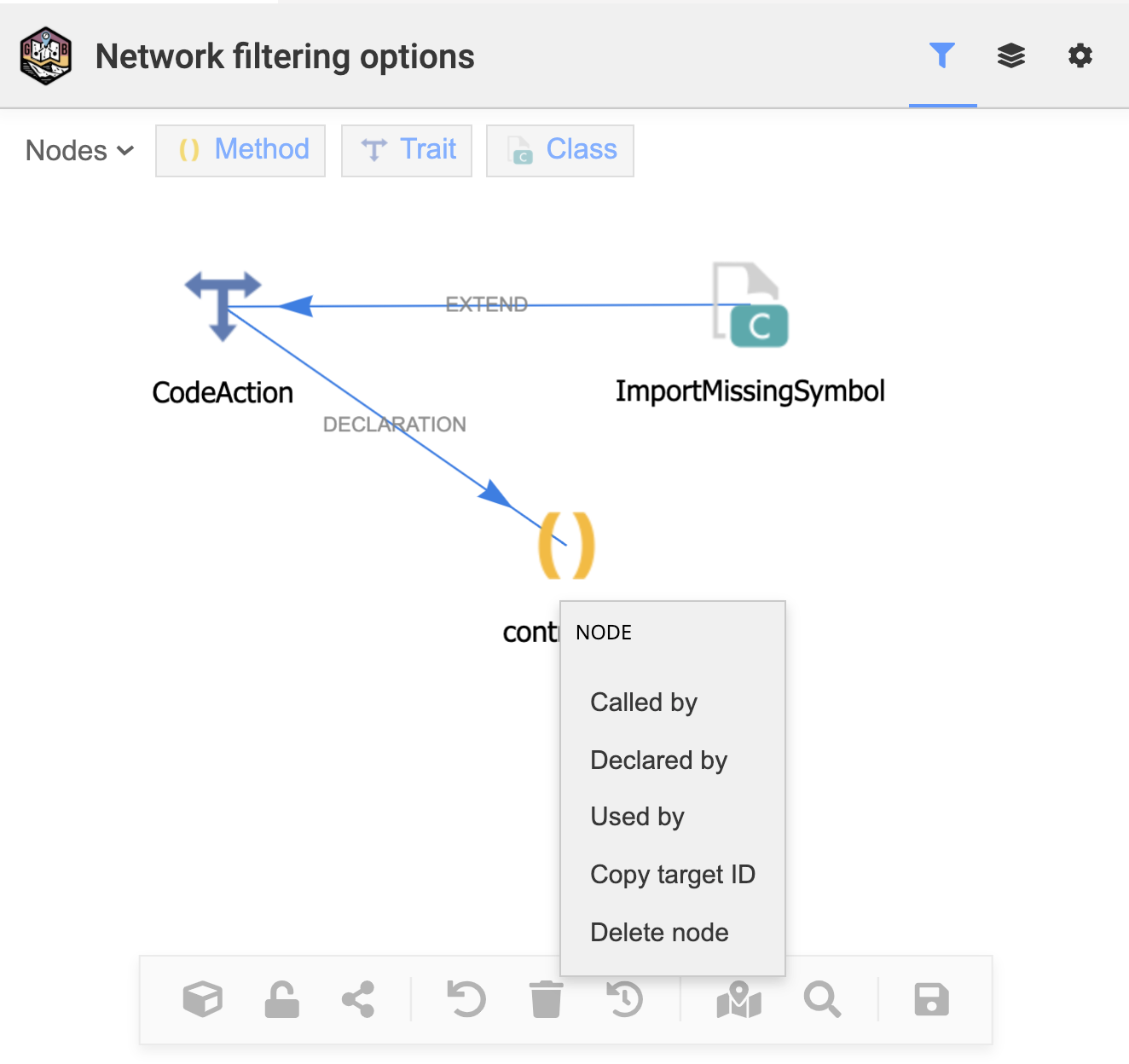

Graph Buddy

Semantic Code Graph visualization seamlessly integrated with IDE

Intellij - https://plugins.jetbrains.com/plugin/13467-graph-buddy

VScode - https://marketplace.visualstudio.com/items?itemName=virtuslab.graph-buddy

Graph Buddy

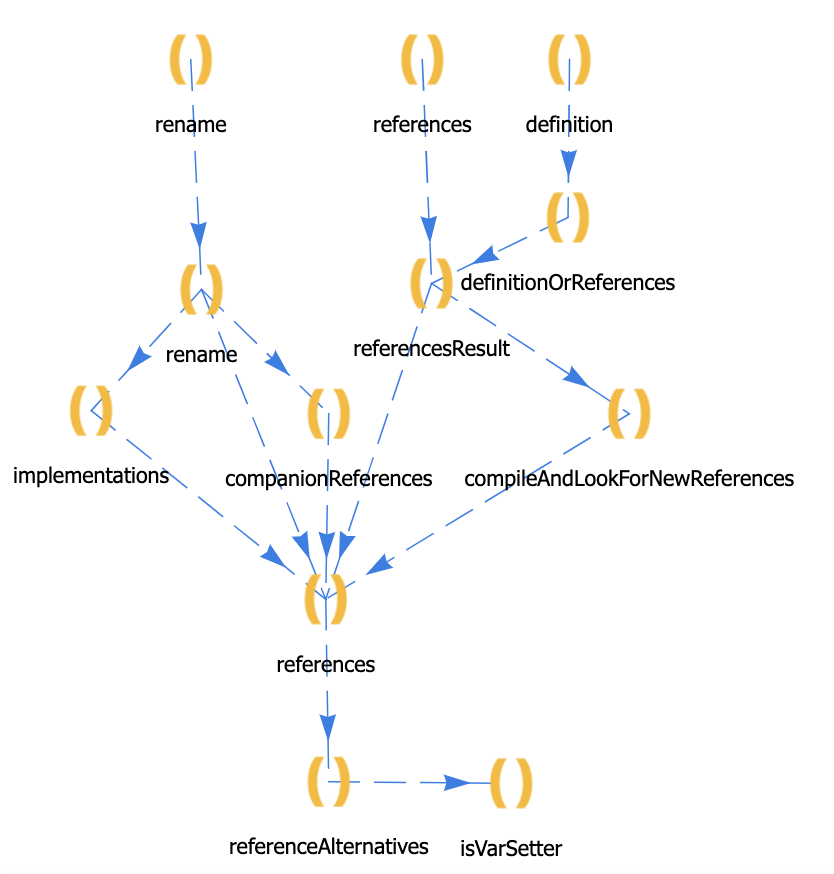

Call hierarchy

Code structure

Architecture

Code evolution

Average node degree
Graph diameter

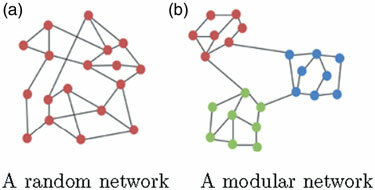

Modularity
Graph depth
Average clustering coefficient

Code evolution

Ideas yet to be explored

Architecture Release Guard
Architecture Code Guard

Towards better modularization

Future plans

Graph Buddy plugin evaluation
Metrics based tips in IDE
Monitoring project evolution [5]
Integration with popular CIs
Integration with SonarQube

Bibliography

[1] A. Bandi, B. J. Williams, and E. B. Allen, “Empirical evidence of codedecay: A systematic mapping study,” in2013 20th Working Conferenceon Reverse Engineering (WCRE), 2013, pp. 341–350.

[2] R. Arora and S. Goel, “Javarelationshipgraphs (jrg): Transforming java projects into graphs using neo4j graph databases,” in Proceedings of the 2nd International Conference on Software Engineering and Information Management, ser. ICSIM 2019.New York, NY, USA: Association for Computing Machinery, 2019, p. 80–84. [Online].Available: https://doi.org/10.1145/3305160.3305173

[3] V. Walunj, G. Gharibi, D. H. Ho, and Y. Lee, “Graphevo: Characterizing and understanding software evolution using call graphs,” in2019 IEEEInternational Conference on Big Data (Big Data), 2019, pp. 4799–4807.

[4] L. Bedu, O. Tinh, and F. Petrillo, “A tertiary systematic literature review on software visualization,” in2019 Working Conference on SoftwareVisualization (VISSOFT), 2019, pp. 33–44.

[5] J. Ferrante, K. J. Ottenstein, and J. D. Warren, “The program dependence graph and its use in optimization, ”ACM Trans. Program.Lang. Syst., vol. 9, no. 3, p. 319–349, Jul. 1987. [Online]. Available:https://doi.org/10.1145/24039.24041

[6] B. G. Ryder, “Constructing the call graph of a program,”IEEE Transactions on Software Engineering, vol. SE-5, no. 3, pp. 216–226, May1979.

[7] D. Grove, G. DeFouw, J. Dean, and C. Chambers, “Call graph construction in object-oriented languages, ”SIGPLAN Not., vol. 32,no. 10, p. 108–124, Oct. 1997. [Online]. Available: https://doi.org/10.1145/263700.264352

[8] J. Bohnet and J. D ̈ollner, “Visual exploration of function call graphs for feature location in complex software systems,” in Proceedings of the 2006 ACM Symposium on Software Visualization, ser. SoftVis ’06.New York, NY, USA: Association for Computing Machinery, 2006, p.95–104. [Online]. Available: https://doi.org/10.1145/1148493.1148508

[9] G. Shu, B. Sun, T. A. D. Henderson, and A. Podgurski, “Javapdg:A new platform for program dependence analysis,” in2013 IEEESixth International Conference on Software Testing, Verification andValidation, 2013, pp. 408–415
