10/4 建北聯課> <
by 鄭婷卉 卉潔!?
建北聯課？？
上課內容
-
Processing -
網頁
什麼是processing??
What is processing ??
Processing is a flexible software sketchbook and a language for learning how to code within the context of the visual arts.
Processing通過可視化的方式輔助編程教學，並在此基礎之上表達數字創意。 Processing基於Java語言，進一步簡化了語法，並用圖形編程模式取代了命令行程序模式。
在開始之前...
那我們就開始畫畫吧> <
視窗

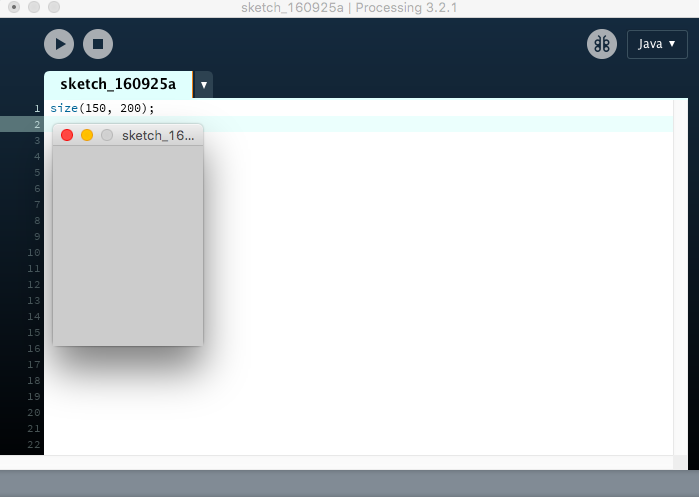

size (width, height);
size(150, 200);直線
line(x1, y1, x2, y2);
(x1, y1)
(x2, y2)

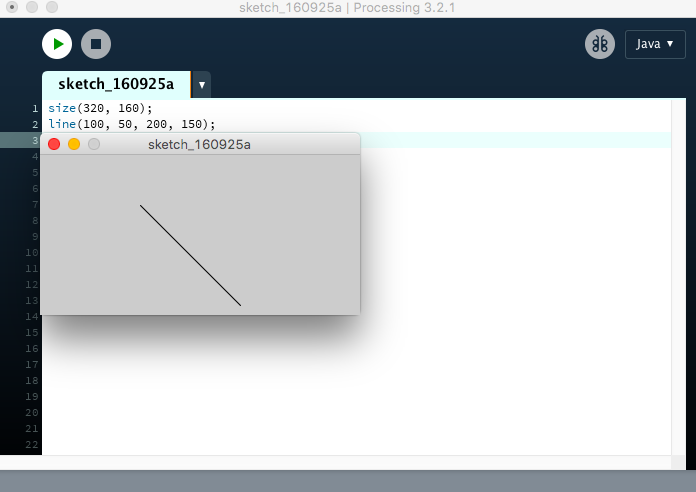

size(160, 320);
line(100, 50, 200, 150);圓形
ellipse(x, y, width, height);
(x, y)
width
height

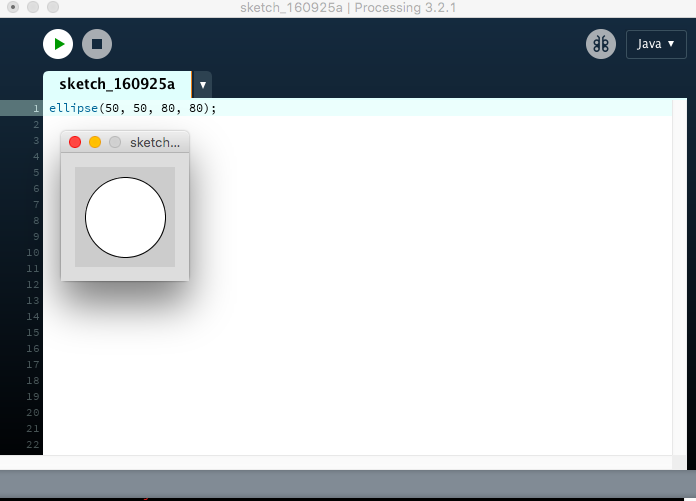

ellipse(50, 50, 80, 80);矩形
rect(x, y, width, height);
width
height
(x, y)

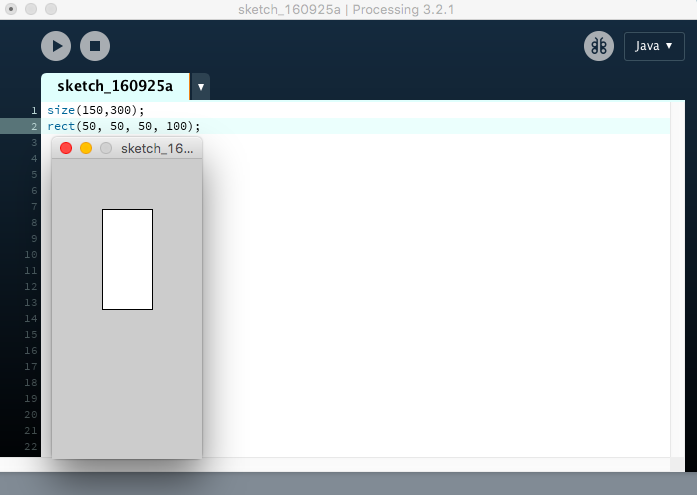

size(150, 300);
rect(50, 50, 50, 100);四邊形
quad(x1, y1, x2, y2, x3, y3, x4, y4);
(x1, y1)
(x2, y2)
(x3, y3)
(x4, y4)

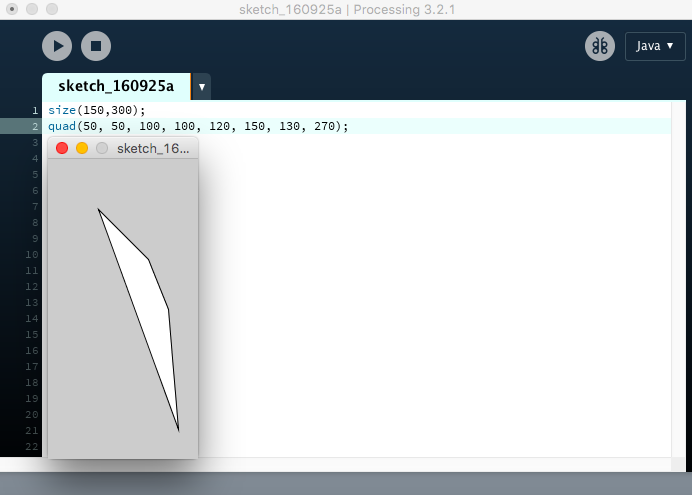

size(150, 300);
quad(50, 50, 100, 100, 120, 150, 130, 270);三角形
triangle(x1, y1, x2, y2, x3, y3)
(x1, y1)
(x2, y2)
(x3, y3)

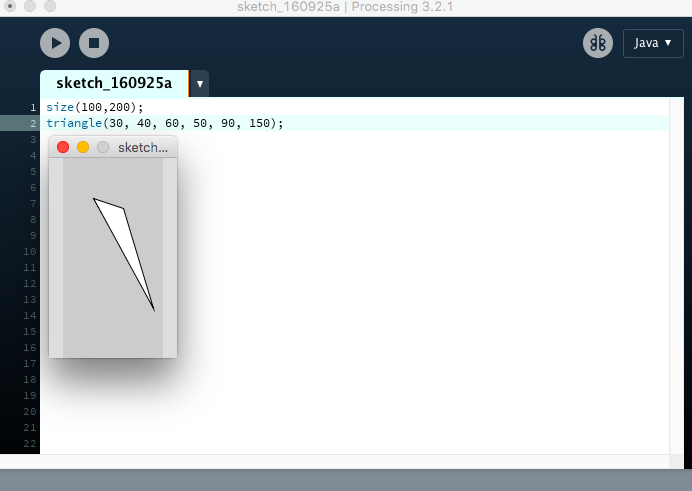

size(100, 200);
triangle(30, 40, 60, 50, 90, 150);只有黑色跟白色好醜...
而且線都一樣粗細QQ

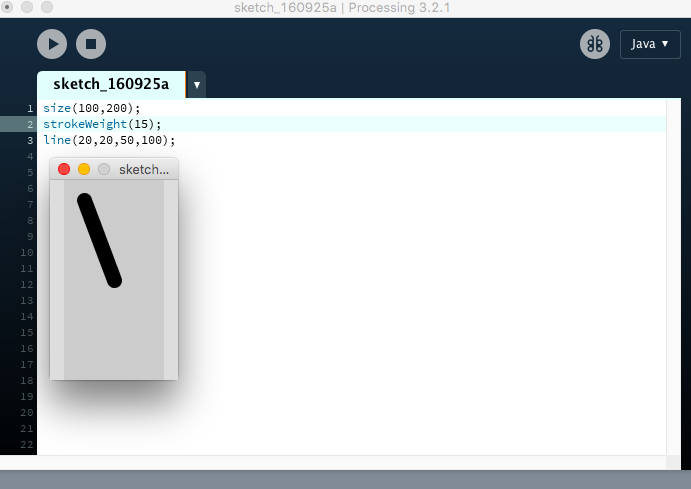

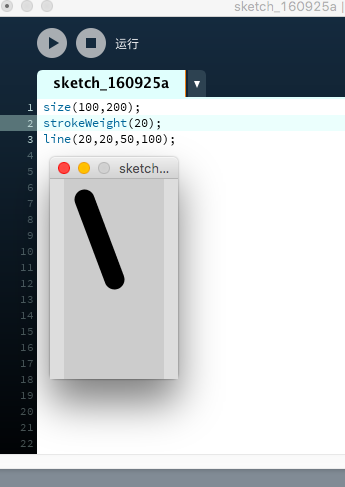

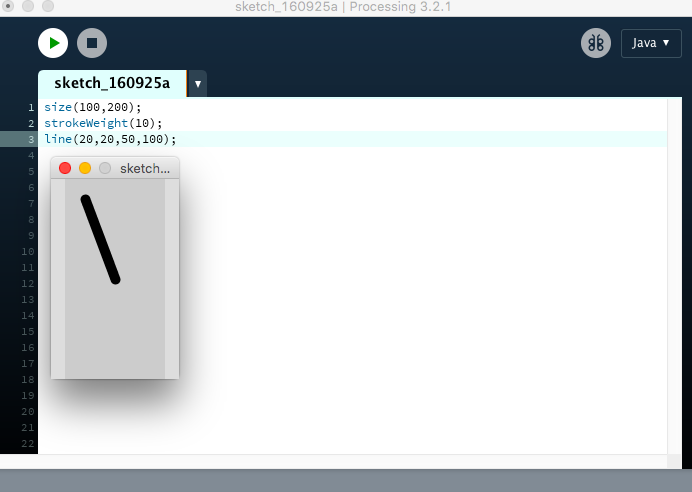

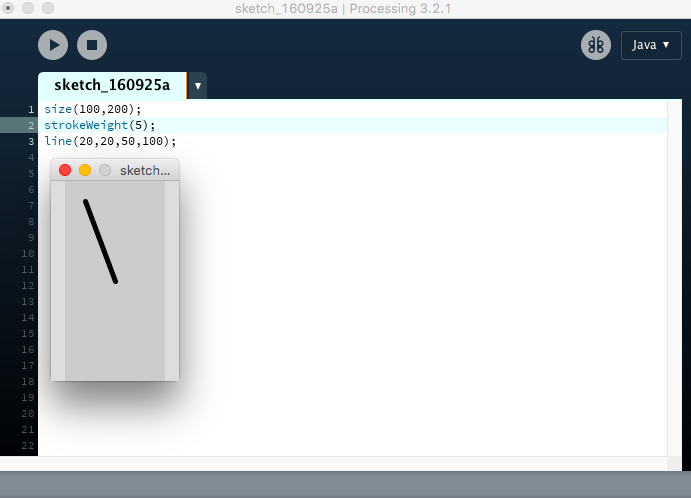

線的粗細
strokeWeight(num);
裡面填的數字代表筆畫粗細為幾個像素

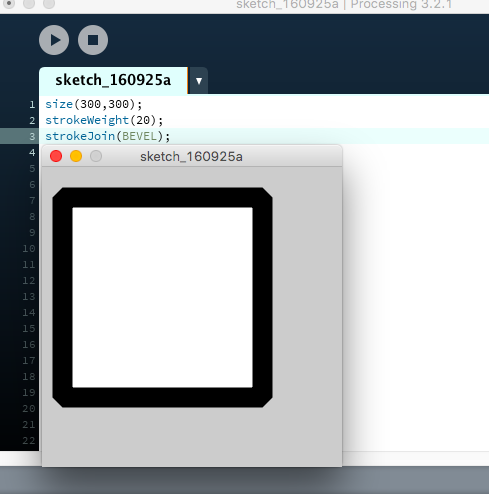

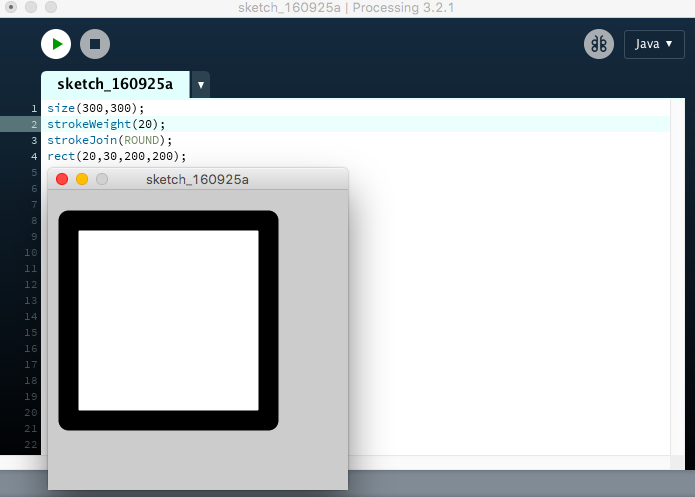

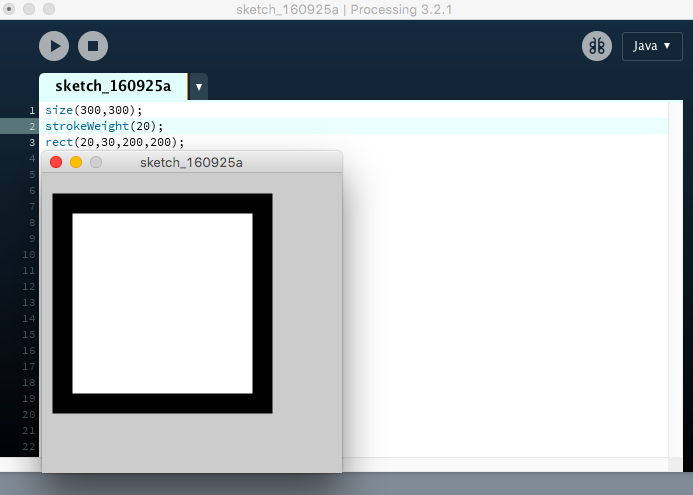

線的轉彎處
strokeJoin(ROUND/BEVEL);
控制線段遇到轉角的型:圓角/斜角

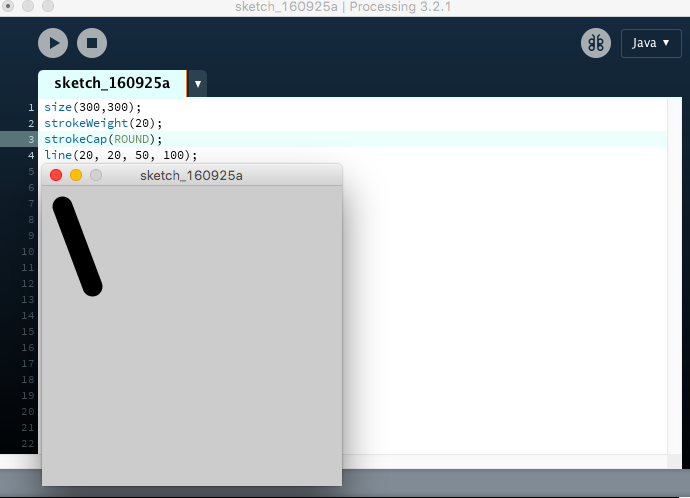

線的開頭結尾
strokeCap(ROUND/SQUARE);
控制線段在開頭與結尾的樣子:圓形/方形

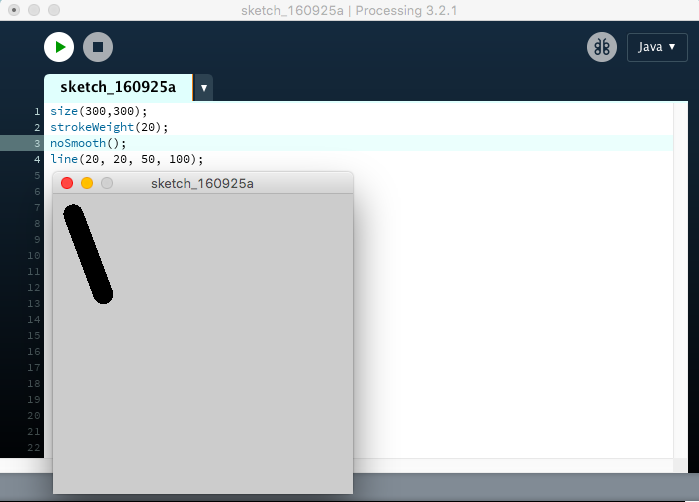

線的圓滑
smooth(); / noSmooth();
控制線段的圓滑性

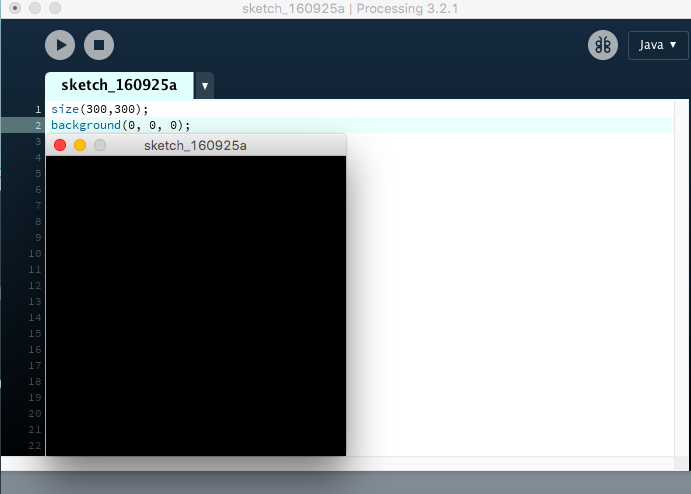

背景顏色
background(R, G, B);
size(300, 300);

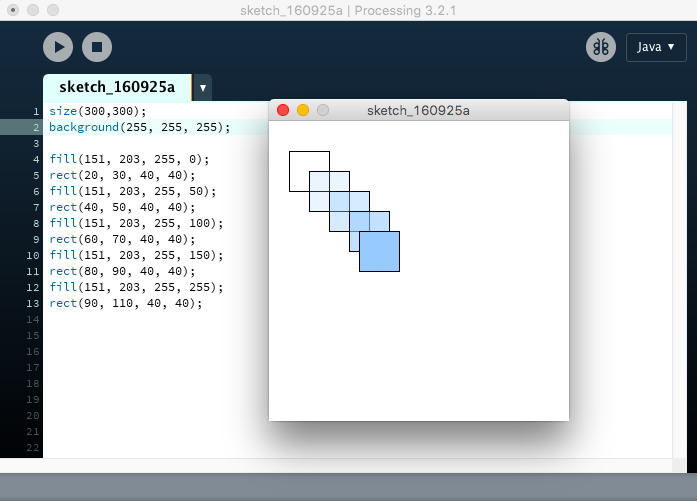

background(0, 0, 0);填色
fill(R, G, B, alpha);
size(300, 300);
background(255, 255, 255);
fill(151, 203, 255, 0);
rect(20, 30, 40, 40);
fill(151, 203, 255, 50);
rect(40, 50, 40, 40);
fill(151, 203, 255, 100);
rect(60, 70, 40, 40);
fill(151, 203, 150, 150);
rect(80, 90, 40, 40);
fill(151, 203, 255, 255);
rect(90, 110, 40, 40);練習時間> <
偷補充
void setup(){
size(600, 600);
background(128, 128, 255);
}
void draw(){
strokeWeight(15);
strokeJoin(ROUND);
rect(mouseX, mouseY, 100, 100);
}10/4Processing
By lydiacheng
10/4Processing
建北電資聯課第一週上課投影片
