Data visualisation





15 June 2018

@maartenzam

P&V

What? WHY? How?

On the menu

A little bit of history

Why visualise?

The secret

15 data visualisation pitfalls

The Datavisualisation Checklist

Going beyond bars and lines

Dashboard design

Maarten Lambrechts?

A little bit of history

"As knowledge increases amongst mankind, and transactions multiply, it becomes more and more desirable to abbreviate and facilitate the modes of conveying information from one person to another, and from one individual to the many."


William Playfair, 1786

"Everything that can be expressed in numbers can be represented by lines."


John Playfair

Why visualise?

Party Oct 2010 Sep 2012 May 2013 Oct 2013
N-VA 28,2 36,3 32,1 27,9
CD&V 17,6 18,5 17,4 19
SP.A 14,9 14,5 14,7 13,4
VB 12,6 9,5 10,6 10,6
VLD 14 10,7 10,1 13,8
Groen 7,1 7,9 9,5 10
LDD 3,7 1,3 0,4 1,3
PVDA 5 5 2,5 3,9
Andere 2 1,2 2,6 0,1
x1 y1 x2 y2 x3 y3 x4 y4
10 10 10 8 8.04 9.14 7.46 6.58
8 8 8 8 6.95 8.14 6.77 5.76
13 13 13 8 7.58 8.74 12.74 7.71
9 9 9 8 8.81 8.77 7.11 8.84
11 11 11 8 8.33 9.26 7.81 8.47
14 14 14 8 9.96 8.10 8.84 7.04
6 6 6 8 7.24 6.13 6.08 5.25
4 4 4 19 4.26 3.10 5.39 12.50
12 12 12 8 10.84 9.13 8.15 5.56
7 7 7 8 4.82 7.26 6.42 7.91
5 5 5 8 5.68 4.74 5.73 6.89

The secret

Preattentive processing

868888609462834719714449648
122286651978794222484779908
939340243123007392183390116
351684124962334339709749742
            868888609462834719714449648
122286651978794222484779908
939340243123007392183390116
351684124962334339709749742

Color

Size

Position

Rotation

Shape

Enclosure

15 datavisualisation pitfalls

Chart choosers

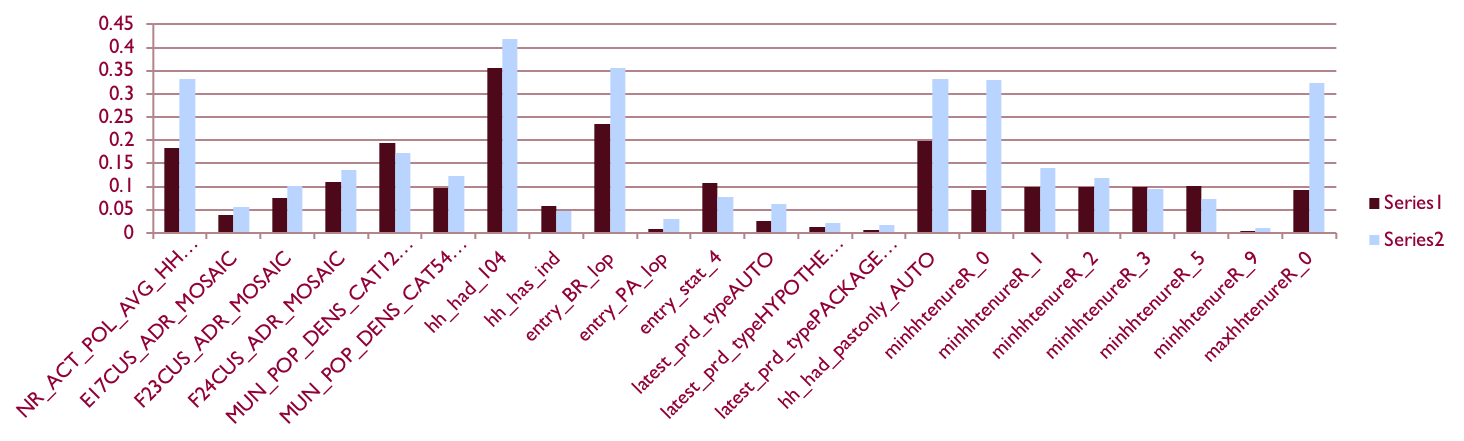

2. Don't cut bars

3. Don't cut time axes

4. Label directly

5. Use colors deliberately

Make grey your best friend

6. Avoid chart junk

7. Scale circles by area, not by radius

8. Tell the story

9. Don't double the axes

Correlation is not causation

10. Don't do 3D

Accept when you're the New York Times

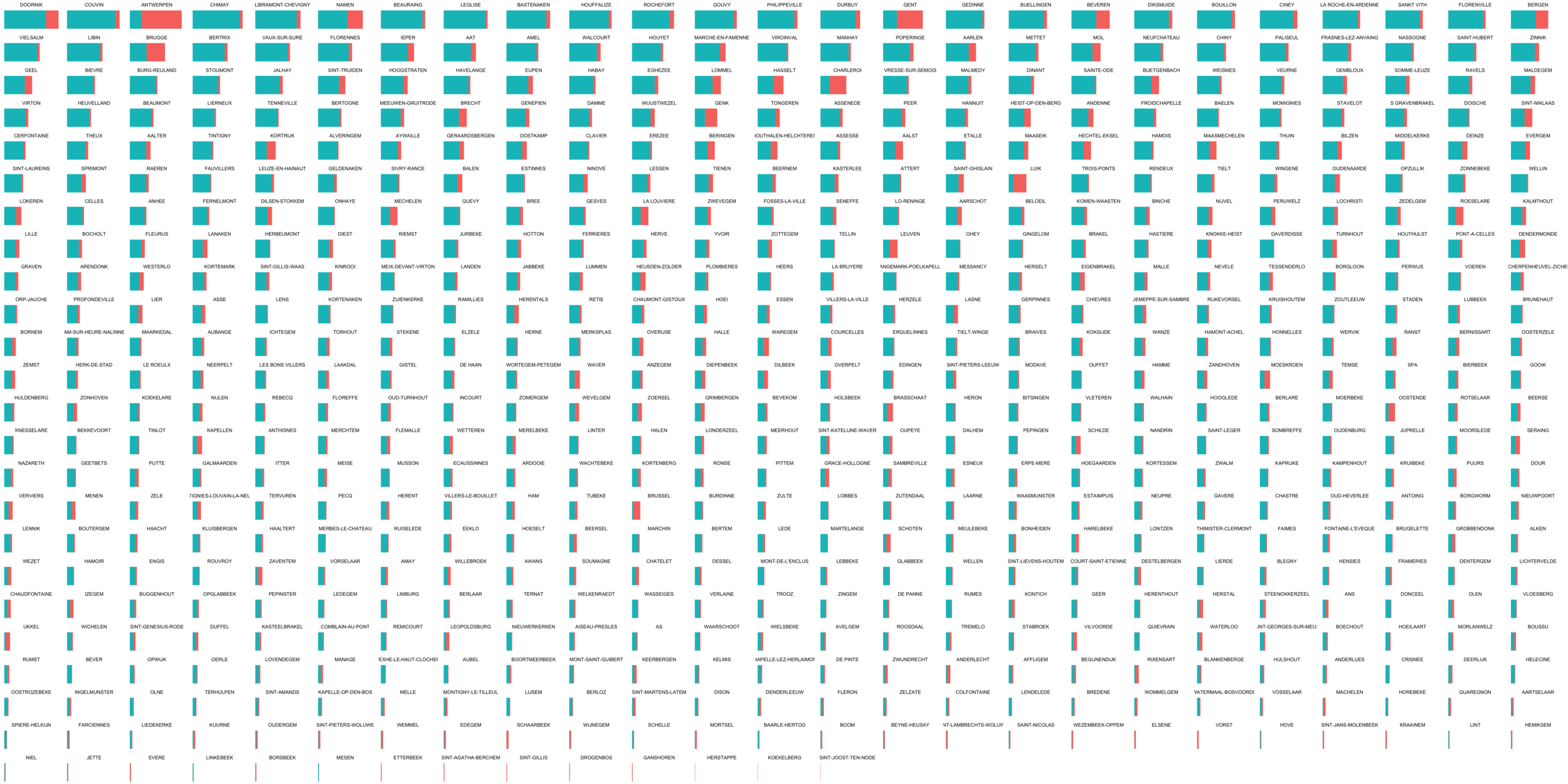

11. Sort on the data

12. Normalise data (per capita, ...)

13. Sometimes the best map is no map

14. All maps lie

Going beyond bars and lines

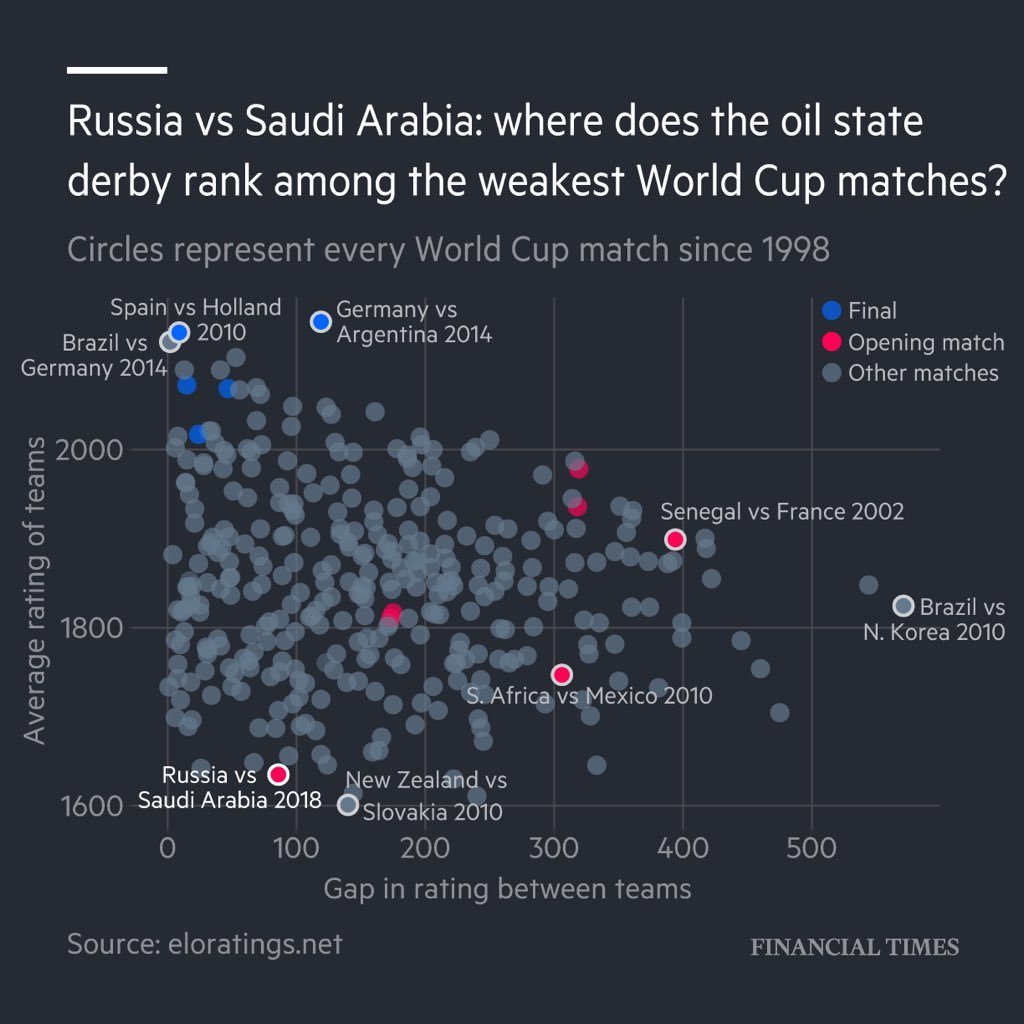

Dots

Connect the dots

Hierarchies

Streams

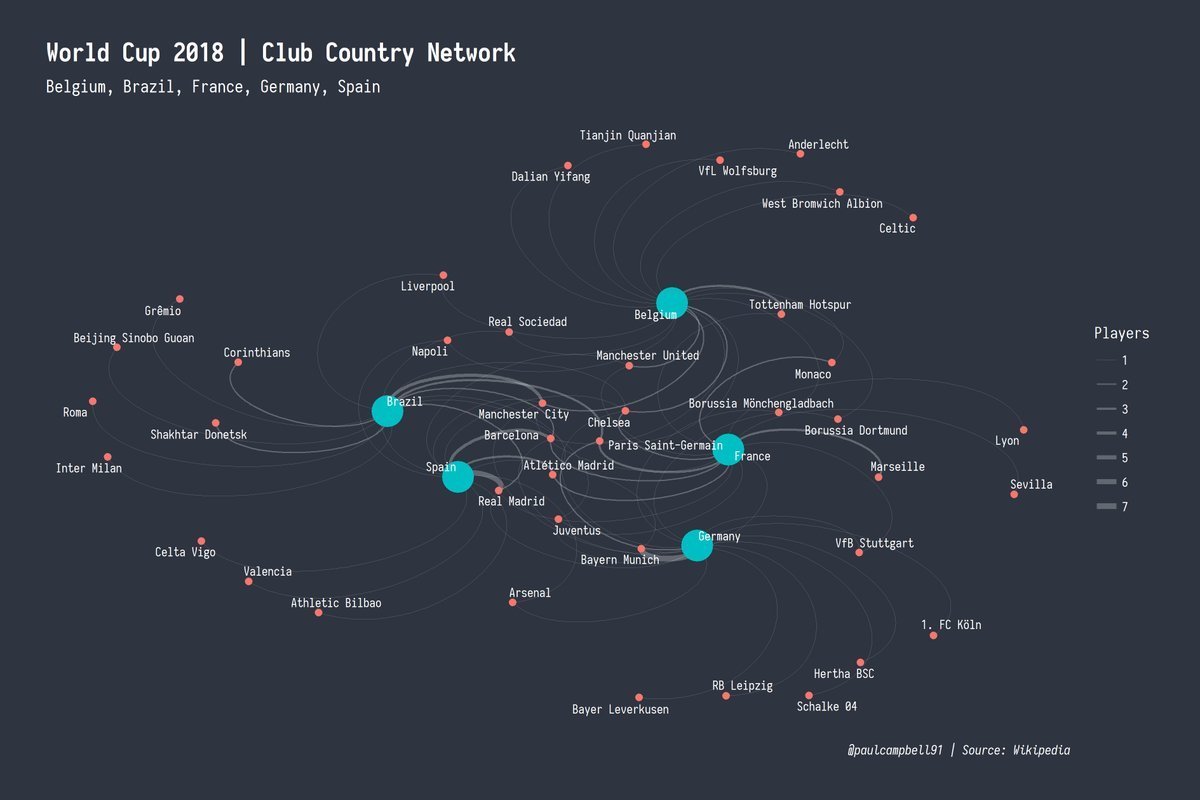

Networks

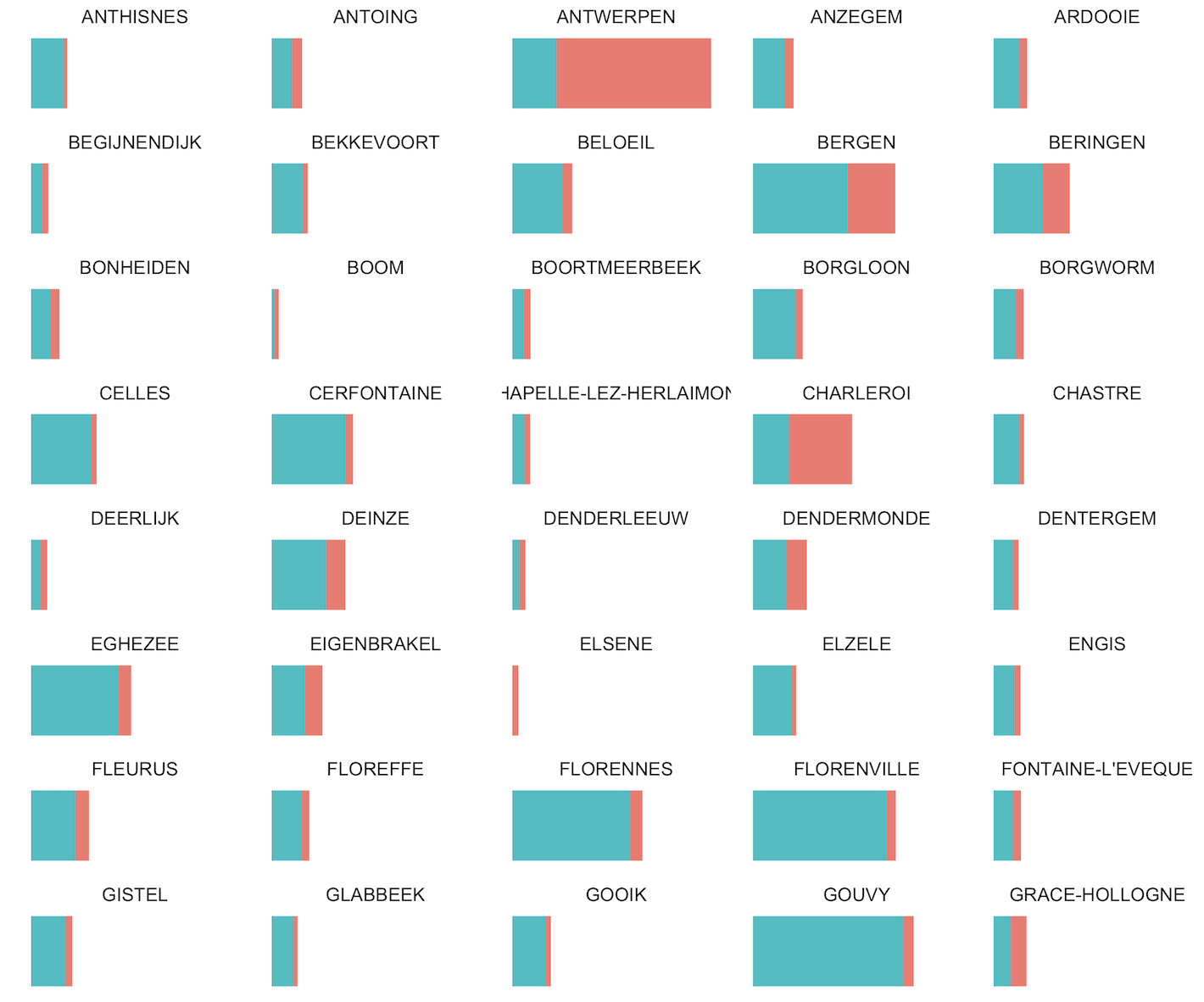

Small multiples

Dashboard design

Why dashboards?

Monitoring

Anwser specific questions

  • Everything ok?
  • Processes ended?
  • Cause of problem?
  • Where to invest resources?

Exploration

Gain insights

  • Who are our customers?
  • How are people using our webshop?
  • What are the patterns in our sales?

Monitoring

Anwser specific questions

  • Only show relevant data
  • User is most important
  • Should lead to action

Exploration

Gain insights

  • Show all the data
  • Data is most important
  • Should lead to insight

10 design principles

for dashboards

User centric

NOT DATA CENTRIC

NOT DASHBOARD CENTRIC

Use the grid

Left top to bottom right

Gradual reveal

tooltips

Pop ups

drilldowns

1. overview

Dataviz mantra

2. zoom & filter

3. details on demand

Respect the data

Time series

Categories

Flows

Hierarchies

Respect the rules of good data visualisation

Guide attention

Color

Type

Sizes

Grid

Grouping

Show context

Targets

Past time periods

Averages

Other statistics

Avoid unnecessary precision

1.4k vs 1.458,54

USE labels, but limit them

Guide action

Actions to perform

People to contact

User centric

Use the grid

Gradual reveal

Dataviz mantra

Respect datastructure

Respect dataviz ground rules

Guide attention

Show context

Avoid too much detail

Guide action

Thanks!

slides.com/maartenzam/pv



www.maartenlambrechts.be

@maartenzam
