INTRO À SKETCH, SVG & Animations
SKETCH
QU'EST CE QUE C'EST ?
- Editeur Graphique Vectoriel
- Résolument orienté web et mobile
- Simple et agréable à prendre en main
Et par rapport aux autres ?
Plus souple qu'Illustrator
Plus orienté web que Photoshop
Fonctionnalités moins poussées
Les nouveaux le copient (Vectr, Adobe Experience Design)
Moins cher (licence à 90$)
FONCTIONNALITÉS INTÉRESSANTES
- Un inspecteur (similaire aux navigateurs)
- Système de plugins
- Système d'éléments réutilisables (Symbol)
- Fonctionnalité Mirror / Live Preview
SVG
Scalable Vector Graphics
qu'est-ce que c'est ?
- Format d'image vectoriel basé sur XML
- Premier draft de la W3C en ... ?
- v1.1 - 2011
- v2 RC - Septembre 2016
puis-je l'utiliser ?
QUAND L'UTILISER ?
- Complexité d'image assez faible (pas une photo ou un dessin)
- Besoin d'animation
- Besoin de Scalabilité/Mise à l'échelle
- Image inline (mieux que du Base64)
- Accessibilité à tout ou partie de l'image
- SEO
contenu
- Balises et attributs (viewBox, g..)
- Path
- Shapes (Circle, Triangle, Rectangle, Polygon)
- Fill
- Clipping, Masking, Composition
- Filters
- Links
- Scripting
- Metadata
- (Animation - SMIL)
path en detail
- M = moveto
- L = lineto
- H = horizontal lineto
- V = vertical lineto
- Z = closepath
M,L,H,V,Z - coordonnées absolues
m,l,h,v,z - coordonnées relatives
<svg width="100" height="100" xmlns="http://www.w3.org/2000/svg">
<path d="M10 10 H 90 V 90 H 10 L 10 10"/>
</svg>
path en detail

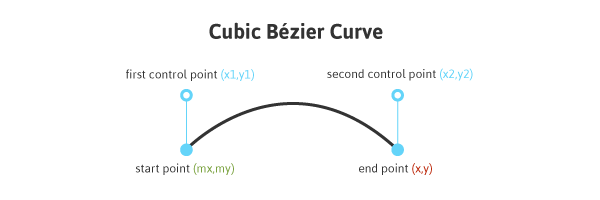

C/c = Cubic Bézier Curve
<path d="M10 10 C 20 20, 40 20, 50 10" stroke="black" fill="transparent"/>
path en detail

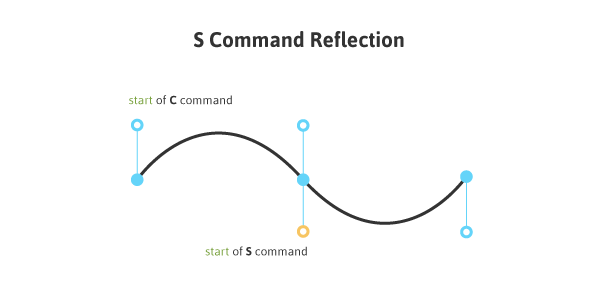

S/s = Smooth Curve To
<path d="M10 10 C 20 20, 40 20, 50 10" stroke="black" fill="transparent"/>
path en detail

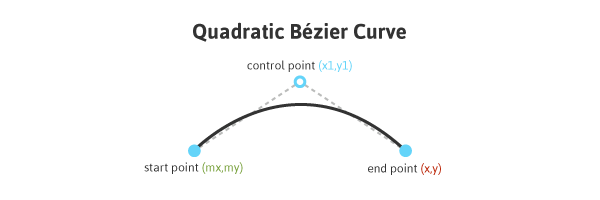

Q,q = Quadratic Bézier Curve
<path d="M10 80 Q 52.5 10, 95 80 T 180 80" stroke="black" fill="transparent"/>
path en detail

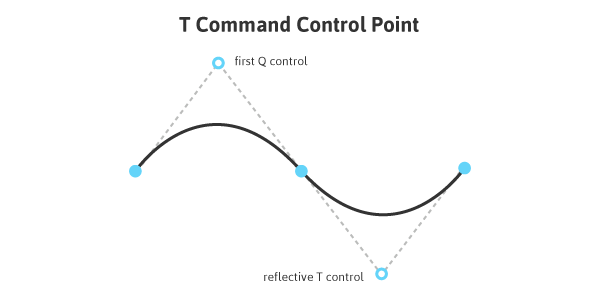

T,t = Smooth Quadratic Bézier Curve To
<path d="M10 80 Q 95 10 180 80" stroke="black" fill="transparent"/>
path en detail

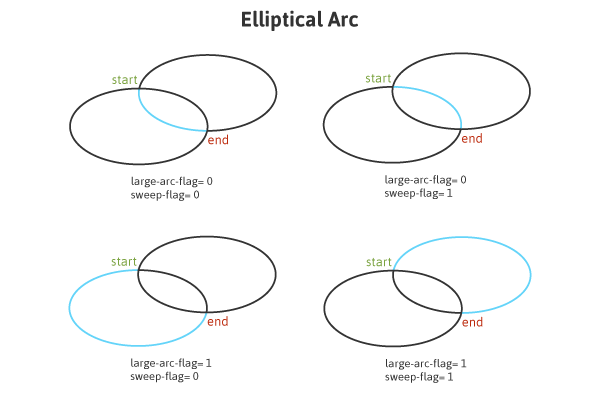

A,a = Elliptical Arc
<path d="M230 230 A 45 45, 0, 1, 1, 275 275 Z" fill="blue"/>
ANIMATION

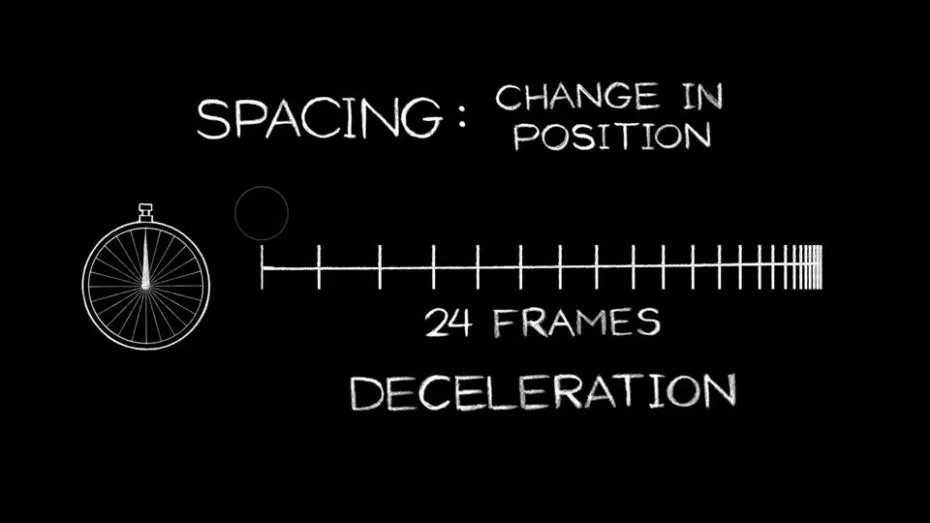

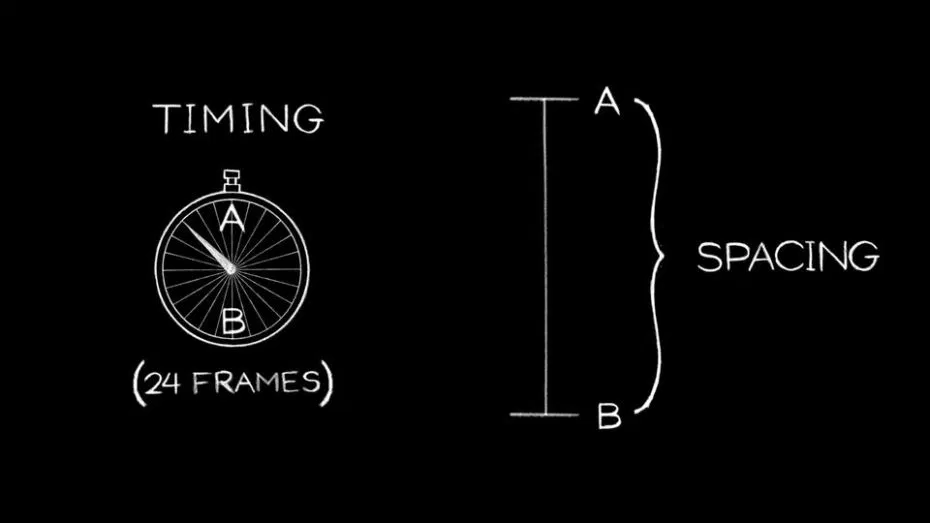

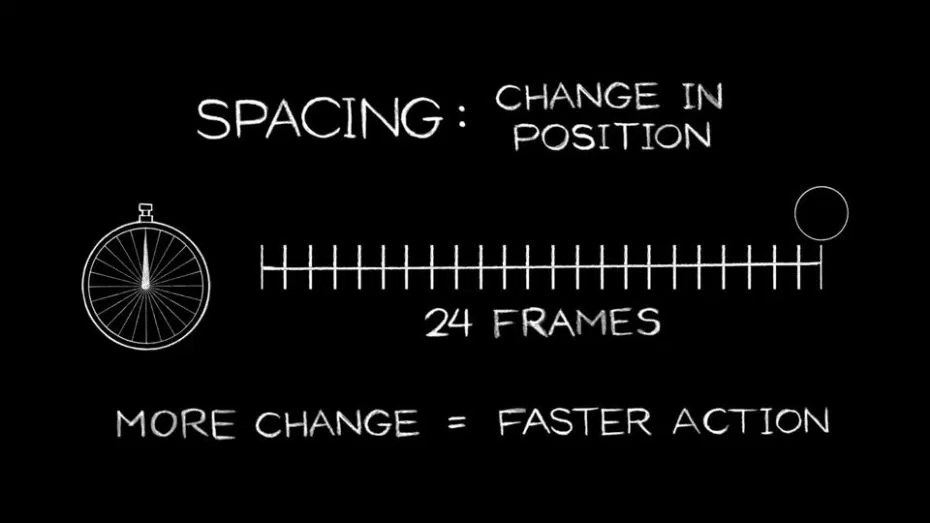

qu'est-ce qu'une animation ?
ET DANS UN NAVIGATEUR ?
CSS
Les animations et transitions n'utilisent le GPU que sur les propriétés suivantes :
- transform
- filter
- opacity
JavaScript
- setInterval()
- setTimeout()
- requestAnimationFrame()
RAF
const animationID = requestAnimationFrame(animate);
const animate = () => {
// Votre animation
// Appel de la frame suivante
requestAnimationFrame(animate);
};
ALLER PLUS LOIN:

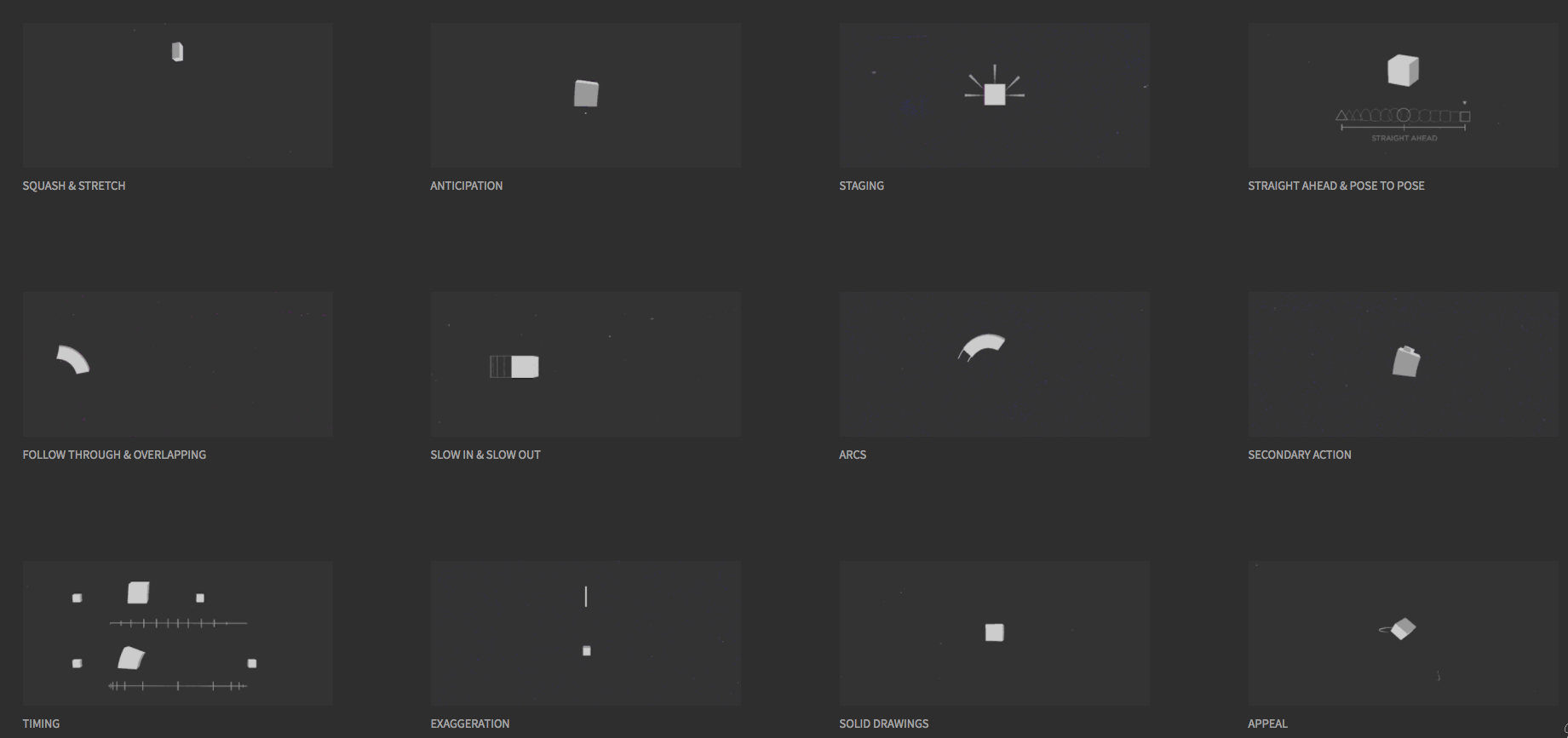

Les 12 principes de l'animation
CONCLUSION
& Questions
