Overview

There are many, many, many

tools, services, and techniques --

to do the same thing.

Understand the Concepts.

Tools, services, and techniques

change far too often.

Concepts are more stable.

SVG

SVG Workflow Overview

Why?

• Designer handoff to Developers
• UI are heavily used icons.
• More easily iterate. Reduce complexity.
• File size is your problem.
• Page load is everybody's problem.
• Fewer cross-platform display issues
• Atomic Design process says improve at atom level first.

 Pennies add up. Quickly.

Save seconds now.

Save hours later.

Devil in the details.

SVG Refresher

• Drawing with math versus pixels
• Device and resolution independent
• Sharper shapes, lines, and gradients
• Made up many parts
• HTML under-the-hood
• Not a replacement for JPG or PNG or TIFF

Exporting Refresher

• (Quick) Exporting
  • Canvas
  • Artboards
  • Layers
  • Slices
• Reference
  • Sketch - Exporting

SVGO Plugin

• Optimizes SVG to
  • reduce file size
  • remove unused components
  • exports for production
• SVGO Plugin

Part 1: Artboards, Names, & Layer Groups

Best Practices Pt. 1

• Use Artboards for all icons
• Don't be lazy. Use semantic and clear layer names.
• Ungroup layers
• Example: Best Practices

Apple Example

• Visual Format Language
• Design focus on design
• Developer look at code

IBM Example

• IBM visual language
• Download icons and see how IBM is
  • not using folders
  • consistant naming
  • exporting at multiple formats

Pt 2: Vector Shapes & Borders

Download: Best Practices

The most convenient way to create something in Sketch may not result in the most efficient or reliable SVG

Flatten Transforms

• Sketch main transform features adds unnecessary code and increases the file size
• Flatten it.

Version Control

• Version Control is preferred method
• Note: Flattening is a destructive (permanent) process. Consider creating a hidden duplicate of your transformed layer for later

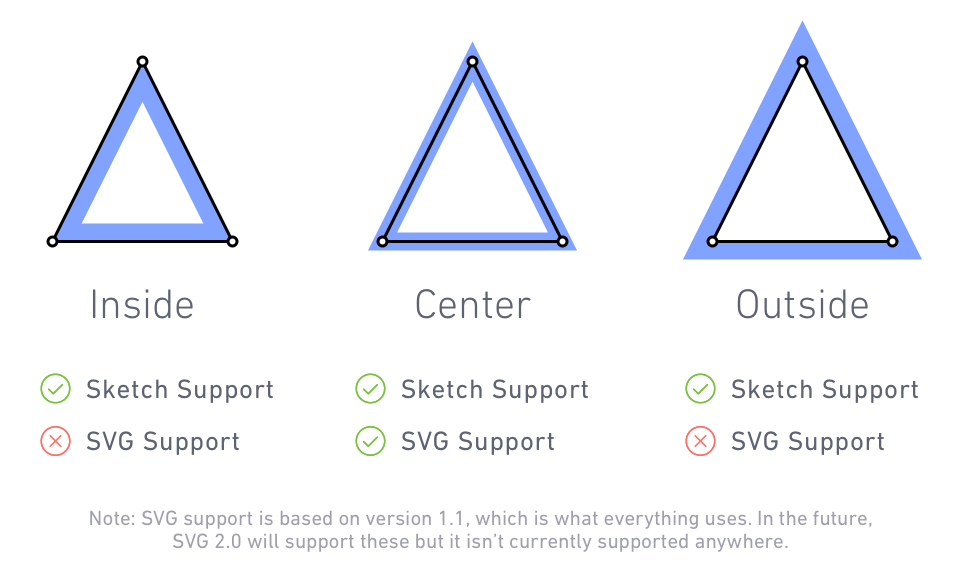

Borders

Method 1: Convert to Outlines

• Turns borders into vector paths that use a fill instead of a border
• Pros:
  • Can be  combined with other layers that use a fill
  • SVG will very reliably match it

• Cons:
  • Outlining at least doubles the number of vector points
  • Thickness of the border/stroke is no longer editable

Method 2:

• Reposition vector points to use a centered border
• Pros:
  • Default of Sketch starting at v43
  • Follows SVG spec
  • Currently, no other software does this

• Cons:
  • Can be time consuming
  • Situations where creating a path through the middle of an inside/outside border is mathematically impossible

Pt 3: Layer Styles, Shadows, & Blend Modes

Repeat: The most convenient way to create something in Sketch may not result in the most efficient or reliable SVG

Multiple Fills

• Sketch allows you to add multiple fills or borders to the same layer, but....
• SVG elements only support one fill and one stroke per element
• Always try to merge or reduce multiple fills into just one.

• Sketch can handle multiple borders with a combination of inside, outside, and centered borders...but
• Try to reduce how many borders you have, and rely mostly on centered borders rather than inside/outside

Borders

Blend Modes

• Sketch allows you to add multiple fills or borders to the same layer, but....
• SVG elements only support one fill and one stroke per element
• Always try to merge or reduce multiple fills into just one

• SVG doesn’t natively support shadows, so Sketch writes a custom “SVG Filter” effect during export
• Shadows ca be replaced by creating a new layer filled with a semi-transparent linear or  radial gradient

Shadows & Blurs

Pt. 4: SVG to Code

DOWNLOADS

• SVG Markup Basics
• Sample: SVG Device Icon

UTILITIES

• SVG OMG by Jake Archibald

Exports

• Edit > Copy SVG Code
• Note: small differences between Copy SVG Code and the Export button in the Inspector
• "Why does this matter again?". Designers handoff SVG code to Developers.

Use Artboards

• Use for all SVG
• Copy SVG code from Artboards
• Repeat: Copy SVG code from Artboards

Download Sprite Sheet

SVG Spritemap (CodePen)

Pt 5: Checklist

Layers, Artboards, Groups

[ ] Use Artboards and keep sizes consistent
[ ] Avoid bitmap images. It's an SVG
[ ] Use unique and semantic layer names
[ ] Ungroup all layers -- before export

Shapes, Strokes, Shadows, Blend Modes

[ ] Flatten layers with flip or rotate transforms
[ ] Reconstruct masks with Boolean operations
[ ] Only use Convert to Outlines on borders if absolutely necessary
[ ] Merge multiple fills on the same layer
[ ] Replace non-Normal blend modes with new filled shapes
[ ] Consider replacing shadows with gradients when possible

Export and Code

[ ] Export or Copy SVG Code on the Artboard—not layers or slices

[ ] Optimize afterwards (install plugin) with SVGOMG

[ ] Include recommended declarations at the top of the SVG, if it will be used as an independent graphic

[ ] If using multiple inline SVGs on a webpage, ensure that none of their elements have the same ID

...
