Raspberry Pi LED Matrix

Draw on LED matrix with raspberry PI in Typescript

What do we want?

Agenda

• Hardware
• Software
• Setup dev environment
• Draw
• Example project

Hardware

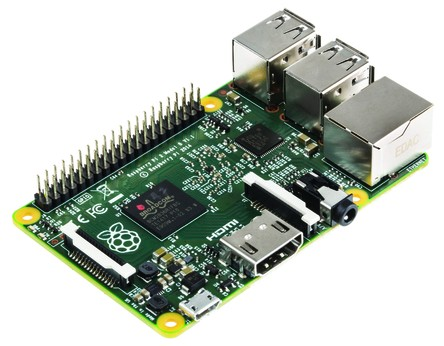

Raspberry PI 2

Hardware

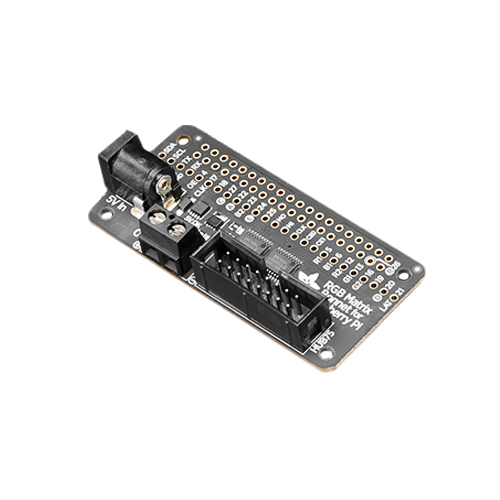

Adafruit RGB Matrix Bonnet

Hardware

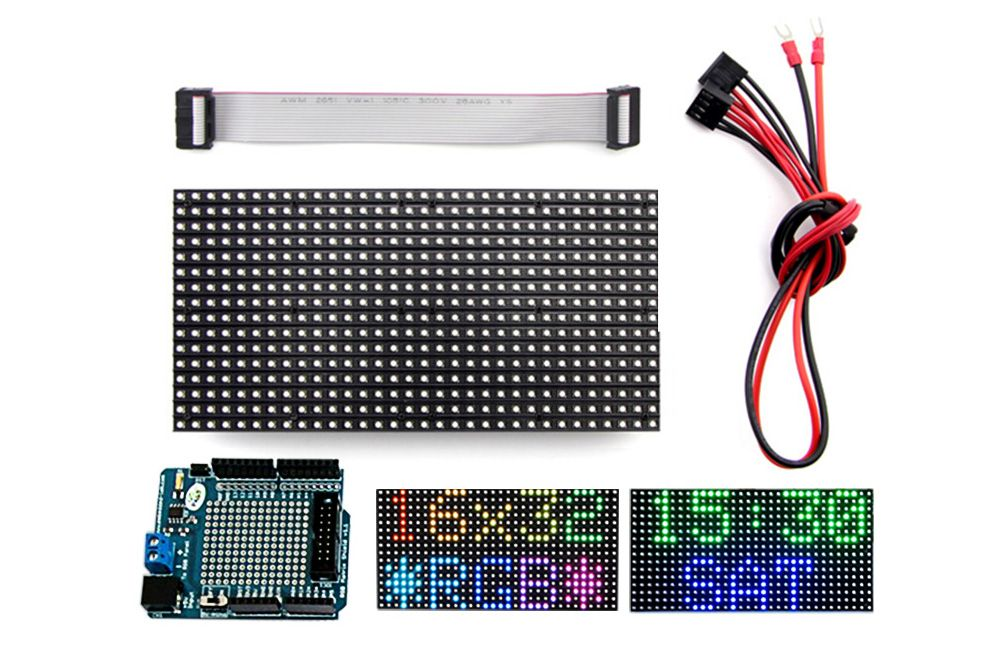

16x32 RGB LED matrix panel

Hardware

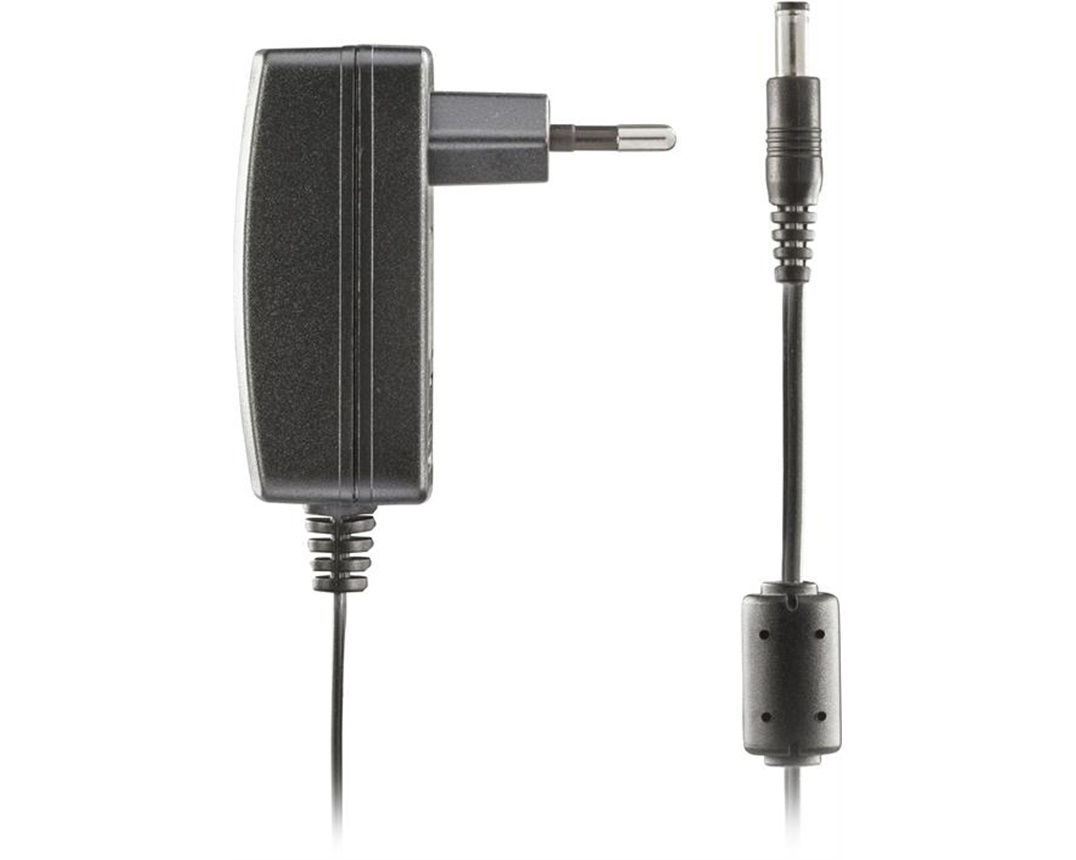

5V Power Supply

Hardware

Software

hzeller/rpi-rgb-led-matrix

• A library to control LED panels with the Raspberry Pi
• C++

Bindings: Python, Go, Rust, Node/Typescript

Software

hzeller/rpi-rgb-led-matrix

• A library to control LED panels with the Raspberry Pi
• C++
