RESTful Service
By Spring boot
Q:RESTful Service的寫法很多種 , 為什麼要用Spring boot data rest?
-
簡化Spring設定
- 簡化程式
簡述Spring boot
- 專門用來整合各種Spring Componment Framework , e.g. SpringMvc , Spring Data , Spring what ever...
- 設計為可讓Application獨立運作 , 不用再依附其他如ApServer ...等
- http://projects.spring.io/spring-boot/
官方教學
-
spring boot restful service
-
https://spring.io/guides/gs/rest-service/
-
spring data restful service with spring boot
-
https://spring.io/guides/gs/accessing-data-rest/
以最常會用的需求進行範例
撈資料 -> 出JSON
Q:用之前專案開發的寫法,要寫多少Class?
A : 大概最少要
- Entity Class
- Repository Class
- Manager Class
- Restful Controller Class
- Maybe some Interfaces
- UnitTest Class
- Config Class
- properties...
- ...
By Spring Boot
-
Entity Class
-
Restful Repo Class
-
1 Config Class , 1 properties
pom.xml
<dependencyManagement>
<dependencies>
<dependency>
<!-- Import dependency management from Spring Boot -->
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-dependencies</artifactId>
<version>1.2.6.RELEASE</version>
<type>pom</type>
<scope>import</scope>
</dependency>
</dependencies>
</dependencyManagement>
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-data-rest</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-data-jpa</artifactId>
</dependency>
</dependencies>
<build>
<finalName>${project.artifactId}</finalName>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
<executions>
<execution>
<goals>
<goal>repackage</goal>
</goals>
</execution>
</executions>
</plugin>
</plugins>
</build>
Entity
@Entity
@Table(name = "HRUSER")
public class HrUser implements Serializable {
private static final long serialVersionUID = 1L;
@Size(max = 10)
@Column(name = "CPNYID")
private String cpnyid;
@Id
@Basic(optional = false)
@NotNull
@Size(min = 1, max = 20)
@Column(name = "EMPID")
private String empId;
@Size(max = 7)
@Column(name = "DEPT_NO")
private String deptNo;
@Size(max = 10)
@Column(name = "POSSIE")
private String possie;
/*
* ....以下省略
*/
}
Restful Repo
@RepositoryRestResource(collectionResourceRel = "user", path = "user")
public interface HrUserRepository
extends PagingAndSortingRepository<HrUser, String> {
HrUser findByLoginId(@Param("loginId")String loginId);
HrUser findByEmpId(@Param("empId") String empId);
}
tip: @RepositoryRestResource()可以不加 , but spring boot 會很親切的幫你加上複數在path , 例如 user 變成 users
Config
@SpringBootApplication
public class App {
public static void main(String[] args) {
SpringApplication.run(App.class, args);
}
}
App properties
# EMBEDDED SERVER CONFIGURATION (ServerProperties)
server.port=9876
# DATASOURCE (DataSourceAutoConfiguration & DataSourceProperties)
spring.datasource.url=jdbc:sqlserver://
spring.datasource.username=
spring.datasource.password=
spring.datasource.driver-class-name=com.microsoft.sqlserver.jdbc.SQLServerDriver
spring.jpa.properties.hibernate.dialect = org.hibernate.dialect.SQLServer2008Dialect
spring.jpa.hibernate.naming_strategy=org.hibernate.cfg.EJB3NamingStrategy
spring.jpa.show-sql=false

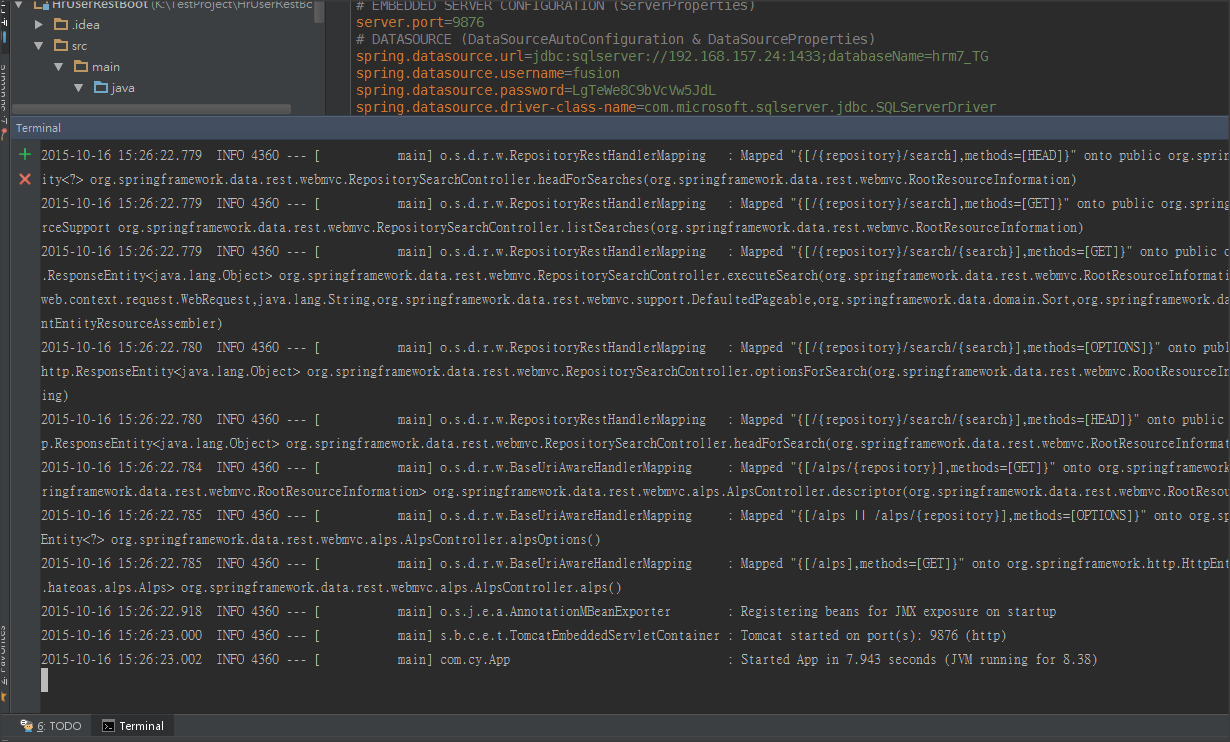

Run
console > mvn clean package
console > java -jar target/rest-data.jar
畫面
![](https://s3.amazonaws.com/media-p.slid.es/uploads/343265/images/1840044/Snap_2015-10-16_at_15.26.29.png)

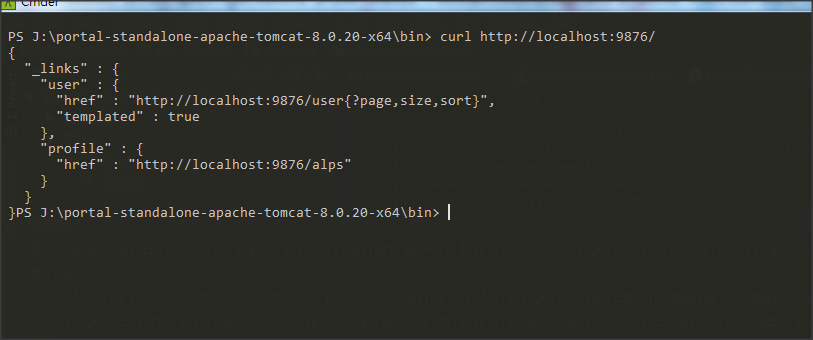

畫面
![](https://s3.amazonaws.com/media-p.slid.es/uploads/343265/images/1840045/Snap_2015-10-16_at_15.27.17.png)
畫面
![](https://s3.amazonaws.com/media-p.slid.es/uploads/343265/images/1840050/Snap_2015-10-16_at_15.55.16.png)

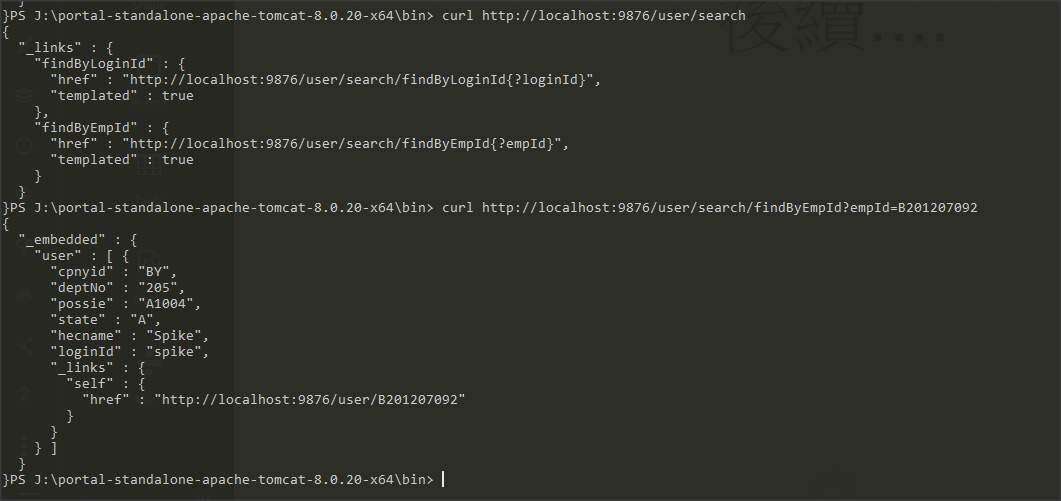

畫面
![](https://s3.amazonaws.com/media-p.slid.es/uploads/343265/images/1840047/Snap_2015-10-16_at_15.50.32.png)
寫這麼少 , Spring 到底會出什麼東西?
-
最基本的Restful Serivce 操作(CRUD)
- 如果有寫額外的查詢 , 就會出額外的search method
- 根據repo的類型出method(Page able or not)
- 輸出格式:HAL(http://stateless.co/hal_specification.html)
後續....
其實Hr-Rest沒有用Spring boot
原因
-
設定檔問題
-
佈署整合問題
-
Log整合問題
anno-rest的實戰篇
補充

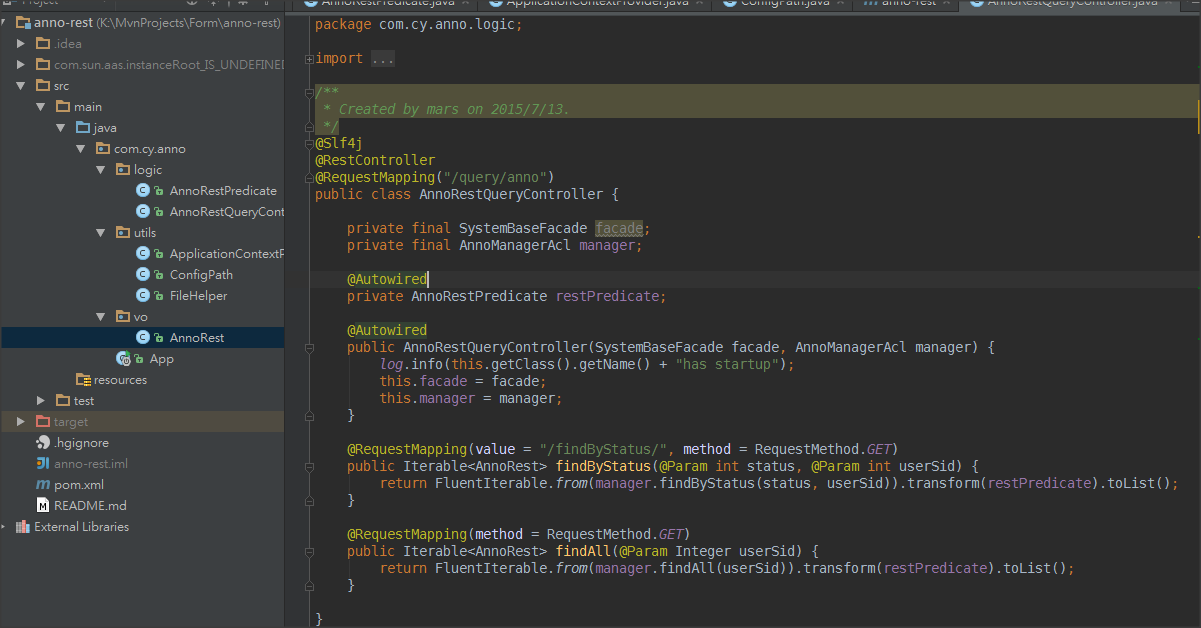

Code
![](https://s3.amazonaws.com/media-p.slid.es/uploads/343265/images/1861693/Snap_2015-10-22_at_11.56.39.png)
說明
- anno專案結構趨近於一般專案 , 一樣有anno-vo , repo , logic
- rest專案直接dependency anno-logic
- spring boot 會自動掃到repo的spring data interface
- 因為rest出的資料不太一樣 , 所以額外寫了controller加工
- application.properties採用外掛方式
- anno-rest已經直接用到了1.3.0-BUILD-SNAPSHOT, 因為要解決Repo要整合QueryDSL的問題
- spring boot 針對版本有的有嚴格檢查 , 例如spring data
public class App{
public static void main(String[] args) throws Exception {
System.getProperties()
.setProperty("spring.config.location",
ConfigPath.getDefaultPath()+"anno-rest.properties");
SpringApplication.run(App.class, args);
}
}
設定
# EMBEDDED SERVER CONFIGURATION (ServerProperties)
server.port=
server.context-path=/anno-rest
# DATASOURCE (DataSourceAutoConfiguration & DataSourceProperties)
spring.datasource.url=jdbc:mariadb://____
spring.datasource.username=
spring.datasource.password=
spring.datasource.driver-class-name=org.mariadb.jdbc.Driver
spring.datasource.testOnBorrow=true
spring.datasource.validationQuery=SELECT 1
spring.jpa.properties.hibernate.dialect = org.hibernate.dialect.MySQL5Dialect
spring.jpa.hibernate.naming_strategy=org.hibernate.cfg.EJB3NamingStrategy
spring.jpa.show-sql=false

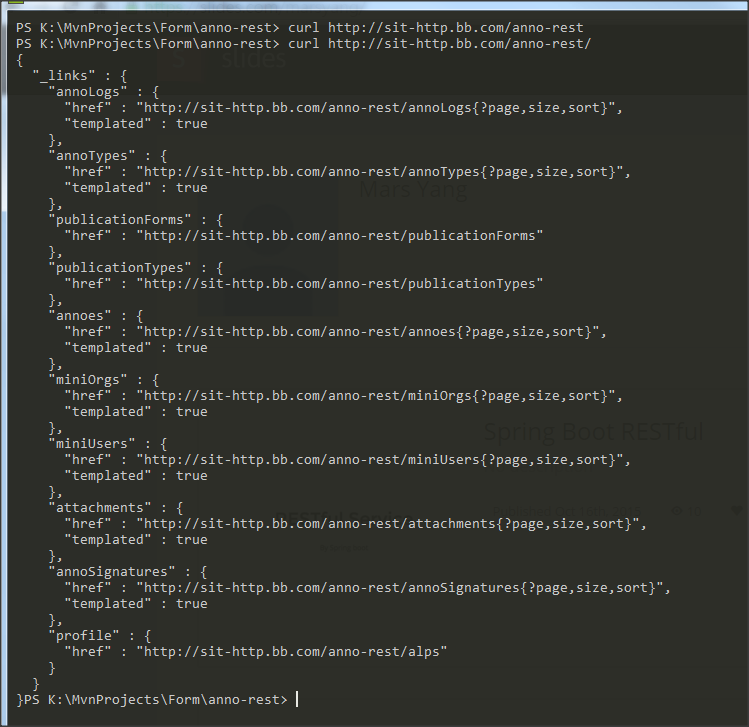

Run
![](https://s3.amazonaws.com/media-p.slid.es/uploads/343265/images/1861842/Snap_2015-10-22_at_12.32.41.png)
參考資料
- http://docs.spring.io/spring-boot/docs/current/reference/html/common-application-properties.html
- http://www.slideshare.net/makingx/grails-30-spring-boot?qid=57d58ab8-7615-4992-a8ce-ecbd0ecb0126&v=qf1&b=&from_search=2
- https://github.com/olivergierke/spring-restbucks
- http://blog.zenika.com/2012/06/13/HATEOAS-with-Spring-MVC-REST/
