Debugging JavaScript with Chrome DevTools

@mattzeunert

Why Use A Debugger?

Fix Bugs

Understand Code

  1. Debugger Intro
  2. Stepping Through Code
  3. Behaviour-based Breakpoints
  4. Console Logging
  5. Remote Debugging

Paused Execution

Paused Execution

Add Breakpoint

Conditional Breakpoints

Conditional Breakpoints

Conditional Breakpoints

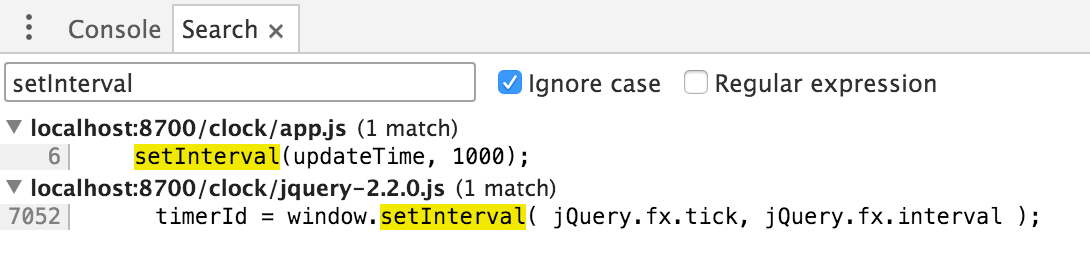

Full Text Search

Cmd + Opt + F

Ctrl + Shift + F

Debugger Statement

Debugger Statement

Call Stack

Switch Call Frames

Anonymous Functions

$(document).ready(function(){
    [1, 2, 3, 4].filter(function(n){
        return n > 2
    })
})

Anonymous Functions

$(document).ready(function initApp(){
    [1, 2, 3, 4].filter(function numberIsLargeEnough(n){
        return n > 2
    })
})

Async Call Stack

Async Call Stack

Return Value

Stepping Through Code

Stepping Controls

  • Resume
  • Step Over
  • Step Into
  • Step Out

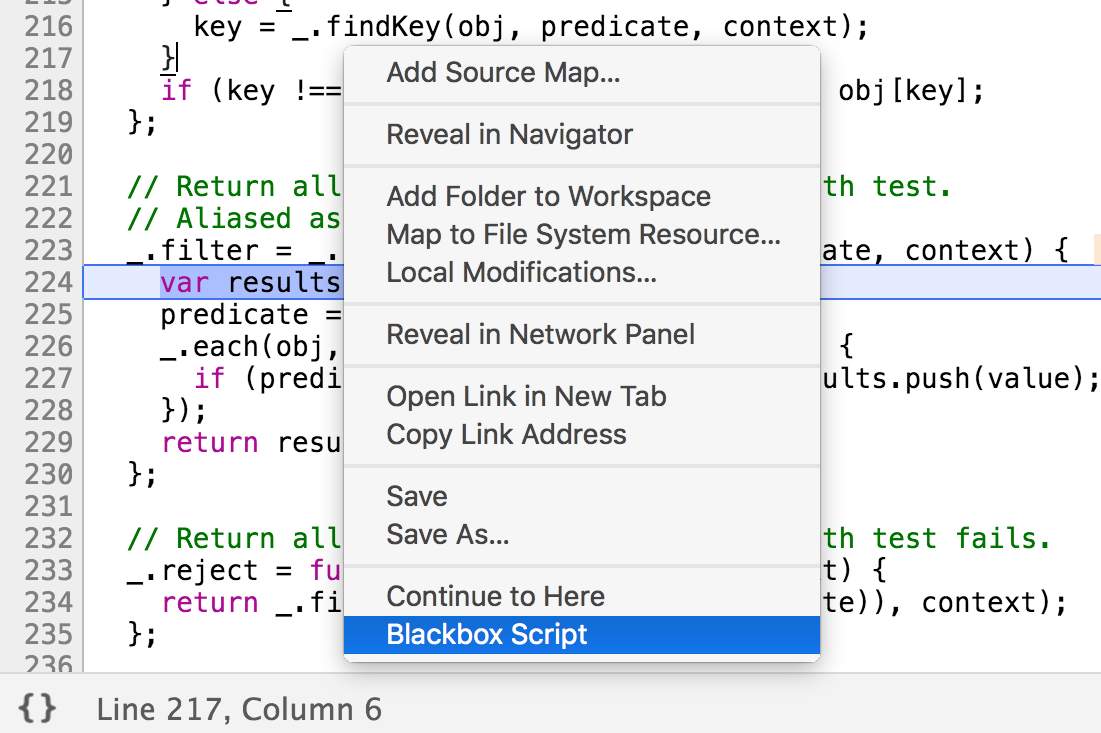

Blackboxing Library Code

Blackboxing Library Code

Blackboxing Library Code

Blackboxing Library Code

Restart Frame

Restart Frame

Restart Frame

Restart Frame

Restart Frame

Restart Frame (Limitations)

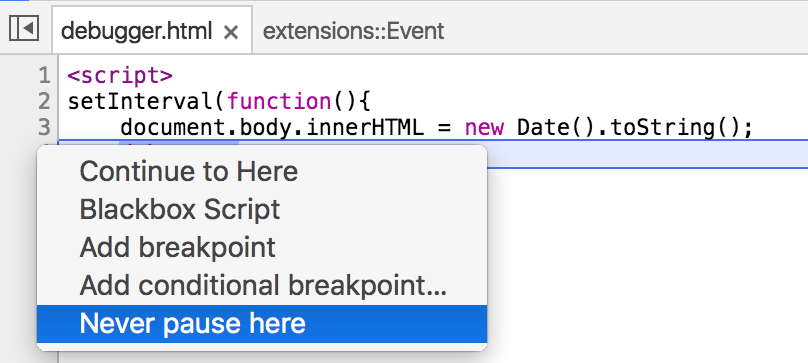

Never Pause Here

Compiled Code

function calculateHolidayCost(){var t=0;t+=getFlightCost(
);t+=getHotelCost();t+=getFoodCost();debugger;return t}fu
nction getHotelCost(){return parseFloat("GBP200")}functio
n getFlightCost(){return 300}function getFoodCost(){retur
n 200}function onButtonClick(){var t=document.getElementB
yId("value");t.innerHTML=calculateHolidayCost()}

Prettify Code

Source Maps

Generate Source Maps

uglifyjs all.js
-o all.min.js
--source-map all.min.map
--mangle --compress

Debug Original Code

all.min.map

{
    "version": 3,
    "sources": [
        "calculate-holiday-cost.js",
        "get-hotel-cost.js",
        ...
    ],
    "names": [
        "calculateHolidayCost",
        "cost",
        ...
    ],
    "mappings": "AAAA,QAASA,wBACL,GAAIC,GAAO,CAMX...",
    "file": "all.min.js"
}

all.min.map

{
    "version": 3,
    "sources": [...],
    "names": [...],
    "mappings": [
        [0, 0, 0, 0],
        [8, 0, 9, 9, 0],
        [24, 0, 1, -5],
        ...
    ],
    "file": "all.min.js"
}
function calculateHolidayCost() {
    var t = 0;
    return t += getFlightCost(),
      t += getHotelCost(),
      t += getFoodCost()
}

Minified Variable Names

Babel Import Names

import React from "react"

// ==> Compiled to:

var _react = require("react");

var _react2 = _interopRequireDefault(_react);
{
    "version": 3,
    "sources": [
        "calculate-holiday-cost.js",
        "get-hotel-cost.js",
        ...
    ],
    "names": [
        "calculateHolidayCost",
        "cost",
        ...
    ],
    "mappings": "AAAA,QAASA,wBACL,GAAIC,GAAO,CAMX...",
    "file": "all.min.js"
}

Resolve Variable Names

Blackboxing & Source Maps

Behaviour-based Breakpoints

Behaviour-based Breakpoints

DevTools can pause on

  • Exceptions
  • DOM changes
  • DOM events
  • Ajax requests
var originalSetItem = localStorage.setItem;
localStorage.setItem = function(key, value){
    debugger;
    return originalSetItem.call(this, key, value);
}

Calling The Original Function

Custom Breakpoints

Pause on:

  • Function Calls
  • Object Property Access

Debugging Objects

Pause On:

  • Cookie Updates
  • ScrollTop Changes

Debugging Objects

Object.defineProperty(document.body, "scrollTop", {
     set: function(){
         debugger;
     }
})

JS Breakpoint Collection

breakpoints.debugPropertySet(document.body, "scrollTop")
// or
breakpoints.debugScroll()

Pause On Exceptions

Pause On Exceptions

Pause On Exceptions

Exception Handlers

Pause On Caught Exceptions

Pause On Caught Exceptions

Never Pause Here

Console Logging

Console Logging


console.log("Post:", post);

Store As Global Variable



Store As Global Variable



Custom Data Structures

Custom Object Formatters

Immutable DevTools

console.trace



console.table

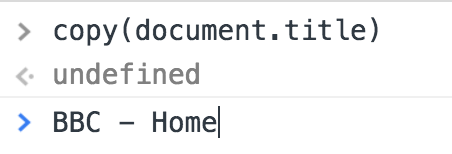

copy

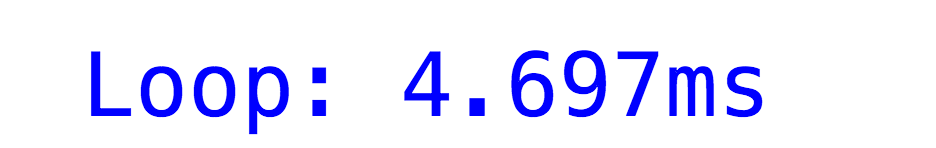

console.time

console.time("Loop");
for (var i=0; i<1000000; i++) { }
console.timeEnd("Loop")

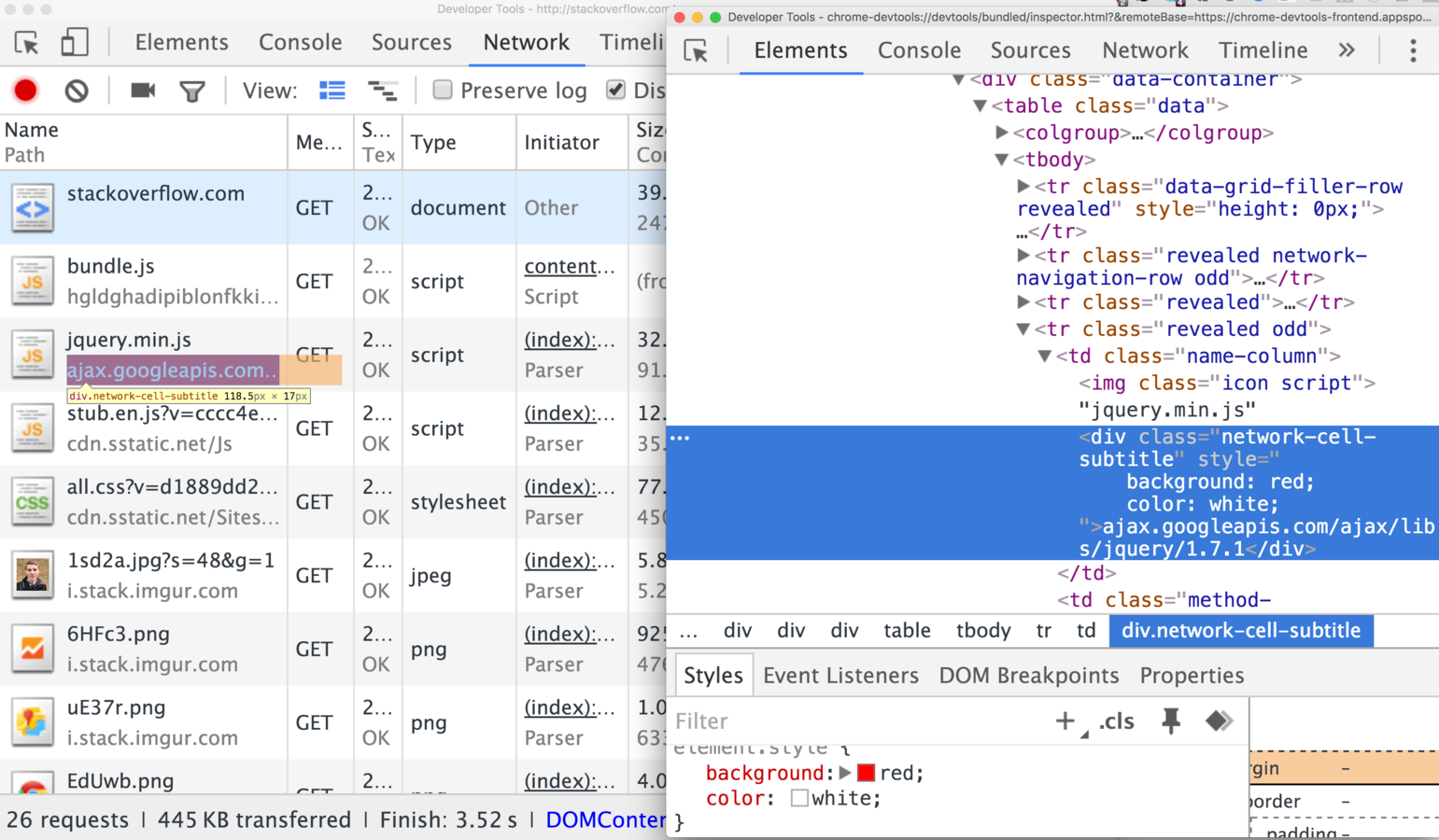

Remote Debugging

Remote Debugging

Chrome Debugging Protocol





Chrome Desktop

DevTools

Chrome on Android

Node

Node Inspector

$ node-debug test.js

Chrome Debugging Protocol



Node

DevTools

Node Inspector

V8-Debug Protocol

node --inspect

node --inspect

Chrome Debugging Protocol



Node

DevTools

$ node --inspect test.js

Chrome Debugging Protocol





Chrome Desktop

DevTools

Sublime Text

IntelliJ IDEA

Visual Studio Code

Sublime Web Inspector

Visual Studio Code

Learn More

Thanks
