Desarrollo Web

Maquetación con HTML5

Profesor Miguel Cantillana

INS018 – Desarrollo Web
Ingeniería en Computación e Informática
Semestre 2017-1

HTML & CSS

• Resets (Eric Meyer)
• Normalize.css
• Box model
  • Height, Width
  • Padding
  • Borders, Outline
  • Margin
• Box-sizing (Reset de Paul Irish)
• Propiedad Display
• Propiedad Position

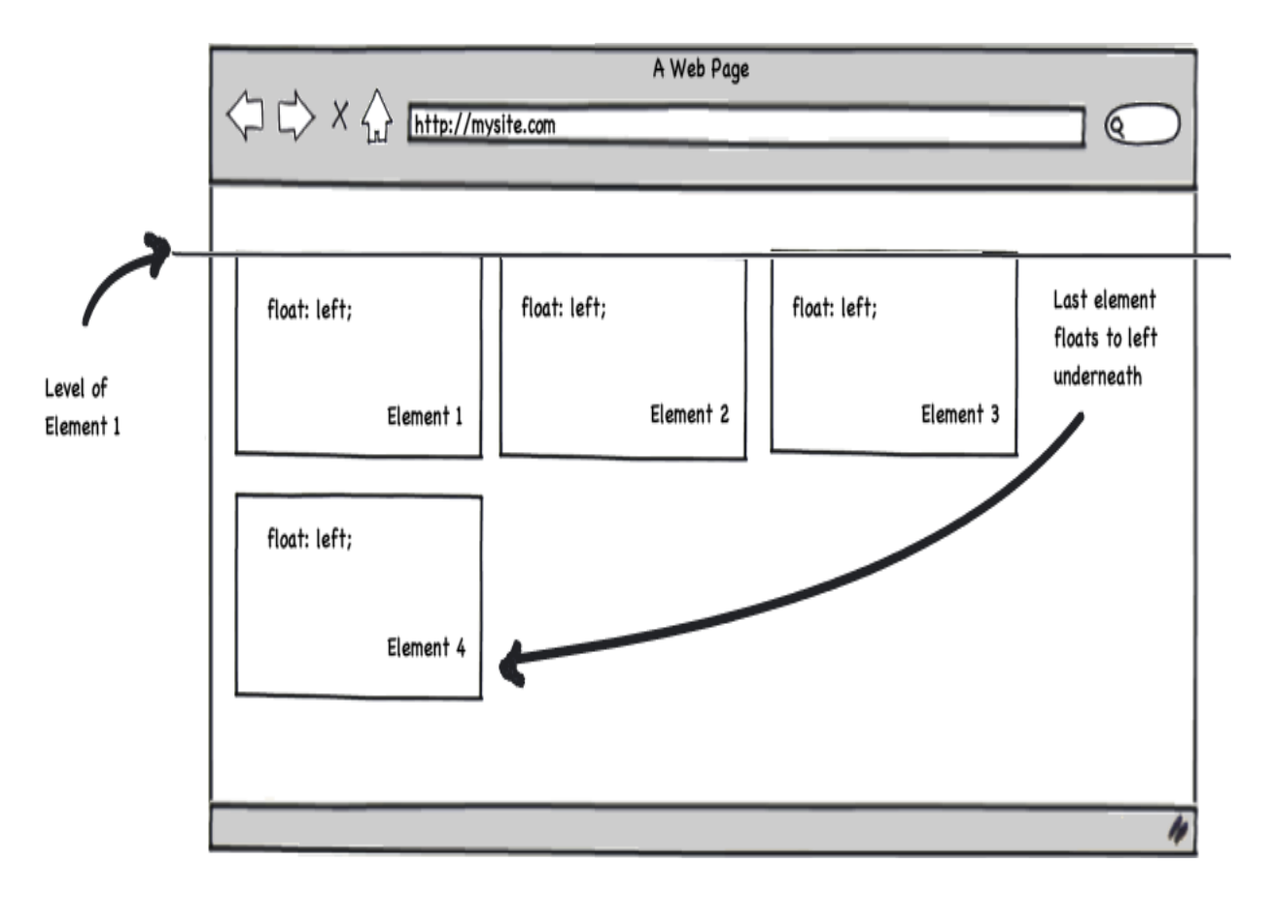

• Float, clearfix
• HTML5 layouts
• Actividad

Resets (Eric Meyer)

/* http://meyerweb.com/eric/tools/css/reset/
   v2.0 | 20110126
   License: none (public domain)
*/

html, body, div, span, applet, object, iframe,
h1, h2, h3, h4, h5, h6, p, blockquote, pre,
a, abbr, acronym, address, big, cite, code,
del, dfn, em, img, ins, kbd, q, s, samp,
small, strike, strong, sub, sup, tt, var,
b, u, i, center,
dl, dt, dd, ol, ul, li,
fieldset, form, label, legend,
table, caption, tbody, tfoot, thead, tr, th, td,
article, aside, canvas, details, embed,
figure, figcaption, footer, header, hgroup,
menu, nav, output, ruby, section, summary,
time, mark, audio, video {
	margin: 0;
	padding: 0;
	border: 0;
	font-size: 100%;
	font: inherit;
	vertical-align: baseline;
}
/* HTML5 display-role reset for older browsers */
article, aside, details, figcaption, figure,
footer, header, hgroup, menu, nav, section {
	display: block;
}
body {
	line-height: 1;
}
ol, ul {
	list-style: none;
}
blockquote, q {
	quotes: none;
}
blockquote:before, blockquote:after,
q:before, q:after {
	content: '';
	content: none;
}
table {
	border-collapse: collapse;
	border-spacing: 0;
}

Normalize.css

/*! normalize.css v3.0.2 | MIT License | git.io/normalize */

/**
 * 1. Set default font family to sans-serif.
 * 2. Prevent iOS text size adjust after orientation change, without disabling
 *    user zoom.
 */

html {
  font-family: sans-serif; /* 1 */
  -ms-text-size-adjust: 100%; /* 2 */
  -webkit-text-size-adjust: 100%; /* 2 */
}

/**
 * Remove default margin.
 */

body {
  margin: 0;
}

/* HTML5 display definitions
   ========================================================================== */

/**
 * Correct `block` display not defined for any HTML5 element in IE 8/9.
 * Correct `block` display not defined for `details` or `summary` in IE 10/11
 * and Firefox.
 * Correct `block` display not defined for `main` in IE 11.
 */

article,
aside,
details,
figcaption,
figure,
footer,
header,
hgroup,
main,
menu,
nav,
section,
summary {
  display: block;
}

/**
 * 1. Correct `inline-block` display not defined in IE 8/9.
 * 2. Normalize vertical alignment of `progress` in Chrome, Firefox, and Opera.
 */

audio,
canvas,
progress,
video {
  display: inline-block; /* 1 */
  vertical-align: baseline; /* 2 */
}

/**
 * Prevent modern browsers from displaying `audio` without controls.
 * Remove excess height in iOS 5 devices.
 */

audio:not([controls]) {
  display: none;
  height: 0;
}

/**
 * Address `[hidden]` styling not present in IE 8/9/10.
 * Hide the `template` element in IE 8/9/11, Safari, and Firefox < 22.
 */

[hidden],
template {
  display: none;
}

/* Links
   ========================================================================== */

/**
 * Remove the gray background color from active links in IE 10.
 */

a {
  background-color: transparent;
}

/**
 * Improve readability when focused and also mouse hovered in all browsers.
 */

a:active,
a:hover {
  outline: 0;
}

/* Text-level semantics
   ========================================================================== */

/**
 * Address styling not present in IE 8/9/10/11, Safari, and Chrome.
 */

abbr[title] {
  border-bottom: 1px dotted;
}

/**
 * Address style set to `bolder` in Firefox 4+, Safari, and Chrome.
 */

b,
strong {
  font-weight: bold;
}

/**
 * Address styling not present in Safari and Chrome.
 */

dfn {
  font-style: italic;
}

/**
 * Address variable `h1` font-size and margin within `section` and `article`
 * contexts in Firefox 4+, Safari, and Chrome.
 */

h1 {
  font-size: 2em;
  margin: 0.67em 0;
}

/**
 * Address styling not present in IE 8/9.
 */

mark {
  background: #ff0;
  color: #000;
}

/**
 * Address inconsistent and variable font size in all browsers.
 */

small {
  font-size: 80%;
}

/**
 * Prevent `sub` and `sup` affecting `line-height` in all browsers.
 */

sub,
sup {
  font-size: 75%;
  line-height: 0;
  position: relative;
  vertical-align: baseline;
}

sup {
  top: -0.5em;
}

sub {
  bottom: -0.25em;
}

/* Embedded content
   ========================================================================== */

/**
 * Remove border when inside `a` element in IE 8/9/10.
 */

img {
  border: 0;
}

/**
 * Correct overflow not hidden in IE 9/10/11.
 */

svg:not(:root) {
  overflow: hidden;
}

/* Grouping content
   ========================================================================== */

/**
 * Address margin not present in IE 8/9 and Safari.
 */

figure {
  margin: 1em 40px;
}

/**
 * Address differences between Firefox and other browsers.
 */

hr {
  -moz-box-sizing: content-box;
  box-sizing: content-box;
  height: 0;
}

/**
 * Contain overflow in all browsers.
 */

pre {
  overflow: auto;
}

/**
 * Address odd `em`-unit font size rendering in all browsers.
 */

code,
kbd,
pre,
samp {
  font-family: monospace, monospace;
  font-size: 1em;
}

/* Forms
   ========================================================================== */

/**
 * Known limitation: by default, Chrome and Safari on OS X allow very limited
 * styling of `select`, unless a `border` property is set.
 */

/**
 * 1. Correct color not being inherited.
 *    Known issue: affects color of disabled elements.
 * 2. Correct font properties not being inherited.
 * 3. Address margins set differently in Firefox 4+, Safari, and Chrome.
 */

button,
input,
optgroup,
select,
textarea {
  color: inherit; /* 1 */
  font: inherit; /* 2 */
  margin: 0; /* 3 */
}

/**
 * Address `overflow` set to `hidden` in IE 8/9/10/11.
 */

button {
  overflow: visible;
}

/**
 * Address inconsistent `text-transform` inheritance for `button` and `select`.
 * All other form control elements do not inherit `text-transform` values.
 * Correct `button` style inheritance in Firefox, IE 8/9/10/11, and Opera.
 * Correct `select` style inheritance in Firefox.
 */

button,
select {
  text-transform: none;
}

/**
 * 1. Avoid the WebKit bug in Android 4.0.* where (2) destroys native `audio`
 *    and `video` controls.
 * 2. Correct inability to style clickable `input` types in iOS.
 * 3. Improve usability and consistency of cursor style between image-type
 *    `input` and others.
 */

button,
html input[type="button"], /* 1 */
input[type="reset"],
input[type="submit"] {
  -webkit-appearance: button; /* 2 */
  cursor: pointer; /* 3 */
}

/**
 * Re-set default cursor for disabled elements.
 */

button[disabled],
html input[disabled] {
  cursor: default;
}

/**
 * Remove inner padding and border in Firefox 4+.
 */

button::-moz-focus-inner,
input::-moz-focus-inner {
  border: 0;
  padding: 0;
}

/**
 * Address Firefox 4+ setting `line-height` on `input` using `!important` in
 * the UA stylesheet.
 */

input {
  line-height: normal;
}

/**
 * It's recommended that you don't attempt to style these elements.
 * Firefox's implementation doesn't respect box-sizing, padding, or width.
 *
 * 1. Address box sizing set to `content-box` in IE 8/9/10.
 * 2. Remove excess padding in IE 8/9/10.
 */

input[type="checkbox"],
input[type="radio"] {
  box-sizing: border-box; /* 1 */
  padding: 0; /* 2 */
}

/**
 * Fix the cursor style for Chrome's increment/decrement buttons. For certain
 * `font-size` values of the `input`, it causes the cursor style of the
 * decrement button to change from `default` to `text`.
 */

input[type="number"]::-webkit-inner-spin-button,
input[type="number"]::-webkit-outer-spin-button {
  height: auto;
}

/**
 * 1. Address `appearance` set to `searchfield` in Safari and Chrome.
 * 2. Address `box-sizing` set to `border-box` in Safari and Chrome
 *    (include `-moz` to future-proof).
 */

input[type="search"] {
  -webkit-appearance: textfield; /* 1 */
  -moz-box-sizing: content-box;
  -webkit-box-sizing: content-box; /* 2 */
  box-sizing: content-box;
}

/**
 * Remove inner padding and search cancel button in Safari and Chrome on OS X.
 * Safari (but not Chrome) clips the cancel button when the search input has
 * padding (and `textfield` appearance).
 */

input[type="search"]::-webkit-search-cancel-button,
input[type="search"]::-webkit-search-decoration {
  -webkit-appearance: none;
}

/**
 * Define consistent border, margin, and padding.
 */

fieldset {
  border: 1px solid #c0c0c0;
  margin: 0 2px;
  padding: 0.35em 0.625em 0.75em;
}

/**
 * 1. Correct `color` not being inherited in IE 8/9/10/11.
 * 2. Remove padding so people aren't caught out if they zero out fieldsets.
 */

legend {
  border: 0; /* 1 */
  padding: 0; /* 2 */
}

/**
 * Remove default vertical scrollbar in IE 8/9/10/11.
 */

textarea {
  overflow: auto;
}

/**
 * Don't inherit the `font-weight` (applied by a rule above).
 * NOTE: the default cannot safely be changed in Chrome and Safari on OS X.
 */

optgroup {
  font-weight: bold;
}

/* Tables
   ========================================================================== */

/**
 * Remove most spacing between table cells.
 */

table {
  border-collapse: collapse;
  border-spacing: 0;
}

td,
th {
  padding: 0;
}

https://necolas.github.io/normalize.css/

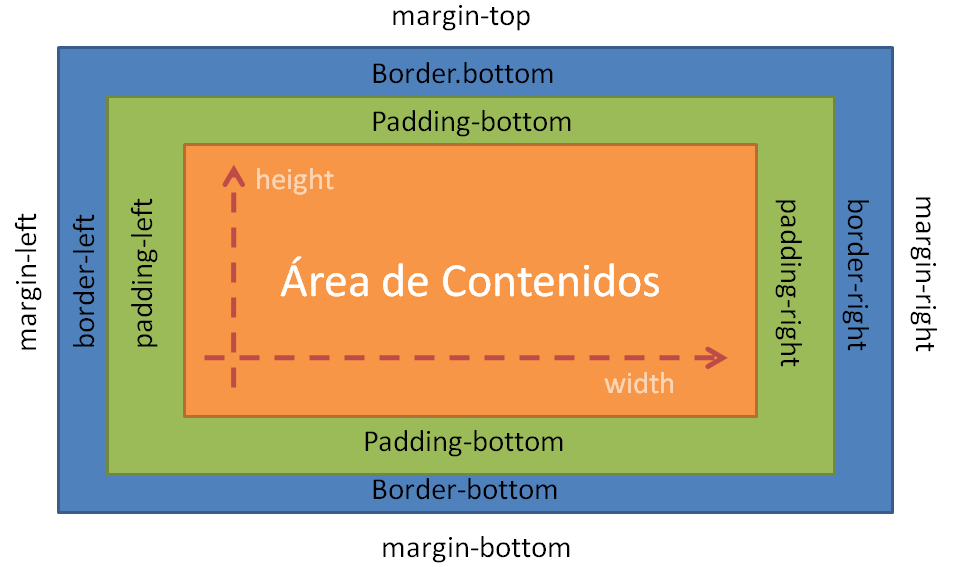

Box Model

Box-sizing
(Reset Paul Irish)

/* apply a natural box layout model to all elements, but allowing components to change */
html {
  box-sizing: border-box;
}
*, *:before, *:after {
  box-sizing: inherit;
}

http://www.paulirish.com/2012/box-sizing-border-box-ftw/

Propiedad Display

https://developer.mozilla.org/es/docs/Web/CSS/display

• none : Este valor desactiva la presentación del elemento (no tiene efecto en el formato); todos los elementos hijo son escondidos de forma incondicional. El documento es representado como si el elemento y sus hijos fueran inexistentes en el árbol del documento. Para hacer que un elemento forme parte de un documento, mientras que su contenido es invisible, vea la propiedad visibility.
• inline : Hace que el elemento genere uno o más elementos en la misma línea. no se respetan los anchos, los altos ni los márgenes verticales de los elementos.
• block : Hace que el elemento genere una caja de bloque. los elementos de bloque respetan los anchos y altos y los márgenes verticales.
• inline-block : Valor introducido a partir de CSS 2.1. Hace que un elemento se represente como una caja seguida de forma fluida, por un contenido, como si formase parte de la misma caja. Los elementos inline-block fluyen con el texto y demás elementos como si fueran elementos en-línea y además respetan el ancho, el alto y los márgenes verticales

Positions

absolute, relative, fixed & static

Ejercicio

Créditos

• http://jps.com.ve/flotando-elementos-en-css-y-la-magia-de-clearfix/
• http://www.elwebmaster.com/articulos/css-el-nuevo-metodo-clearfix-para-quitar-floats
• http://www.iteramos.com/pregunta/7254/qu-es-clearfix
• http://cybmeta.com/formas-basicas-con-css-triangulos-circulos-trapecios-rectangulos-cuadrados/
• http://www.bufa.es/css-dibujar-triangulos/
• https://coveloping.com/tools/css-shapes-generator
