Buttery Smooth Web UI with Off-Main-Thread Architecture

github: @mvasigh

twitter: @mehdi_vasigh

linkedin: @mehdi-vasigh

Samuel Taylor Coleridge

Public Domain, https://commons.wikimedia.org/w/index.php?curid=3976299

Suspension of Disbelief

What does it mean to have a high-performance web UI?

The frame budget

Smooth animation means painting 60 frames per second

1000 ms / 60 frames = 16 ms/frame

Browser takes ~4-6 ms per frame to do work

All of our JS for each frame has to take ~10-12 ms or less

Browser pixel pipeline

JavaScript

Style

Layout

Paint

Composite

https://developers.google.com/web/fundamentals/performance/rendering

16 ms

JavaScript

Style

Layout

Paint

Composite

Browser can skip steps if nothing changes

csstriggers.com

16 ms

JavaScript

Style

Layout

Paint

Composite

16 ms

UI/Local Logic

JavaScript

Style

Layout

Paint

Composite

16 ms

CSS-in-JS Runtime

UI/Local Logic

JavaScript

Style

Layout

Paint

Composite

16 ms

CSS-in-JS Runtime

UI/Local Logic

Front-end Framework

JavaScript

Style

Layout

Paint

Composite

16 ms

CSS-in-JS Runtime

UI/Local Logic

Front-end Framework

State Management Logic

We've exceeded our frame budget and introduced jank

JavaScript

Style

Layout

Paint

Composite

16 ms

The more blocking JavaScript that we have, the more frames that we will drop

JS is single-threaded*

One single "execution context" where all code runs
If a function takes long to execute, everything freezes (blocking code)

What does "blocking" mean?

Code that occupies the thread
Prevents or delays execution of code after it

while (true) {
  console.log('To infinity and beyond!');
}

// Will never run!
extremelyImportantFunction();

JS is async by design

Event loop allows us to write async, non-blocking code
This is why fetch or setTimeout don't block the render

Jake Archibald - "In the Loop"

www.youtube.com/watch?v=cCOL7MC4Pl0

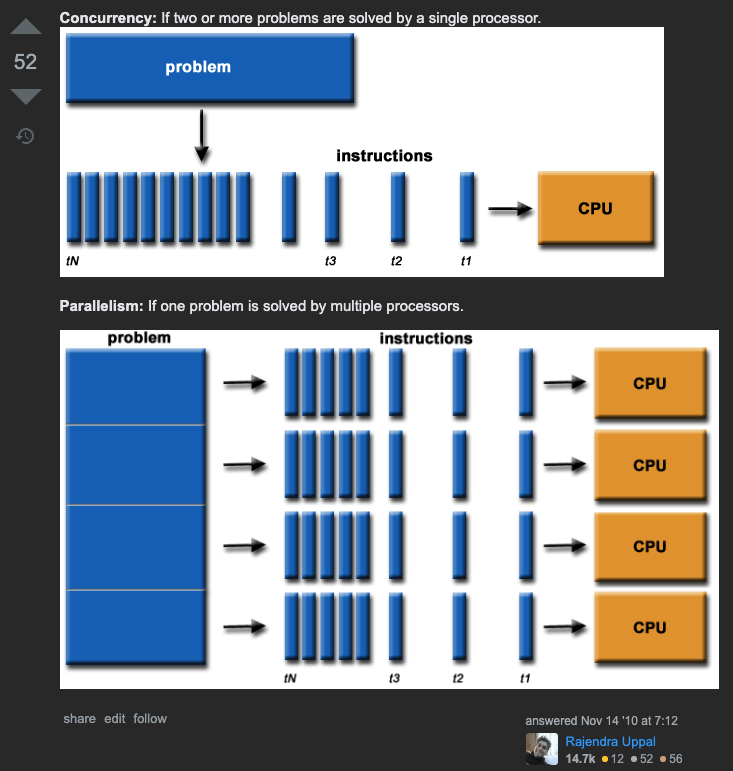

Concurrency vs. Parallelism

The Event Loop offers a framework for concurrency, and Promises/Tasks offer a good way of handling it in our code

To enable parallelism, we need to offload work from our main UI thread using Web Workers

Web Workers

Run scripts in separate background thread, so that we don't block the main thread

MDN:

https://developer.mozilla.org/en-US/docs/Web/API/Web_Workers_API/Using_web_workers

Web Workers

Runs JS code in a completely separate execution context
Can communicate with main script using postMessage
Messages can contain most basic JS data types, but not functions
Data is copied, not shared (no shared memory)
Workers can create new Workers

When to use Web Workers:

https://dassur.ma/things/when-workers/

When to use

CPU-intensive work
Working with a lot of data
Image processing
Parallelizing tasks
Frames are being dropped
Games or lots of animations
... anywhere that you don't need `window`!

When NOT to use

I/O bound, not CPU bound
- i.e. if your constraint is network requests
DOM manipulation
Prematurely

// worker.js
function handleMessage(e) {
  if (e.data === 'ping...') {
    self.postMessage('pong!');
  }
}

self.addEventListener('message', handleMessage);


// main.js
const worker = new Worker('worker.js');

function handleMessage(e) {
  console.log(e.data);
}

worker.addEventListener('message', handleMessage);

worker.postMessage('ping...');
// Console: pong!

Demo

https://web-worker-example.netlify.app/

Build-system Integration

Webpack

worker-loader: github.com/NativeScript/worker-loader

worker-plugin: github.com/GoogleChromeLabs/worker-plugin

Rollup

rollup-plugin-off-main-thread: github.com/surma/rollup-plugin-off-main-thread

Parcel

(Web Worker support is baked in! Hooray!)

Patterns: off-main-thread tasks

Profile your application and identify blocking code
Offload blocking code as one-off async tasks using a Web Worker

Depending on the nature of the code, you may not need to alter build system (i.e. using URL.createObjectURL and Blob)

Examples:

Typeahead/autocomplete search
Image processing or large file/dataset processing

https://codesandbox.io/s/creating-web-workers-on-the-fly-6rdng?file=/src/index.js

Patterns: off-main-thread tasks

If using "on the fly" Object URL method, Workers can't use variables outside of their function scope
If wanting to use dependencies, must integrate into build system
Clean up resources after use

workerize: github.com/developit/workerize

comlink: github.com/GoogleChromeLabs/comlink

If using "on the fly" Object URL method, Workers can't use variables outside of their function scope
If wanting to use dependencies, must integrate into build system
Clean up resources after use

Patterns: services/Actor model

The Actor model: www.brianstorti.com/the-actor-model/

Treat different components of your UI system as "actors":

Actors are isolated, maintain private internal state, no shared memory (ideal with Workers)
Communicate with other actors via async messages
Can spawn other actors and send them messages

Example

PROXX: github.com/GoogleChromeLabs/proxx
