Empowering Physically Assistive Robots

Ethan K. Gordon

Postdoc, University of Pennsylvania

PhD 2023, University of Washington

with Contact-Rich Active Learning

Physically Assistive Robots (PARs)

Physical device that moves least partially autonomously.

Aids in tasks that users would otherwise find impossible, uncomfortable, or inconvenient.

Direct or indirect physical contact with people and the environment.

Activities of daily living (ADLs) for those with short- or long-term physical impairments.

Rehabilitation and physical therapy.

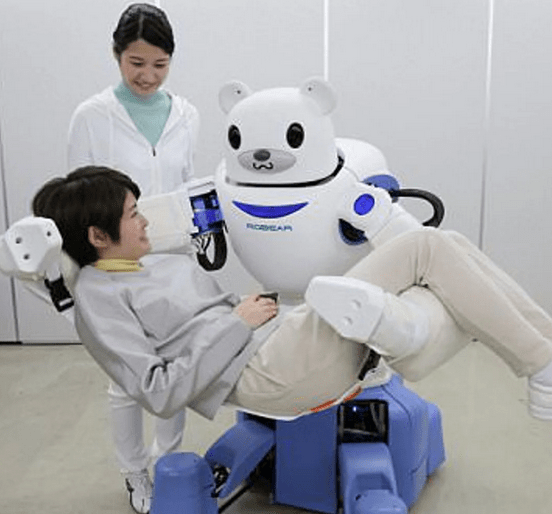

Assisting nurses and physicians with patient care.

Physically Assistive Robots (PARs)

“If I can have a robot do it, I can learn to adapt to it, but it would be me feeding me, and that would be huge”



Tyler Schrenk

1985-2023

The Promise of PARs:

  • Empowerment
  • Independence

What is needed for PARs?

Contact-Rich Manipulation

  • Sliding to clean the spoon and bowl
  • Shaking to smoothen
  • In-Mouth Hand-Off
    (vision-denied)



Online Adaptation

  • Bite Size Adjustment

What is needed for PARs?

Online Adaptation

  • Totally Different Food
  • Multi-bite: different shapes for each bite



There is no time for

re-training!

Key Technology:

Tractable Adaptability

How can robots adapt at deployment-time

efficiently, safely, and portably?

Policy Space Reduction
Model-Based Methods
Leveraging Haptics

Support

Inform

Multimodal Active Learning

Physically Assistive Robots

Summary

  • The Promise of Physically Assistive Robotics

  • Robot-Assisted Feeding: User-Defined Metrics

  • Online Learning for Food Acquisition

    • Policy space reduction a priori
    • Haptics as post hoc data

  • Active Learning with Dynamic Contact

  • Community-Based Participatory Design

  • Where can PARs go from here?

Multimodal Active Learning

Physically Assistive Robots

Do we need autonomy? What kind?

Community-Based Participatory Research

It is important to ask users, observational and qualitative research before experimentation.

Time Per Bite:

  • Caretaker: ~20s
  • Preferred: <2min
  • Teleoperated Robot: 5-40min



Why Single-Utensil Feeding?

It's intuitive and familiar.

The Assistive Dexterous Arm (ADA)

User Studies Capture Diversity

T. Bhattacharjee, E.K. Gordon et al, “Is more autonomy always better?...", HRI 2020

Acceptance is User-Dependent, But High

Users with more limited mobility had a preference for greater autonomy, even if it experienced errors.

T. Bhattacharjee, E.K. Gordon et al, “Is more autonomy always better?...", HRI 2020

Autonomy Preference Given Errors

User Rating

User Studies Capture Metrics

Trade-off between autonomy (with chance of error) and high-effort manual control.

What errors are tolerable? Minimum Food Acquisition Success Rate: 80%

T. Bhattacharjee, E.K. Gordon et al, “Is more autonomy always better?...", HRI 2020

Summary

  • The Promise of Physically Assistive Robotics

  • Robot-Assisted Feeding: User-Defined Metrics

  • Online Learning for Food Acquisition

    • Policy space reduction a priori
    • Haptics as post hoc data

  • Active Learning with Dynamic Contact

  • Community-Based Participatory Design

  • Where can PARs go from here?

Multimodal Active Learning

Physically Assistive Robots

Data Driven Bite Acquisition

R. Feng, Y. Kim, G. Lee, E. K. Gordon, et al, "...Generalizing skewering strategies...", ISRR 2019

Food simulation is hard*, but we can collect real data. What if we just use machine learning?

Example: 10 trajectories x 16 food types

85 person-hours

  • Is it portable?
  • Is it safe?
  • Is it adaptable?

Leveraging Expert Data

 T. Bhattacharjee et al, “Towards Robotic Feeding...", R-AL 2019

Qualitative Taxonomy

Insights:

Discrete classes of strategies

Lots of variations within those classes

Emergent Discrete Action Space

Wiggling

Tilting

High Pressure

Scooping

 E. K. Gordon, A. Nanavati et al, “Towards General Single-Utensil...", CoRL 2023

Is this expressive enough?

Yes!

(Note the 80% acceptance threshold)

 E. K. Gordon, A. Nanavati et al, “Towards General Single-Utensil...", CoRL 2023

Online learning with a discrete action space is easier, safer, and more predictable for the patient.

Online Learning for Bite Acquisition

Discrete Actions aa

Visual Context: cc ctc_t ctc_t

rr: Success/Failure {1,0}\{1, 0\}

 E. K. Gordon et al, “Adaptive robot-assisted feeding...", IROS 2020

Learn some parameters θ\theta

P(r=1)≈fθ(c,a)\mathbb{P}(r=1) \approx f_\theta(c, a)

NaN_a is small enough that we can do this at deployment time!

ra+ϵ=fθ∗(c)=gϕ∗(p)r_a + \epsilon = f_{\theta^*}(c) = g_{\phi^*}(p)




Leveraging Haptic Data

Haptic data is really good for food classification, and we already have one for safety!

55ms of force data:

T. Bhattacharjee et al, R-AL 2019 ; E. Gordon et al, "Leveraging post hoc context...", ICRA 2021

Post Hoc Haptics for Bite Acquisition

E. Gordon et al, "Leveraging post hoc context...", ICRA 2021

Consider a joint loss model:

ra+ϵ=fθ∗(c)=gϕ∗(p)r_a + \epsilon = f_{\theta^*}(c) = g_{\phi^*}(p)P(r=1)=fθ(c)=gϕ(p)\mathbb{P}(r = 1) = f_\theta(c) = g_\phi(p)

visual context

haptic context

fθ(c,a)=[0.9,0.1,0.5,0.8,…]f_\theta(c, a) = [0.9, 0.1, 0.5, 0.8, \ldots]

Once either model is learned, the complexity of the other one is significantly reduced:

Example:

After only 1 action, robot determines that kiwi ≈\approx banana, and can impute the counterfactual.

Observe a=1→[0,?,?,?,…]a=1 \rightarrow [0, ?, ?, ?, \ldots]

gϕ(p,a)=[0.8,0.2,0.4,0.7,…]g_\phi(p, a) = [0.8, 0.2, 0.4, 0.7, \ldots]

Can provide the counterfactual

O(dim⁡c)→O(min⁡(dim⁡c,dim⁡p))O(\dim c) \rightarrow O(\min(\dim c,\dim p))O(dimc)→O(min(dimc,dimp))

Are the 11 actions tractable for learning?

E. Gordon et al, "Leveraging post hoc context...", ICRA 2021

Yes



New foods take ~7-8 actions to learn to user satisfaction.

Summary

  • The Promise of Physically Assistive Robotics

  • Robot-Assisted Feeding: User-Defined Metrics

  • Online Learning for Food Acquisition

    • Policy space reduction a priori
    • Haptics as post hoc data

  • Active Learning with Dynamic Contact

  • Community-Based Participatory Design

  • Where can PARs go from here?

Multimodal Active Learning

Physically Assistive Robots

Active Tactile Exploration Through Contact

[1] Kapusta et al, Autonomous Robots 2019; [2] Hello Robot; [3] Kuka

Dressing

Rehabilitation

How can we perform active learning with:

Dynamic Objects?

Visual Occlusions (and other uncertainties)?

Distilled Challenge: Can a robot do this?

Can we do better if we have tactile sensors and robust simulators?

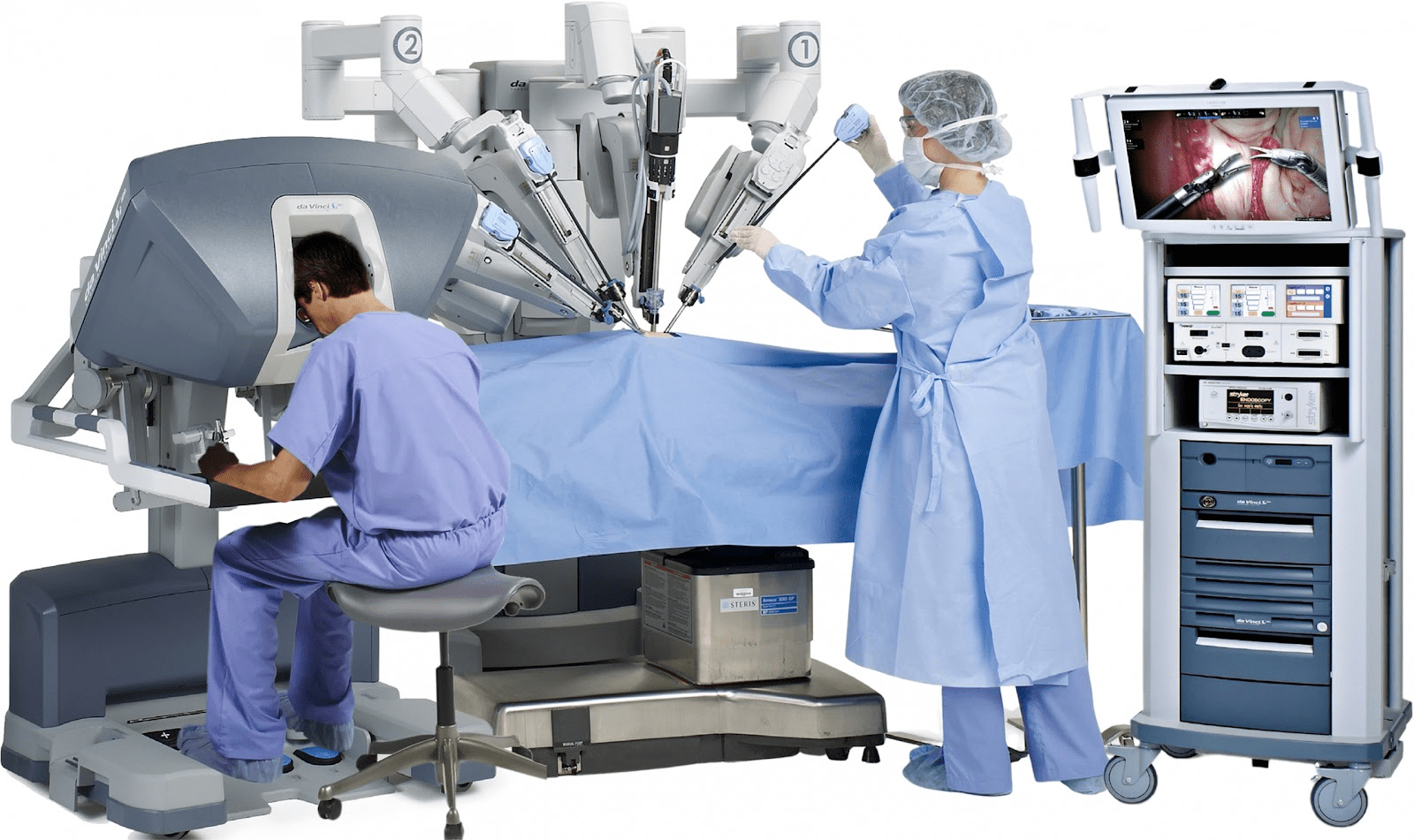

Surgery

System Identification and Measuring Uncertainty

Choose:

  • Robot Trajectory rtr

Measure:

Find:

  • Object Geometry and Pose
  • How certain are we?

Active Exploration with the Trifinger Robot

Exploration to Maximize Information

Learn; Compute

Observed InformationI\mathcal{Irm

Sample Actions + Simulate

Expected Future Information

Choose actions where simulated, expected future info is distinct from observed info.

Information Maximization In Action

 E. Gordon et al, "Active Tactile Exploration...", ICRA 2026

Summary

  • The Promise of Physically Assistive Robotics

  • Robot-Assisted Feeding: User-Defined Metrics

  • Online Learning for Food Acquisition

    • Policy space reduction a priori
    • Haptics as post hoc data

  • Active Learning with Dynamic Contact

  • Community-Based Participatory Design

  • Where can PARs go from here?

Multimodal Active Learning

Physically Assistive Robots

Community-Based Participatory Design

E. Gordon et al, "An adaptable, safe, and portable robot-assisted feeding system.", HRI Companion 2024

Community-Based Participatory Design

A. Nanavati, E. Gordon et al, "Lessons learned from designing...", HRI 2025

Summary

  • The Promise of Physically Assistive Robotics

  • Robot-Assisted Feeding: User-Defined Metrics

  • Food Bite Acquisition as a Contextual Bandit

    • Policy space reduction a priori
    • Haptics as post hoc bandit context

  • Active Learning with Dynamic Contact

  • Community-Based Participatory Design

  • Where can PARs go from here?

Multimodal Active Learning

Physically Assistive Robots

Challenges in Feeding and Beyond

Multimodal Active Learning

Physically Assistive Robots

Nanavati, Alves-Oliveira, Schrenk, Gordon, et al., HRI 2023

Challenges in Feeding and Beyond

Multimodal Active Learning

Physically Assistive Robots

Many are relevant across multiple tasks!

Dressing

Grooming

Rehabilitation

Safe Active Exploration

Multimodal Active Learning

Physically Assistive Robots

As et al, "ActSafe...", ICLR 2025

Beneficial to play optimistically w.r.t. loss

Safer to play pessimistically w.r.t. model parameters

Which loss components are:

Safety-Critical

(zero user error tolerance)

vs.

Performance-Critical

(higher user error tolerance)

Adjust play for each metric separately.

Leveraging Foundation Models

Multimodal Active Learning

Physically Assistive Robots

  • "VLAs": ChatGPT for Robots. Impressive general performance.
  • I would not deploy these models directly with patients right now.
  • Is it portable? No: internet access or large computers required.
  • Is it safe? Not guaranteed.
  • Is it adaptable? Not at deployment time (but can be fine-tuned in advance).
π0.5; Kapusta et al, Autonomous Robots 2019

?

Multi-Function Longitudinal Studies

Multimodal Active Learning

Physically Assistive Robots

?
  1. Can feeding / dressing / ambulation / physical therapy / etc. all be done with a single system or connected ensemble?
  2. How can information be shared between tasks?
  3. How will users feel about having a robot 24/7 for weeks or months?

Thank you!

DAIR Lab

Amal Nanavati

Empowering Physically Assistive Robots

Ethan K. Gordon

Postdoc, University of Pennsylvania

PhD 2023, University of Washington

with Contact-Rich Active Learning

Online Learning with Policy Space Reduction

Hierarchy and Bandits

Data Driven Bite Acquisition

 E. Heiden et al, “DiSECt", RSS 2021

(only planar cutting)

Imitation Learning for Policy Space Reduction

 E. K. Gordon, A. Nanavati et al, “Towards General Single-Utensil...", CoRL 2023

Splines and force/torque thresholds.

Comparable with Euclidean Metric.

The Multi-Arm Bandit (MAB)

r∼r \sim

N(0.5,1) \mathcal{N}(0.5, 1)

Reward

N(0.8,1) \mathcal{N}(0.8, 1)

N(0.1,1) \mathcal{N}(0.1, 1)

Interaction Protocol:

  • Select a=π(a0…t,r0…t)a = \pi(a_{0\ldots t}, r_{0\ldots t})
  • Observe rr
  • Update π\pi

a=a =

11

22

33

Metric: Regret: E[r(a∗)−r(at)]\mathbb{E}[r(a^*) - r(a_t)]

Test time metric, balances exploration vs. exploitation,

often theoretically bounded

The (Stochastic) Contextual Bandit

r∼r \sim

N(μ1(c),σ) \mathcal{N}(\mu_1(c), \sigma)

Reward

Interaction Protocol:

  • Observe ctc_t
  • Select at=π(ct)a_t = \pi(c_t)
  • Observe r(at,ct)r(a_t, c_t)
  • Update π\pi

a=a =

11

22

33

N(μ2(c),σ) \mathcal{N}(\mu_2(c), \sigma)

N(μ3(c),σ) \mathcal{N}(\mu_3(c), \sigma)

ctc_t

Supervised vs. Bandit Learning

la(c)=[0,1,1,1,1,1,1,1,1,1]l_a(c) = [0, 1, 1, 1, 1, 1, 1, 1, 1, 1]

Supervised Learning sees la(c)∀al_a(c) \forall a

Full Feedback

cc

Bandit Algorithm sees lat(c)l_{a_t}(c)

Bandit Feedback (Harder)

No counterfactual.

E. Gordon et al, "Leveraging post hoc context...", ICRA 2021

Regret: O(T)O(\sqrt{T})

Regret: O(dim⁡adim⁡c∗T)O(\dim a \dim c * \sqrt{T})

Previous Work in Tactile SysID

Static Objects: "assume a sensor that can detect contact before causing movement" [2]

Utilizes 2D OR discrete object priors.

Spatially Sparse Data -> Active Learning

 [1] Hu et al, Biomimetic Intelligence and Robotics 2024 ; [2] Xu et al. "TANDEM3D...", ICRA 2023

Online Learning Through Contact

Problem Formulation

 E.K. Gordon et al, "Active Tactile Exploration...", ICRA 2026

mtm_t

…\ldots

xTx_T?

Example: we measure contact at tt.

(Learning) Where is the object at t=Tt=T?

(Information) How certain are we?

Measurement Model: P(mt∣θ,xt)\mathbb{P}(m_t | \theta, x_t)

Dynamics: xt+1=f(θ,xt)x_{t+1} = f(\theta, x_t)

θ\theta?

Online Learning

 E.K. Gordon et al, "Active Tactile Exploration...", ICRA 2026

Maximum (Log) Likelihood as Trajectory Optimization

 P(mt∣xT)→P(mt∣τ=[x0,…,xT])P(τ)\mathbb{P}(m_t | x_T) \rightarrow \mathbb{P}(m_t | \tau=[x_0,\ldots,x_T])\mathbb{P}(\tau)

Loss L:=−∑tlog⁡P(mt∣xt)+∣∣xt−f(xt−1)∣∣2\mathcal{L} := -\sum_t\log\mathbb{P}(m_t | x_t) + ||x_t - f(x_{t-1})||^2

Key Difficulty: contact dynamics ff often have near-0 or near-∞\infty gradients.



(Approximately) Minimizing Graph Distance

 B. Bianchini et al, "Generalization Bounded...", L4DC 2022; E.K. Gordon et al, "Active Tactile Exploration...", ICRA 2026

Analogy: y=H(x−θ)y = H(x-\theta)

θ\theta

xx

yy

D\mathcal{D}

Mean Square Error

LMSE=∑D∣∣yD−H(xD−θ)∣∣2\mathcal{L}_{MSE} = \sum_\mathcal{D}||y_{\mathcal{D}} - H(x_\mathcal{D}-\theta)||^2

MSE

GD

Alternative: Graph Distance

LGD=∑Dmin⁡x∣∣(xD,yD)−(x,H(x−θ))∣∣2\mathcal{L}_{GD} = \sum_\mathcal{D}\min_x||(x_{\mathcal{D}}, y_{\mathcal{D}}) - (x, H(x-\theta))||^2

Problem: look at ∇θLMSE\nabla_\theta \mathcal{L}_{MSE}.

It is 0 or undefined everywhere!

Trade-Off:

  • Pro: Loss gradient is finite (or bounded) almost everywhere!
  • Con: Potentially expensive inner optimization loop.

Quantifying Information Without a Prior

Θ\Theta

L\mathcal{L}

Θ~\tilde{\Theta}

Θ\Theta

L\mathcal{L}

Θ~\tilde{\Theta}

Maximum Likelihood Estimate: Θ~=arg⁡min⁡ΘL(Θ)\tilde{\Theta} = \arg\min_\Theta\mathcal{L}(\Theta)

→dLdΘ(Θ~)=0\rightarrow \frac{d\mathcal{L}}{d\Theta}(\tilde{\Theta}) = 0

Information →\rightarrow How certain am I? Ideally: answer without a strong prior.

How certain is this?

Noise Floor

Low Info

High Info

Past (Observed) Information:

I:=∑mt∇ΘL(∇ΘL)T\mathcal{I} := \sum_{m_t}\nabla_{\Theta}\mathcal{L}\left(\nabla_{\Theta}\mathcal{L}\right)^T

Future (Fisher) Information:

F:=Varmt[∇ΘL]\mathcal{F} := Var_{m_t}\left[\nabla_{\Theta}\mathcal{L}\right]

=Emt[∇ΘL(∇ΘL)T]= \mathbb{E}_{m_t}\left[\nabla_{\Theta}\mathcal{L}\left(\nabla_{\Theta}\mathcal{L}\right)^T\right]

Expected Information Gain (EIG) :=log⁡det⁡(FI−1+I):= \log\det(\mathcal{F}\mathcal{I}^{-1} + \mathbf{I})

 E.K. Gordon et al, "Active Tactile Exploration...", ICRA 2026

Computing Observed Information

Computing Fisher Information

Key Difficulty: Backwards simulation isn't well-defined for Coulomb frictional contact.

 E.K. Gordon et al, "Active Tactile Exploration...", ICRA 2026

"Quasi-Static" Solution: pretend ∂xt∂xt+1=∂xt+1∂xt=I\frac{\partial x_t}{\partial x_{t+1}} = \frac{\partial x_{t+1}}{\partial x_{t}} = \mathbf{I}

I=∑tEmt[(∇xtP(mt∣xt))2]\mathcal{I} = \sum_t \mathbb{E}_{m_t}[(\nabla_{x_t}\mathbb{P}(m_t|x_t))^2]

Pro: Easy to compute

For Gaussian measurement model, no sampling required for E\mathbb{E}

I:=Varmt[∇(θ,xT)L]=Varmt[∇(θ,τ)L∇xTτ]\mathcal{I} := Var_{m_t}\left[\nabla_{(\theta, x_T)}\mathcal{L}\right] = Var_{m_t}\left[\nabla_{(\theta, \tau)}\mathcal{L}\nabla_{x_T}\tau\right]

Recall: out loss optimizes the entire trajectory τ\tau,

but we want information about xTx_T

∂xt∂xt+1\frac{\partial x_t}{\partial x_{t+1}}

Gradient of "backwards simulation"

Information Through Marginalization

Ongoing Work

"Quasi-Static" Solution won't work for more dynamic systems.

Can we do better? Yes, through marginalization.

≈softmaxτ∼MCMC(log⁡P(m0∣x0))⋅(∇xT∣∣f(xT−1)−xT∣∣22)\approx softmax_{\tau\sim MCMC}\left(\log \mathbb{P}(m_0 | x_0)\right) \cdot \left(\nabla_{x_T}||f(x_{T-1}) - x_T||_2^2\right)

=∇xTlog⁡∫τP(m0∣τ)P(τ∣xT)=\nabla_{x_T} \log\int_{\tau}\mathbb{P}(m_0 | \tau)\mathbb{P}(\tau| x_T)

We want ∇xTlog⁡P(m0∣xT)\nabla_{x_T} \log\mathbb{P}(m_0 | x_T)

Con: We introduce sampling. However...

Pros:

  • No gradient of ff required
  • For sampling: we already have a good guess of τ\tau from the learning algorithm

Journal extension in the works...

Information Through Marginalization

We want ∇xTlog⁡P(mt∣xT)\nabla_{x_T} \log\mathbb{P}(m_t | x_T)

Ongoing Work

=∇xTlog⁡∫xtP(mt∣xt)P(xt∣xT)=\nabla_{x_T} \log\int_{x_t}\mathbb{P}(m_t | x_t)\mathbb{P}(x_t | x_T)

Assume:

P(xt∣xT)∝exp⁡(f(xt,xT))\mathbb{P}(x_t | x_T) \propto \exp(f(x_t, x_T))

≈∇xTlog⁡∑xt∼UP(mt∣xt)P(xt∣xT)\approx\nabla_{x_T} \log\sum_{x_t\sim U}\mathbb{P}(m_t | x_t)\mathbb{P}(x_t | x_T)

=softmaxxt∼U(log⁡P(mt∣xt)+f(xt,xT))⋅(∇xTf(xt,xT))=softmax_{x_t\sim U}\left(\log \mathbb{P}(m_t | x_t)+ f(x_t, x_T)\right) \cdot \left(\nabla_{x_T}f(x_t, x_T)\right)

=softmaxxt∼MCMC(log⁡P(mt∣xt))⋅(∇xTf(xt,xT))=softmax_{x_t\sim MCMC}\left(\log \mathbb{P}(m_t | x_t)\right) \cdot \left(\nabla_{x_T}f(x_t, x_T)\right)

No gradient through sampling

At the cost of sampling trajectories xtx_t (via MCMC), we bypass the inverse Jacobian.

(If we have a good guess x~t\tilde{x}_t, MCMC should be quick)

Assistive Direct pHRI

Multimodal Active Learning

Physically Assistive Robots

  • Large communities in HRI and Contact-Rich Manipulation
  • The overlap was much smaller.

Leveraging Model-Based Methods

Multimodal Active Learning

Physically Assistive Robots

Dataset D\mathcal{D}

Perception

Learned Model + Policy

L\mathcal{L}

VLA

Run Classical Techniques on Learned Model:

  • Information Quantification (Observed and Eπ\mathbb{E}_\pi)
  • Generate / efficiently sample fine-tuning sim data.
  • Offline MPC when compute or connectivity are limited (portability).

Uncertainty Quantification

Images

L\mathcal{L}

  • Implicit approach, e.g. look at action entropy [1]
  • Alternative: try to learn that uncertainty explicitly.
  • Used privileged simulator information to compute observed info ≈\approx uncertainty.

States

Observed Information:

I:=∑mt∇ΘL(∇ΘL)T\mathcal{I} := \sum_{m_t}\nabla_{\Theta}\mathcal{L}\left(\nabla_{\Theta}\mathcal{L}\right)^T

Multimodal Active Learning

Physically Assistive Robots

VLA

[1] Yang et al, "Uncertainty-aware Observation Reinjection...", preprint

Ethan Job Talk Med

By Michael Posa

Ethan Job Talk Med

45min

  • 13

More from Michael Posa
