Properties of Matter
M. Rocha
Physics 1 - Week 5 - Chapters 11-14
What is matter made of?
Aristotles
Leucippus and Democritus
450 BCE
4 essential elements
Atoms
Brownian Motion
First evidence of the Atomic Model
First observed by Robert Brown (1827) First explained by Albert Einstein (1905)
Rutherford Scattering
The Rutherford scattering experiment (1911) demonstrated that atoms must have a core (Nucleus)

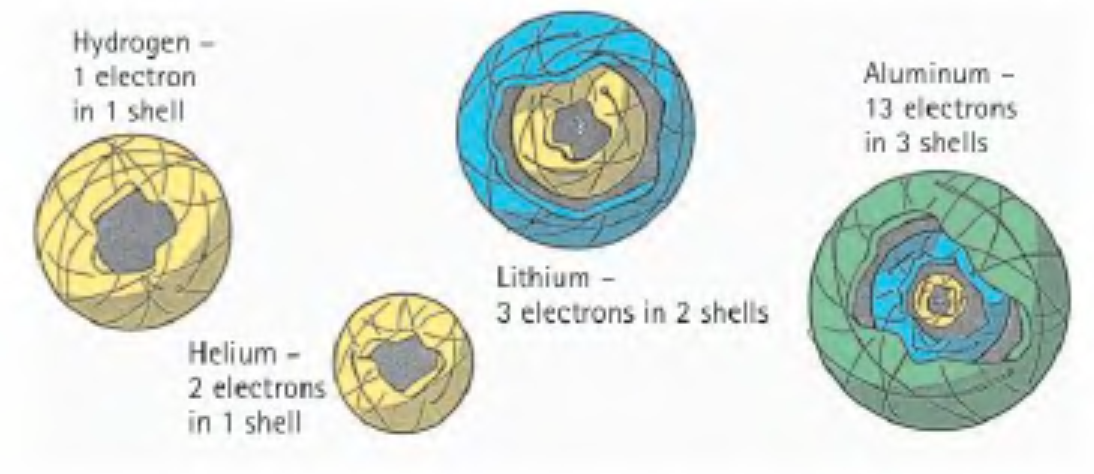

The Atom
Early 20th-century model
Current model
Atoms are tiny ~10-10 meters
Atoms mostly empty space
Atoms are 99.9999999999996% empty space!
Atoms are numerous
There are 1023 atoms in a gram of water.
- That is 100x more than the number of grains of sand in all the beaches of the world!
- And as many as the number of stars in the observable Universe!
There are as many atoms in a grain of sand than stars in the Universe!
Atomic Imaging
Atoms are too small to be seen with visible light
Light is made up of waves, and atoms are smaller than the the wavelengths of visible light
Atomic Imaging
You need electron beams, electron beams behave like waves
The wavelength of electron beams is small enough to detect atoms

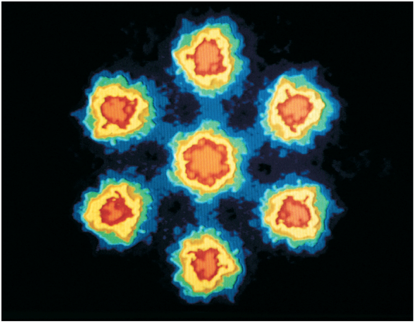

The Scanning Electron Microscope (SEM) produced the first picture of individual thorium atoms in 1970
Atomic Imaging
You need electron beams, electron beams behave like waves
Today we use Scanning Tunneling Microscopes (STM) for atomic imaging
Atomic Imaging
You need electron beams, electron beams behave like waves

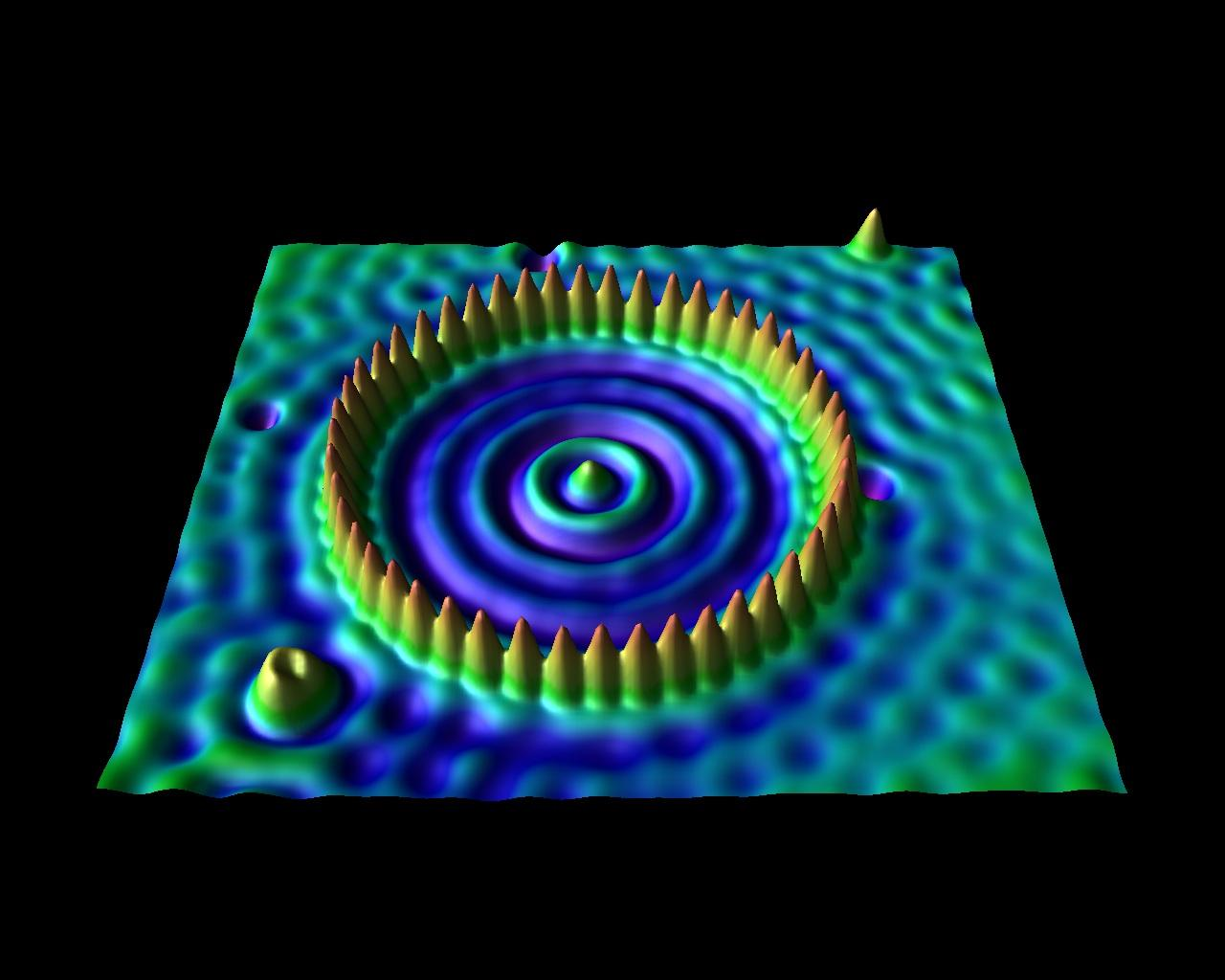

Ring of 48 iron atoms
Uranium atoms
Images produce with Scanning Tunneling Microscopes (STM)
Ant under an electron microscope
The elements

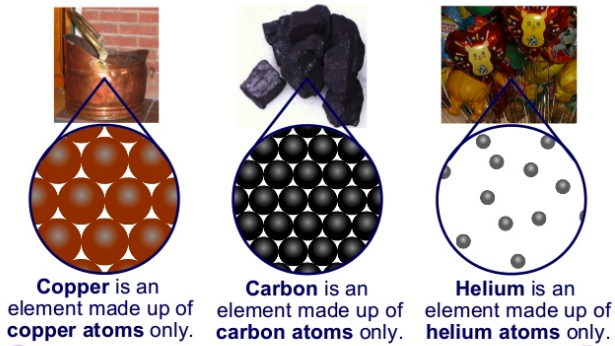

When a substance is composed of only one kind of atom, it is called an element
The elements
When a substance is composed of only one kind of atom, it is called an element
The number of protons determines the kind of atom (element)
Checkpoint 1
You observe two atoms, one with 6 protons and 7 electrons and the other one with 6 protons and 5 electrons, are they the same element?
Yes, same number of protons.
The elements
The periodic table categorizes all the known elements
The elements
When a substance is composed of only one kind of atom, it is called an element
The number of protons and electrons in an atom determines the kind of atom (element) and its properties
The elements
The periodic table categorizes all the known elements
The elements
The periodic table categorizes all the known elements
Ions
Ions are charged atoms. They occur when the number of protons is not the same as the number of electrons
Helium (2 protons) Ions
Checkpoint 2
If you have a Carbon atom with 6 protons and 5 electrons what kind of Carbon ion is this, positive or negative?
It is a positive Carbon ion.
Isotopes of an element
Carbon Isotopes
Atoms of the same element that have different numbers of neutrons are called isotopes
Hydrogen Isotopes
Checkpoint 3
How many protons and neutrons the Helium-3 isotope has?
2 protons and 1 neutron
Molecules
A molecule forms when two or more atoms bond together by sharing electrons
Caffeine Molecule
Simple Molecules
Compound Molecule
Water Molecule
Mixtures
Mixtures form when different elements mix together without forming chemical bonds (no electron sharing)

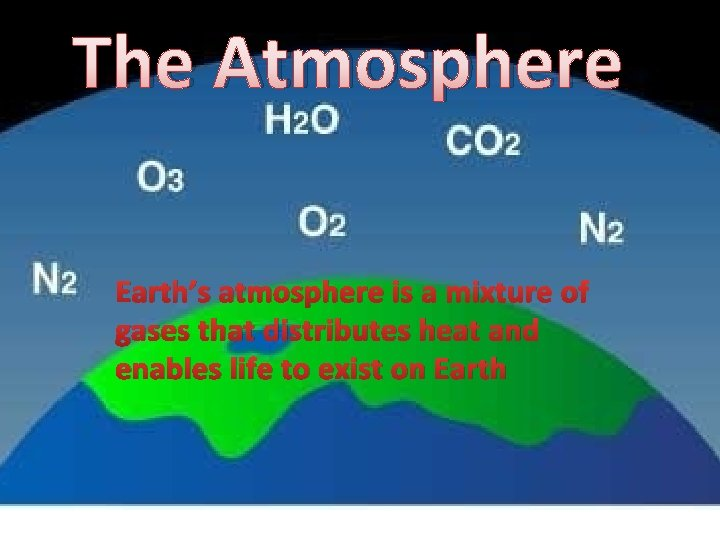

The atmosphere is an example of a mixture
The Standard Model
Protons and Neutrons are made of Quarks
Fundamental Forces:
Strong, Electromagnetic + Weak
Gravity?
All of the matter that we know is made of these 9 fundamental particles

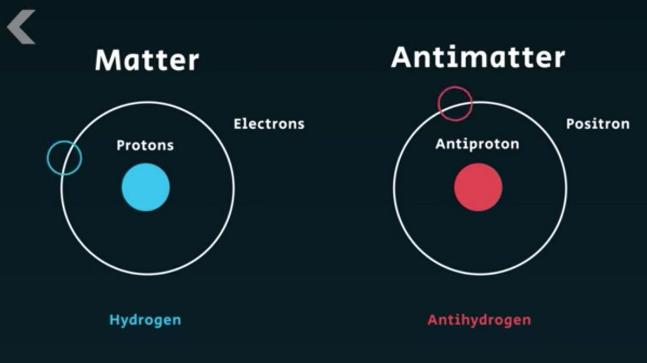

Antimatter
All particles have an anti-particle with the same properties but opposite charge. When matter and anti-matter combine they annihilate to produce pure energy
Dark Matter
~85% of matter in the universe is made of something that does not interact with light, thus we can not see. We call this dark matter
We know dark matter is there and how much is there purely by its gravitational effects. Dark matter holds the universe together.

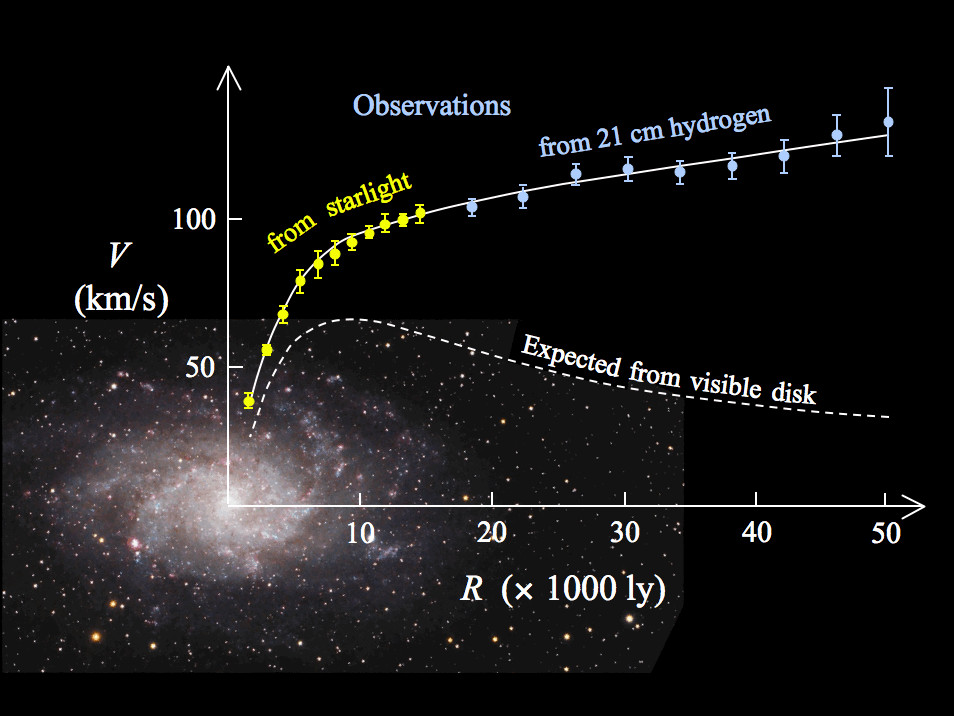

Dark Matter
Dark Matter
Galaxy Formation

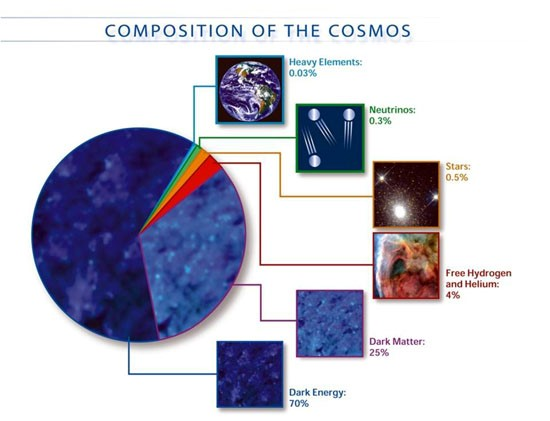

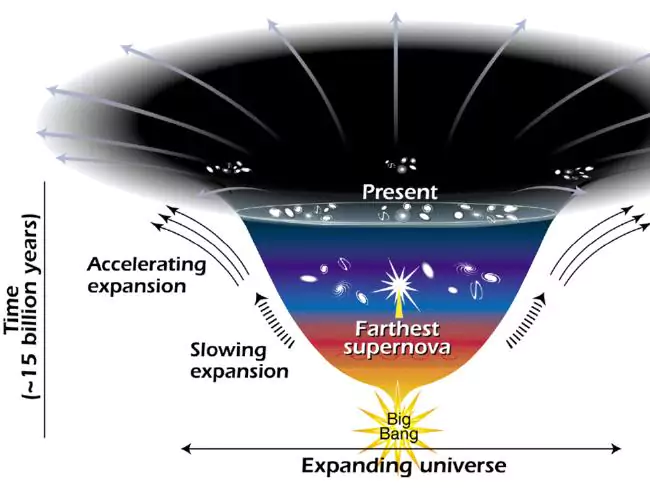

Dark Energy
We know the Universe is expanding at an accelerated rate. In order to explain this there must be an unknown form of energy that makes ~70% of the Universe and produces a expanding force (like antigravity)

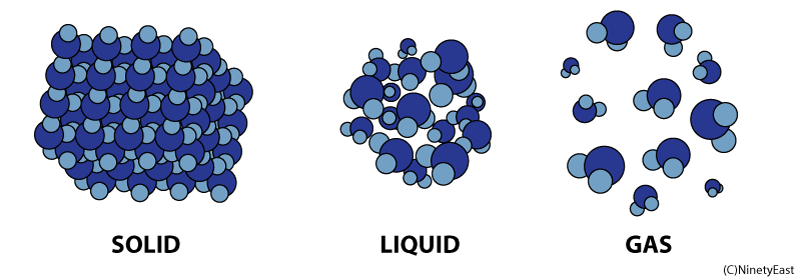

Properties of Matter in Different States:
Solids, Liquids and Gases
Solids
Crystals
Amorphous
Rubber, plastic, wood
Metals, minerals, salts
NaCl Sodium Chloride (Salt)
Frozen H2O (Ice)
Neoprene
Wood
Properties of Solids
Density - Amount of mass per unit volume
Elasticity - How much a solid's shape changes when a deforming force acts, and how well it returns to its original shape when the force is removed.
\mathrm{Density} = \mathrm{\frac{Mass}{Volume}}
Checkpoint 1
1 liter of water weights 1 kg. A liter is a measure of volume, 1 liter = 1000 cm^3. What is the density of water?
1000 g/1000 cm^3 = 1 g/cm^3
or
1 kg/L = 1g/ml
\mathrm{Density} = \mathrm{\frac{Mass}{Volume}}
Checkpoint 2
When water freezes, it expands. What does this say about the density of ice compared to the density of water?
Water is more dense than ice.
\mathrm{Density} = \mathrm{\frac{Mass}{Volume}}

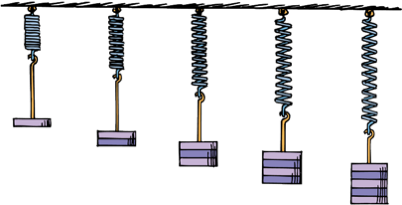

Hooke's Law
F \propto x
For elastic materials, the stretch is directly proportional to the applied force.
Hooke's law holds as long as the material is not stretched or compressed beyond the elastic limit (when permanent deformation occurs).
F = \mathrm{k} \times x
Checkpoint 3
A tree branch is found to obey Hooke’s law. When a 20 kg load is hung from the end of it, the branch sags 10 cm. If a 60 kg load is hung from the same place, how much will the branch sag? (Assume none of these loads makes the branch sag beyond its elastic limit).
A 60 kg load is 3x greater than the 20 kg load, so the branch sags 10cm x 3 = 30 cm
F \propto \Delta x
Liquids
In the liquid phase, molecules can flow freely from position to position by sliding over one another. A liquid takes the shape of its container
Properties of Fluids
Density - Amount of mass per unit volume
Pressure - Force per unit area
\mathrm{Density} = \mathrm{\frac{Mass}{Volume}}
\mathrm{Pressure} = \mathrm{\frac{Force}{Area}}
Pressure
Pressure is force per unit area
\mathrm{Pressure} = \mathrm{\frac{Force}{Area}}
Metric unit of pressure is Pascal.
1 Pascal = 1 Newtons per square meter
A pressure < B pressure
A pressure < B pressure
Checkpoint 4
How does the pressure in A) compares to the pressure in B)?
A) has 3x more force over 3x more area, so The pressure in A) is the same as in B)
\mathrm{Pressure} = \mathrm{\frac{Force}{Area}}
Weight is distributed over hundreds of nails, so the pressure at the point of each nail safely small
Pressure in Liquids
Pressure in a liquid depends on depth.
As with bricks, weight of what’s above determines pressure

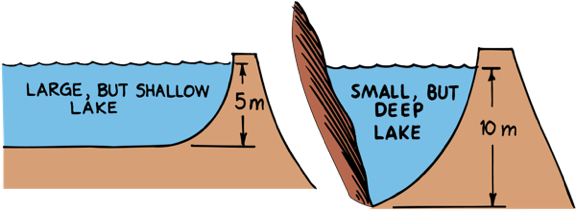

Pressure in Liquids
Pressure in a liquid depends on depth.
The weight of what’s directly above determines pressure
Less Pressure
More Pressure

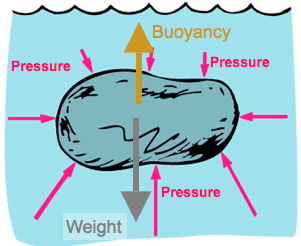

Buoyancy
If the weight exceeds the buoyancy force then the object sinks, otherwise it floats
Since pressure depends on depth, a submerged object has more force due to pressure below it than above it.
Net effect is to have a net upward force, which we call buoyancy.

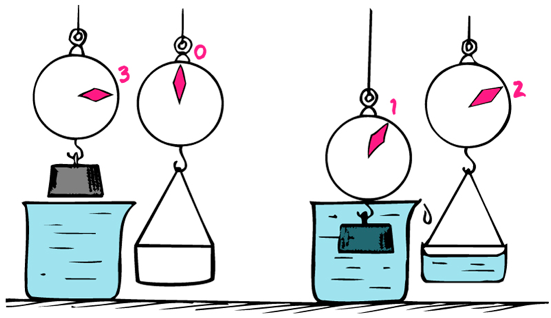

Bouyancy

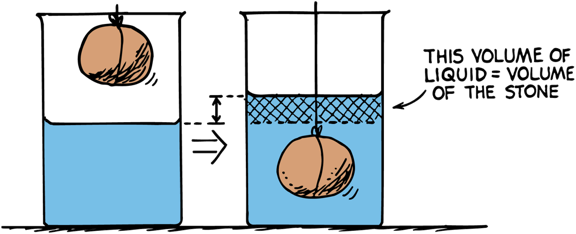

When an object is submerged, it displaces a volume of water equal to the volume of the object itself
Arquimedes' principle
Weight of liquid displaced by floating or submerged object equals the buoyant force on the object
F_\mathrm{bouyancy} = F_\mathrm{weigth}

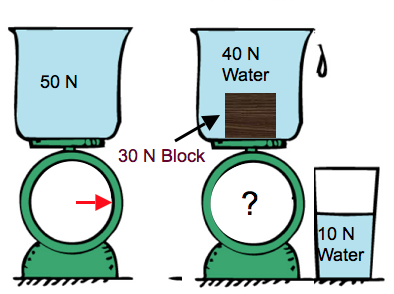

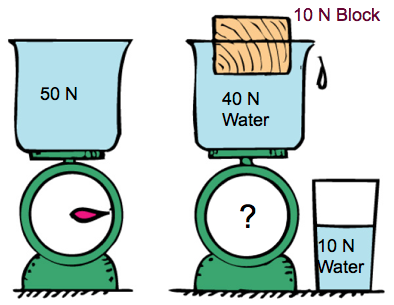

Checkpoint 5
If you place a block of wood in the water, does scale reading goes up, down, or stays the same?
Stays the same
Checkpoint 6
If you place a block of petrified wood in the water, does scale reading goes up, down, or stays the same?
Goes up
Density & Floating

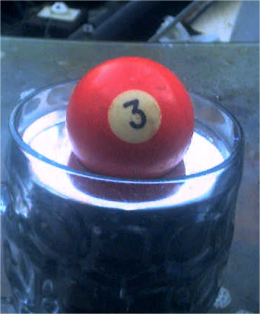

A billiard ball (density = 4.0 g/cm3) floats in a cup of mercury
(density = 13.6 g/cm3)
By Archimede’s principle, a solid object will float if the density of the object is less than the density of the liquid
Density & Floating
Density of wood is about 0.5 to 0.8 g/cm^3. It is not surprising that wooden ships float
Density of iron 7.9 g/cm^3. How is it that a battleship can float?

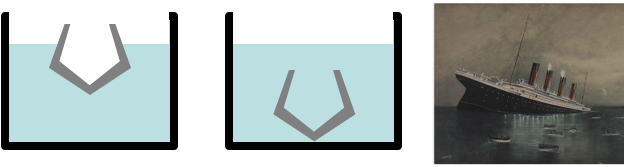

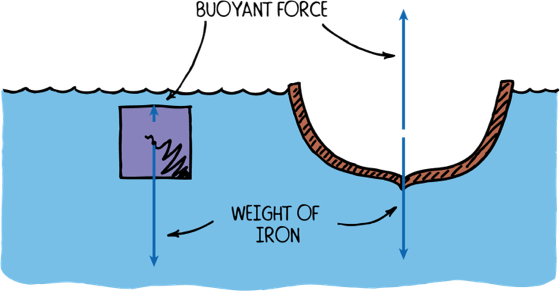

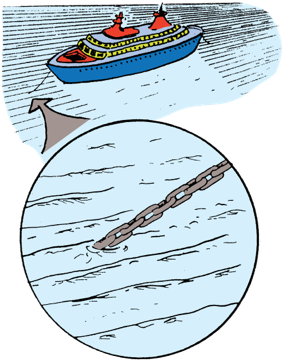

Density & Floating
An iron ship floats since it is hollow inside. If water floods the inside then it sinks
When an object is not solid then it floats if the average density, (total mass)/(total volume), is less than the density of the liquid.
Density & Floating
An iron ship floats since it is hollow inside. If water floods the inside then it sinks
When an object is not solid then it floats if the average density, (total mass)/(total volume), is less than the density of the liquid.
Surface Tension
Gases
Molecules in gases are free to expand indefinitely and fill all the space available. Gases flow just like liquids, so gases are also called fluids.

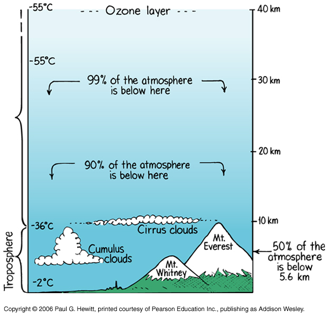

Atmospheric Pressure
We live at the bottom of a fluid "ocean" of air — the atmosphere.
The density of air in the atmosphere decreases with increasing altitude

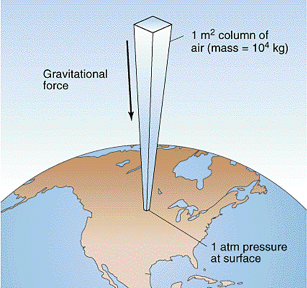

Atmospheric Pressure
Atmospheric column of air
Base: 1 square meter
Height: 10 km = 10000 m
Volume: 10,000 m^3
Mass: 10,000 kg
Weight: 100,000 N = 10 tons
Pressure: 100,000 Pascals
Atmospheric pressure is really strong!
~15 pounds per square inch
We live at the bottom of a fluid "ocean" of air — the atmosphere.

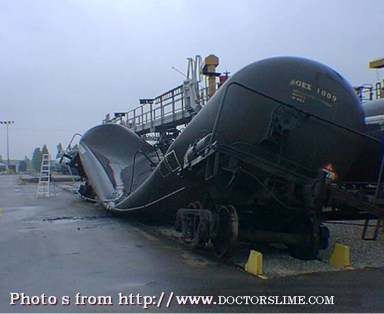

Atmospheric Pressure is Really Strong
The interior of the tank car was washed out & cleaned with steam. Then all the outlet valves were shut and the tank car was sealed.
All the workers went home for the evening and when they returned, this is what they found.
Apparently as the tank car cooled, it collapsed. The shell on these tank cars is 1/2 inch thick steel.
Buoyancy on Air
Objects can float in air, just as they float in water, if the objects’ average density is less than the density of air
Boyle's Law
When the volume of a gas is decreased, the density increases and therefore pressure increases
Boyle's Law
When the volume of a gas is decreased, the density increases and therfore pressure increases
P_iV_i = P_fV_f
PV = \mathrm{constant}
Boyle's Law
Checkpoint
If you were to dive 10 m deep you would experience 2 atmospheres of pressure. If you breathe compressed air at that depth the air you breath would have to be at 2 atmospheres of pressure. By how much would the volume of your lungs expand if you then shoot to the surface while holding your breath?
Your lungs would expand by 2 times, i.e. twice the volume.
P_iV_i = P_fV_f

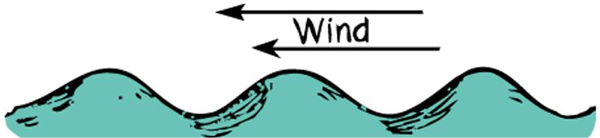

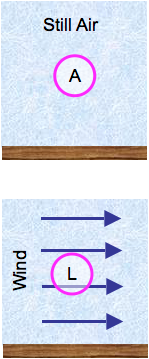

Bernoulli's Principle
When the speed of a fluid increases the pressure in the fluid decreases.
This phenomenon is due to energy conservation; when fluid’s kinetic energy increases (velocity increases) its internal potential energy (pressure) decreases
Bernoulli's Principle
When the speed of a fluid increases the pressure in the fluid decreases.
The End

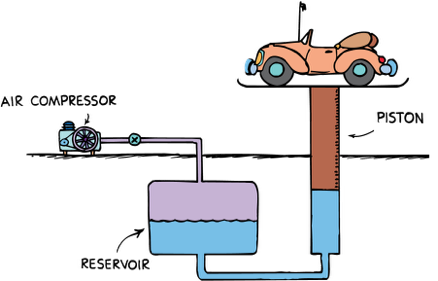

Pascal's Priciple
Changes in pressure at any point in an enclosed fluid at rest are transmitted undiminished to all points in the fluid
Pascal's Priciple
Changes in pressure at any point in an enclosed fluid at rest are transmitted undiminished to all points in the fluid
Bernoulli's Principle
When the speed of a fluid increases the pressure in the fluid decreases.

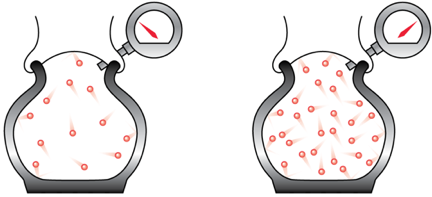

Boyle's Law
When the density of the air in a tire increases, the pressure increases
