Magnetism and Electromagnetic Induction
M. Rocha
Physics 10
Magnetism
Magnets are Fun!
How do magnets work?
Origin of Magnetic Force
When electric charges move they create a magnetic field
The magnetic field is due to "distortions" in the electric field caused by motion
The right hand rule tells you the direction of the magnetic field due to a positive moving charge
Magnetism as a Consequence of Special Relativity
When electric charges move they create a magnetic field
The magnetic field is due to "distortions" in the electric field caused by motion
The right hand rule tells you the direction of the magnetic field due to a positive moving charge
Spinning charges are moving charges, thus create magnetic fields
Origin of Magnetic Force
Checkpoint 1
A proton travels in a circular path counterclockwise as shown below. What is the direction of the magnetic field lines at the center?
+
Away from the screen (towards you)
Magnetic Poles
North Pole: Side where field lines point away from the source
South Pole: Side where field lines point into the source
Magnetic Forces
As with electric charges, like poles (N&N, S&S) repel and opposites (N&S) attract.
Unlike electric charges, cannot have just a North or just a South pole
How do Magnets Work?
An iron atom has four electrons whose spin magnetism is not canceled. Each iron atom is a tiny magnet. The same is true to a lesser degree for the atoms of nickel and cobalt.
How do Magnets Work?
An iron atom has four electrons whose spin magnetism is not canceled. Each iron atom is a tiny magnet. The same is true to a lesser degree for the atoms of nickel and cobalt.
How do Magnets Work?
Each iron atom is a tiny magnet. Interactions among adjacent iron atoms cause large clusters of them to line up with one another.
clusters of aligned atoms are called magnetic domains
How do Magnets Work?
Magnetic domains can be induced to align by an external magnetic field
Electric Currents and Magnetic Fields
An electric current produces a magnetic field
Electromagnets
Electric current in a coil of wire creates a magnetic field similar to a bar magnet
Current In
Current Out
Origin of Earth's Magnetic Field
Earth is a giant electromagnet
Earth's Magnetic Field Reversal
Northern Lights (Auroras)
Magnetic Force on Moving Charges
Moving electric charges deflect by magnetic fields
Magnetic Force on Moving Charges
Moving charges in an electric current experience a force due to magnetic field
Checkpoint 2
An electron travels to the right within a magnetic field pointing towards the screen, in which direction would it be deflected?
_
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
Magnetic Field
It gets deflected down
Electric Motors
Speakers
Oscillations are created by variations in electrical current, which cause an electromagnet to be pulled towards and away from a second, permanent magnet
These oscillations cause the membrane of the speaker to vibrate with the same frequency as the oscillations in the electrical current.
Electromagnetic Induction
Electromagnetic Induction
Just like moving charges (currents) produce magnetic fields, moving magnetic fields produce voltages and currents
Electromagnetic Induction
Voltage is induced whether a magnetic field moves past a conductor, or the conductor moves through a magnetic field.
The results are the same for the same relative motion
Electromagnetic Induction
Twice as many loops results in twice as much voltage induced. For a coil with three times as many loops, three times as much voltage is induced
The induced current is proportional to the number of loops
2 v
4 v
6 v
Faraday's Law
The induced voltage in a coil is proportional to the product of the number of loops, the cross-sectional area of each loop, and the rate at which the magnetic field changes within those loops
\mathrm{Induced \ } V \propto \mathrm{Number \ of \ loops} \times \mathrm{Area \ of \ loops} \times \frac{\Delta B}{\Delta t}
How fast magnetic field changes
Checkpoint 1
When a coil with 200 loops is subject to a changing magnetic field it produces 0.5 v. Another coil with 400 loops but half the area is then subject the same changing magnetic field, what is the induced voltage?
\mathrm{Induced \ } V \propto \mathrm{Number \ of \ loops} \times \mathrm{Area \ of \ loops} \times \frac{\Delta B}{\Delta t}
Same, 0.5 v
Electromagnetic Induction
We don’t get something (energy) for nothing by simply increasing the number of loops
More difficult to push the magnet into a coil with more loops because the magnetic field of each current loop resists the motion of the magnet
The work done is proportional to the number of loops
When a current is induced by a changing magnetic field, that current itself produces its own magnetic field. This effect is called self-induction
Self Induction
The self-induced magnetic field is always opposed to the primary magnetic field that induced it
Eddy Currents
Changing magnetic field induces eddy currents within any conductor.
These internal currents produce self-induced magnetic fields
Metal detectors induce eddy currents on metals and detect the self-induced magnetic fields

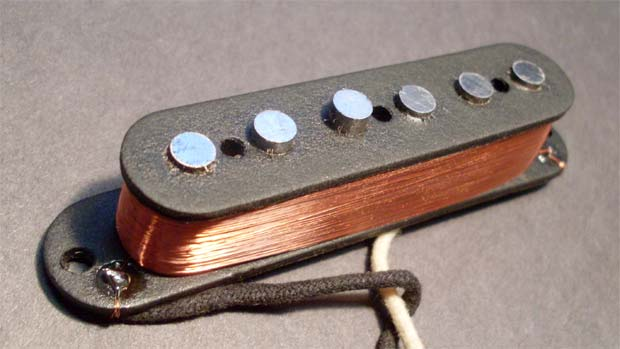

Electric Guitars
Electric Generators
Electric generators move a conductor in a magnetic field to produce voltage via electromagnetic induction
Electric Generators
Electric Motors
An electric motor is the same as a generator but instead converting mechanical energy to electrical energy, it converts electrical energy into mechanical energy
Transformers
A transformer consist on a primary coil connected into alternating power source, and a secondary coil that produces a voltage by induction
If we place an iron core inside both coils, alignment of its magnetic domains intensifies the magnetic field
Transformers
A transformer consist on a primary coil connected into alternating power source, and a secondary coil that produces a voltage by induction
If the iron core forms a complete loop, guiding all magnetic field lines through the secondary, the transformer is more efficient
Transformers
A transformer consist on a primary coil connected into alternating power source, and a secondary coil that produces a voltage by induction
Voltages may be stepped up or stepped down with a transformer
Transformers
Voltages may be stepped up or stepped down with a transformer, but the power is always constant!
P = V I = \mathrm{(\frac{Energy}{Charge}) (\frac{Charge}{Time})} = \mathrm{\frac{Energy}{Time}}
P_\mathrm{primary} = P_\mathrm{secondary}
V I_\mathrm{primary} = V I_\mathrm{secondary}
\frac{V_\mathrm{primary}}{V_\mathrm{secondary}} = \frac{I_\mathrm{secondary}}{I_\mathrm{primary}} = \frac{N_\mathrm{primary}}{N_\mathrm{secondary}}
N = Number of loops on coil
Checkpoint 2
If the primary coil of a transformer has 10 loops and is connected to a outlet providing 120 v, what would be the output voltage (secondary voltage) if the secondary coil has only 1 loop?
12 v
Checkpoint 3
1 A
What would be the output (secondary) current if the input (primary) current is 0.1 A?
\frac{V_\mathrm{primary}}{V_\mathrm{secondary}} = \frac{I_\mathrm{secondary}}{I_\mathrm{primary}} = \frac{N_\mathrm{primary}}{N_\mathrm{secondary}}
Power transmission uses transformers to increase voltage for long-distance transmission and decrease it before it reaches your home
Power Transmission
High voltage allows for less current for the same power (P = IV). Less current = less heat (less power loss)
The End
Since force on a wire due to a magnetic field depends on the current, we can use this effect to design a meter to measure current (an ammeter)
Electric Meters
Electric Generators
As the loop rotates, the magnitude and direction of the induced voltage (and current) change
The direction of the current and magnitude of the voltage reverses each half rotation, the result is an alternating current
Current
