Some (basic) stuff about compilers
"Compilers: Backend to Frontend and Back to Front Again" tutorial

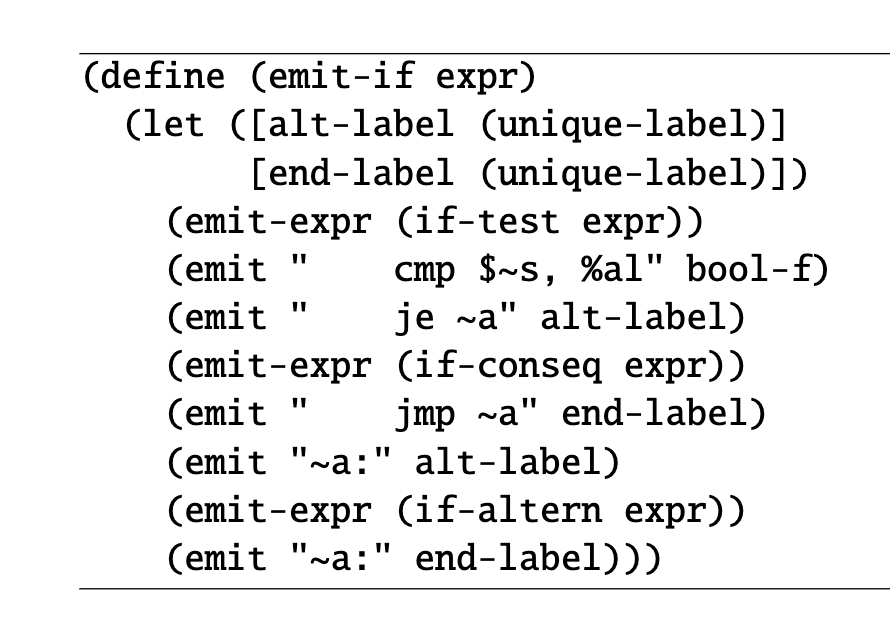

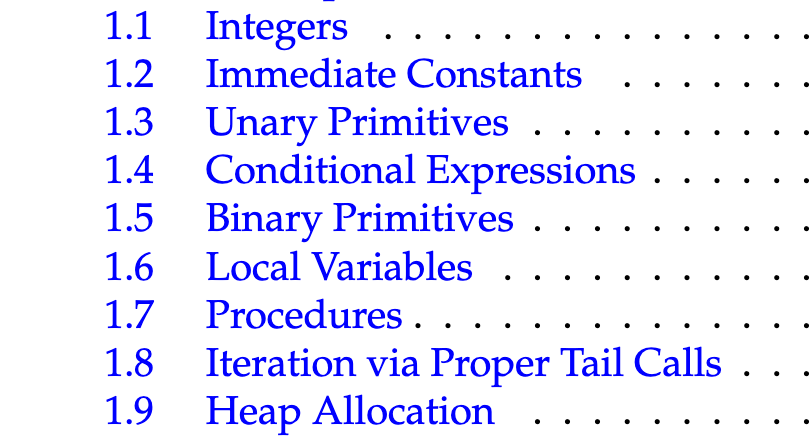

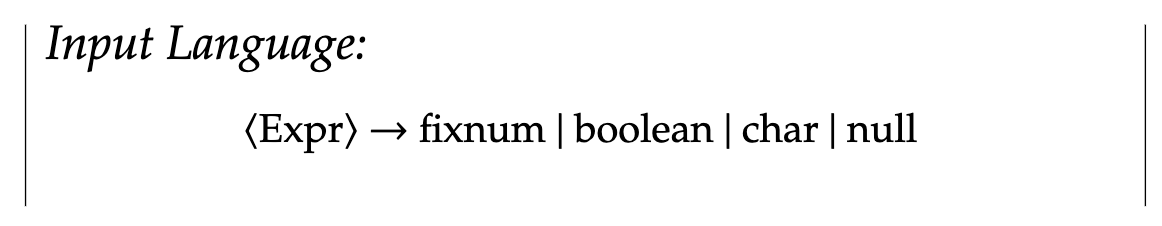

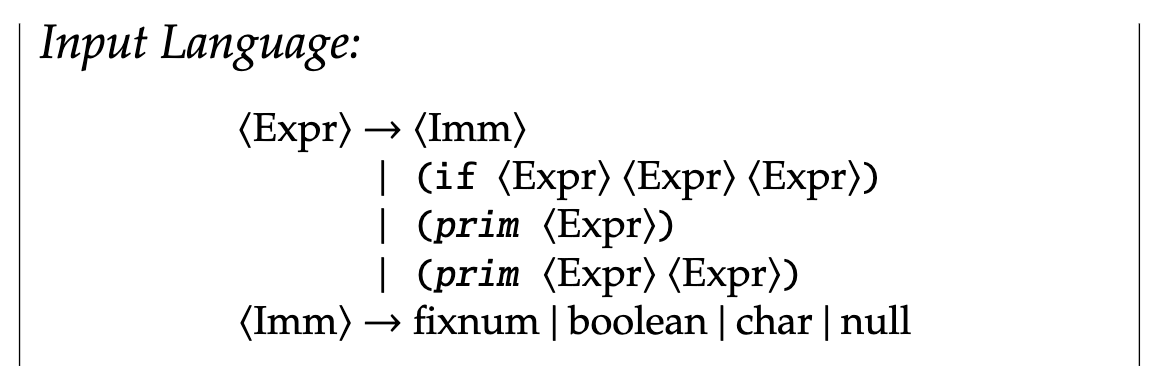

Building a compiler, extending a grammar step by step
- Input: toy scheme
- Output: x86 executable
- The tutorial uses scheme as the implementation language, I used Haskell

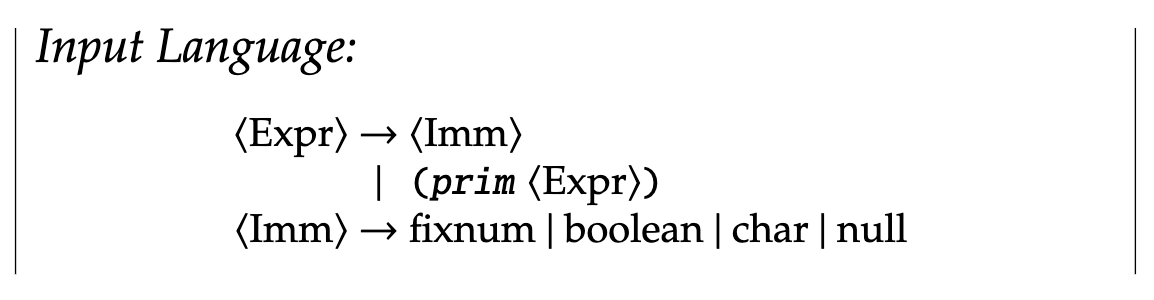

Introduces tagged pointer representation

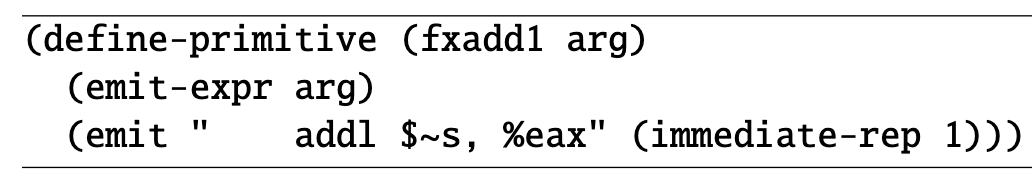

Puts the integer representation in %eax register

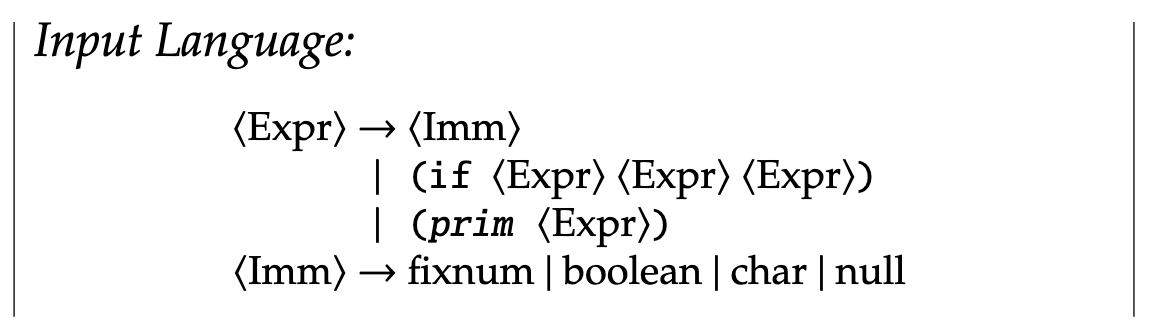

Introduce stack to save intermediate values

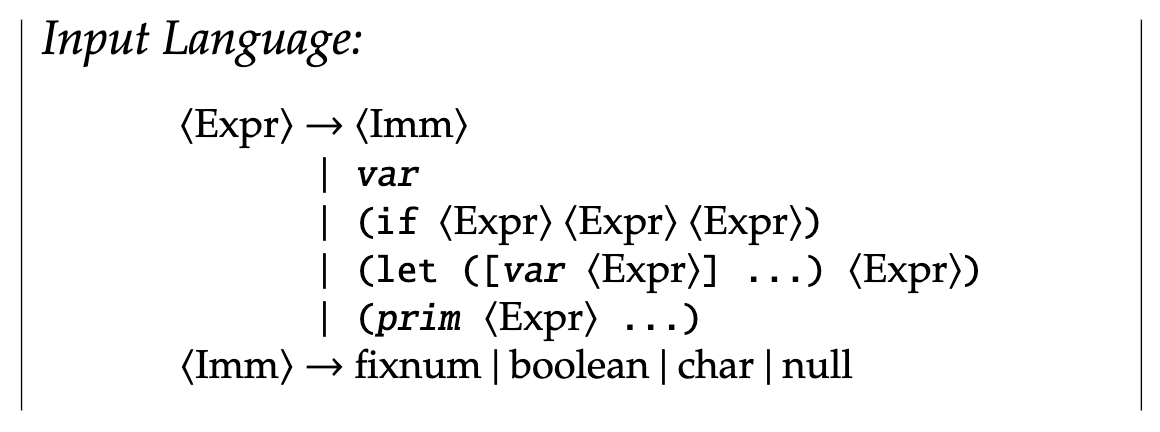

Introduces an environment to map variables to stack positions

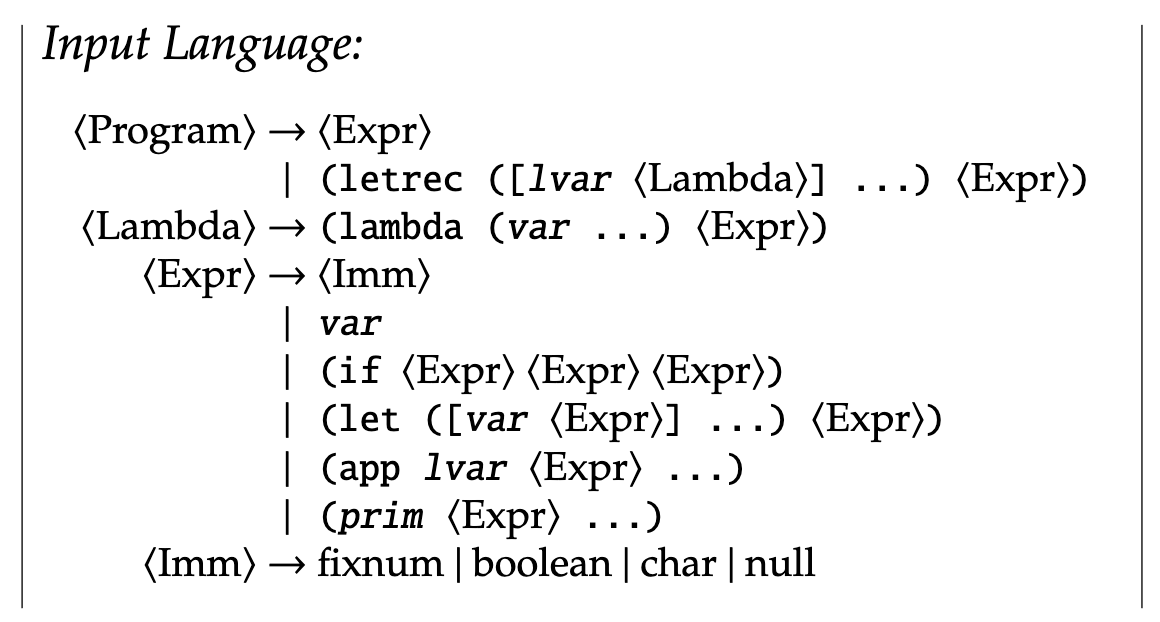

Introduces a calling convention putting parameters in the stack
Another approach: multipass compilers
"Essentials of compilation" book: https://github.com/IUCompilerCourse/Essentials-of-Compilation/releases/tag/racket-MIT-press
https://brinckerhoff.org/clements/2194-csc431/essentials-of-compilation.pdf
General idea

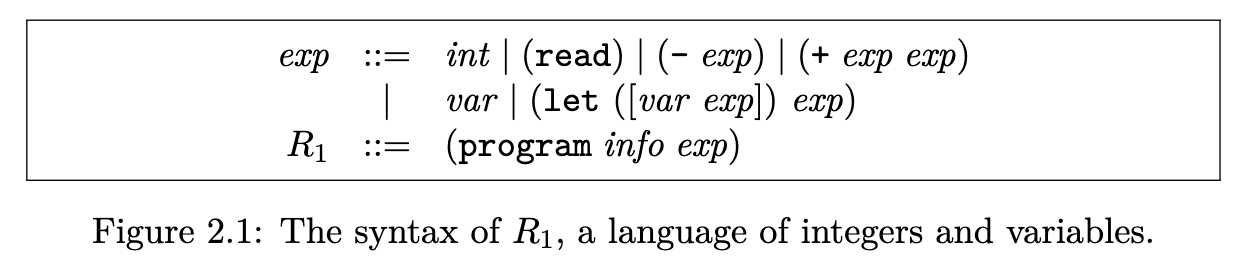

- Input is scheme like. Parsing is not a priority.

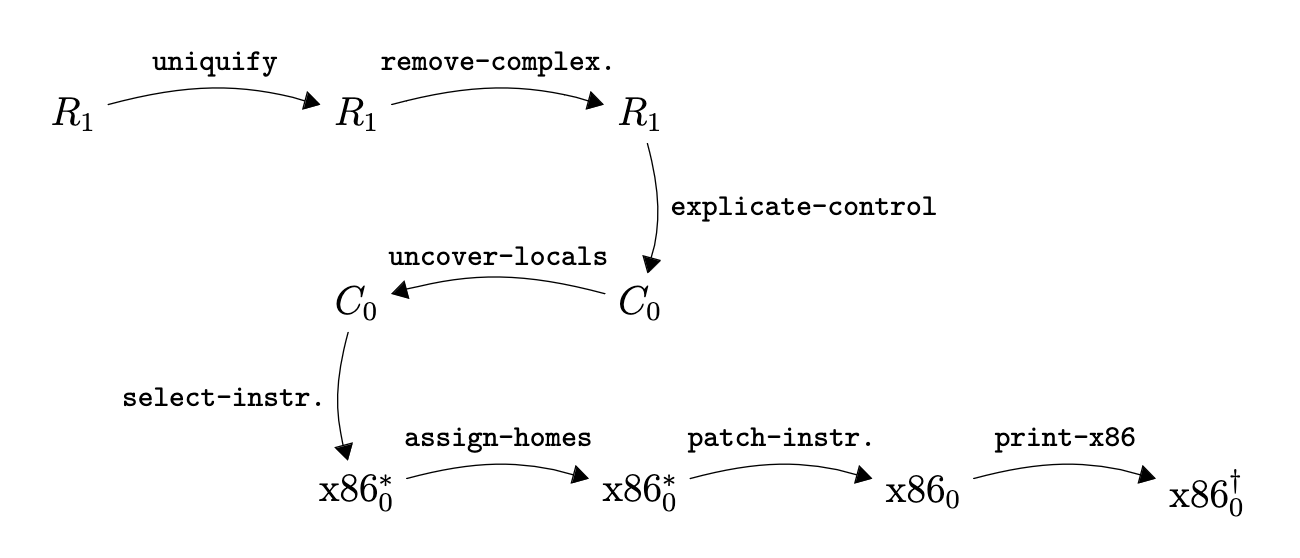

- Multiple intermediate languages
- One pass mapping one to the other
- Final pass outputs x86_64 assembler

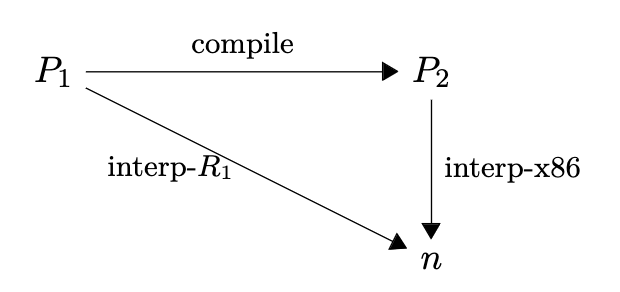

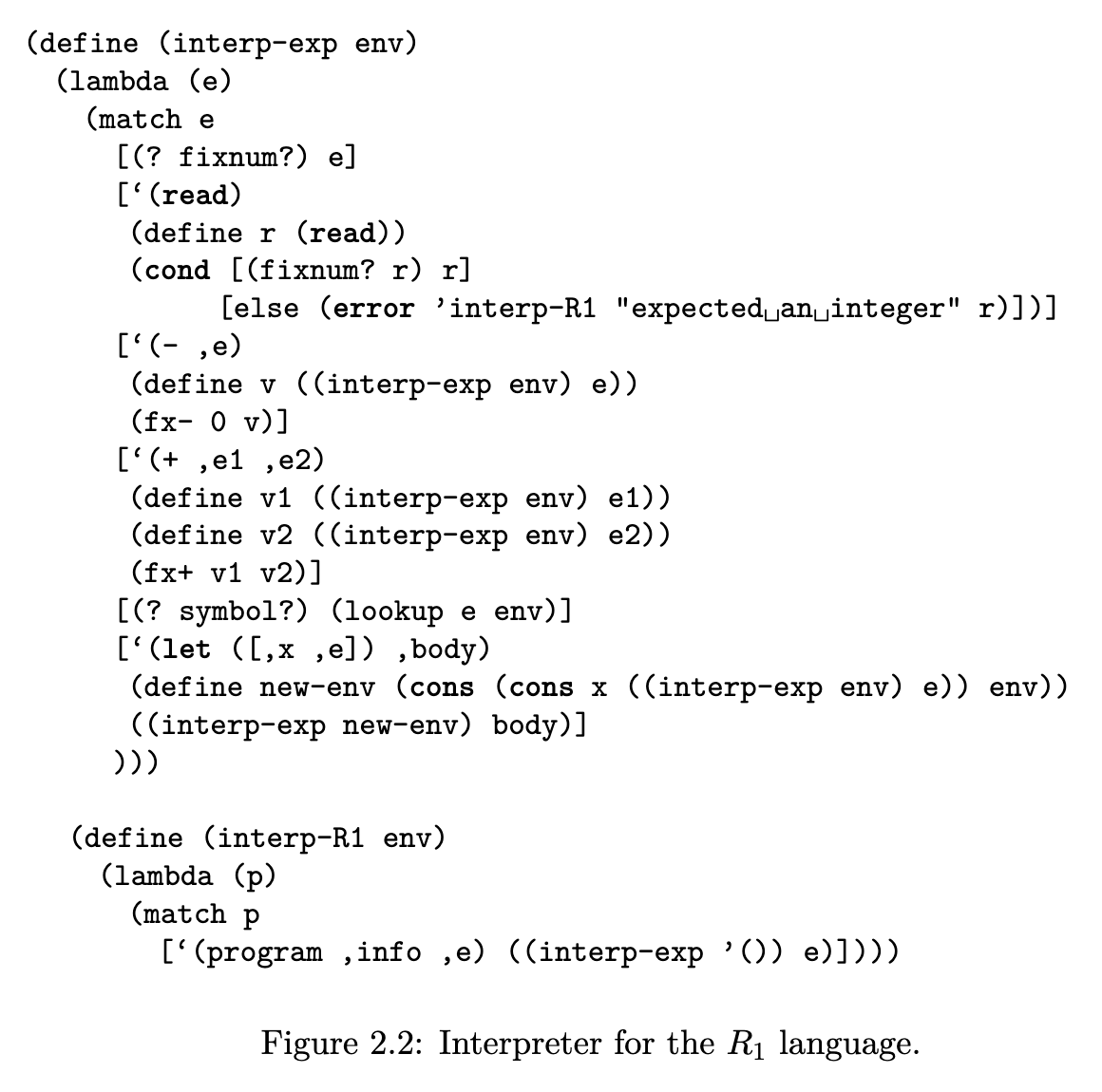

A way of validating:

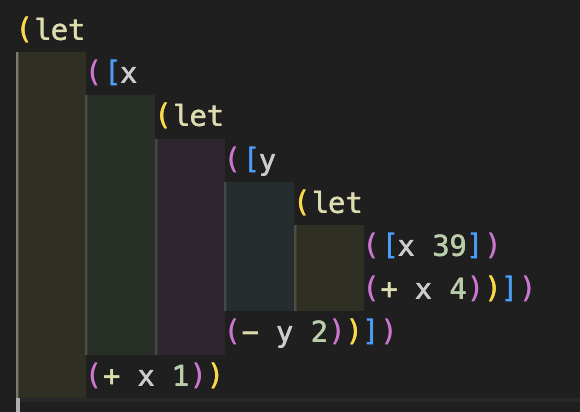

- Uniquify: make var names unique
- remove-complex: makes arguments either vars or consts, but not complex ops

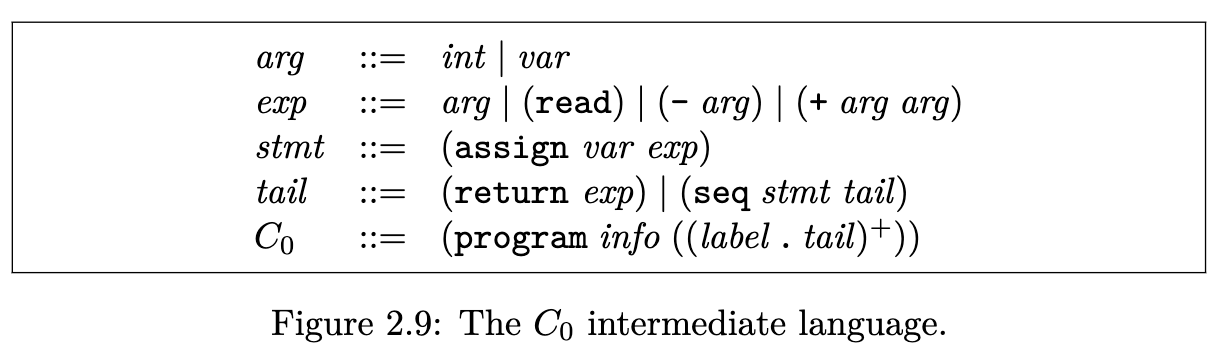

- explicate-control: makes order of execution explicit
- uncover-local: ❌ not in the edition I'm reading 😅. Just collecting variables names and putting them in the info

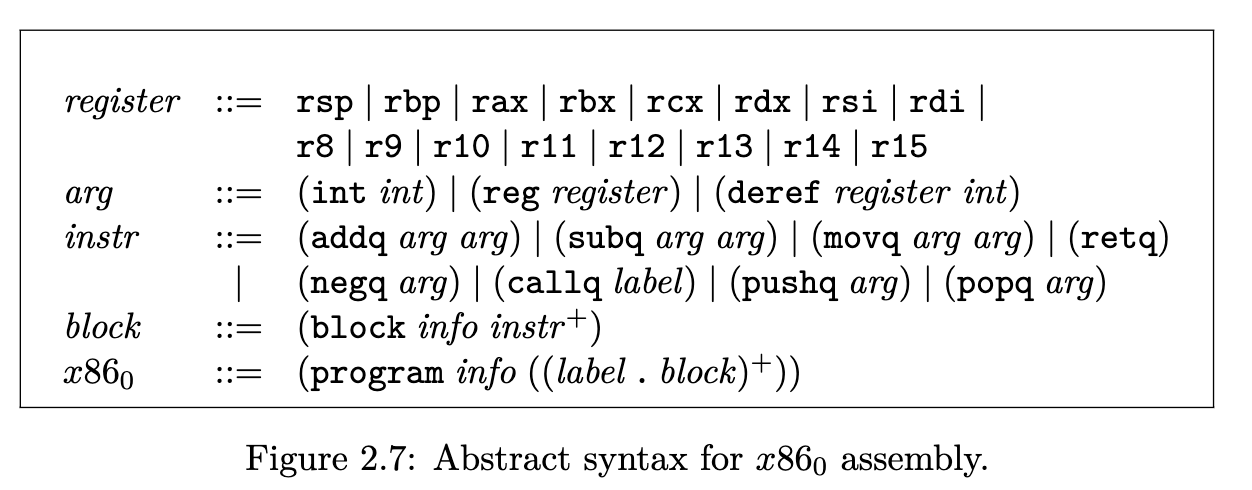

- select-instr: transforms C into a pseudo x86 with vars
❌
- assign-homes: places vars into the stack
- patch-instr: make sure that each instruction adheres to
the restrictions regarding which arguments can be memory references - before print-x86: put a prelude and main labels
❌

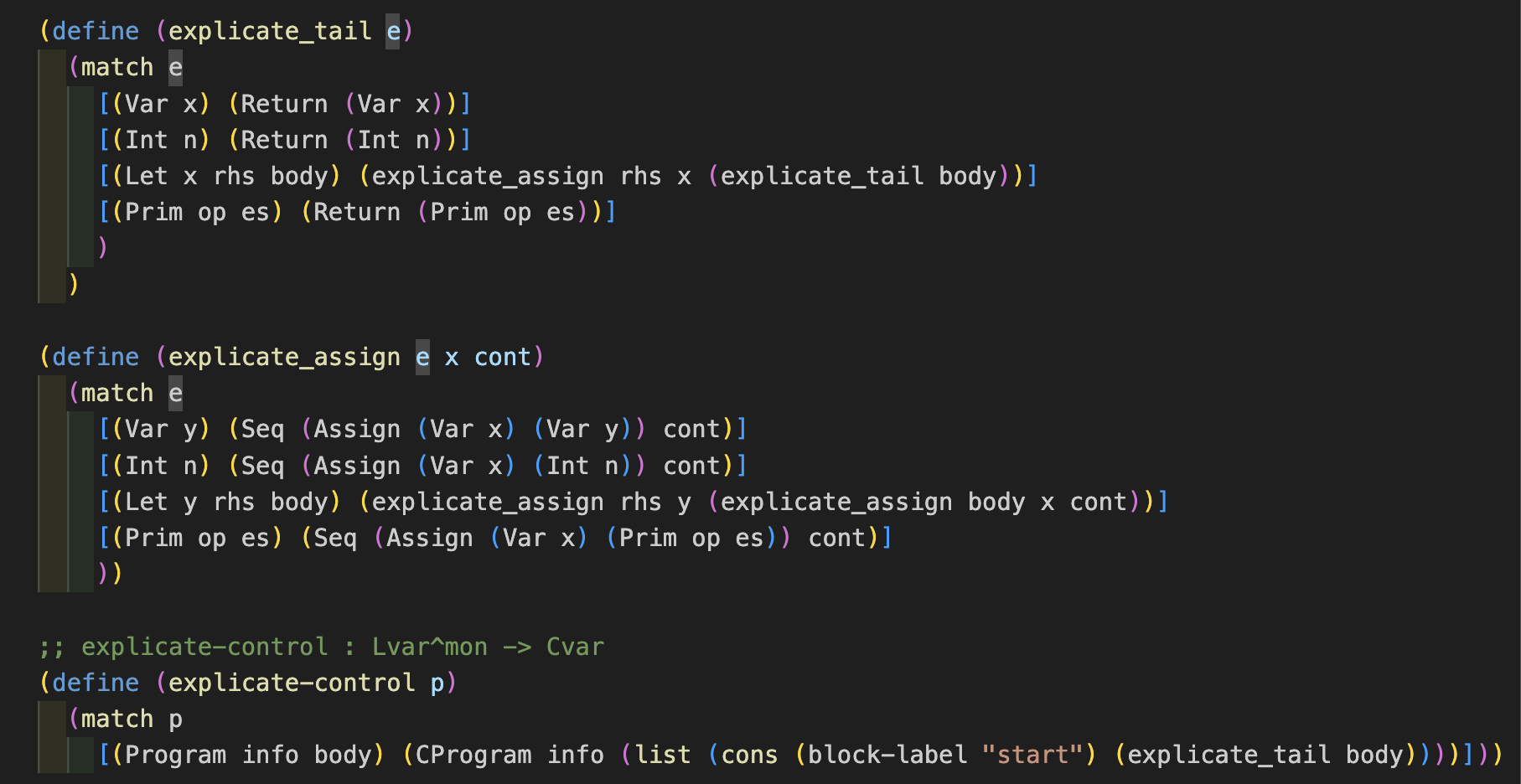

Example: explicate-control

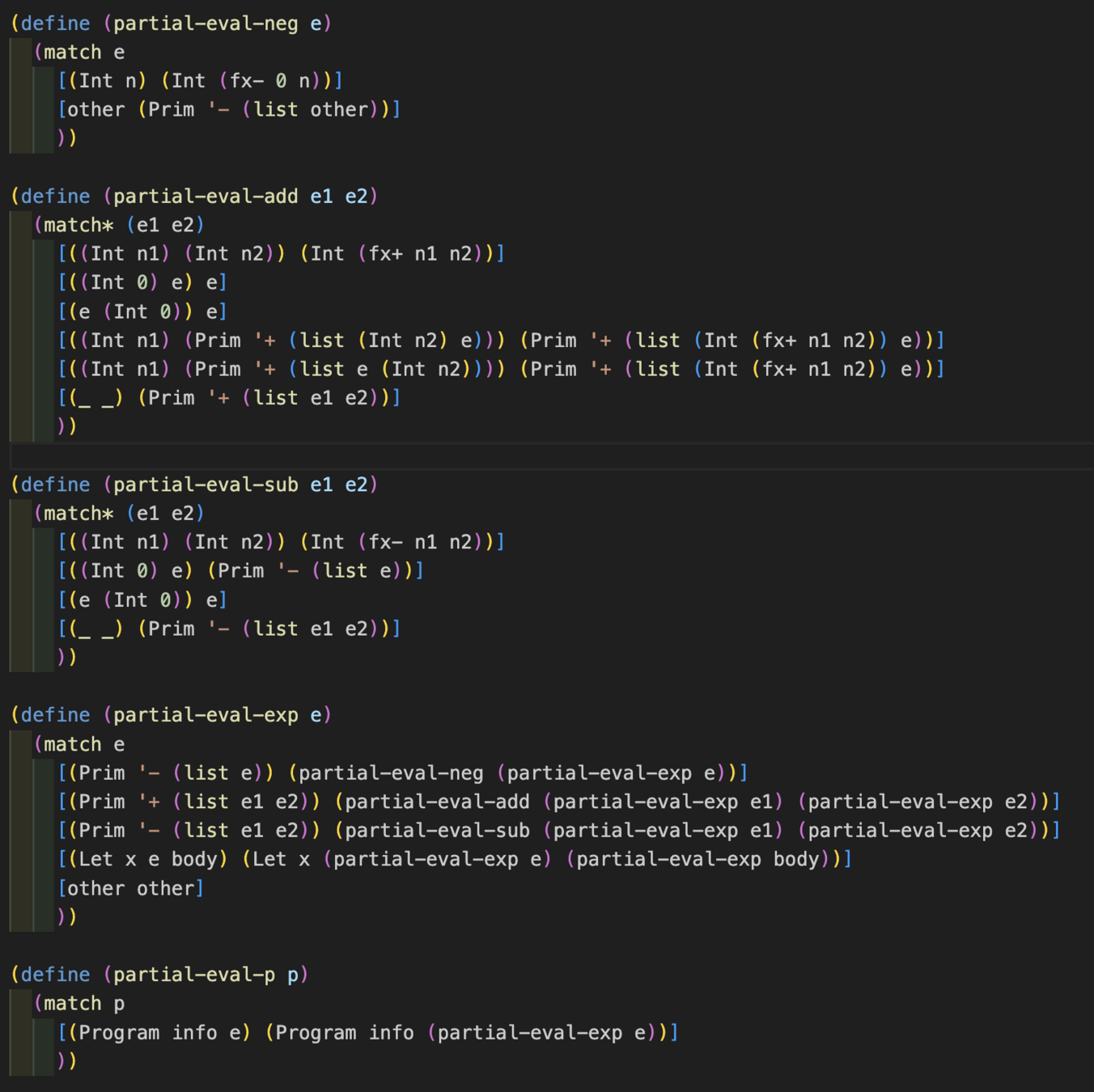

Other passes we can do: partial-evaluation
Next topics in the book which I haven't got to
- Register allocation: not everything needs to be in the stack
- Apparently there's some type checking and garbage collection in later chapters!
compilers-basics
By Miguel Vilá
