Introduction to MATLAB

Min Kim

Rutgers

September 2, 2022

H = 40;
L = 4;
irf_i = zeros(H,1);
irf_i_u = zeros(H,1);
irf_i_l = zeros(H,1);

for h=0:H
    YY = Y(L+1+h:end,1);
    XX = X(L+1:end-h,:);
    length(XX);
    [bet, ~, se] = olshac(YY,XX,h+1);
    irf_i(h+1) = bet(2);
    irf_i_u(h+1) = bet(2) + 1.65*se(2);
    irf_i_l(h+1) = bet(2) - 1.65*se(2);
end

figure
plot(0:H,irf_i*100,'k','linewidth',2)
hold on
plot(0:H,irf_i_u*100,'k','LineStyle','--')
plot(0:H,irf_i_l*100,'k','LineStyle','--')

Motivation

Why do we need a computer in economics?
- empiricists: "to access and analyze data"
- theorists: "to solve models and run simulations"
Why then MATLAB?
- widely used in economics

AER

program usage

(2018)

https://github.com/pbaylis/econ-program-usage-data

https://madnight.github.io/githut

GitHut 2.0

Other professions?

A recent article about programming languages [link]

Motivation

Why do we need a computer in economics?
- empiricists: "to access and analyze data"
- theorists: "to solve models and run simulations"
Why then MATLAB?
- widely used in economics
- easy to learn
- good at linear algebra (it stands for Matrix laboratory)
- useful for homework in macro classes (604/605)

Interface

Command Window: used to enter commands and to display outputs
Workspace: displays all the variables
Command History: shows the history of all the commands executed
Current Folder: displays all the files in the current folder

Scalars and Strings

Let's type the followings in the command window

  1 - 1
  2 * 2;
  ans
  ans / ans
  help log % try also "doc log" and "which log"
  a = log(ans);
  a = a + 1
  b = a^2
  0 / 0
  1 / 0
  s = 'this is a string'

Now type clc and clear

Vectors and Matrices

Let's create $x=\begin{bmatrix}2 \\ 1\end{bmatrix}$, $y=[0\,\,\, 1]$, and $A=\begin{bmatrix}2 & 0 \\ 0 & 1 \end{bmatrix}$

x = [2 ; 1]
y = [0 1]
A = [2 0; 0, 1]

Vectors and Matrices

Let's create $x=\begin{bmatrix}2 \\ 1\end{bmatrix}$, $y=[0\,\,\, 1]$, and $A=\begin{bmatrix}2 & 0 \\ 0 & 1 \end{bmatrix}$

x = [2 ; 1] % see length(x) or size(x)
y = [0 1] % y = [0, 1]
A = [2 0; 0, 1] % see det(A) and rank(A)
A = [2 0; y]
A = [A(:,1) y']
A = [x(1) 0; 0 1]
A = diag(x)
A = eye(2) + [1 0;0 0]

Vectors and Matrices

In Python, for example,

import numpy as np
x = np.array([2, 1]).reshape(2, 1)
A1 = np.array([2, 0])
A2 = np.array([0, 1])
A = np.hstack((A1, A2))

which does not look as simple as MATLAB

Vectors and Matrices

Let's manipulate matrix $A$ and create random vectors and matrices

save data x y A
clear
load data
5*A
inv(A)
max(A)
exp(A)
A(1) % see also A(3), A(1,2) and A(:)
A'
A.^2
A + ones(2,2)
ans^2
log(ans)
diag(ans)
1:8
1:2:8

Vectors and Matrices

linspace(1,8,4)
B = reshape(ans,2,2);
A*B
C = magic(5)
C = C(1:end,1) - C(:,3);
C = reshape(C(1:end-1),2,2);
index = find(C > 5)
C_1col = C(index)
size(C_1col)
size(A)
C_1col'*A
rand
randn(2,2)
n = 100
mean(rand(n,1))

Exercise 0 - Solving linear system

Consider the following linear system:

2 x-3 y=5\\ x+5 y=2

Write it in matrix form and find the solution

Cell arrays and Structures

Cell array is a collection of variables (in different types)

C = {'cell array', A; B, x}
C{1,1}

Structure is a database

student(1).name = 'Min Kim';
student(1).nationality = 'South Korea';
student(1).info = [1; 6]; % credits and year
student

Let's create student(2) and type mean([student.info])

Boolean Statements

Booleans are logical data: true (logical 1) or false (logical 0)

2 >= 1
ones(4,1) >= 1
A(:) > 0
sum(ans)

true
false
true == false
true ~= false
true | false
true & false

Exercise 1 - Bond pricing

Consider a zero-coupon bond with face value $M$ that matures in $T$ periods. If the yield to maturity is $r$, then what is the market value of this bond at $t$?

$$ V_t = \frac{M}{(1+r)^{T-t}}$$

Assume $M=\$100$, $T=10$ periods, and $r=8\%$. Solve for $V_t$ for all $t=0,\ldots,T$

If/else

You can also add elseif in the statement

x = 5;
if (x > 3)
	disp('x is greater than 3')
else
	disp('x is lower than or equal to 3')
end

Loops - while

What is the value of $S= \sum_{i=0}^{10} i$?

i = 0; S = 0;
while i <= 10
  S = S + i;
  i = i + 1;
end

Loops - while and if

What is the value of $S= \sum_{i=0}^{10} i$ for $i$ that is even?

i = 0; S = 0;
while i <= 10
	if mod(i,2) == 0
		S = S + i;
	end
	i = i + 1;
end

Loops - for

What is the value of $\bar{S}= \frac{1}{10}\sum_{i=0}^{10} i$?

S = 0;
for i = 0:10
	S = S + i;
end
S_bar = S/i;

For even $i$s, we can modify it as $i=0:2:10$

Exercise 2 - Bond pricing, again

What is the change of bond value from $t$ to $t+1$?

Use a loop to find the first period when the sum of all previous value changes becomes greater than $30.
- Again assume $M=\$100$, $T=10$, and $r=8\%$.

$$V_{t+1}-V_t$$

Script and Function

Script is a series of commands stored as .m (or .mlx) files
- You can run the file in current directory by typing filename in the command window
- Let's create a script for Exercise 1&2 and run it

Script and Function

Function is a series of commands that require external inputs
- Let's now create a function of Exercise 1&2

function V = ex1(M,r,T)
  tau = T:-1:0;
  V = M./(1+r).^tau;
end

Script and Function

Function is a series of commands that require external inputs
- Let's now create a function of Exercise 1&2
- Later I will introduce another way of defining a function (often called anonymous function)

function answer = ex2(M,r,T)
    V = ex1(M,r,T);
    Vdiff = diff(V);
    Vdiffsum = cumsum(Vdiff);
    tau = find(Vdiffsum>30,1);
    answer = strcat("Period ",num2str(tau));
%    or using a loop
%     for i = 1:T
%         if Vdiffsum(i) > 30
%             answer = strcat("Period ",num2str(i));
%             break
%         end
%     end
end

Exercise 3 - Square function

Write a function $f(x,n) = x^n$. If $x$ is a vector or a scalar, $f$ returns a vector where each element is $n$th power of each element of $x$. If $x$ is a matrix, $f$ returns an error message.
- Name $f$ square.
Test your function:
- square([2;1],4)
- square(4,2)
- square([2 2;1 2],4)

Recursive function

We can also define a function in a recursive way
Let's create a function that computes factorial
- MATLAB default: factorial()
We know that, for positive integer $n$

function V = compute_factorial(n)
  if n<0 || ~isint(n)
      error('n must be a positive integer')
  elseif n == 0
      V = 1
  else
      n * compute_factorial(n-1)
  end
end

$n! = n*(n-1)*(n-2)*\cdots*1$

$0! = 1$

Recursive function

Let us go back to Exercise 1

$V_t = \frac{V_{t+1}}{1+r}$

function V = ex1(M,r,T)
  tau = T:-1:0;
  V = M./(1+r).^tau;
end

We want it to be recursive:
- What is the relationship between $V_t$ and $V_{t+1}$?

(Bonus) How would you write a function using this relationship?

Plot

Let's generate a white noise process $\varepsilon_t \sim N(0,1)$ for $T=200$ and plot it

T = 200;
epsilon = randn(T,1);
figure;
plot(epsilon)

Close the figure window by typing close all

Plot

Now an AR(1) process $x_{t} = c + \rho x_{t-1} + \varepsilon_t$ where $c=0$, $x_0=0$ and $\rho =0.9$.

x = zeros(T,1); % pre-allocation of memory
rho = 0.9;
for t = 2:T
	x(t) = rho * x(t-1) + randn;
end
figure
plot(1:T,x)

Plot

Let's plot a function of two variables $g(x,y) = 4x^2+2y^2+4xy+2y+1$

x = linspace(-10,10,100)';
y = x;
[X,Y] = meshgrid(x,y);
g = @(x,y) (4*x.^2+2*y.^2+4*x.*y+2*y+1);
figure;
surf(X,Y,g(X,Y)) % looks like g is convex

Exercise 4 - Plotting AR(1)

Plot three AR(1) processes for $\rho=0, 0.8,0.98$ together
- Plot a matrix composed of the three processes in column
- Use hold on or tiledlayout

Debugging

https://faasandfurious.com/71

Exercise 5 - Debugging a function

Find three errors in the function below

function sequence=collatz(n)
% Collatz problem. Generate a sequence of integers resolving to 1
% by Ian M. Brooks
% For any positive integer, n:
%   Divide n by 2 if n is even
%   Multiply n by 3 and add 1 if n is odd
%   Repeat for the result
%   Continue until the result is 1
sequence = n;
next_value = n;
while next_value >= 1
    if rem(next_value,2)=0
        next_value = next_value/2;
    else
        next_value = 3*nextvalue+1;
    end
    sequence = [sequence, next_value];
end

Estimation

Consider AR(1) process $x_{t} = c + \rho x_{t-1} + \varepsilon_t$ where $\varepsilon_t \sim N(0,\sigma^2)$
- Assume $c=5$, $x_0=0$, $\rho =0.7$, $T=1,000$ and $\sigma=2$
Let's simulate the model and estimate it using OLS

T = 1000;
x = zeros(T,1);
rho = 0.7;
c = 5;
for t = 2:T
x(t) = c + rho * x(t-1) + 2*randn;
end
X = x(1:end-1); % one period lag
y = x(2:end);
model = fitlm(X,y); % linear model fitting
model.Coefficients

Exercise 6 - AR(1) Estimation

Find the vector of estimator and plot the simulated data together with the fitted value
- (Hint: Read the document for fitlm)
Can you do it without using the toolbox?
- Recall the formula for OLS estimator
  $$\begin{bmatrix}\hat{c}\\\hat{\rho} \end{bmatrix}=(X'X)^{-1}X'y$$

Exercise 7 - Detrending US GDP

Let's go to FRED for US real GDP per capita series
Steps to follow
1. Download the series in '.csv' format
2. Load it in MATLAB
3. Plot the series
4. Detrend the series
  - Linear-detrending method: detrend()
  - HP filtering method: hpfilter()
5. Examine the cycles and the trend for each method
  - what can we say about these two methods?

Optimization

Root-finding
- Use fzero for a single-variable nonlinear zero finding
- Use fsolve for systems of nonlinear equations of several variables
Q.What is the value of $x$ that satisfies $x^2=2$ or $x^2-2=0$?

Optimization

What is the value of $x$ that satisfies $x^2=2$ or $x^2-2=0$?
- Let's first check how it looks like

f = @(x) (x.^2-2); % anonymous function
x_val = linspace(-5,5,100); % domain or grids
figure;
plot(x_val,f(x_val))
yline(0,'k--')

What is the point in x_val that gives you 0 for f?
- this is called Grid-search method

Optimization

What is the value of $x$ that satisfies $x^2=2$ or $x^2-2=0$?
- Now let's find the root(s)

int_val = 1; % initial value
[sol, fvalue] = fzero(@f,int_val); % find_root is the function

Does your answer depend on the initial value?
- Try again with int_val = -1;

Optimization

Minimization
- Use fminunc for local minimization of a function of several variables
- fminsearch does the same job using an algorithm that does not require gradients
- Use fminbnd for single-variable bounded nonlinear function minimization
Find the minimum of function $g(x,y) = 4x^2+2y^2+4xy+2y+1$

Optimization

Find the minimum of function $g(x,y) = 4x^2+2y^2+4xy+2y+1$

g = @(x) (4*x(1).^2+2*x(2).^2+4*x(1).*x(2)+2*x(2)+1);

int_val = [1; 1]; % initial value
[sol, gvalue] =  fminunc(@g,int_val); % g is the function

Exercise 8 - Savings problem

Consider a simple consumer problem:

\max_{c_1,c_2,s}\quad U(c_1,c_2)=u(c_1)+\beta u(c_2)\\ \text{s.t.}\\ c_1+s=y_1\\ c_2=y_2+Rs

How would you find the solution?

\frac{u'(y_1-s)}{\beta u'(y_2+Rs)}=R

Exercise 8 - Savings problem

Write a function savings($s$) assuming $u(x)=\log(x)$
Use fsolve and find $s$ when $\beta=0.99$, $R=1.04$, $y_1=10$, and $y_2=5$
- What do you get when $y_2=20$? Intuition?
- (Bonus) Find $c_1$, $c_2$ and the utility value $U(c_1,c_2)$
Can you solve the same problem using grid-search method?
- Create grids for $s$ and find the solution

exercise

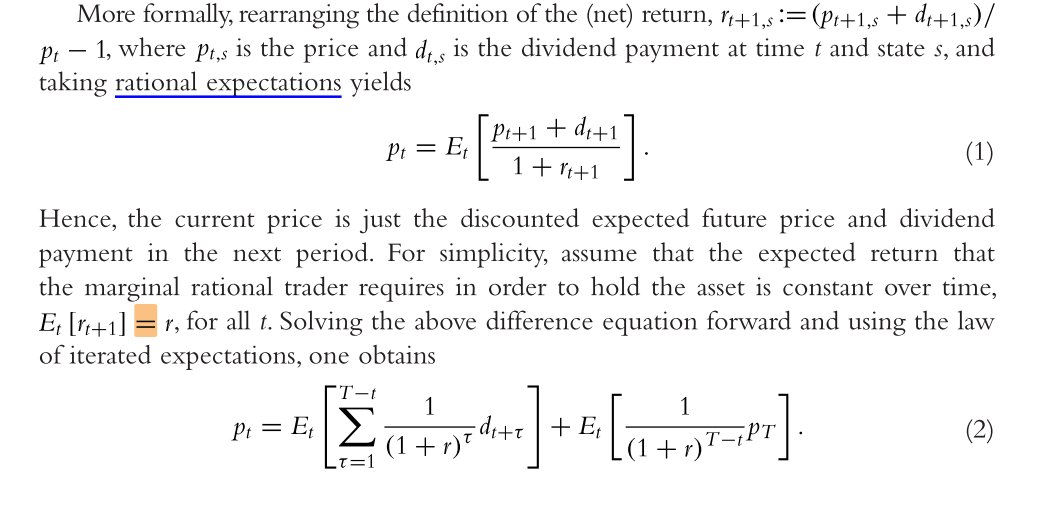

https://www.sciencedirect.com/science/article/pii/B9780444594068000184?via%3Dihub

matlab

By mk1564

matlab

This is a lecture slide in MATLAB workshop for first-year PhD students at Rutgers Economics in Summer 2020-2022.

mk1564

mk1564.github.io
