A serverless GraphQL API gateway PoC
Hexient Labs
Who?

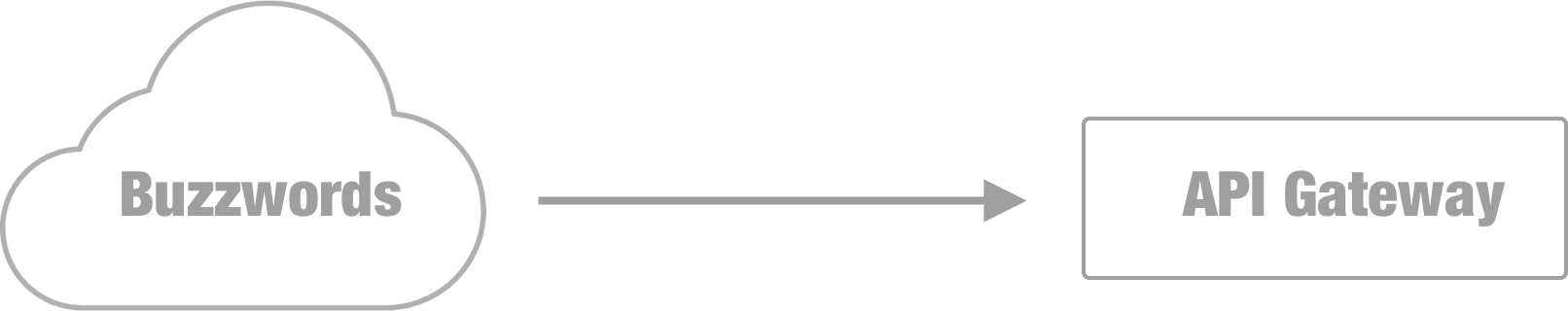

2018 == Buzzwords
Today's Goal
Context
We're engineers at a large retail chain
Our online ordering portal is powered by a service-oriented architecture
User Service
Cart Service
Checkout Service
Context

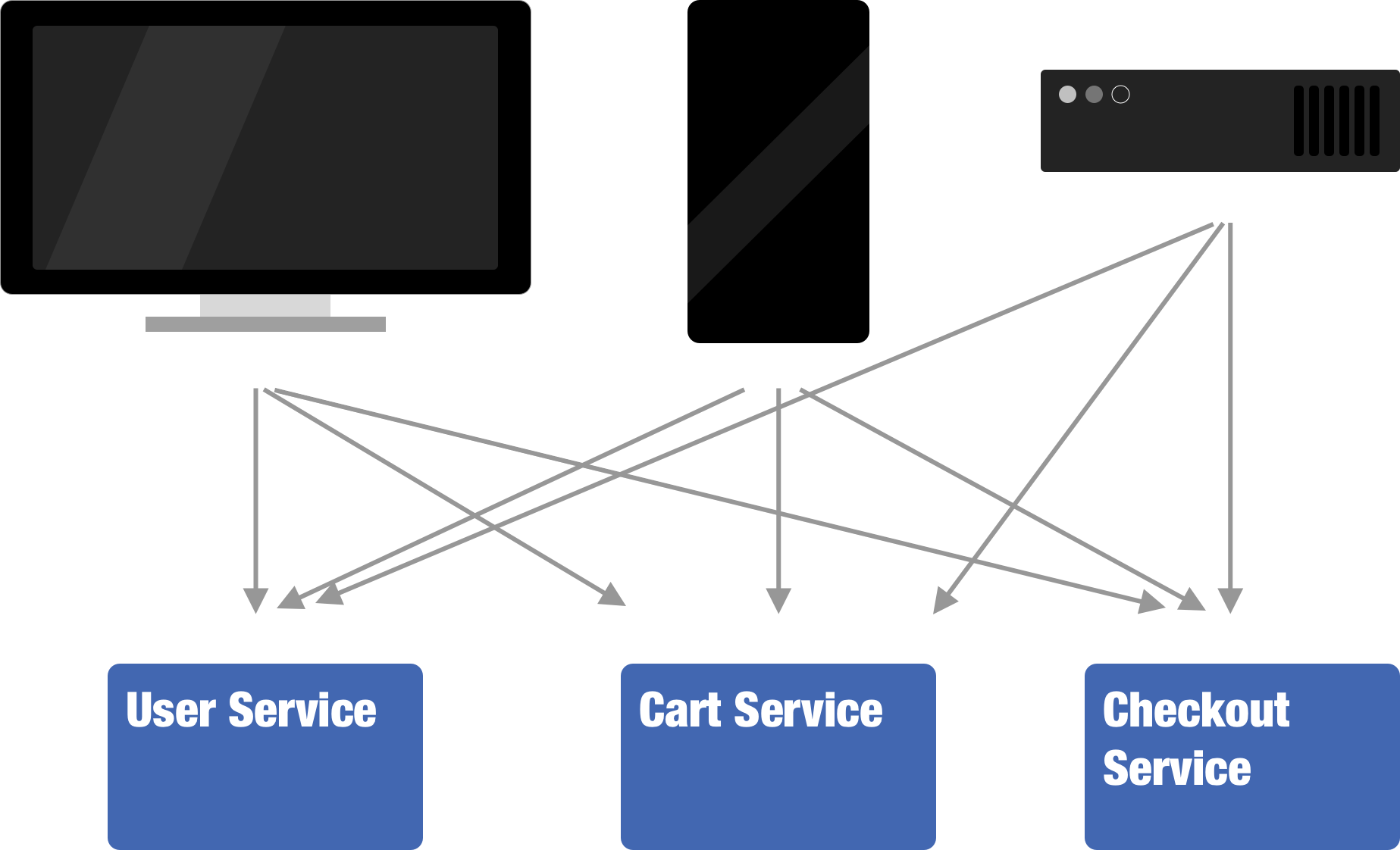

Right now, the clients hit multiple endpoints to request/manipulate data

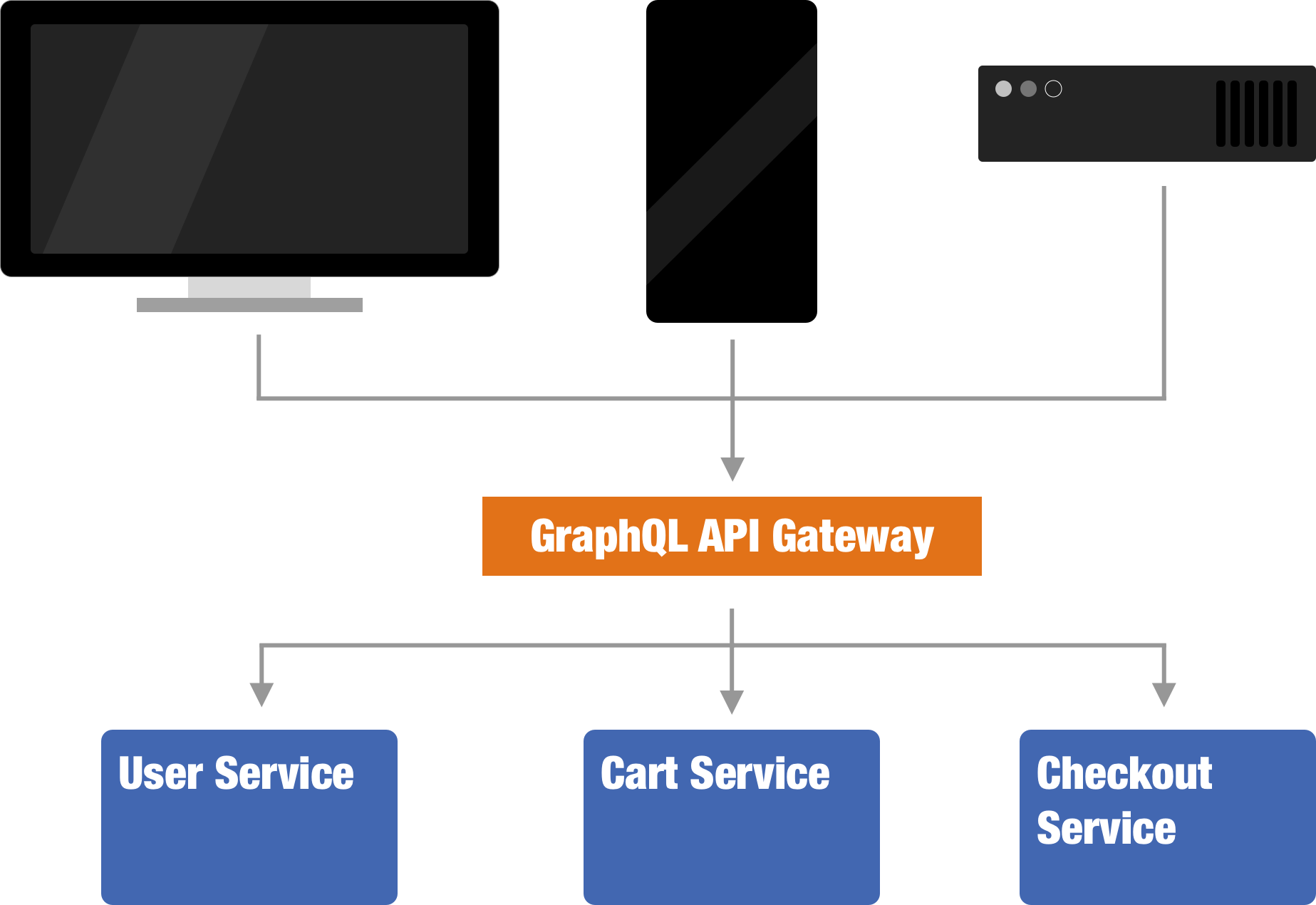

We're looking to simplify front-end dev processes by creating a single access-point
Context
Context
Context
For simplicity, we will not focus on Authentication or Authorization
All Queries and mutations will be in the context of the currently logged-in user

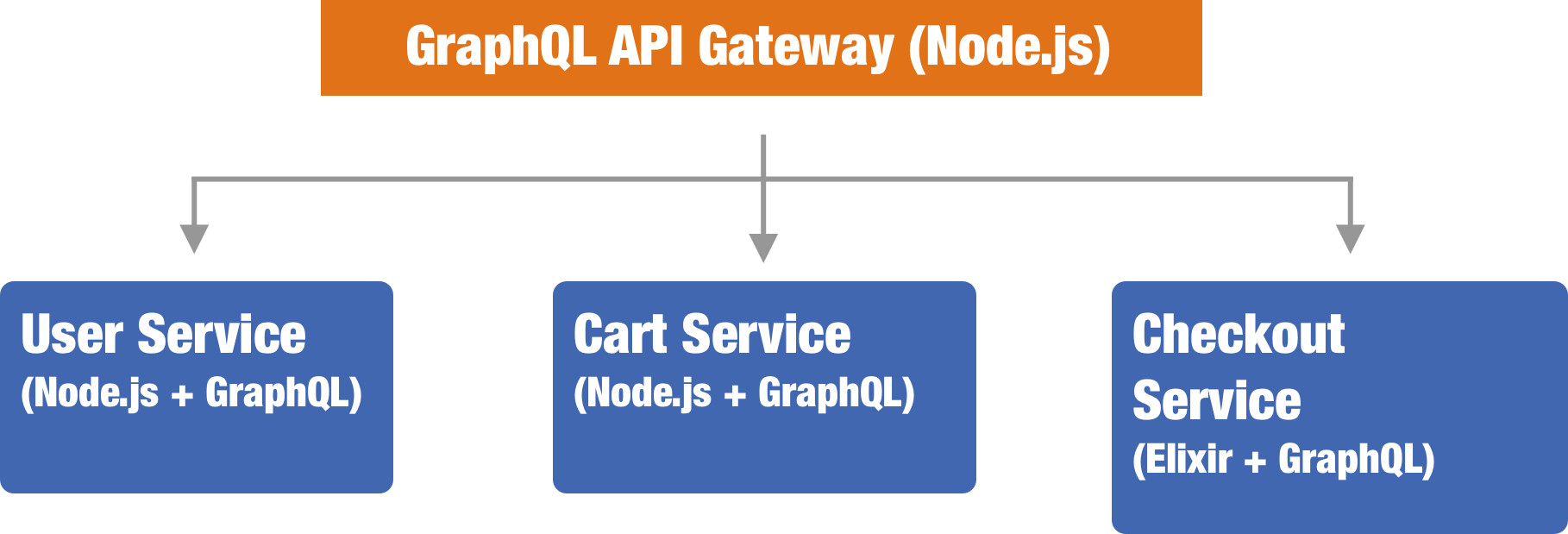

Our Stack
User Service
type User {
email: String!
firstName: String
id: ID!
lastName: String
}
input UserInput {
email: String!
firstName: String
lastName: String
}
type Query {
currentUser: User!
}
type Mutation {
register(user: UserInput!): User!
}
Cart Service
type CartItem {
productId: ID!
quantity: Int!
}
type Cart {
items: [CartItem!]!
}
input CartItemInput {
productId: ID!
quantity: Int!
}
type Query {
cartForCurrentUser: Cart!
}
type Mutation {
addItemToCart(cartItem: CartItemInput!): Cart!
}
Checkout Service
enum OrderStatus {
CANCELLED
COMPLETE
NEW
}
type Order {
id: ID!
status: OrderStatus!
}
input CreateOrderInput {
stripeCardToken: String!
}
type Query {
ordersForCurrentCustomer: [Orders!]!
}
type Mutation {
createOrder(inputs: CreateOrderInput!): Order!
}
