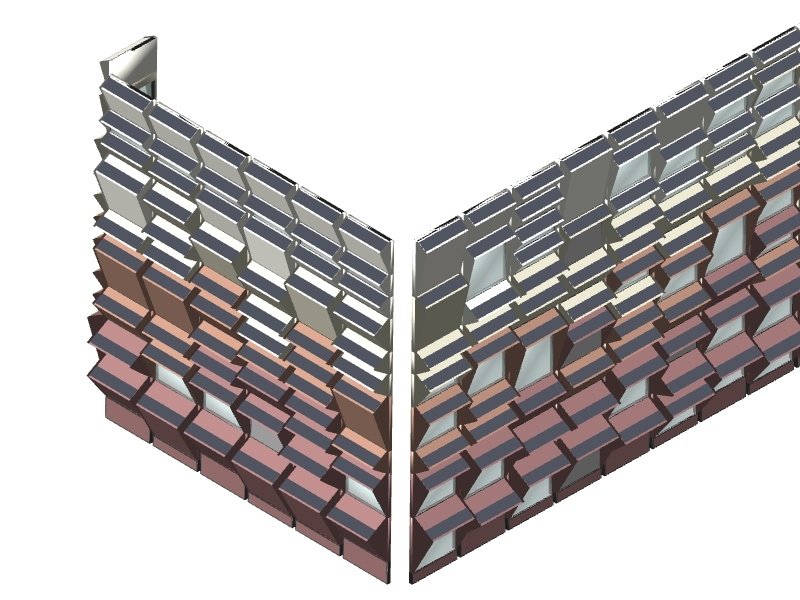

digital FACADE WORKFLOW

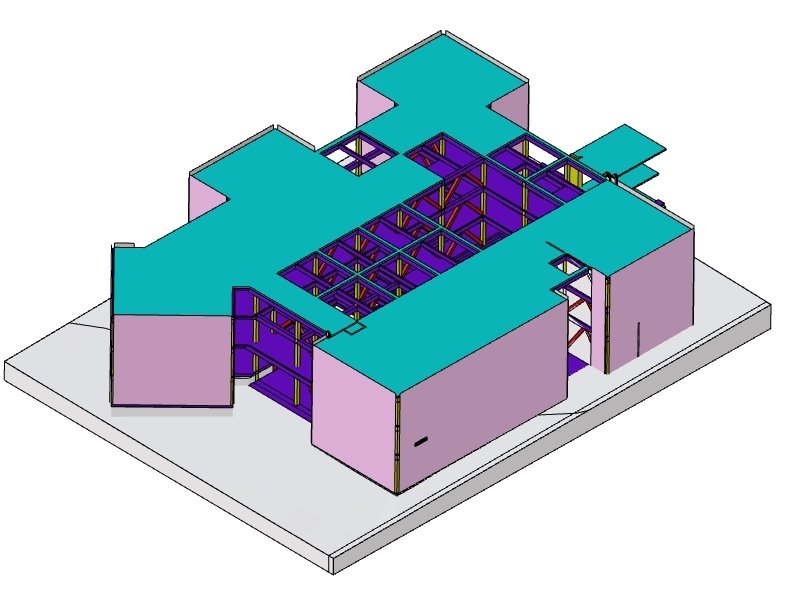

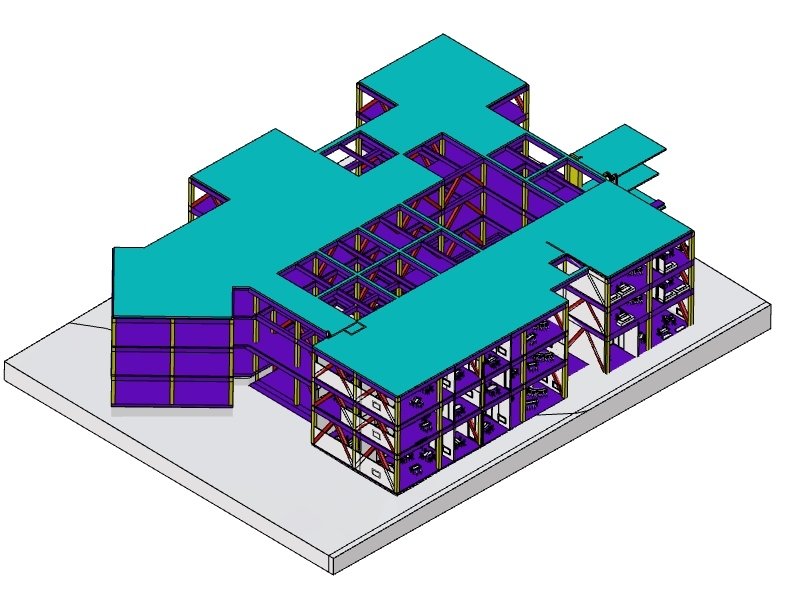

Sydney Science Park STEM School

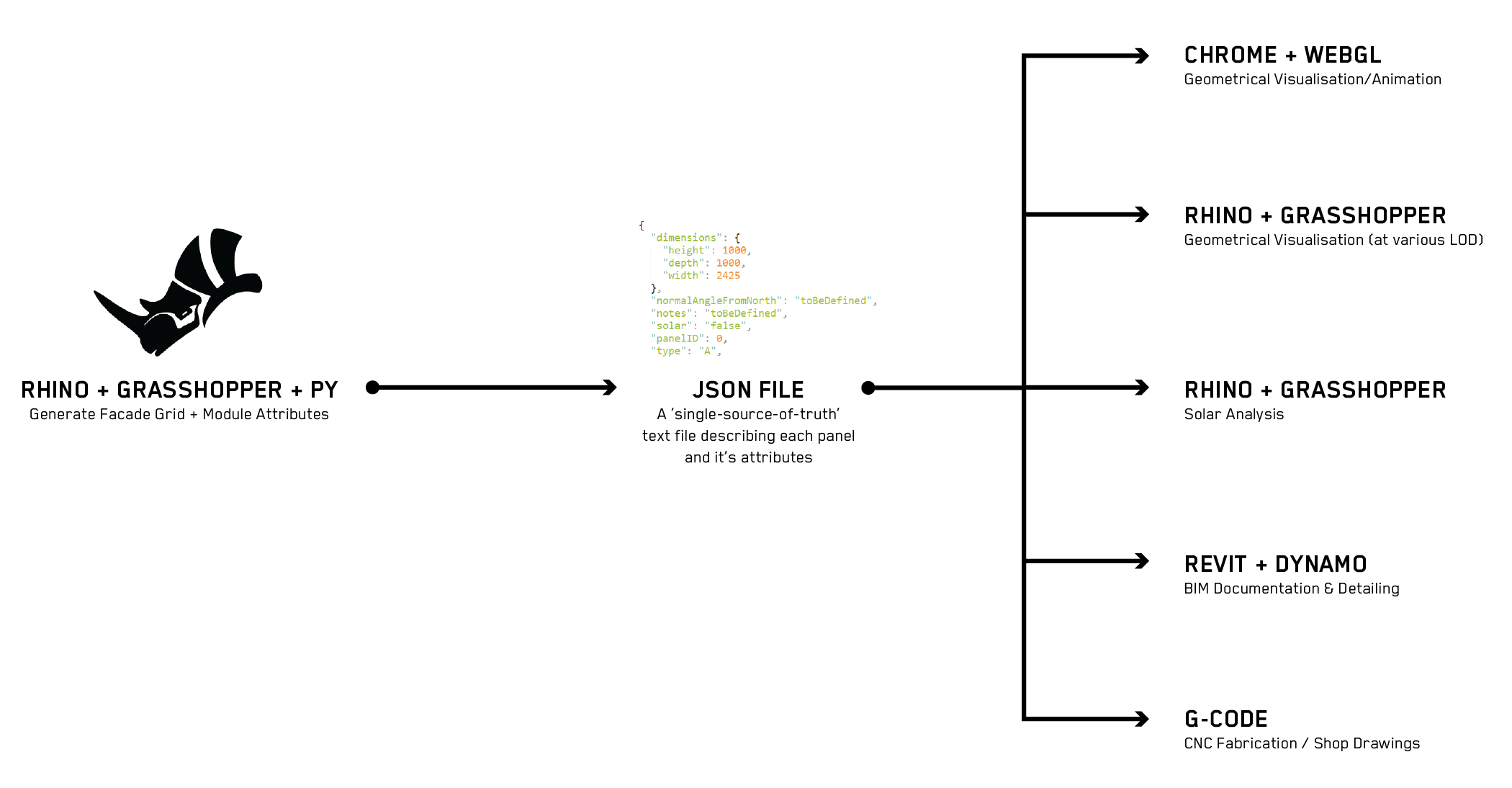

a recap...

Buildable
Performative
Cost-Effective
'Building as teacher'

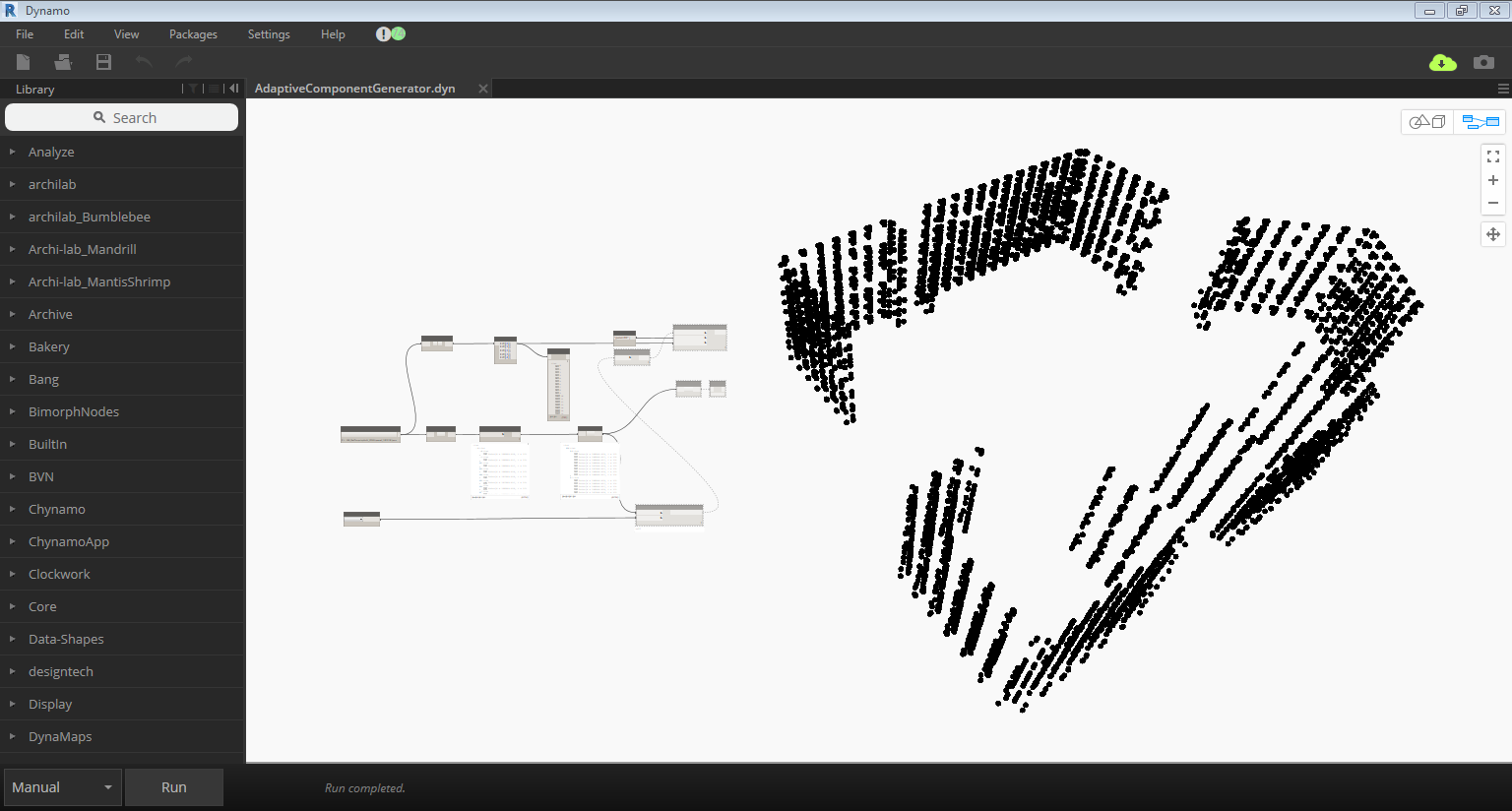

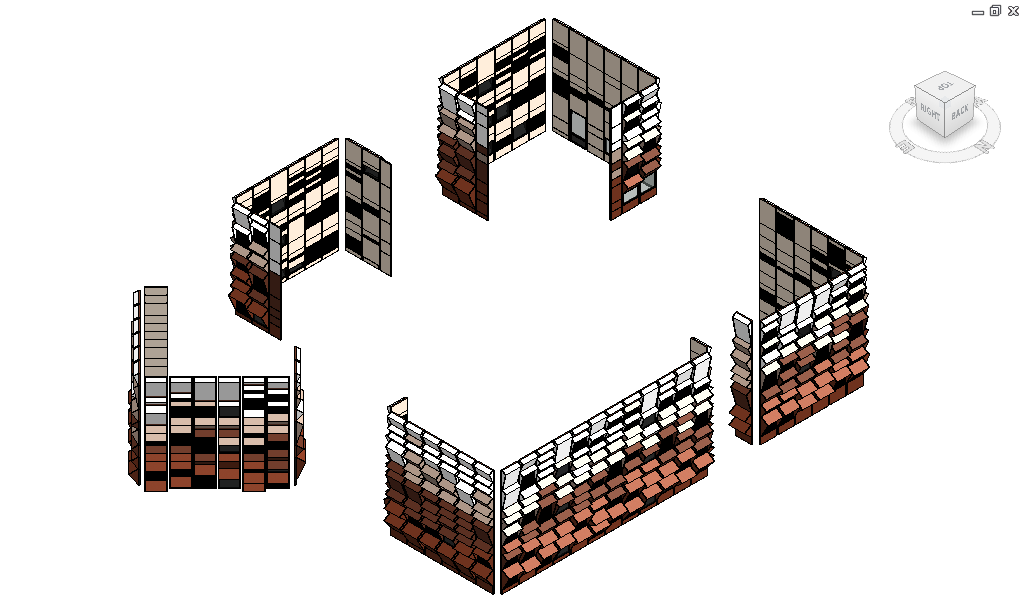

DOCUMENTATIon.dyn

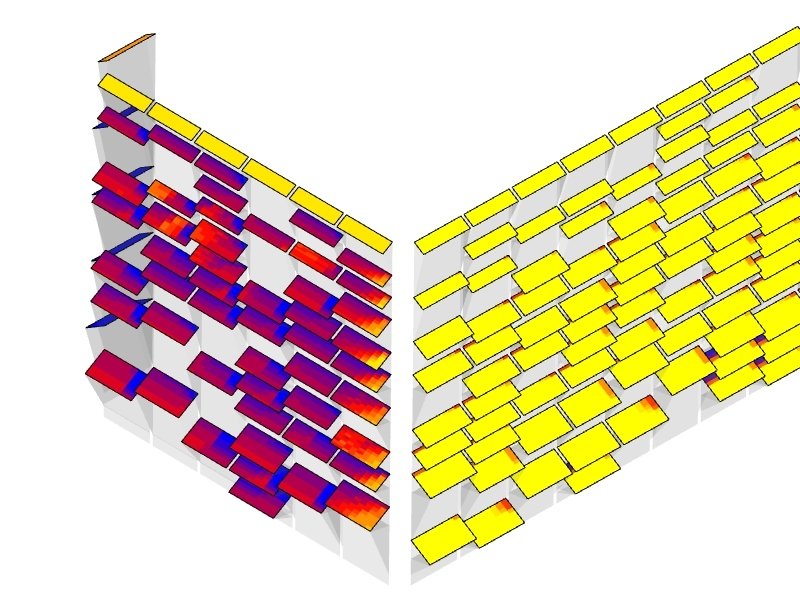

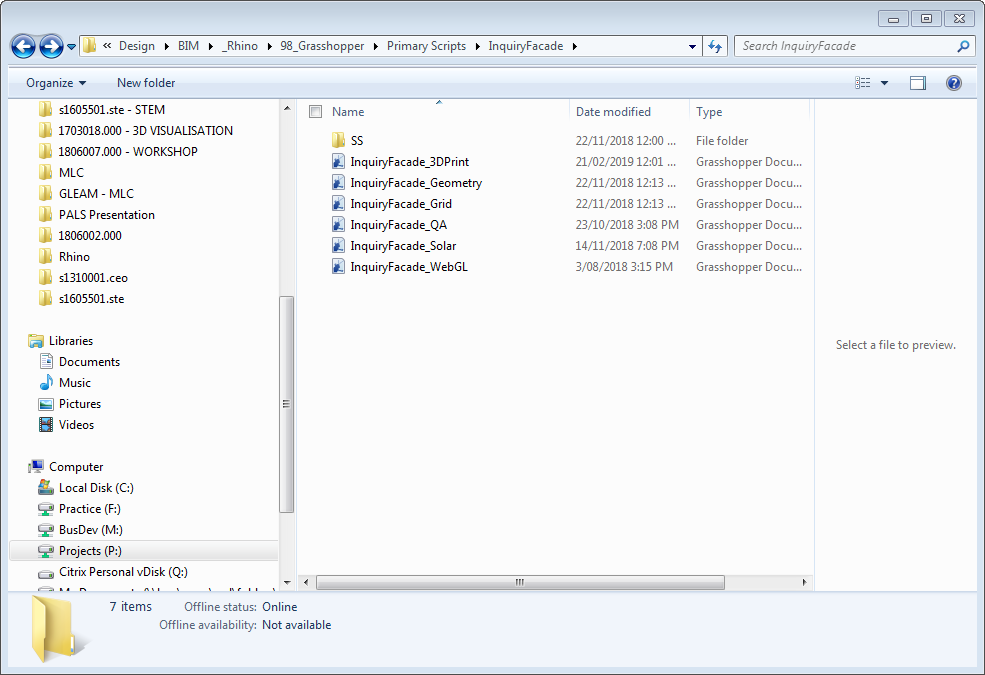

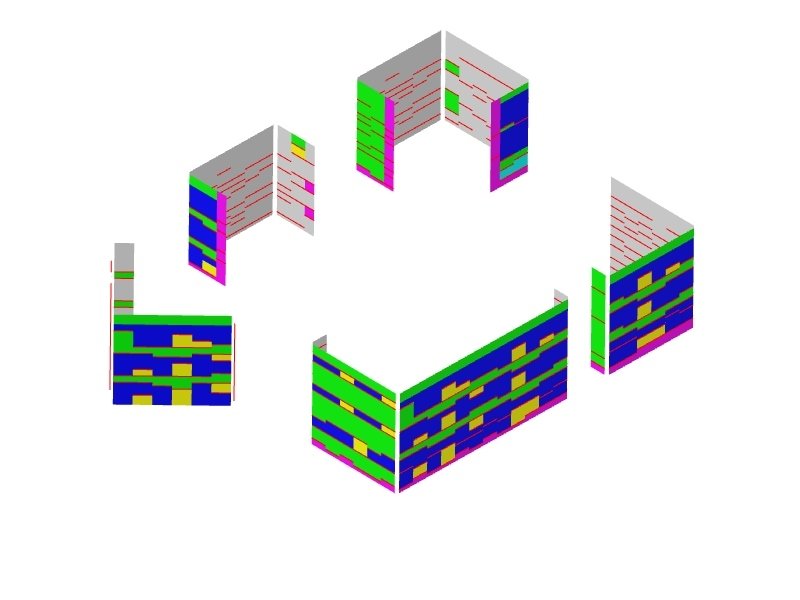

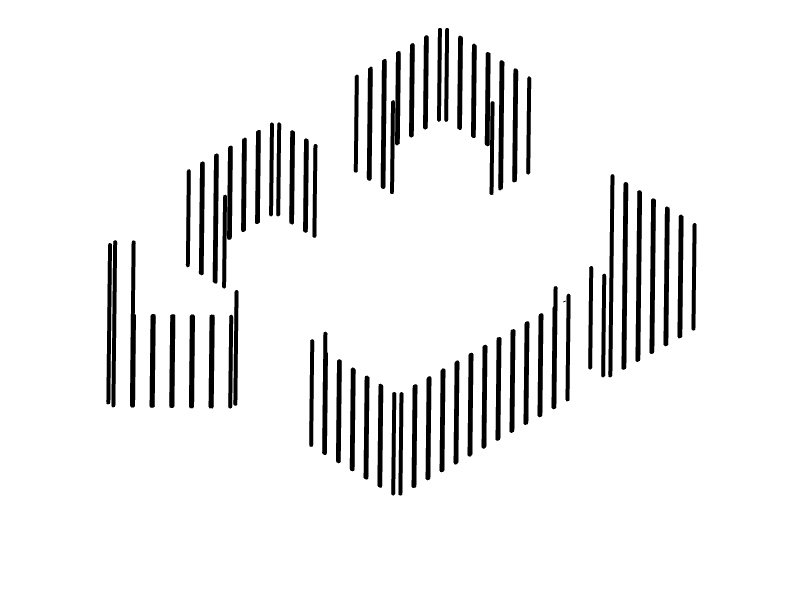

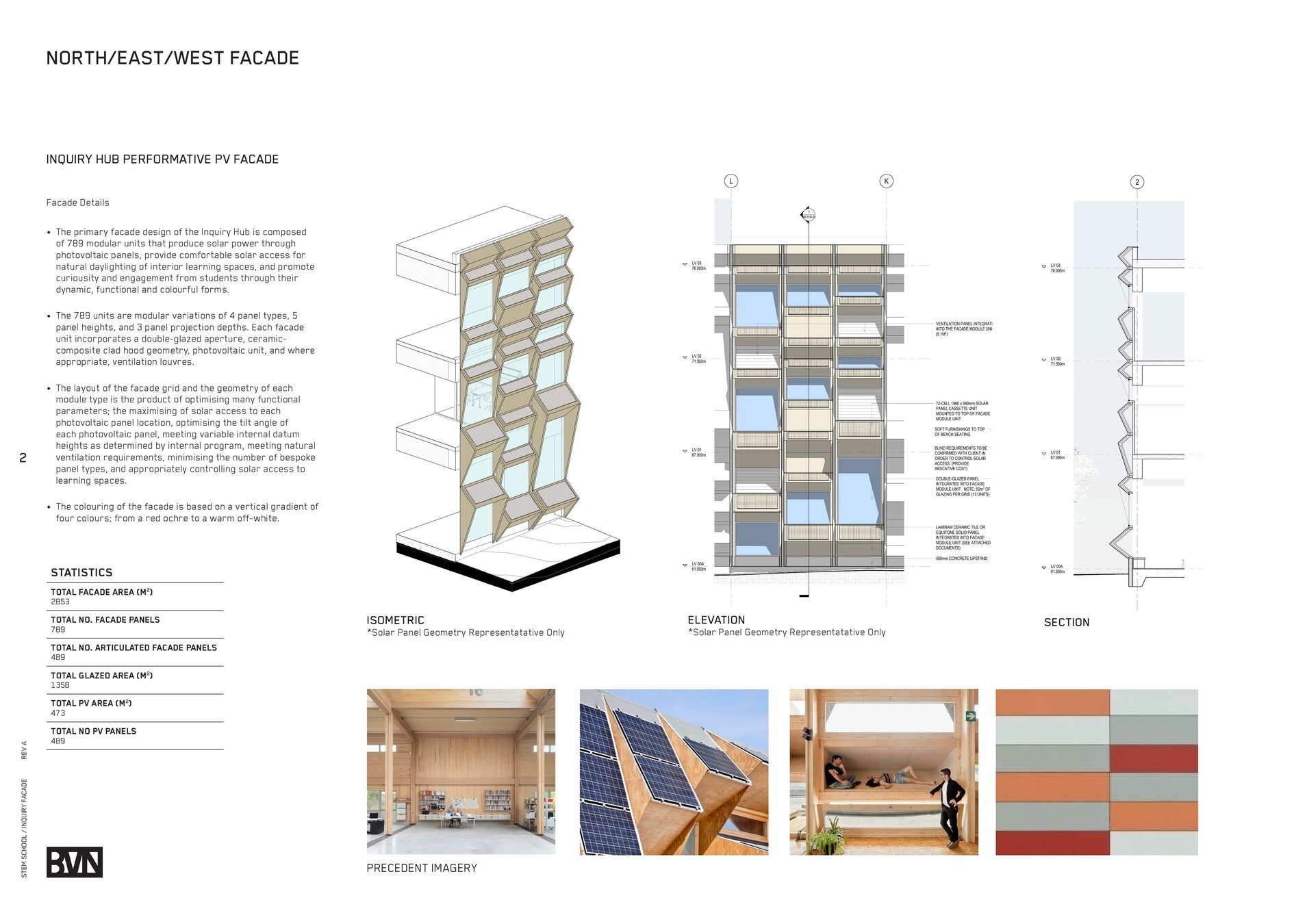

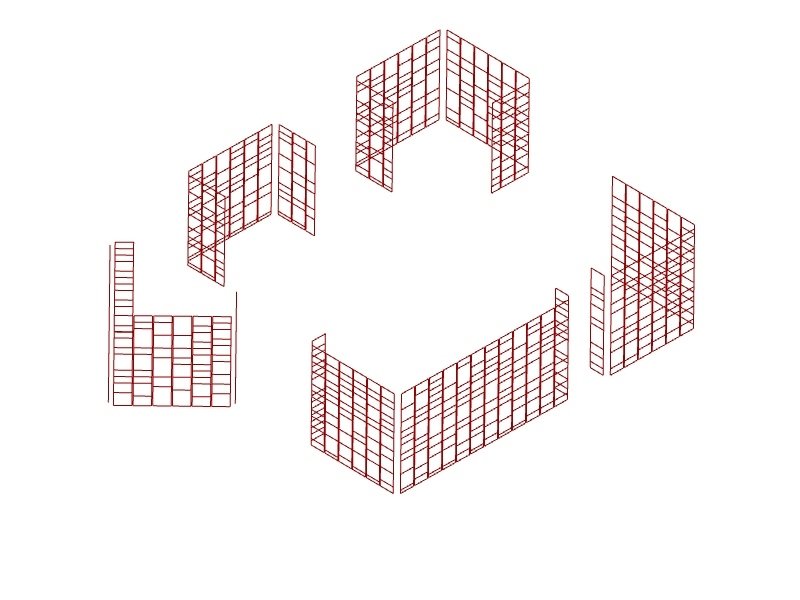

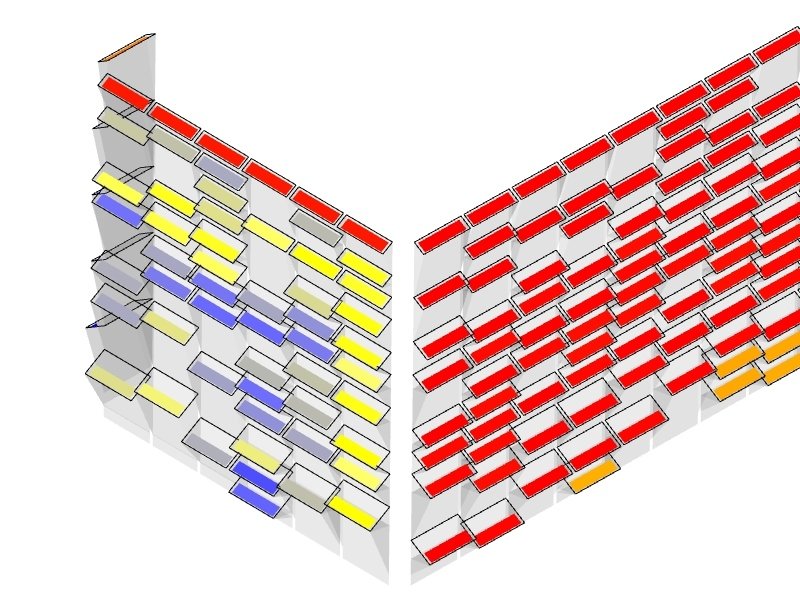

ANALYSIS.gh

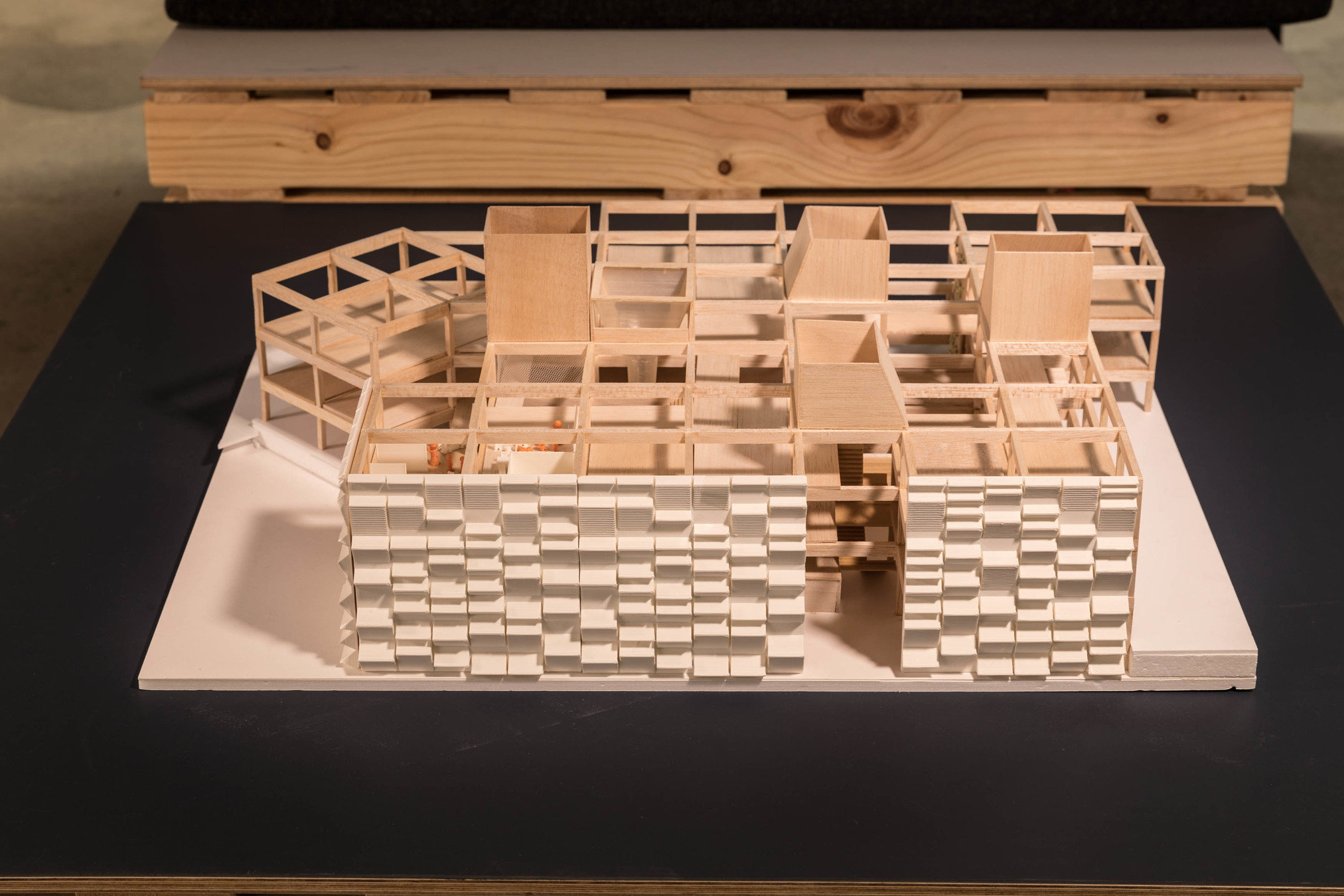

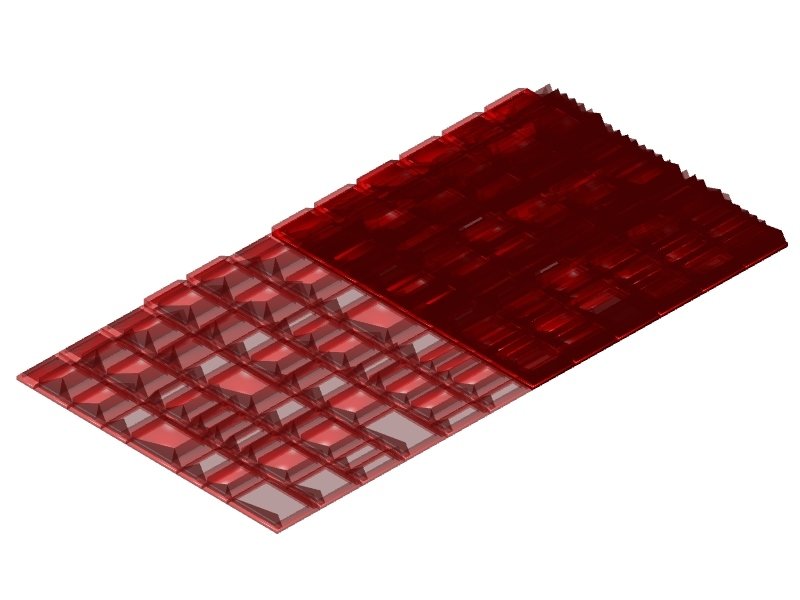

3dprint.gh

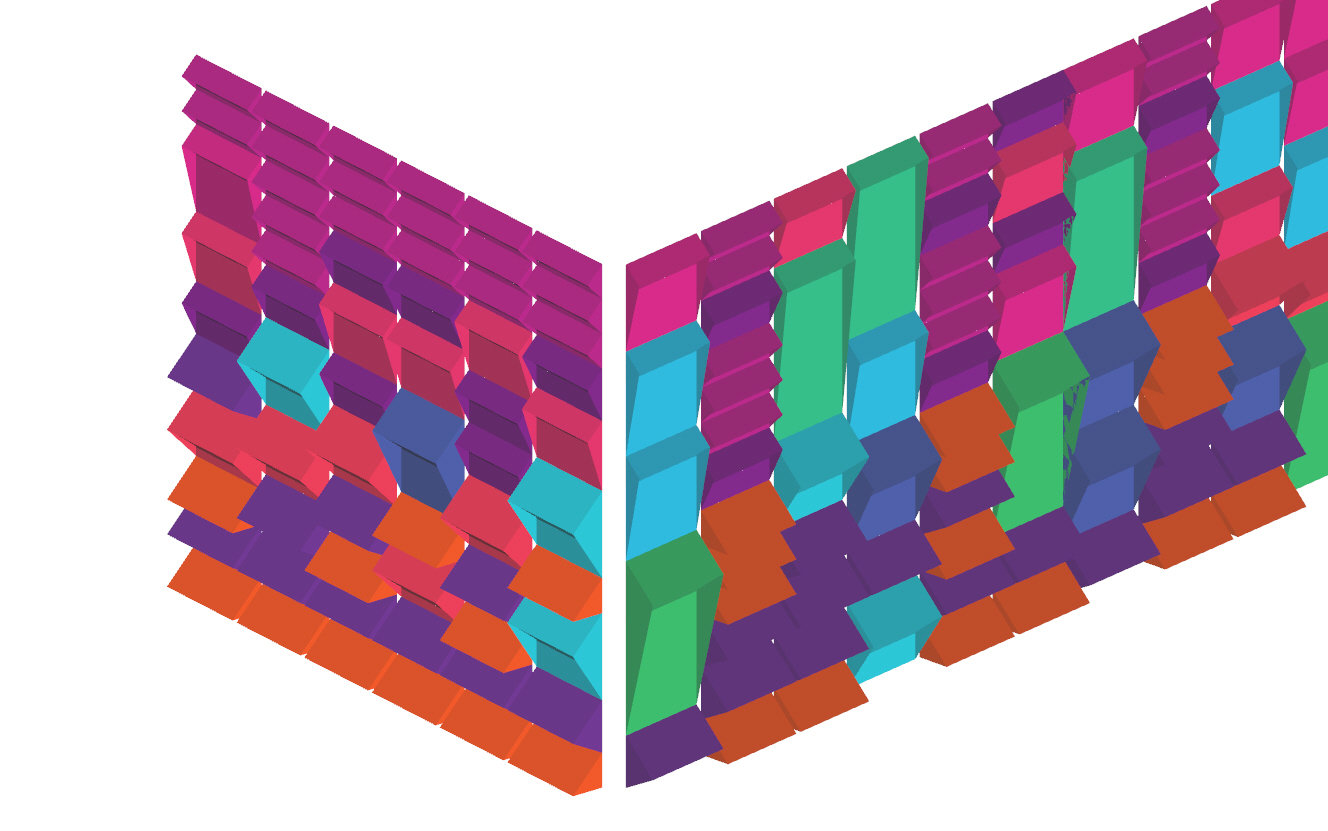

LOD_VIS.gh

webgl.gh

[
  {

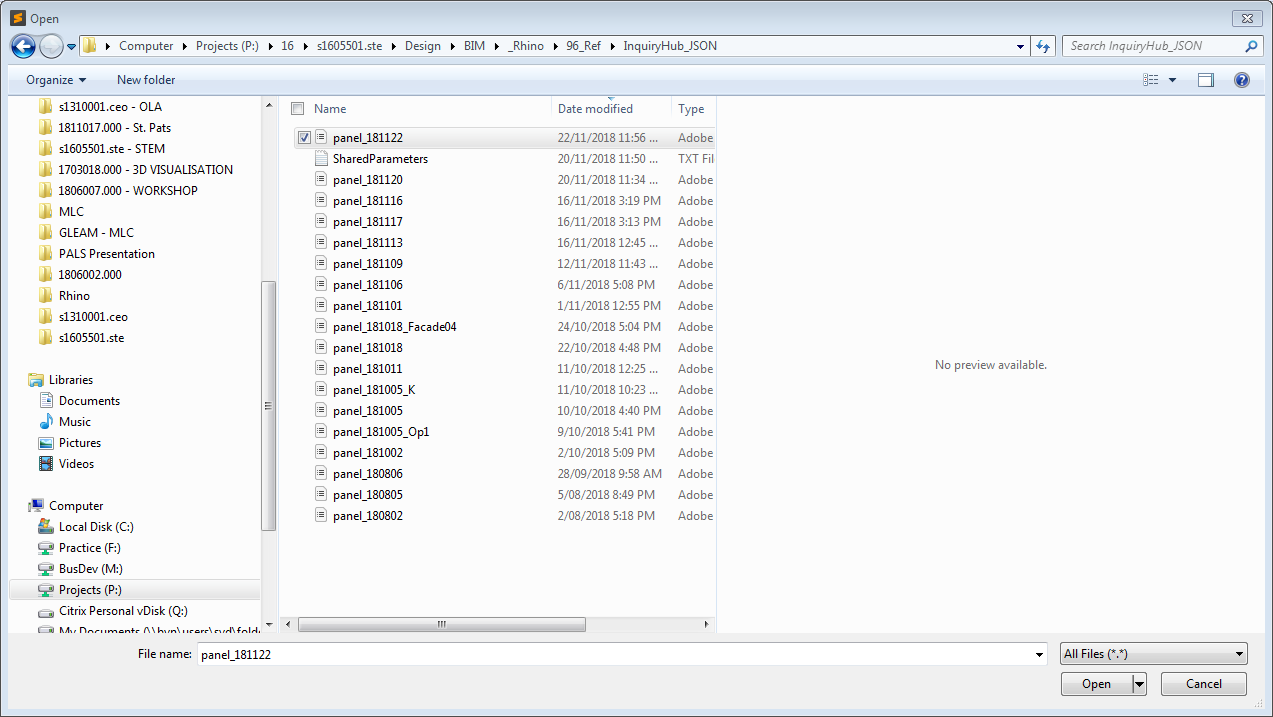

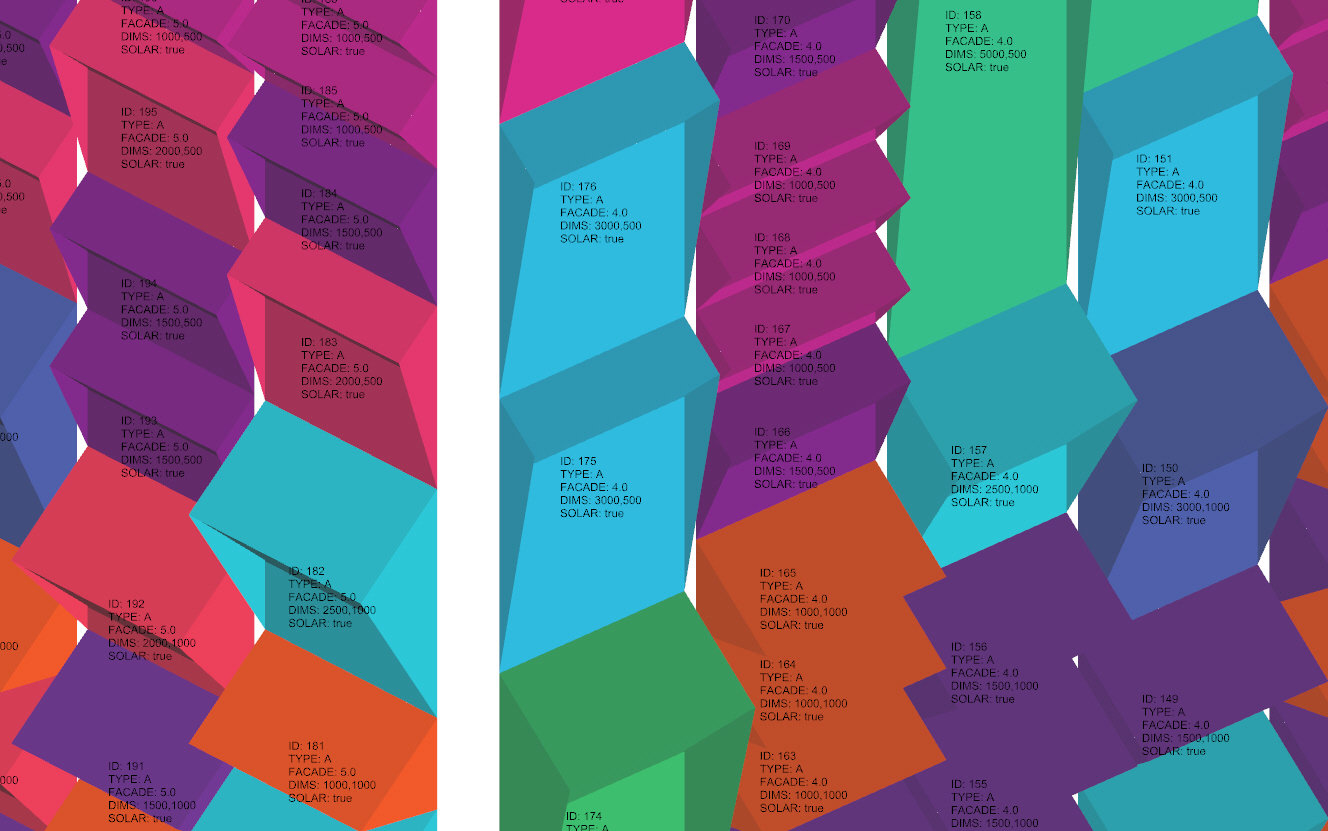

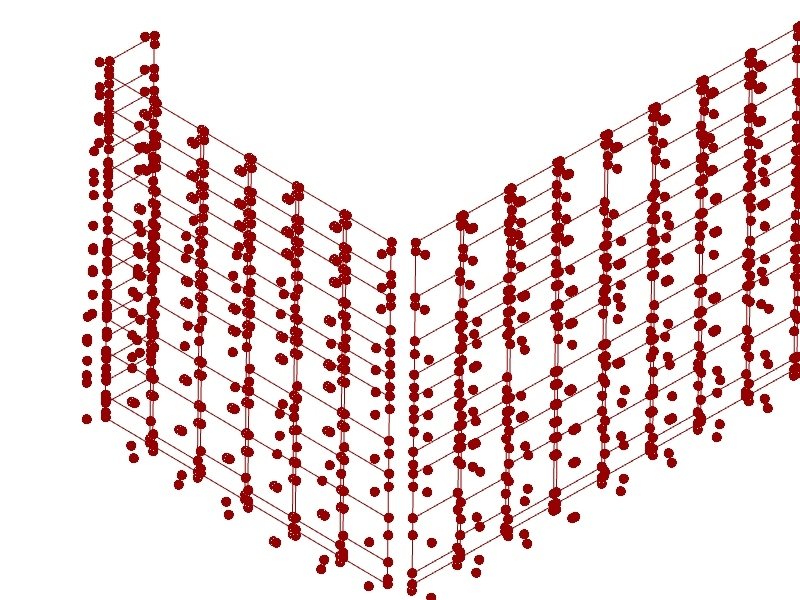

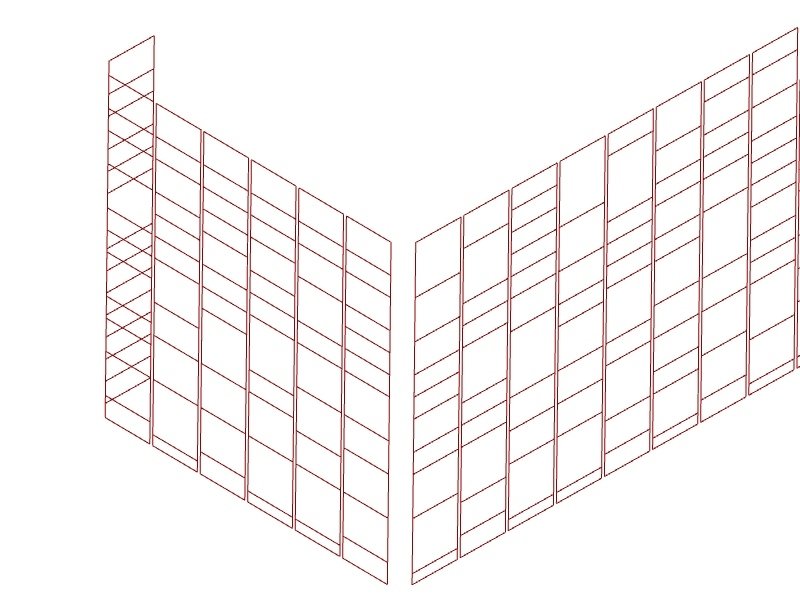

    "facadeID": [
      "F01"
    ],
    "normalAngleFromNorth": "toBeDefined",

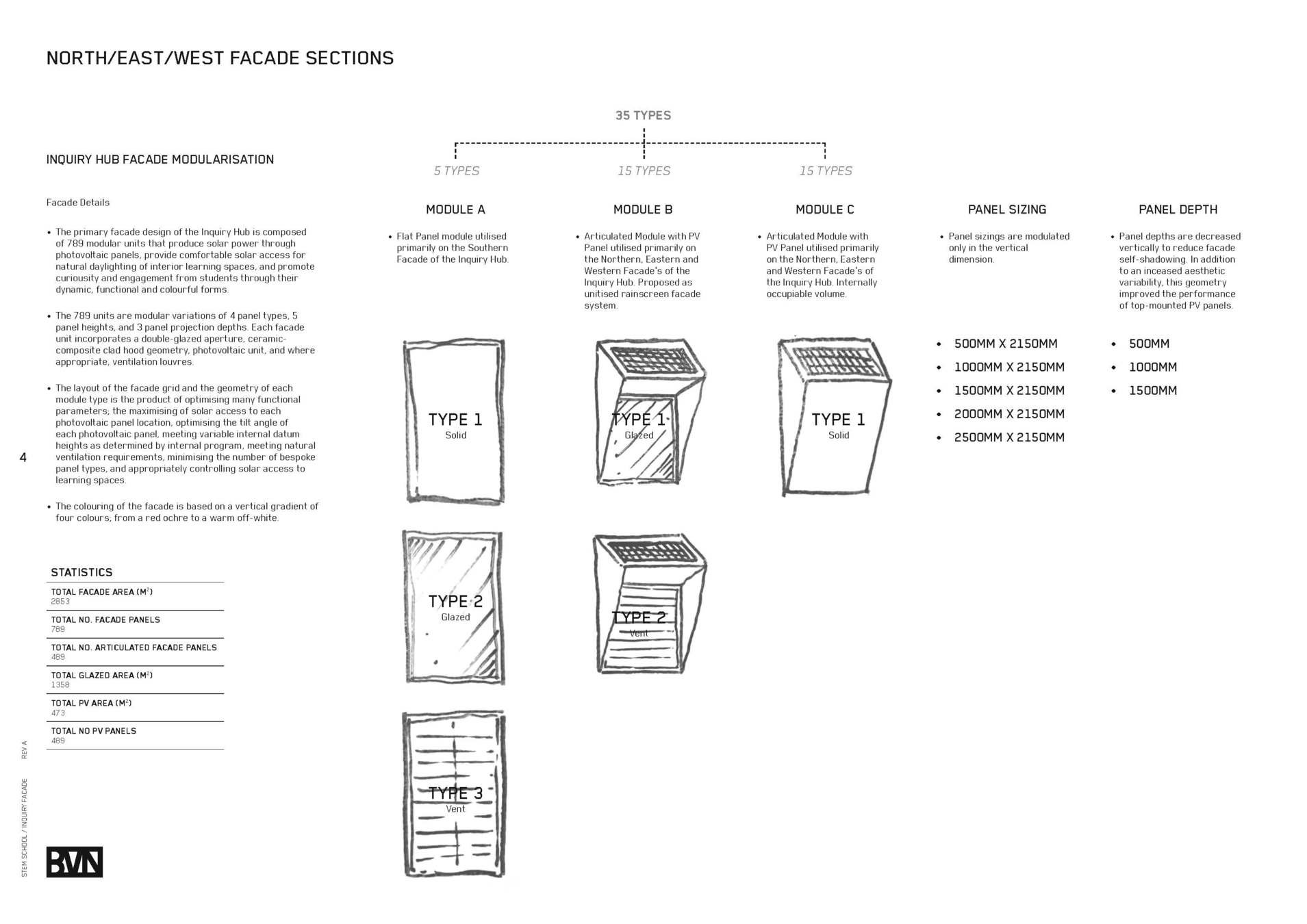

    "panelType": [
      "FLAT SOLID"
    ],
    "panelSolar": [
      true
    ],

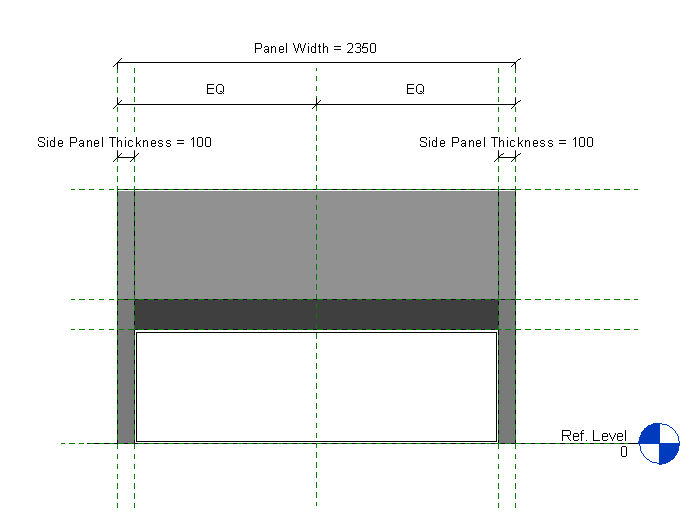

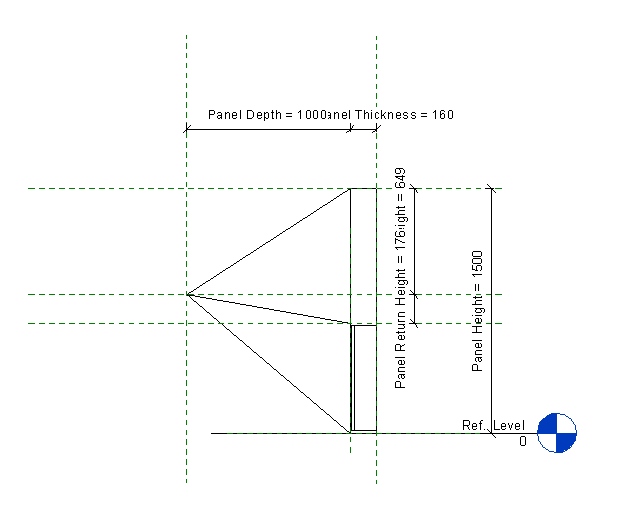

    "panelDims": {
      "height": "1500",
      "depth": "1000",
      "width": "2350"
    },
    "notes": "toBeDefined",
    "geometry": {
      "returnPanel": {
        "vertexID": "none",
        "material": "solid"
      },
      "leftPanel": {
        "vertexID": "none",
        "material": "solid"
      },
      "ventPanel": {
        "vertexID": "none",
        "material": "solid"
      },
      "verticies": [
        [
          201950.53161253963,
          192362.38591903233,
          -1349.9999101059527
        ],
        [
          199600.53161253963,
          192362.38591933792,
          -1349.9999101059527
        ],
        [
          199600.53161253963,
          192362.38591933792,
          -2850.0000076293945
        ],
        [
          201950.53161253963,
          192362.38591903233,
          -2850.0000076293945
        ],
        [
          201950.53161266967,
          193362.38591903233,
          -1957.4258921468881
        ],
        [
          199600.53161266967,
          193362.38591933792,
          -1957.4258921468881
        ],
        [
          201950.53161253963,
          192362.38591903233,
          -2133.752872814418
        ],
        [
          199600.53161253963,
          192362.38591933792,
          -2133.752872814418
        ]
      ],
      "solidPanel": {
        "vertexID": "none",
        "material": "solid"
      },
      "topPanel": {
        "vertexID": "none",
        "material": "solid"
      },
      "insetPanel": {
        "vertexID": "none",
        "material": "glazed"
      },
      "rightPanel": {
        "vertexID": "none",
        "material": "solid"
      },
      "fullPanelGlazed": {
        "vertexID": "none",
        "material": "solid"
      },
      "fullPanelSolid": {
        "vertexID": "0,1,2,3",
        "material": "solid"
      },
      "backingPanelSolid": {
        "vertexID": "none",
        "material": "solid"
      },
      "fullPanelVent": {
        "vertexID": "none",
        "material": "ventilation"
      }
    },

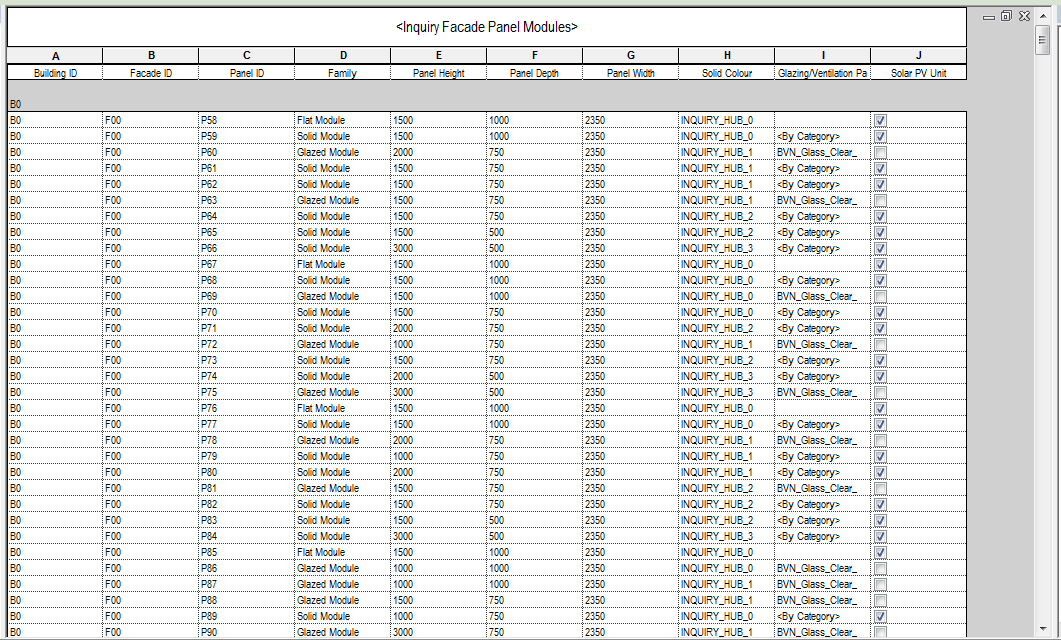

    "buildingID": [
      "B0"
    ],
    "panelID": [
      "P0"
    ],
    "panelColour": [
      "INQUIRY_HUB_0"
    ]
  }
