Multi-step UIs using Vue.js and finite-state automata
$> whoami
Michał
Pasierbski
Front-end engineer @ EF Education First
Ruby developer
Java deloper
Problem?

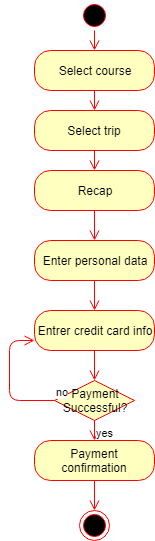

Booking flow
Iteration #1

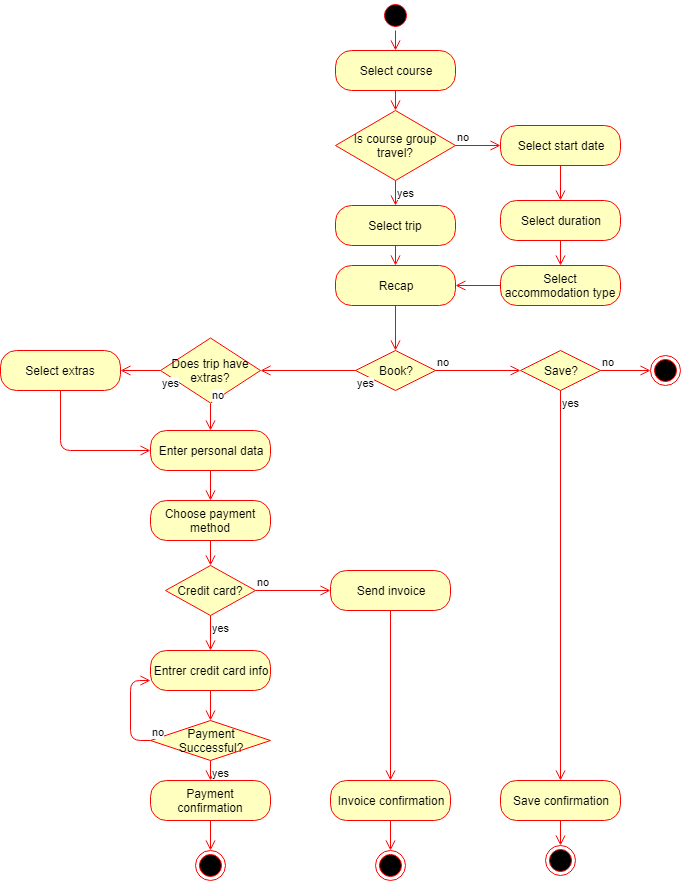

Booking flow
Iteration #?

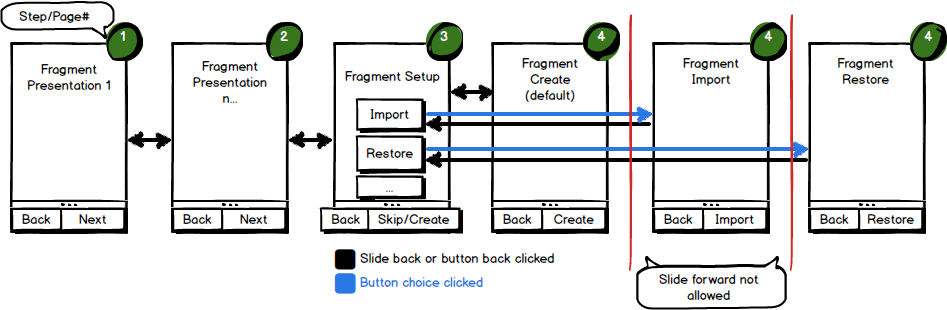

conditional multi-step form
Text
Text
What is FSM?
- finite number of states
- initial state
- transitions
- one state at any given time
Example #1: Lightbulb
Example #2: game AI
Example #3: game AI
Other IRL examples:
- vending machines
- traffic light
- elevators
How?
States
export const UNINITIALIZED = 'UNINITIALIZED';
export const TRIP_SELECTION = 'TRIP_SELECTION';
export const EXTRAS_SELECTION = 'EXTRAS_SELECTION';
export const PERSONAL_INFORMATION = 'PERSONAL_INFORMATION';
export const RECAP = 'RECAP';
export const PAYMENT = 'PAYMENT';
export const CONFIRMATION = 'CONFIRMATION';Transitions
export const BACK = 'BACK';
export const BOOK_NOW = 'BOOK_NOW';
export const INITIALIZE = 'INITIALIZE';
export const NEXT = 'NEXT';
export const PAY = 'PAY';
export const RESET = 'RESET';
export const SELECT_EXTRAS = 'SELECT_EXTRAS';
export const SELECT_TRIP = 'SELECT_TRIP';State machine
export default machina.Fsm.extend({
initialState: UNINITIALIZED,
states: {}
});- initial state
- states
- transitions
- events
export default machina.Fsm.extend({
initialState: UNINITIALIZED,
states: {
[UNINITIALIZED]: {},
[TRIP_SELECTION]: {},
[PERSONAL_INFORMATION]: {},
[RECAP]: {},
[PAYMENT]: {},
[CONFIRMATION]: {}
}
});export default machina.Fsm.extend({
initialState: UNINITIALIZED,
states: {
[UNINITIALIZED]: {
[INITIALIZE]() { /* */ }
},
[TRIP_SELECTION]: {
[BOOK_NOW]({ tripId }) {
this.tripId = tripId;
this.transition(PERSONAL_INFORMATION);
}
},
[PERSONAL_INFORMATION]: {
[SET_USER_INFO](data) {
store.commit(SET_USER_INFO, data);
this.handle(NEXT);
},
[NEXT]: RECAP,
[BACK]: EXTRAS_SELECTION,
},
[RECAP]: {
[NEXT]: PAYMENT,
[BACK]: PERSONAL_INFORMATION,
},
[PAYMENT]: {
[BACK]: RECAP,
[PAY]() {
this.emit(PROCESSING_PAYMENT);
this.transition(LOADING);
return store.dispatch(
SUBMIT_TRIP_PAYMENT,
this.tripId
).then(() => {
this.emit(PAYMENT_SUCCEDED);
this.handle(
LOADING_SUCCESS,
CONFIRMATION
);
});
},
[ACCEPT_PAYMENT]: CONFIRMATION,
},
[CONFIRMATION]: {}
}
});State components
export default {
props: {
trips: { type: Array, required: true },
done: { type: Function, required: true },
},
methods: {
onSubmit(tripId) {
return this.done(SELECT_TRIP, { tripId });
},
onBookNow(tripId) {
return this.done(BOOK_NOW, { tripId });
}
}
}- keep'em dumb
- use props consistently
Container component
export default {
props: {
fsm: {
type: Object,
default: () => (new BookingFSM())
}
},
methods: {
onDone() {
const [transition, ...params] = arguments;
return this.fsm.handle(
transition || NEXT,
...params
);
}
},
render(h) {
const vm = this;
return h(stateComponents[vm.fsm.state], {
props: {
done: vm.onDone,
trips: vm.trips,
...
}
});
}
};- KISS
- data aggregator
- make FSM injectable
Sample app
source code at: https://github.com/pasierb/case-study-multi-step-form
Why?
Pros
- easy to reason about
- separation of concerns
- easy to test
- maintainability
- dumb components
Cons
- added complexity layer
Thank you!
@mpasierbski
https://github.com/pasierb
