Data Structures and Algorithms

muigai unaka

Week 1

Goals of this plan



  • Learn Data Structures and Algorithms
  • Identify patterns to determine the Data Structure(s) and Algorithm(s) to best solve a particular problem
  • Practice and prepare technical interview skills

How do we reach our goal?



  • Meet once a week for 12 weeks
  • Commit 15 hours to reading and problem solving on our own time
  • Mock Interview scenarios
  • LEETCODE

First Half



  • Stand Up
  • Lecture
  • Questions
  • Break
  • Lab

Second Half

  • Lecture
  • Questions
  • Break
  • Lab
  • Wrap Up

In person structure



Data Structures



Grocery Store Analogy

Algorithms

JavaScript CTRL+R



function calculateBill(meal, taxRate = 0.05) {
    const total = meal * (1 + taxRate) ;
    return total;
}



const myTotal = calculateBill(100, 0.13);

keyword

function name

parameters

default value

scope start

scope ends

return statement

variable to store returned value

name or reference

call, run or invoke

Arguments

Loops

const obj = { a:1, b:2, c:3 }
// loop over property names
for (let key in obj) {
   console.log(key);
    // logs a, b, c
}
var n = 0;
var x = 0;
while (n < 3) {
  n++;
  x += n;
}
const nums = [10, 20, 30];
let i;
let len = nums.length
for (i = 0; i < len; i++) {
    console.log(nums[i])
}
const arr = [3, 5, 7];
// loop over property values
for (let i of arr) {
   console.log(i);
    // logs 3, 5, 7
}

for...in loop

while loop

for loop

for...of loop

Primitive Data Types



Number

String

Boolean

Undefined

Null

Object

/**
 * Takes 2 numbers and returns their sum.
 * @param   {number} a the first number
 * @param   {number} b the second number
 *
 * @returns {number} the sum of a and b
 * @example
 *     addNumbers(7, 22)
 */
function addNumbers(a, b) {
  return a + b;
}
const readline = require('readline');
const fs = require("fs");
// get file from path
const input_file_path = String(process.argv[2]);

// run node app.js ./path/to/file
const app = readline.createInterface({
  input: fs.createReadStream(input_file_path),
  output: process.stdout
});

app.on('line', (line) => {
    // print each line
    process.stdout.write(line)
});

app.on('close', () => {
  process.stdout.write("All done")
})
// debugger
var arr = [1,2,3,4,5];
debugger;
console.log(arr[2]);

debugger



Preguntas?

Big O Notation



The language we use to describe the efficiency of algorithms

Time Complexity

Space Complexity

// Constant time array indexing
const card_deck = ['K', '2', '7', 'A']
// This is a constant time look-up
let first_card = card_deck[0]; // 'K'

Constant

O (1)

Examples:

Array, Object & HashMap lookup by index or property



No matter how many cards are in a deck, to find the first card in the deck, it will take the same amount of time

Logarithmic

let myList = [1, 3, 5, 7, 9];
function binarySearch(myList, itemToFind) {
    let low = 0, high = myList.length - 1,
    mid, guessed;

    while(low <= high) {
        mid = Math.floor((low + high) / 2),
	guessed = myList[mid];

	if(guessed === itemToFind) {
        console.log(
            `Found ${itemToFind} at: ${mid}`
        );
            return;
	}
	if (itemToFind < guessed) {
	    high = mid - 1;
        } else {
	    low = mid + 1;
	}
    }
    // number not found, it doesnt exist !
    return null;
}

binarySearch(myList, 3);

Examples:

Divide + Conquer



With each iteration, cut the amount of sorted data being operated on in half. Think searching for a person in a Phone Book

O (log n)

Linear

const nums = [1,2,3,4,5];
let sum = 0;

for (let num of nums) {
    sum += num;
}
console.log(sum);

Examples:

Finding an item in an unsorted array



There is an execution for every value in our input

O (n)

Linearithmic

function linearithmic_example(n) {
    // linear loop  O(n) * ...
    for (let i = 0; i < n; i++) {
        // ...log (n) loop
        for (let j = 1; j < n; j *= 2) {
            // do something in constant time...
            console.log(n);
        }
    }
}

Examples:

heapsort, quicksort and merge sort

O (n log n)

Quadratic

/**
You want to avoid code which runs in O(n²)
as the number of operations increases
significantly when you introduce more elements.
**/
let singles = [1,2,3,4,5];
let doubles = [2,4,6,8,10];
// O(n) * O(n)
for (let single of singles) {
    for (let double of doubles) {
        console.log(single * double)
    }
}

Examples:

Nested for loops; bubble sort, selection sort and insertion sort



For each draw in a deck of cards, I draw another card from a separate deck of cards of equal size

O (n^2)

Polynomial

// cubic time is a type of polynomial time
// triple nested loop
function findXYZ(n) {
  const solutions = [];

  for (let x = 0; x < n; x++) {
    for (let y = 0; y < n; y++) {
      for (let z = 0; z < n; z++) {
        if( 3*x + 9*y + 8*z === 79 ) {
          solutions.push({x, y, z});
        }
      }
    }
  }

  console.log(solutions);
  return solutions;
}

Examples:

triple nested loop





O (n^k)

Exponential

const fib = (num) => {
    if (num <= 1) {
        return num;
    }
    return fib(num - 2) +  fib(num - 1);
}

Examples:

Fibonacci, Getting all subsets of a string



The time it takes to process the output doubles with every additional input size

O (2^n)

// O (2^n) Exponential time (continued)
function getSubsets(n = '') {
  const array = Array.from(n);
  const base = [''];

  const results = array.reduce((previous, element) => {
    const previousPlusElement = previous.map(el => {
      return `${el}${element}`;
    });
    return previous.concat(previousPlusElement);
  }, base);
  console.log(`getSubsets(${n}) // ${results.slice(0, 15).join(', ')}... `);
  console.log(`n: ${array.length}, counter: ${results.length};`);
  return results;
}

getSubsets('') // ...
// n = 0, f(n) = 1;
getSubsets('a') // , a...
// n = 1, f(n) = 2;
getSubsets('ab') // , a, b, ab...
// n = 2, f(n) = 4;
getSubsets('abc') // , a, b, ab, c, ac, bc, abc...
// n = 3, f(n) = 8;
getSubsets('abcd') // , a, b, ab, c, ac, bc, abc, d, ad, bd, abd, cd, acd, bcd...
// n = 4, f(n) = 16;

Factorial

// iterative factorial
function print_n_factorial(n) {
  for (let i = 0; i <n ; i++) {
    console.log(n)
    print_n_factorial(n-1);
  }
}
// recursive factorial
function recursive_factorial(n) {
    if (n === 0) {
        return 1;
    }
    // n! = n * (n-1)!
    return n * factorial(n - 1);
}

Examples:

List all permutations of array or string, Combination of all characters in String









O (n!)

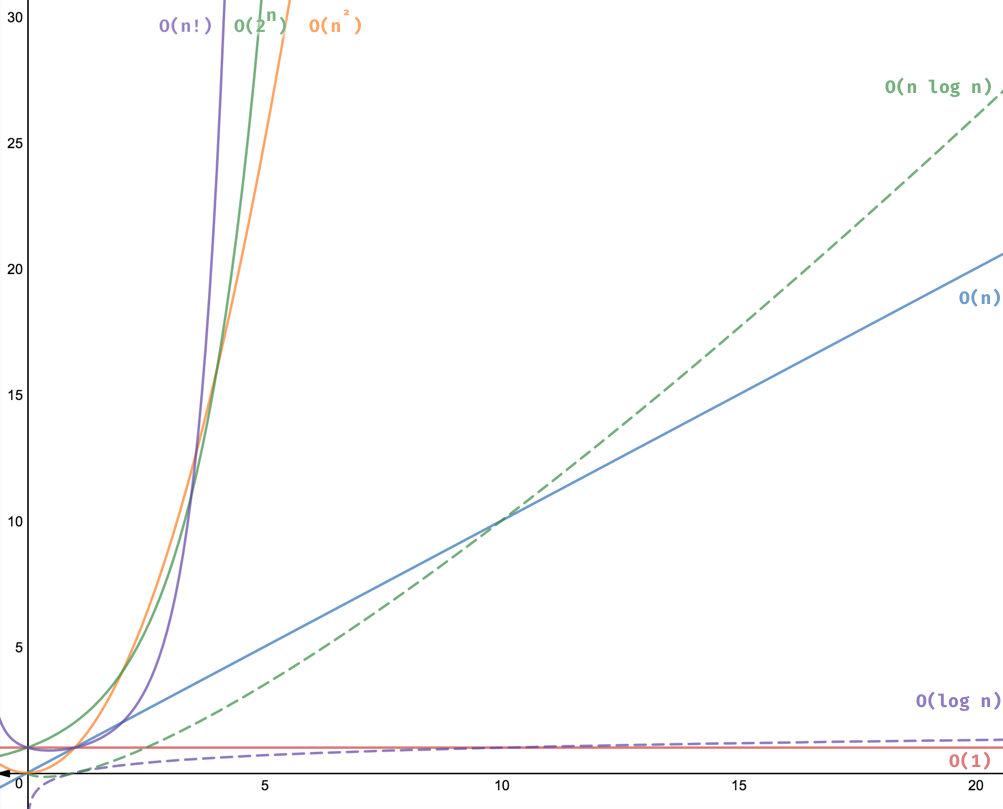

All running complexities graphs

Calculating Big O



  • Worst case scenario
  • Ignore and remove constants
  • Use different terms for inputs (not only n)
  • Drop non dominant ("faster") complexities

質問

Shitsumon?
