Building UIs with Statecharts

@mukeshsoni

reactjs bangalore meetup #34

Building UIs is hard

UI code is

• Buggier than most other types of programs
• Difficult to test
  • What should we test? Just the happy paths?
  • Are snapshot tests enough?
• Difficult to enhance
  • Code quality keeps deteriorating with each enhancement

How we code UIs

Bottom up - No high level design

How we code UIs

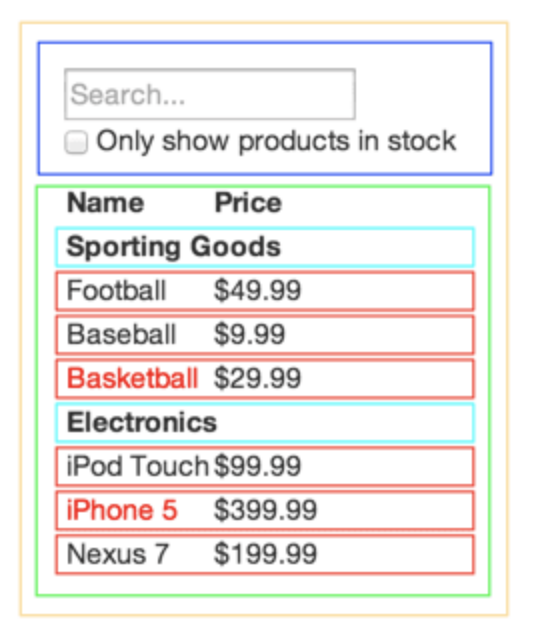

Thinking in React

Just draw boxes around UI components!

Only takes you so far!

https://reactjs.org/docs/thinking-in-react.html

Event-action paradigm

• There is a user event -> take a series of actions
• the actions to be executed in response to that event can vary, depending on the previous interactions the user had with other UI objects

• the action against an event can depend on the state of other UI objects

• Start by writing simple event handler

• Make them progressively complex to handle various contexts

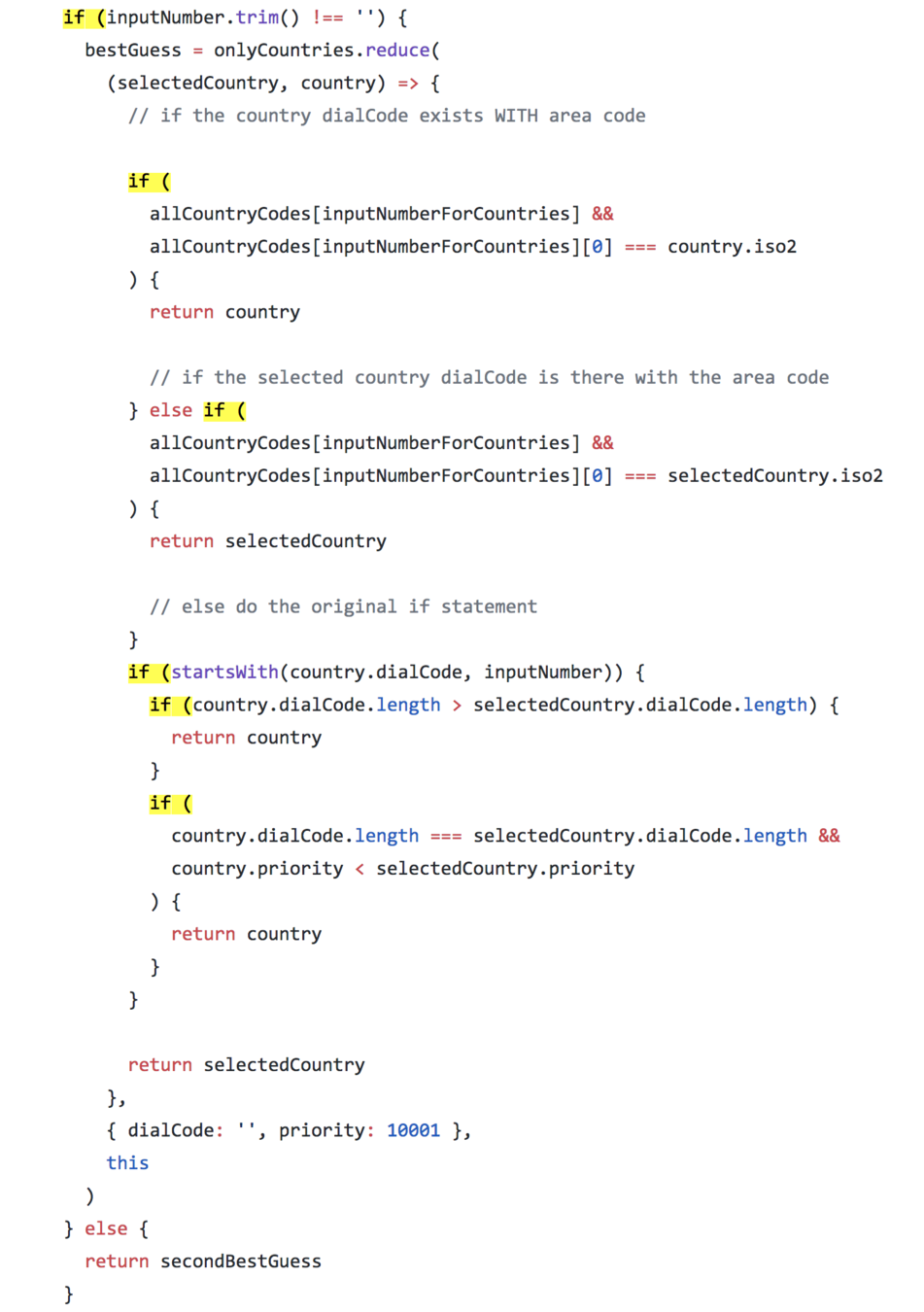

• Results in complex web of interrelated event handlers

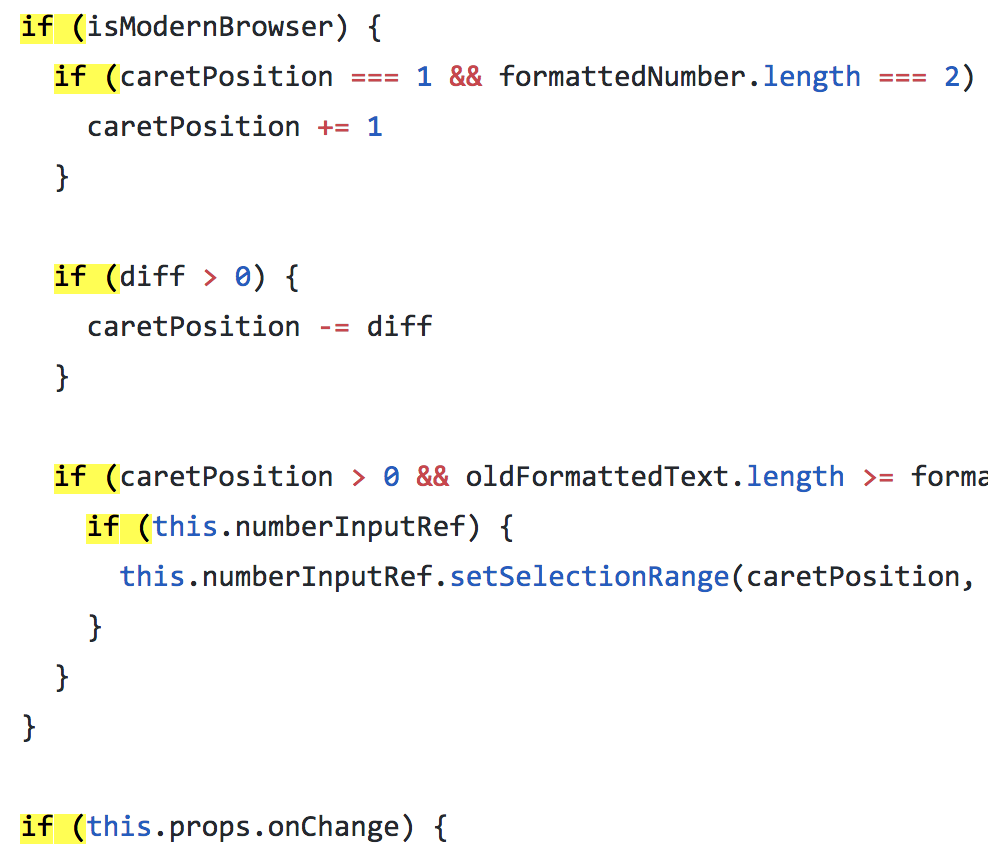

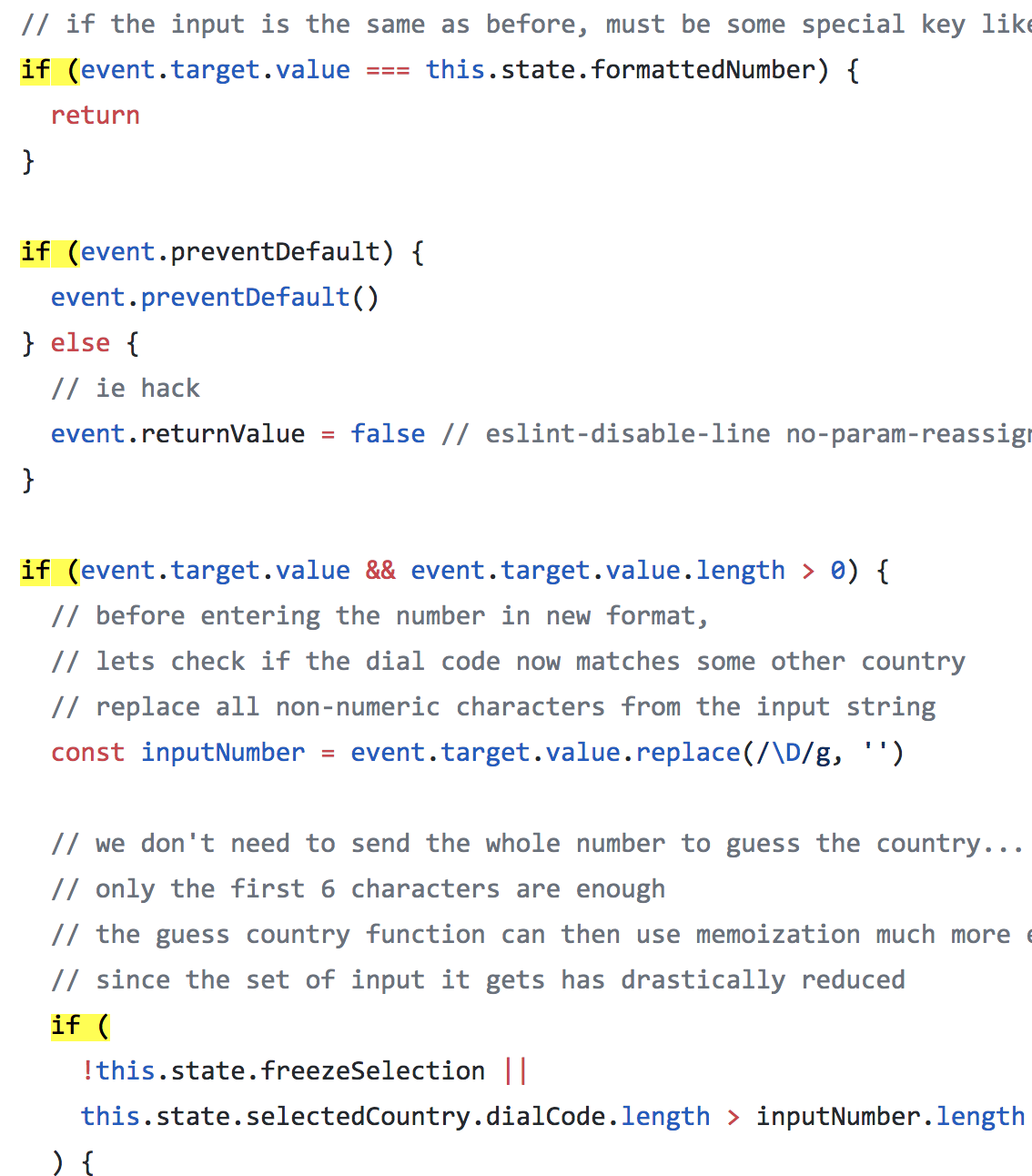

• The context is not evident from the code​
  • If(x < y && z > x && loggedIn && (otherObjectVisible || this otherObjectVisible))
• No one wants to touch that code again
  • Let's rewrite the component!

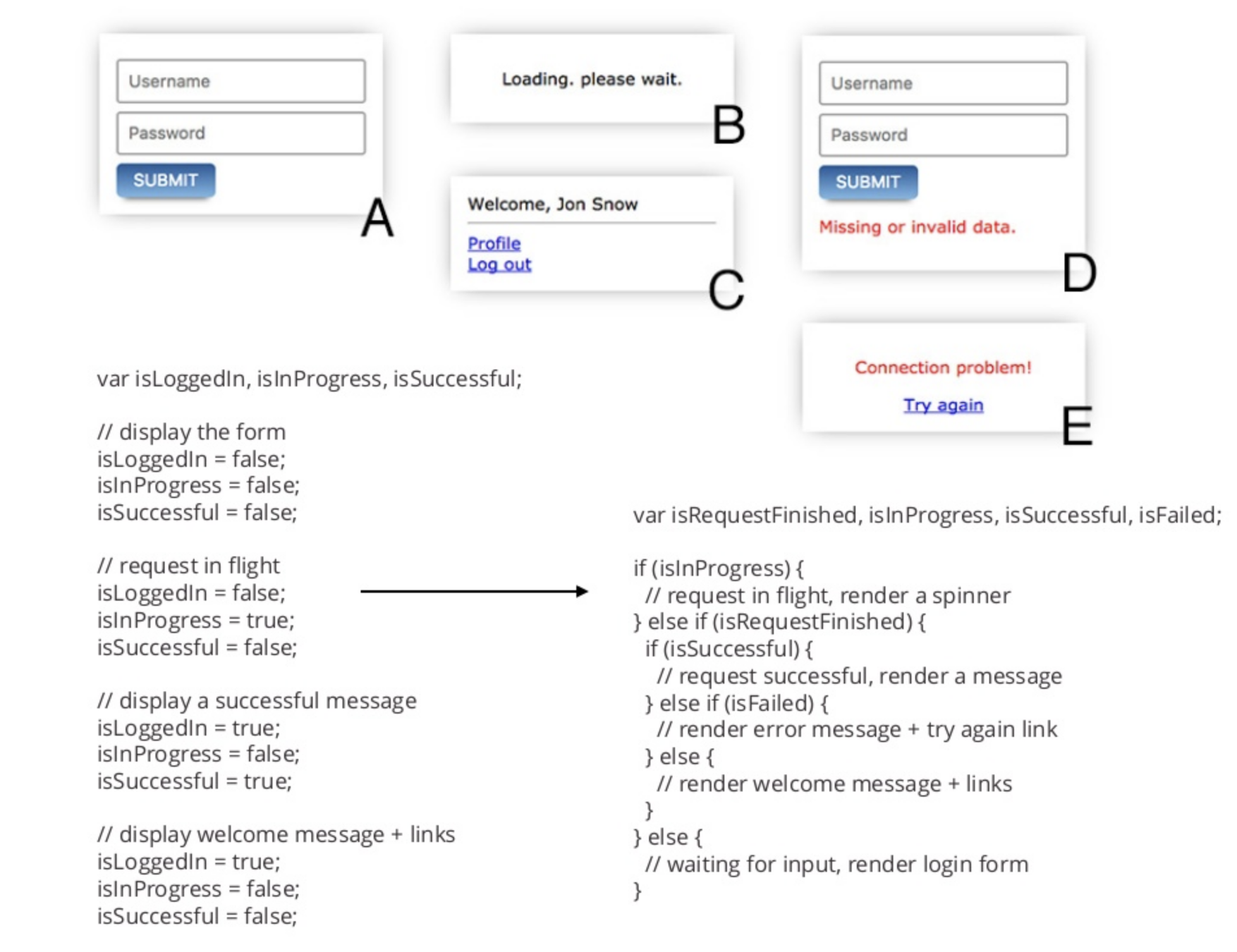

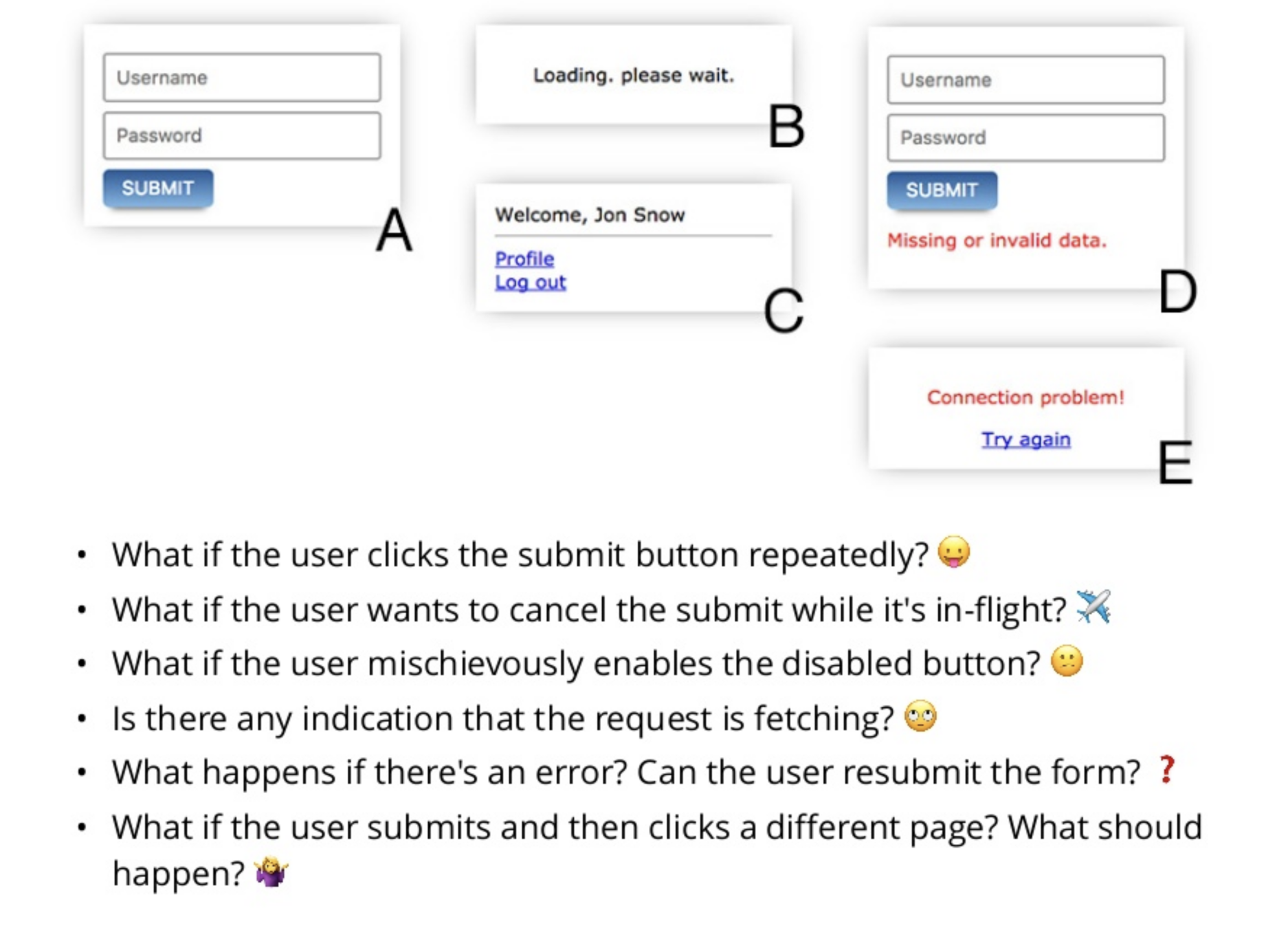

Event-action paradigm consequences

Source: Are statecharts the next big UI paradigm? by Luca Matteis

Url: https://www.slideshare.net/lmatteis/are-statecharts-the-next-big-ui-paradigm

Source: Are statecharts the next big UI paradigm? by Luca Matteis

Url: https://www.slideshare.net/lmatteis/are-statecharts-the-next-big-ui-paradigm

Alternative approach - Top down thinking

Finite Automata

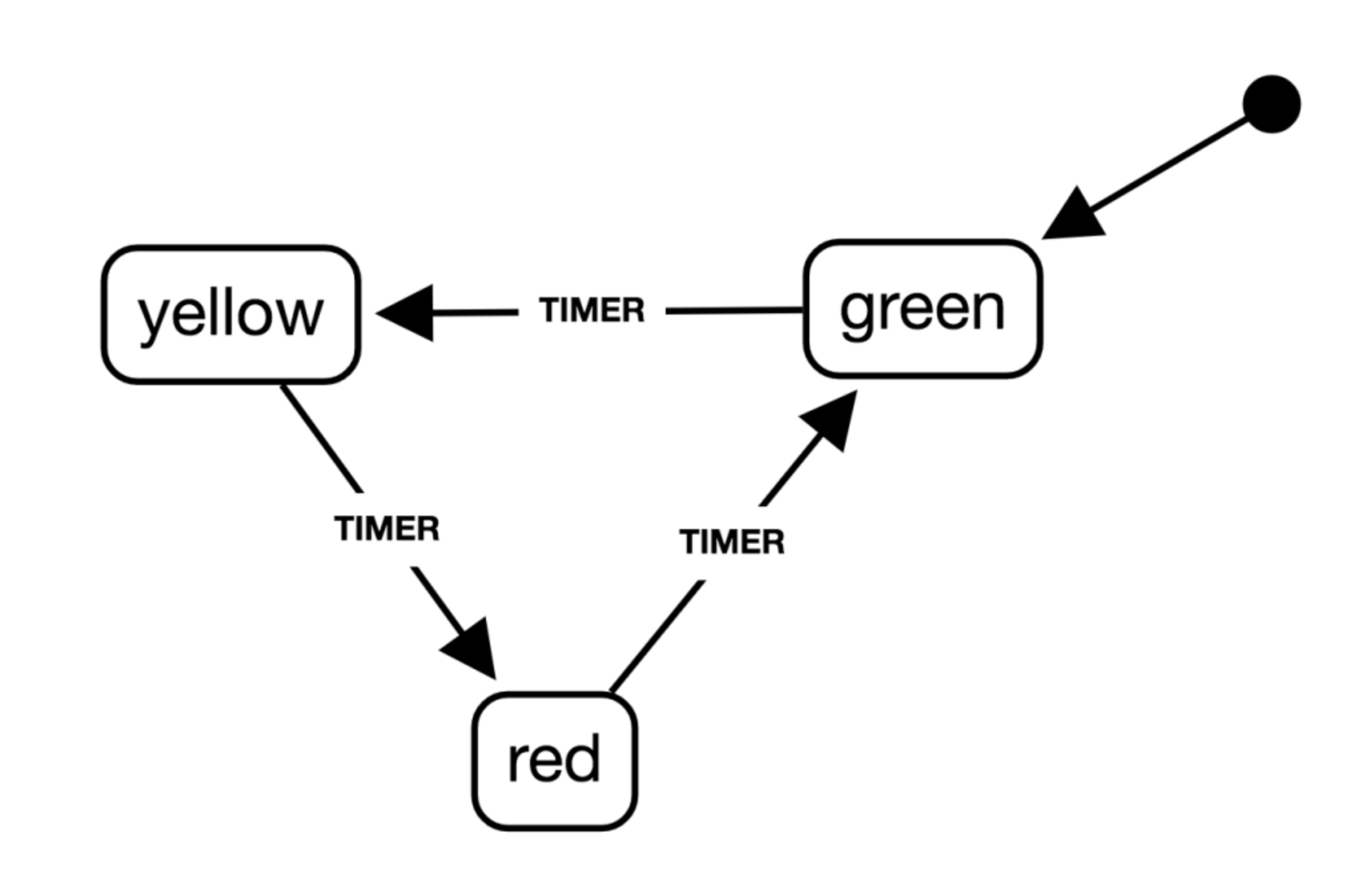

Finite state machines

• Abstract machine with finite number of states
• Finite number of inputs/events
• Initial state
• Is only in one state at a time*
• State transition on event
• Deterministic - given a state and an event, transition always returns the same nextState

https://en.wikipedia.org/wiki/Finite-state_machine

https://css-tricks.com/robust-react-user-interfaces-with-finite-state-machines/

We all implement an ad-hoc FSM in our UI code!

Problems with FSM

• State explosion
• Event explosion
• Duplicated states and events

• Does not scale well with increasing complexity
• Not readable for even medium com

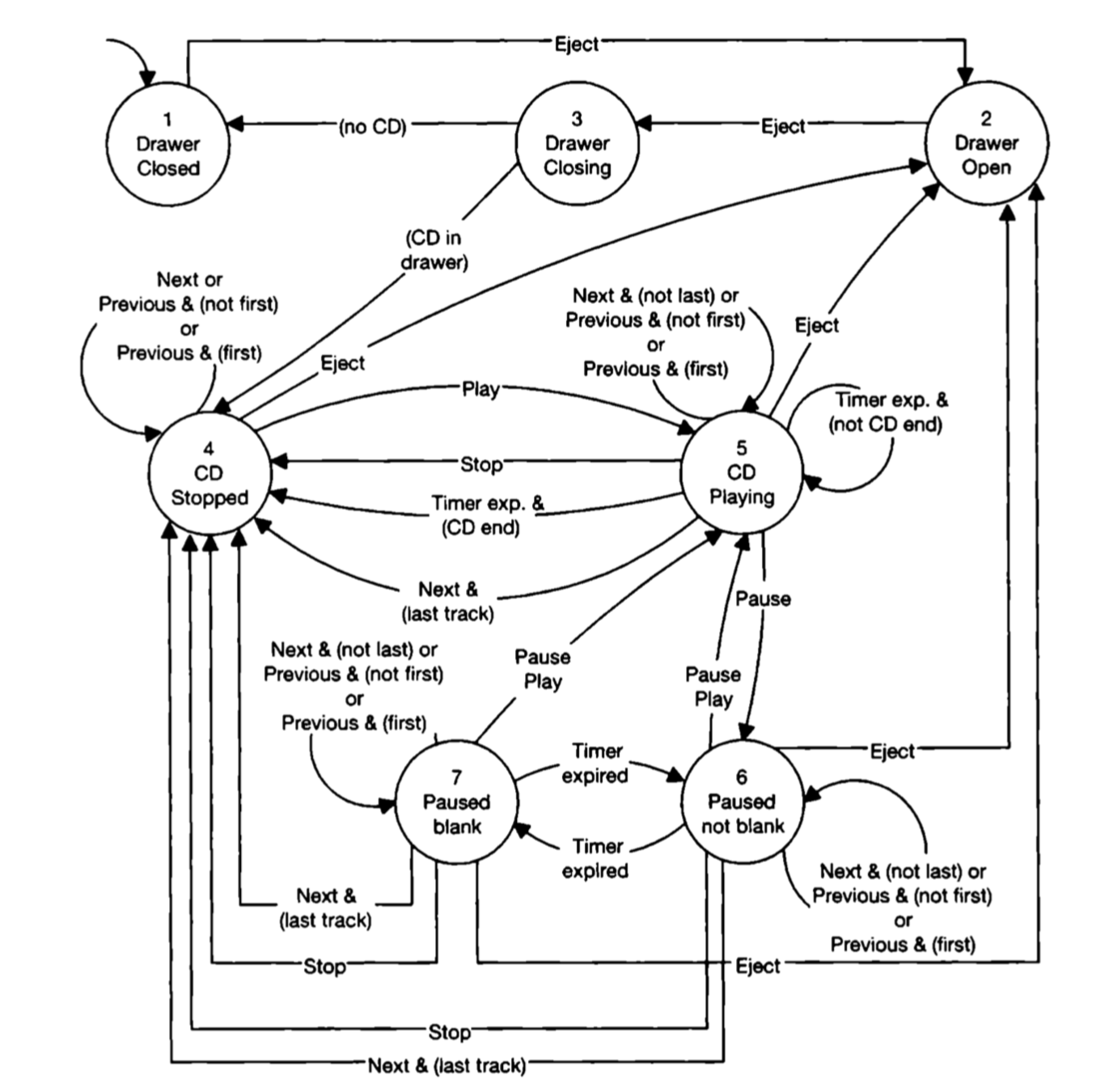

CD player with FSM

Source - Constructing the User interface with statecharts by Ian Horrocks

Statecharts

Invented by David Harel in 1987

• Hierarchical states - concept of depth
• Parallel/concurrent states
• History
  • ​Specially useful in conjunction with hierarchical states
• Conditionals
  • ​Allow multiple transitions from one state, for same event
• Transient states

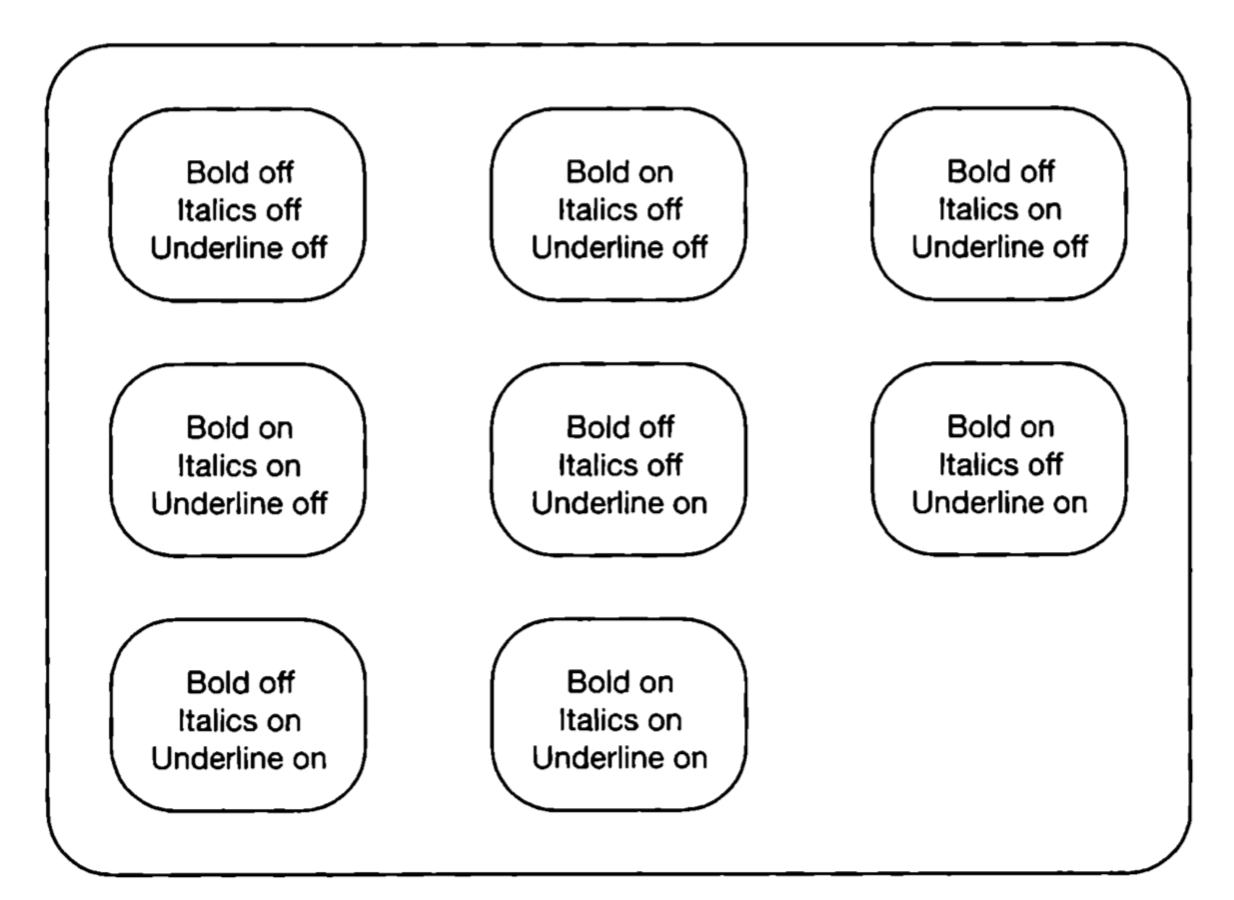

Rich text editor - FSM

Source - Constructing the User interface with statecharts by Ian Horrocks

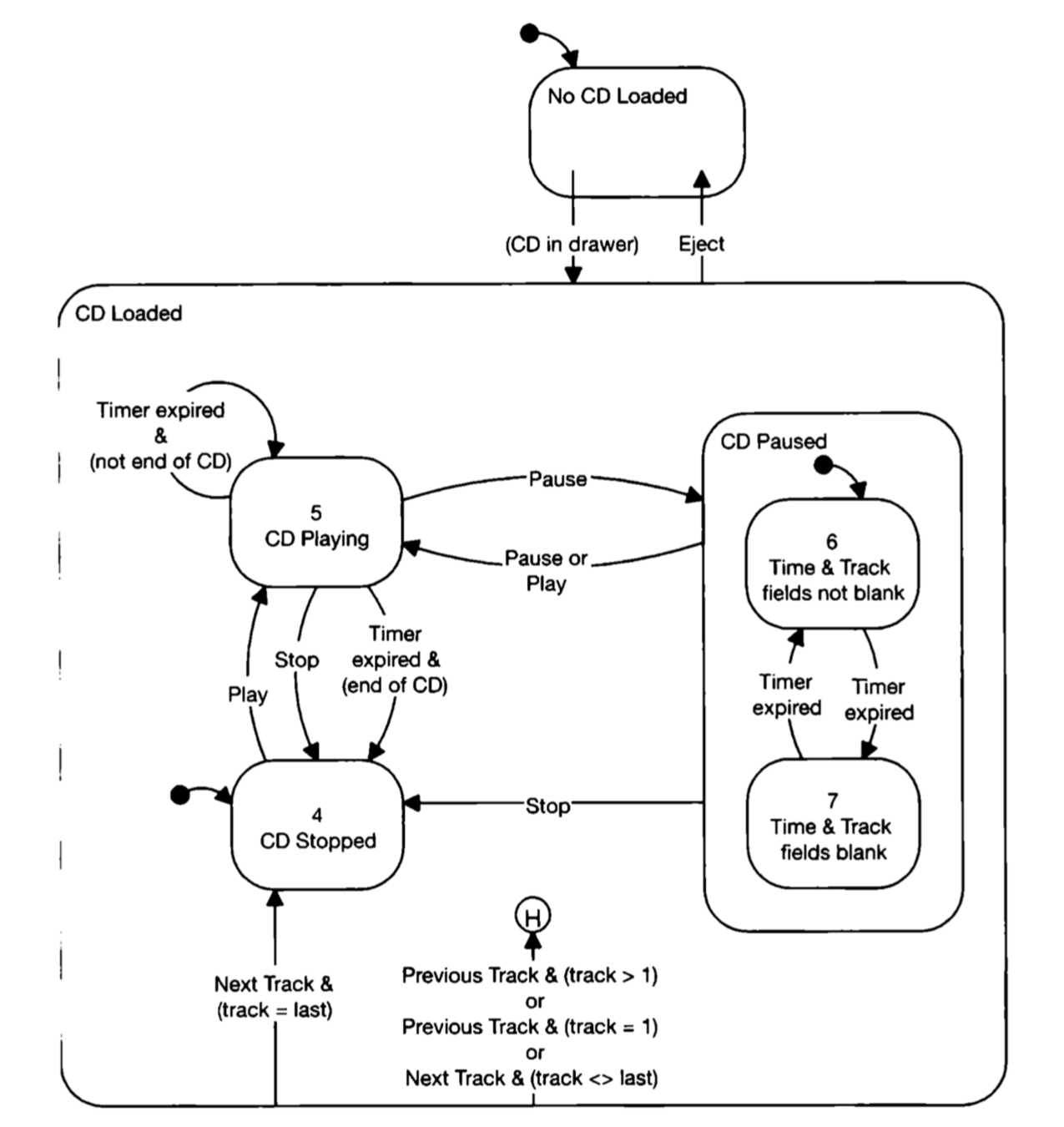

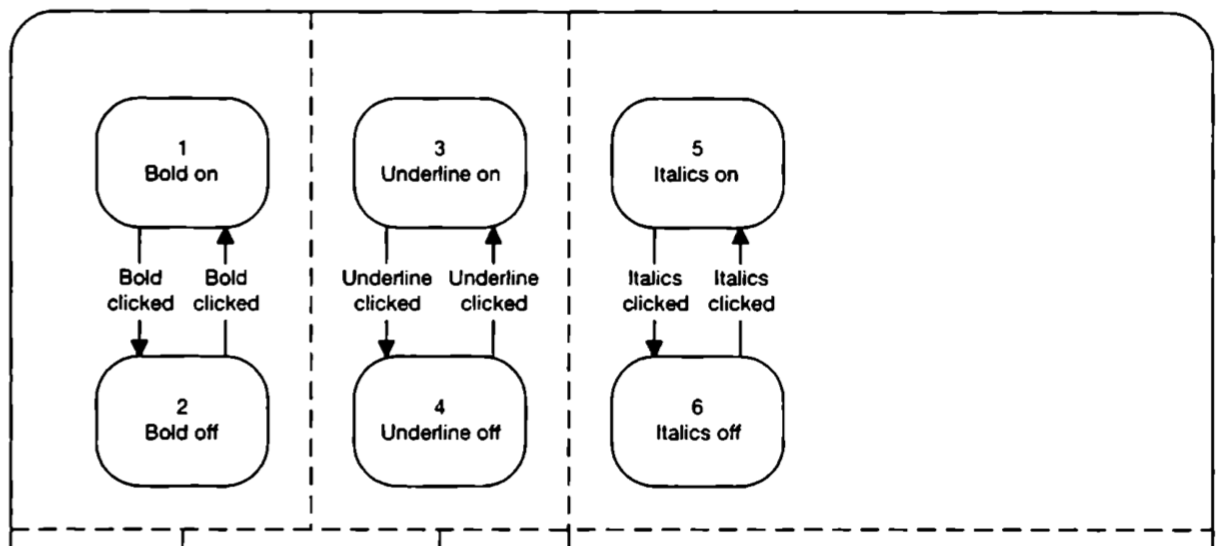

Parallel states

Source - Constructing the User interface with statecharts by Ian Horrocks

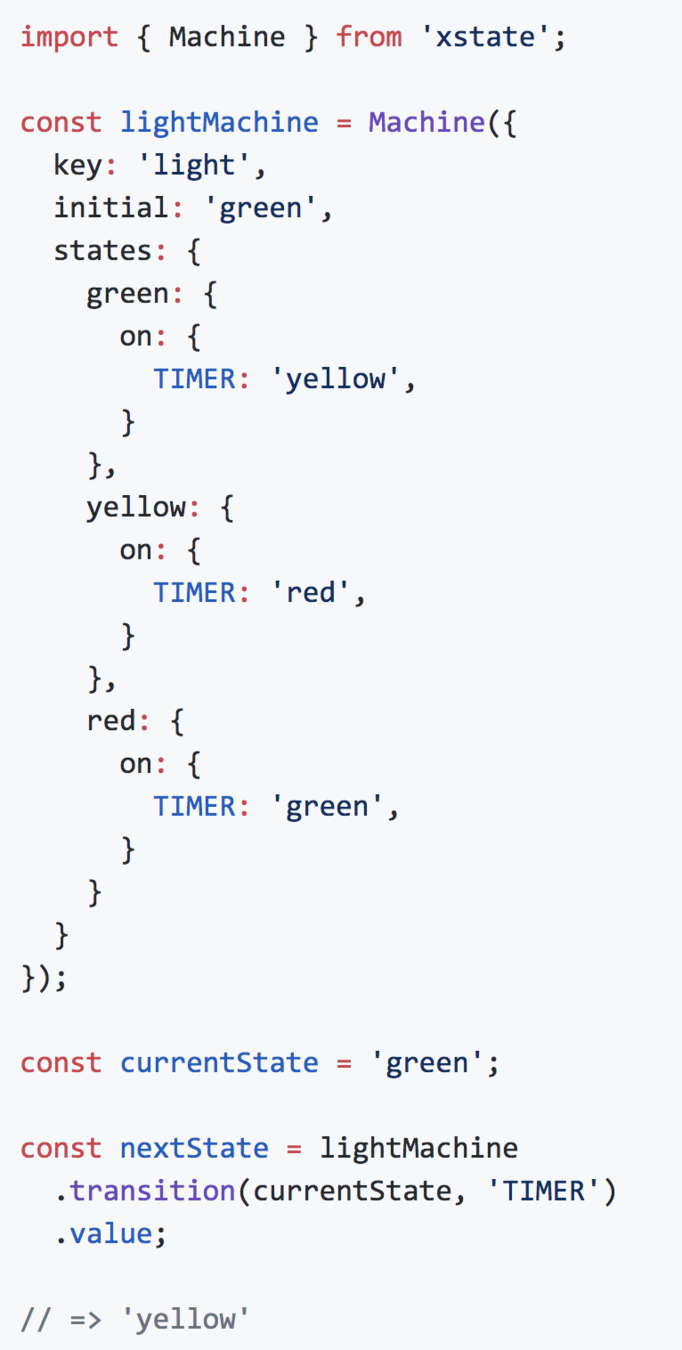

Representing statecharts with xstate

xstate - https://github.com/davidkpiano/xstate

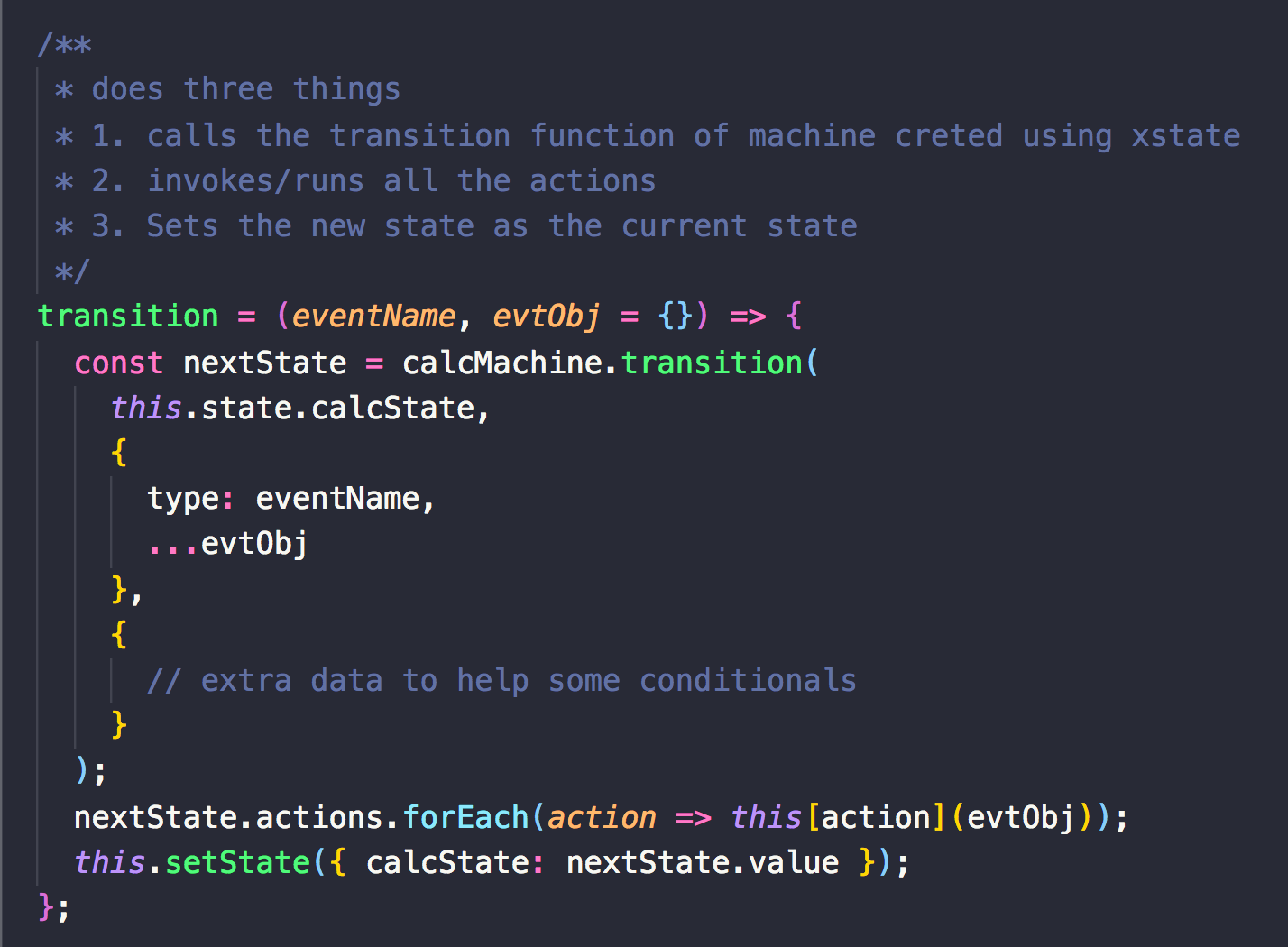

Statecharts in React

• xstate to represent the statechart machine
  • https://github.com/davidkpiano/xstate
• Map actions in machine to component methods
• Another method to call xstate machine for transitions and running related actions
  • Or you can use react-automata - https://github.com/MicheleBertoli/react-automata

If we are in state S and the event E occurs, we should perform the actions A and make a transition to the state S'.

Erlang FSM Design Principles

http://erlang.org/documentation/doc-4.8.2/doc/design_principles/fsm.html

https://github.com/mukeshsoni/statechart-calculator/

Advantages

• Well defined semantics to capture the UI
• No ambiguity in specification
• Easy to extend/enhance
• Making impossible states impossible
• Automatic integration test generation - since the statechart is just a graph
• Automatic code generation
• Much better analytics**

Practical tips

• Think in terms high level design for your code
  • Don't get bogged down by implementation details
• Resist the urge to code for as long as possible, when you are designing the statechart
  • statechart-coding cycle should be iterative
• Start with FSM and then refactor to statecharts
  • Figure out higher level states and parallel states

Limitations

• Higher upfront cost
• Might not see anything on screen for some time
  • ​Build little bit of statechart, code it. rinse and repeat
• ​Not suitable for all use cases
• Might get complicated if higher level states and parallel states not correctly identified
  • Essentially turns into an FSM
• Limitations of visualisation tools

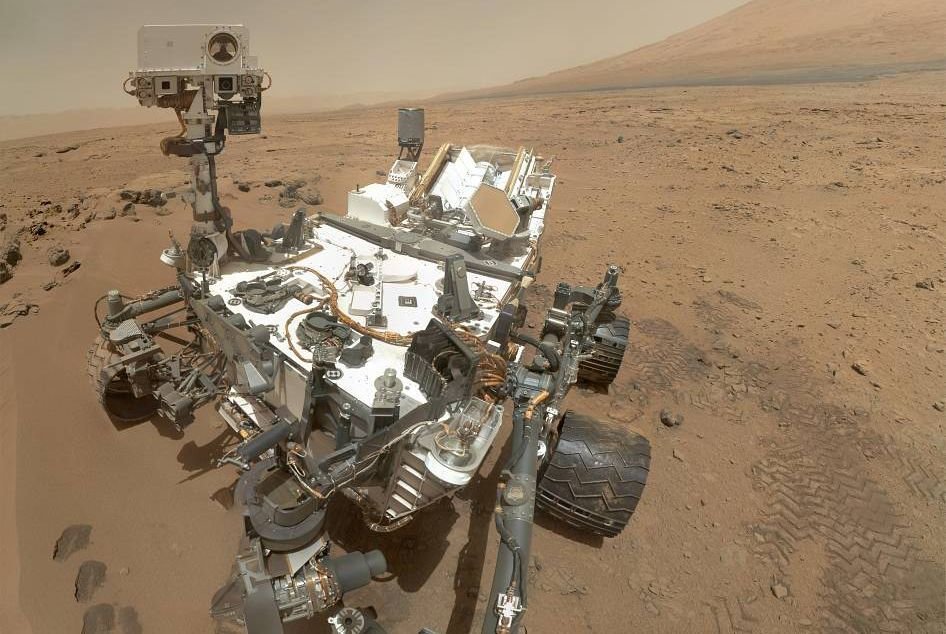

Mars Curiosity Rover - NASA

https://www.popularmechanics.com/space/moon-mars/a19564346/nasas-curiosity-rover-hits-2000-sol-martian-day-milestone/

https://blog.nomagic.com/statechart-autocoding-curiosity-rover/

• Auto-maneuver (Cruise phase)
• Spacecraft Modes (Configures the spacecraft)
• Launch mode
• Cruise mode
• Entry
• Descent
• Landing
• Rover mode

Resources

• David Khourshid (@davidkpiano) - Infinitely better UIs with Finite Automata - https://www.youtube.com/watch?v=VU1NKX6Qkxc

• https://statecharts.github.io/ by Erik Mogensen (@mogsie)
• David Harel - Statecharts: A visual formalism for complex systems - http://www.inf.ed.ac.uk/teaching/courses/seoc/2005_2006/resources/statecharts.pdf
• Ryan Florence - Rambling thoughts on React and Finite State Machine - https://www.youtube.com/watch?v=WbhpQXH7XMw
• Ian Horrocks - Constructing the user interface with statecharts - https://www.amazon.com/Constructing-User-Interface-Statecharts-Horrocks/dp/0201342782
  • Only for Rs. 16500 :)
• Statechart calculator implementation - https://codesandbox.io/s/84o732y148
• For online discussions on statecharts - https://spectrum.chat/statecharts

Thank you!
