Testing Grails with Dru & Gru

Vladimír Oraný

Test Facilitator @ Agorapulse

@musketyr

https://agorapulse.github.io/dru/

https://agorapulse.github.io/gru/

@AgoraPulseEs

Gru & Dru

Agenda

Dru
- Example application
- Preparing real-life test data
Gru
- Testing HTTP endpoints in Grails
  - Using Grails testing framework
  - Using Gru

Dru

How to prepare data for you tests?

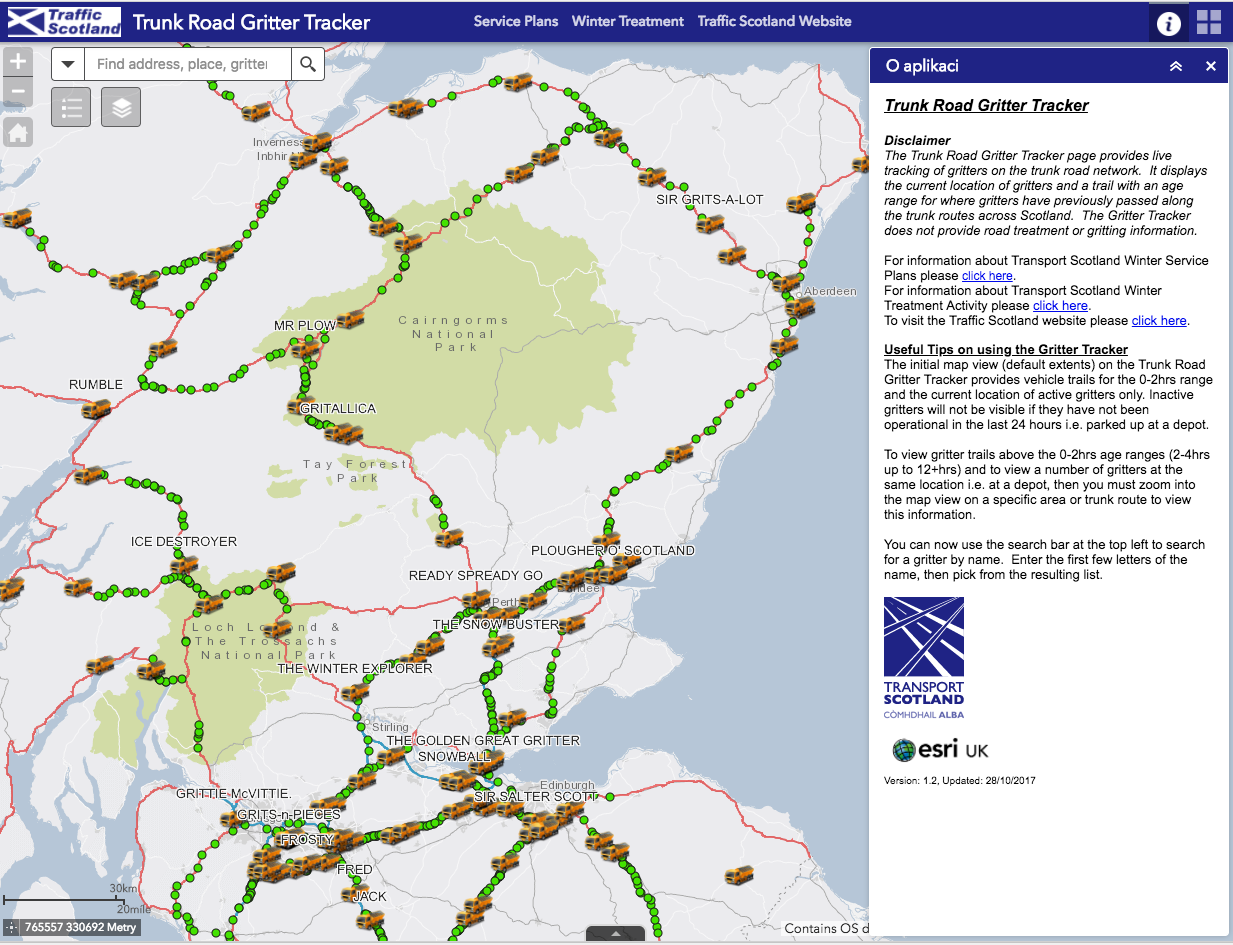

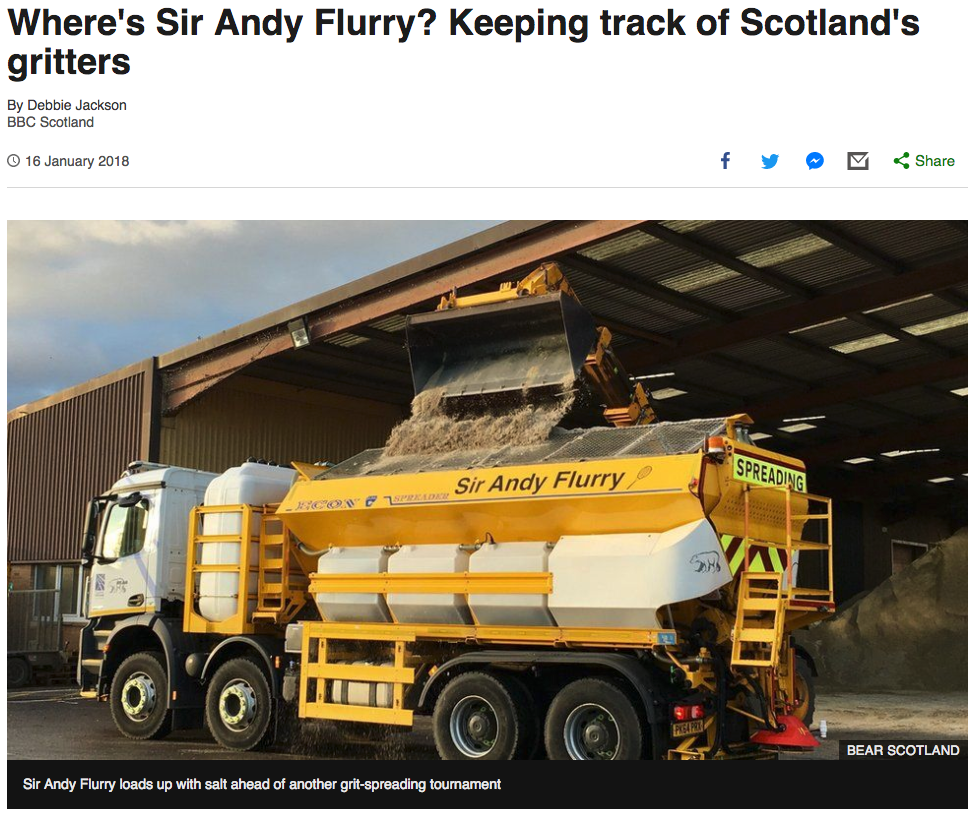

Example Application

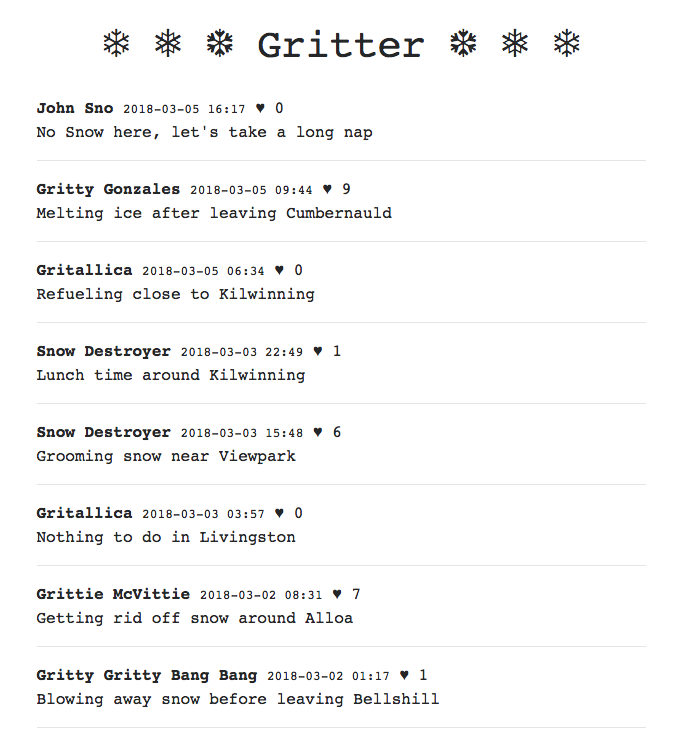

❄ ❅ ❆ Gritter ❆ ❅ ❄

Example Application

class Status {

    Date created = new Date()
    User user
    String text

    static hasMany = [engagements: Engagement]

}

class User {

    String username

}

class Engagement {

    User user
    Status status
    Date created = new Date()

}

Domain Classes

200.times {
    Status status = new Status(
            user: users[random.nextInt(users.size())],
            text: "${activities[random.nextInt(activities.size())]}" +
                " ${directionsAndLocations[random.nextInt(directionsAndLocations.size())]}" +
                " ${places[random.nextInt(places.size())]}",
            created: new Date(System.currentTimeMillis() - (10L * Math.abs(random.nextInt())))
    ).save(failOnError: true)

    random.nextInt(users.size()).times {
        User user = users[it]
        if (user != status.user && !status.engagements.any { it.user == user }) {
            status.addToEngagements(user: user, status: status).save(failOnError: true)
        }
    }
}

Sample Data (BootStrap)

@Transactional
class StatusService {

    List<Status> findTopStates(Date from, Date to, int max) {
        Status.findAllByCreatedBetween(from, to).sort(false) { a, b ->
            a.engagements?.size() <=> b.engagements?.size()
        }.reverse().take(max)
    }
}

Service under Test

Existing Data (View)

[
  {
    "id": 117,
    "created": "2018-02-28T07:44:35Z",
    "text": "Spreading some salt around Airdrie",
    "user": {
      "id": 1,
      "username": "John Sno"
    },
    "engagementsCount": 3,
    "engagements": [
      {
        "id": 616,
        "created": "2018-03-02T12:31:47Z",
        "user": {
          "id": 2,
          "username": "Ice Queen"
        }
      },
      {
        "id": 618,
        "created": "2018-03-02T12:31:47Z",
        "user": {
          "id": 4,
          "username": "Snow Destroyer"
        }
      },
      {
        "id": 617,
        "created": "2018-03-02T12:31:47Z",
        "user": {
          "id": 3,
          "username": "The Snow Buster"
        }
      }
    ]
  },
  {
    "id": 70,

Denormalized Data

    void 'load from JSON'() {
        when:
            List statuses = new JsonSlurper().parse(getStatusesSource())
        then:
            statuses
            statuses.size() == 25

        when:
            mockDomains User, Status, Engagement
            for (status in statuses) {
                new Status(status).save(failOnError: true)
            }
        then:
            noExceptionThrown()
            Status.list().size() == 25
            User.list().size() == 13
            Engagement.list().size() == 133
        when:
            Status status = Status.get(117)
        then:
            status // FIXME status cannot be found by ID
            status.user
            status.user.username == 'John Sno'
            status.text == 'Spreading some salt around Airdrie'
            status.engagements
            status.engagements.size() == 3
    }

Loading Data with JsonSlurper

{
    "id": 117,
    "created": "2018-02-28T07:44:35Z",
    "text": "Spreading some salt around Airdrie",
    "user": 1,
    "engagementsCount": 3,
    "engagements": [
      {
        "id": 616,
        "created": "2018-03-02T12:31:47Z",
        "user": 2
      },
      {
        "id": 618,
        "created": "2018-03-02T12:31:47Z",
        "user": 4
      },
      {
        "id": 617,
        "created": "2018-03-02T12:31:47Z",
        "user": 4
      }
    ]
}

[
  {
      "id": 1,
      "username": "John Sno"
  },
  {
      "id": 2,
      "username": "Ice Queen"
  }
]

Multiple JSON Sources Problem

DynamoDB

Relational Database

Engagement

Status

User

Multiple Persistence Stores Problem

    @Rule Dru dru = Dru.plan {
        from 'statuses.json', {
            map {
                to Status
            }
        }
    }

    void setup() {
        dru.load()
    }

    void 'test loaded'() {
        expect:
            Status.list().size() == 25
            User.list().size() == 13
            Engagement.list().size() == 133

        when:
            Status first = dru.findByTypeAndOriginalId(Status, 117)
        then:
            first.user
            first.user.username == 'John Sno'
            first.text == 'Spreading some salt around Airdrie'
            first.engagements
            first.engagements.size() == 3
    }

Loading Data with Dru

Condition not satisfied:

dru.report.empty
|   |      |
|   |      false
|   ============================================================================
|   ‖ TYPE     ‖ PROPERTY         ‖ PATH                            ‖ VALUE    ‖
|   ============================================================================
|   ‖ Status   | engagementsCount | statuses.json/.engagementsCount | 3        ‖
|   ============================================================================
com.agorapulse.dru.Dru@6165a030

	at gritter.StatusServiceSpec.test loaded(StatusServiceSpec.groovy:42)

    void 'all data handled'() {
        expect:
            dru.report.empty
    }

Source Data Usage Report

    @Rule Dru dru = Dru.plan {
        from 'statuses.json', {
            map {
                to Status, {
                    ignore 'engagementsCount'
                }
            }
        }
    }

Ignoring Data

    void 'get top statuses'() {
        given:
            DateFormat format = new SimpleDateFormat('yyyy-MM-dd')
        when:
            List<Status> statuses = service.findTopStatuses(
                    format.parse('2018-02-01'),
                    format.parse('2018-03-20'),
                    50
            )
        then:
            statuses
            statuses.size() == 19
        when:
            Status first = statuses[0]
        then:
            first.user
            first.user.username == 'Sprinkles'
            first.text == 'Refueling before leaving Larkhall'
            first.engagements
            first.engagements.size() == 11
    }

Service Unit Test

    static PreparedDataSet statuses = Dru.prepare {
        from 'statuses.json', {
            map {
                to Status, {
                    ignore 'engagementsCount'
                }
            }
        }
    }

    @Rule Dru dru = Dru.plan {
        include statuses
    }

Test Data Set Reuse

Dru

Reuse existing denormalised data
Mix & Match
- POJO
- GORM
- DynamoDB
Formats
- JSON
- YAML
Easily extensible

Gru

How to test HTTP endpoints effectively?

Mind the Gap

Fast

Complex

DSL

Mocks

Slow

Deployment

URL Mappings

Interceptors

Controllers

Views

Gru

Integration

Unit

Isolation

    def index() {
        Map queryParameters = [
                max: params.int('max', 25),
                offset: params.int('offset', 0),
                sort: params.sort ?: 'created',
                order: params.order ?: 'desc'
        ]
        [statuses: Status.list(queryParameters)]
    }

Controller Action

    void 'test index'() {
        when:
            params.max = 10
            params.offset = 5

            def model = controller.index()

        then:
            model
            model.statuses
            model.statuses.size() == 10

        when:
            def status = model.statuses.first()
        then:
            status
            status.user
            status.user.username == 'Ready Spready Go'
            status.text == 'Grooming snow close to Kirkintilloch'
    }

Controller Unit Test (Action)

import gritter.Engagement
import gritter.Status

model {
	Status status
}

json g.render(status, [excludes: ['user', 'engagements']]) {
	user g.render(status.user)
    engagementsCount status.engagements?.size() ?: 0
    engagements g.render(status.engagements ?: [], [excludes: ['status', 'user']]) { Engagement engagement ->
        user g.render(engagement.user)
    }
}

JSON View

class StatusGsonSpec extends Specification implements JsonViewUnitTest {

    void 'test index rendered'() {
        when:
            Map<String, List<Status>> model = [statuses: [new Status(
                    user: new User(username: 'Vlad'),
                    text: 'Hi all!'
            )]]
            JsonRenderResult result = render(view: "/status/index", model: model)
        then:
            result.json instanceof List
            result.json.size() == 1
            result.json[0].user
            result.json[0].user.username == 'Vlad'
            result.json[0].text == 'Hi all!'
            result.json[0].engagements instanceof List
            result.json[0].engagementsCount == 0
    }

}

Json View Unit Test

    void 'test index rendered with json unit'() {
        when:
            Map<String, List<Status>> model = [statuses: [new Status(
                    user: new User(username: 'Vlad'),
                    text: 'Hi all!'
            )]]
            JsonRenderResult result = render(view: "/status/index", model: model)
        then:
            JsonFluentAssert.assertThatJson(result.jsonText).isEqualTo('''[
                {
                    "created" : "${json-unit.ignore}",
                    "text" : "Hi all!",
                    "user" : {
                        "username" : "Vlad"
                    },
                    "engagementsCount" : 0,
                    "engagements" : []
                }
            ]''')
    }

Unit Test with JsonUnit

class UrlMappingsSpec extends Specification implements UrlMappingsUnitTest<UrlMappings> {

    void setup() {
        mockController StatusController
    }

    void 'check forward mapping'() {
        expect:
            assertForwardUrlMapping('/status', controller: 'status', action: 'index')
    }

}

URL Mappings Unit Test

What was the goal?

    @Rule Dru dru = Dru.plan {
        include StatusServiceSpec.statuses
    }

    @Rule Gru gru = Gru.equip(Grails.steal(this)).prepare {
        include UrlMappings
    }

    void setup() {
        dru.load()
    }

    void 'get statuses'() {
        expect:
            gru.test {
                get '/status', {
                    params max: 10, offset: 5
                }

                expect {
                    json 'statuses.json'
                }
            }
    }

Gru Test

Condition failed with Exception:

gru.test { get '/status', { params max: 10, offset: 5 executes  controller.&index } expect { json 'statuses.json' } }
|   |
|   org.codehaus.groovy.runtime.InvokerInvocationException: java.lang.AssertionError: New fixture files were created: gritter/StatusControllerSpec/statuses.json. Please, run the test again to verify it is repeatable.
com.agorapulse.gru.Gru@311de37

	at gritter.StatusControllerSpec.get statuses(StatusControllerSpec.groovy:50)
Caused by: org.codehaus.groovy.runtime.InvokerInvocationException: java.lang.AssertionError: New fixture files were created: gritter/StatusControllerSpec/statuses.json. Please, run the test again to verify it is repeatable.
	... 1 more
Caused by: java.lang.AssertionError: New fixture files were created: gritter/StatusControllerSpec/statuses.json.
Please, run the test again to verify it is repeatable.
	at com.agorapulse.gru.minions.AbstractContentMinion.doVerify(AbstractContentMinion.groovy:43)
	at com.agorapulse.gru.minions.AbstractMinion.verify(AbstractMinion.java:44)
	at com.agorapulse.gru.Squad.verify(Squad.java:117)
	at com.agorapulse.gru.Gru.verify(Gru.java:143)
	at com.agorapulse.gru.Gru.asBoolean(Gru.java:124)
	... 1 more

Autogenerated Fixture File

    def save(Status status) {
        User user = currentUser

        if (!user) {
            render status: UNAUTHORIZED
            return
        }

        status.user = user
        status.validate()

        if (status.hasErrors()) {
            respond status.errors
            return
        }

        status.save flush: true

        respond status, [status: CREATED, view: 'show']
    }

Save Action

class UserInterceptor {

    UserInterceptor() { matchAll() }

    boolean before() {
        String username = request.getHeader('User')

        if (username) {
            request.setAttribute('user', User.findByUsername(username))
        }

        return true
    }

}

Interceptor

    @Rule Gru gru = Gru.equip(Grails.steal(this)).prepare {
        include UrlMappings
        include UserInterceptor
    }


    void 'create status'() {
        expect:
            gru.test {
                post '/status', {
                    headers User: 'John Sno'
                    json 'newStatusRequest.json'

                }
                expect {
                    status CREATED
                    json 'newStatusResponse.json'
                }
            }
    }

{
  "text": "No Snow here, let's take a break!"
}

Gru Test with Interceptor

{
  "id": "${json-unit.matches:positiveIntegerString}",
  "created": "${json-unit.matches:isoDateNow}",
  "text": "No Snow here, let's take a break!",
  "user": {
    "id": "${json-unit.matches:positiveIntegerString}",
    "username": "John Sno"
  },
  "engagementsCount": 0,
  "engagements": []
}

JsonUnit Extra Matchers

@Integration @Rollback class StatusControllerIntegrationSpec extends Specification  {

    @Value('${local.server.port}') Integer serverPort

    @Rule Gru<Http> gru = Gru.equip(Http.steal(this))

    void setup() {
        final String serverUrl = "http://localhost:${serverPort}"
        gru.prepare {
            baseUri serverUrl
        }
    }

    void 'create status'() {
        expect:
            gru.test {
                post '/status', {
                    headers User: 'John Sno'
                    json 'newStatusRequest.json'

                }
                expect {
                    status CREATED
                    json 'newStatusResponse.json'
                }
            }
    }
}

Gru Test with HTTP

Gru

Groovy HTTP Testing Framework
Specification by Example
Sensible defaults
Built-in JsonUnit
Supports
- HTTP
- Grails Controllers
- Spring MVC
- AWS API Proxy (soon)
Easily extensible

Gru HTTP

Status assertions
Formats in & out
- Plain text
- JSON
- HTML
Query parameters
Headers
Redirection

Gru Grails

Based on the new testing framework
Extends Gru HTTP with
- URL Mappings
- Interceptors
- Model assertions
- Forwarding
JSON views support

Testing Grails with Dru & Gru

Vladimír Oraný

Gru & Dru

Agenda

Dru

Example Application

Example Application

Example Application

Example Application

Example Application

Domain Classes

Sample Data (BootStrap)

Service under Test

Existing Data (View)

Denormalized Data

Loading Data with JsonSlurper

Multiple JSON Sources Problem

Multiple Persistence Stores Problem

Loading Data with Dru

Source Data Usage Report

Ignoring Data

Service Unit Test

Test Data Set Reuse

Dru

Gru

Mind the Gap

Gru

Integration

Unit

Controller Action

Controller Unit Test (Action)

JSON View

Json View Unit Test

Unit Test with JsonUnit

URL Mappings Unit Test

What was the goal?

Gru Test

Autogenerated Fixture File

Save Action

Interceptor

Gru Test with Interceptor

JsonUnit Extra Matchers

Gru Test with HTTP

Gru

Gru HTTP

Gru Grails

Testing Grails with Dru & Gru

More from musketyr
