Les recettes de Grand Mère

Historique du Streaming

• MPEG 4
• RTMP (Real Time Messaging Protocol)
• Mono BitRate

• Apple HLS / Adobe HDS / Smooth Streaming
• HTTP
• ABR (Adaptive BitRate)
• DRM

• Google DASH
• HTTP
• MSE / EME
• CENC (Common Encryption)

Avant 2010

2016

500g de farine

HLS - HTTP Live Streaming

HTTP Live Streaming

Streaming basé sur le HTTP

#EXTM3U
#EXT-X-VERSION:3
#EXT-X-FAXS-CM:MII6nQYJKoZIhvc......VbIUHxKH5Yex07/lc9tDTboVVG8gpQBqijNldduTt7qVYQ7XdxfX2/PvDYKFr08ZVQM5MZz+6jVfsXfgHMLpPm
#EXT-X-STREAM-INF:BANDWIDTH=2056000,RESOLUTION=960x540,CODECS="avc1.64001F,mp4a.40.2"
224_5.m3u8
#EXT-X-STREAM-INF:BANDWIDTH=408313,RESOLUTION=400x224,CODECS="avc1.42C01E,mp4a.40.2"
224_6.m3u8
#EXT-X-STREAM-INF:BANDWIDTH=828371,RESOLUTION=640x360,CODECS="avc1.42C01E,mp4a.40.2"
224_7.m3u8
#EXT-X-STREAM-INF:BANDWIDTH=1328395,RESOLUTION=720x406,CODECS="avc1.42C01E,mp4a.40.2"
224_8.m3u8

#EXTM3U
#EXT-X-VERSION:3
#EXT-X-TARGETDURATION:6
#EXT-X-FAXS-CM:
#EXT-X-KEY:METHOD=AES-128,URI="faxs://faxs.adobe.com",IV=0x469ED9BADF0AF2D794154BBC69103C01
#EXT-X-MEDIA-SEQUENCE:533052
#EXTINF:6.000,
224_5_533052.ts?m=1466673026
#EXTINF:6.000,
224_5_533053.ts?m=1466673026
#EXTINF:6.000,
224_5_533054.ts?m=1466673026
#EXTINF:6.000,
224_5_533055.ts?m=1466673026
#EXTINF:6.000,
224_5_533056.ts?m=1466673026
#EXTINF:6.000,
224_5_533057.ts?m=1466673026
#EXTINF:6.000,
224_5_533058.ts?m=1466673026
#EXTINF:6.000,
224_5_533059.ts?m=1466673026
#EXTINF:6.000,
224_5_533060.ts?m=1466673026

5 oeufs

DASH - Dynamic Adaptive Streaming over HTTP

DASH

Standard de format de diffusion audiovisuelle sur Internet basé sur la norme ISO/IEC 23009-1

<MPD xmlns="urn:mpeg:DASH:schema:MPD:2011" mediaPresentationDuration="PT0H3M1.63S" minBufferTime="PT1.5S" profiles="urn:mpeg:dash:profile:isoff-on-demand:2011"
type="static">
  <Period duration="PT0H3M1.63S" start="PT0S">
    <AdaptationSet>
      <ContentComponent contentType="video" id="1" />
      <Representation bandwidth="4190760" codecs="avc1.640028" height="1080" id="1" mimeType="video/mp4" width="1920">
        <BaseURL>car-20120827-89.mp4</BaseURL>
        <SegmentBase indexRange="674-1149">
          <Initialization range="0-673" />
        </SegmentBase>
      </Representation>
      <Representation bandwidth="2073921" codecs="avc1.4d401f" height="720" id="2" mimeType="video/mp4" width="1280">
        <BaseURL>car-20120827-88.mp4</BaseURL>
        <SegmentBase indexRange="708-1183">
          <Initialization range="0-707" />
        </SegmentBase>
      </Representation>
      <Representation bandwidth="869460" codecs="avc1.4d401e" height="480" id="3" mimeType="video/mp4" width="854">
        <BaseURL>car-20120827-87.mp4</BaseURL>
        <SegmentBase indexRange="708-1183">
          <Initialization range="0-707" />
        </SegmentBase>
      </Representation>
      <Representation bandwidth="686521" codecs="avc1.4d401e" height="360" id="4" mimeType="video/mp4" width="640">
        <BaseURL>car-20120827-86.mp4</BaseURL>
        <SegmentBase indexRange="708-1183">
          <Initialization range="0-707" />
        </SegmentBase>
      </Representation>
      <Representation bandwidth="264835" codecs="avc1.4d4015" height="240" id="5" mimeType="video/mp4" width="426">
        <BaseURL>car-20120827-85.mp4</BaseURL>
        <SegmentBase indexRange="672-1147">
          <Initialization range="0-671" />
        </SegmentBase>
      </Representation>
      <Representation bandwidth="100000" codecs="avc1.4d4015" height="144" id="5" mimeType="video/mp4" width="256">
        <BaseURL>car-20120827-160.mp4</BaseURL>
        <SegmentBase indexRange="671-1146">
          <Initialization range="0-670" />
        </SegmentBase>
      </Representation>
    </AdaptationSet>
    <AdaptationSet>
      <ContentComponent contentType="audio" id="2" />
      <Representation bandwidth="127236" codecs="mp4a.40.2" id="6" mimeType="audio/mp4" numChannels="2" sampleRate="44100">
        <BaseURL>car-20120827-8c.mp4</BaseURL>
        <SegmentBase indexRange="592-851">
          <Initialization range="0-591" />
        </SegmentBase>
      </Representation>
      <Representation bandwidth="255236" codecs="mp4a.40.2" id="7" mimeType="audio/mp4" numChannels="2" sampleRate="44100">
        <BaseURL>car-20120827-8d.mp4</BaseURL>
        <SegmentBase indexRange="592-851">
          <Initialization range="0-591" />
        </SegmentBase>
      </Representation>
      <Representation bandwidth="31749" codecs="mp4a.40.5" id="8" mimeType="audio/mp4" numChannels="1" sampleRate="22050">
        <BaseURL>car-20120827-8b.mp4</BaseURL>
        <SegmentBase indexRange="592-851">
          <Initialization range="0-591" />
        </SegmentBase>
      </Representation>
    </AdaptationSet>
  </Period>
</MPD>

1 Litre de lait

MSE - Media Source Extension

MSE - Media Source Extension

Extension de l'interface HTMLMediaElement

utilisé par HTMLVideoElement et HTMLAudioElement

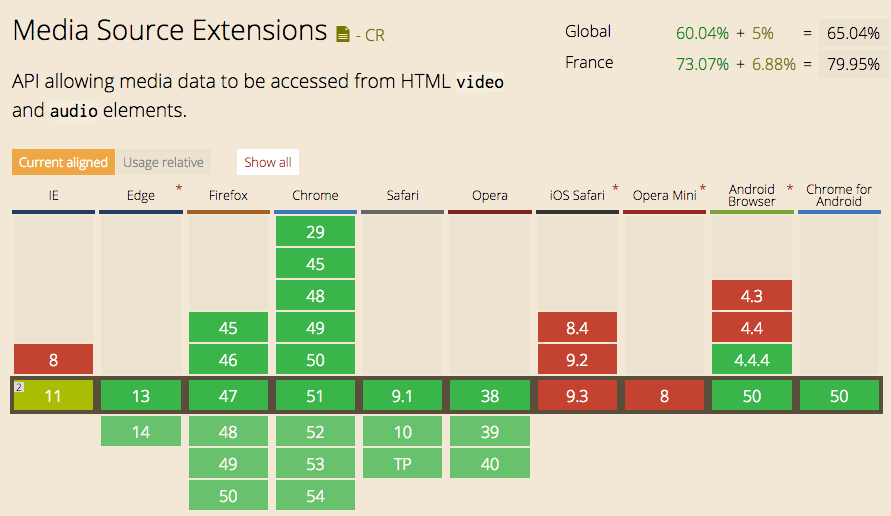

Can I use ?

3 cuillères à soupe d'huile

EME - Encrypted Media Extensions

EME - Encrypted Media Extensions

Extension de MSE qui met en place un moyen de communication entre les navigateurs et leurs fournisseurs DRM

Et 1/2 verre de biere

Et laisser reposer ....

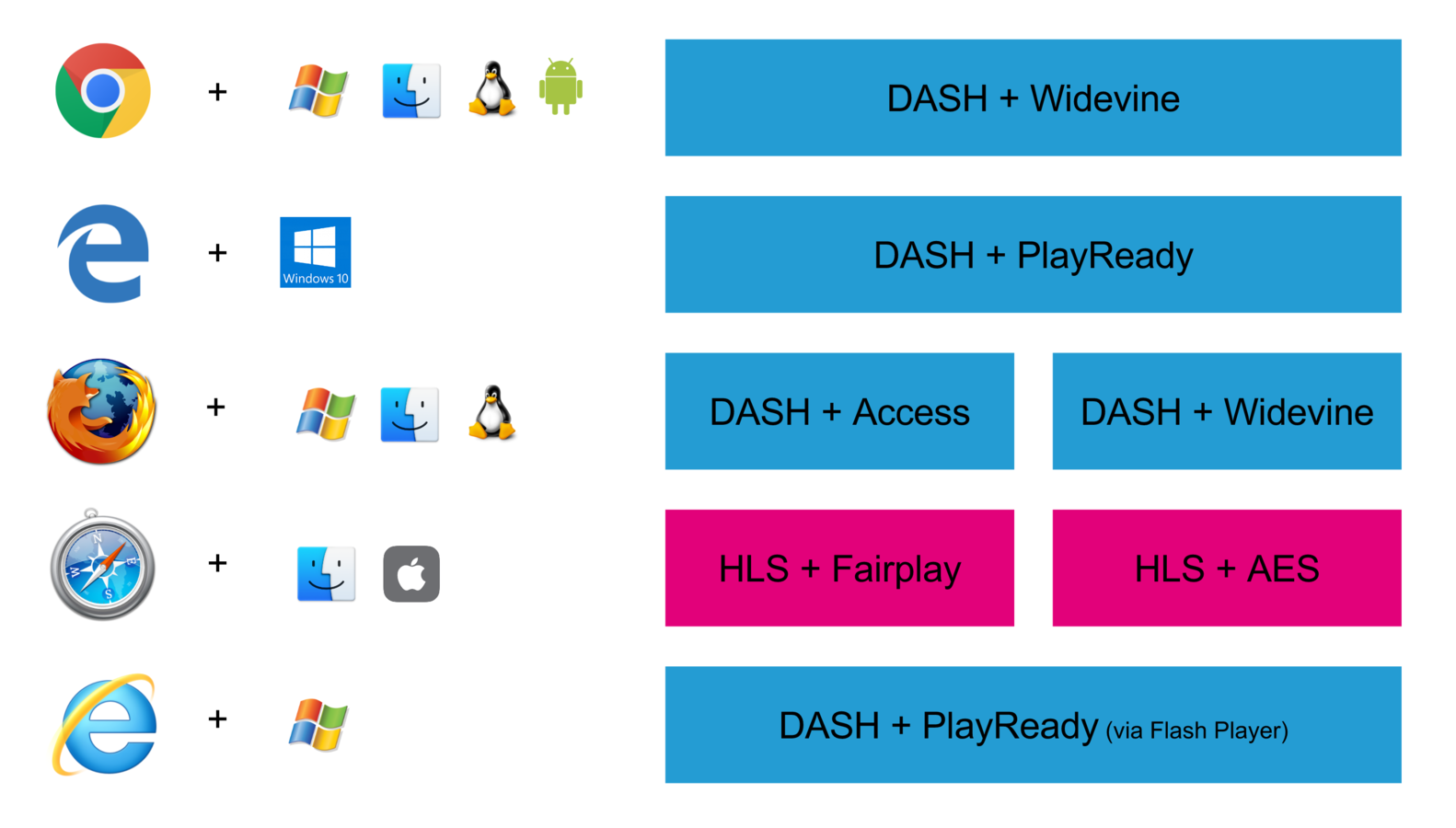

Pour bien réussir un player

Les étapes

Pour la suite

SDK Video et Player

Objectif Fin 2016

Objectif 2017

Des questions ?
