Animating React with Finesse
Nikhil Sharma, SDE II Postman
![](https://s3.amazonaws.com/media-p.slid.es/uploads/983750/images/11348374/Mypicture__1_.jpg)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/983750/images/11348373/looking_up.jpeg)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/983750/images/11348385/WhatsApp_Image_2024-05-21_at_1.50.24_AM.jpeg)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/983750/images/11348384/WhatsApp_Image_2024-05-21_at_1.48.42_AM.jpeg)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/983750/images/11348383/WhatsApp_Image_2024-05-21_at_1.49.37_AM.jpeg)
Hey, I'm Nikhil 👋
I love to talk about performance, react and design systems
nik72619c
Â
     niksharma1997
![](https://s3.amazonaws.com/media-p.slid.es/uploads/983750/images/11348390/pasted-from-clipboard.png)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/983750/images/11348394/pasted-from-clipboard.png)
"Everything that you do is an animation"
![](https://s3.amazonaws.com/media-p.slid.es/uploads/983750/images/11348359/progressive-web-app-illustration-gif-animation-banner.gif)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/983750/images/11348358/1_nZfHYlIIH_WmTuibO-vZzQ.gif)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/983750/images/11348357/Adding-a-task.gif)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/983750/images/11348361/pasted-from-clipboard.png)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/983750/images/11348362/image_processing20191116-9633-1xak0mh.gif)
Why do the frames drop?
There's a deadline to produce each frame...
1000ms/60fps = 16.7ms per frame
let myBox = document.querySelector('.my-box');
if (myBox) {
myBox.classList.add('my-special-box')
}
1
oh, something changed! I need to generate a new frame.
3
I need to calculate how much space they take on the screen and where they should be positioned
5
 Now, I should combine these bitmaps in the defined order to form the final frame.
2
now I must apply class my-special-class
 to to that <div>
 element).
4
 I should group elements (that have an output) in multiple layers and convert each layer into a bitmap representation in the memory or the video RAM.
1
JS evaluation
3
Layout
5
Composition
2
Style calculation
4
Paint
Which is ...
Why do we need to know all this?
![](https://s3.amazonaws.com/media-p.slid.es/uploads/983750/images/11336130/pasted-from-clipboard.png)
Optimised pipeline = optimised animations
#1: Avoid reflows
Avoid the CSS properties that cause recalculations like display, instead use visibility or opacity
.element {
opacity: 1;
transition: .3s;
}
.element.closed {
opacity: 0;
pointer-events: none;
}
Make elements paint-ready
the will-change property lets the browser know which elements are paint-expensive.
.box { will-change: auto;}
Optimising JS Animations
![](https://s3.amazonaws.com/media-p.slid.es/uploads/983750/images/11344759/pasted-from-clipboard.png)
setInterval()
useEffect(() => {
const intervalId = setInterval(() => {
if (circleRef.current) {
position += speed * direction;
if (position >= distance || position <= 0) {
direction *= -1;
}
circleRef.current.style.transform = `translateX(${position}px)`;
// Additional work to make the setInterval animation more intensive
for (let i = 0; i < 10000000; i++) {}
}
}, 16); // Roughly 60fps
return () => clearInterval(intervalId);
}, []);
![](https://s3.amazonaws.com/media-p.slid.es/uploads/983750/images/11348351/pasted-from-clipboard.png)
setInterval()
![](https://s3.amazonaws.com/media-p.slid.es/uploads/983750/images/11344760/pasted-from-clipboard.png)
- Does not guarantee running at the start of each call
- Runs on the main thread
![](https://s3.amazonaws.com/media-p.slid.es/uploads/983750/images/11344761/mr-bean-mr-beans-holiday.gif)
Missed frame train wagons
       😓
requestAnimationFrame()
useEffect(() => {
const animate = () => {
if (circleRef.current) {
position += speed * direction;
if (position >= distance || position <= 0) {
direction *= -1;
}
circleRef.current.style.transform = `translateX(${position}px)`;
// Additional work to make the animation more intensive
for (let i = 0; i < 10000000; i++) {}
requestAnimationFrame(animate);
}
};
requestAnimationFrame(animate);
return () => cancelAnimationFrame(animate);
}, []);
![](https://s3.amazonaws.com/media-p.slid.es/uploads/983750/images/11348352/pasted-from-clipboard.png)

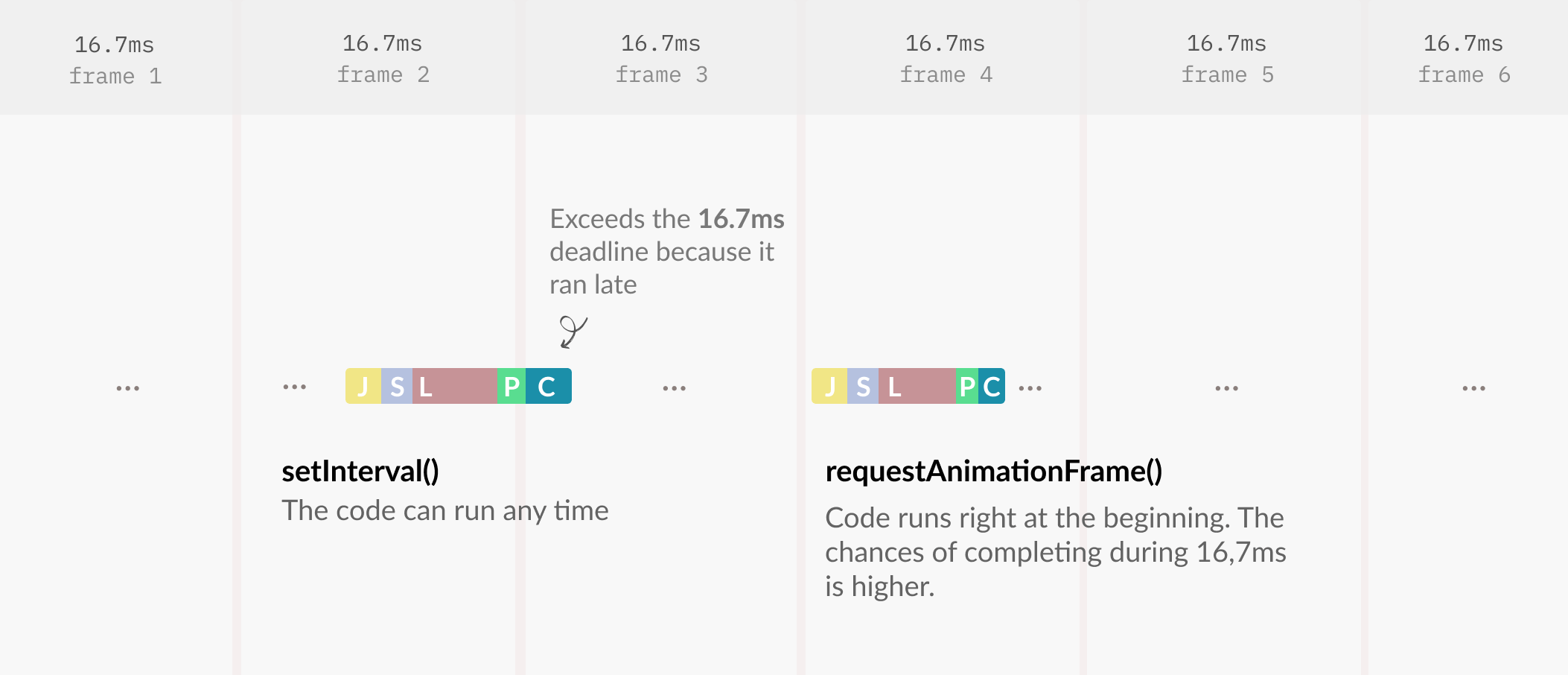

requestAnimationFrame()
- Functions are run at the start instead
- Runs when the browser is ready to paint
- Auto-optimised resource management
![](https://s3.amazonaws.com/media-p.slid.es/uploads/983750/images/11344762/pasted-from-clipboard.png)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/983750/images/11348410/pasted-from-clipboard.png)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/983750/images/11348988/giphy.gif)
CSS is better than js?
- Hardware-accelarated
- Runs on compositor-thread
- Browser-controlled
- Complex animations
CSS is better than js?
useEffect(() => {
const circle = circleRef.current;
if (circle) {
circle.animate(
[{ transform: "translateX(0)" }, { transform: "translateX(200px)" }],
{
duration: 2000,
iterations: Infinity,
direction: "alternate",
}
);
}
}, []);
.circle {
width: 50px;
height: 50px;
background-color: blue;
border-radius: 50%;
position: relative;
animation: moveCircle 2s infinite alternate;
}
@keyframes moveCircle {
from {
transform: translateX(0);
}
to {
transform: translateX(200px);
}
}
CSS
Web Animation API
![](https://s3.amazonaws.com/media-p.slid.es/uploads/983750/images/11348410/pasted-from-clipboard.png)
Using libraries
They are battle-tested, apply all such performance optimisations out of the box
![](https://s3.amazonaws.com/media-p.slid.es/uploads/983750/images/11346832/pasted-from-clipboard.png)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/983750/images/11346838/pasted-from-clipboard.png)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/983750/images/11346840/pasted-from-clipboard.png)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/983750/images/11346832/pasted-from-clipboard.png)
import React from 'react';
import { motion } from 'framer-motion';
const CircleAnimationFramerMotion = () => {
return (
<div style={{ display: 'flex', justifyContent: 'center', alignItems: 'center', height: '100vh' }}>
<motion.div
animate={{ x: [0, 200, 0] }}
transition={{ duration: 2, repeat: Infinity, repeatType: 'reverse' }}
style={{
width: '50px',
height: '50px',
backgroundColor: 'red',
borderRadius: '50%',
}}
></motion.div>
</div>
);
};
export default CircleAnimationFramerMotion;
Efficiency is doing things right; effectiveness is doing the right things.
– Peter Drucker
Intersection Observer API
useEffect(() => {
const observer = new IntersectionObserver(
(entries) => {
entries.forEach((entry) => {
setIsIntersecting(entry.isIntersecting);
});
},
{ threshold: 0.1 } // Adjust the threshold as needed
);
if (circleRef.current) {
observer.observe(circleRef.current);
}
return () => {
if (circleRef.current) {
observer.unobserve(circleRef.current);
}
};
}, []);
getBoundingClientRect()
![](https://s3.amazonaws.com/media-p.slid.es/uploads/983750/images/11346946/pasted-from-clipboard.png)
Avoid recalculations
items.forEach((item) => {
item.style.transform =
"translateY(" + container.getBoundingClientRect().height + "px)";
});
// VS
const containerHeight = container.getBoundingClientRect().height + "px";
items.forEach((item) => {
item.style.transform = "translateY(" + containerHeight + "px)";
Debounce and throtlling
const throttleTime = 100;
function onScroll(event) {
if (Date.now() > prevTime + throttleTime) {
callback();
}
}
window.addEventListener("scroll", onScroll);
![](https://s3.amazonaws.com/media-p.slid.es/uploads/983750/images/11348320/pasted-from-clipboard.png)
- Pixel pipeline
- Using the lighter css styles
- Optimising js animations using requestAnimationFrame
- Using CSS animations + web API
- Avoiding redundant work
Quick recap!
Important Links
Thank You!
Questions?
